Corrado Passat VW Golf 3 VR6 Cupra Bremsanalge 323x28 Brembo caliper adapter
- ✓ 323x28 1ML615301 1ML615301 brake disc
- ✓ 4-piston 1ML615105 / 1ML615106 Seat Leon Cupra R Brembo brake caliper
- ✓ front axle
€210.90*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

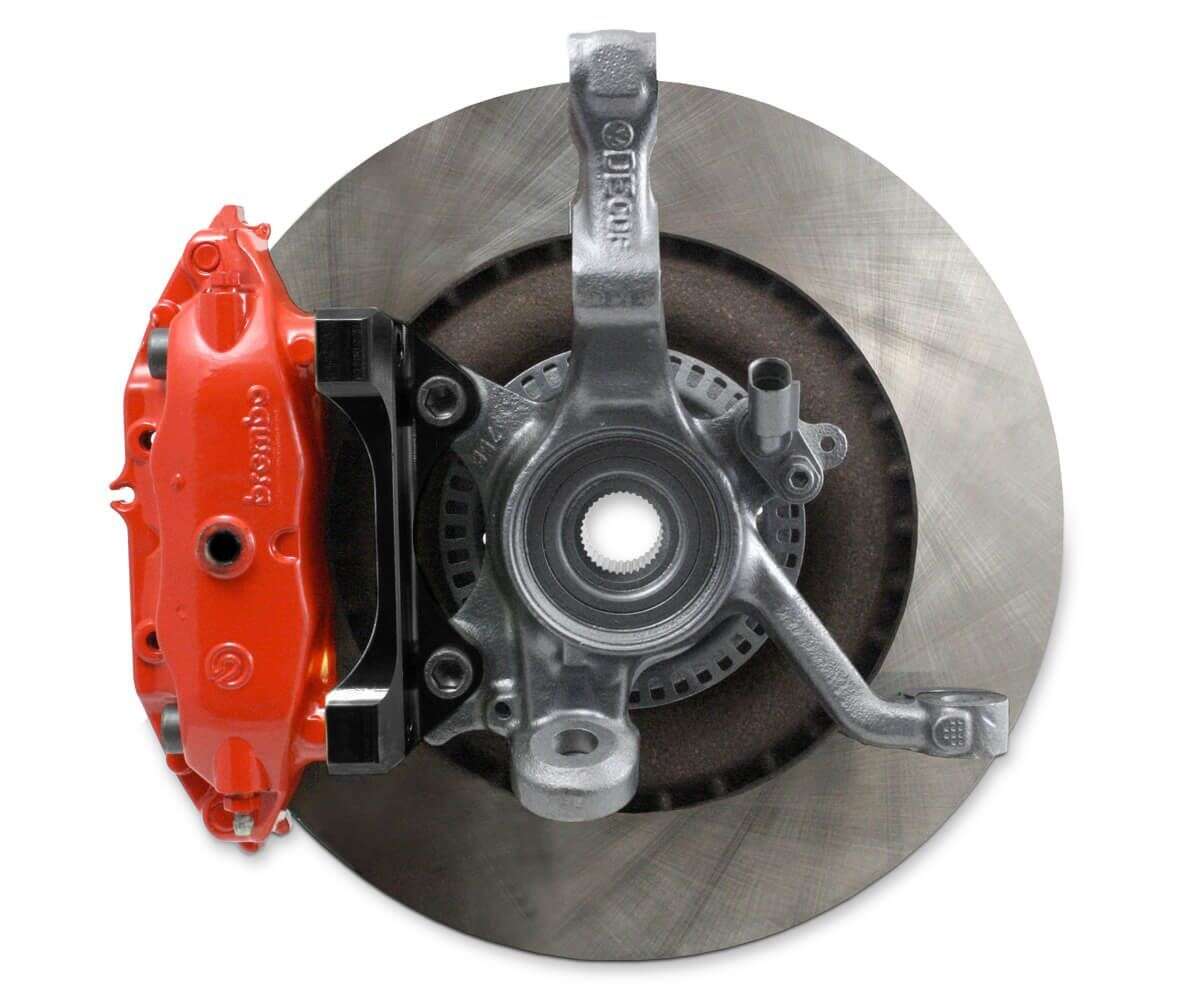

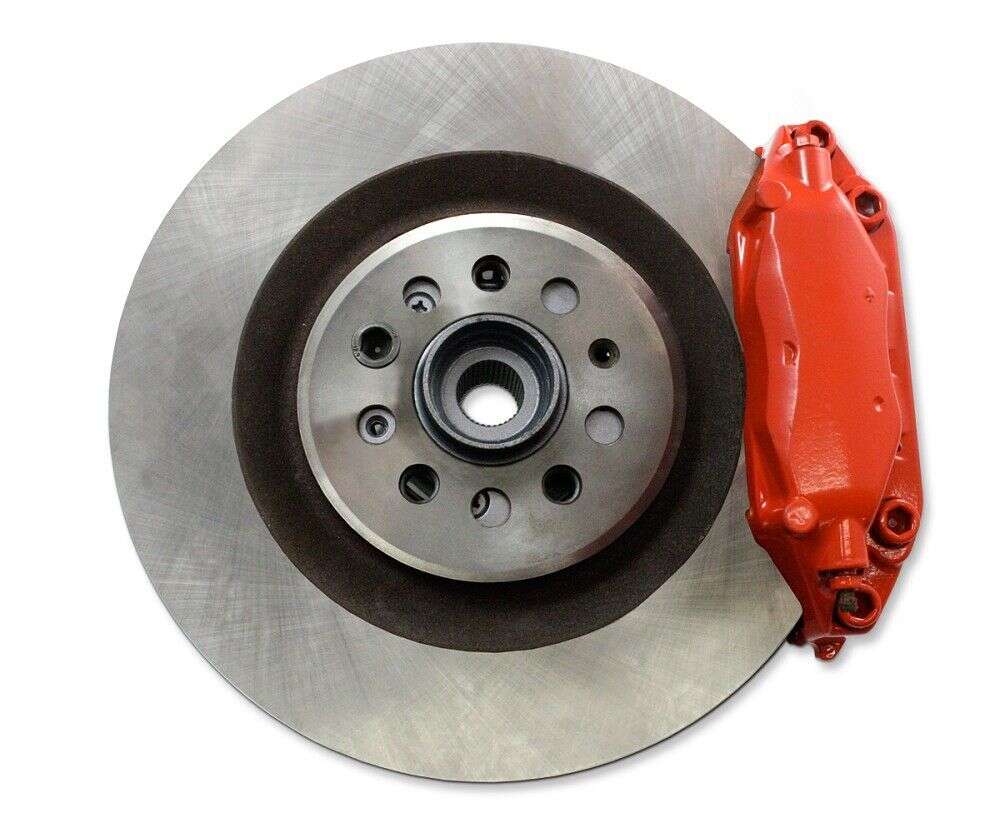

Brake Caliper Adapter for Corrado Golf 2 3 Passat 35i VR6 on the original Cupra R brake system with Brembo 4 piston calipers and the 323x28mm disc brake circle 5x100.
The adapters fit all vehicles with VR6 engine and plus axle eg:
- Golf VR6
- Corrado VR6
- Passat 35i VR6
Advantages of this brake system:
- Extreme deceleration values also in connection with our rear axle brake system
- Due to the material certificate included in the scope of delivery, registration by individual acceptance can also be made possible with production vehicles.
- Direct fitting to the above mentioned models and therefore easy to restore to their original state at any time
- Our EPYTEC brake calliper adapters do not require the return of their serial parts, no rewelding - milling or reaming.
Required Components:
- Original 4-piston Brembo brake calipers from the Seat Leon Cupra R(1M1);1.8 T build 02.02-06.06, part number: 1ML615105 and 1ML615106
- brake discs 323x28mm parts no: 1ML615301 / 1ML615301
- 2x brake discs adapter
- High strength mounting screws

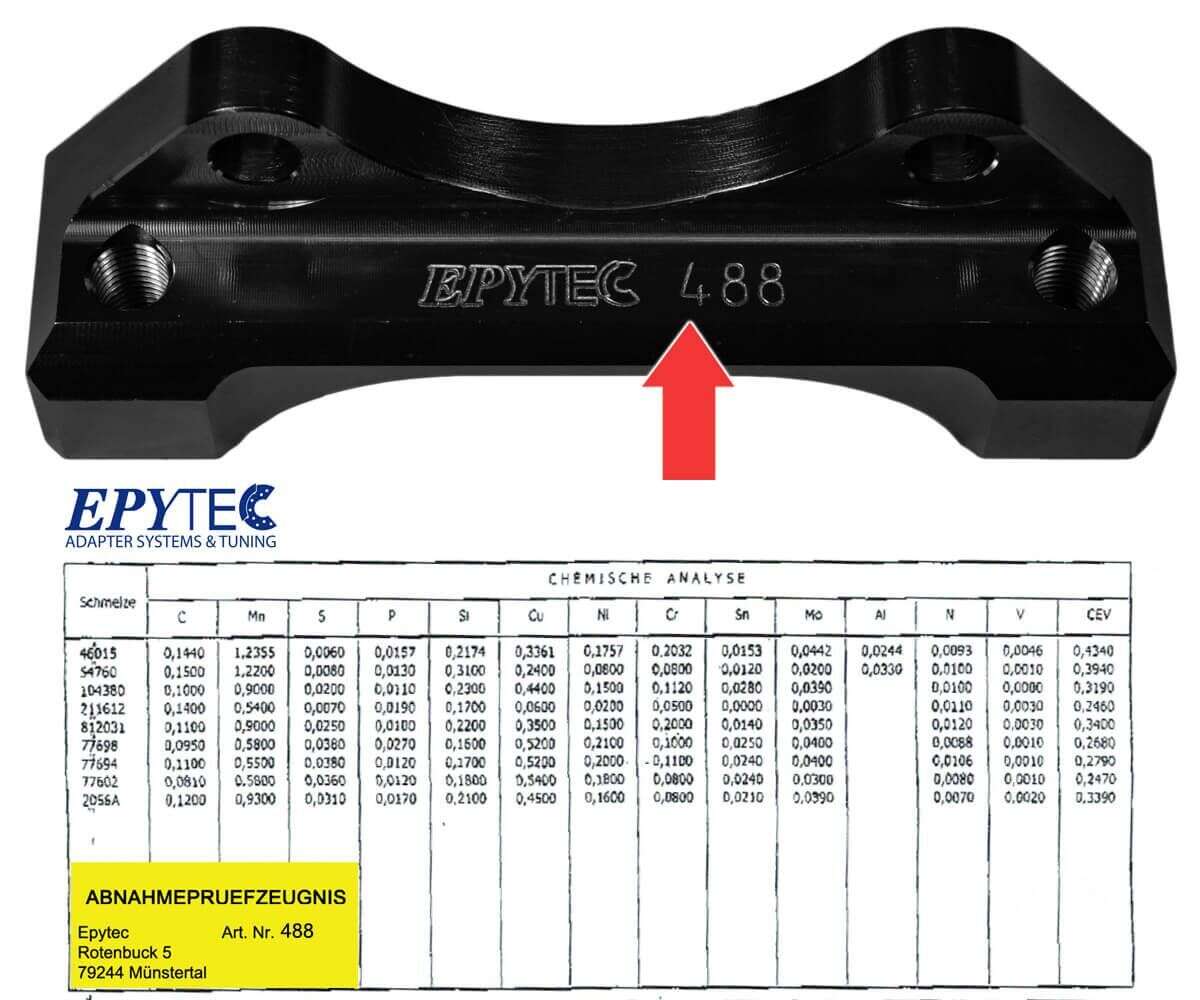

- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
23 July 2021 09:06
Marco R
Ich hatte vorher auch schon einen 6Kolben Halter bestellt. Aber mit Rad/Reifen Kombi und meiner Karosserie gab es damit leider Probleme. Bei dem Halter brauchte ich nur eine 3mm Spurplatte und das ganze passt so ins Radhaus. Das sollte dem TÜV Prüfer gefallen. Wie zufrieden er mit den Papieren ist muss man dann noch testen. Aber die Halter passen sehr gut und sind Top gefertigt. 👍🏻
11 August 2019 13:09
Frank S
Sehr gut gearbeitet passgenau. Sehr empfehlenswert
6 February 2022 15:31
Patrick B
Passt perfekt. Astreine Verarbeitung und Top Qualität. Sehr schnelle Lieferung , perfekter Service und sehr freundlich. Klare Empfehlung
11 August 2019 13:09
Frank S
Sehr gut gearbeitet passgenau. Sehr empfehlenswert
15 May 2020 18:45
Jochen J
sehr gute Arbeit und passt genau
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
