Big Brake systems KIT VW Golf 4 VW Polo 6r WRC Bora Audi A3 TT TTRS RS3 ZR18 Brake caliper 370x32mm Brake disc - Farbe Bremssattel: In Wunschfarbe lackiert

With our big brake kit for the Golf 4, VW Polo 6r WRC, Bora ,Audi A3 TT TTRS RS3 and many other cars, you can convert your front axle to a 6-piston brake system and achieve ideal performance.

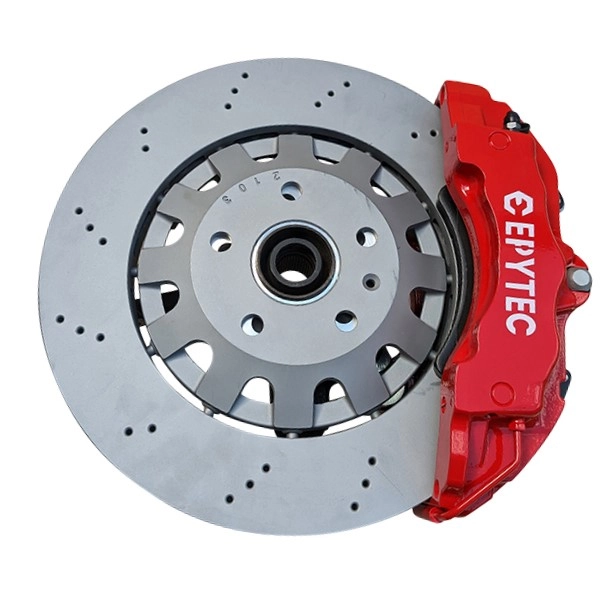

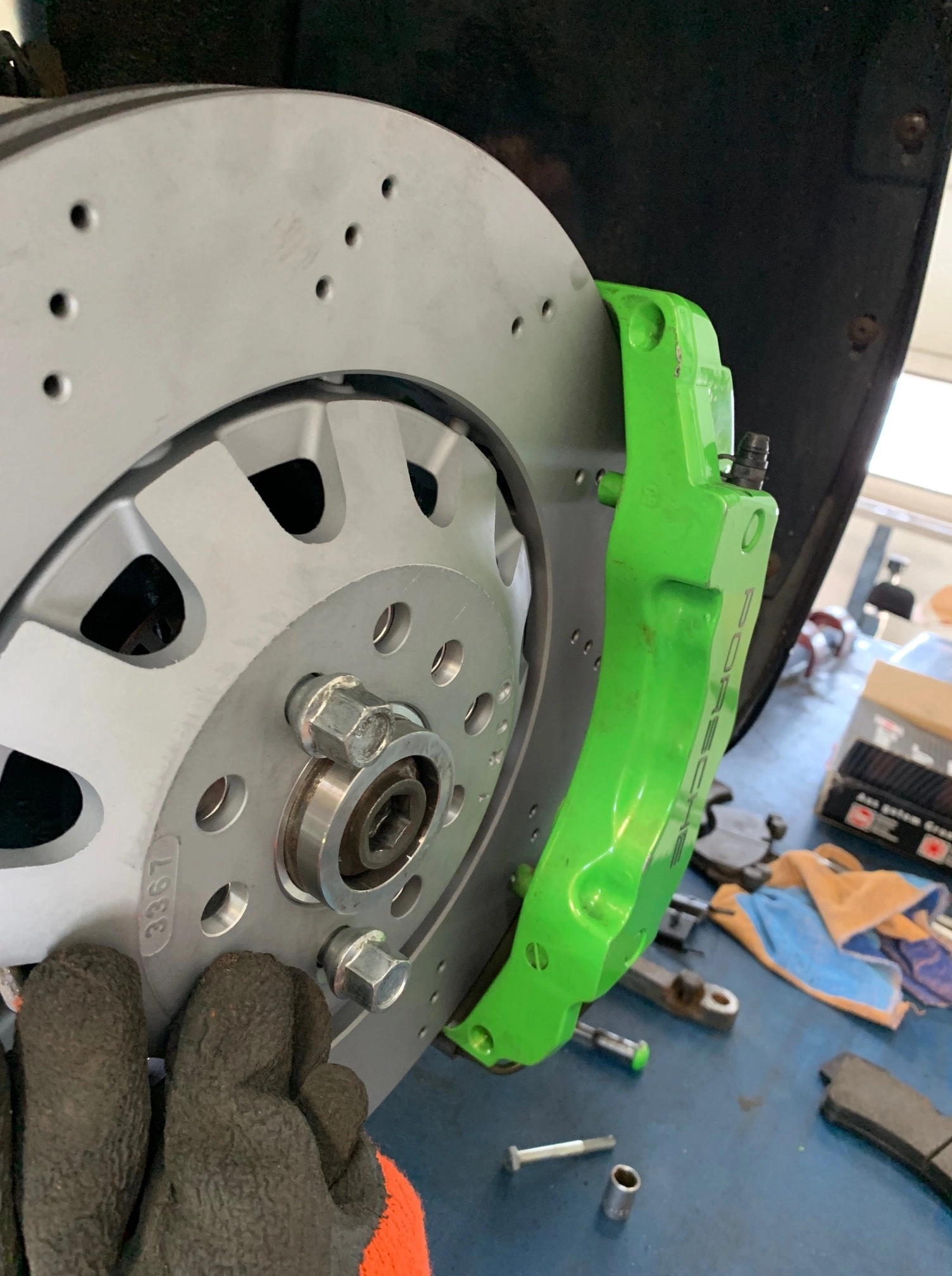

With this high performance brake kit you can use the Porsche ZR18 ZL18 6-piston Brembo calipers in combination with the 370x32 mm brake discs from the Audi TTRS on the Golf 4 and Audi A3 series.

Another advantage of our brake system kit is that it is equipped with the same original brake calipers and brake discs that are installed in series-production cars. These OE parts not only make the replacement of the brakes simple and uncomplicated, but also facilitate the registration with the TÜV.

The big brake kit is not only sporty, but also suitable for everyday use and, thanks to the perforated sports brake discs in conjunction with our ceramic lining, enables ideal performance while reducing brake dust, temperature and wear.

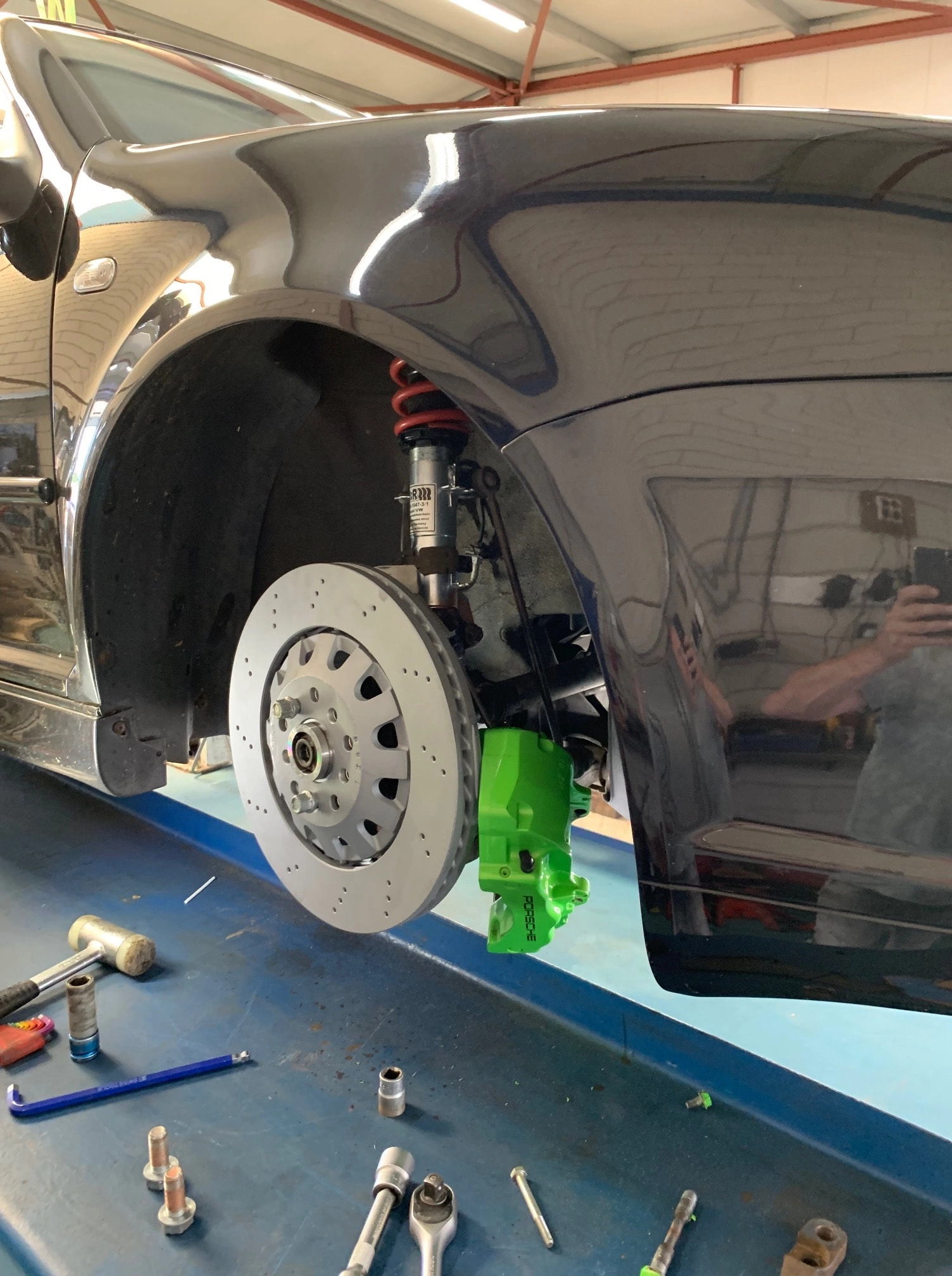

With this high-performance big brake kit, you can get started straight away and have everything you need to convert your front axle to a 6-piston brake system.

The high performance big brake kit is suitable for the following cars:

• Audi A3 (8L)
• Audi TT (8N)
• VW Golf 4
• VW Bora
• VW Beetle
• VW Polo (9N)
• VW Polo 6R WRC
• Seat Ibiza
• Seat Leon

Advantages of this big brake kit:

• our components, such as brake callipers and brake discs, come from series-production cars and are OE parts. This makes replacing the brakes simple and uncomplicated and facilitates registration with the TÜV.
• The material certificate included in the scope of delivery enables registration by individual acceptance even for series-production cars.
• High-performance brake pads with longer service life than the original pads
• extreme deceleration values also in combination with our rear axle brake system
• directly fitting to the above mentioned models and therefore easily rebuildable to original condition at any time

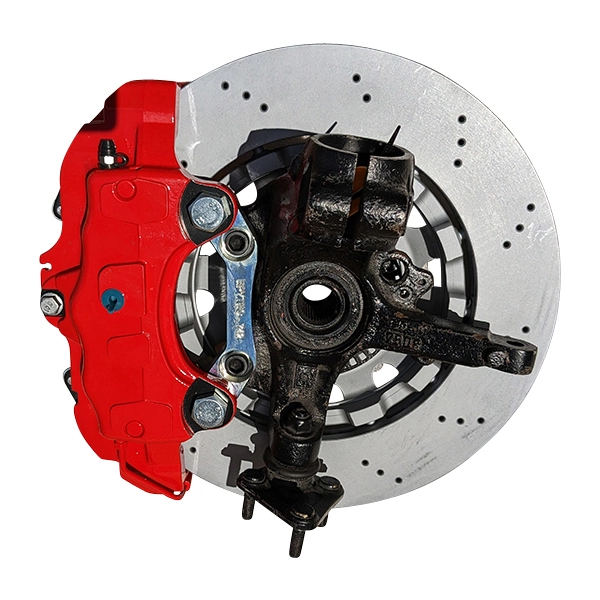

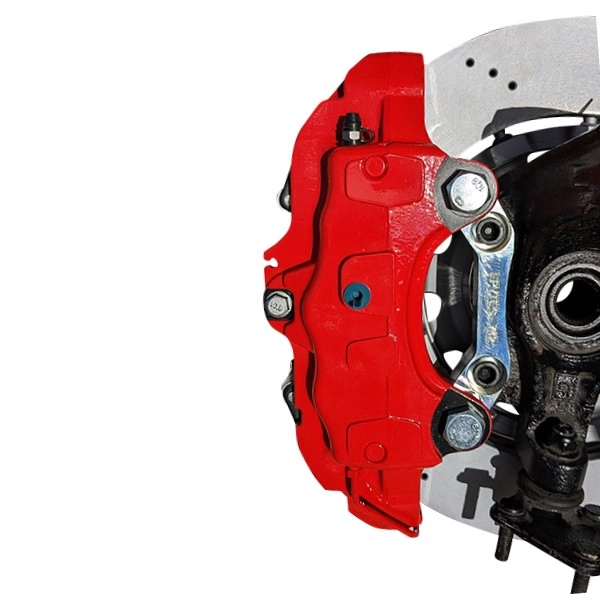

• our EPYTEC brake caliper adapters require no sending in of your stock parts, no re-welding, re-milling or re-drilling.

Note:

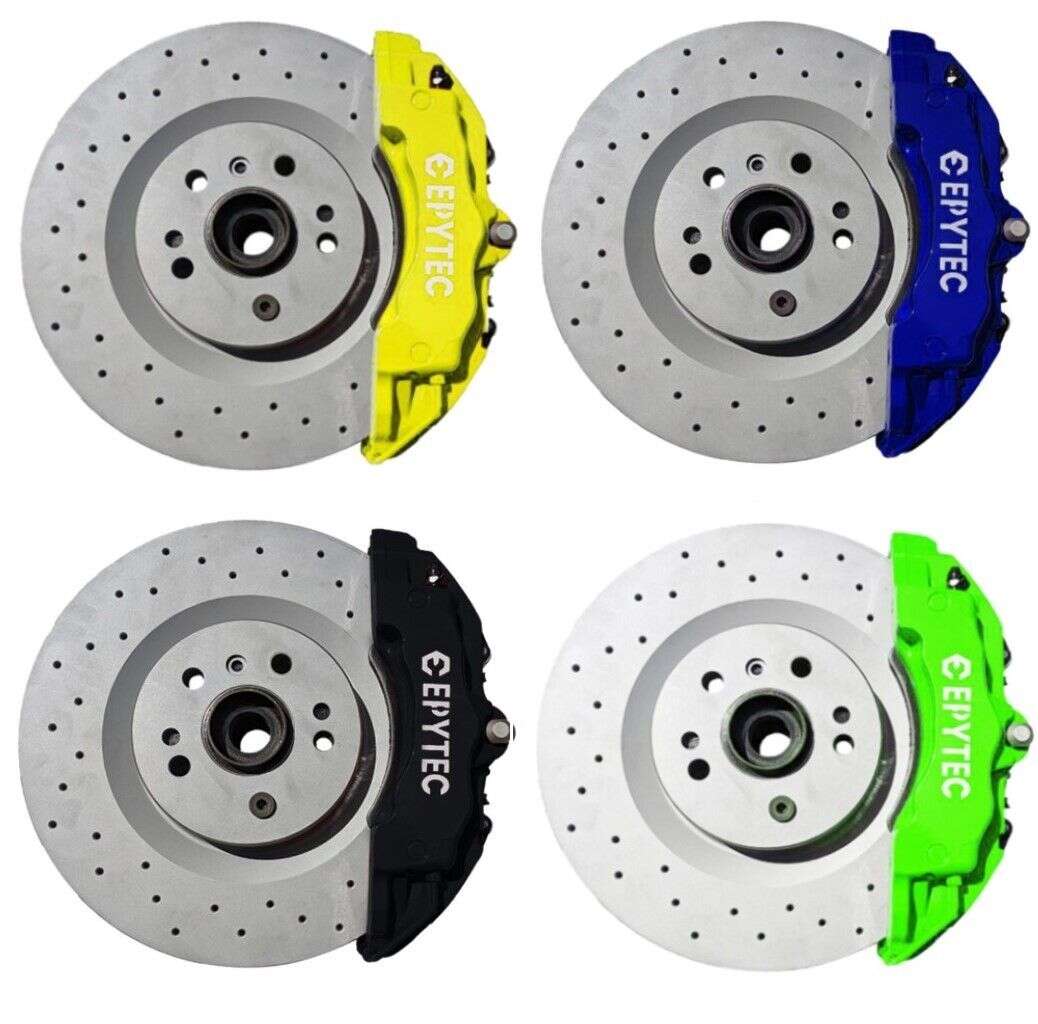

Please note that these brake calipers will be delivered in the color of your choice, according to your specifications.

Get our high performance brake kit now and experience ideal performance and durability.

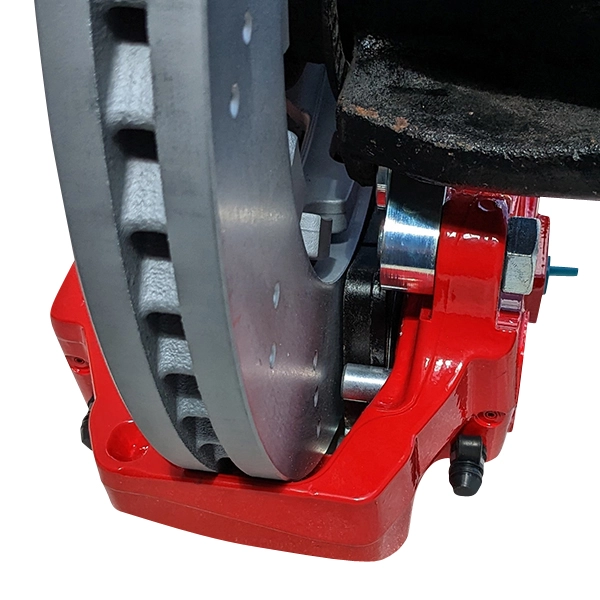

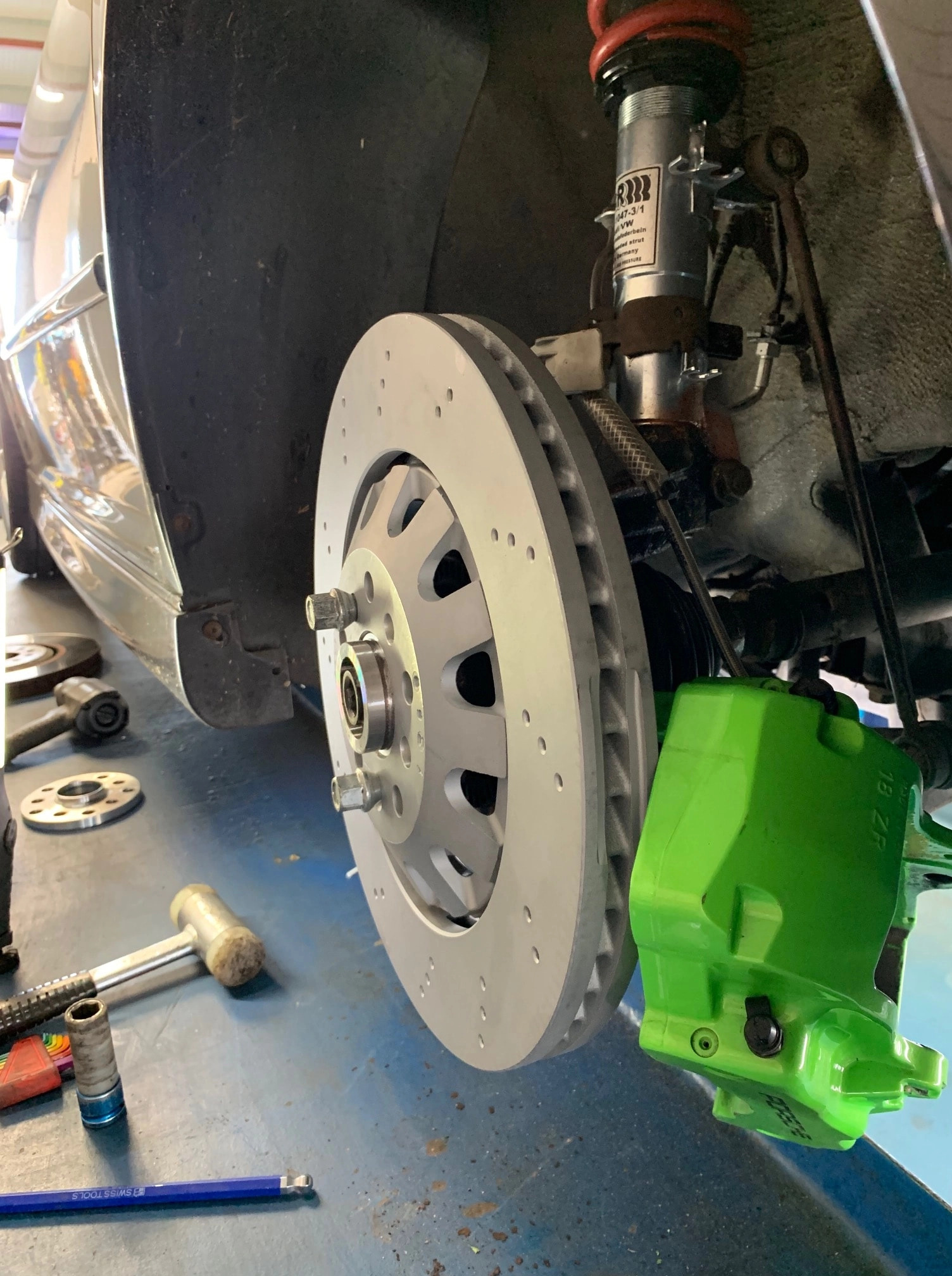

As the TTRS brake disc would touch the wishbone due to the high overall height, we have developed 8mm track plates that are mounted under the brake disc. This allows the brake discs to move further out. In addition, the brake disc is perfectly centred on the steering knuckle with these wheel spacers. The wheel spacers are of course included in the scope of delivery.

Important!:

The adapter is only suitable with the cast wishbones OE: 8N0 407 151 A.

These are fitted as standard in the Golf 4 R32, Audi S3 8L, and Audi TT 8N 1.8T and the Quattro models. For all other models of the Golf 4 and Audi A3 series, this cast wishbone must be used, otherwise no steering angle is possible. The stabiliser OE: 1J0411305AF must also be converted for the cars that do not have the cast wishbone installed as standard.

We have the matching wishbones in the matching accessories and they can be ordered directly.

The problem with the wishbone only applies to conversions to Z18 and Z17 brake calipers. For all other adapters that we still have, such as conversion to 4-piston Porsche Boxter, Audi TTRS or 6-piston Porsche Panamera brake calipers for the Golf 4 Audi A3 series, the adapters fit with all wishbones.

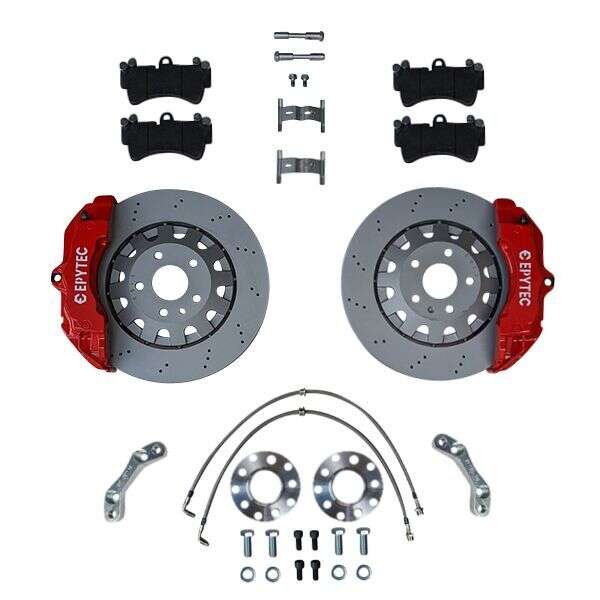

Scope of delivery:

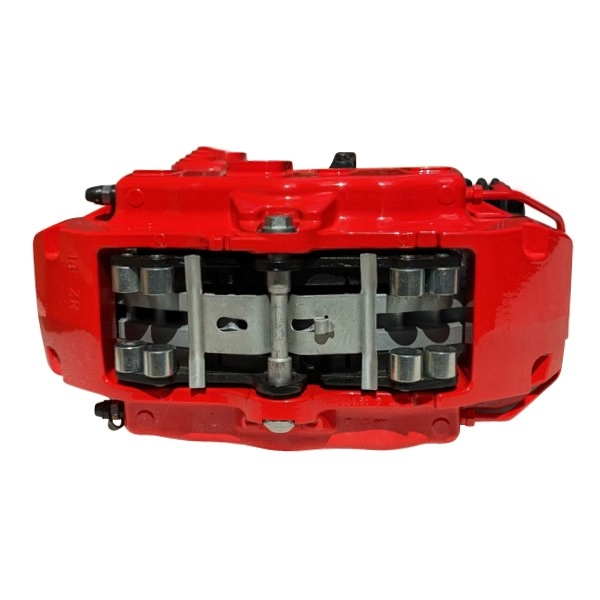

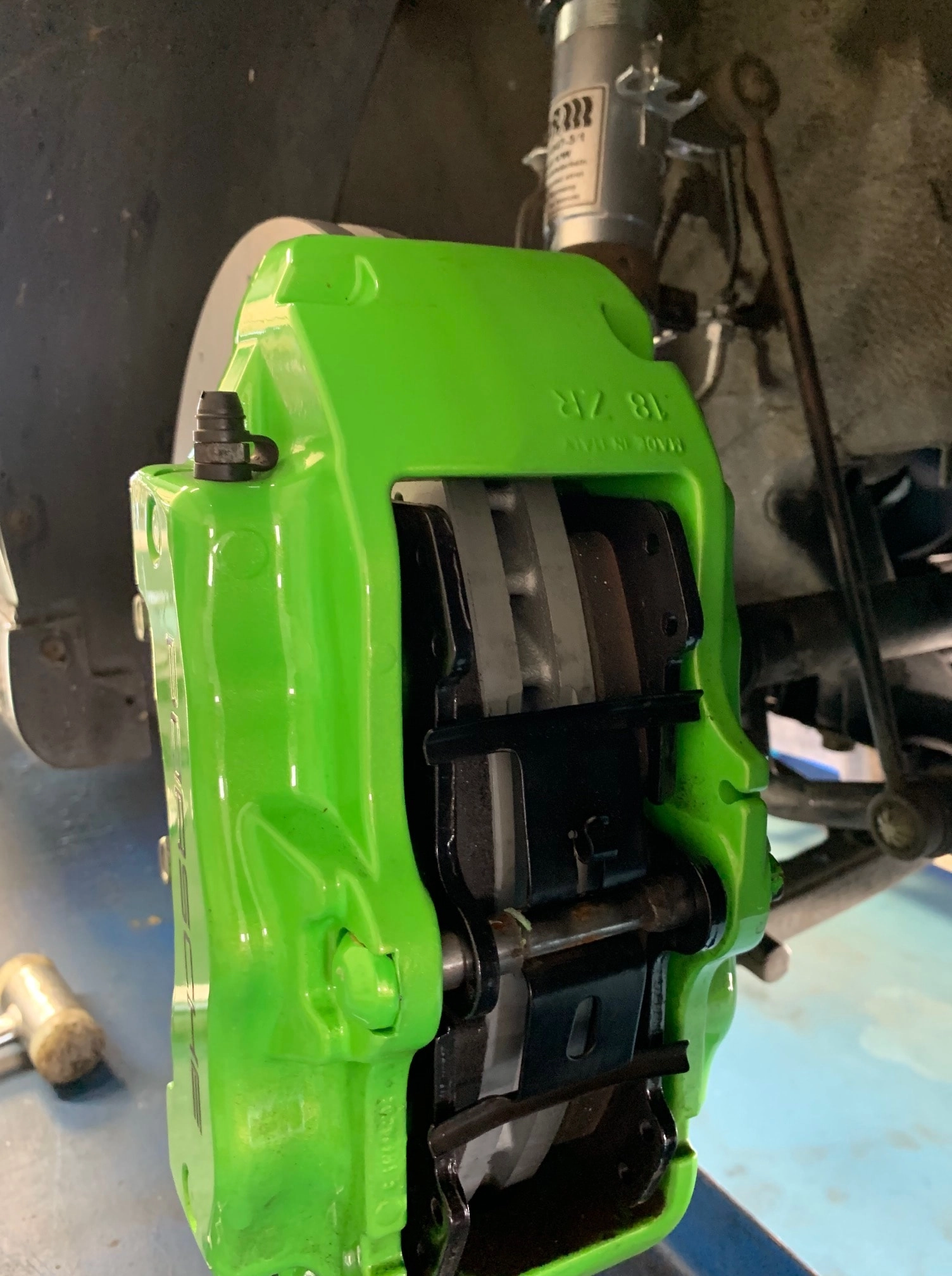

• 2x new Porsche Cayenne brake calipers ZR18 /ZL18 part number: 95535142153 + 95535142253 (left/right) including complete new brake caliper bracket kit painted in your desired color
• matching set of EBC Sport brake discs Turbo Groove 370x32mm
• 2x ceramic brake pads for less brake dust and longer lifetime
• 2x brake caliper adapter for Golf VR6,Corrado VR6,Passat 35i
• 2x matching steel braided lines
• Assembly aid for brake disc assembly
• high strength bolt material
• Material certificate

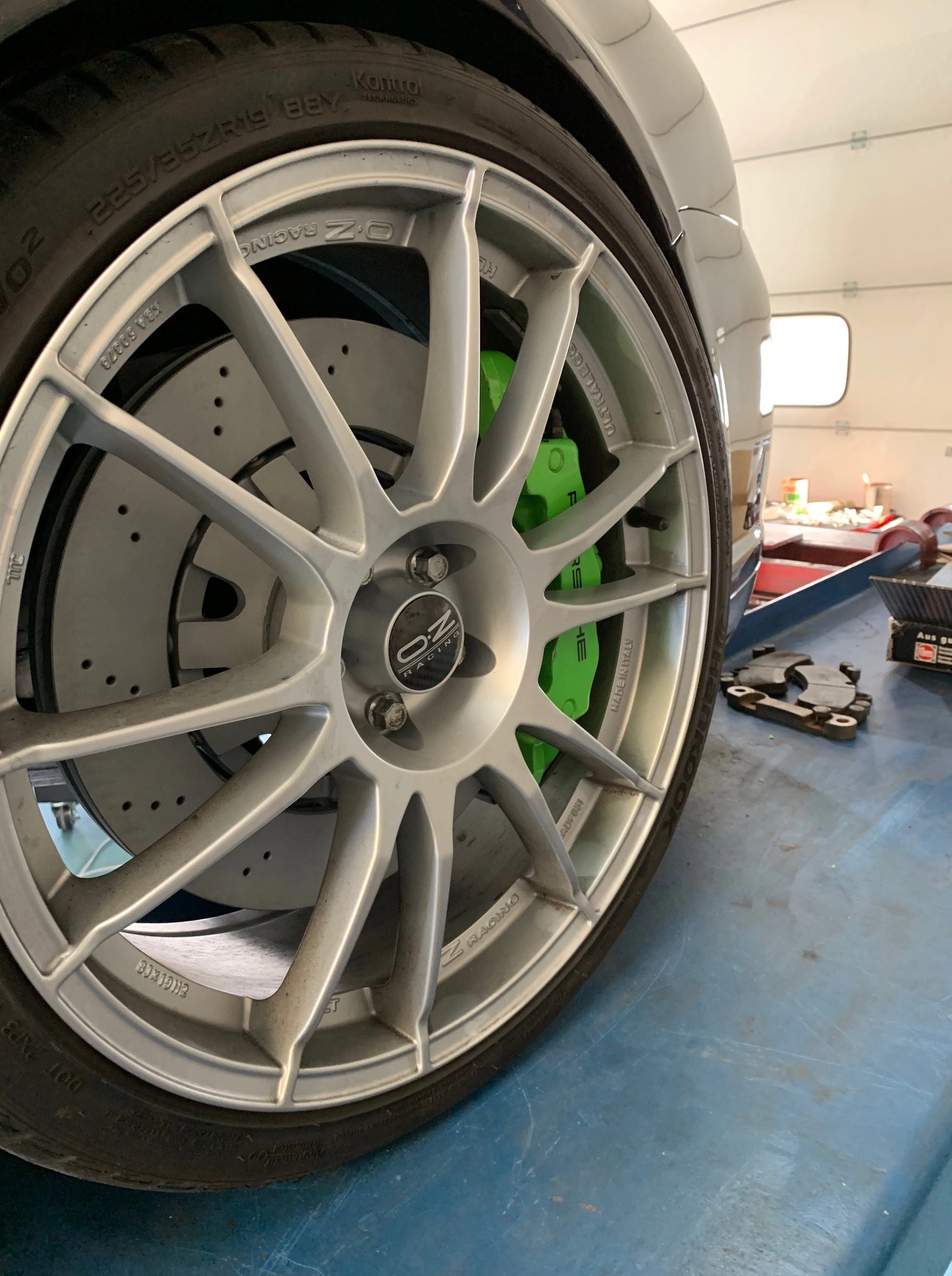

• Template to check whether the brake system fits under your rim
• Stress analysis / FEM calculation for registration
