Audi A4 B5 / A6 VW Passat 3BG 3B Brake Caliper Adapter Porsche Cayenne Brake ZR17 Conversion Brake Disc
- ✓ 330x32 2104212612 Mercedes CLK brake disc

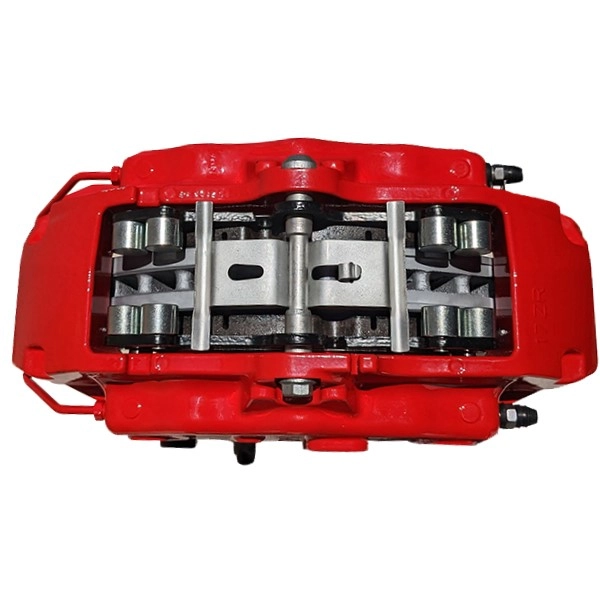

- ✓ 6-piston 7L6615123T / 7L6615124T Porsche Cayenne brake caliper
- ✓ front axle
£134.97*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter on models of Audi A4 B5 series for conversion to ZR17 brake calipers from Porsche Cayenne, combined with the 330x32 Mercedes brake discs.
The adapters are suitable for following vehicles:
- Audi A4 B5 YoC 1996-2001
- Audi A6 4B, C5 YoC 1997-2005
- VW Passat 3B2 YoC 1996-2000
- VW Passat 3B3 YoC 2000-2005
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake caliper: Porsche Cayenne or VW Tuareg ( 17 inch version) , reference 7L6 615 123 T and 7L6 615 124 T
- brake disc: Mercedes CLK 330x32mm , reference 210 421 2612.
- Hub holes must be modified to 68mm
Delivery:

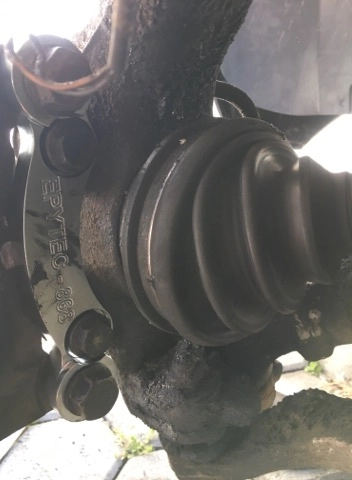

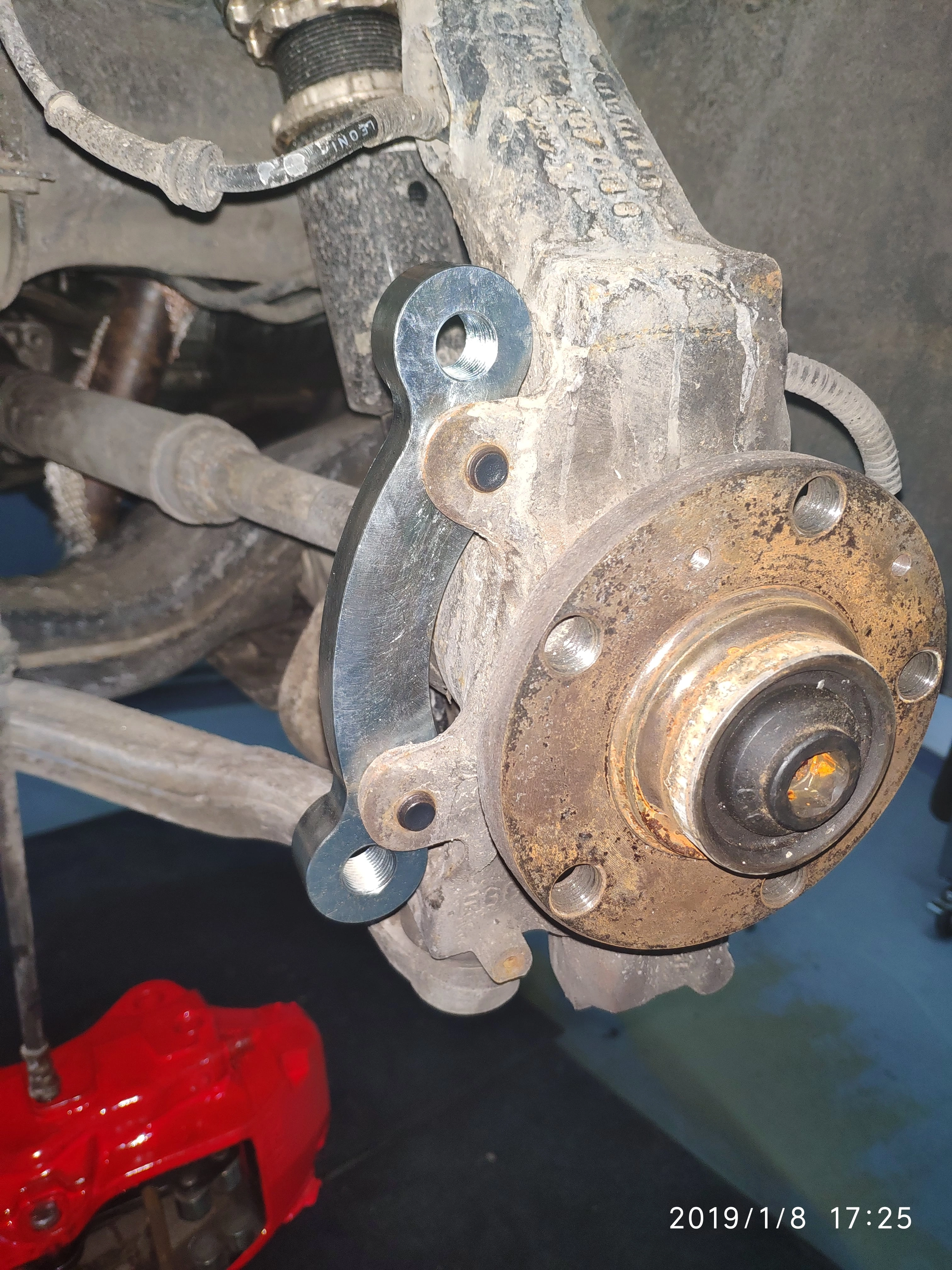

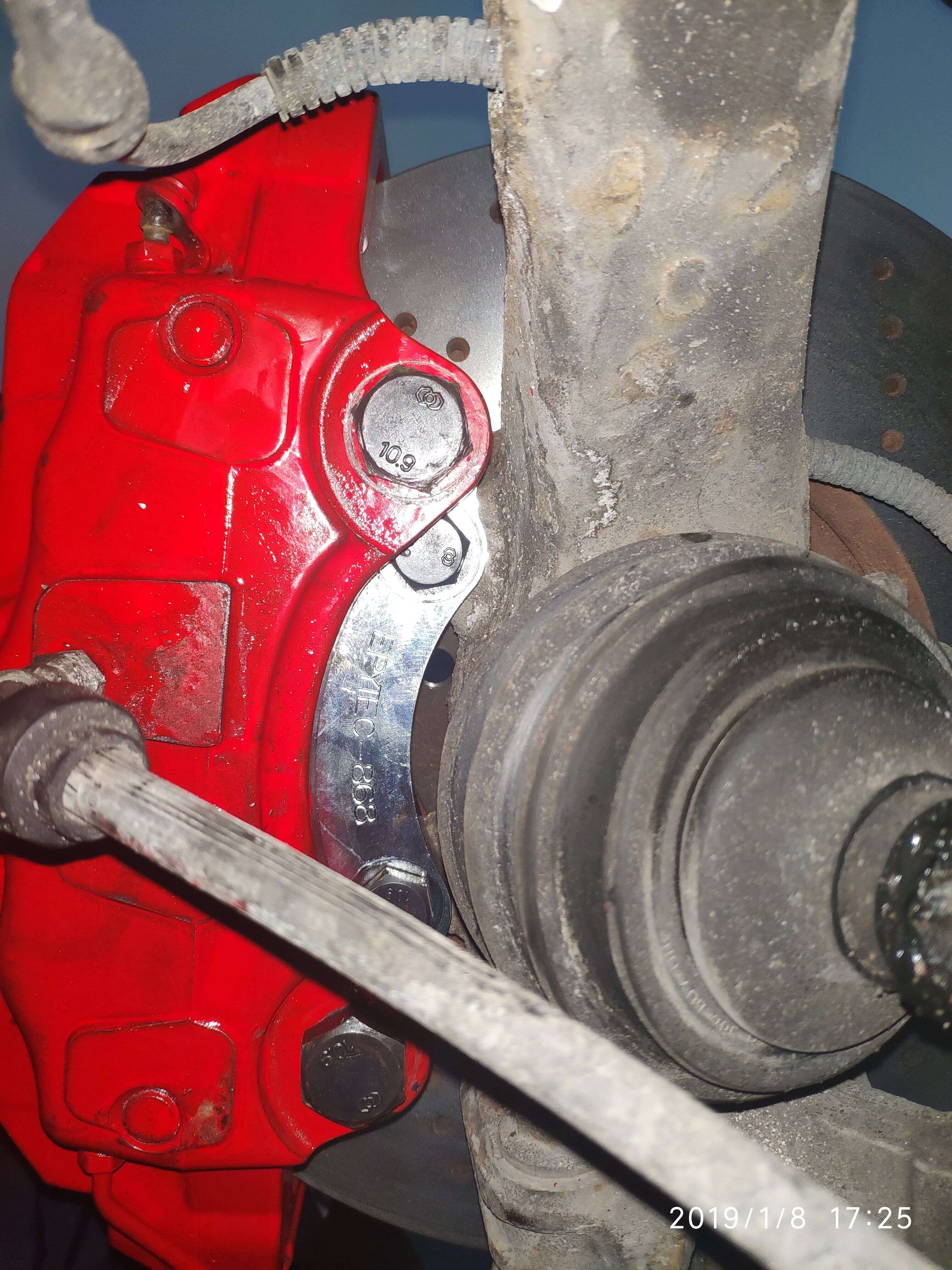

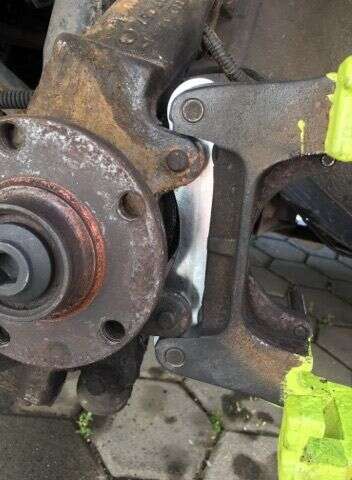

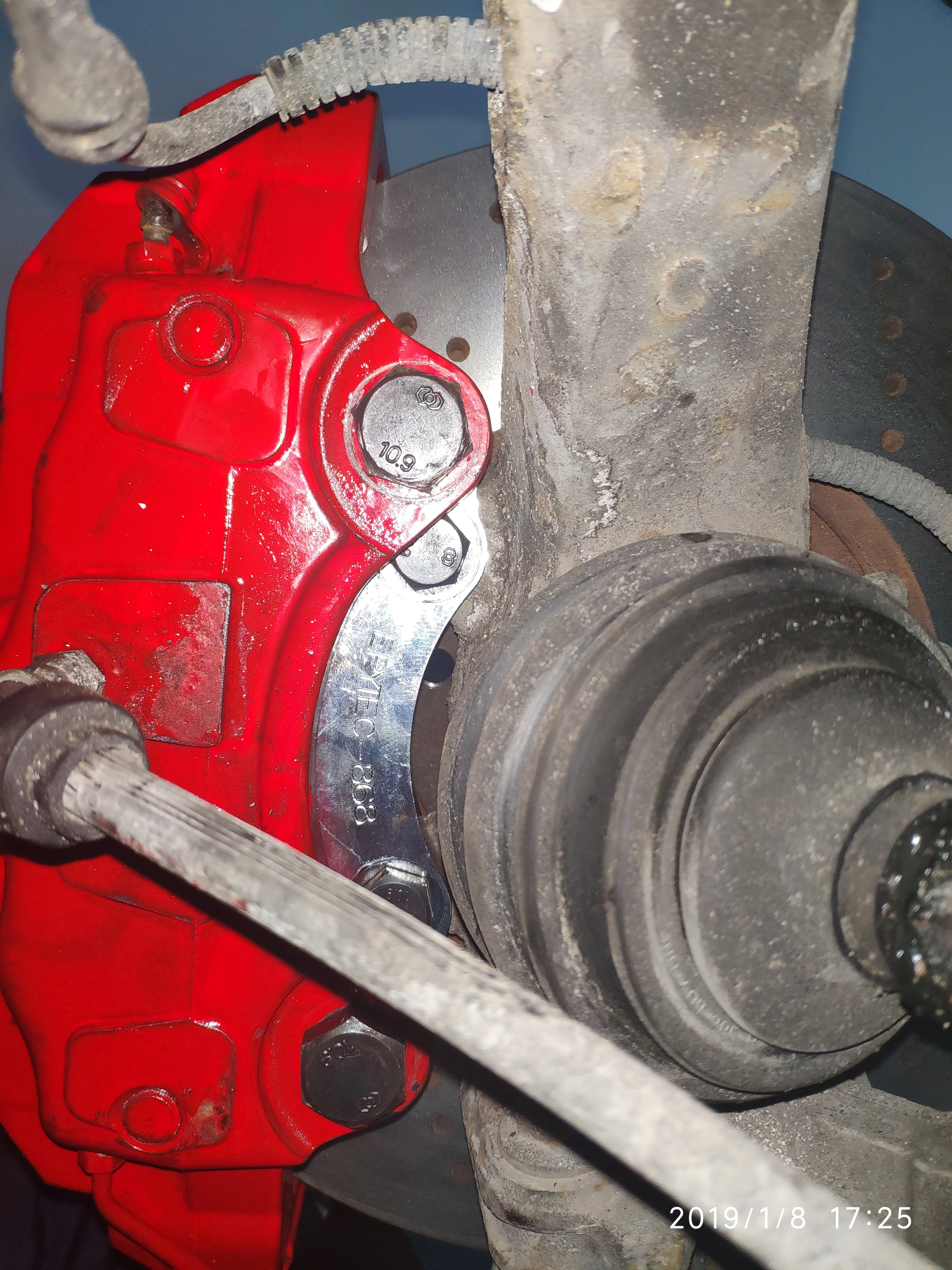

- 2x brake caliper adapters (see piectures)
- high-strength mounting screws
- Template to check whether the brake system fits under your rim
- material certificate
Tips, information and notes:
- For better ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, where you can assemble and then install them according to your requirements.click here for the steel braided line configurator >>configure steel braided brake line<<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
22 September 2024 20:27
Francisco L

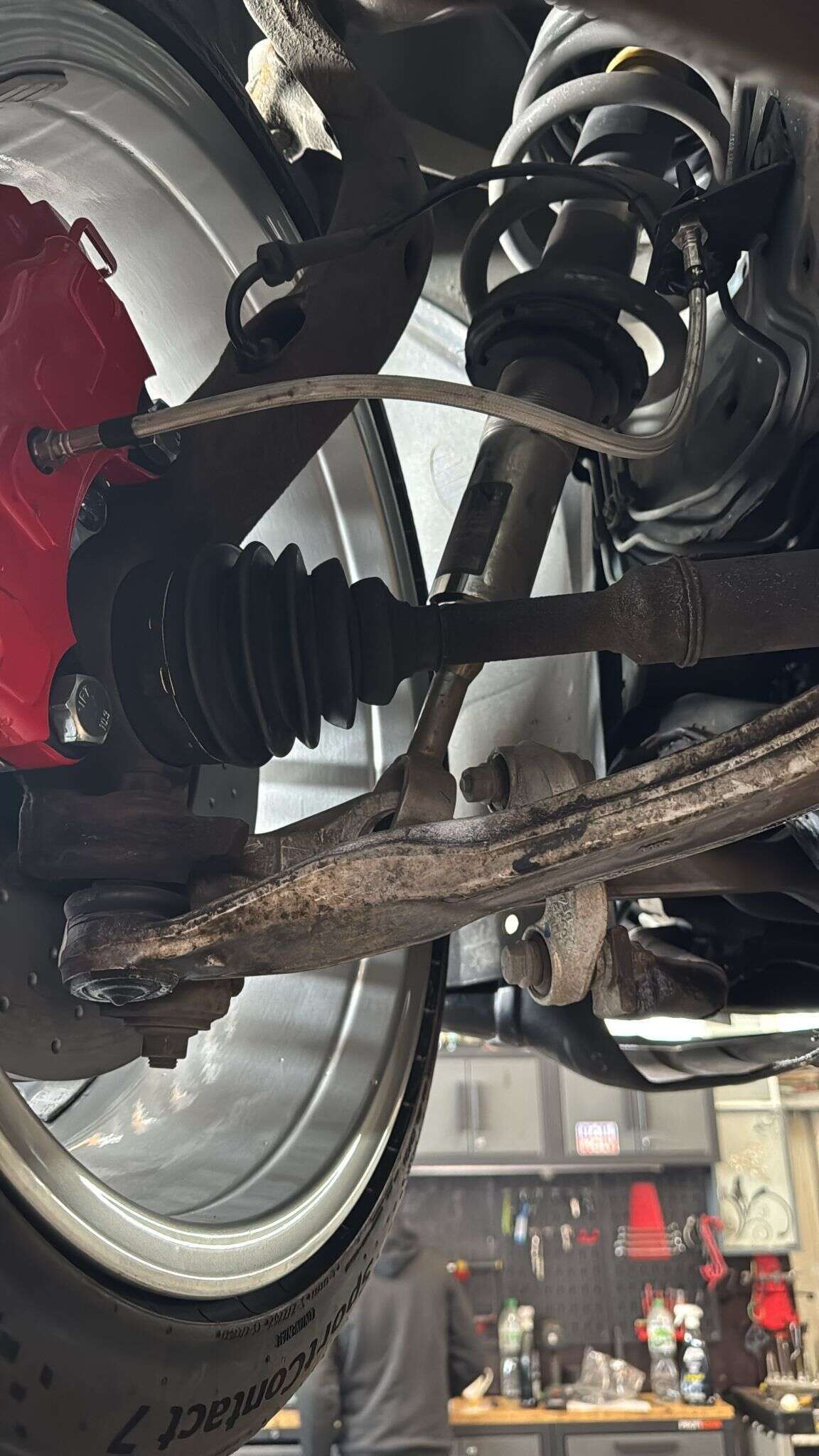

I already tried it and looks good, i didnt have the rotors yet, but on the original vw Phoenix wheels 17'' the brake caliper fits whith a small Gap but Will do the job and of course Will need a wheels spacer otherwise the caliper hits the wheel. Besides i didnt try already the rotors, with all the measurements i did a 5mm spacer should do the jobs and everything Will work, but with small clearences but im happy with that! The product looks good.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
