Audi 100 S4 C4 200 20v Turbo V8 A6 S6 4b VW Passat Rear Brake Caliper Adapter
- ✓ 335x22 4E0615601L 240122-02141 Audi A8 brake disc
- ✓ 1-piston 4B0615424 Girling 41 / 43 brake caliper
- ✓ rear axle
€93.38*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

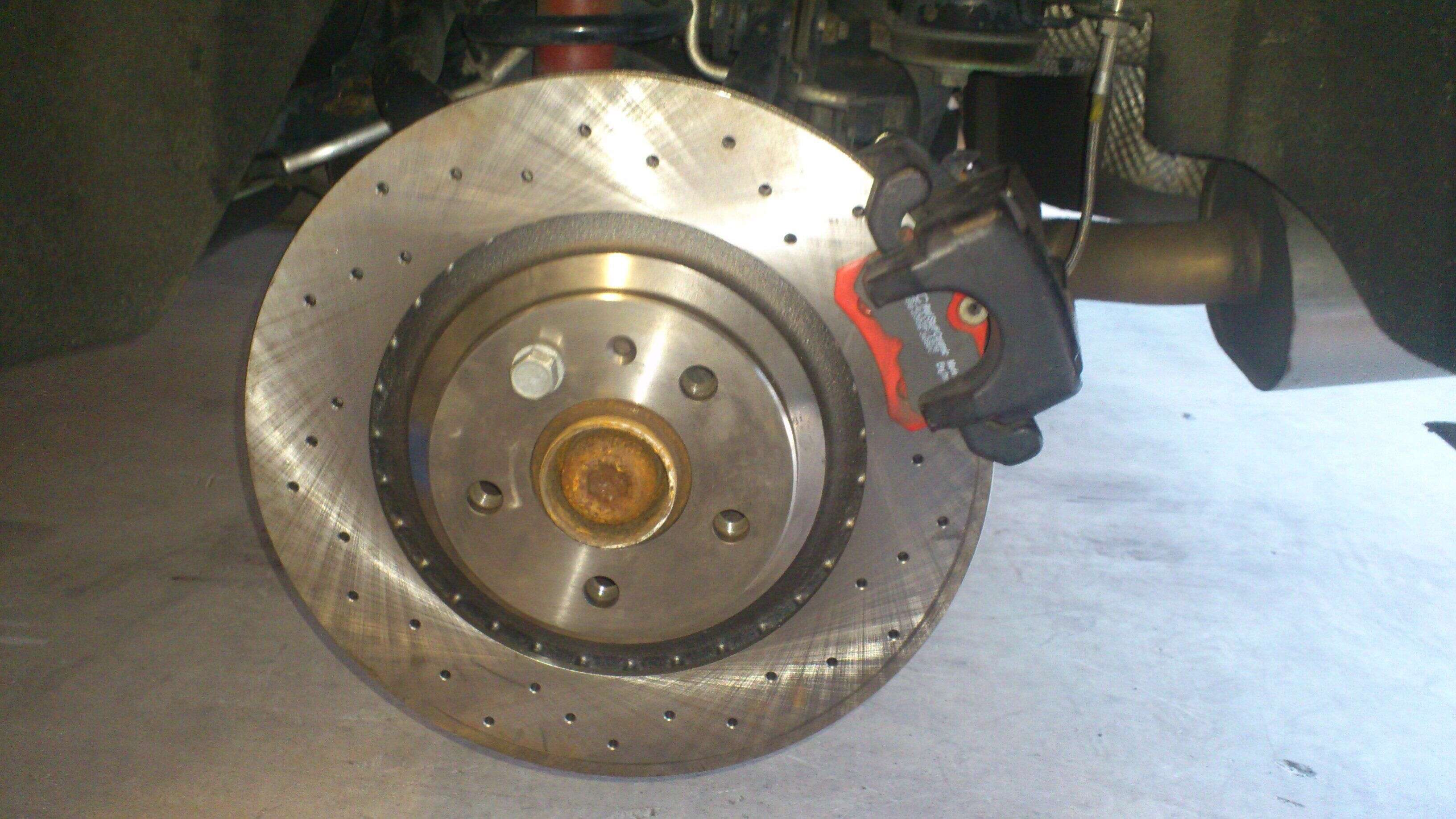

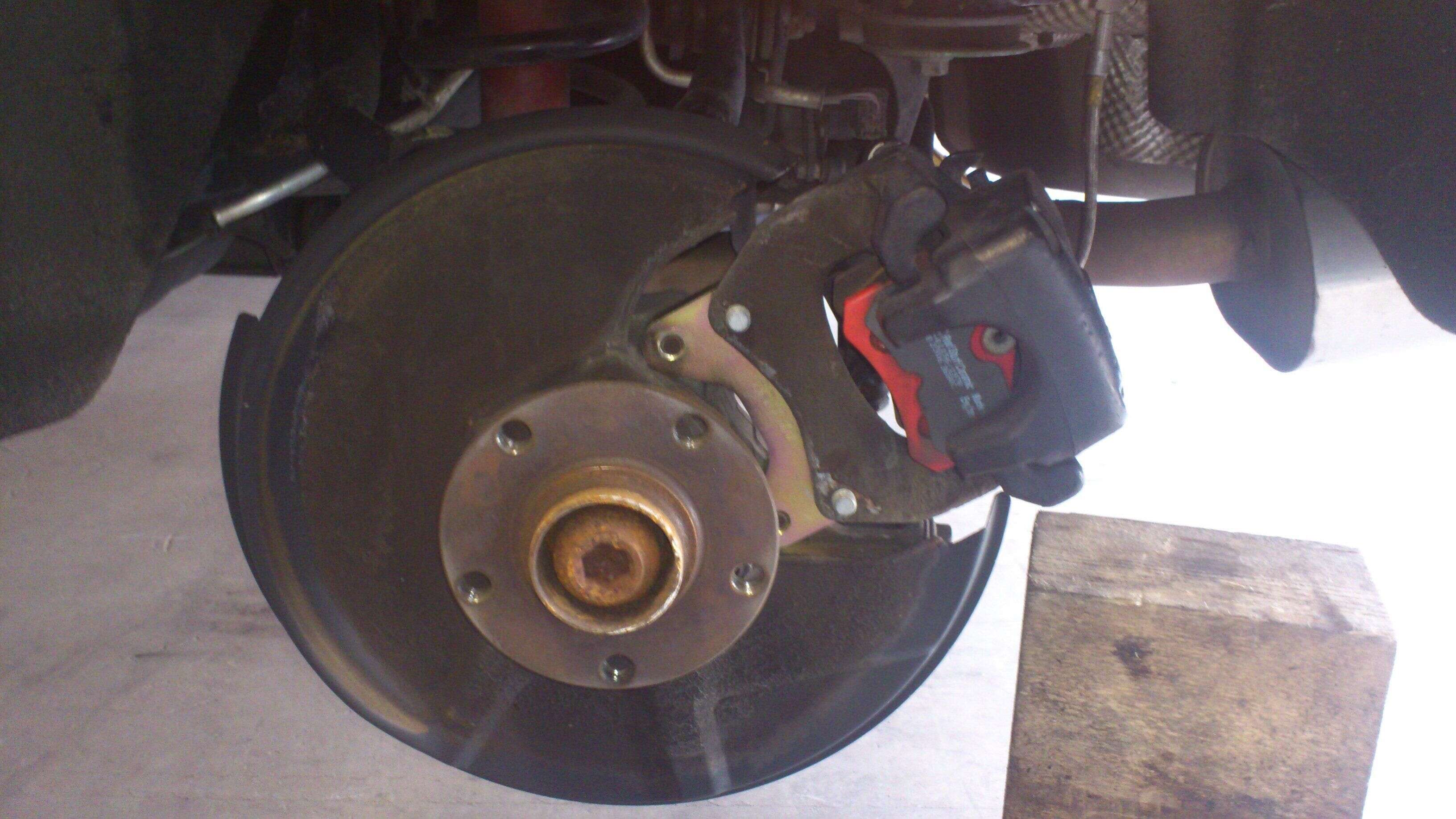

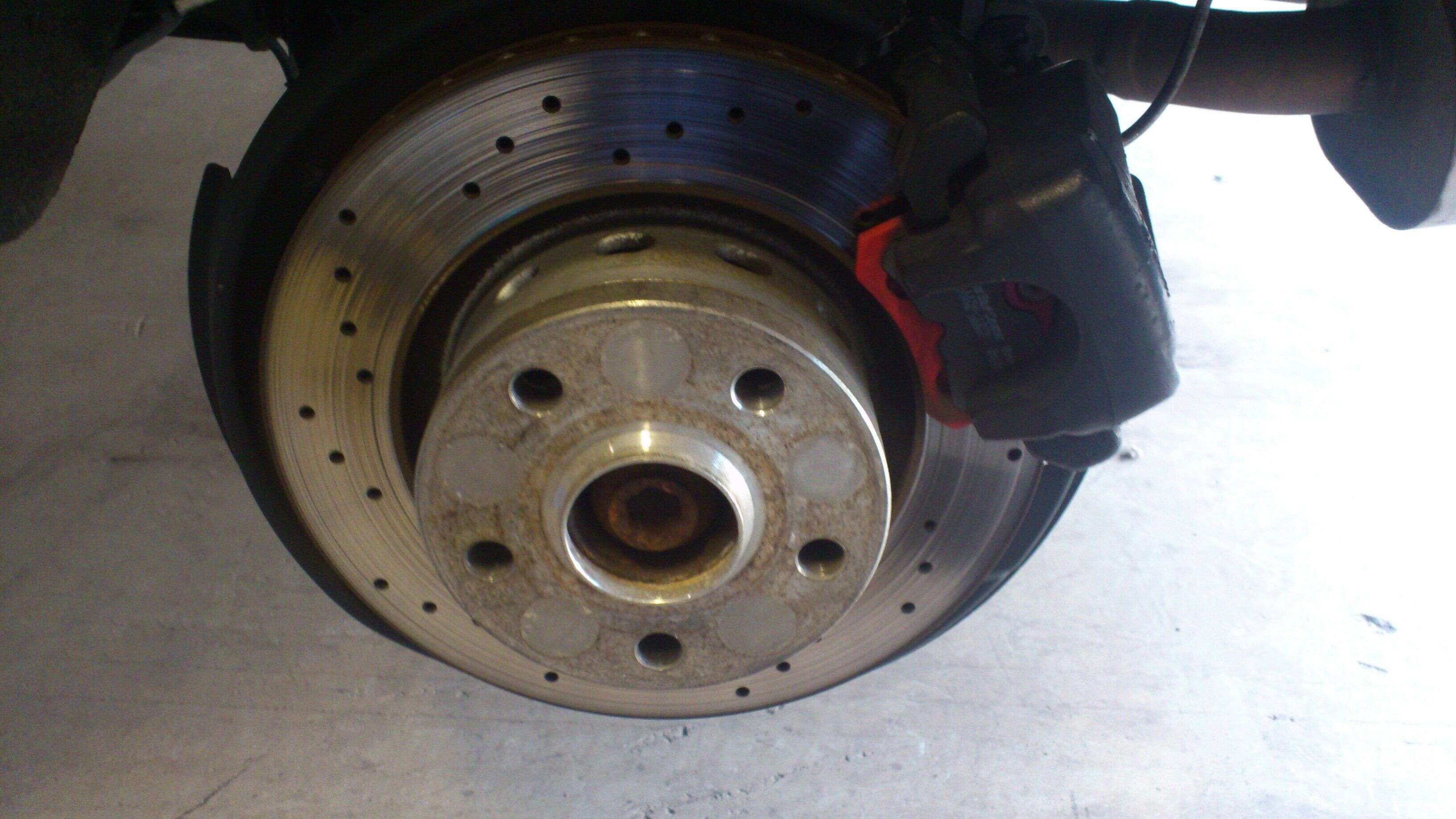

Brake caliper adapter for original brake calipers in connection with the large 330 x22 brake disc from the S6 4f
suitable for all VW/Audi with rear axle brake discs in size 269x22 e.g.:
- Audi 100 S4 C4
- Audi 200 20V Turbo Quattro
- AUDI A6 TDI
- AUDI A6 4,2
- AUDI A6 Avant
- AUDI A6 Quattro
- AUDI S6 V8 Quattro
- AUDI S6 V8 Avant
- VW Passat W8 4-Motion
- VW Passat 2,8 4-Motion
- VW Passat 2,5 TDI 4-Motion
Can also be used in conjunction with all A6 4b and Passat models with small brake discs. There you have to get the ventilated brake calipers of the above models!
Required components:
- Brake calipers Girling 41/43 Teilenummer: 4B0615424
- Brake caliper brackets must also be from the calipers that were originally installed with the 269x22 disc
- Brake discs typ A6 4f 330x22 mm Nr.OE-VAG: 4F0 615 601 B
Advantages:
- Best possible delay values and performance! Also indispensable for performance increases
- Components come from series production by VW/Audi
- The material certificate included in the scope of delivery enables entry by individual acceptance even for series vehicles
Scope of delivery:

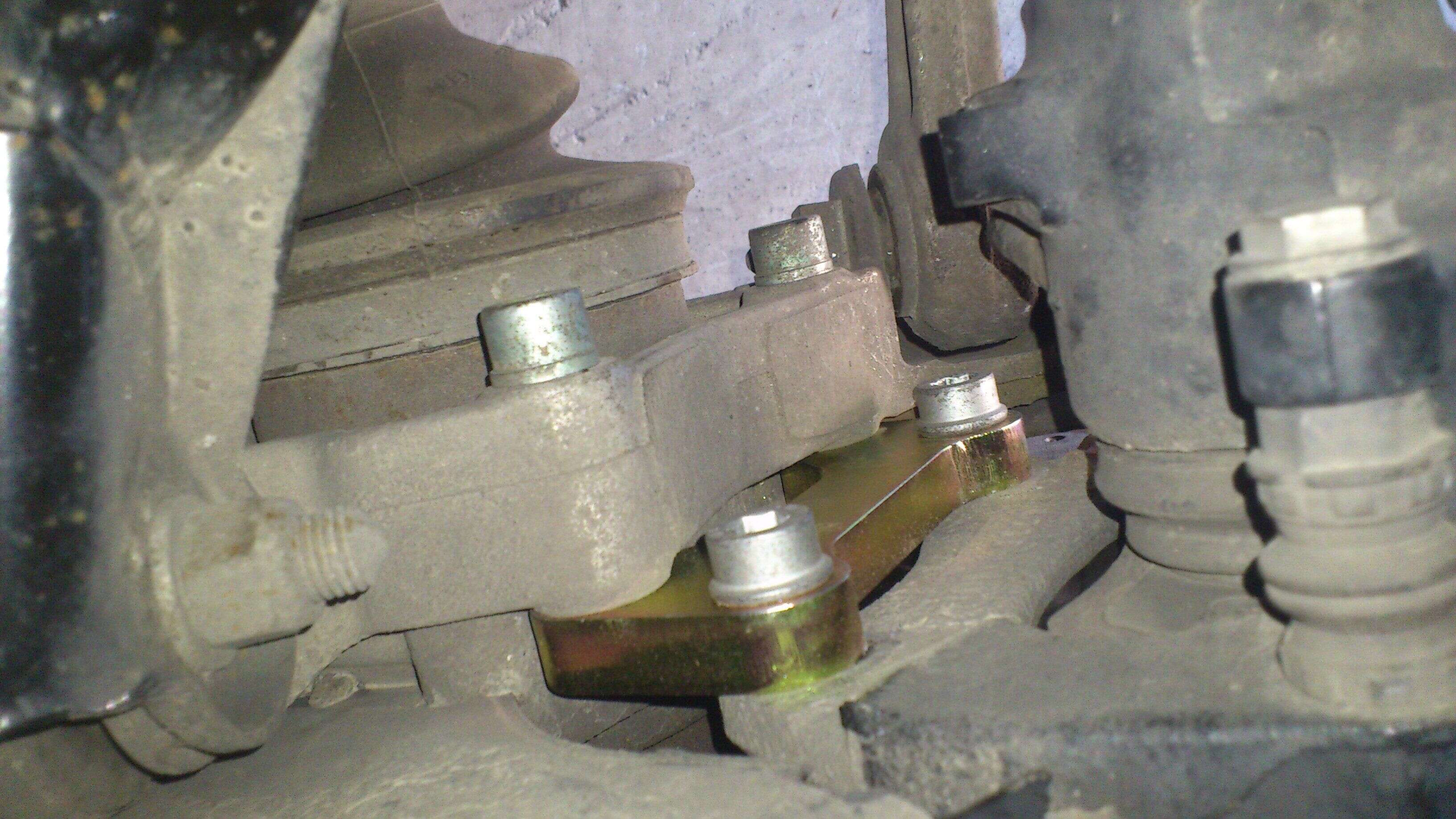

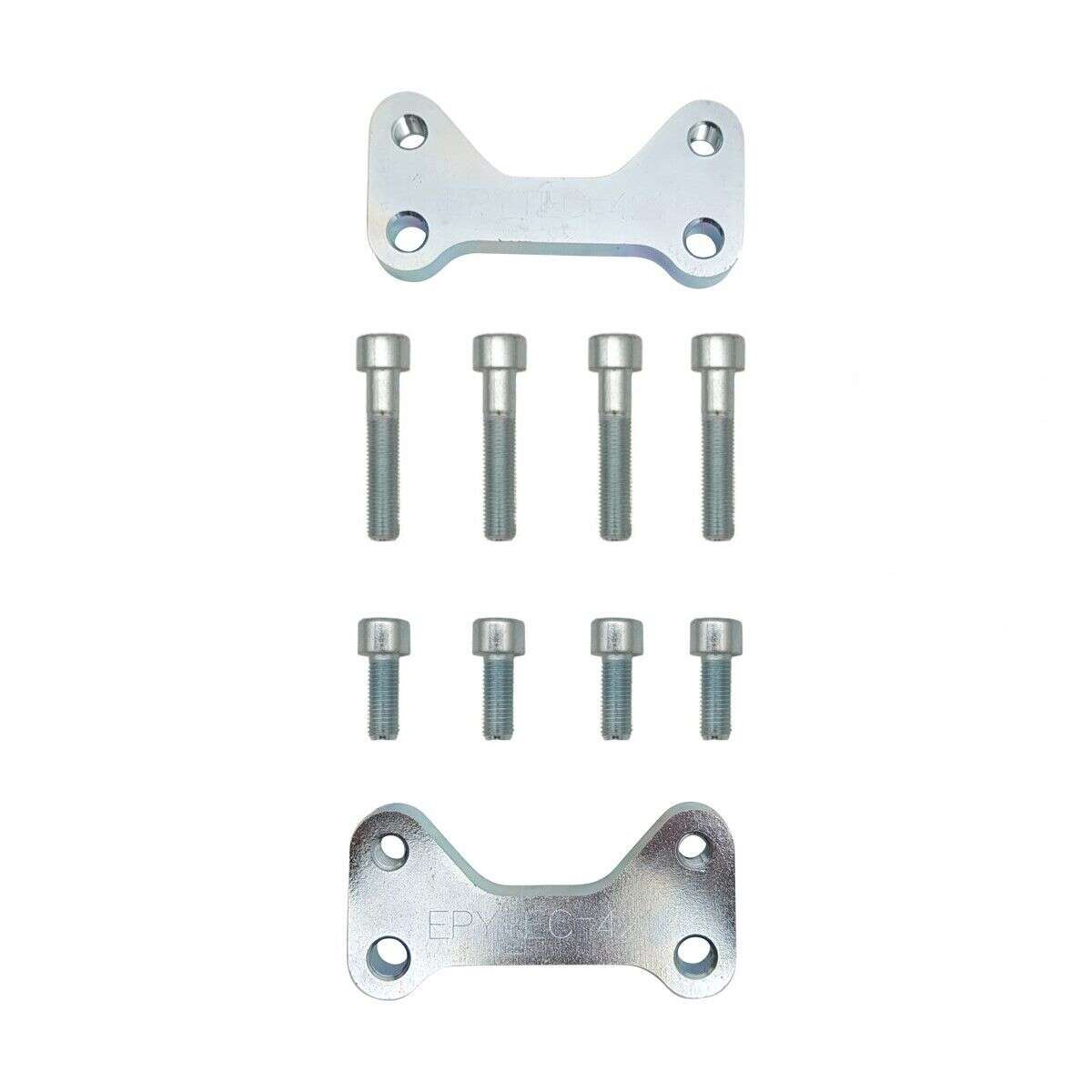

- 2 high resistant adapter galvaniced (see photo)
- suitable screw set high-strength
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

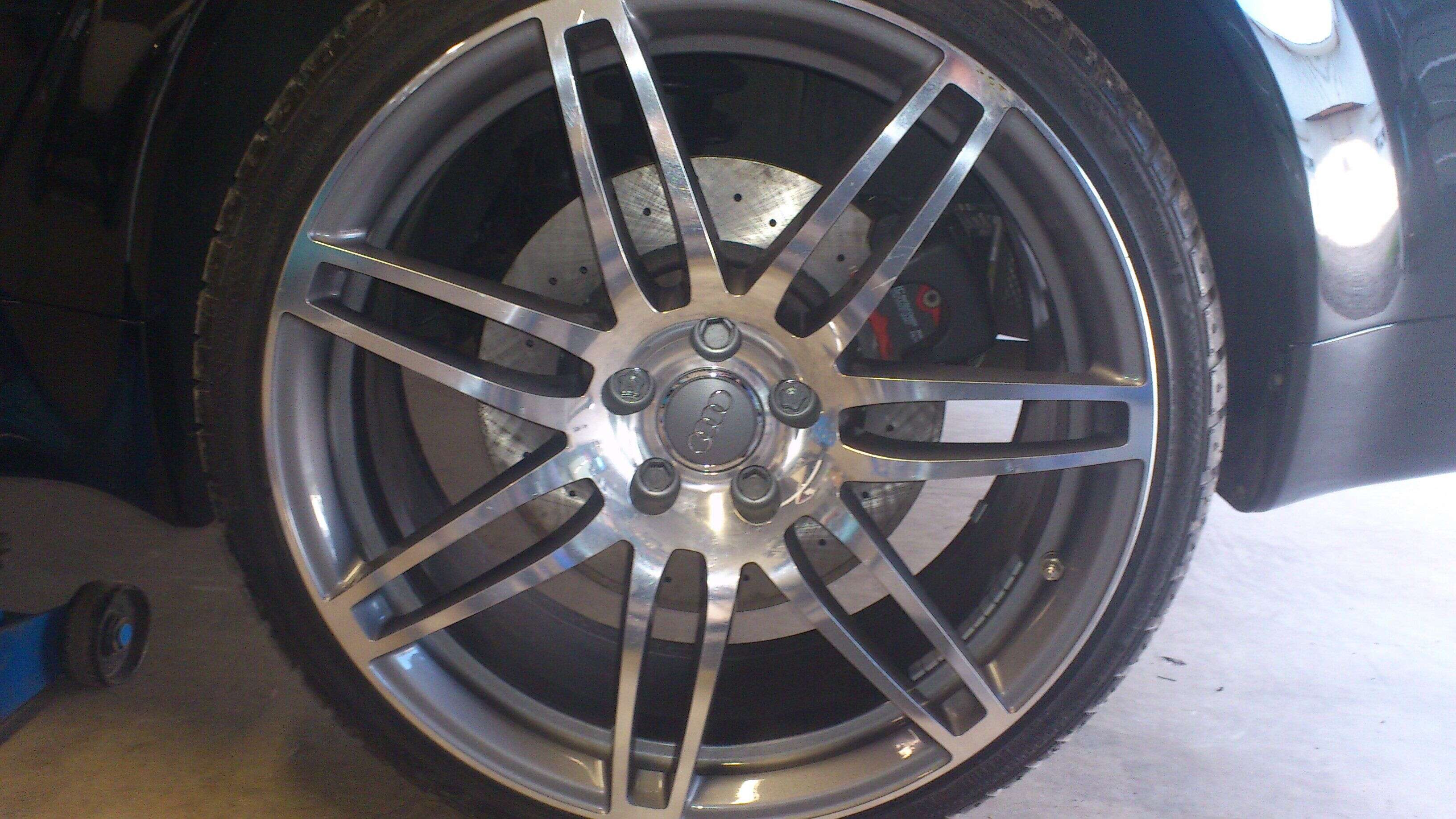

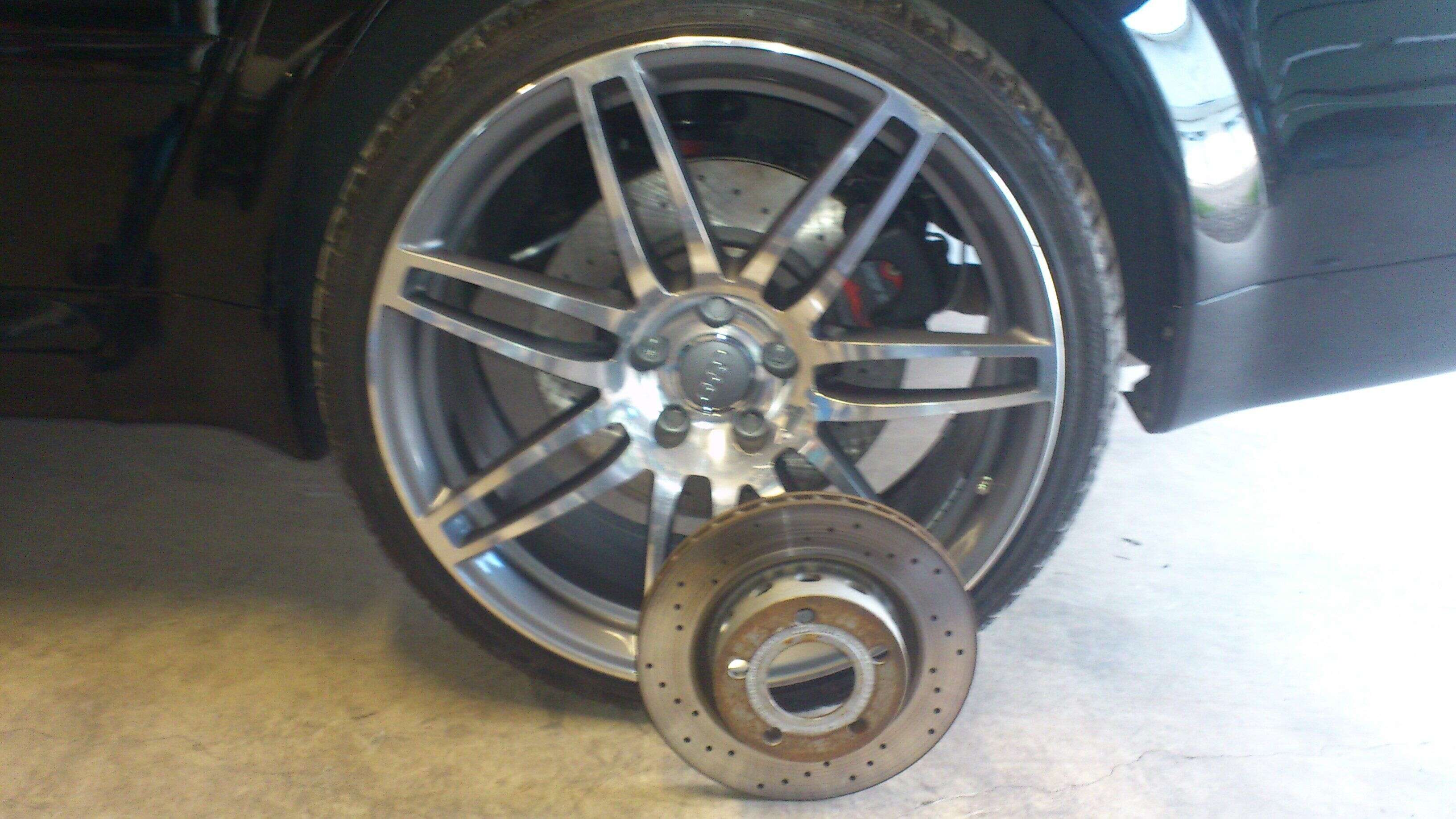

- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
12 October 2023 22:31
Sven T
Passt 1A. Montage easy!
5 October 2018 09:56
Thomas M
Servus , Absolut top was ihr da herstellt passt immer . Macht weiter so Gruß
11 June 2020 16:02
Jens S
Perfekt!
11 June 2020 13:51
Jens S
Perfekt für mein Vorhaben.
25 October 2020 14:44
Rouven H
Schneller Versand, Produkt wie beschrieben. Gerne wieder
4 August 2023 17:27
Marcus K
Top Qualität und Passgenauigkeit. Kompletter Satz neuer Schrauben dabei. Besser geht es nicht. Bremse sitzt top. Beschreibung und alle dazugehörigen Papiere einfach downloadbar und extra per Mail. Was will man mehr? Jederzeit wieder. Danke
19 January 2020 13:54
Niklas K
Hab die Bremse hinten noch nicht final verbaut, da ich davon ausgegangen bin, das der original S4 Bremssattel ( auch Girling 43 ) und der Bremssattelträger bestehen bleibt, was aber nicht der Fall ist. Deswegen muss ich erstmal die passenden Teile organisieren und da stellt sich wieder ein Problem da, und zwar die genaue Teilenr. vom Bremssattelträger, die vom Bremssattel wurde ja angegeben, es ist nur schwierig beides zusammen zu finden. Ansonsten ist die Qualität super und die Schrauben passen auch perfekt.
21 May 2019 14:53
Max W
Ich habe einen Audi 100 s4 und habe umgebaut auf die 330 Scheiben hinten mit dem Adapter von hier. Mega cooler Support habe die schrauben gleich mit dazu bekommen für umsonst. Aber man muss einen anderen Halter verbauen wo es aber eigentlich mit dem orginalen gehen würde. Man müsste den Adapter nur etwas dicker gestalten. Und der tüv sagt dass die schnittkanten vom ausschneiden mit dem Laser ihm zu scharfkantig sind die müssen eine fase vorwrisen. Aber alles im allen machen sie was sie sollen.
2 August 2019 08:40
Karel B
Passen nicht ganz zum Umbau auf Audi 200 20V. Man muss den Adapter oder die Bremse ein bisschen bearbeiten...
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
