VW T3 Transporter Brake Caliper Adapter Audi ATE 981 982 Brake System 347x30 Front Axle
- ✓ 347x30 4F0615301G Audi A6 brake disc
- ✓ 1-piston 8E0615124B Audi A6 4F brake caliper
- ✓ front axle
€312.18*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

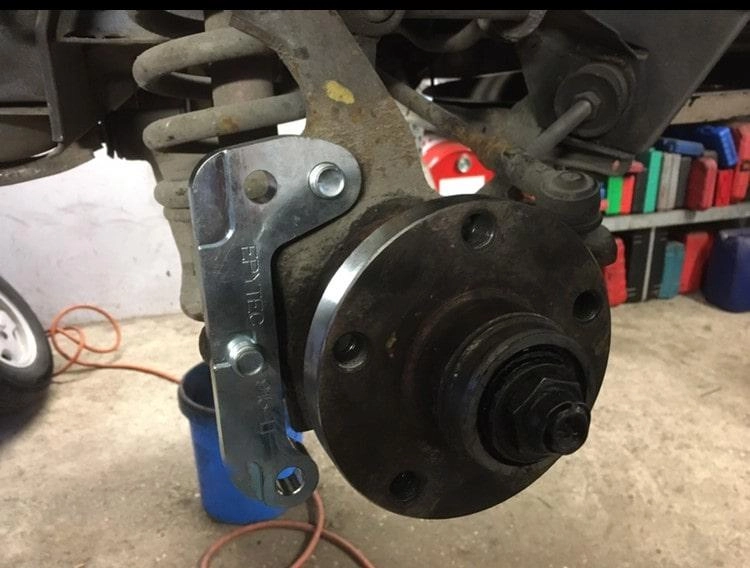

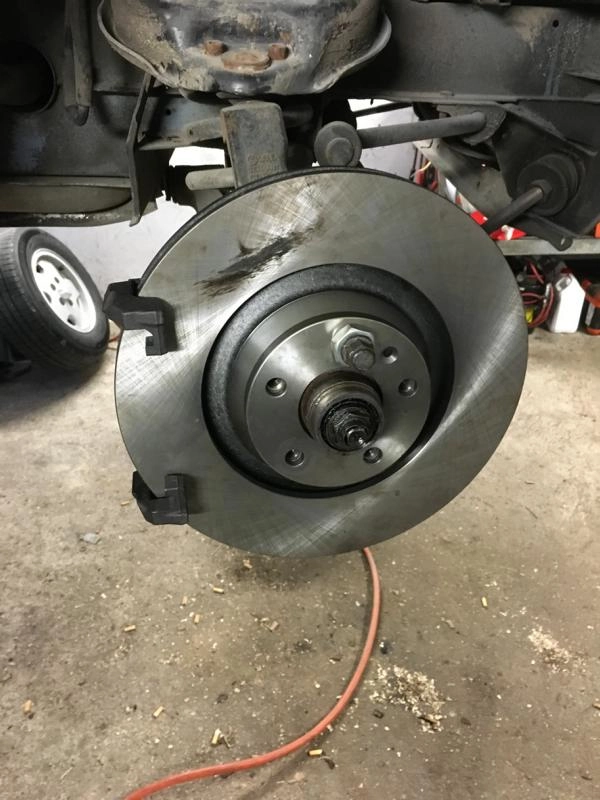

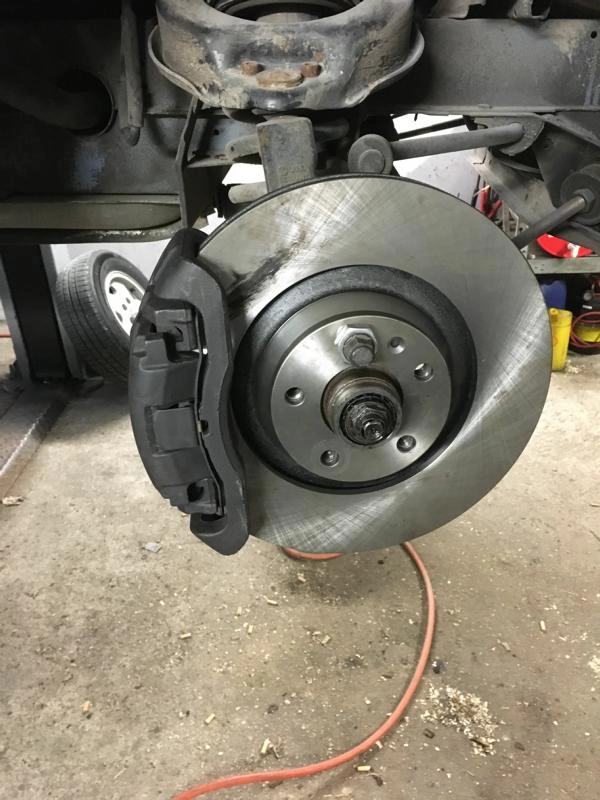

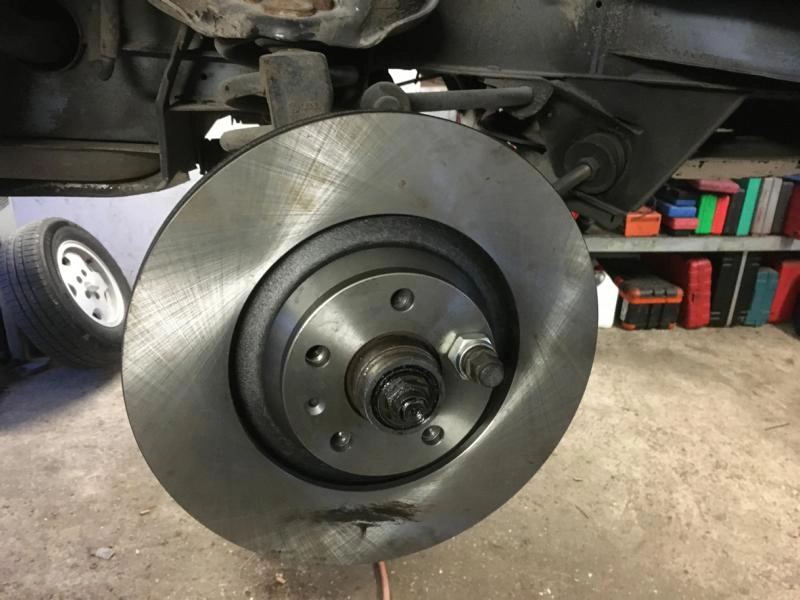

Brake caliper adapter, front axle, on model T3 bus/transporter for conversion to auf internally ventred 347x30mm brake discs, combined with the Audi A6 brake calipers. Wheel hubs are supplied with this brake conversion, which retain the standard VW bolt circle /pitch circle (5x112) and are dimensionally identical. This means that the wheel bearings can continue to be used and the track is only 6 mm wider on each side.
Advantages:
- top deceleration
- the system no longer warms up and no more fading
- very cheap components.
- thanks to the material certificate supplied with the order, it is possible to register your purchase
- quick and easy assembly with the supplied mounting screws
The wheel hubs supplied retain the standard VW bolt circle/pitch circle and are identical to the original dimensions. This means that the wheel bearings can continue to be used and the track is only 6 mm wider on each side.
Required components:
- brake disc: Audi A6 347 x 30 mm, reference 4F0615301G
- brake caliper mit mounting bracket: ATE 981 + 982 from Audi A6 4F for 347mm disc, manufacture reference 8E0615124B
- wheel hubs to center around the brake disc are also available in our shop
- only fitting with the 14 inch axle of the T3 (to determine at the caliper mounting screw, this must have 16mm thread)
Delivery:
- 2x brake caliper adapters, front axle, VW T3 bus / transporter / van
- high-strength mounting screws
- material certificate
- 2 x required wheel hubs
- matching centering rings
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst.
Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
