VW Golf MK4 VW Polo 6r WRC Audi A3 TT R32 S3 Brake Caliper Adapter Brake System

  • ✓ 256x22 8L0615601 8N0615601B VW / Audi brake disc
  • ✓ 1-piston 8N0615423C / 8N0615424C VW Golf R32 V6 / S3 brake caliper
  • ✓ rear axle

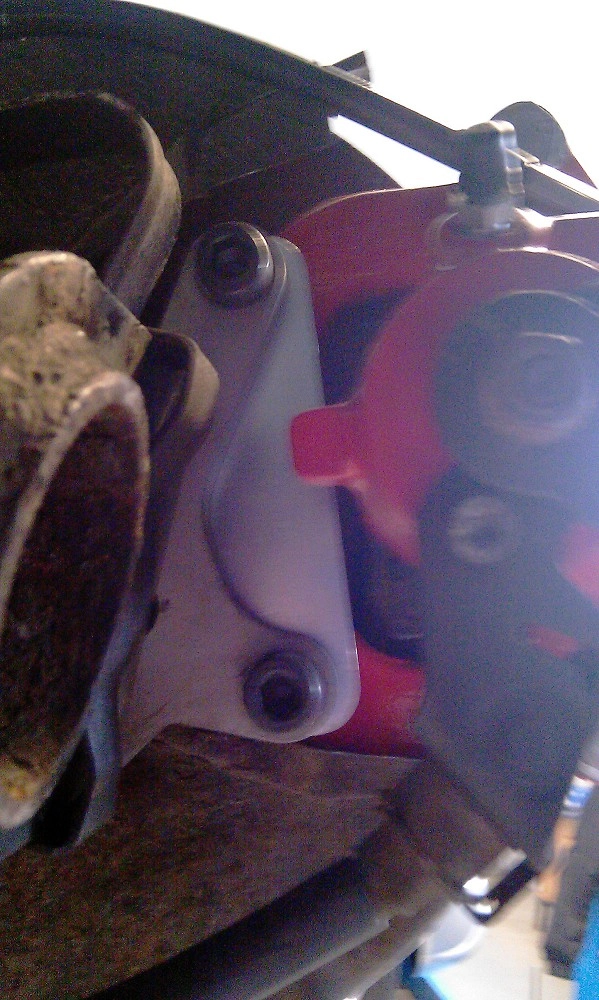

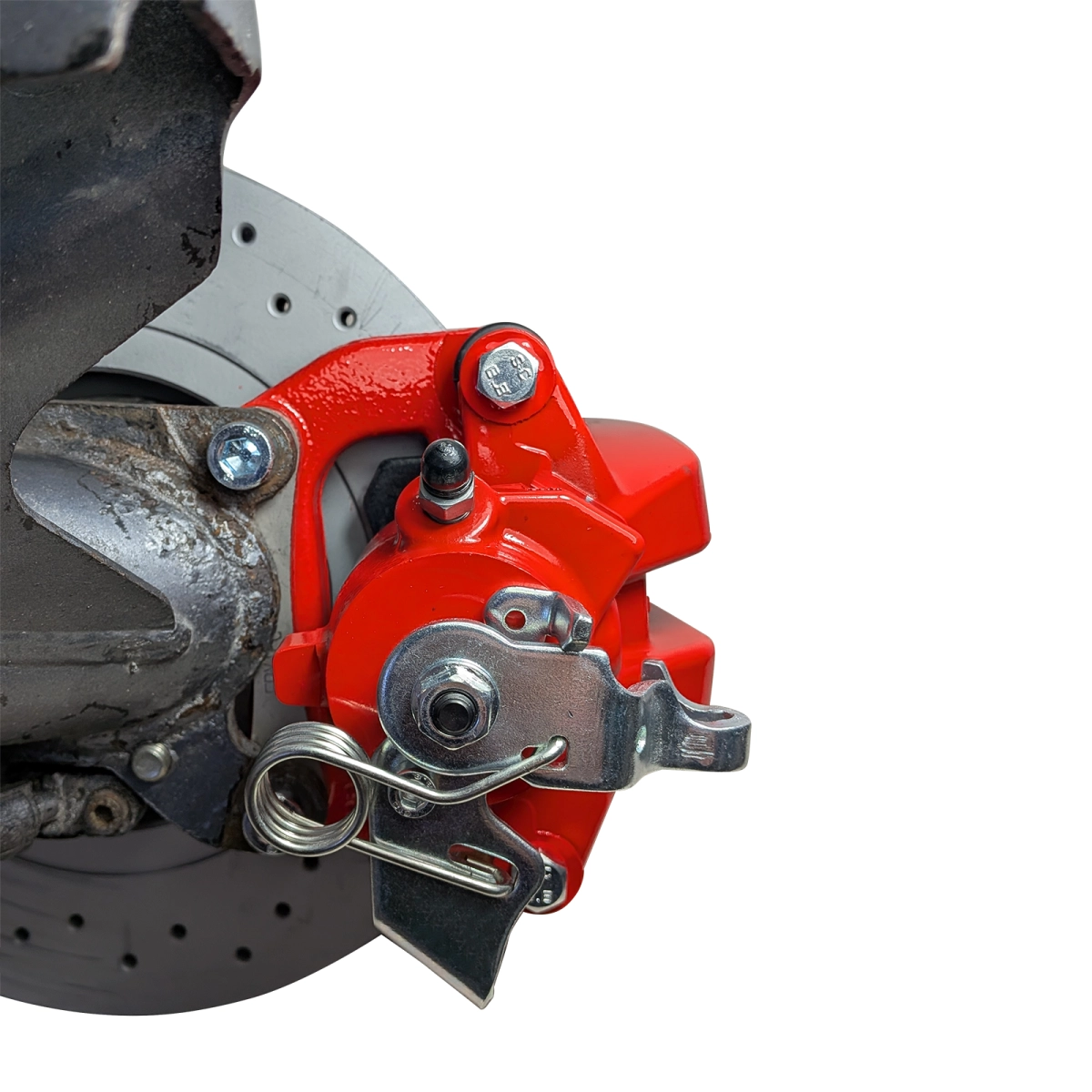

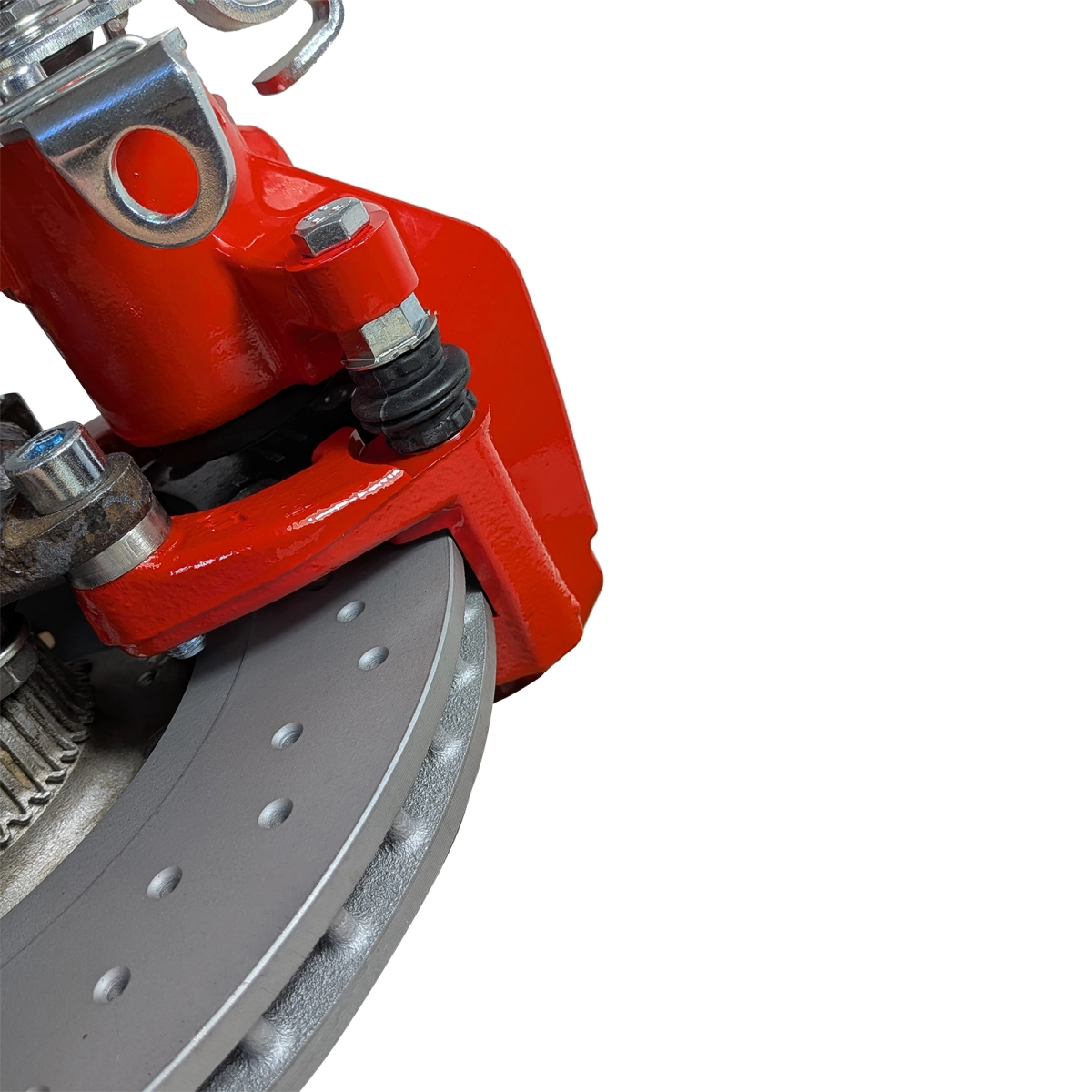

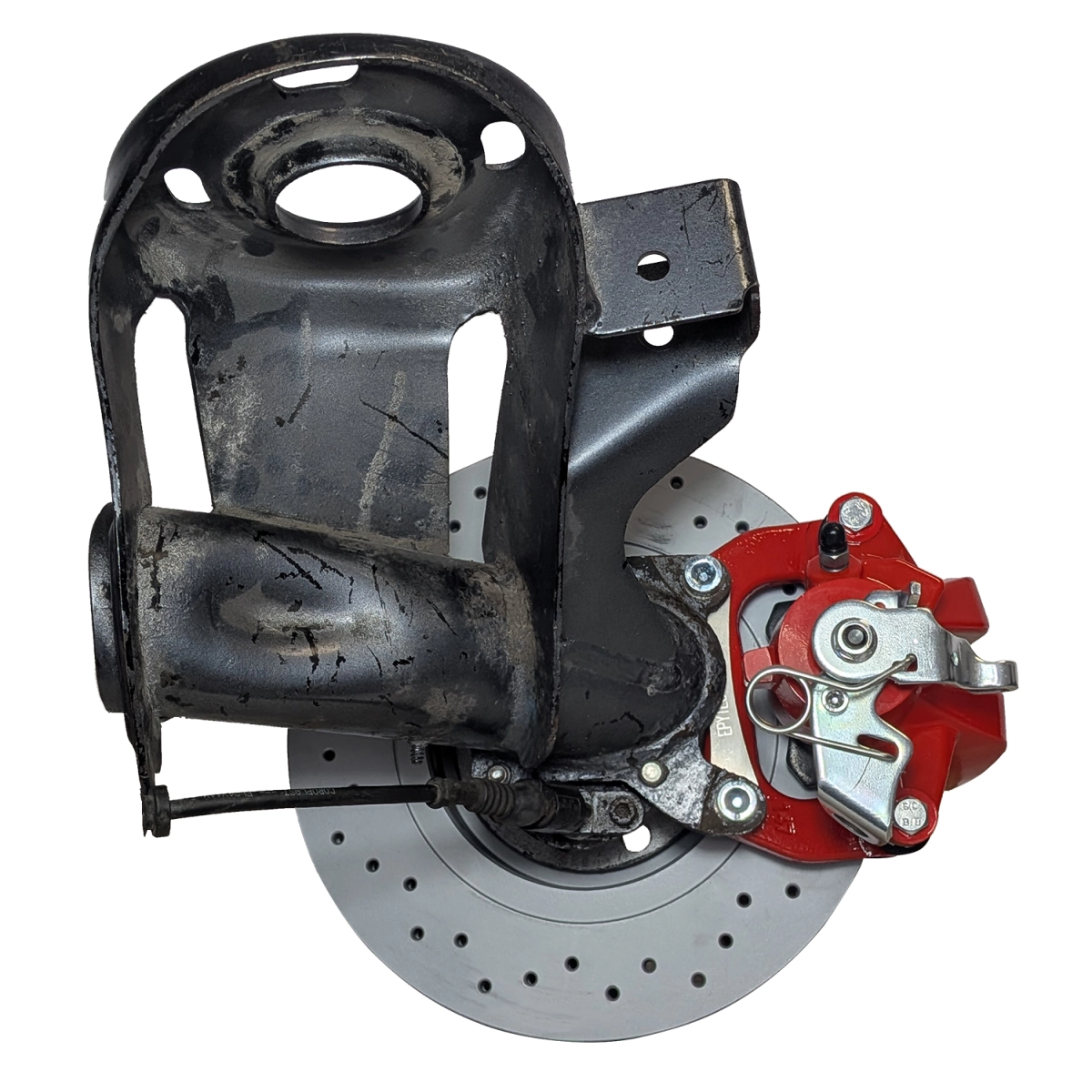

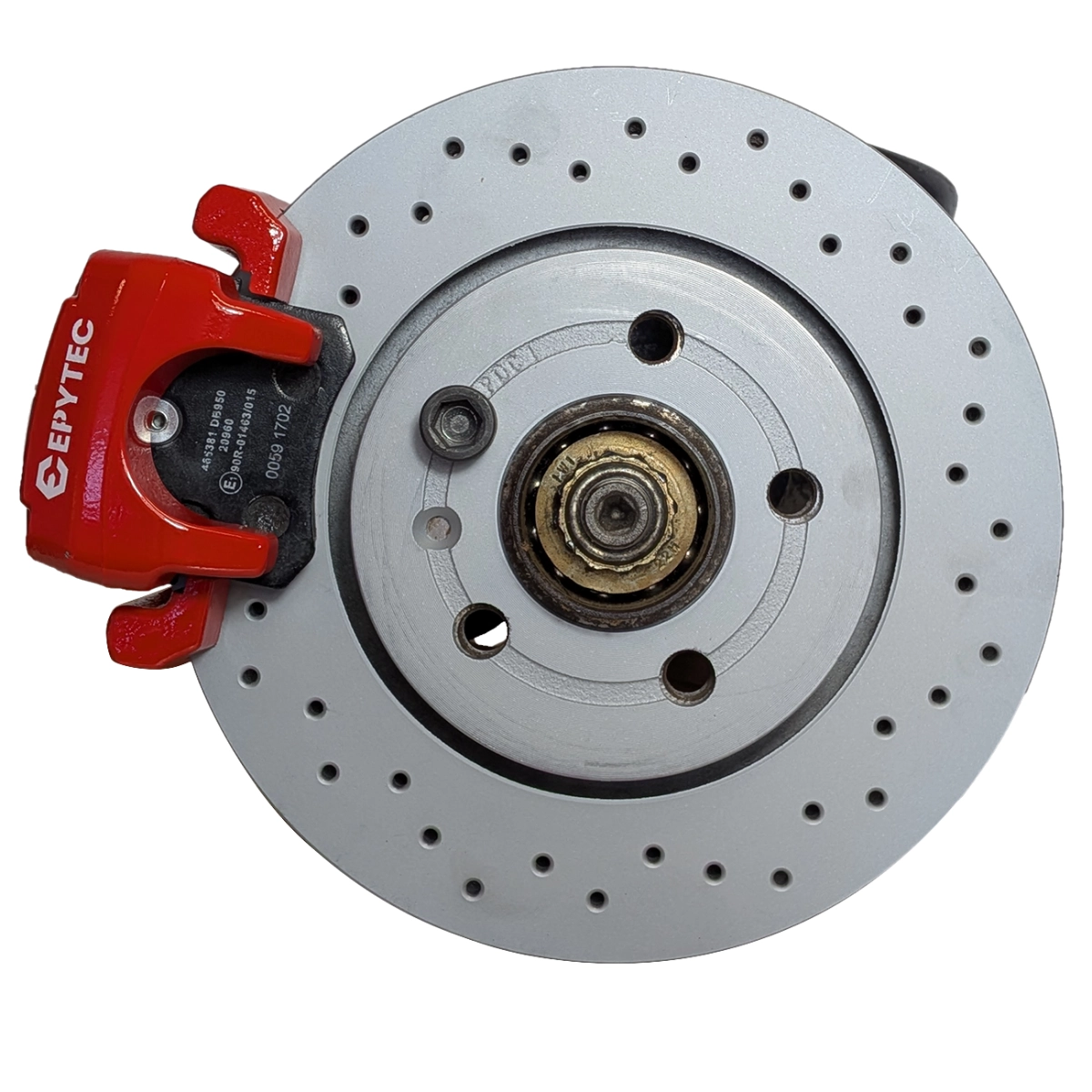

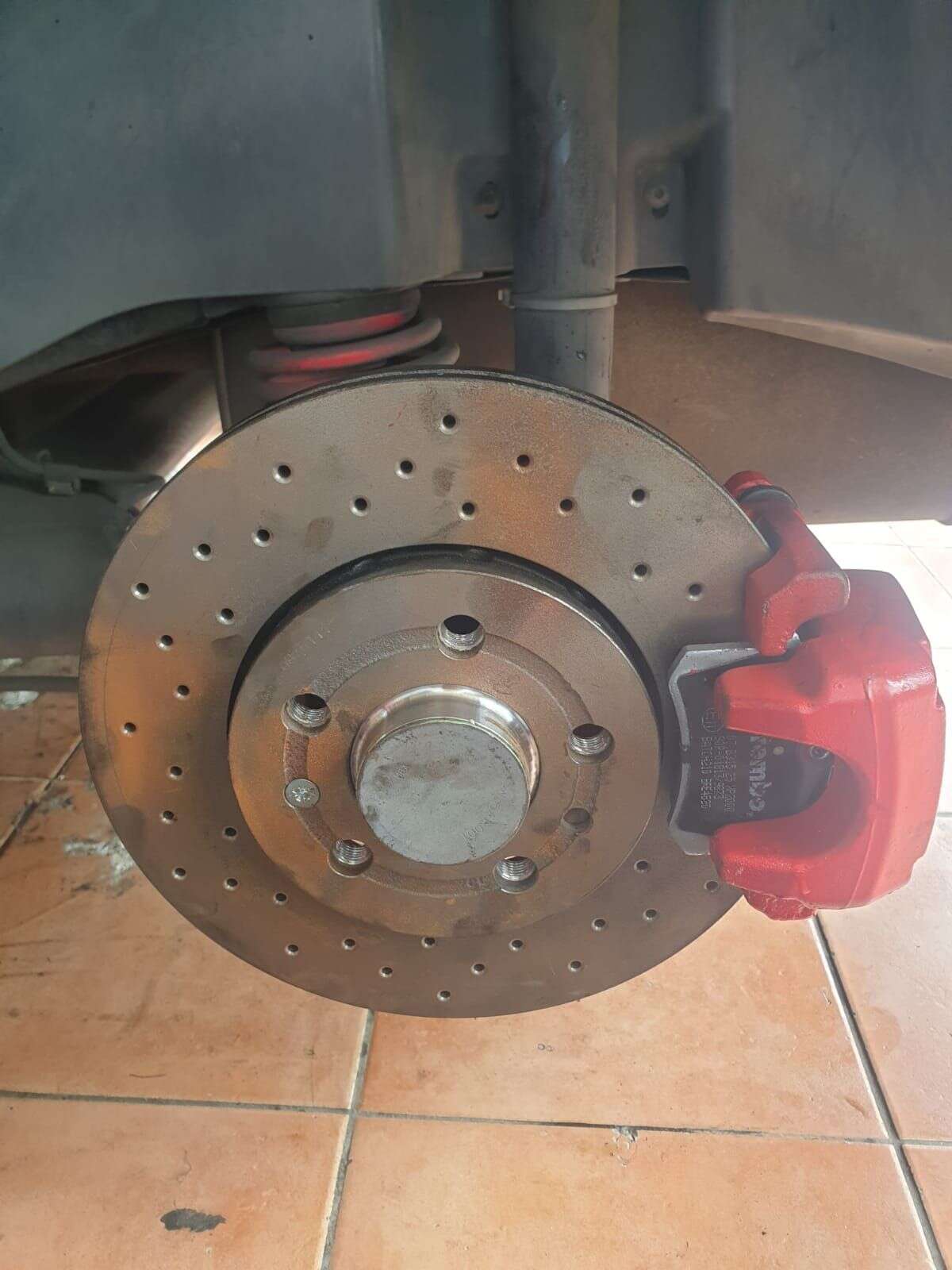

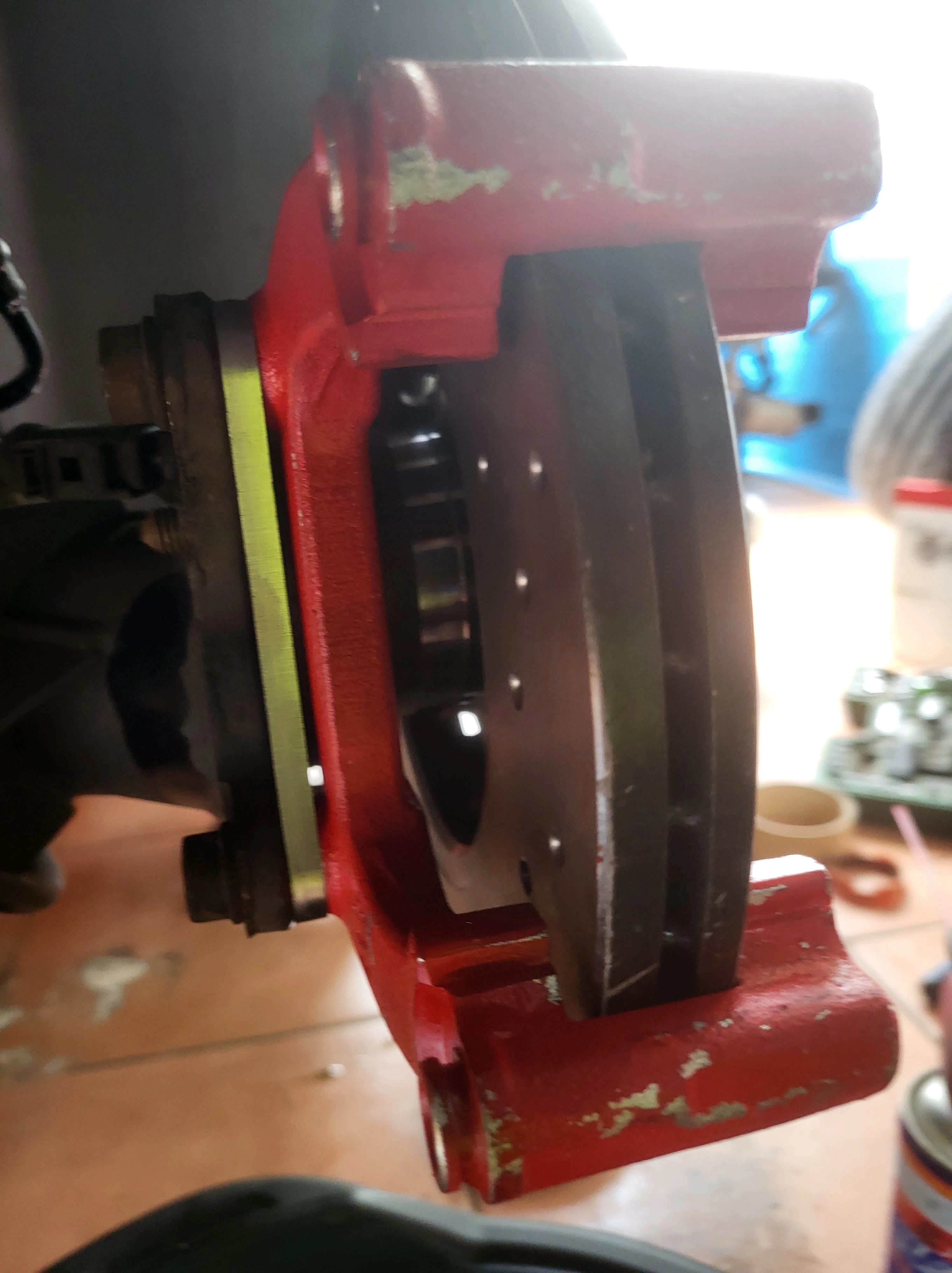

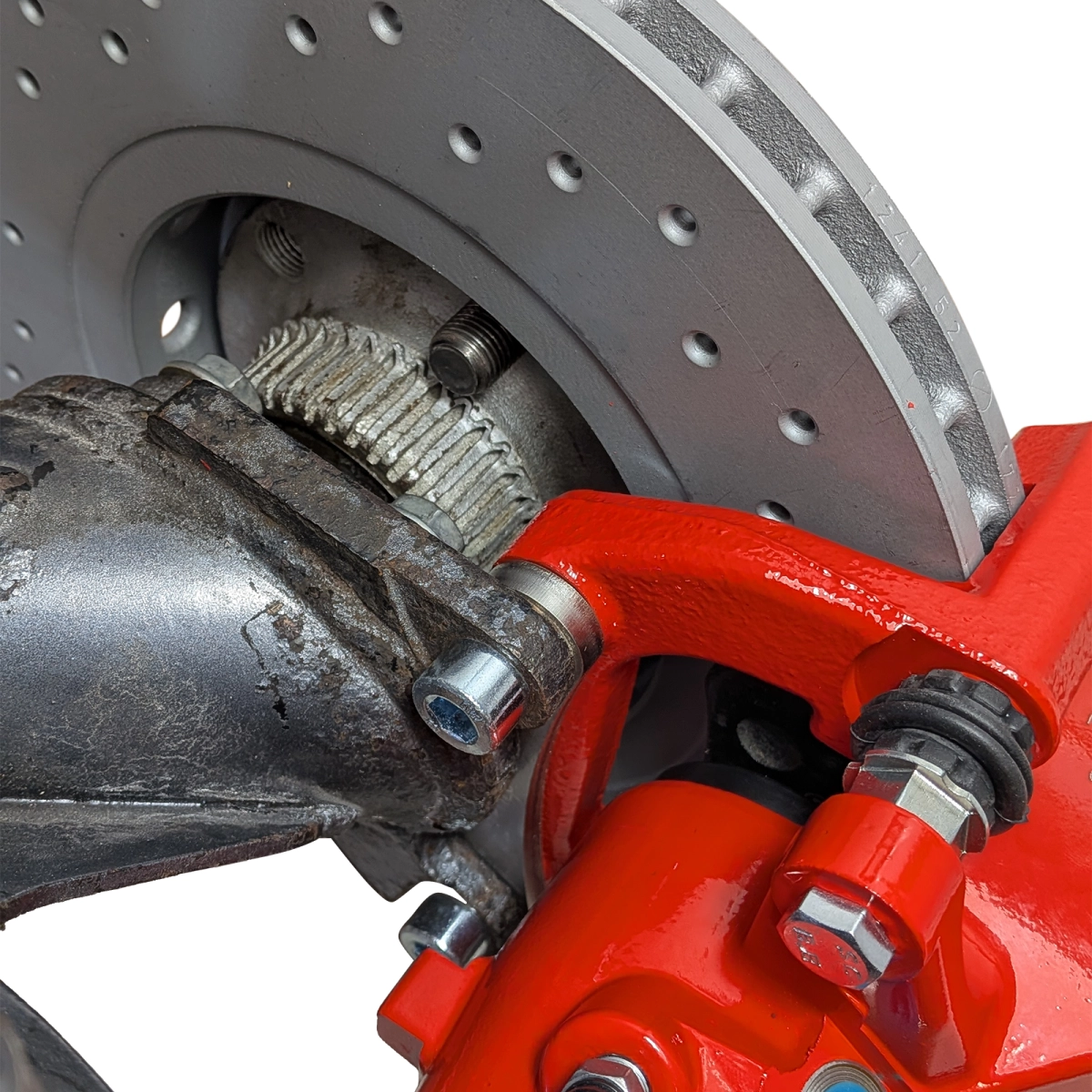

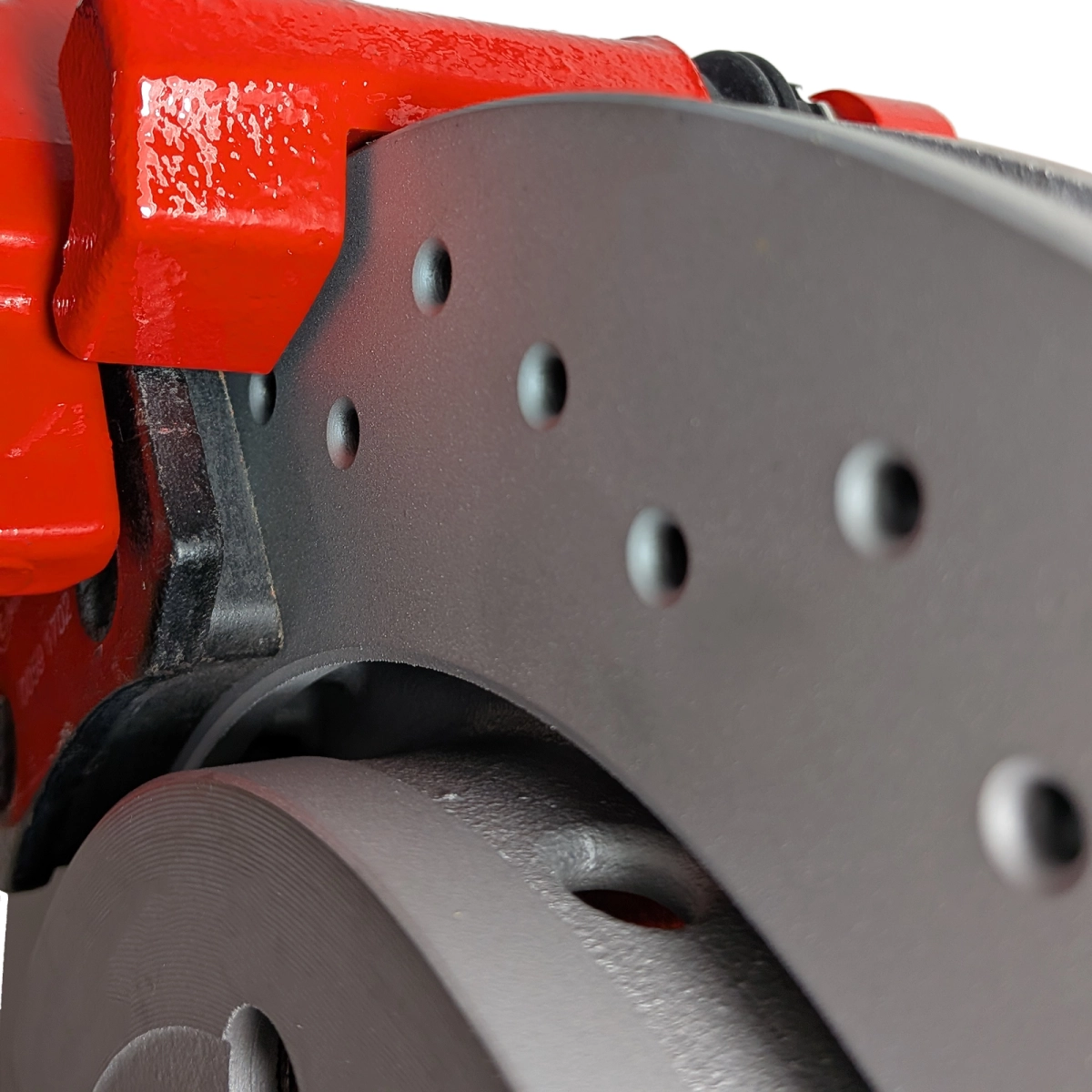

Brake caliper adapter inorder to install thelarge rear brake system (256x22) from Golf Mk4 V6 4Motion R32 , VW Polo 6R WRC, Audi TT 8N, S3 into all front-wheel-drive vehicles ef the series Golf 4 TT A3.

Adapters are made of high-strength steel and are supplied galvanized.
The adapter has a thickness of 6mm and a hole spacing of 90mm.

Advantages of this brake system:

  • top deceleration, without comparison with conventional brake discs, rear
  • better performance
  • supplied material certificate
  • the brake calipers from the 4Motion models can be fitted with our brackets. Thus, you avoid the purchase of Jubi caliper supports costing around 120 €, and which are difficult to find.

Required components:

  • brake caliper: VW Golf R32 V6 or S3 brake caliper left VW reference 8N0615423C, brake caliper right VW referecne 8N0615424C
  • brake caliper mounting braket: reference 8N0615425B
  • brake disc: VW+ Audi 4motion 256x22mm
  • longer fixation screws (also including screws available from us under item no. 683)

Delivery:

  •  2x brake caliper adapters
  •  material certificate

Tips, information and hints:

  • For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.

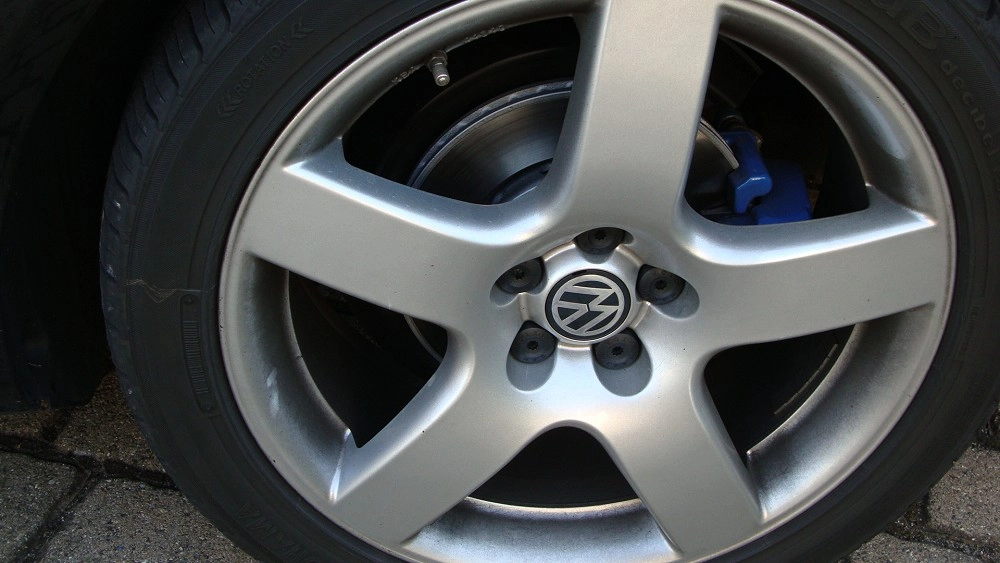

  • We can not answer generally, which rim size you can mount after your brake conversion. There are simply too many different rims.
  • In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers. >> Now directly to spacers <<
  • Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the >> configure steel braided brake lines <<
  • Always use the hand brake cable of the installed brake caliper. So sometimes you have to modify / adapt the new handbrake cable. For conversions, where the original caliper is used and the handbrake cable can be used, you may need to pull the cable without any other fittings (ie directly) to compensate for the long distance due to the large diameter of the large brake discs.

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm
Einbauort: hinten
Lochabstand Achsschenkel: 90mm
Lochabstand Bremssattel : 90mm

6 of 6 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


28 September 2019 09:40

Review with rating of 5 out of 5 stars

Martin S

Funktioniert wie es soll

6 January 2021 10:27

Review with rating of 5 out of 5 stars

Marco R

Das Produkt hab ich gewählt um einen bremsenumbau zu machen. Die Qualität ist top und passt ganz genau. Bin sehr zufrieden. Ich würde wieder bestellen. Wenn ich was in dieser Richtung brauche

17 February 2022 10:03

Review with rating of 5 out of 5 stars

Orlando cristo freitas R

5*****

31 March 2022 13:33

Review with rating of 5 out of 5 stars

Dragos D

Top Qualitätsprodukt.

26 May 2023 06:33

Review with rating of 5 out of 5 stars

Bert S

Perfekte Passform

30 August 2023 18:50

Review with rating of 5 out of 5 stars

Baschir A

Passt genau.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
