VW Golf 4 Polo VW Polo 6r WRC 9N Bora Audi A3 TT TTRS RS3 Audi TT brake system brake caliper adapter 334x32
- ✓ 334x32 1J0615301AA 1J0615302A Golf 4 / R32 brake disc
- ✓ 4-piston 8J0615107 / 8J0615108 TTRS brake caliper
- ✓ front axle
€205.63*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter for Golf 4 series to install TTRS brake calipers, combined with the original R32 brake dics from Golf 4 R32 ( 334x32 , PCD 5x100).
Suitable for following vehicles :
- Audi A3 (8L)
- Audi TT (8N)
- VW Golf 4
- VW Bora
- VW Beetle
- VW Polo (9N)
- Seat Ibiza
- Seat Leon
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- original TTRS brake caliper reference : left 8J0 615 107 ; right 8J0 615 108
- brake pads: reference : 8J0 698 151 E
- brake disc: Golf 4 R32 334x32 mm , reference : 1J0 615 301AA / 1J0 615 302 A
Delivery:

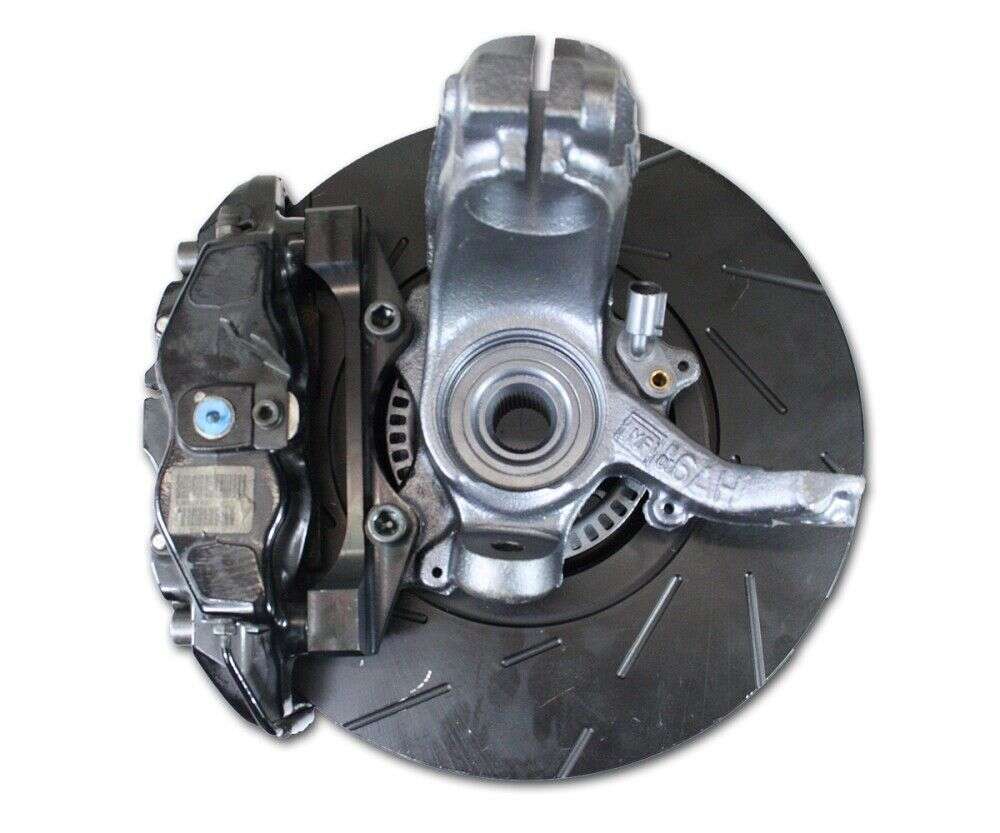

- 2x brake caliper adapters (see picture)
- high-strength mounting screws
- material certificate
- CAD anylysis for the registration
- installation tutorial
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
9 May 2019 10:28
Karel K
sehr profesional und schnell
28 August 2019 17:56
Simon Z
Gute Beratung und alles passt natürlich wie es soll.
26 March 2021 13:07
Dennis S
Passgenauigkeit und Qualität ist perfekt, das einzige was ich auszusetzen hab ist, das mit Original Felgen bzw felgen mit keiner hohen einpresstiefe , das dort der Sattel an der felge schleifen kann. aber 5mm spurplatte hilft da Super.Könnte man vielleicht noch zur Beschreibung hinzufügen. Sonst top!
10 February 2021 14:59
Didier G
Colis reçu à la date convenue, les adaptateurs sont de qualité mais je ne les ai pas encore montés.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
