VW Golf 4 Polo 9N Bora VW Polo 6r WRC Audi A3 TT TTRS RS3 Audi TT brake system brake caliper adapter 370x32
- ✓ 370x32 8J0615301F TTRS brake disc
- ✓ 4-piston 8J0615107 / 8J0615108 TTRS brake caliper
- ✓ front axle
€314.09*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

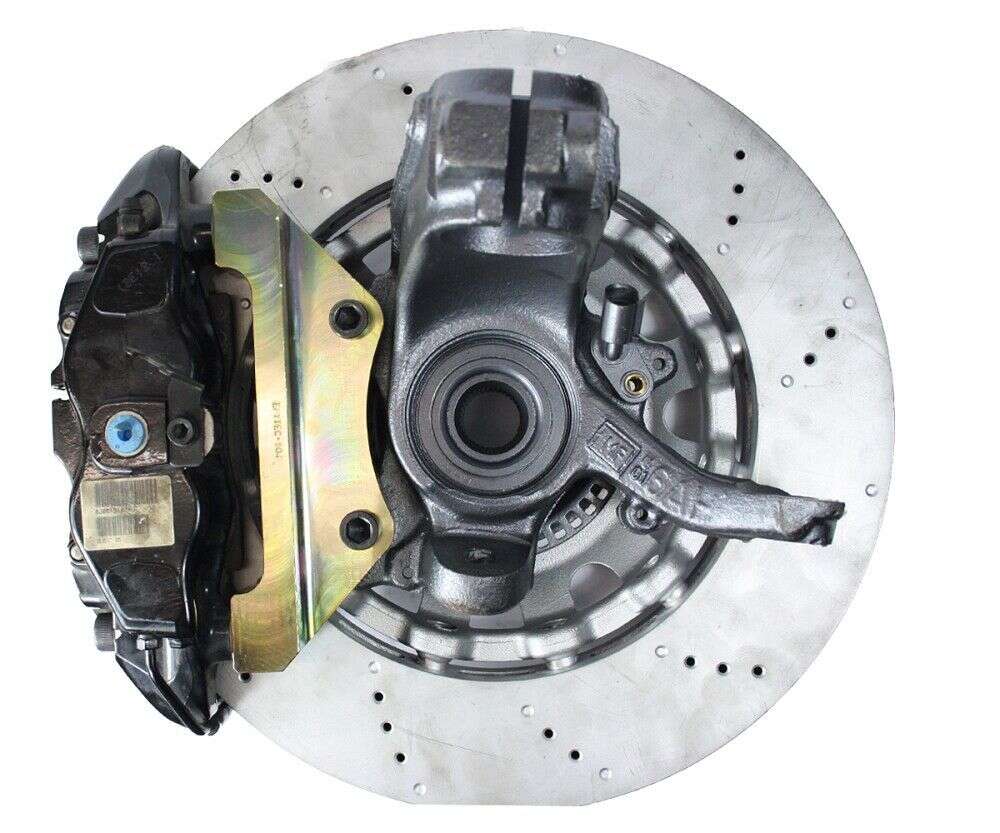

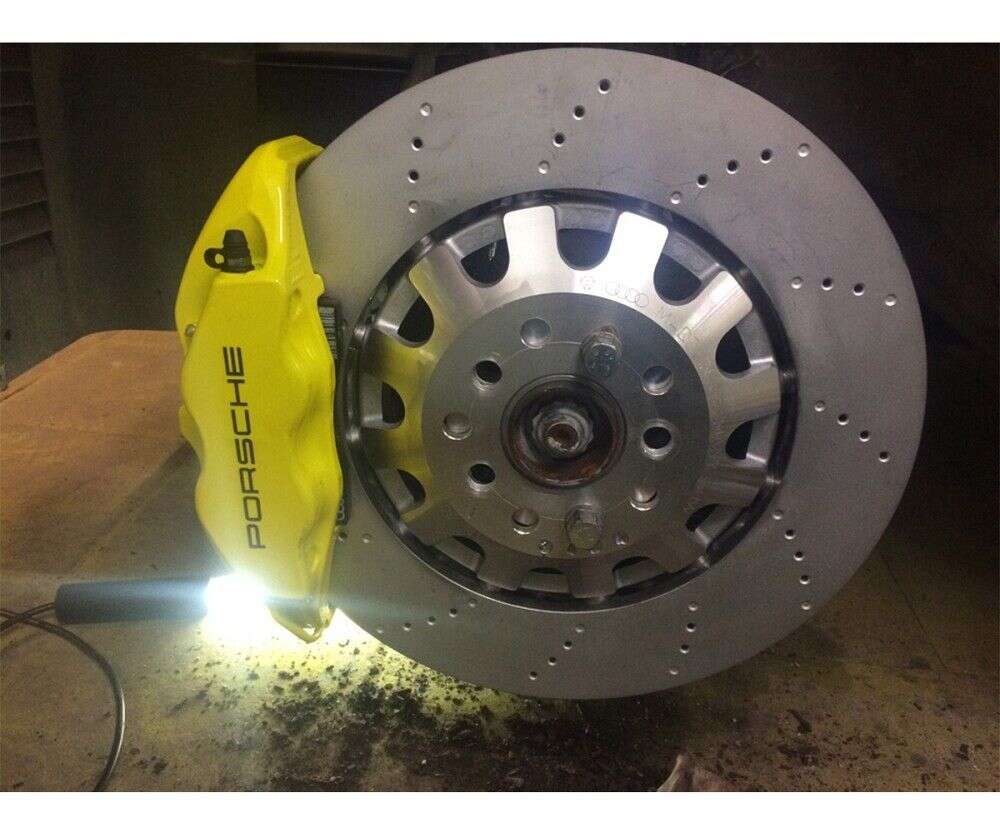

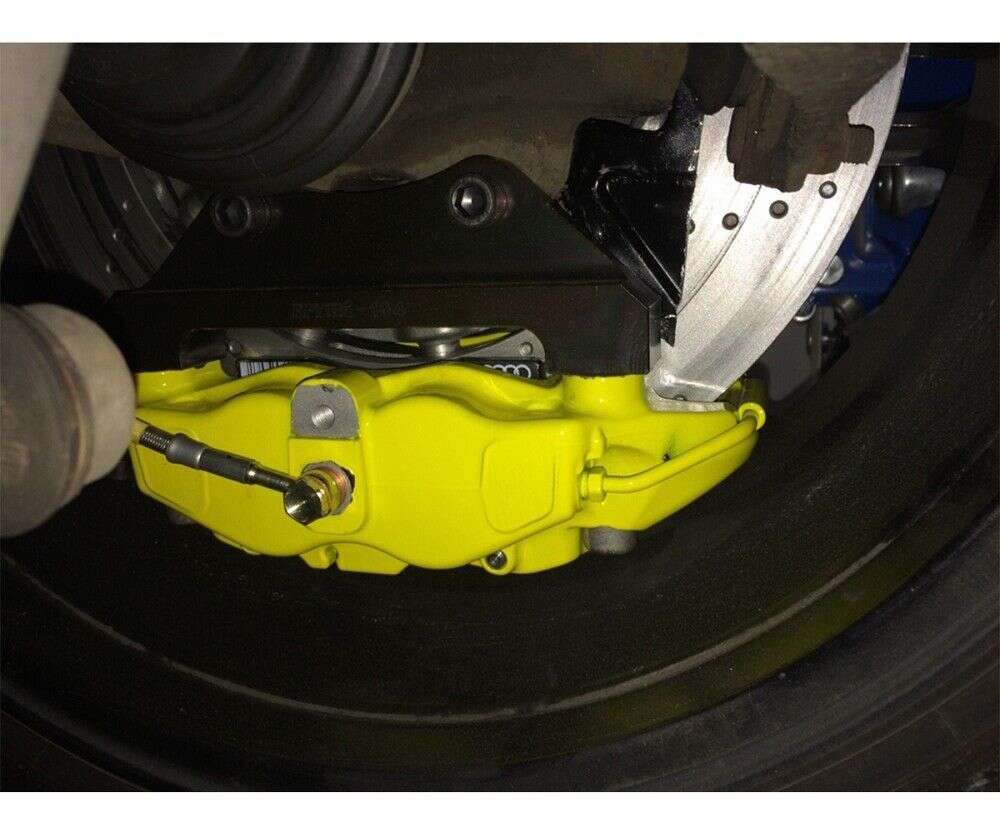

Brake caliper adapter, front axle, for Golf MK4 serie to convert to TTRS brake calipers, combined with the original TTRS brake discs.
Suitable for following vehicles:
- Audi A3 (8L)
- Audi TT (8N)
- VW Golf MK4
- VW Bora
- VW Beetle
- VW Polo (9N)
- VW Polo 6r WRC
- Seat Ibiza
- Seat Leon

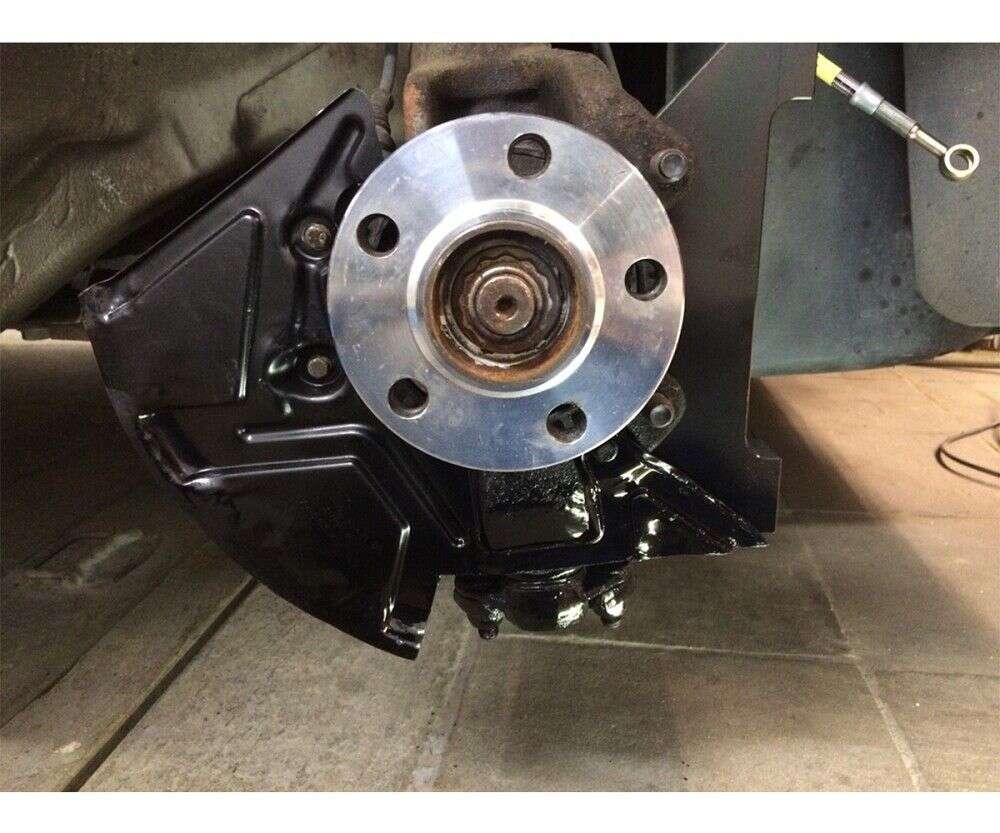

As the TTRS disc could touch the wishbone because of its high height, we have developed spacers of 8mm thickness, which are mounted under the brake disc. The discs are thus pushed outwards. In addition, the disc with the plate is perfectly centered on the axle stub. The spacers are naturally contained in the delivery.
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:

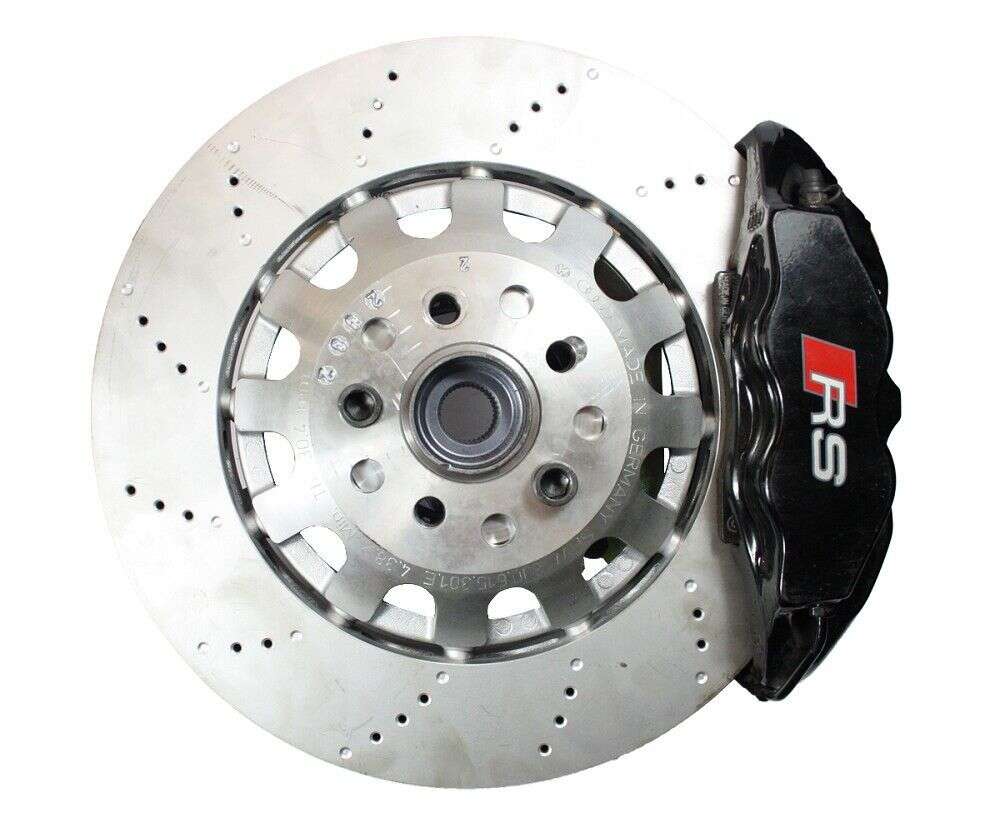

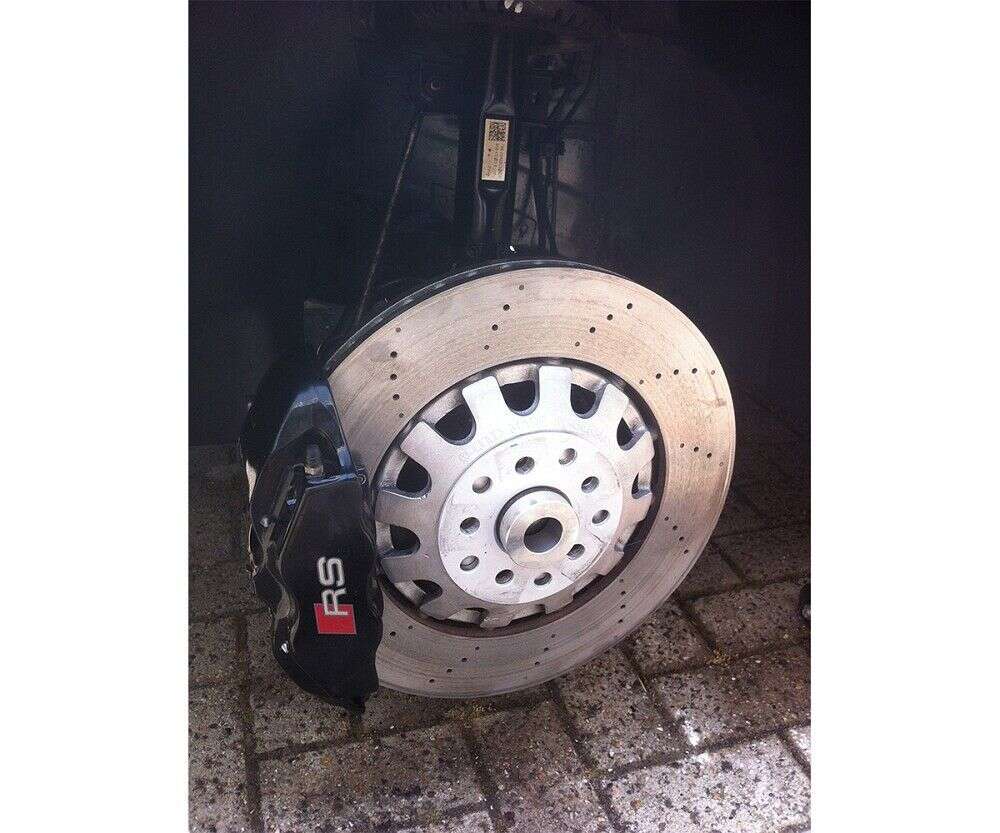

- brake caliper: original TTRS , reference left 8J0 615 107 Bremssattel , reference right 8J0 615 108
- brake pads: reference 8J0 698 151 E
- brake disc: TTRS 370x32 mm , reference 8J0615301F (RS3 not suitable)
- modification of the disc PCD from 5x112 to 5x100 (possibility of making it directly from EPYTEC)
Delivery:
- 2x brake caliper adapters
- 2x spacers under discs
- scews high-strenghen
- material certificate
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.

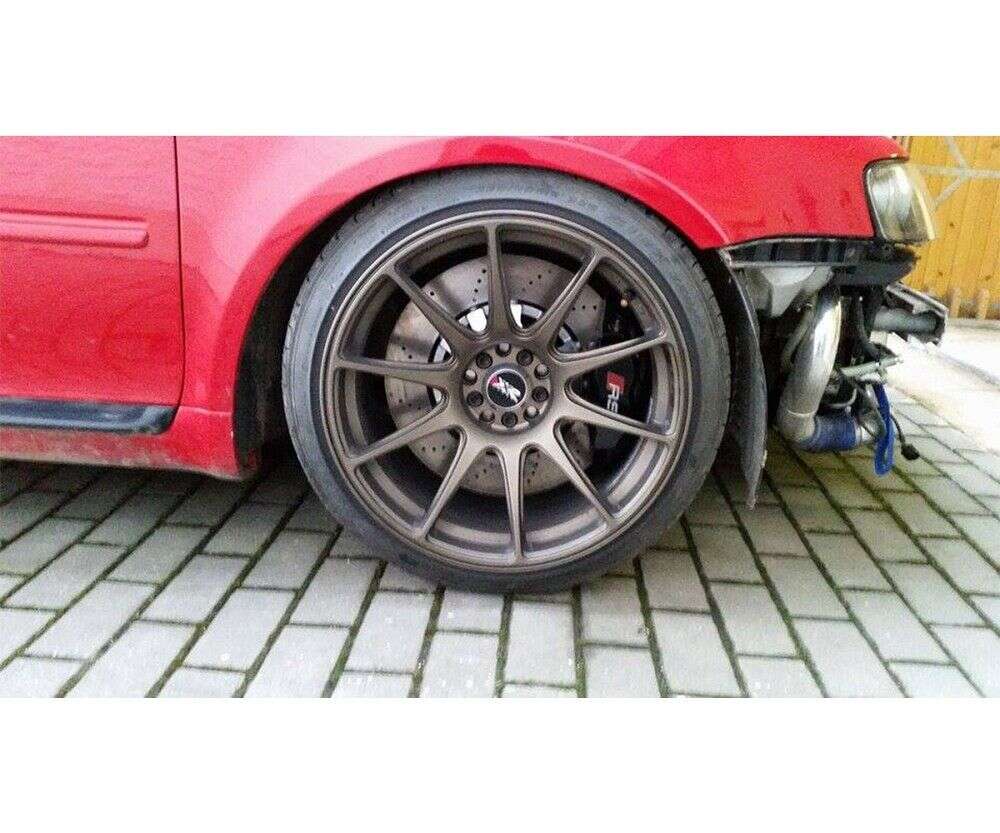

- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
