VW Golf 1 Caddy Scirocco brake caliper adapter 4 piston Porsche 996 Boxter brake caliper 305x28mm Abarth
- ✓ 305x28 51778054 Abarth Punto EVO brake disc
- ✓ 4-piston 986351421 / 986351422 Porsche Boxter 986 brake caliper
- ✓ front axle
€199.09*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

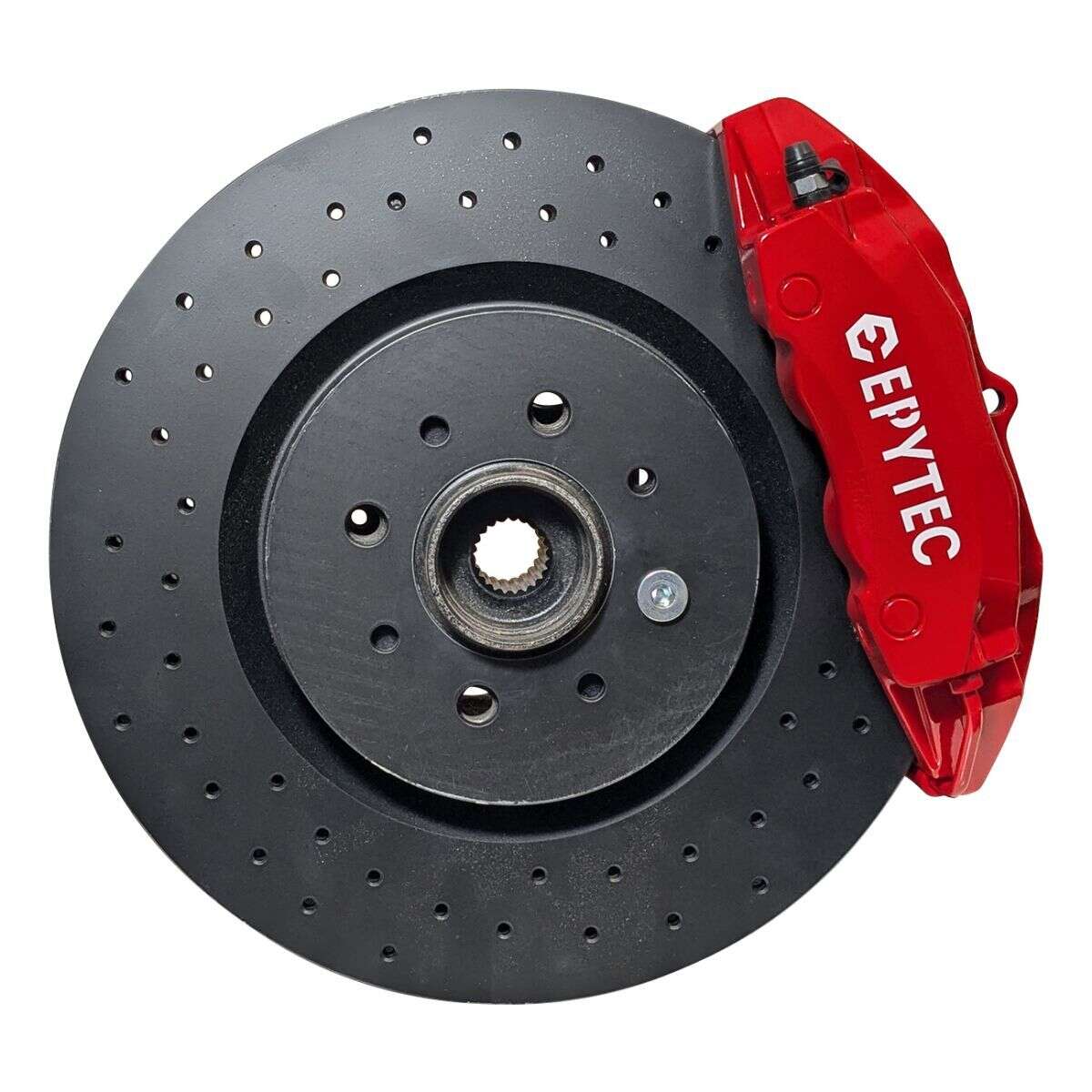

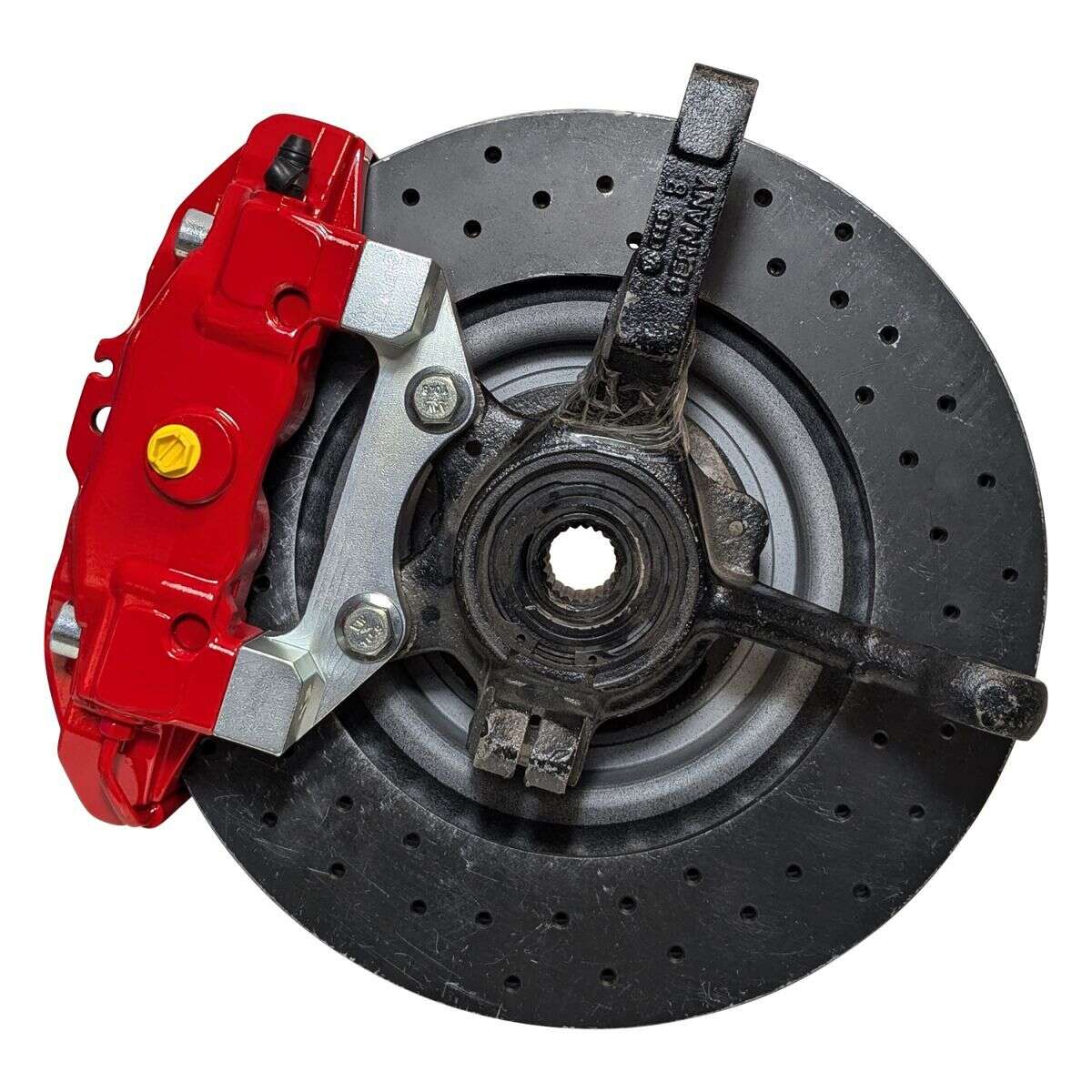

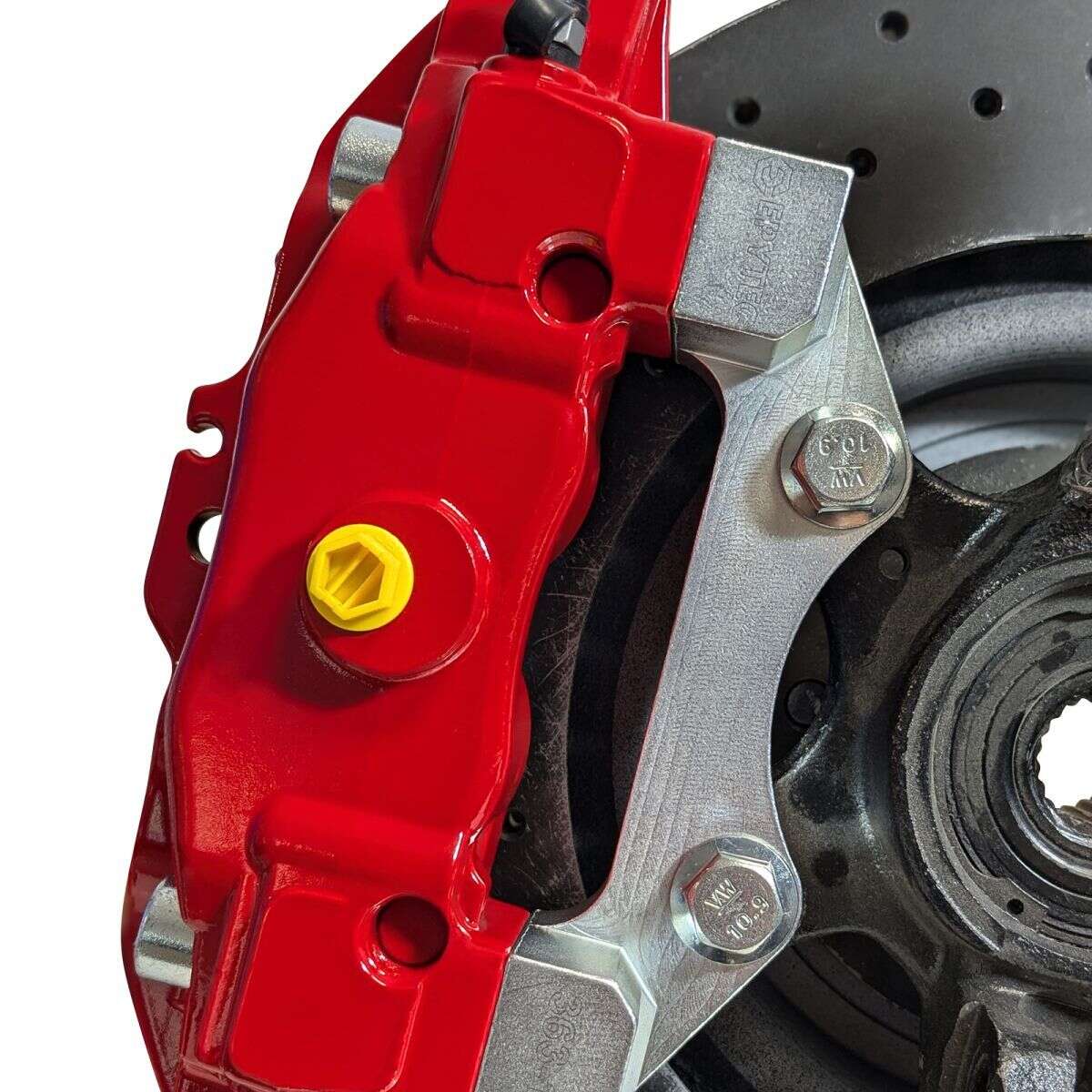

Brake caliper adapter for front axle brake system.Allows the installation of brake discs typ Abarth Punto EVO diameter 305x38mm in combination with Porsche 986 4 Piston brake calipers.
Tailor-made for the following VW vehicles:
- Golf 1
- Golf 1Cabrio
- Caddy 14d
- Jetta 1
- Scirocco
Advantages:
- extreme deceleration values also in connection with our rear axle brake system
- Brake discs with 4x100 bolt circle, so the original Golf 1 bolt circle can be retained.
- The material certificate included in the scope of delivery enables entry by individual acceptance even for series vehicles.
- Directly suitable for the above models and can therefore be restored to the original condition at any time without any problems.
- Our EPYTEC brake caliper adapters do not require your standard parts to be sent in, no re-welding - re-milling or re-drilling.
Required material for installation:
- brake disc Abarth Punto EVO 305x28 total height 45mm original part no: 51778054
- The hub bore must be widened to 65.00mm (can be done in our house for 59€ for the pair of brake discs click here)

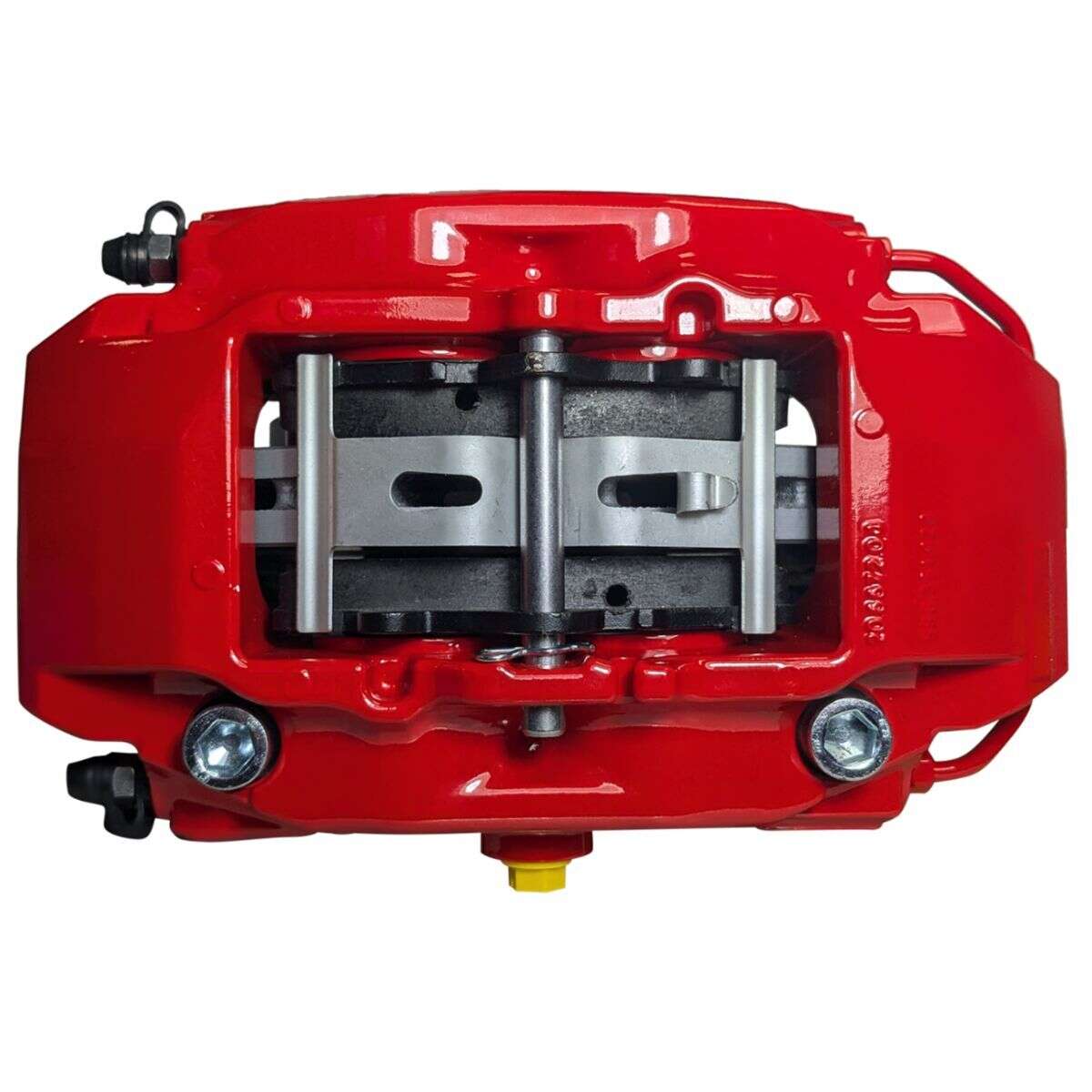

- Porsche brake caliper from 986er Porsche Boxter original part no: 986.351.421 / 422 (only 100% suitable with the specified Porsche calipers)
Scope of delivery:
- Set of brake caliper adapters VW Golf 1 Caddy Scirocco on Porsche brake system
- matching high-strength screw
- Certificate of material
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
3 January 2020 19:46
Cristiano Miguel M
Sehr gute Qualität und Passgenauigkeit immer wieder gerne.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
