Thin Fine Drive Shaft VW Golf MK1 Cabriolet MK2 Lupo Polo without Axle Joint
- ✓ Front axle left
- ✓ Golf 1, Polo, Lupo
- ✓ 1.8T G60 5-speed 020 gearbox
€133.90*
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
- 19 Jahre Expertenwissen

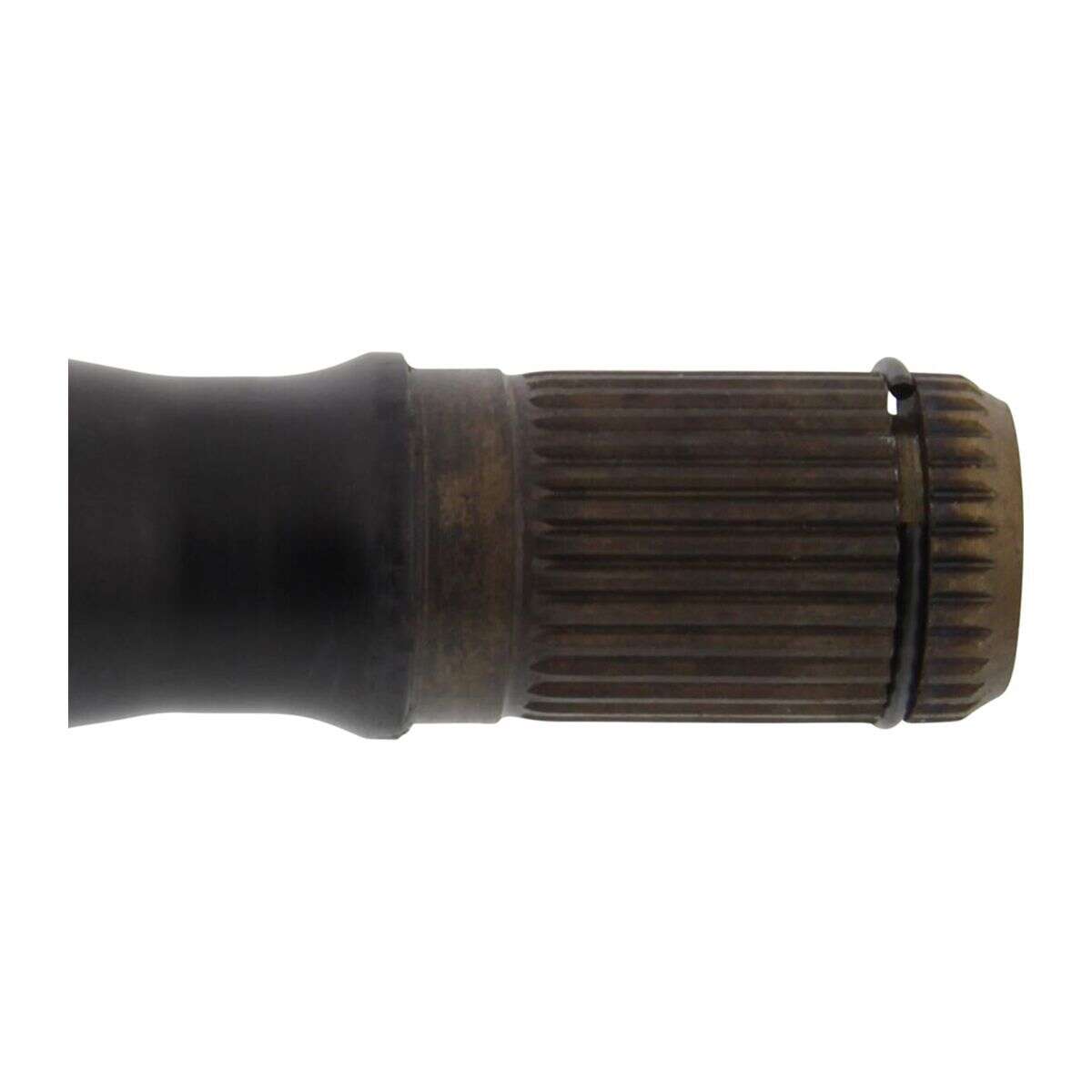

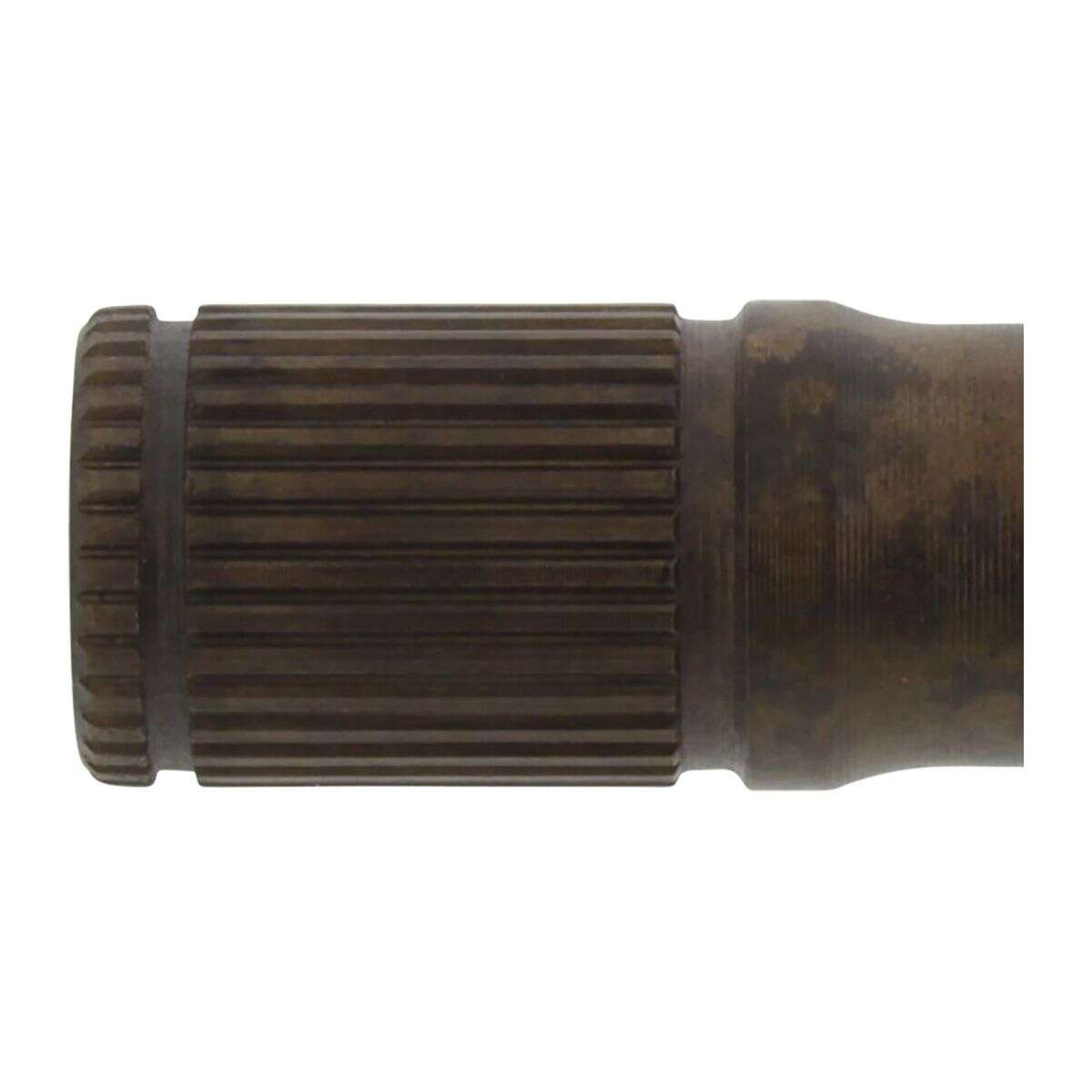

Product information "Thin Fine Drive Shaft VW Golf MK1 Cabriolet MK2 Lupo Polo without Axle Joint"
Thin fine drive shaft without axle joint, left side, for VW Golf MK1 Cabriolet, MK2, Caddy, Lupo and Polo with Ø 100 flange. Absolutely necessary when lowering! The shaft is 26mm thick, made of high-strength steel and manufactured in one piece and is a complete drive shaft. Thus also suitable for high-performance engines.
This drive shaft is also suitable for all conversions to 5-speed transmission from Golf 3 with eg 1.8T or G60 engines. In addition, we recommend the right shaft with the Epytec Article No: APA111 to find in our store (click here).
The shaft is 11mm shorter than the original shaft therefore ideally suited for lowered vehicles.
Thanks to our thin and extremely stable transmission / drive shaft, you avoid many problems at the body that usually appear during a chassis lowering.
It is important that when installing the new drive shaft, no excess pressure is created in the sleeve. In our installation instructions you can see how to prevent this (click here).
With the installation of our drive shaft, you avoid many modifications and you save time.
Technical data:
| assembly side: | front axle left |
| length: | 420,0 mm |
| Aexternal toothing wheel side: | 30,0 |
| external diameter differencial side: | 33,3 |
| external diameter: | 27,0 mm |
Delivery:
- 1x fine thin drive / transmssion shaft, without axle joint, for VW and Seat models
Login
| Motor | Motorcode |
|---|---|
| 1.8 | 155|98PS(72KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 60|60PS(44KW) |
| 1.4 16V | 60|75PS(55KW) |
| 1.0 | 60|50PS(37KW) |
| 1.0 | 6X1|50PS(37KW) |
| 1.4 | 6X1|60PS(44KW) |
| 1.0 | 6E1|50PS(37KW) |
| 1.4 16V | 6X1|75PS(55KW) |
| 1.4 16V | 6E1|75PS(55KW) |
| 1.4 | 6E1|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 6N2|60PS(44KW) |
| 55 1.3 | 6N1|55PS(40KW) |
| 1.0 | 6N2|50PS(37KW) |
| 45 1.0 | 6N1|45PS(33KW) |
| 60 1.4 | 6N1|60PS(44KW) |
| 50 1.0 | 6N1|50PS(37KW) |
| 75 1.6 | 6N1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 1G1|75PS(55KW) |
| 1.6 | 19E|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | 6H|50PS(37KW) |
| 1.0 | 6H1|50PS(37KW) |
| Motor | Motorcode |
|---|---|
| 1.8i | 6K2|90PS(66KW) |
| 1.8i | 6K1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.8 | 155|98PS(72KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 60|60PS(44KW) |
| 1.4 16V | 60|75PS(55KW) |
| 1.0 | 60|50PS(37KW) |
| 1.0 | 6X1|50PS(37KW) |
| 1.4 | 6X1|60PS(44KW) |
| 1.0 | 6E1|50PS(37KW) |
| 1.4 16V | 6X1|75PS(55KW) |
| 1.4 16V | 6E1|75PS(55KW) |
| 1.4 | 6E1|60PS(44KW) |
| Motor | Motorcode |
|---|---|
| 1.4 | 6N2|60PS(44KW) |
| 55 1.3 | 6N1|55PS(40KW) |
| 1.0 | 6N2|50PS(37KW) |
| 45 1.0 | 6N1|45PS(33KW) |
| 60 1.4 | 6N1|60PS(44KW) |
| 50 1.0 | 6N1|50PS(37KW) |
| 75 1.6 | 6N1|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 1G1|75PS(55KW) |
| 1.6 | 19E|75PS(55KW) |
| Motor | Motorcode |
|---|---|
| 1.0 | 6H|50PS(37KW) |
| 1.0 | 6H1|50PS(37KW) |
| Motor | Motorcode |
|---|---|
| 1.8i | 6K2|90PS(66KW) |
| 1.8i | 6K1|90PS(66KW) |
