Installation instructions drive shaft sleeves for our drive shafts

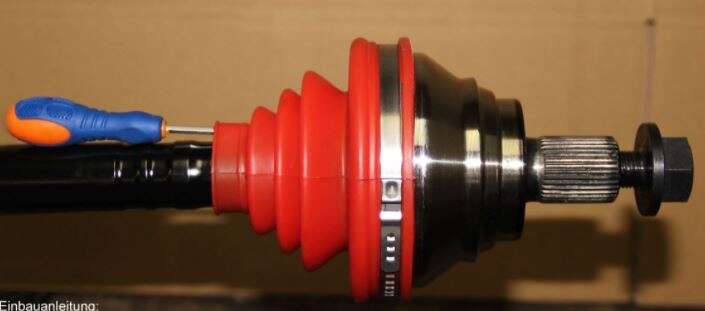

To ensure the longevity of the drive shaft sleeves as much as possible, the following installation, as shown in the picture, is an advantage. Insert a small flat screwdriver between the boot and the shaft (carefully), then install the shaft in this state and tighten the outer joint bolt to the specified torque. Then carefully remove the screwdriver and only then install the clamp. Failure to follow this step can result in slight over-inflation (since tightening the screw forces air into the joint/sleeve). The sleeve could inflate while driving and rub against the collar.
