Reinforcement Plate VW / Audi G60 16V Turbo 1,8T Golf Reinforcing Plate ABF KR PL
- ✓ 6mm thick
- ✓ high-strength screws
- ✓ 1.8 liter 16V, G60, 1.9l TDI

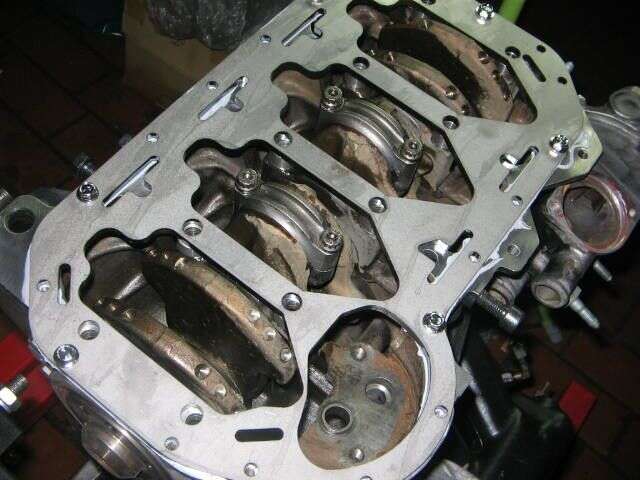

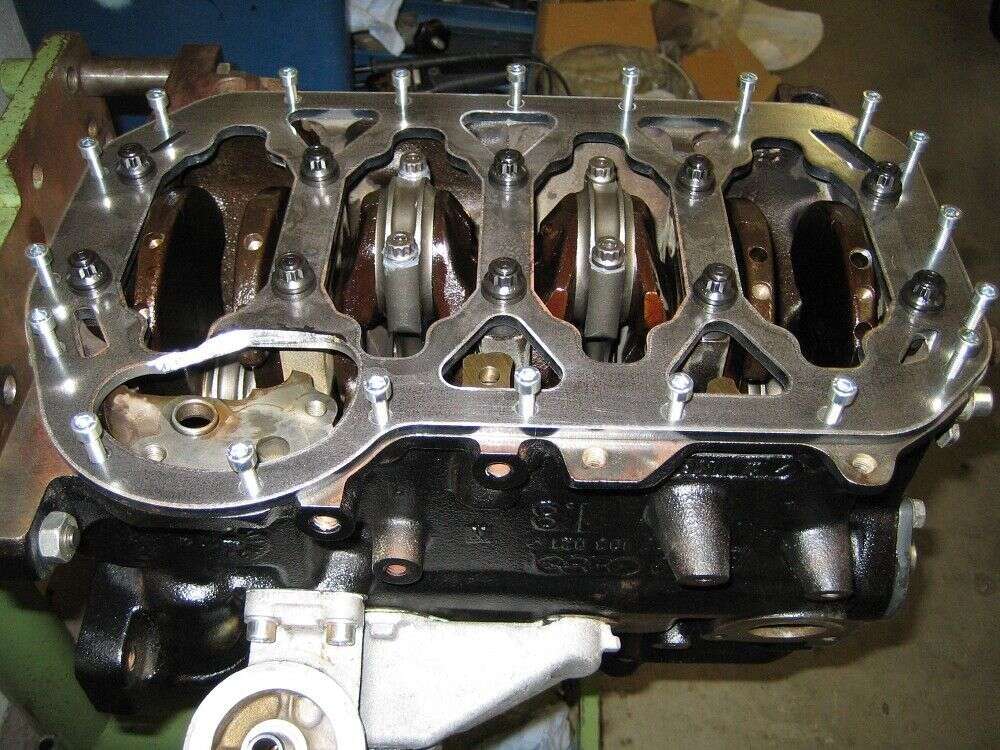

Block reinforcement plate made of 6mm high-quality lasered steel.
Our block reinforcement plate gives the block significantly greater stability.This means more power and a higher resistance to pressure loads.
Absolutely necessary for all kind of engine conversion on Turbo and G-charger.
Tailor-made for all VW / Audi 1.8 liter 16V, G60, 1.9l TDI and turbo / compressor engines of the 827 series, such as MKB. PL, KR, 9A, 6A, ,AFN ABF, PG, 1H, DX, EG equipped with engine with oil pump drive by countershaft as:
Installed in the following cars:
- Audi 100
- Audi 80
- Audi A4 und A6
- Audi Coupe
- Seat Cordoba, Ibiza II und Toledo
- VW Corrado und Caddy
- VW Golf 3 und 4
- VW Passat, Polo Lupo Sharan und Vento

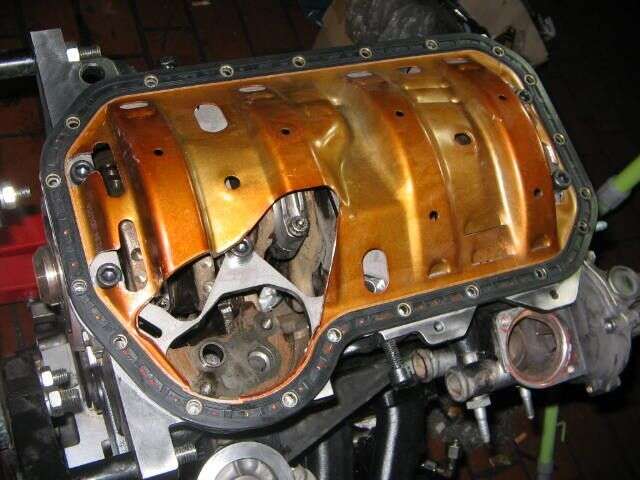

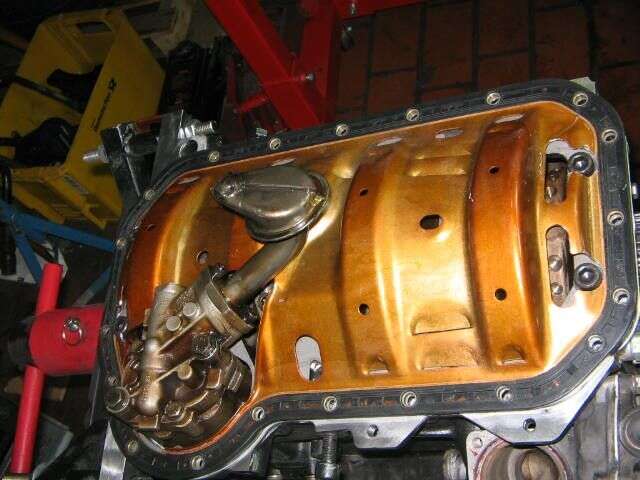

Note: Depending on the engine type, it may happen that the 4 screws on the side of the block reinforcement plate have little space for the oil pan, not much is missing, they then have to be unscrewed slightly in the head diameter. If an oil scraper is used, it must be recessed a little at the locations of these 4 screws. Depending on the oil pump used, it may happen that a small bridge has to be processed minimally, since different pump housings were installed by VW.
Scope of delivery:
- 1x Block stiffening plate for reinforcement of your engine block.
- Complet kit of high resistant screws and spacer sleeves for plate fixation.
- Material certificate
- Directions for use to simplify installation.
Login
20 January 2017 21:09
carsdaver32
Excellent ebayer, item as described. Packed safely for post. Thanks
10 August 2016 09:52
marion.n2303
envoie rapide et bien emballé ! good ebayer !!!
25 April 2025 00:02
Nikolaos M
Top Qualität passt perfekt
8 June 2017 17:31
giorgotrekli0
good quality and quick delivery
10 September 2017 15:24
jacquecronj0
Thanks the problem was not from seller it was our useless Country
14 December 2016 16:29
billyblue2004
Super Support, fähige Leute die bei Problemen helfen, absolut Spitze.
23 March 2017 18:30
0676cyrilvw
Ok ebayeur
28 August 2019 17:26
1982mk1golfgti
Item recieved with many many thanks! A***** BRILLIANT!
- How thick is the plate?
The plate is 6mm thick, this thickness is ideal for reinforcement and very stable
- Why are the provided screws too long for me?
We deliberately include longer screws because the blocks have minimal differences, and some customers have sometimes needed longer screws to fully fill the threads, so everyone can cut the screws to the precise length to fully fill the threads.
- Are all the screws included for assembly?
Yes, all screws for assembly are included in the set, including the high-strength 12.9 crankshaft screw
- What is the torque of the screws in this set in Nm?
We recommend tightening the screws in the first pass, from the inside out, (same order as for the cylinder head) with 60Nm and then with 80Nm.
| Motor | Motorcode |
|---|---|
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 2.0 | 35I|116PS(85KW) |
| 2.9 VR6 Syncro | 35I|184PS(135KW) |
| 2.0 Syncro | 3A5|115PS(85KW) |
| 2.0 16V | 3A5|150PS(110KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.9 VR6 Syncro | 3A5|184PS(135KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 2.0 | 3A5|115PS(85KW) |
| 2.0 16V | 3A5|136PS(100KW) |
| 2.0 | 35I|115PS(85KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 2.0 | 3A5|116PS(85KW) |
| 1.8 G60 Syncro | 3A5|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 GTI 16V | 1H1|150PS(110KW) |
| 2.0 Syncro | 1H1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 3A2|107PS(79KW) |
| 1.8 16V | 35I|136PS(100KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 1.8 16V | 3A2|136PS(100KW) |
| 2.0 Syncro | 3A2|115PS(85KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.0 16V | 3A2|150PS(110KW) |
| 1.8 G60 Syncro | 3A2|160PS(118KW) |
| 2.0 | 35I|107PS(79KW) |
| 2.0 16V | 3A2|136PS(100KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 2.0 | 3A2|115PS(85KW) |
| 2.0 | 35I|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 GTI G60 | 19E|160PS(118KW) |
| 1.8 GTI G60 | 1G1|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 1H5|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 16V | 53I|136PS(100KW) |
| 1.8 G60 | 53I|160PS(118KW) |
| 2.0i | 53I|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 1L|150PS(110KW) |
| 2.0i 16V | 1L2|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 6K1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 6K2|150PS(110KW) |
| 2.0i 16V | 6K1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 2.0 | 35I|116PS(85KW) |
| 2.9 VR6 Syncro | 35I|184PS(135KW) |
| 2.0 Syncro | 3A5|115PS(85KW) |
| 2.0 16V | 3A5|150PS(110KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.9 VR6 Syncro | 3A5|184PS(135KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 2.0 | 3A5|115PS(85KW) |
| 2.0 16V | 3A5|136PS(100KW) |
| 2.0 | 35I|115PS(85KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 2.0 | 3A5|116PS(85KW) |
| 1.8 G60 Syncro | 3A5|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 GTI 16V | 1H1|150PS(110KW) |
| 2.0 Syncro | 1H1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 3A2|107PS(79KW) |
| 1.8 16V | 35I|136PS(100KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 1.8 16V | 3A2|136PS(100KW) |
| 2.0 Syncro | 3A2|115PS(85KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.0 16V | 3A2|150PS(110KW) |
| 1.8 G60 Syncro | 3A2|160PS(118KW) |
| 2.0 | 35I|107PS(79KW) |
| 2.0 16V | 3A2|136PS(100KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 2.0 | 3A2|115PS(85KW) |
| 2.0 | 35I|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 GTI G60 | 19E|160PS(118KW) |
| 1.8 GTI G60 | 1G1|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 1H5|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 16V | 53I|136PS(100KW) |
| 1.8 G60 | 53I|160PS(118KW) |
| 2.0i | 53I|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 1L|150PS(110KW) |
| 2.0i 16V | 1L2|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 6K1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 6K2|150PS(110KW) |
| 2.0i 16V | 6K1|150PS(110KW) |
