Large brake system KIT rear axle BMW E46 316 328i 4 piston Porsche 986 brake caliper 328x20 brake disc - Colour brake caliper: red with Epytec logo
With our big brake kit for the BMW E46, you can convert your rear axle to a 4-piston Porsche 968 brake system to achieve ideal performance.
With this high performance brake kit you can use the Porsche Cayenne 4-piston Brembo brake callipers in conjunction with the 328x20 mm brake discs on all BMW E46 models ( except M models )
Another advantage of our brake system kit is that it is equipped with the same original brake calipers and brake discs that are installed in series-production cars. These OE parts not only make the replacement of the brakes simple and uncomplicated, but also facilitate the registration with the TÜV.
The big brake kit is not only sporty, but also suitable for everyday use and, thanks to the perforated sports brake discs in conjunction with our ceramic lining, enables ideal performance while reducing brake dust, temperature and wear.
With this high-performance big brake kit, you can get started straight away and have everything you need to convert your rear axle to a 4-piston brake system.
The high performance big brake kit is suitable for the following cars:
- all BMW E46 models ( except M models )
Advantages of this big brake kit:
- our components, such as brake callipers and brake discs, come from series-production cars and are OE parts. This makes replacing the brakes simple and uncomplicated and facilitates registration with the TÜV.
- The material certificate included in the scope of delivery enables registration by individual acceptance even for series-production cars.

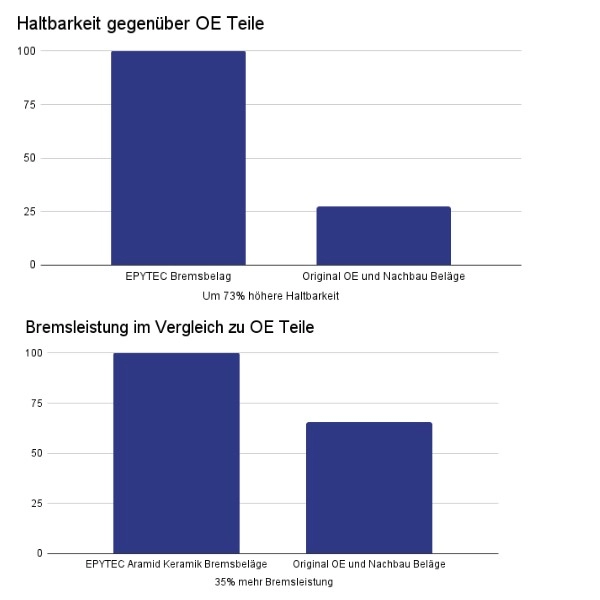

- High-performance brake pads with longer service life than the original pads
- extreme deceleration values also in combination with our rear axle brake system
- directly fitting to the above mentioned models and therefore easily rebuildable to original condition at any time
- our EPYTEC brake caliper adapters require no sending in of your stock parts, no re-welding, re-milling or re-drilling.
Note:
- Please note that these brake callipers are supplied in red with Epytec Logo.
- Get our high performance brake kit now and experience ideal performance and durability.
Scope of delivery:
- Brake calipers from Porsche 986 part number: 986.352.421/986.352.422 or 996.352.422/996.352.421 in red with Epytec Logo
- Brake discs rear from BMW E46 M3 in 328x20 mm part no : 34212282303 or34212282304

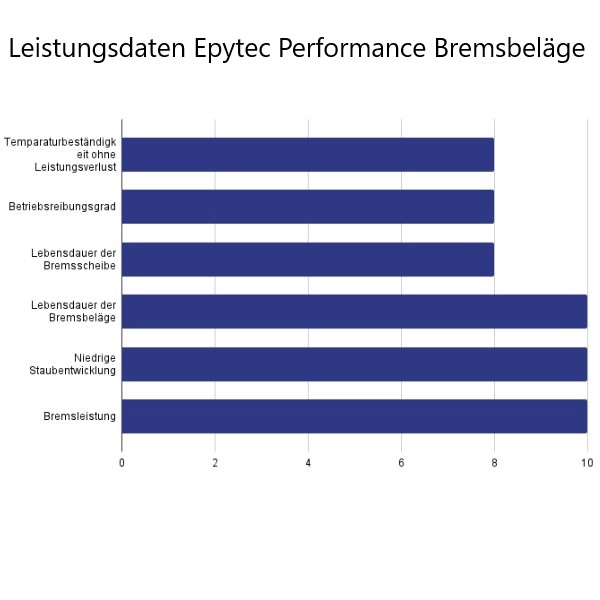

- Ceramic brake pads for less brake dust and longer service life
- 2x brake caliper adapter for the BMW E46
- high strength bolt material
- Assembly aid for brake disc assembly
- Material certificate
- Stress analysis / FEM calculation for registration
- Installation instructions (click here)
FAQ: Häufige Fragen
Sollte ich die Anker- bzw. Staubbleche entfernen?
Wir empfehlen das Entfernen der Bleche, da sie die Belüftung einschränken. Ohne diese Barriere wird die Bremse effizienter gekühlt und bleibt auch bei starker Beanspruchung leistungsfähig.
Wie erleichtere ich mir die Felgenmontage?
Mit Radmontagehilfen gelingt das Ausrichten und Aufsetzen der Felge einfacher und präziser. Das schützt Gewinde und Felge und spart Zeit.
Benötige ich Spurverbreiterungen nach dem Umbau?
Welche Felgengröße passt, lässt sich pauschal nicht sagen. Streift die Felge minimal am Bremssattel, schaffen Spurverbreiterungen den nötigen Abstand.
Brauche ich neue Bremsleitungen?
Für optimale Passform und stabile Bremswirkung empfehlen wir Stahlflex. Diese sind konfigurierbar und liefern konstantere Ergebnisse als Gummileitungen.
Warum unsere Adapter die beste Wahl sind
Wusstest du, dass sich dein EPYTEC-Adapter oft schon nach dem ersten Verschleißteilwechsel komplett bezahlt macht?
Das liegt daran, dass du mit unseren Adaptern auf OE-Bremsscheiben und -Sättel setzt, die wir bewusst bei der Entwicklung der Adapter ausgewählt haben. Diese Komponenten sind nicht nur in höchster Qualität gefertigt und in Serienfahrzeugen im Einsatz, sondern durch ihre Großserienproduktion auch günstig und jederzeit verfügbar.
Für dich bedeutet das: erstklassige Bremsleistung ohne Abhängigkeit von teuren Speziallösungen anderer Hersteller.
Und selbst beim TÜV hast du es leichter, denn unsere OE-Komponenten sind bereits offiziell abgenommen – der Prüfer kann sich direkt darauf beziehen, sodass deine Eintragung unkompliziert und sicher abläuft.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
- Which RAL colors can we not offer for the coating of our brake calipers?
We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.
The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.
We do not offer these RAL fluorescent colors (examples)
RAL 1026 Fluorescent Yellow
RAL 2005 Fluorescent Orange
RAL 2007 Fluorescent Light Orange
RAL 3024 Fluorescent Red
RAL 3026 Fluorescent Light Red
RAL 6038 Fluorescent Green
Tip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.
- What torque should be used to tighten the sealing nipples on the brake caliper?
We recommend tightening the sealing nipples on the brake caliper with 20 Nm.
Why is this important?
The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.
Should a torque wrench be used?
Yes, for precise and safe installation, we recommend using a torque wrench.
Should anything be checked after installation?
Yes, the sealing nipple should be checked for tight fit and sealing afterward.
My brake caliper is not exactly centered over the brake disc - what should I do?
If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.
The most important thing is:
👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:
there is very little clearance on one side or the bolt lightly touches
while on the other side there is more play
This is generally not critical.
🔧 This is how you proceed:

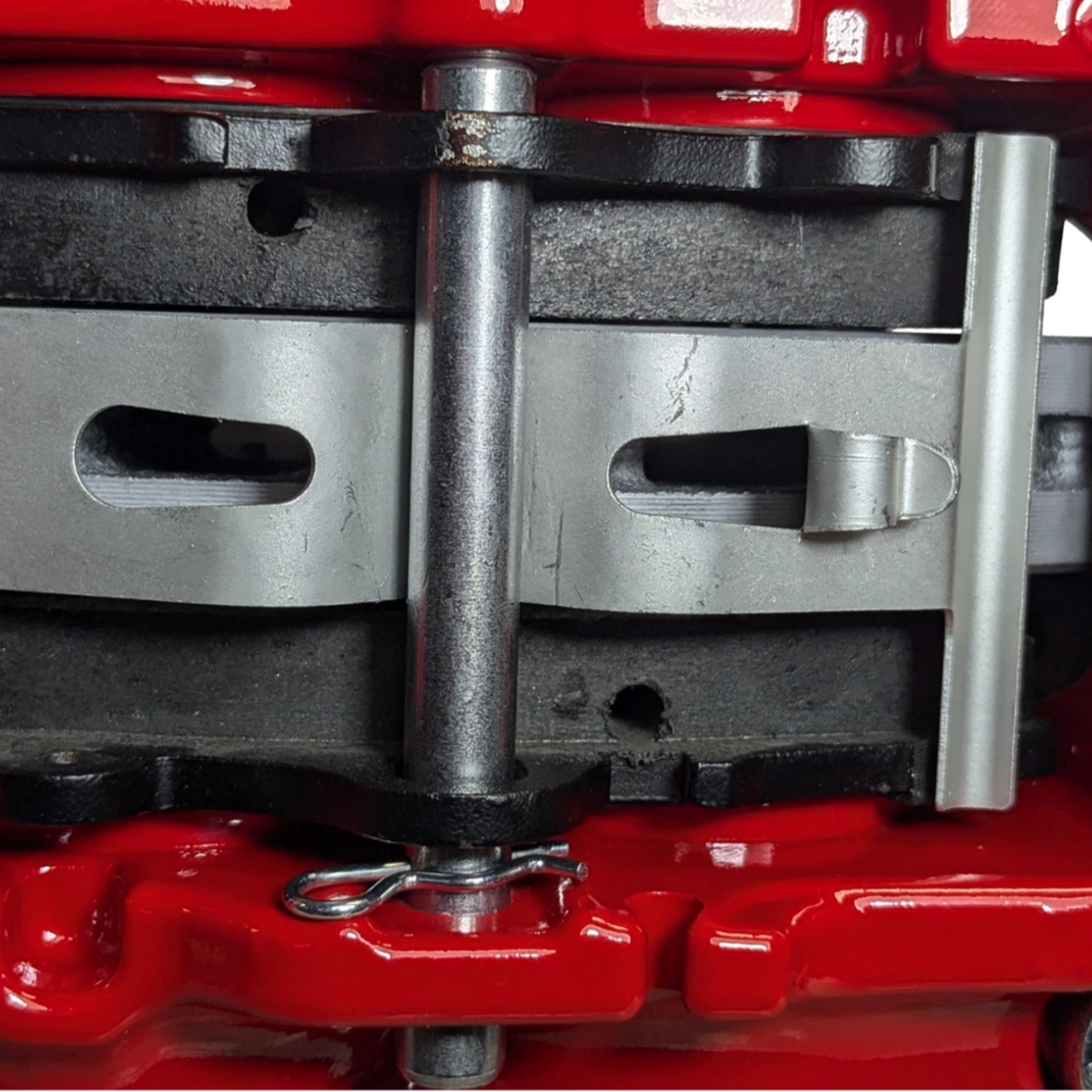

Install brake pads:
First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:
If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:
If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:
slightly shim the adapter with suitable bushings to adjust the brake caliper
or – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again
👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.
