Golf 1 Caddy Brake caliper adapter S2 G60 Adapter Brake calipers Brake system - Including brake caliper: Yes with brake caliper
€486.17*

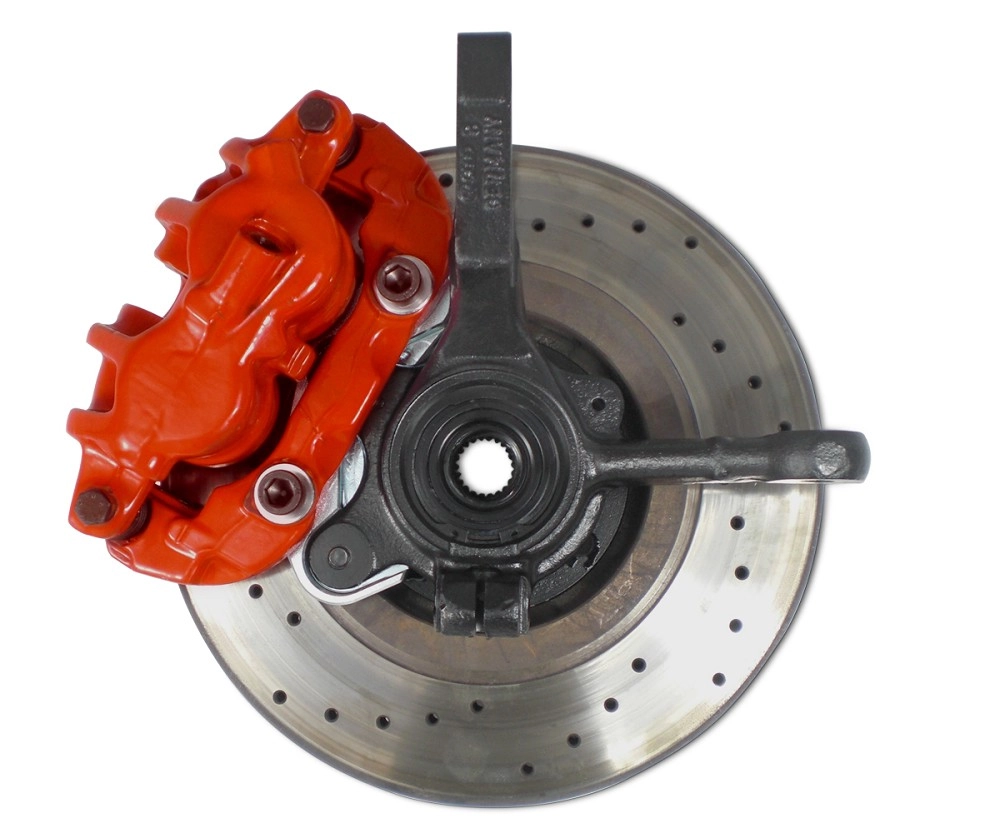

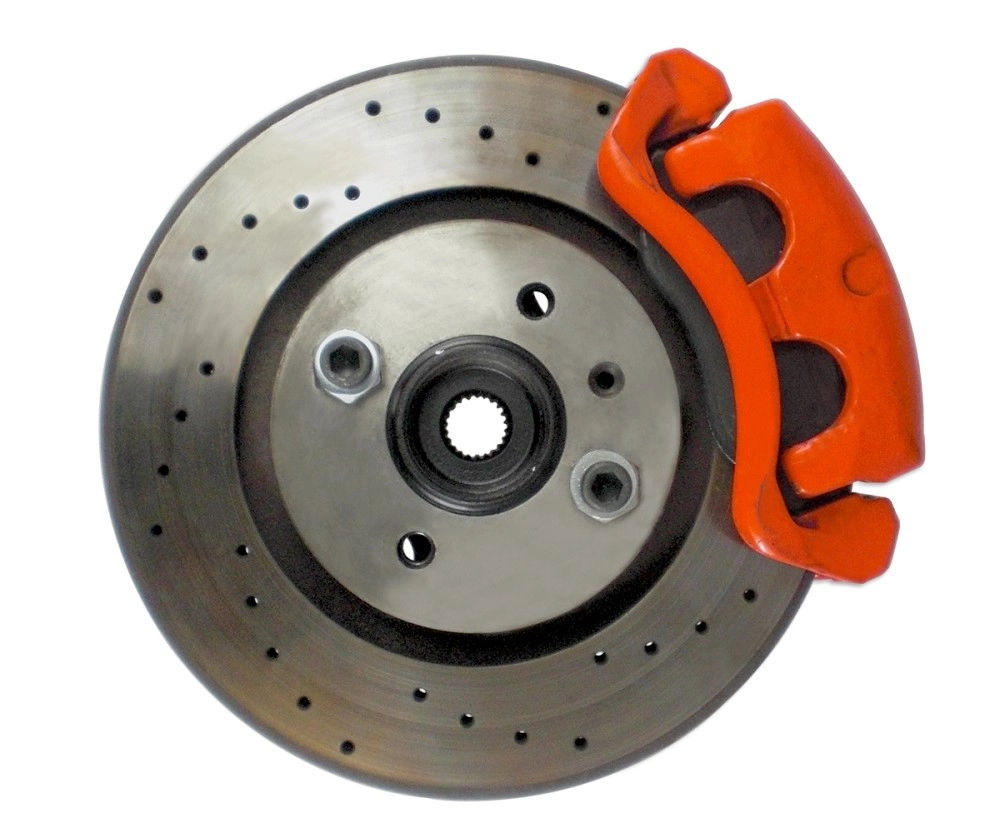

Brake caliper adapter to adapt the front axle of the Golf 1, Golf 1 Cabrio, Caddy 14d, Jetta 1, Scirocco to the 280mm brake disc of the Golf 2 G60 in conjunction with the Audi S2 brake caliper.
These adapters were developed by us NEW, especially for the S2 Girling 60 brake calipers!
Required components:
- Brake discs front 280mm diameter Golf 2 G60 (incl. Syncro), Passat G60 (incl. Syncro),Corrado G60 part no. 535 615 301
- Brake callipers from S2 Girling 60, part number: 895 615 124 A / 895 615 123 A
- Brake caliper carrier, part number: 447 615 125
Advantages of this brake system:
- even stronger braking effect than with the conversion to G60 brakes thanks to double-piston brakes.
- 15 inch wheel diameter. ET must be tested depending on the rim, it may be necessary to use track plates.
- Registration for public road use should not be a problem if the work is carried out correctly and completely.
- Fits directly on the above-mentioned models and can therefore be easily converted back to the original condition at any time.
Scope of delivery:

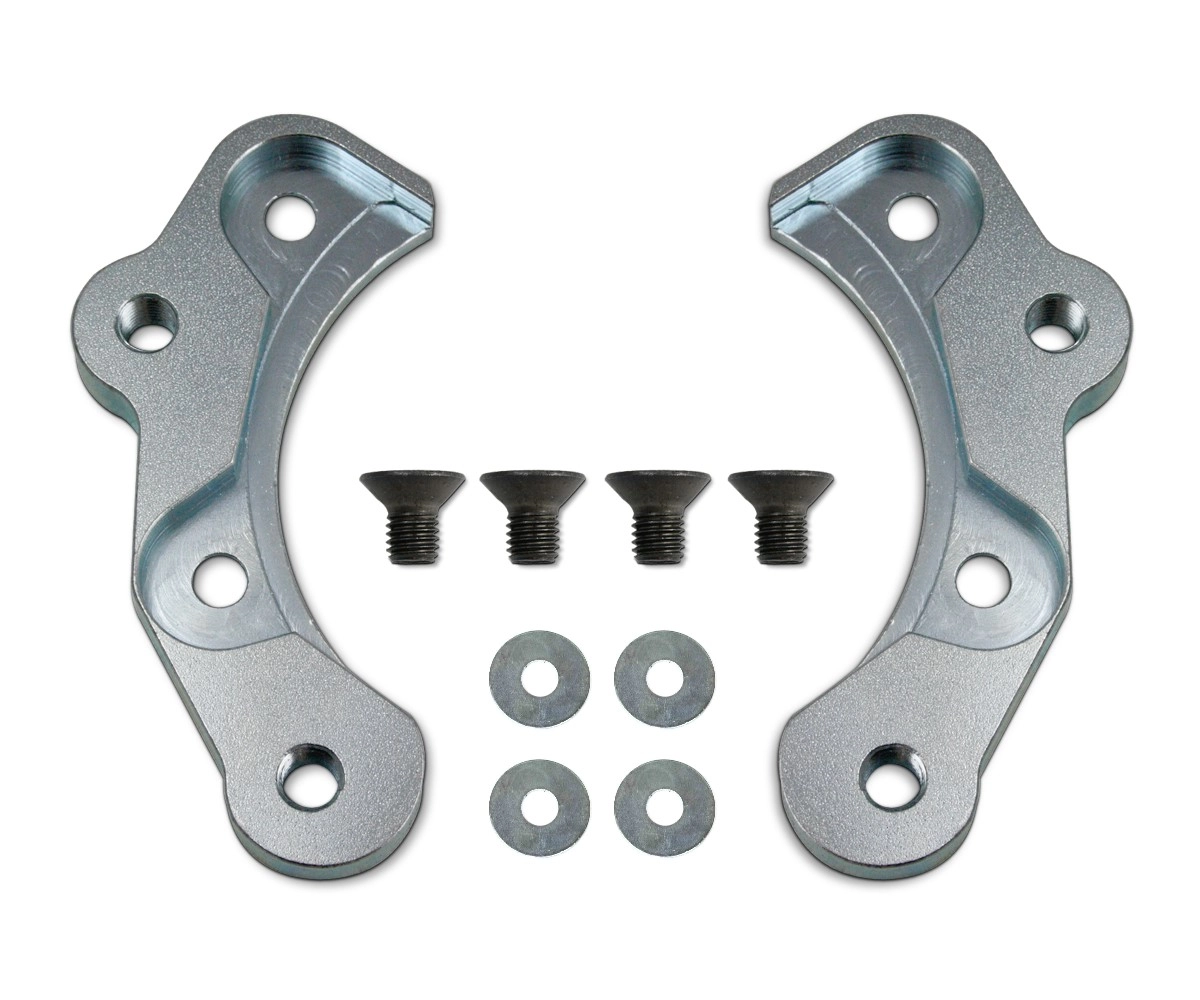

- 2x brake caliper adapter for Golf 1, Golf 1 Cabrio, Caddy 14d, Jetta 1, Scirocco
- 2x brake caliper
- 1x installation instructions with detailed images

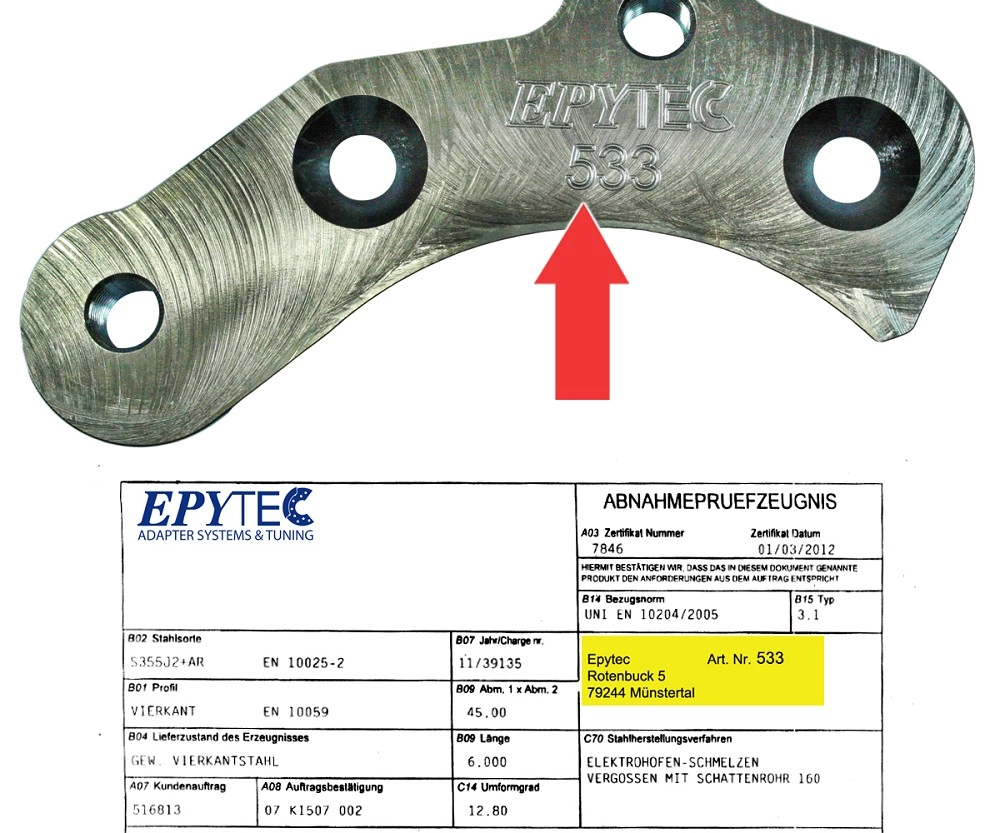

- 1x material certificate
- Stress analysis for registration
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
13 December 2019 00:54
László S
Richtige Bearbeitung. Präzise Verarbeitung.
17 April 2020 21:24
Matthias S
Perfekt Passform!!! Schnelle Lieferung
23 August 2017 14:43
2012tuningfreund
Sehr gut!!!
15 March 2022 10:13
Maximilian H
Super pass genau und super Qualität
26 September 2017 21:28
fischersgerd
Alles top jederzeit gerne wieder
23 March 2021 10:40
mk1gtiphill
Item as described and fast delivery
23 August 2019 07:40
07oldschool
Top gerne wieder.
19 June 2024 16:51
robburtos3
Great product and service, excellent quality, highly recommend
11 March 2017 21:32
thetiny112
Alles bestens . Danke sagt thetiny112
1 October 2016 07:40
lbvr6-2111
ok !!!!!!!!!!!!!!!!!
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
