Camber Track Correction Plates Camber Track Adjustment VW Golf MK 2 MK3 Syncro Rear Axle
- ✓ 3.0-3.0 degrees negative/positive rear camber correction
- ✓ Golf 2 3 Syncro
- ✓ camber and track
€16.15*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
You do not want to spend money on tires that are worn out only on one side, but you want more grip and a better performance?.
Then we have the product for you! With this product, you can adjust the camber according to your needs.

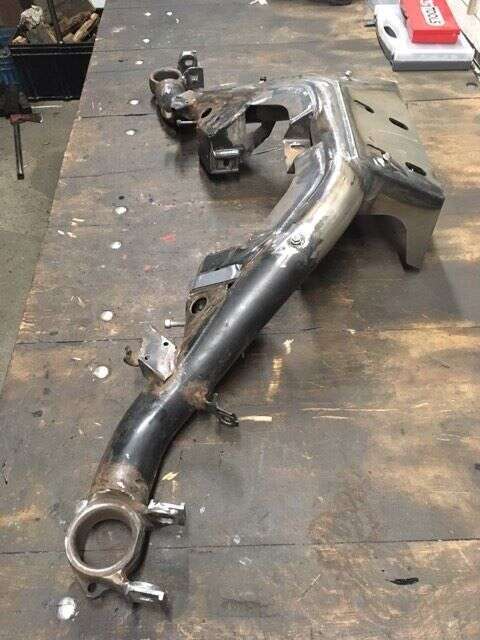

Conversion kit to convert the VW Golf MK2 MK3 Syncro rear axle. Adjustement of track and camber.

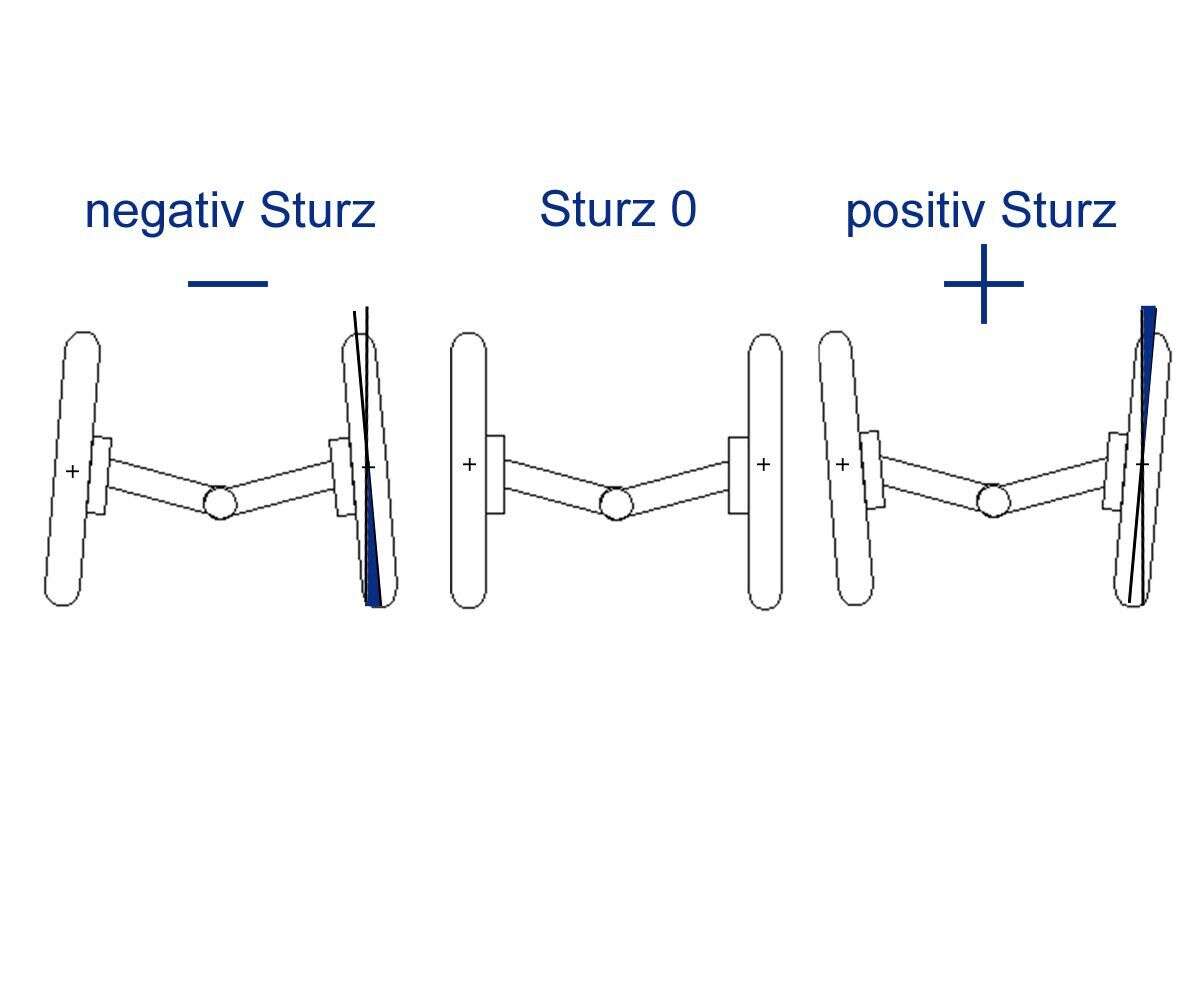

With our conversion kit, you can modify the camber and the track, rear axle, from -3 to +3 degree. This is ideal for rear lowering and to correct defects, if a tire is worn out only on one side of your vehicle.
It is also advisable on racing and slalom circuits. Or simply to take turns at high speed.
Functional description:

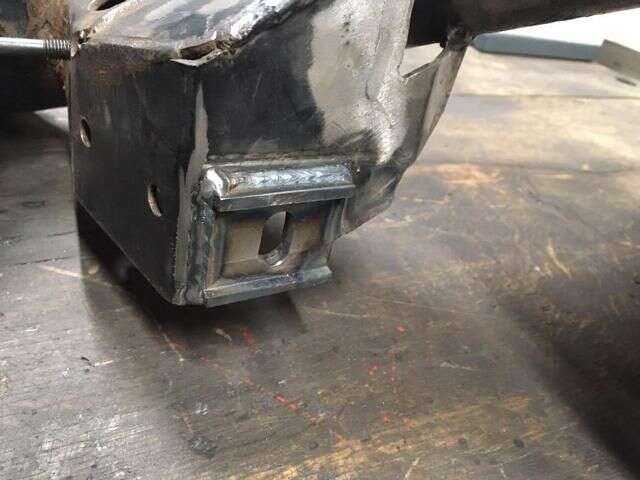

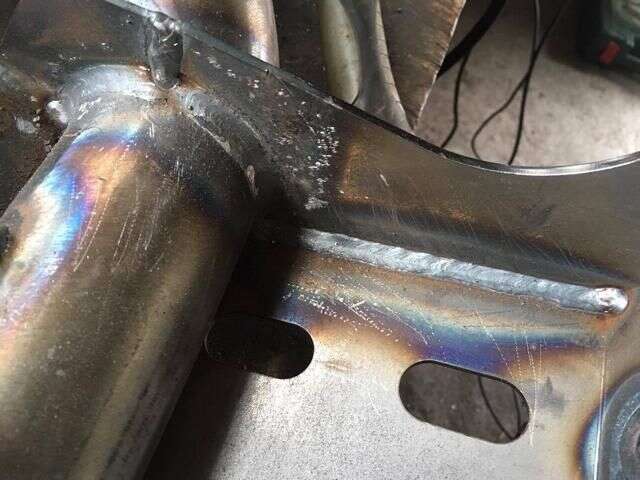

For this conversion kit, it is necessary to make welds on the axle. The provided plates are drilled with an oblong hole. They must be welded to the axle at the point of the suspension arm. Thanks to the oblong holes and eccentric screws, the suspension arm can be adjusted as desired, whilst remaining in the original mounting position.
info: eccentric bolts and nuts are available in our shop.
Delivery:
- 1x plate
- material certificate
A montage description under this link:click here
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
1 September 2017 12:05
enrico3112
👍👍schneller Versand, weiter so
24 January 2019 14:36
arnold_judas_rimmer_bsc
Great seller. No issues 👍
8 May 2019 01:35
demarc.6o6yd
Schneller Versand, Super Ware, Super verpackt! Gerne wieder
9 November 2017 11:18
arnold_judas_rimmer_bsc
Very pleased. Thanks!
- Do I need longer screws or can the old ones remain in place?
With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates with an angle of more than 2°, we recommend lightly sanding a washer and placing it under the screw head to ensure it remains flush with the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be required.
- Does the ABS still work after installing the camber adjustment plate?
From a camber of 1 °, the ABS sensor may no longer be parallel to the ABS ring. Then, the position of the ABS sensor on the vehicle should be slightly changed.
