Brake Caliper Adapter VW Golf 1 2 3 G60 Passat Scirocco Polo Corrado Jetta ZR17 Brake System Golf 4 R32 334x32
- ✓ 334x32 1J0615301AA / 1J0615302A Golf 4 R32 brake discs
- ✓ 4-piston 7L6615123T / 7L6615124T Porsche Cayenne brake caliper
- ✓ front axle
€151.39*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

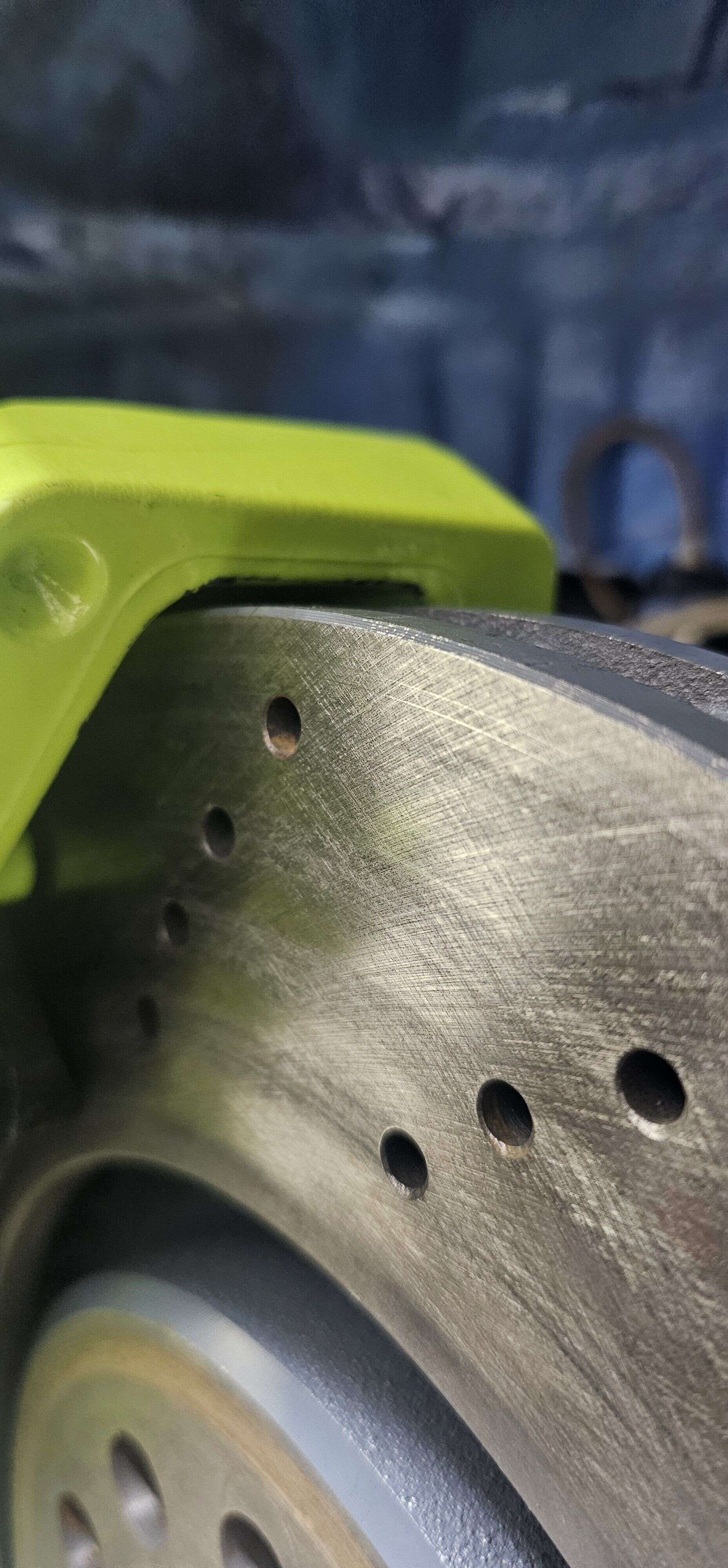

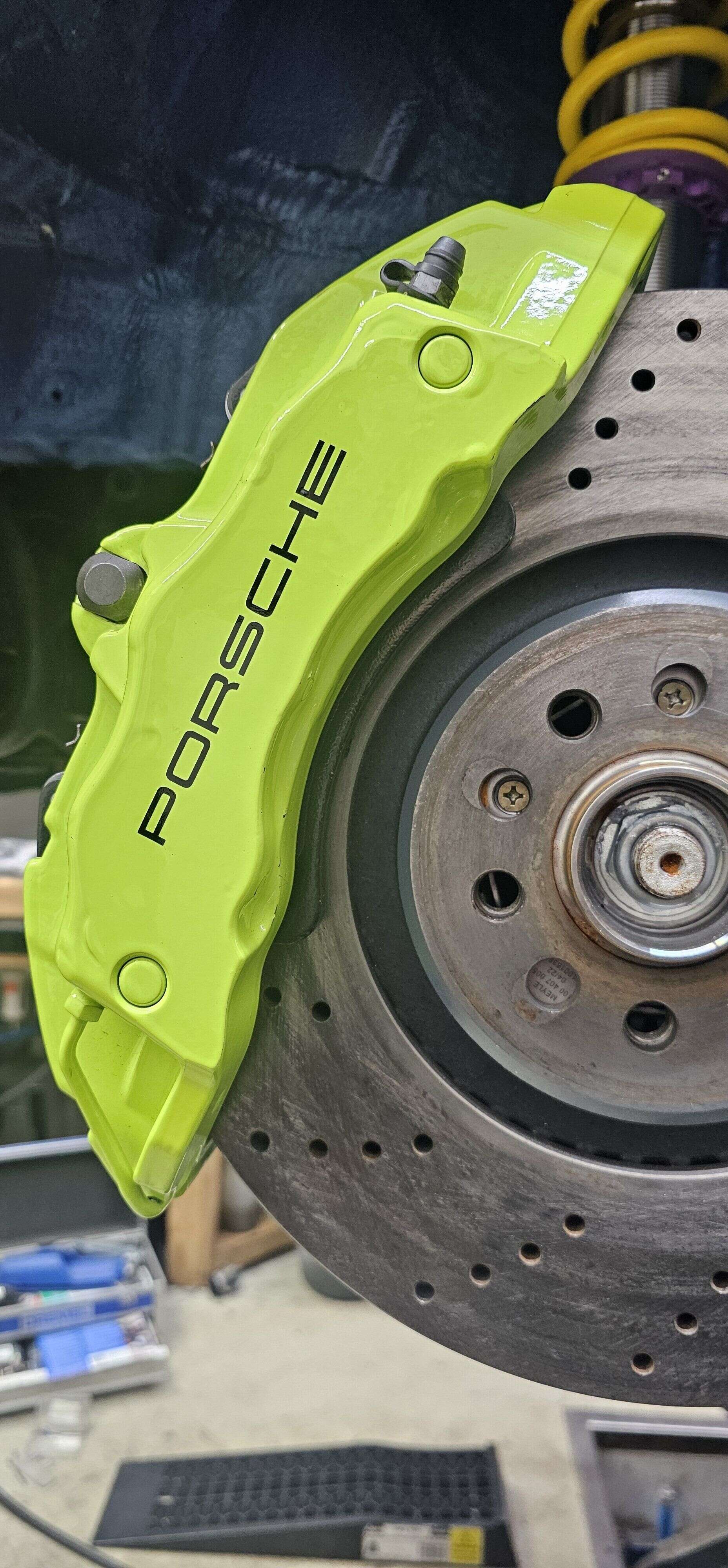

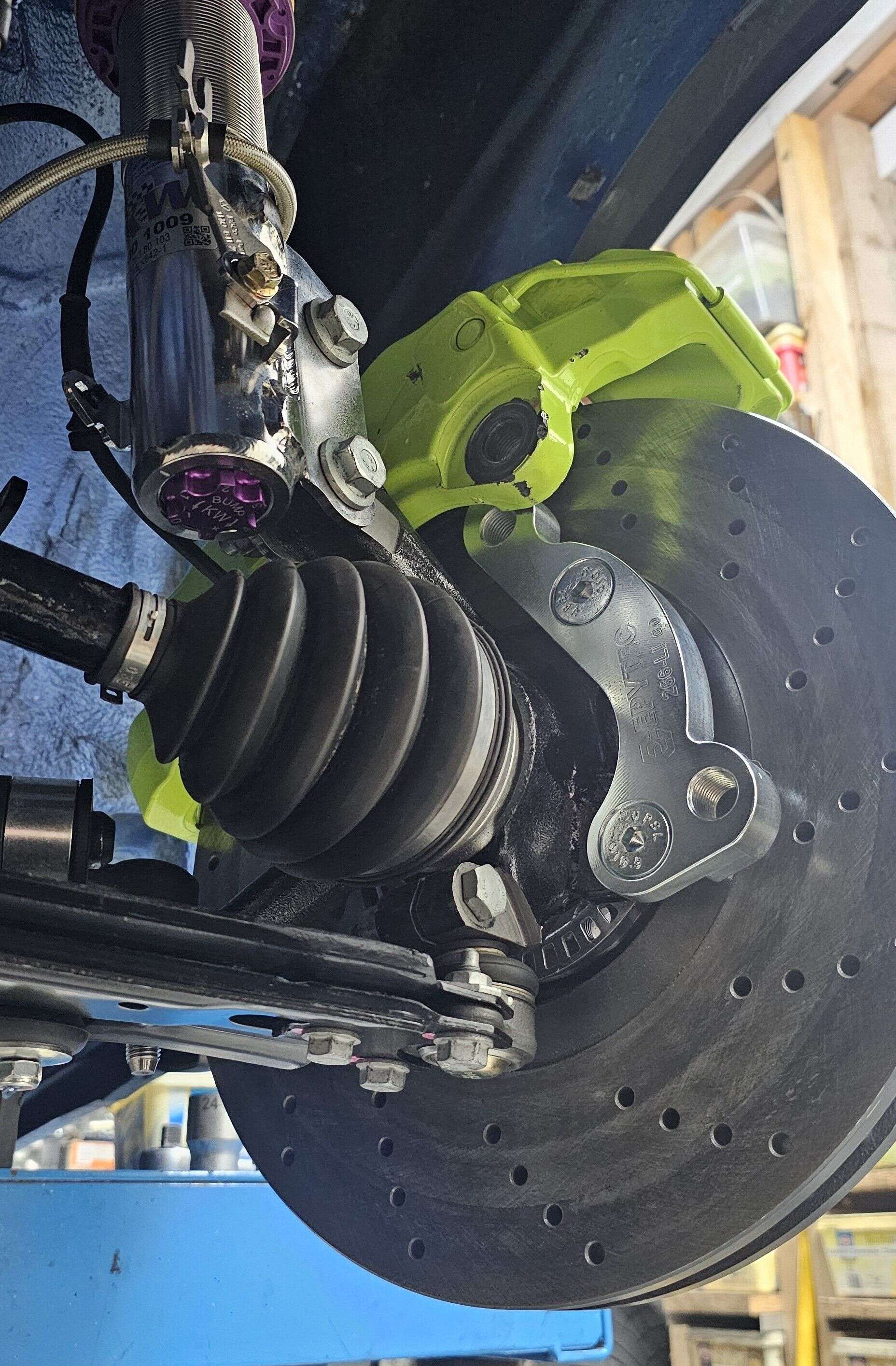

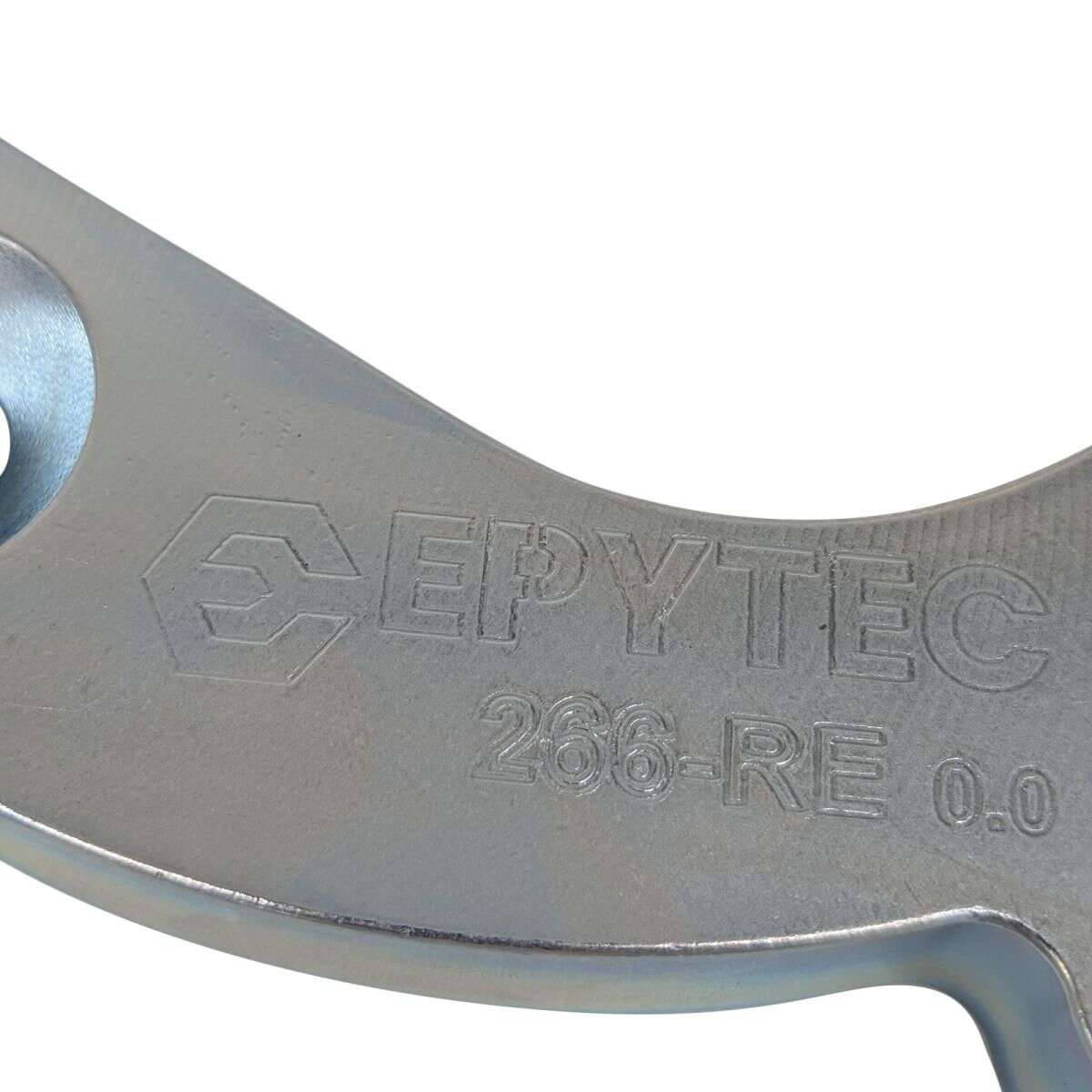

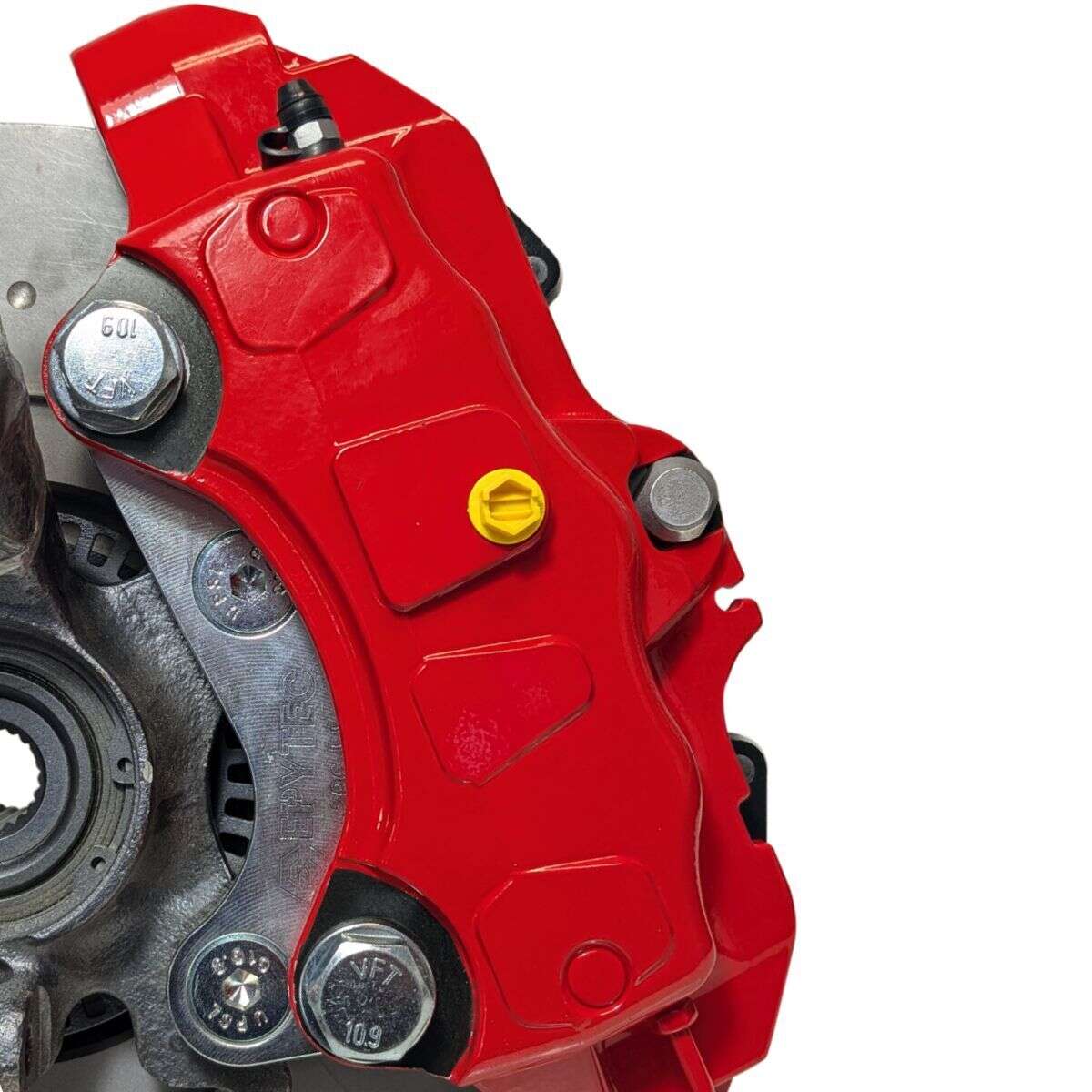

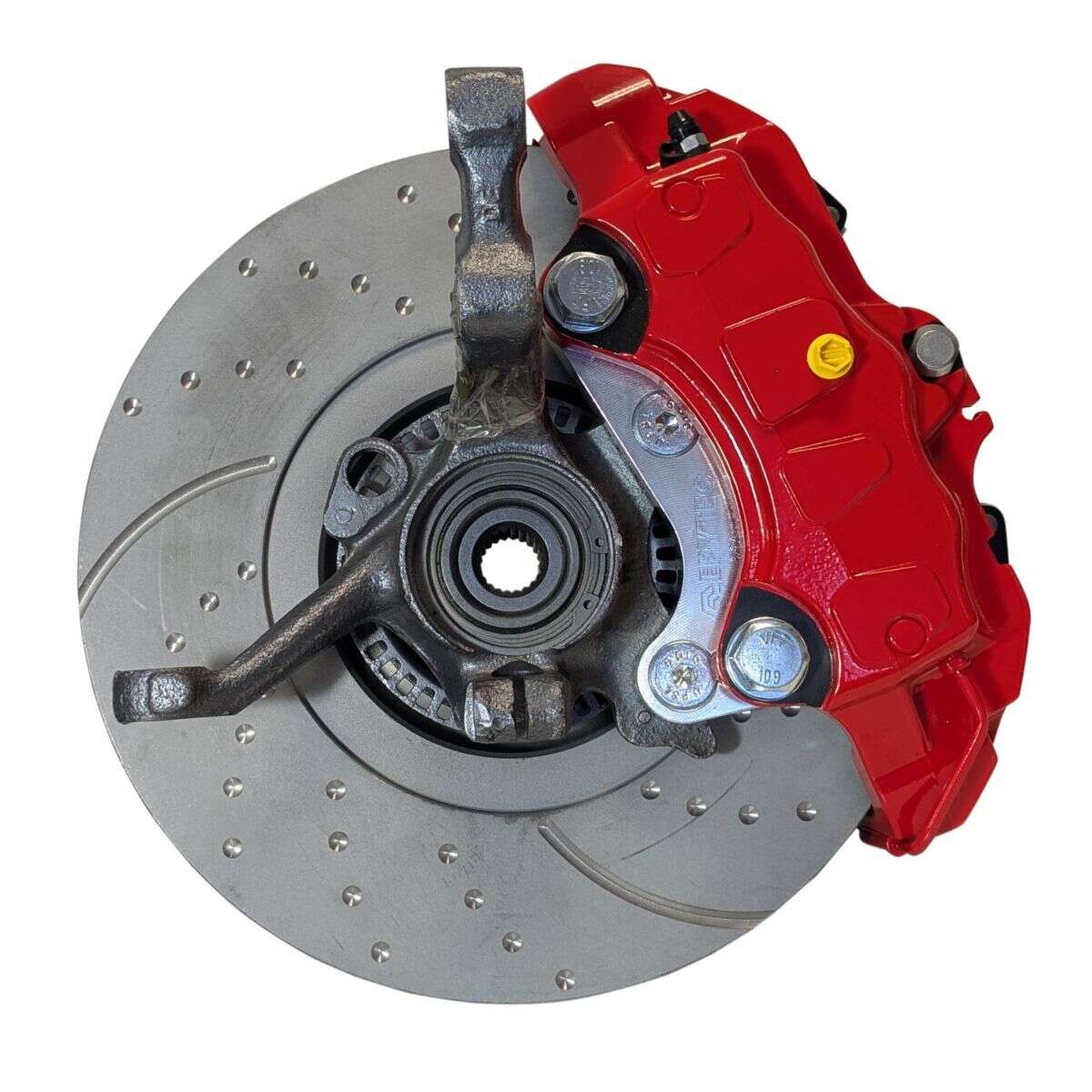

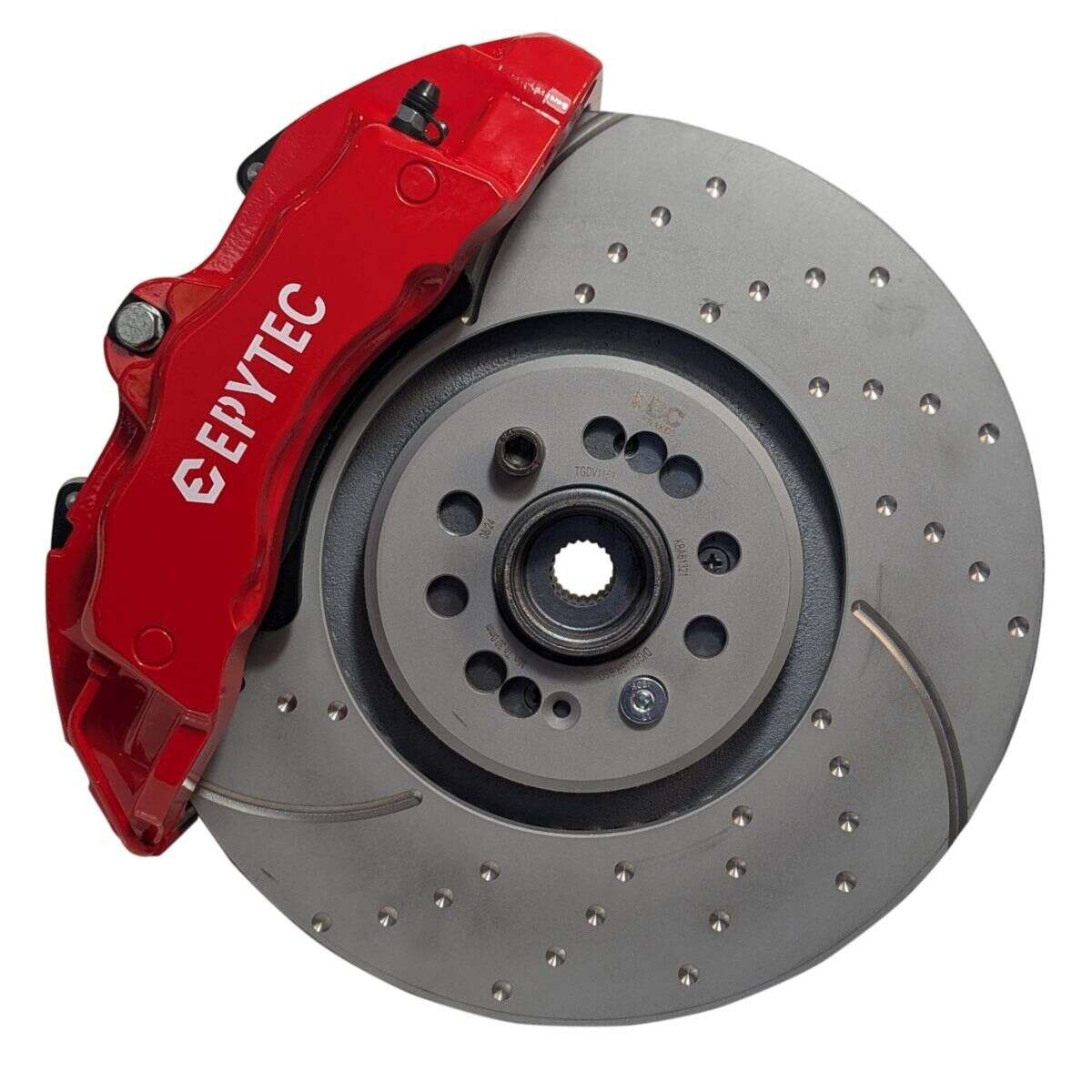

Brake caliper adapter for the Golf 2, 3 series (narrow axle) to be able to drive the Golf 4 R32 brake disc 334x32mm in connection with the Brembo/Porsche Cayenne ZR 17 brake calipers.
Suitable for the following vehicles:
- Golf MK1 (only with G60 wheel bearing housing)
- VW Golf MK2 and MK3
- VW Passat
- VW Corrado
- VW Jetta
- VW Polo
- Seat Toledo
Required components:
- brake calipers: Porsche Cayenne or Tuareg, reference 7L6 615 123 T + 7L6 615 124 T

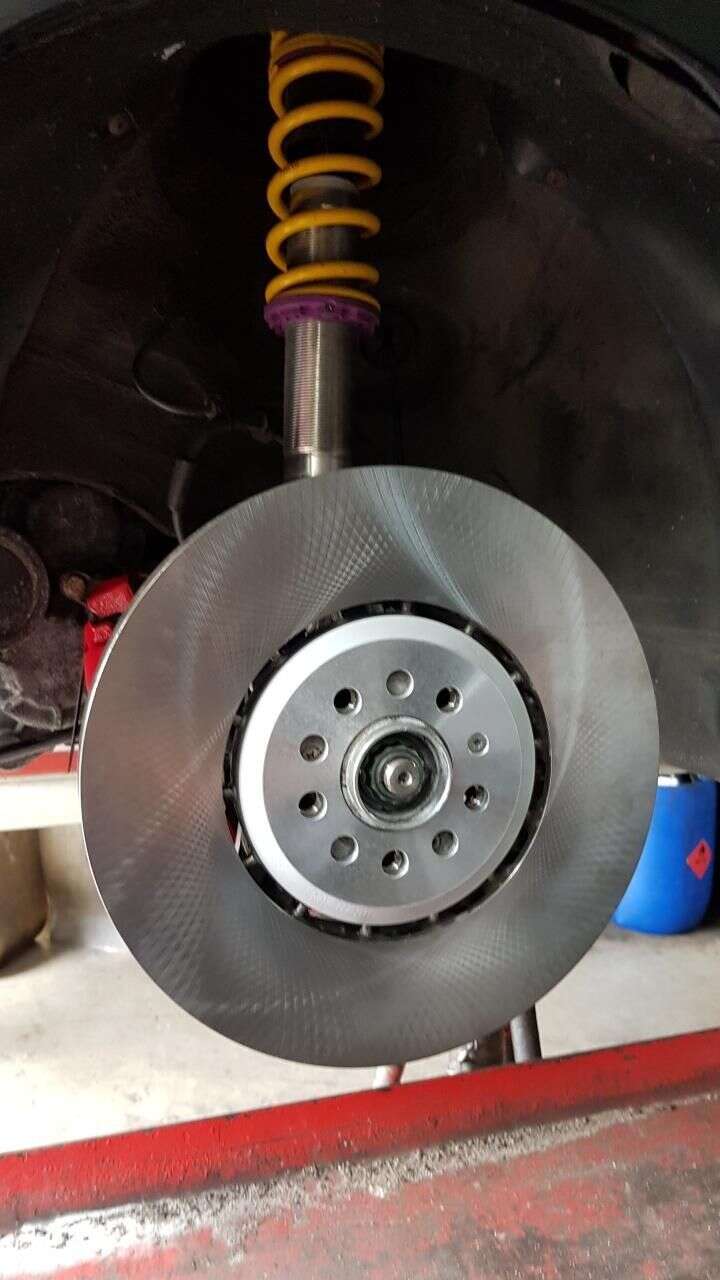

- brake discs: Golf MK4 R32 334x32mm , reference 1J0 615 301AA + 1J0 615 302 A
- brake pads: from 18 inch calipers reference 7L0 698 151 J
- Brake disc must be redrill to 4x100 (can also be done in our house)
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs
- better engine performance
- suitable for 17 inch rims
- components come from the production series of VW
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- including set of mounting screws
Delivery:
- 2x brake caliper adapters for Golf MK1, MK2, MK3, Scirocco Passat Corrado Jetta Polo G60
- high strength mounting screws

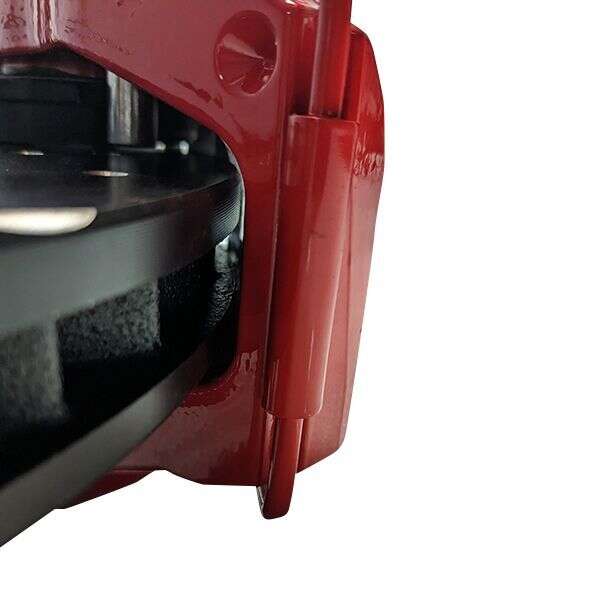

- Template to check whether the brake system fits under your rim
- material certificate
The "nose" on the axle pin / stub must be adapted by cutting / grinding it.
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

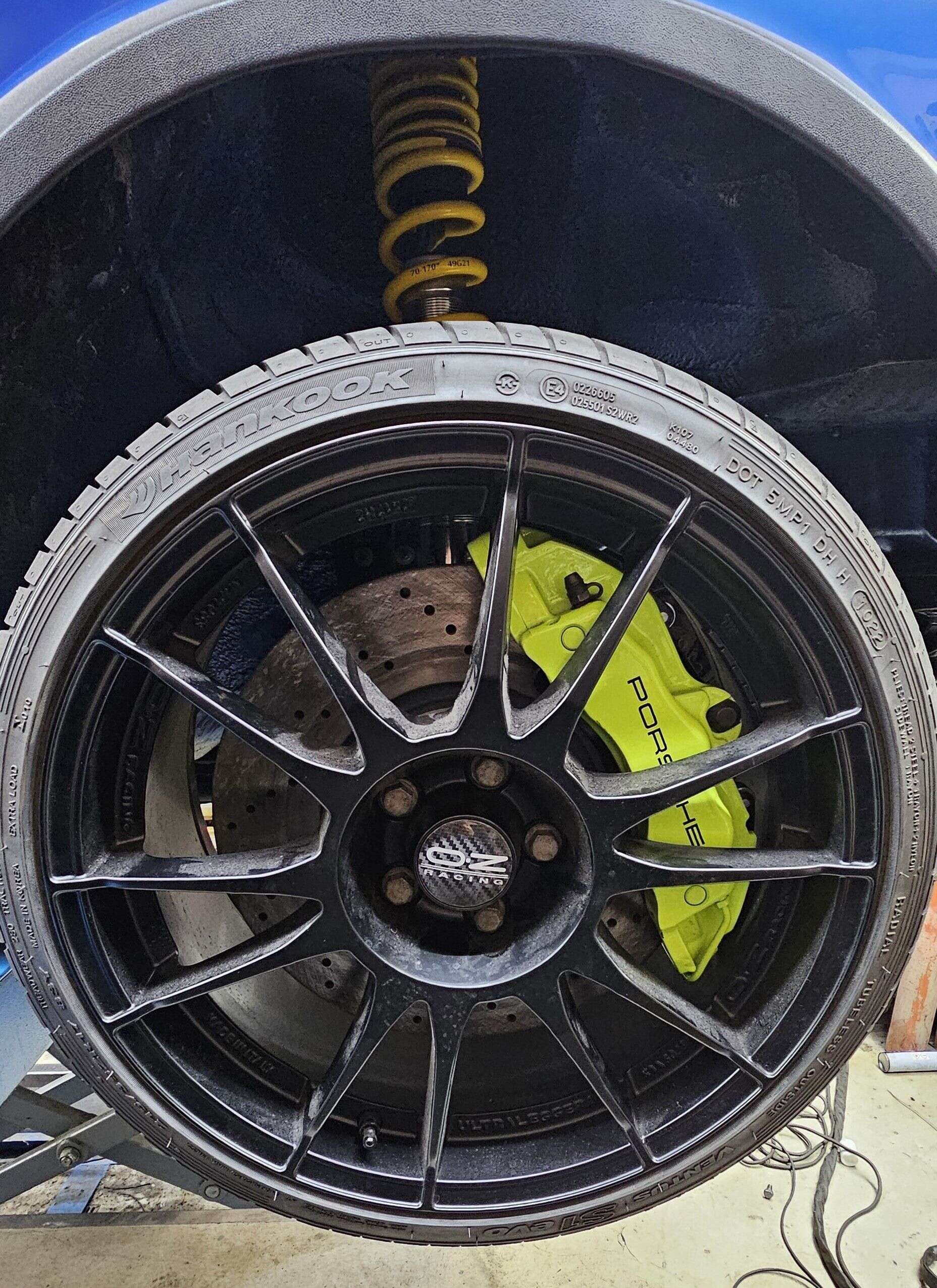

- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<

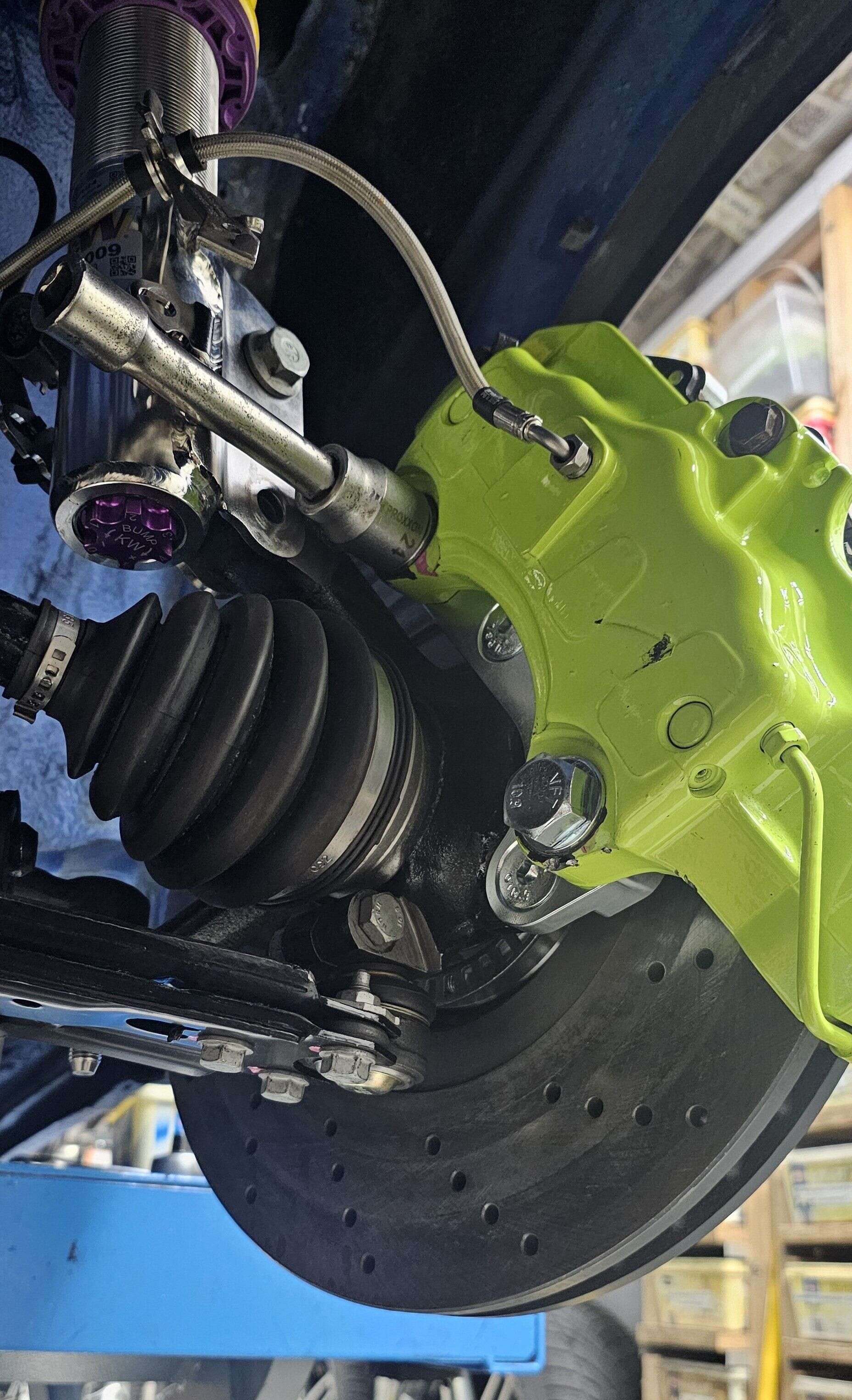

- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
20 March 2022 12:42
Manuel Z
Hat alles super gepasst. Beratung war auch super.
22 March 2023 21:09
Omar Ivan R
Producto funcional 100%. Solo 1 pequeña modificaciones al mango y quedó perfectamente. Ampliamentr recomendable. Saludos deseé ciudad de México
20 July 2022 16:29
Heimana P
Excellent produit ,conforme à ma commande
19 March 2021 18:46
Robert B
Top Qualität
6 February 2023 14:55
Francois Y
Ok
2 January 2021 22:26
Nicolas B
Rien a dire très bon montage
12 December 2019 10:47
Lars S
Super schnelle Abwicklung Top Passgenauigkeit Gern wieder
25 October 2023 12:56
Miroslav T
Top
4 November 2020 20:31
NICOLAS B
👍👍👍👍👍
25 April 2020 12:13
Laszlo M
Gutes Qualität, einfach zu montieren, alle Dimensionen passen
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
