Brake caliper adapter Touran Jetta Audi TT Skoda Brake disc 356x22 Audi A6 Porsche Cayenne 4-piston brake caliper tuning adapter with parts certificate
- ✓ 356x22 4H0615601F Audi A6 A7 brake disc
- ✓ 4-piston 996352421 / 996352422 Porsche Cayenne brake caliper
- ✓ rear axle
€557.57*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

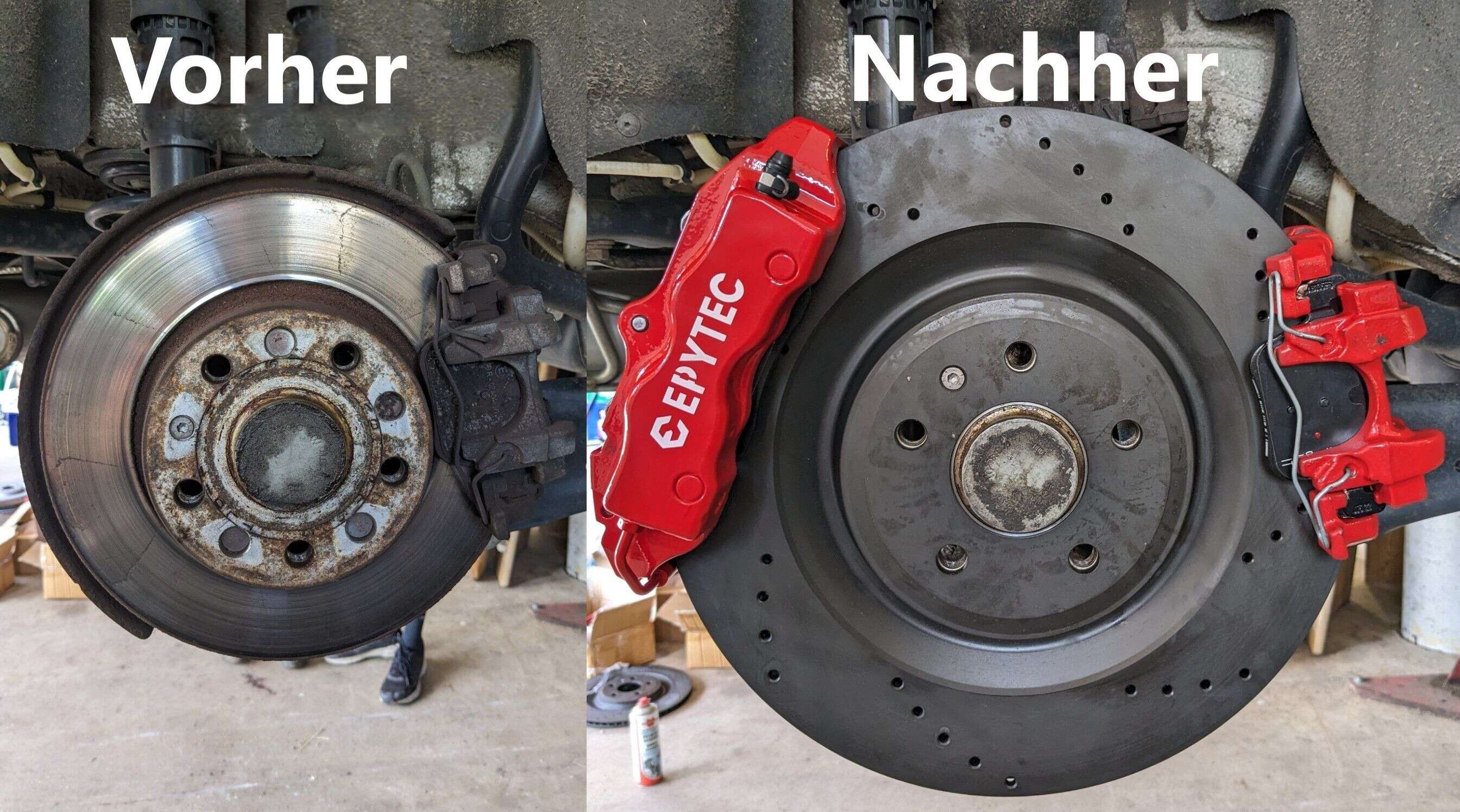

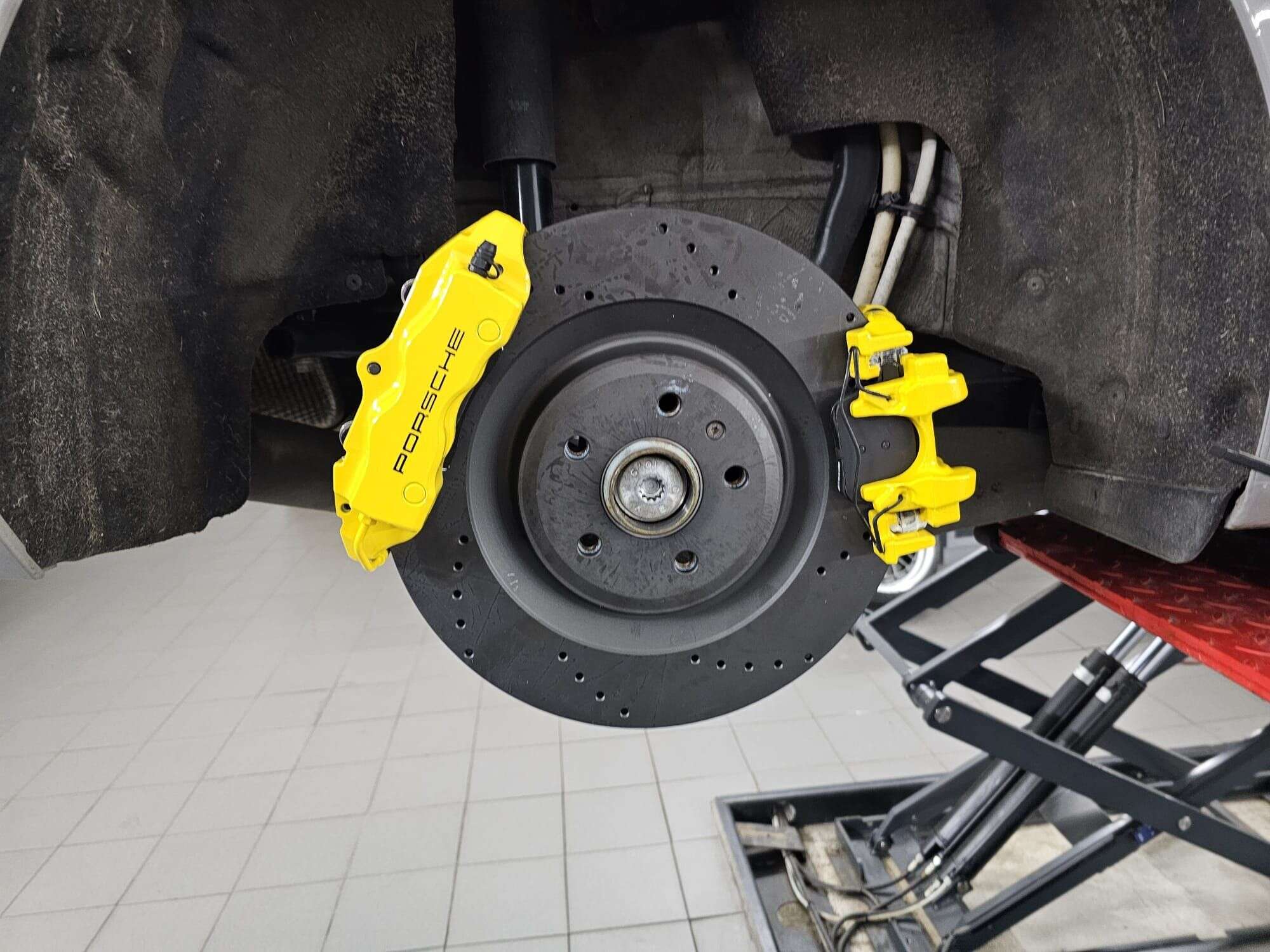

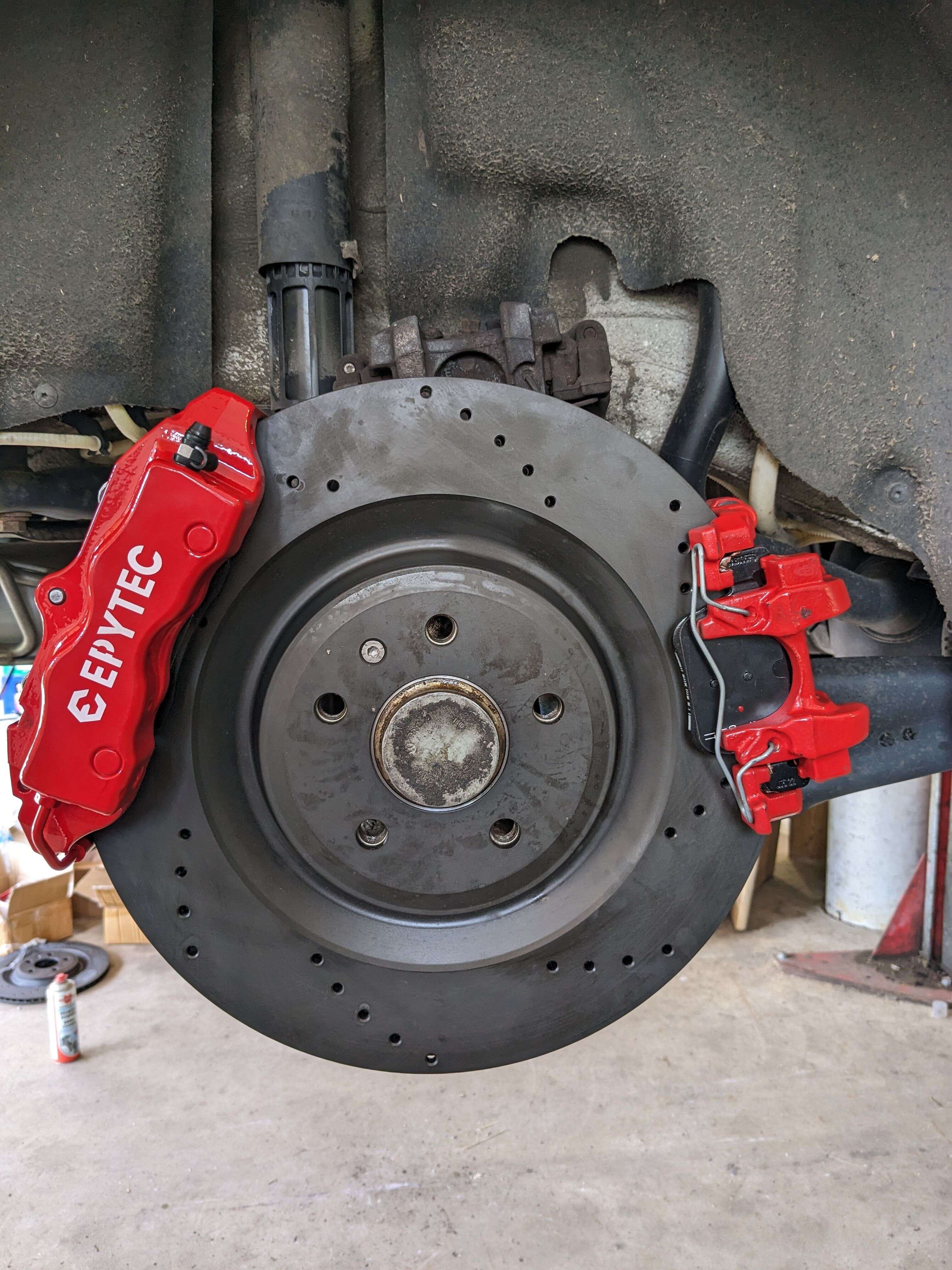

Brake caliper adapter to convert the rear axle of the VW Touran, Jetta, Audi TT series to Porsche Cayenne brake calipers.
The combination is installed in conjunction with the Audi A6 A7 brake discs 356x22 mm.
This set contains a parts certificate for easy registration according to §19.3 StVZO, so that a problem-free acceptance by TÜV, DEKRA, KÜS or GTÜ is possible.

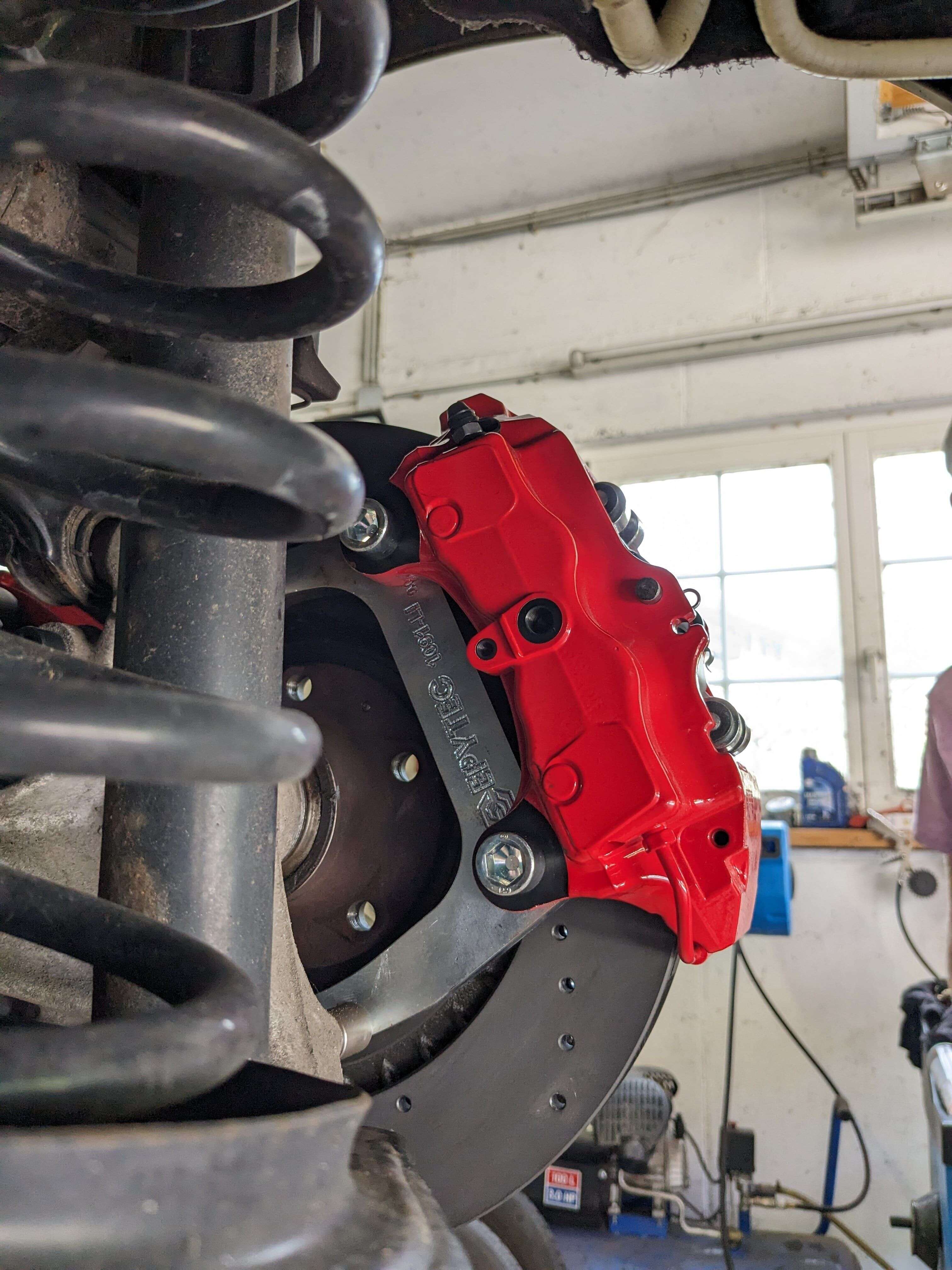

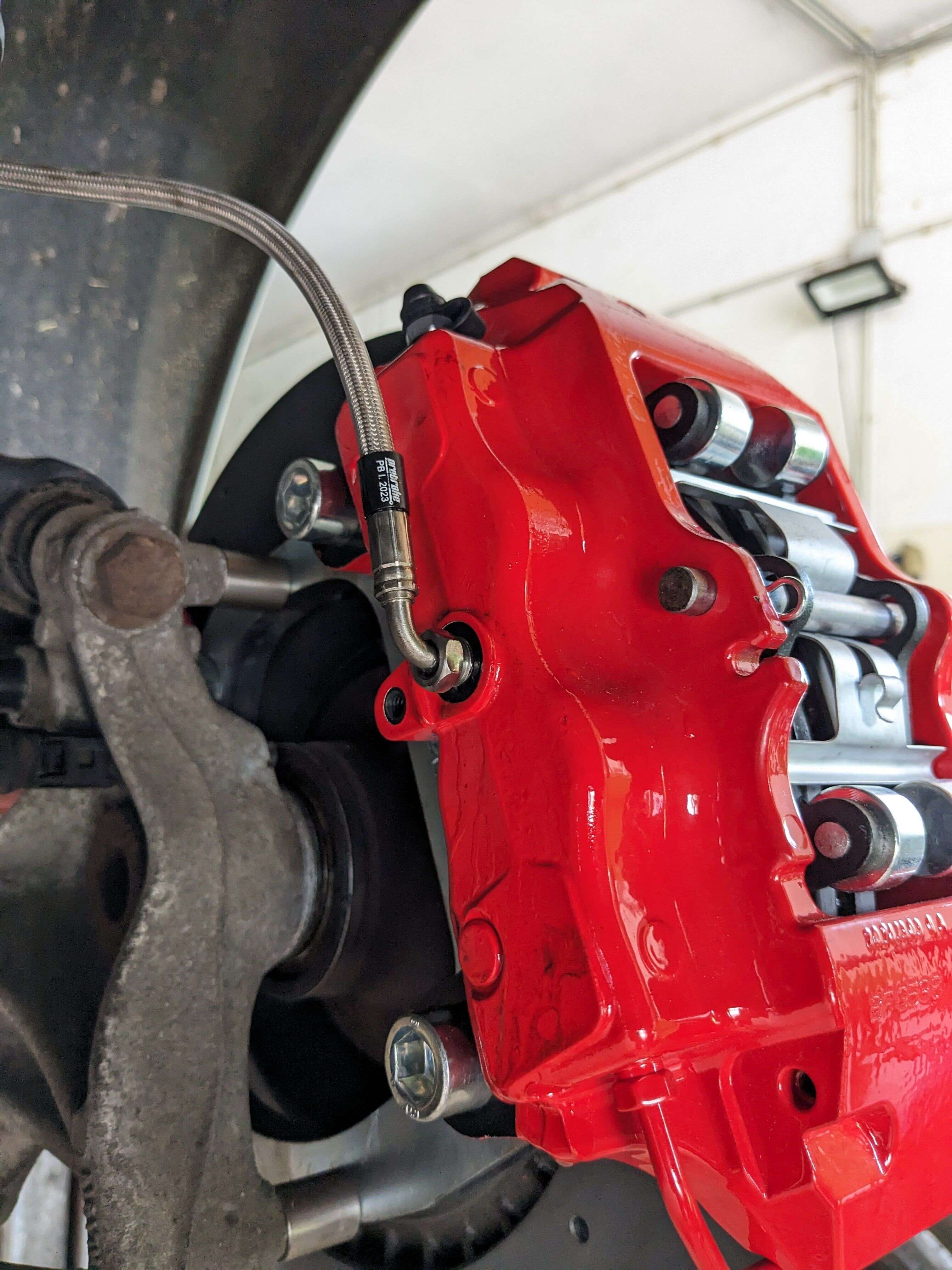

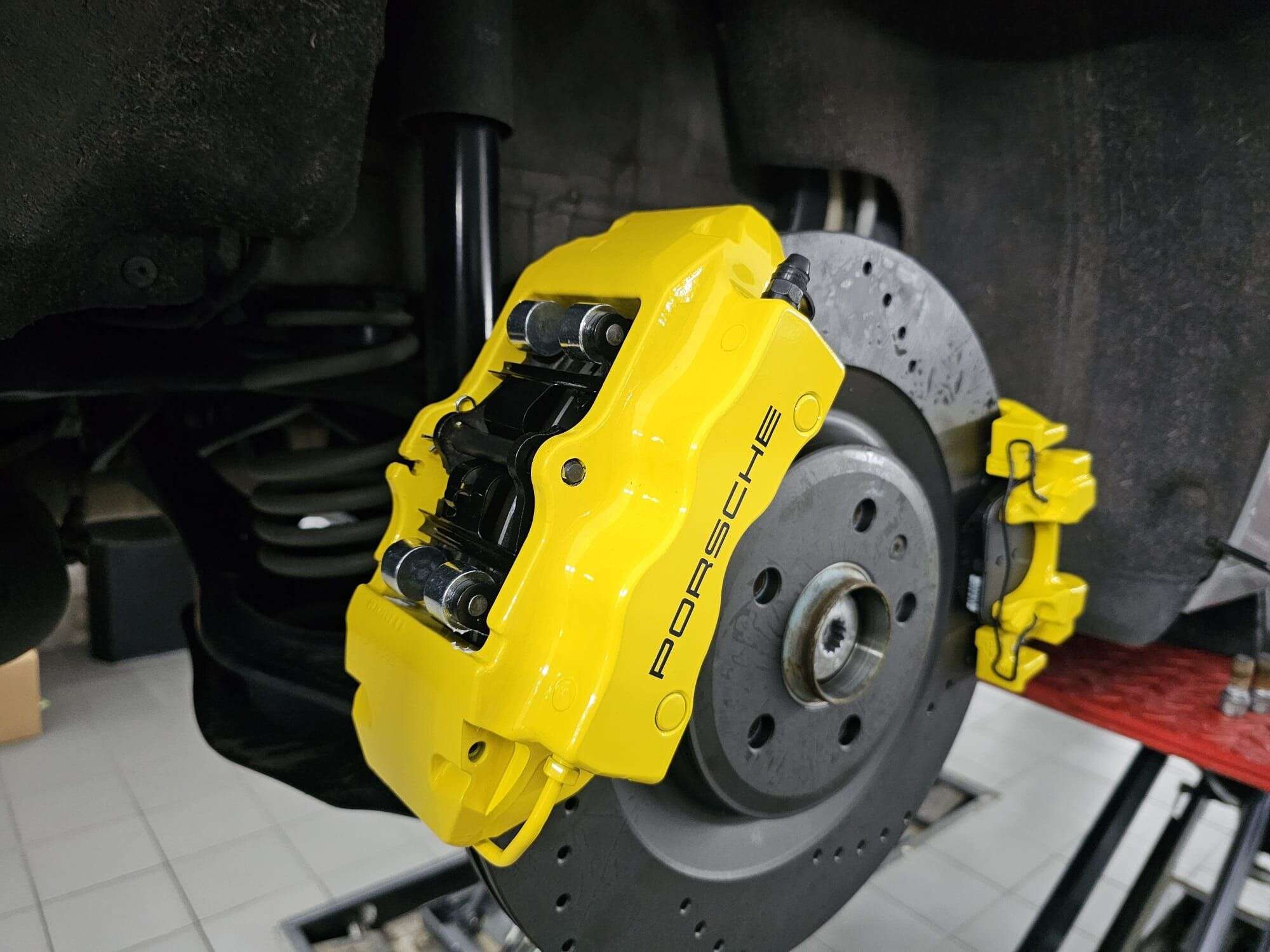

The Porsche calipers are connected to the vehicle's hydraulic system and can therefore develop enormous braking power. However, as these do not have handbrake functions, the rear Golf 7R is also used as a handbrake caliper. The hydraulic connection is sealed with a dummy plug. This means that it only serves as a handbrake caliper.
Adapters are suitable for the following VW and Seat models with aluminium axle OE: 5QA505433A / 5QA505434A
- VW Touran
- VW Jetta
- Audi TT
- Skoda Octavia III
Advantages of this braking system:
- Top deceleration values, no comparison to conventional rear brake discs
- A must for performance upgrades
- Simple TÜV registration with parts certificate
Required components:
- Brembo brake calipers from Porsche Cayenne rear axle part no.: (written on the brake calipers, rear number distinguishes right and left caliper) 955.352.421 + 955.352.422 (only 100% compatible with the specified Porsche calipers) Brembo left: 20.7673.03 right: 20.7673.04

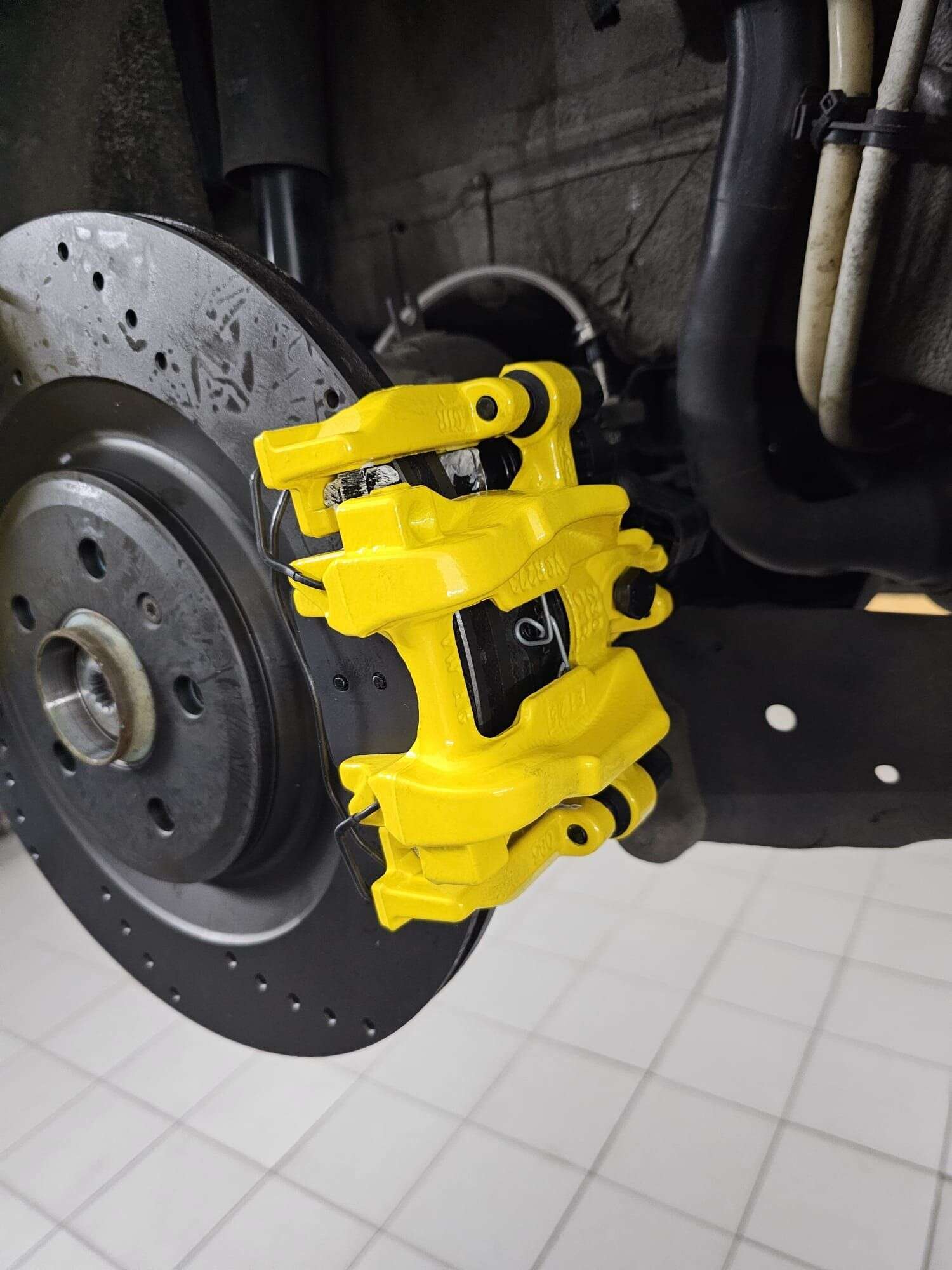

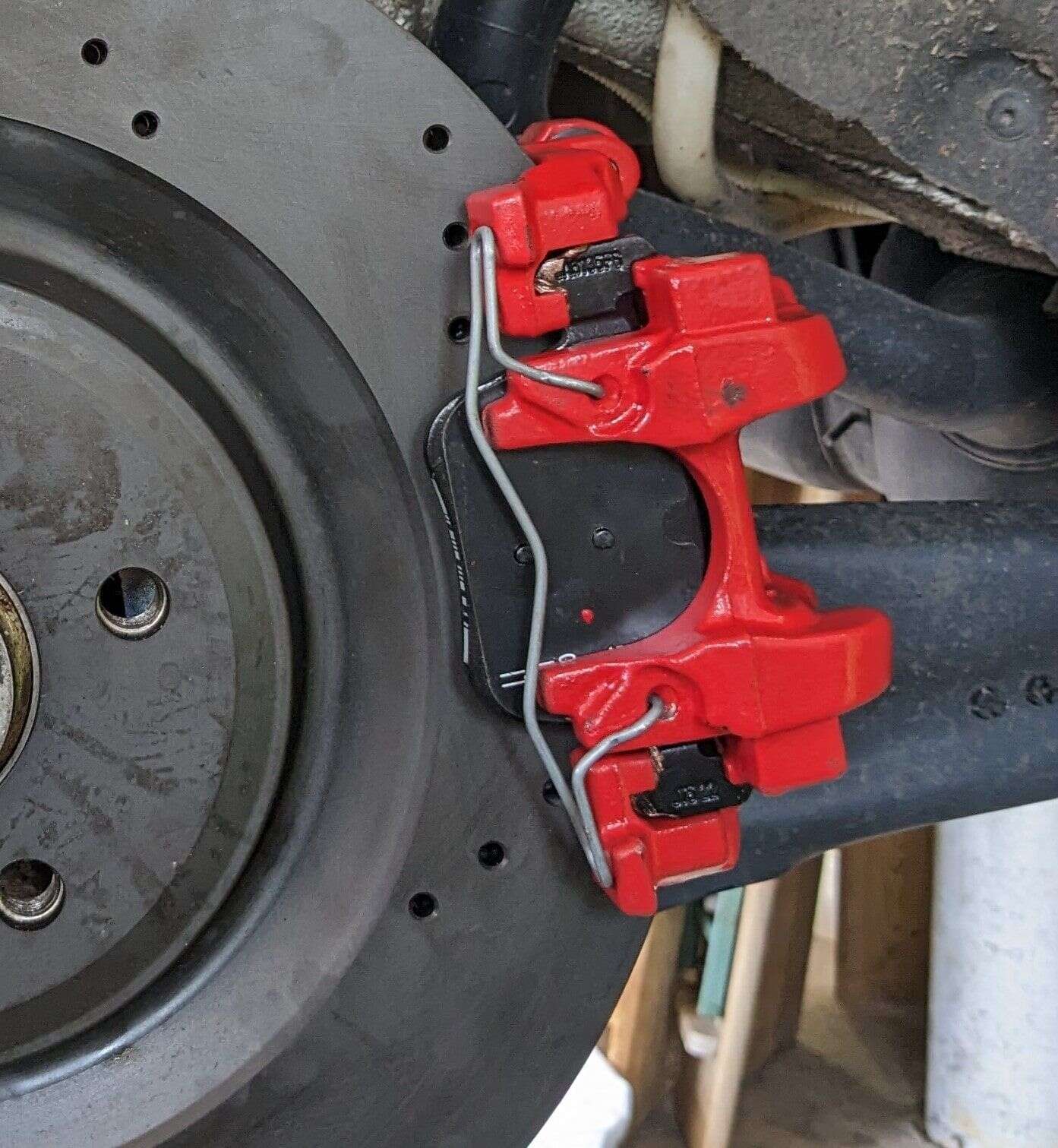

- original brake calipers with carrier for handbrake from Golf 7R part number:
- part number brake caliper: 5Q0615424 / 5Q0615424
- part number brake caliper carrier: 5Q0615425 / 8V0615425B
- original Audi A6 A7 brake disc 356x22 mm part number: 4H0 615 601 F
Scope of delivery:

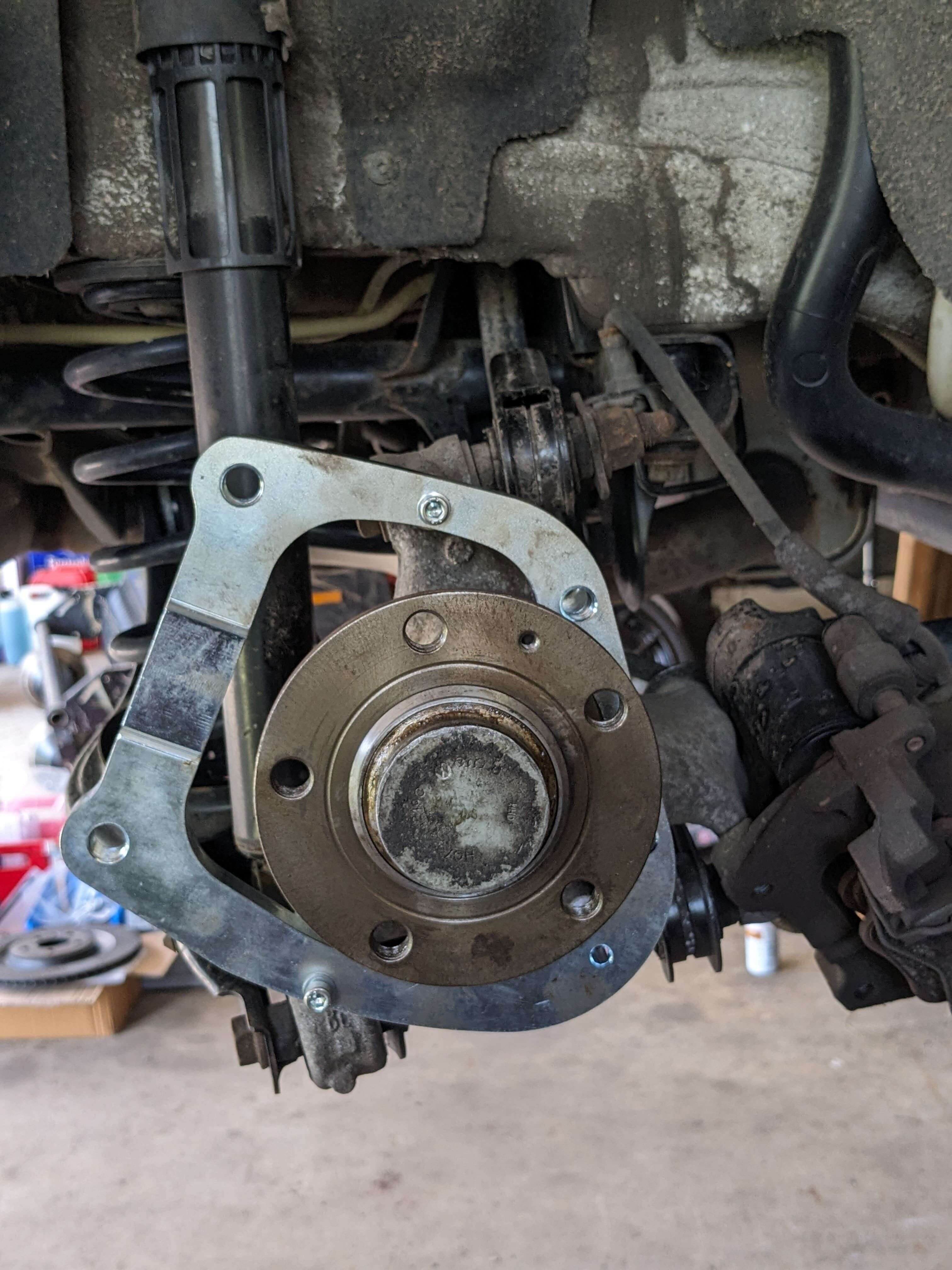

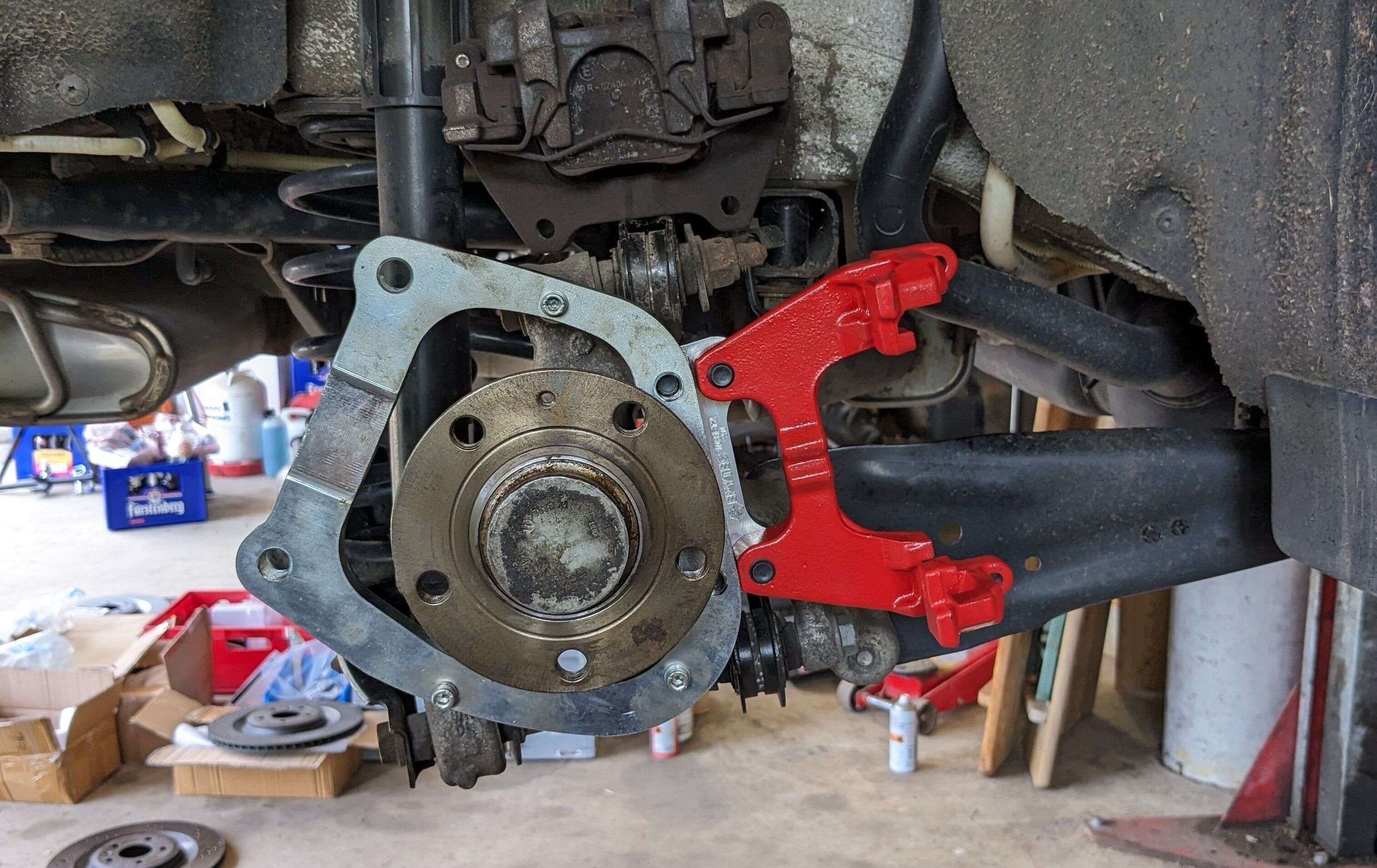

- 2x brake caliper adapter for rear axle VW Touran, Jetta, Audi TT series
- 2x matching centring ring
- High-strength fastening screw material
- Material certificate
- Stress analysis / FEM calculation for registration
- including parts certificate for registration at TÜV, DEKRA, KÜS or GTÜ
- installation instructions
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Den Adapter mit den benötigten Komponenten zu verbauen, um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst.
Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren << - Das Handbremsseil muss immer vom verbauten Sattel verwendet werden, das heißt, es kann sein, dass das neue Handbremsseil noch etwas angepasst werden muss. Bei Umbauten in dem der Original Sattel weiterverwendet wird und das Original Handbremsseil verwendet werden kann, kann es sein, dass du es auf direkterem Weg verlegen musst um den größeren Scheibendurchmesser und den längeren Weg auszugleichen
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
