VW Golf MK5 MK6 Brake Caliper Adapter Brake System 370x34 Audi A3 S3 RS3 8V R8 8-piston Brake Caliper
- ✓ 370x34 8V0615301P Audi RS3 brake disc
- ✓ 8-piston 8E0615107 / 8E0615108 RS4 B7 / R8 brake caliper
- ✓ front axle
€208.49*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

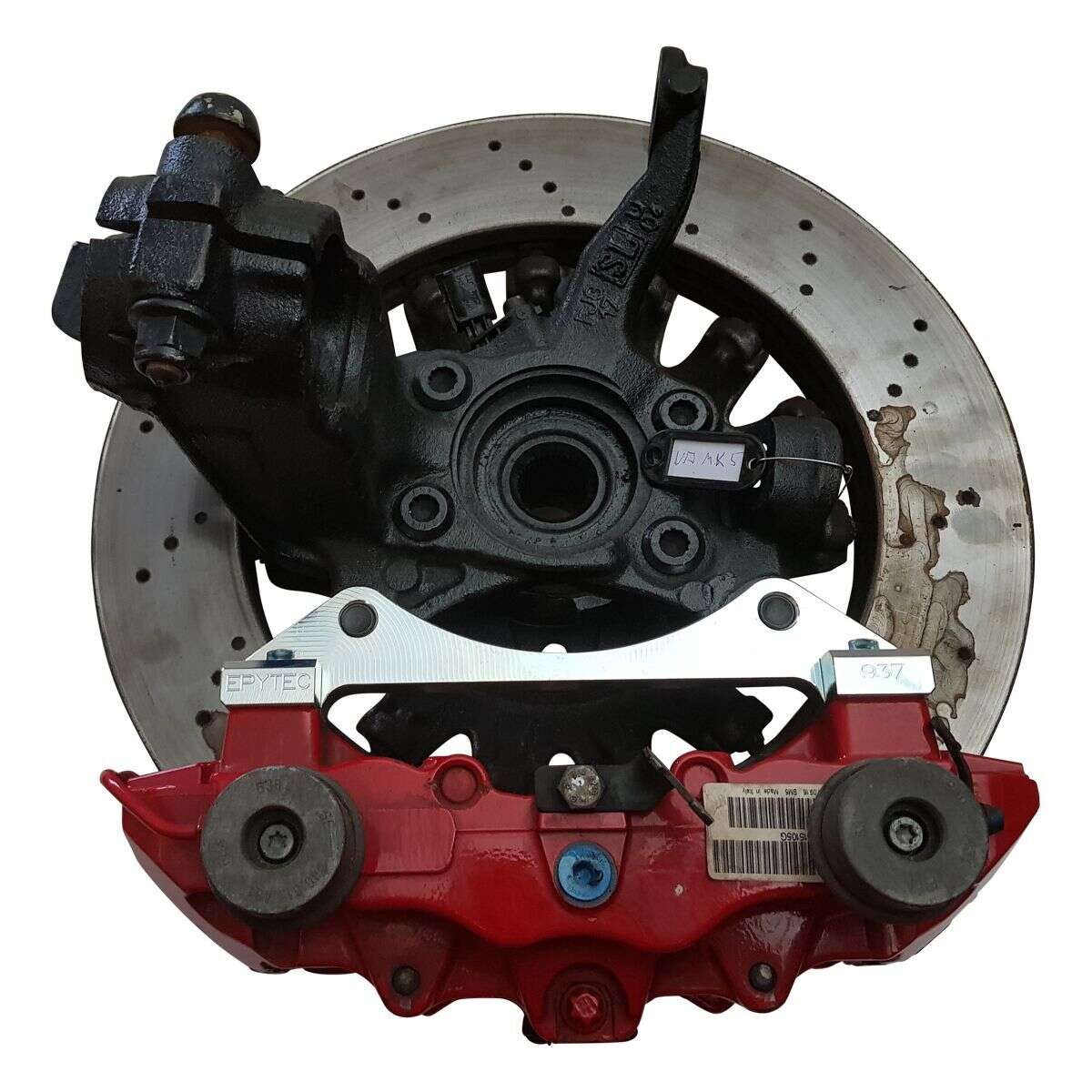

Brake caliper adapter on models Golf MK5 MK6 for conversion to die 8-piston brake caliper of R8, combined with the brake discs of Audi RS3 (370x34 )
Suitable for following vehicles:
- Golf MK5 MK6
- Caddy
- Touran
- Audi B5 S4
- Audi S1
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake caliper: Audi R8 8-piston original Brembo brake caliper, reference left: 8E0615107 , right 8E0615108
- brake disc: Audi RS3 370x34 , reference 8V0.615.301.P (depth 59,8mm)
Delivery:
- 2x brake caliper adapters for VW Golf MK5 MK6
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
15 October 2023 18:16
Jeremy H
Au top 👌🏻 Aucun souci de montage sur golf 5 R32 avec disques de rs3
15 October 2023 18:16
Jeremy H
Au top 👌🏻 Aucun souci de montage sur golf 5 R32 avec disques de rs3
24 March 2024 18:25
Vincent M
Epytec a toujours été une référence en matière dadaptabilité sur les véhicules du groupe VAG le choix de mon kit a été rapide et malgré une erreur dans la commande ( une mauvaise vis qui sest glissé a la place dune autre) epytec a réagis rapidement en me renvoyant un jeu complet Au montage avec les bonnes référence il ny a pas de soucis!
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
