VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Brake Caliper Adapter 390x36 Brake Disc Mercedes Porsche Panamera Caliper
- ✓ 390x36 1664210512 Mercedes GL 500 brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
Brake caliper adapter, front axle, on Golf 7 8 Audi A3 8V etc, for conversion to the Porsche Panamera 6-piston Brembo brake caliper, combined with the brake discs 390x36 Mercedes GL 500.
Suitable for the following vehicles:
- Audi A3 8V
- Audi A3 Cabriolet 8V7
- Audi A3 Sportsback 8YA
- Cupra Formentor KM7
- Cupra Leon KL1
- Cupra Leon Sportstourer KL8
- Seat Leon
- Seat Leon Sportstourer KL8
- Seat Leon ST 5F8
- Skoda Octavia III
- Skoda Octavia IV
- Skoda Superb III 3V3
- VW Arteon 3H7
- VW Golf Sportsvan AM1
- VW Golf 7 5G1
- VW Golf 8 CD1
- VW Passat 3G2
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling.
Required components:

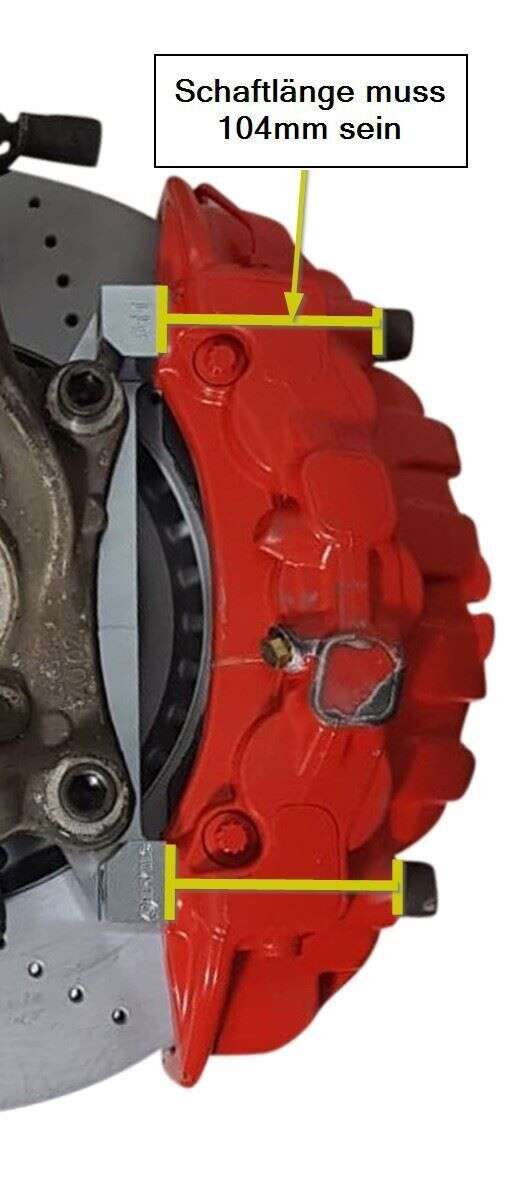

- brake caliper: Porsche Cayenne 958 GTS Panamera / brake caliper 390mm brake system reference: 7PP615149J / 7PP615150J (Shaft length from the caliper must be 104mm, see yellow mark on the last picture)
- brake disc: Mercedes Benz GL - Klasse 390x36mm reference: 166 421 0512
Delivery:
- 2x brake caliper adapters for Golf 7 8 Audi A3 8V Seat Skoda, etc.
- high-strength mounting screws
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
2 April 2023 18:51
Simone B
Materiale ottimo e fatte bene senza difetti.
12 August 2023 06:58
CYRIL S
Le produit est bien compatible avec vw cc 3.6 v6 de 2013
22 March 2023 19:44
Petr J
Perfect fit
15 August 2023 18:04
CYRIL S
Le produit est bien compatible avec vw cc 3.6 v6 de 2013
1 May 2024 17:42
Michael D
Quality is great, all machine work is top quality and I couldnt of asked for a better product
2 May 2024 07:39
Michael D
Quality is great, all machine work is top quality and I couldnt of asked for a better product
21 March 2023 23:03
Artem S
Fahrzeug Beschreibung des Artikels 523 stimmt nicht. Audi a3 8P und Golf haben einen ganz anderen Achsschenkel als die abgebildetes Artikel Bilder. Ich habe mich anhand der Bilder Orientiert und es Passt perfekt an meinen RS3 8P mit S3 Radnaben. Sollte genau so gut bei einem TTRS 8J passen und einem VW Passat. Aufreden Fall passen die Adapter bei keinem A3, Golf S3 und auch bei keinem RS3 mit Originalen Radlager, da die Radlager breiter sind als bei sämtlichen anderen Modellen. Also bitte Artikelbeschreibung anpassen. Mit der Qualität und der Passgenauigkeit bin ich aber super zufrieden. Mit freundlichen Grüßen
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
