Brake caliper adapter 15 inch BMW E30 316i 320i brake caliper BMW E36 284x22mm brake disc Fiat Coupe
- ✓ 284x22 46403958 Fiat Coupe brake disc
- ✓ 1-piston 34111160346 / 34111160345 BMW E36 brake caliper
- ✓ front axle
€172.17*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter for the front axle of the BMW E30 series with original 4-hole connection to drive the brake disc from the Fiat Coupe 284x22mm in conjunction with the brake calipers from the BMW E36.
Required components:
- BMW E36 brake calipers, part number: Right: 34111160346 / Left: 34111160345
- Brake caliper carrier BMW E36, part number: 34111160347
- Brake discs from Fiat Coupe 284x22mm part no. 46403958
- The brake discs must be rebored to the BMW bolt circle 4x100 and the hub diameter must be turned up to 66mm (can also be done in-house, click here)
- the brake calliper brackets need to be machined a little so that they do not touch the wheel bearing housing
Advantages:
- 15-inch rims can be driven
- Extreme deceleration values
- Thanks to the material certificate included in the scope of delivery, registration via individual approval is also possible for standard vehicles
- Fits directly on the above-mentioned models and can therefore be easily retrofitted to the original condition at any time
- Our EPYTEC brake caliper adapters do not require your standard parts to be sent in, no rewelding, re-milling or re-drilling.
Scope of delivery:
- 2x brake caliper adapter for BMW E30 316i, 320i, etc.
- High-strength screw set
- Material certificate

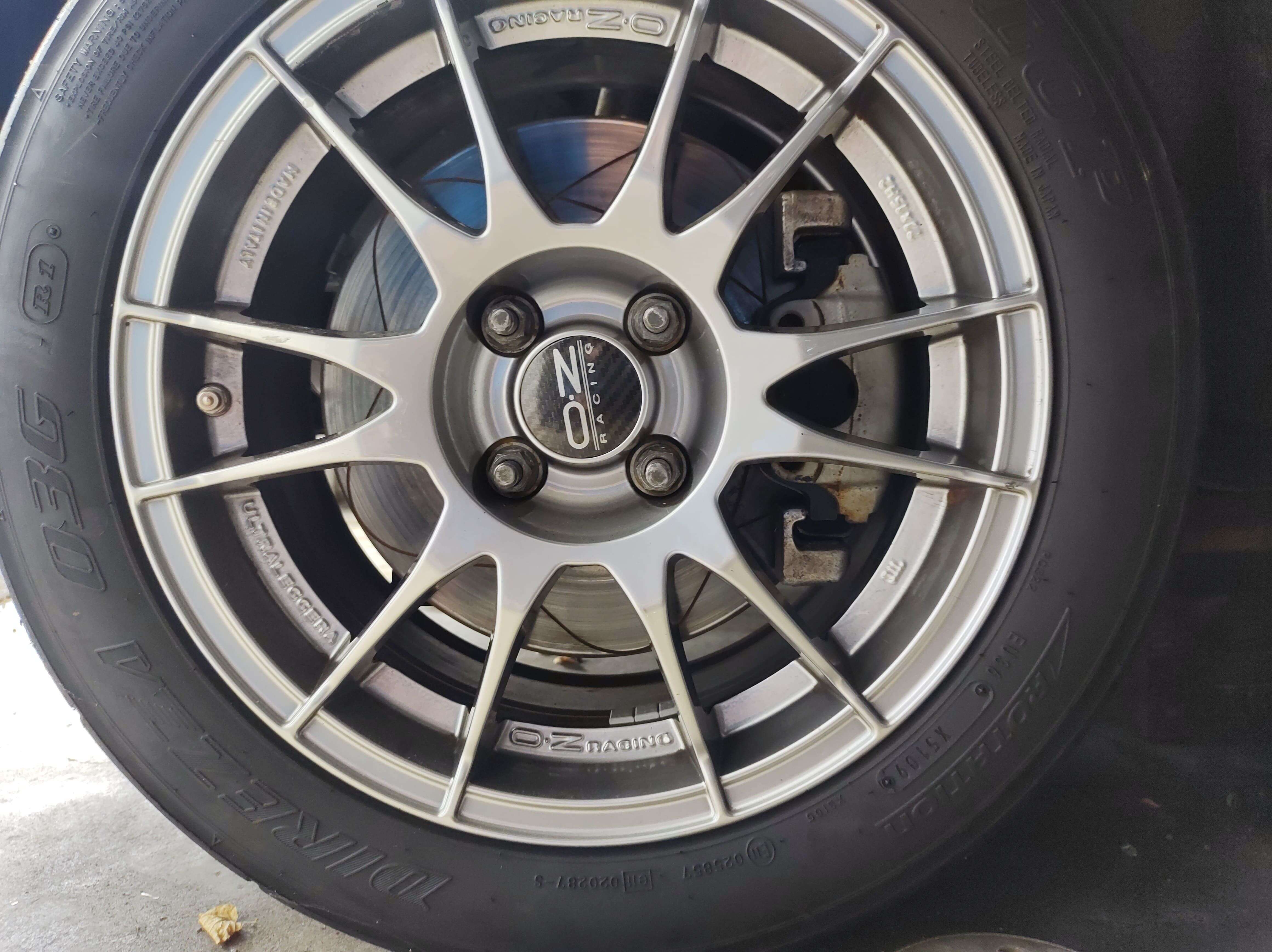

15-inch rims can be used with this brake caliper adapter
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst.
Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
12 May 2024 18:01
Bram S
Het is leek mij een simpele ombouw, maar er kwam nog best veel bij kijken om het allemaal passend te krijgen. De remzadel moet flink aangepast worden om aan de adapter te bevestigen en de adapter moet ook een beetje bewerkt worden omdat de remklauw anders niet past.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
