Adjustable Uniball Wishbone Bearing BMW 3 Series E30 E36 M3 Front Axle Spherical Plain Bearing Motorsport Tuning Adapter
- ✓ Front axle
- ✓ BMW 3 series E30, E36 incl. Compact
- ✓ camber adjustment
€320.61*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

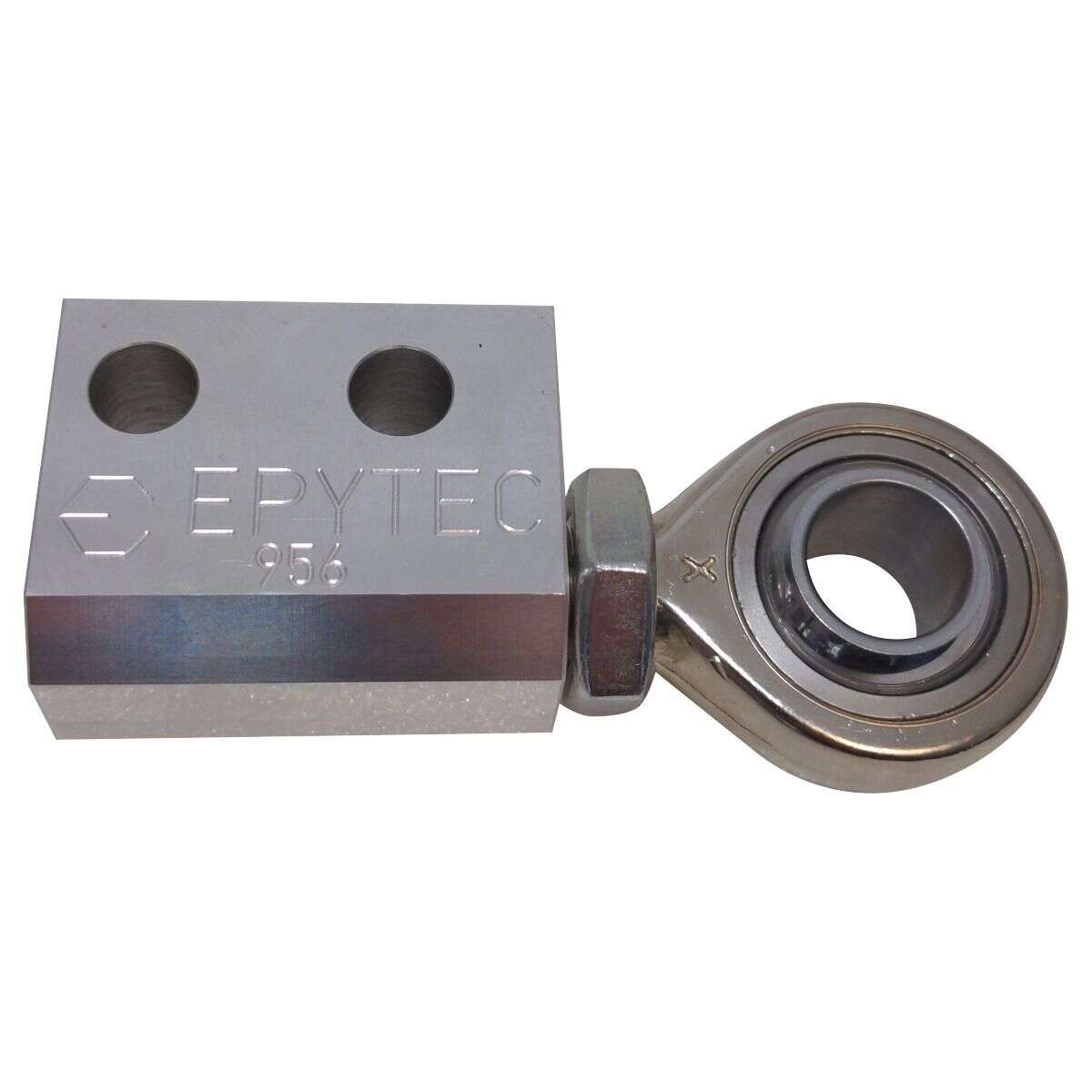

Adjustable Uniball wishbone bearings for 3 series BMW E30and E36, for the best performance.
What do you want?
- you never want worn tires on one side
- you want a perfect tracking behavior and resonance when driving
- you want to drive at high speed in bends/curves
- You want a great look for your vehicle
Now you can do just that!
With our parts, you can finally customize your suspension and caster/camber to your individual needs. We use high-quality Fluro Motorsport spherical bearings, which ensure maximum precision, durability, and zero play.
These components are absolutely essential if you have a lowered vehicle.

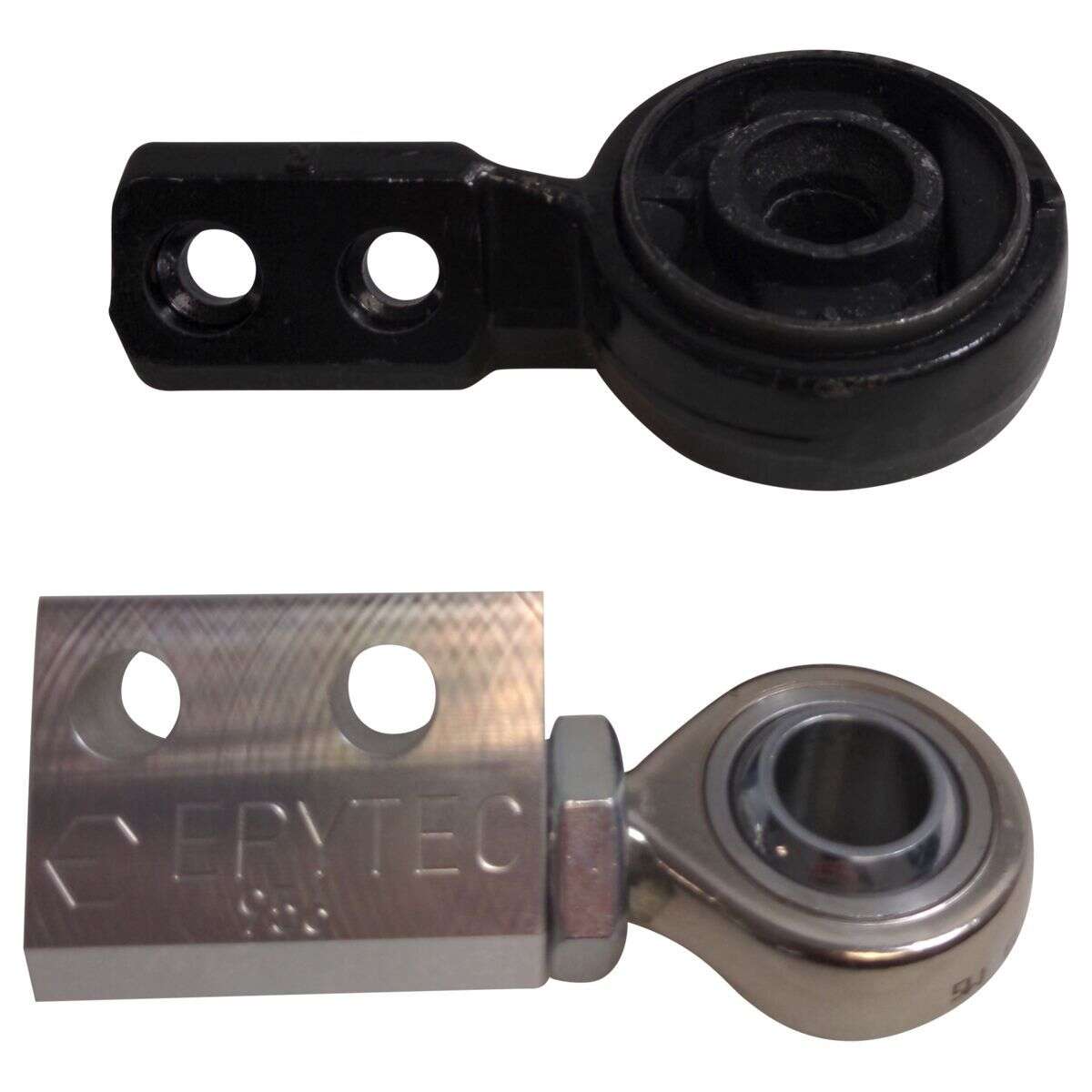

Part number of the original wishbone bearings: 31121136532
This kit is for both sides of the front axle, i.e. for the complete front axle.
Suitable for the following vehicles:
- BMW 3 series E30
- BMW 3er series E36, including Compact

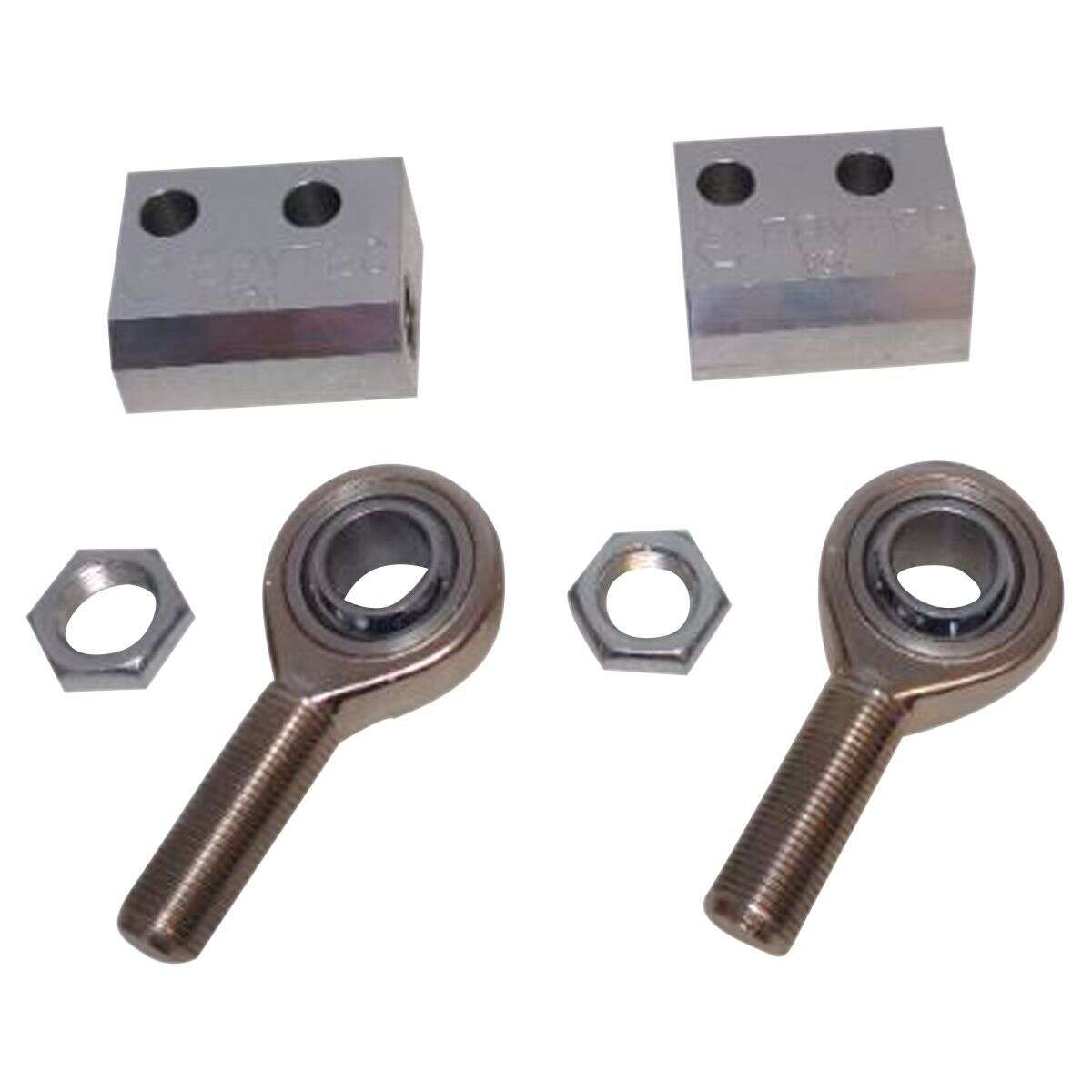

Delivery
- 2x high-strength aluminum block made of the high-quality material AW7075 aircraft aluminum for BMW E30 E36 to adapt the caster / camber at the fornt axle
- 2x Fluro Motorsport Uniball joints
- 2x counter nuts
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
- Does the ABS still function after installing the camber correction?
Yes, basically the ABS will continue to function after installing a camber correction. The important thing is: If you significantly change the camber, the geometry between the ABS sensor and the ABS ring (impulse ring) can shift in such a way that the sensor no longer operates optimally "at the correct angle" or parallel to the ring.
Why can there be problems?
The ABS sensor reads the ABS ring with a defined distance and alignment angle. With a significant camber change (often from about 1°, depending on the vehicle and axle design), it can happen that:
the sensor no longer lines up correctly, or
the air gap between the sensor and the ring is no longer within the target range.
Then the ABS can basically continue to work, but there can be, for example, ABS/ESP warning messages, sporadic interventions, or error memory entries.
What needs to be done then?
If something like this occurs, a small adjustment is usually sufficient:
Slightly correct the position of the ABS sensor (e.g., slightly reposition/align it on the mount)
Check seating and attachment (sensor must be flat and securely seated)
Check the air gap (not rubbing, not too large)
Then it is best to read/clear the error memory and take a short test drive.
Practical Tip
After the conversion, it is recommended to have an axle alignment. If you are using camber values in the range > 1°, it is advisable to check the ABS sensor area directly so that no surprises arise later.
- Do I need longer screws or can the old ones remain.
With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates over 2°, we recommend slightly sanding a washer and placing it under the screw head so that it continues to sit flush on the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be needed directly.
- Can camber correction plates be installed on drum brakes?
Yes, this is possible provided that a stub axle is installed on the rear axle. In this case, our Epytec camber correction plates can also be easily mounted on drum brakes. The functionality and installation are largely the same as for vehicles with disc brakes.
It is important that the mounting points of the stub axle match the execution of the camber correction plates.
| Motor | Motorcode |
|---|---|
| 325i | E30|170PS(125KW) |
| 325tds | E36|143PS(105KW) |
| 320i | E36|150PS(110KW) |
| 316i | E30|100PS(73KW) |
| 318i | E30|113PS(83KW) |
| 320i | E30|129PS(95KW) |
| 324td | E30|115PS(85KW) |
| 318tds | E36|90PS(66KW) |
| 328i | E36|193PS(142KW) |
| 318i | E30|115PS(85KW) |
| 318i | E36|116PS(85KW) |
| 323i | E36|170PS(125KW) |
| 316i | E36|102PS(75KW) |
| 316i | E30|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 325e 2.7 | E30|122PS(90KW) |
| 318tds | E36|90PS(66KW) |
| 316i | E36|102PS(75KW) |
| 316i | E36|100PS(73KW) |
| 318is | E36|140PS(103KW) |
| 325td | E36|115PS(85KW) |
| 316i | E30|102PS(75KW) |
| 318i | E36|115PS(85KW) |
| 325tds | E36|143PS(105KW) |
| 325i | E30|171PS(126KW) |
| 318i | E30|105PS(77KW) |
| 318is | E30|136PS(100KW) |
| 325e 2.7 | E30|129PS(95KW) |
| 315 | E30|75PS(55KW) |
| 324d | E30|86PS(63KW) |
| 328i | E36|193PS(142KW) |
| M3 2.3 | E30|215PS(158KW) |
| M3 2.3 | E30|200PS(147KW) |
| 325i | E36|192PS(141KW) |
| M3 2.3 | E30|195PS(143KW) |
| 316 | E30|90PS(66KW) |
| 320i | E30|125PS(92KW) |
| 316i | E30|100PS(73KW) |
| 323i | E30|139PS(102KW) |
| 320i | E36|150PS(110KW) |
| 318i | E30|113PS(83KW) |
| M3 3.0 | E36|286PS(210KW) |
| 318i | E30|102PS(75KW) |
| 320i | E30|129PS(95KW) |
| 324td | E30|115PS(85KW) |
| 323i | E36|170PS(125KW) |
| 318i | E30|115PS(85KW) |
| 323i | E30|150PS(110KW) |
| 325i | E30|170PS(125KW) |
| 323i 2.5 | E36|170PS(125KW) |
| 318i | E36|113PS(83KW) |
| Motor | Motorcode |
|---|---|
| 318i | E36|115PS(85KW) |
| 318i | E30|113PS(83KW) |
| 323i | E36|170PS(125KW) |
| 325i | E36|192PS(141KW) |
| 328i | E36|193PS(142KW) |
| 325i | E30|171PS(126KW) |
| 320i | E36|150PS(110KW) |
| M3 3.2 | E36|321PS(236KW) |
| 325i | E30|170PS(125KW) |
| 320i | E30|129PS(95KW) |
| M3 3.0 | E36|286PS(210KW) |
| Motor | Motorcode |
|---|---|
| M3 3.0 | E36|295PS(217KW) |
| 325i | E36|192PS(141KW) |
| 325is | E36|192PS(141KW) |
| 318is | E36|140PS(103KW) |
| 320i | E36|150PS(110KW) |
| 316i | E36|102PS(75KW) |
| 328i | E36|193PS(142KW) |
| M3 3.2 | E36|321PS(236KW) |
| 323i | E36|170PS(125KW) |
| M3 3.0 | E36|286PS(210KW) |
| Motor | Motorcode |
|---|---|
| 323 Ti | E36|170PS(125KW) |
| 316i | E36|105PS(77KW) |
| 316g | E36|102PS(75KW) |
| 318tds | E36|90PS(66KW) |
| 316i | E36|102PS(75KW) |
| 323 Ti | E36|163PS(120KW) |
| 318 Ti | E36|140PS(103KW) |
| Motor | Motorcode |
|---|---|
| 325i | E30|170PS(125KW) |
| 325tds | E36|143PS(105KW) |
| 320i | E36|150PS(110KW) |
| 316i | E30|100PS(73KW) |
| 318i | E30|113PS(83KW) |
| 320i | E30|129PS(95KW) |
| 324td | E30|115PS(85KW) |
| 318tds | E36|90PS(66KW) |
| 328i | E36|193PS(142KW) |
| 318i | E30|115PS(85KW) |
| 318i | E36|116PS(85KW) |
| 323i | E36|170PS(125KW) |
| 316i | E36|102PS(75KW) |
| 316i | E30|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| 325e 2.7 | E30|122PS(90KW) |
| 318tds | E36|90PS(66KW) |
| 316i | E36|102PS(75KW) |
| 316i | E36|100PS(73KW) |
| 318is | E36|140PS(103KW) |
| 325td | E36|115PS(85KW) |
| 316i | E30|102PS(75KW) |
| 318i | E36|115PS(85KW) |
| 325tds | E36|143PS(105KW) |
| 325i | E30|171PS(126KW) |
| 318i | E30|105PS(77KW) |
| 318is | E30|136PS(100KW) |
| 325e 2.7 | E30|129PS(95KW) |
| 315 | E30|75PS(55KW) |
| 324d | E30|86PS(63KW) |
| 328i | E36|193PS(142KW) |
| M3 2.3 | E30|215PS(158KW) |
| M3 2.3 | E30|200PS(147KW) |
| 325i | E36|192PS(141KW) |
| M3 2.3 | E30|195PS(143KW) |
| 316 | E30|90PS(66KW) |
| 320i | E30|125PS(92KW) |
| 316i | E30|100PS(73KW) |
| 323i | E30|139PS(102KW) |
| 320i | E36|150PS(110KW) |
| 318i | E30|113PS(83KW) |
| M3 3.0 | E36|286PS(210KW) |
| 318i | E30|102PS(75KW) |
| 320i | E30|129PS(95KW) |
| 324td | E30|115PS(85KW) |
| 323i | E36|170PS(125KW) |
| 318i | E30|115PS(85KW) |
| 323i | E30|150PS(110KW) |
| 325i | E30|170PS(125KW) |
| 323i 2.5 | E36|170PS(125KW) |
| 318i | E36|113PS(83KW) |
| Motor | Motorcode |
|---|---|
| 318i | E36|115PS(85KW) |
| 318i | E30|113PS(83KW) |
| 323i | E36|170PS(125KW) |
| 325i | E36|192PS(141KW) |
| 328i | E36|193PS(142KW) |
| 325i | E30|171PS(126KW) |
| 320i | E36|150PS(110KW) |
| M3 3.2 | E36|321PS(236KW) |
| 325i | E30|170PS(125KW) |
| 320i | E30|129PS(95KW) |
| M3 3.0 | E36|286PS(210KW) |
| Motor | Motorcode |
|---|---|
| M3 3.0 | E36|295PS(217KW) |
| 325i | E36|192PS(141KW) |
| 325is | E36|192PS(141KW) |
| 318is | E36|140PS(103KW) |
| 320i | E36|150PS(110KW) |
| 316i | E36|102PS(75KW) |
| 328i | E36|193PS(142KW) |
| M3 3.2 | E36|321PS(236KW) |
| 323i | E36|170PS(125KW) |
| M3 3.0 | E36|286PS(210KW) |
| Motor | Motorcode |
|---|---|
| 323 Ti | E36|170PS(125KW) |
| 316i | E36|105PS(77KW) |
| 316g | E36|102PS(75KW) |
| 318tds | E36|90PS(66KW) |
| 316i | E36|102PS(75KW) |
| 323 Ti | E36|163PS(120KW) |
| 318 Ti | E36|140PS(103KW) |
