VW Golf 4 Bora Jetta Audi A3 Audi TT Adapter Porsche Cayenne Brake Caliper Rear Axle
- ✓ 310x22 3D0615601D VW Phaeton brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
€519.40*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

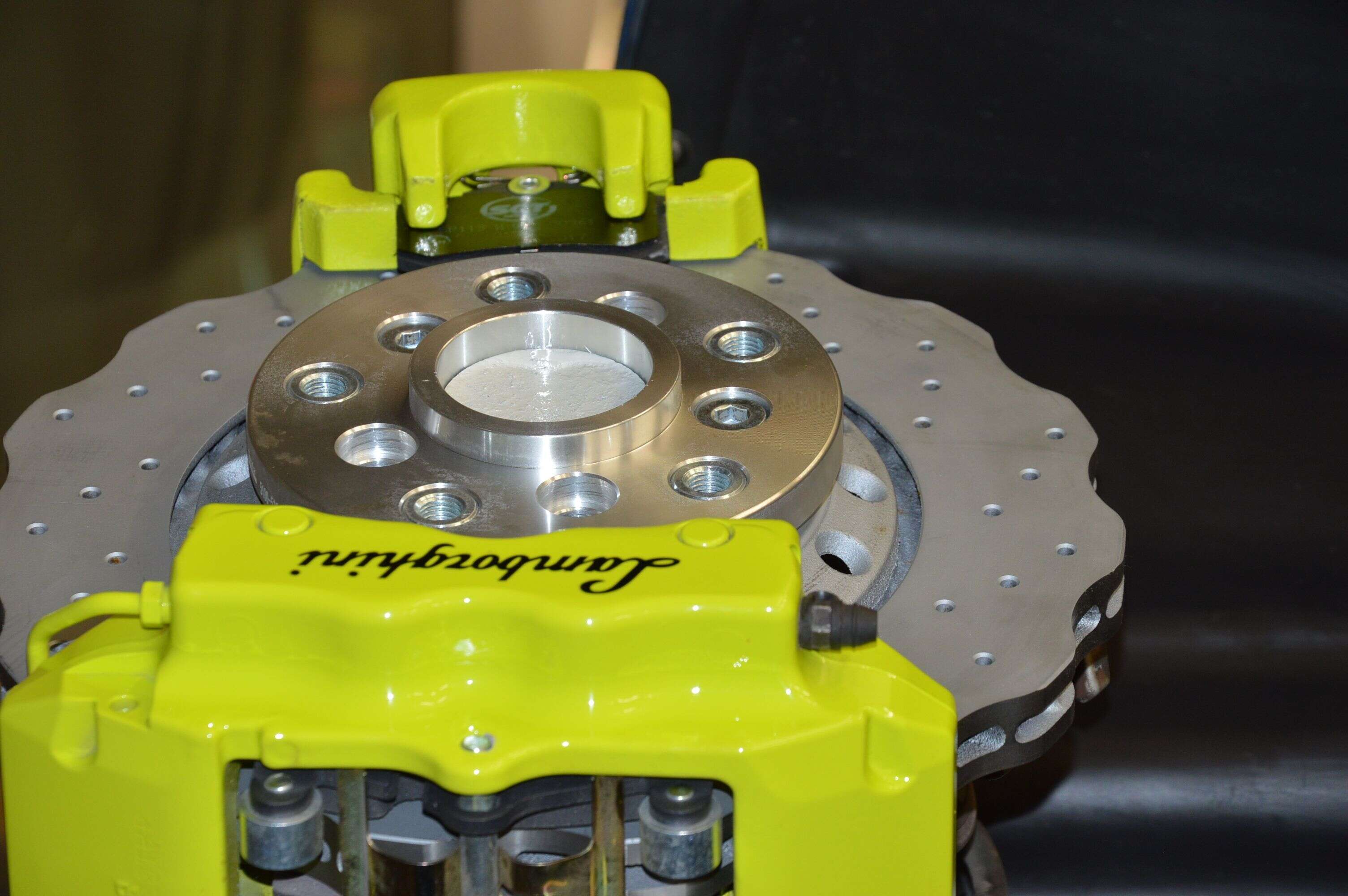

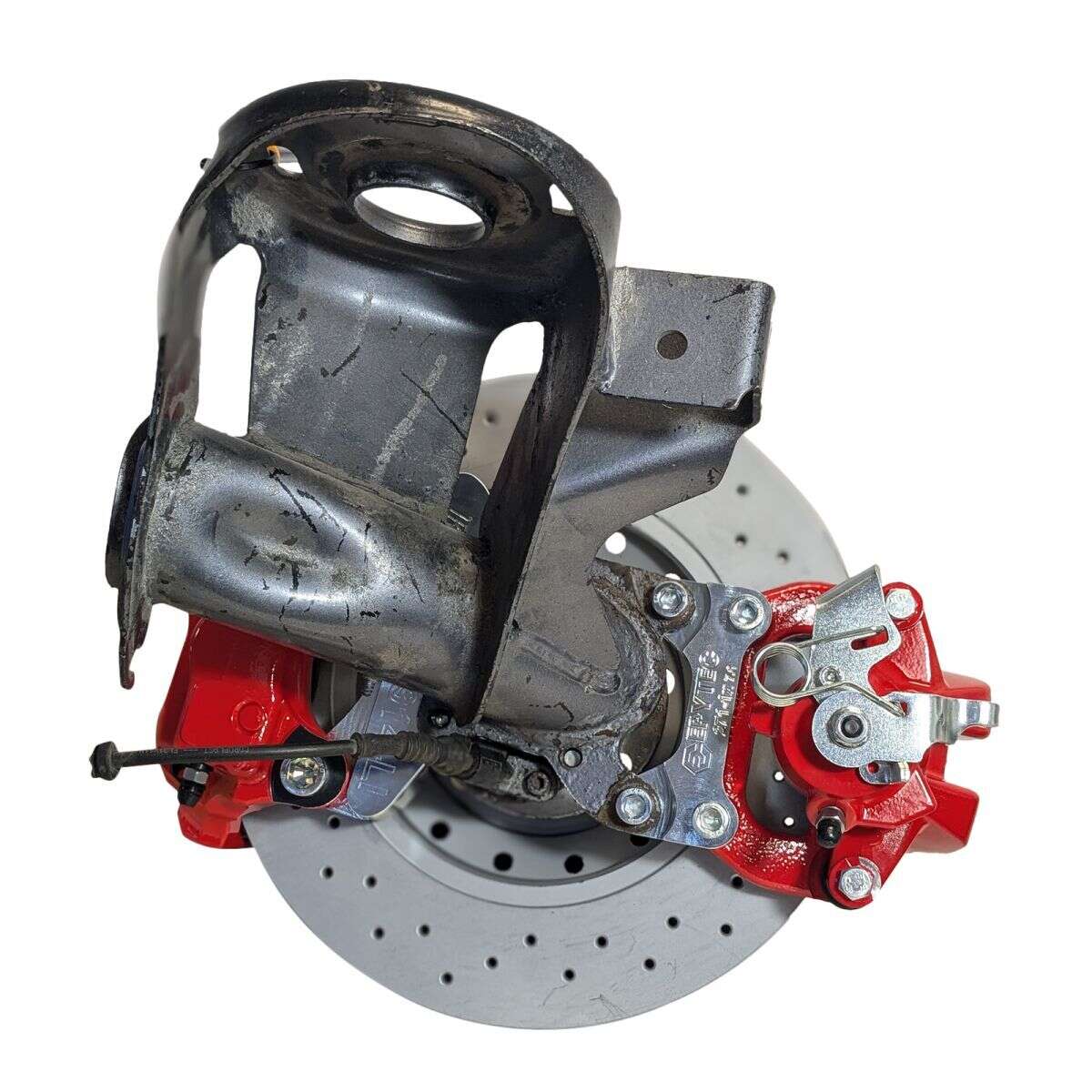

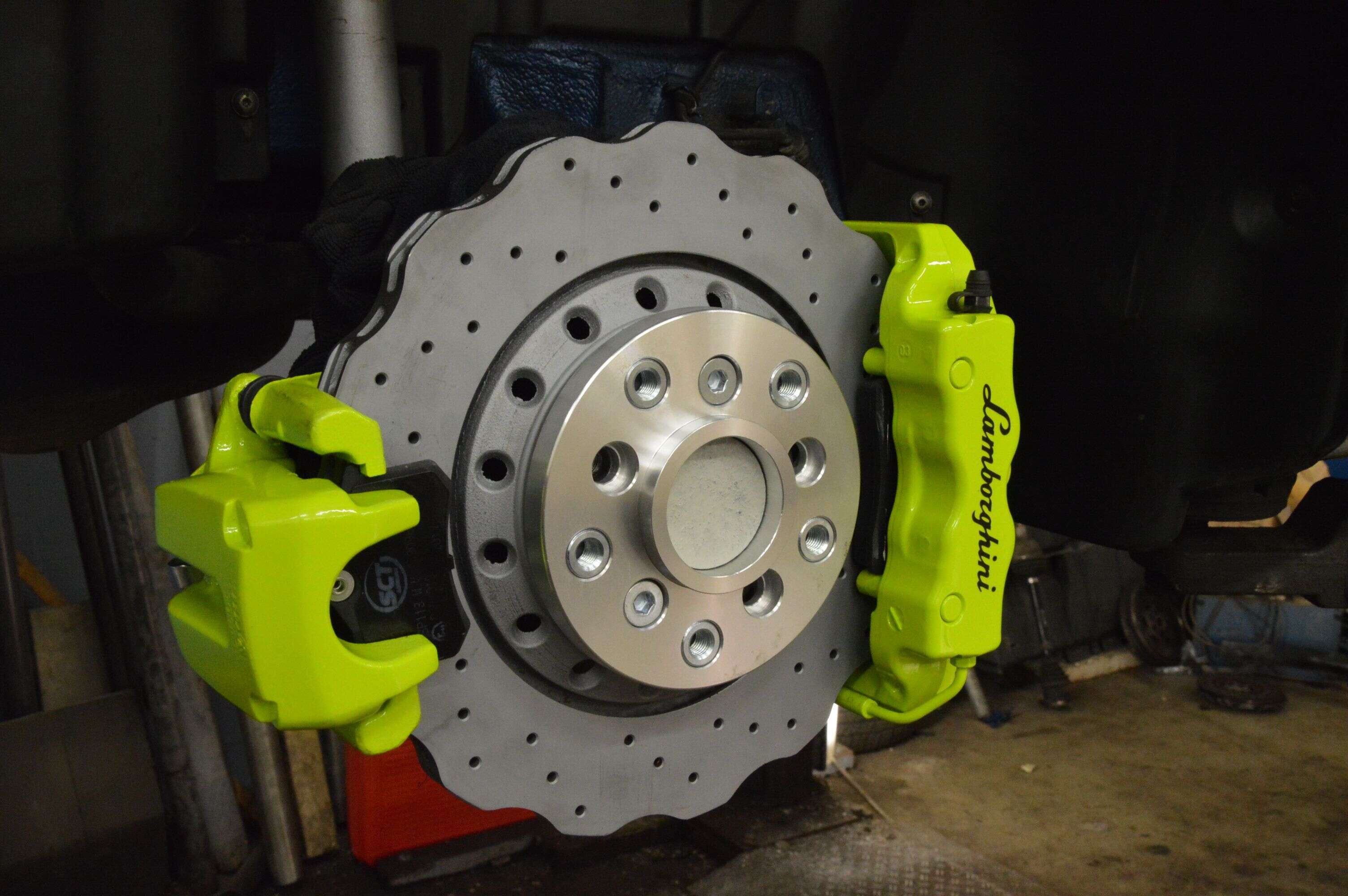

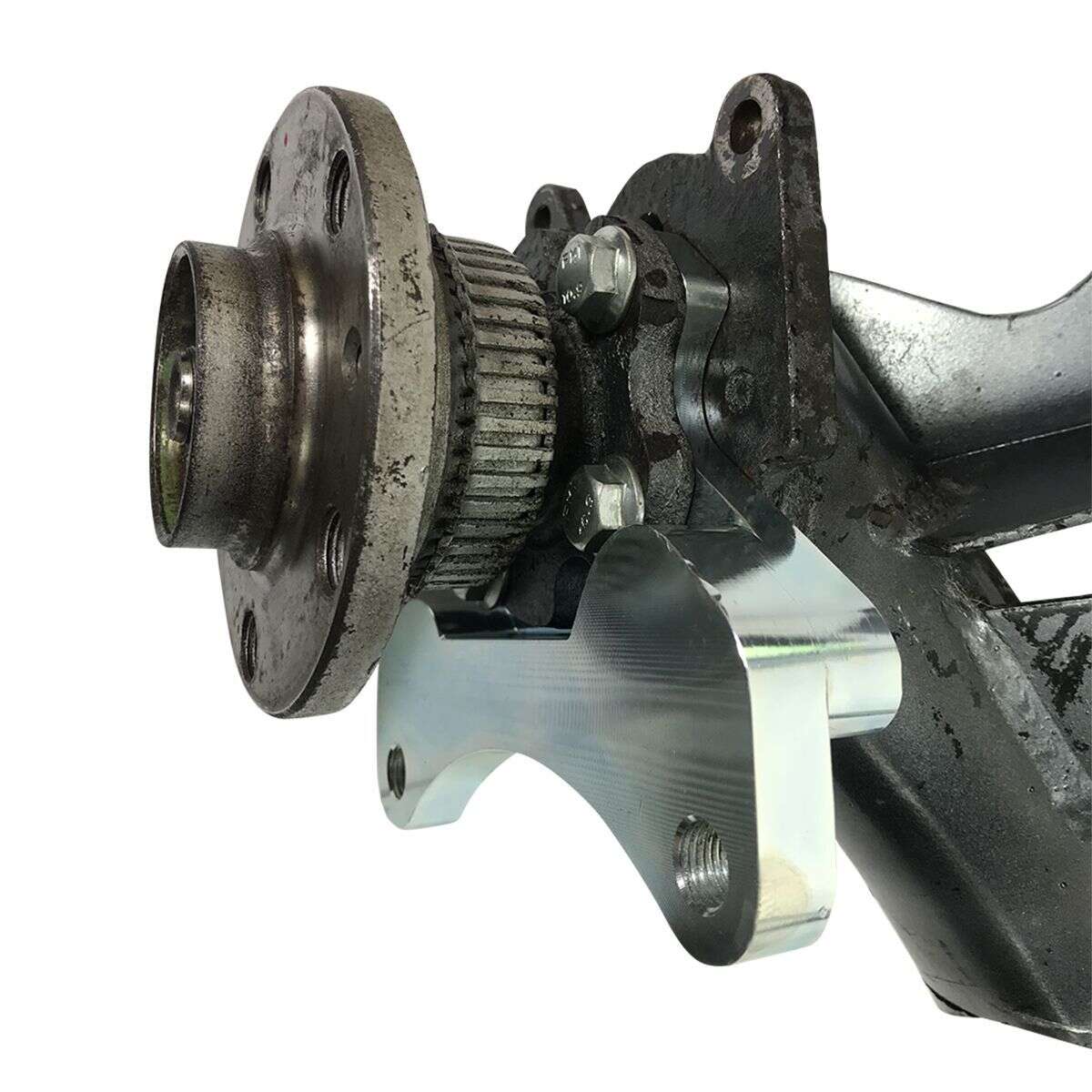

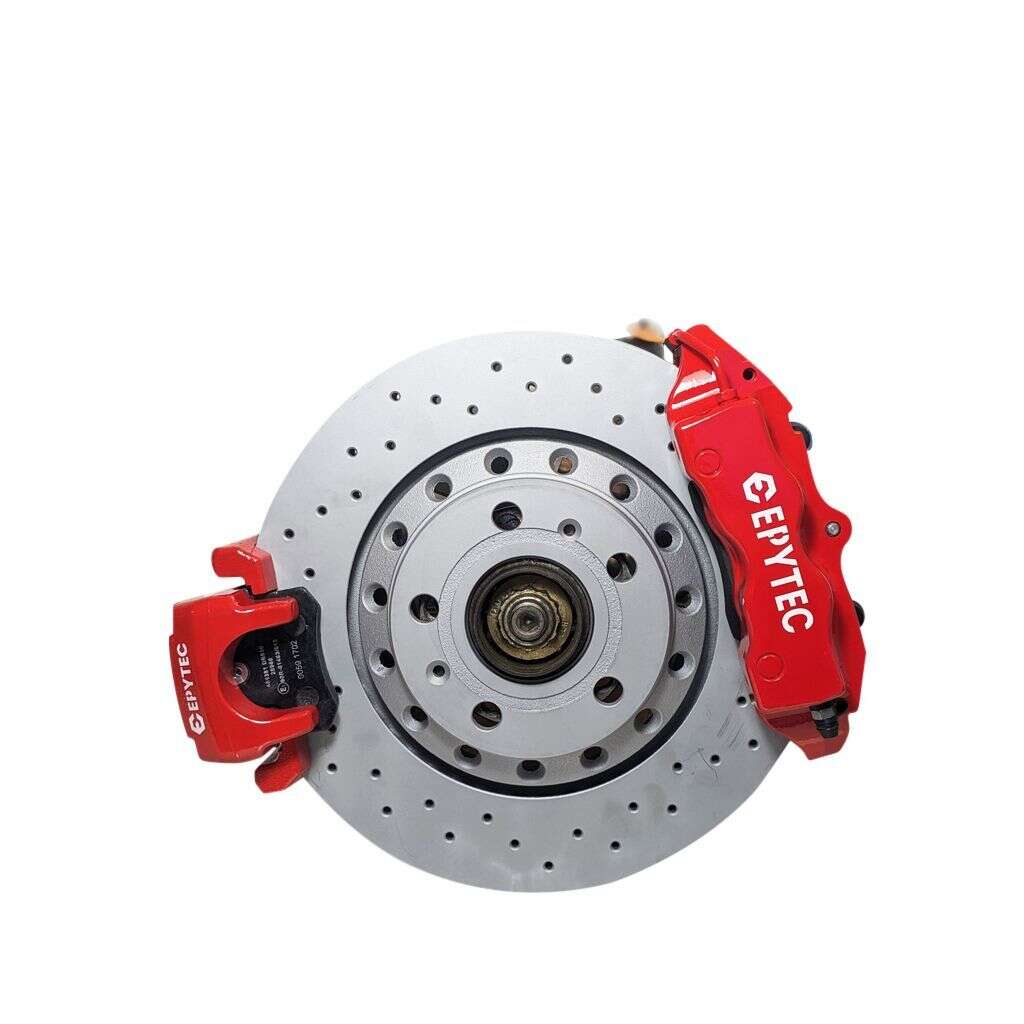

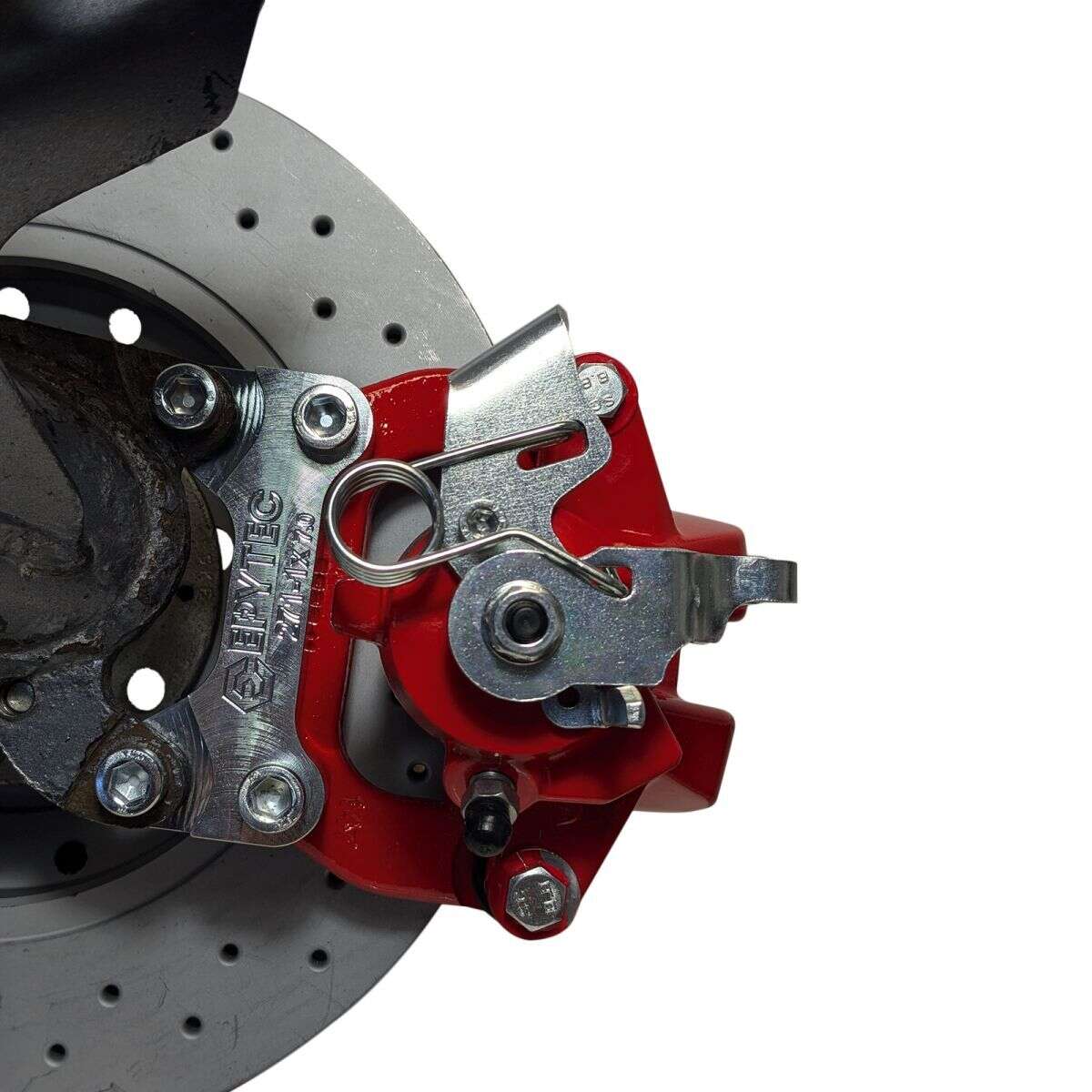

Brake caliper adapter, rear axle, in all 4WD Golf MK4 Bora Vento Audi A3, etc. for conversion to Porsche Cayenne brake calipers, combined with the 310x22 mm VW Phaeton brake discs, rear.

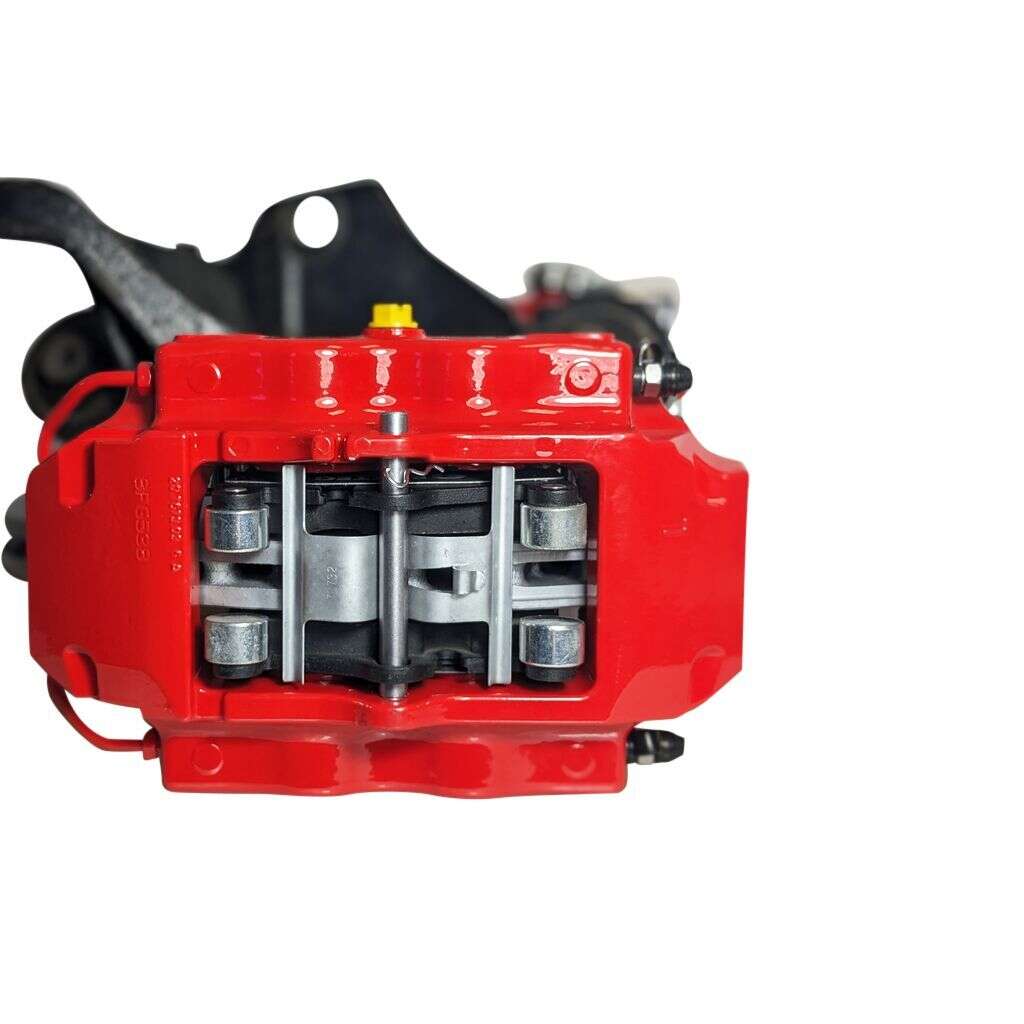

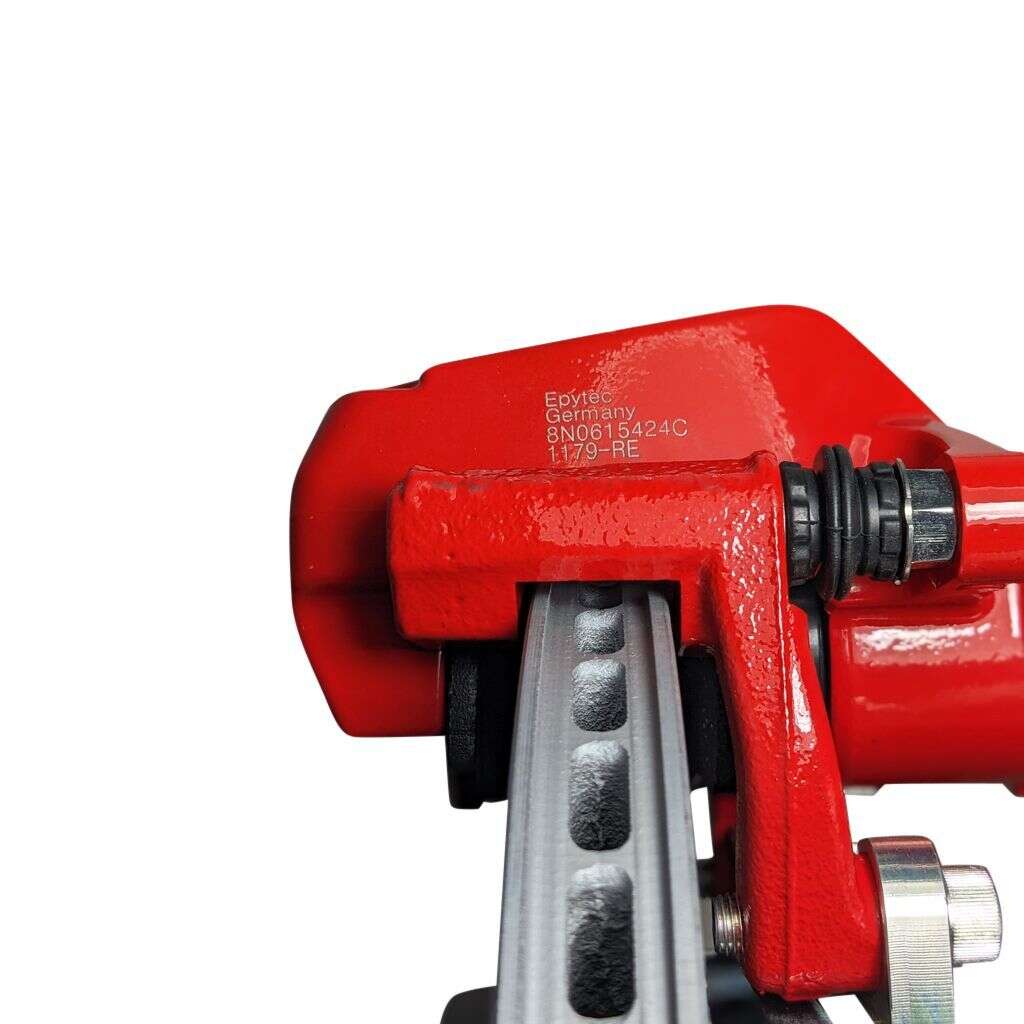

The Porsche calipers are connected to the hydraulics of the vehicle and can thus develop an enormous braking force. Since these have no handbrake functions, the rear Audi S3 or Golf MK4 R32 is also used as a hand brake caliper adapter. The hydraulic connection is thereby closed with a blind plug / closure cap, thus this serves only as a hand brake caliper.
With this adapters, the tracking is wider per side by about 10mm.
Suitable for the following VW und Seat models:
- Audi A3 8L
- Audi A1
- Audi TT 8N
- Seat Leon
- Seat Toledo 1M2
- Skoda Octavia 1U
- VW Golf mk4
- VW Bora/Jetta mk4
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs
- better performance
- supplied material certificate
Required components:
- brake caliper: Porsche Cayenne , rear axle, reference 955.352.421 + 955.352.422 / Brembo reference left 20.7673.03 + right 20.7673.04
- brake caliper mounting bracket: Audi S3 8L or VW Golf R32, rear
- brake disc: 310x22 , rear, VW Phaeton
- the caliper mounting brackets of the hand brake caliper should be slightly filed on the outer edge so that the disc rotates freely
Delivery:
- 2x brake caliper adapters for Porsche caliper
- 2x brake caliper adapers for R32 / S3 hand brake caliper
- suitable steel braided brake lines
- 2x centric rings
- high-strength mounting screws
- material certificate
- Stress analysis / FEM calculation for entry
- Installation instructions (click here)
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
29 January 2020 09:42
Karolina S
Ich habe einen verdreckten / alt aussehenden ( mit Flugrost übersehenes ) Adapter geliefert bekommen. Erst nach Nachfrage wurden alle notwendig Dokumente online bereit gestellt. Die beiden Blindstöpsel sind auch nicht im Lieferumfang enthalten. Bei einem Preis von mehr als 500 könnten die zwei Teile doch noch mit dazu gepackt werden. Auf Nachfrage wurde ich dann von Epytec auf das lesen in Forums verwiesen um die Blindstopfen zu bekommen. Naja ... Kundenservice ist nicht eure Stärke. Die Platten machen einen stabilen Eindruck. Eingebaut habe ich diese noch nicht.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
