VW Golf Mk4 Bora 1,8T Polo Audi A3 Brake Caliper Adapter Porsche Cayenne Rear Axle

✓ 330x22 4F0615601B Audi A6 brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ rear axle

€534.17*

Available

Product number: 887

Delivery by Friday, 27.12.2024 if you order within the next 2 Hours.

Product number: 887

Weight: 6.533 kg

Einbauort: hinten

Lochabstand Achsschenkel: 90mm

Lochabstand Bremssattel : 136mm

Your benefits

Easy TÜV registration
Quality Made in Germany
Fair prices without middlemen you buy directly from the manufacturer and developer of the product
Worldwide no. 1 in tuning adapters
15 years expert knowledge
10 years warranty

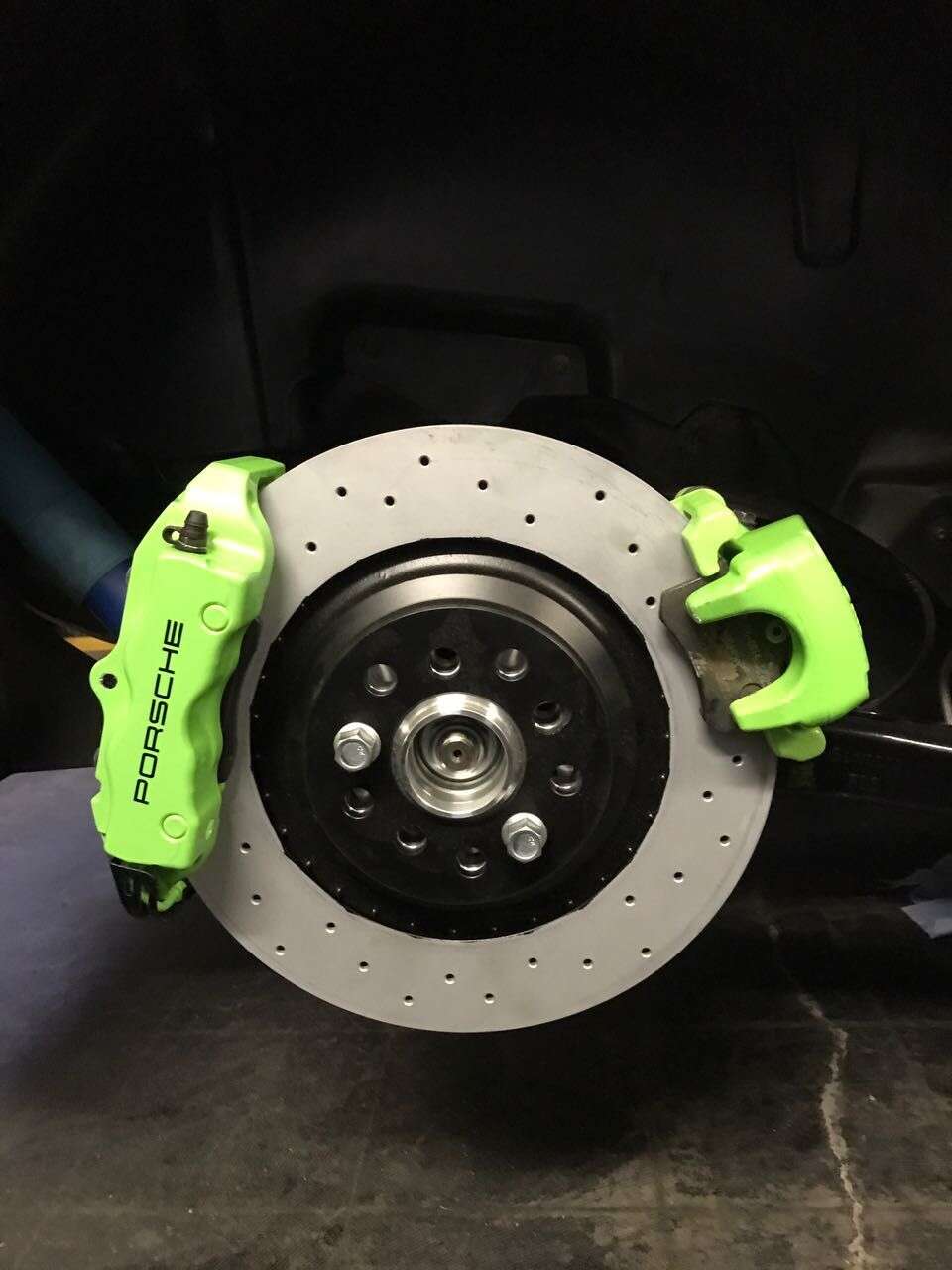

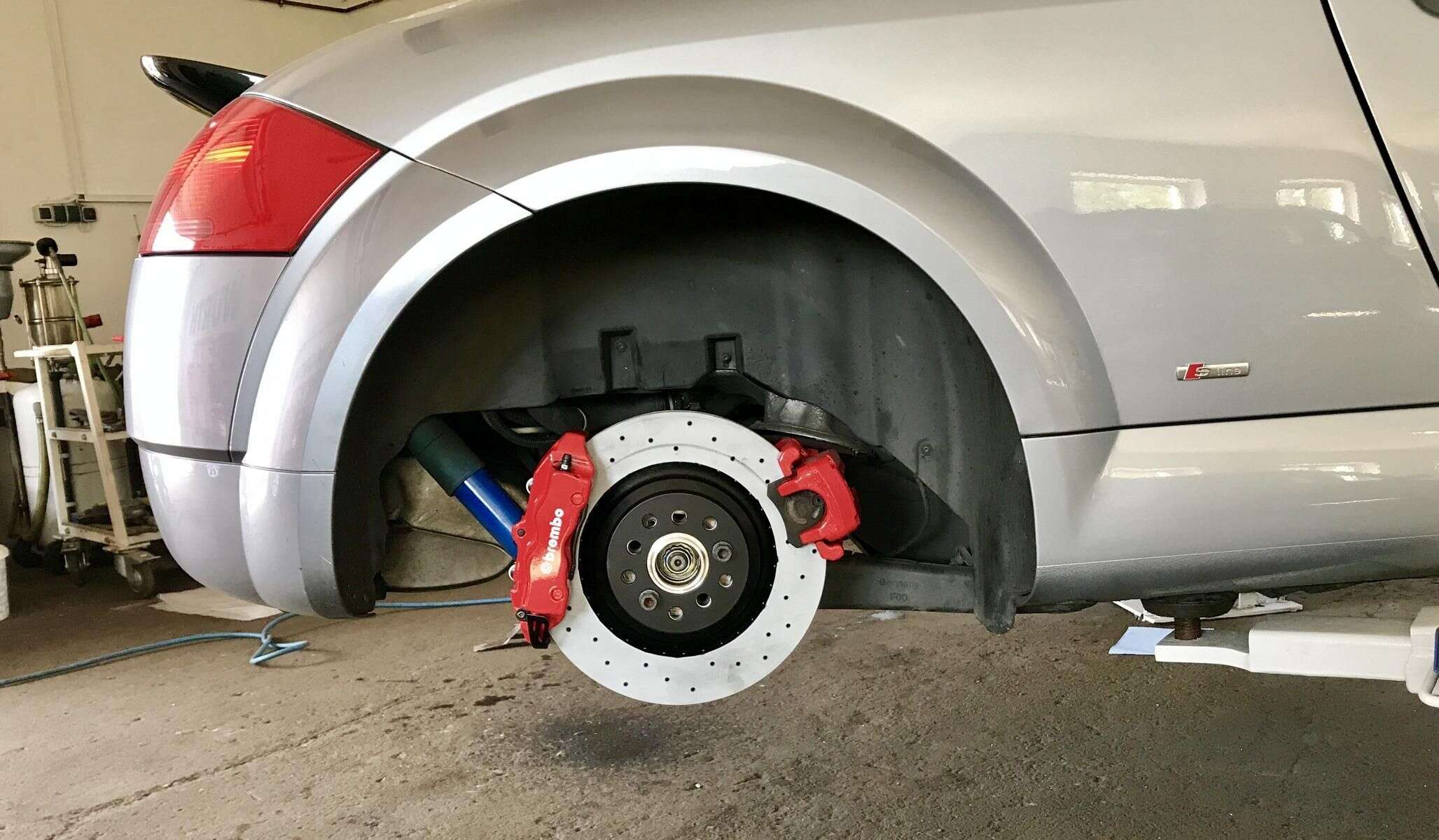

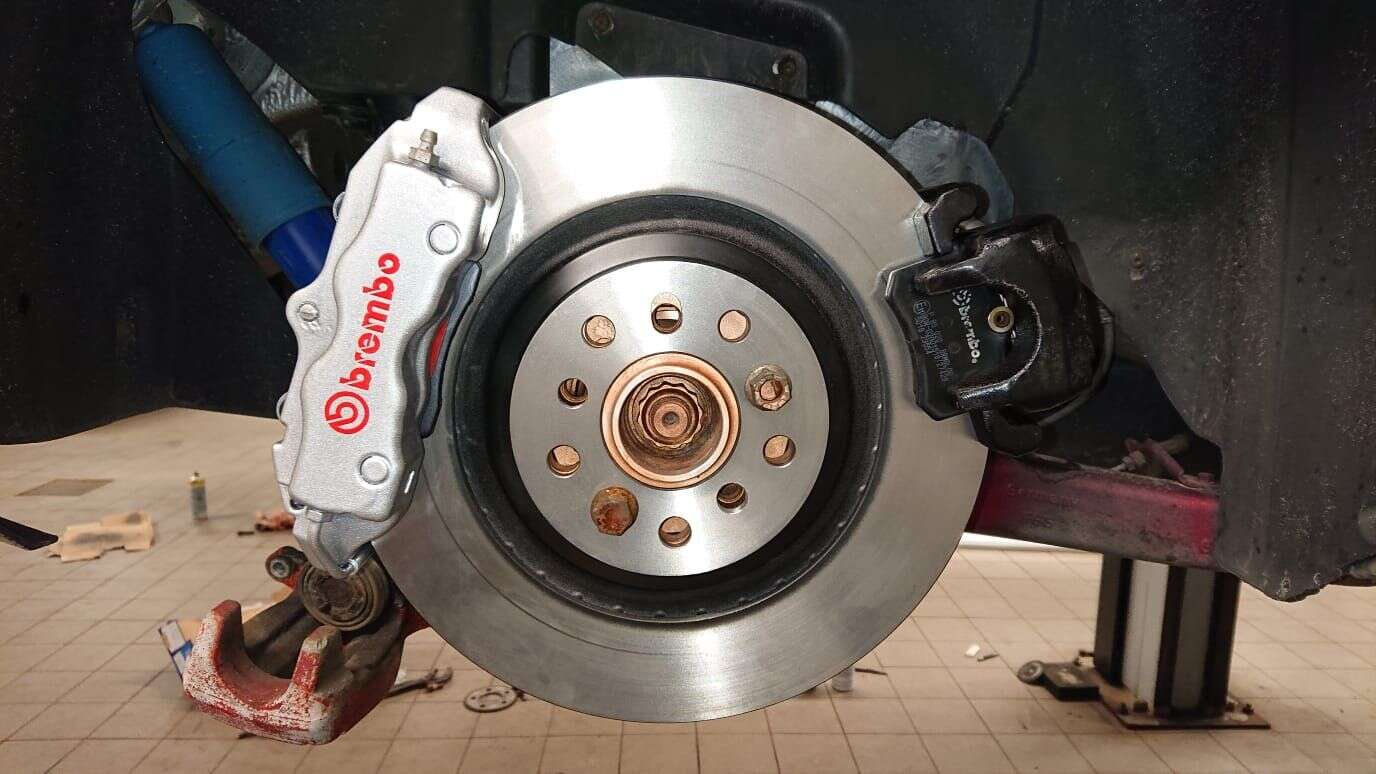

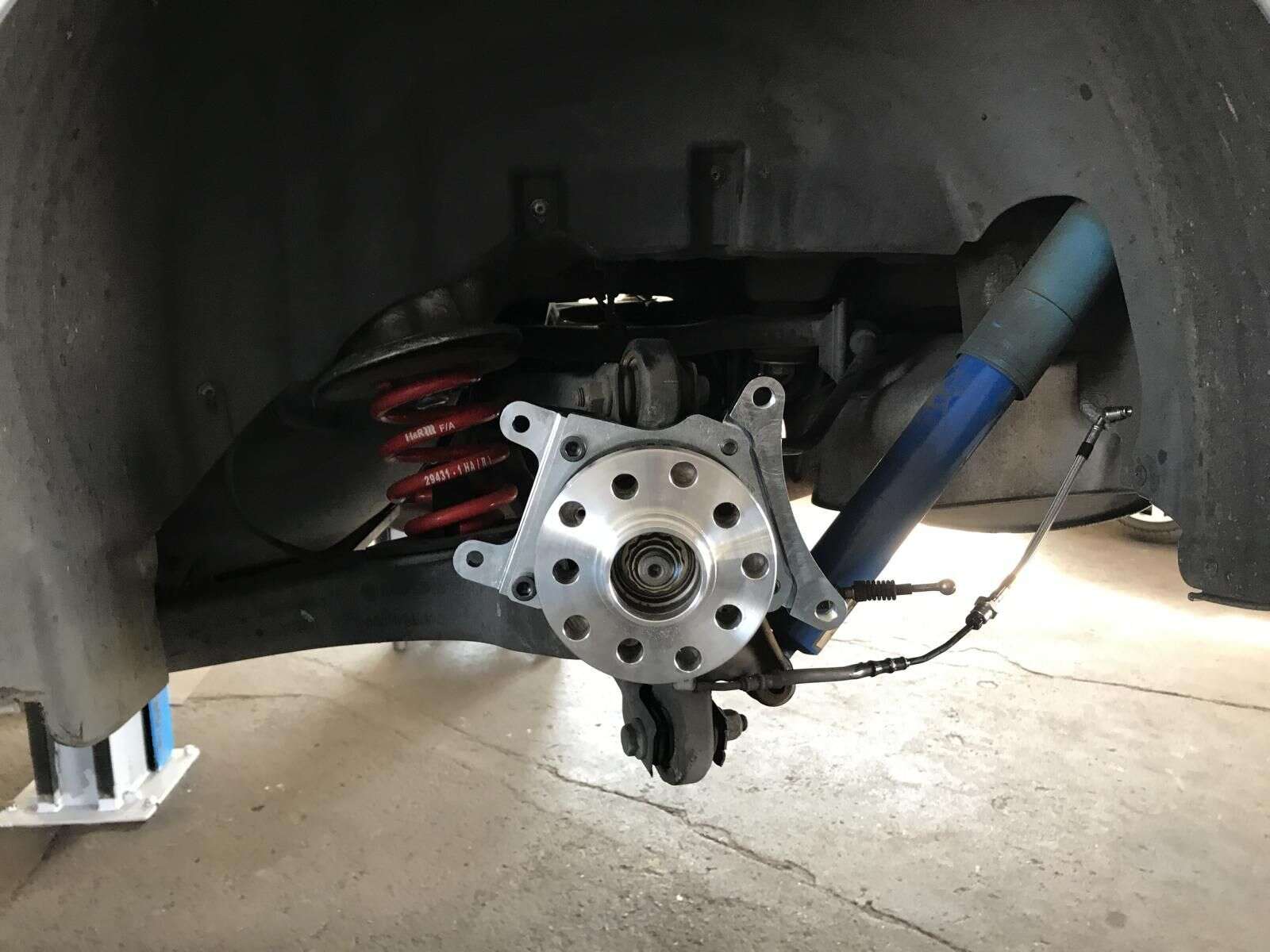

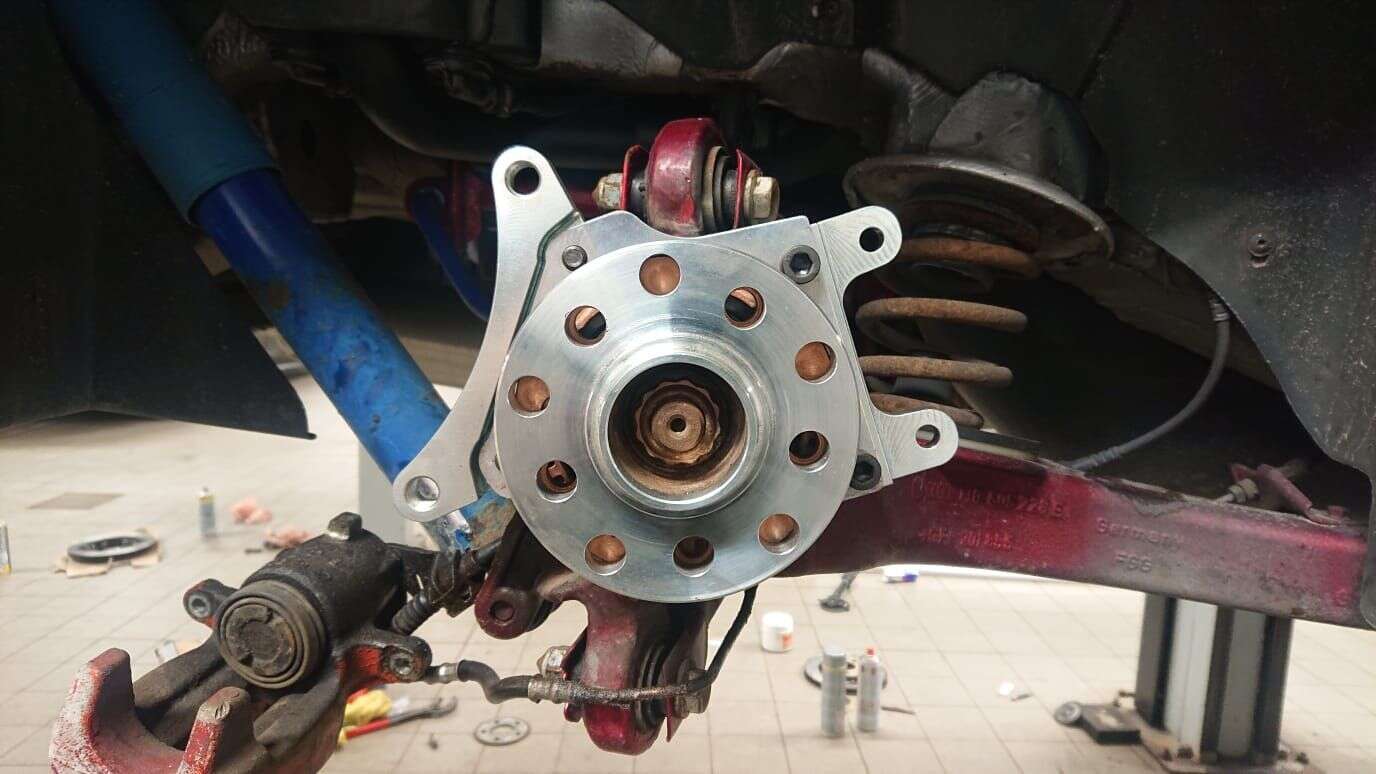

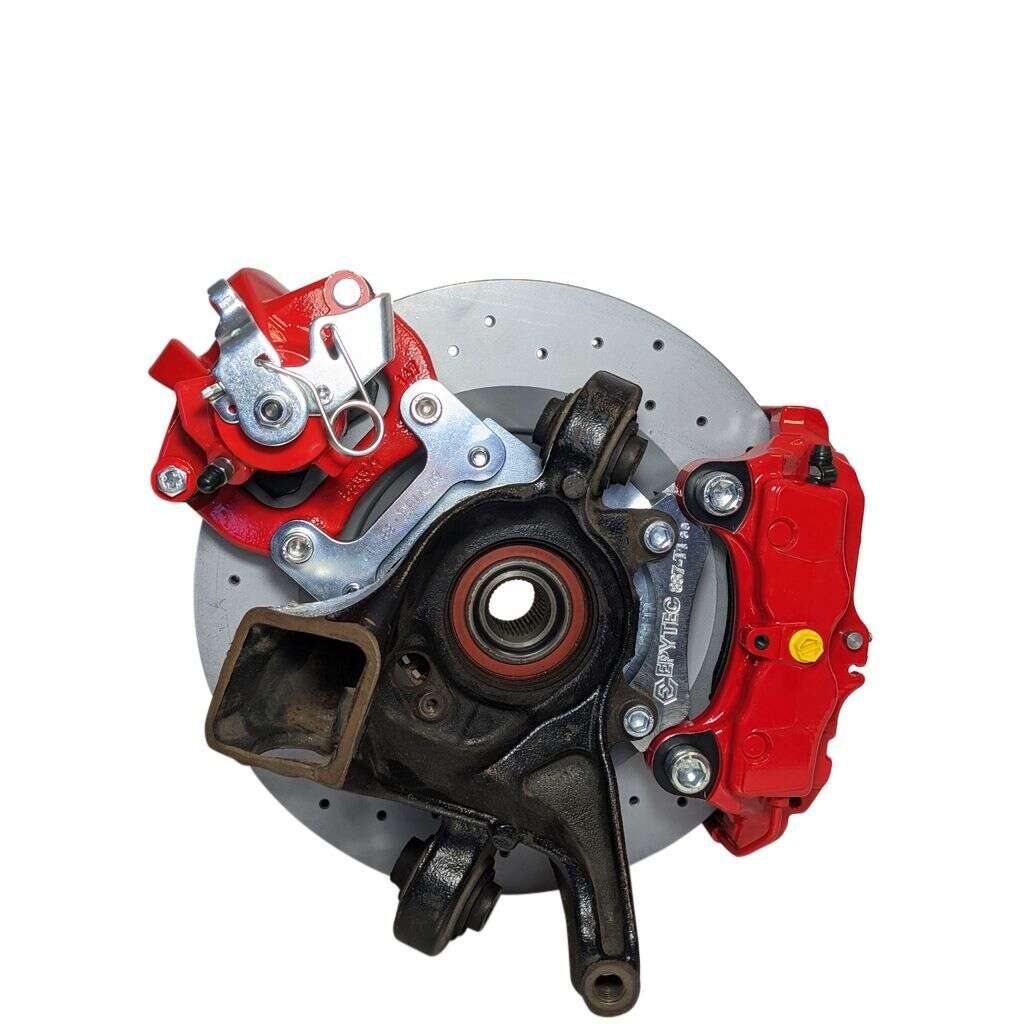

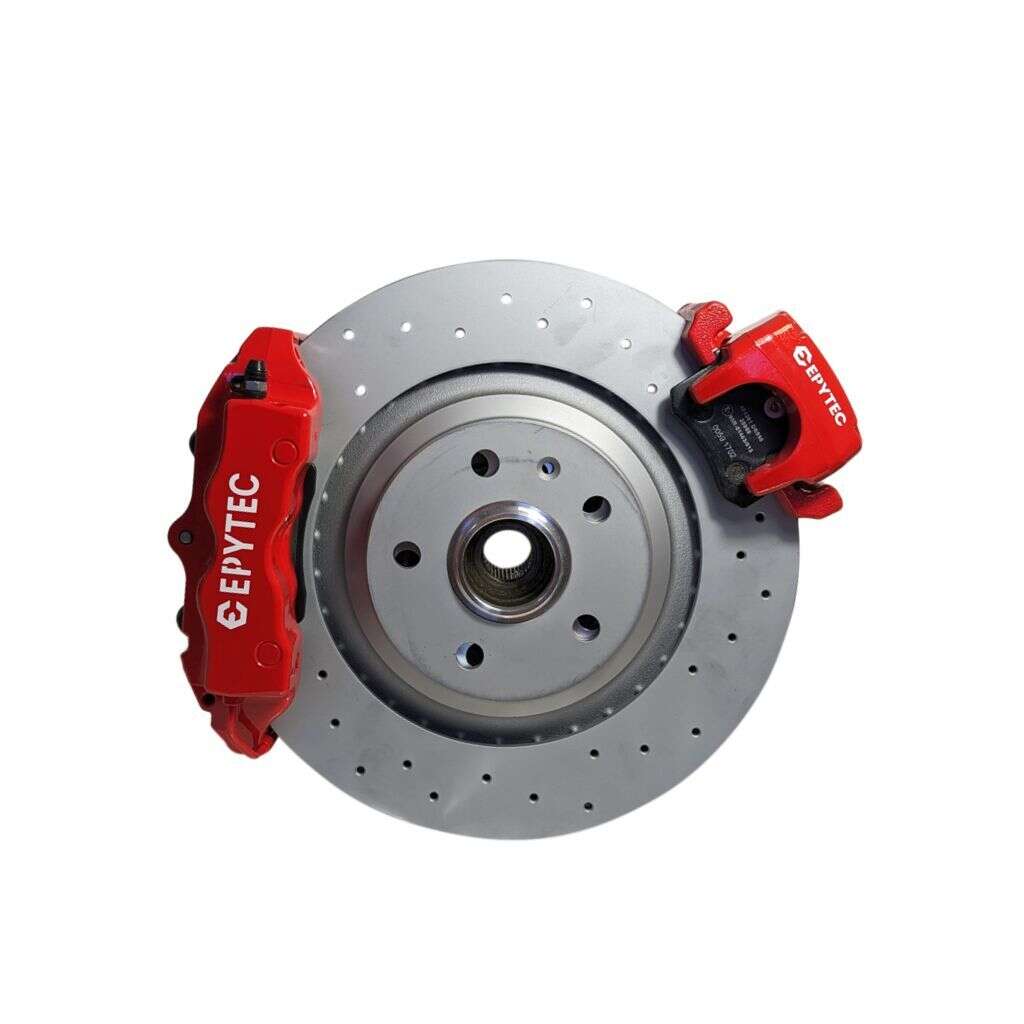

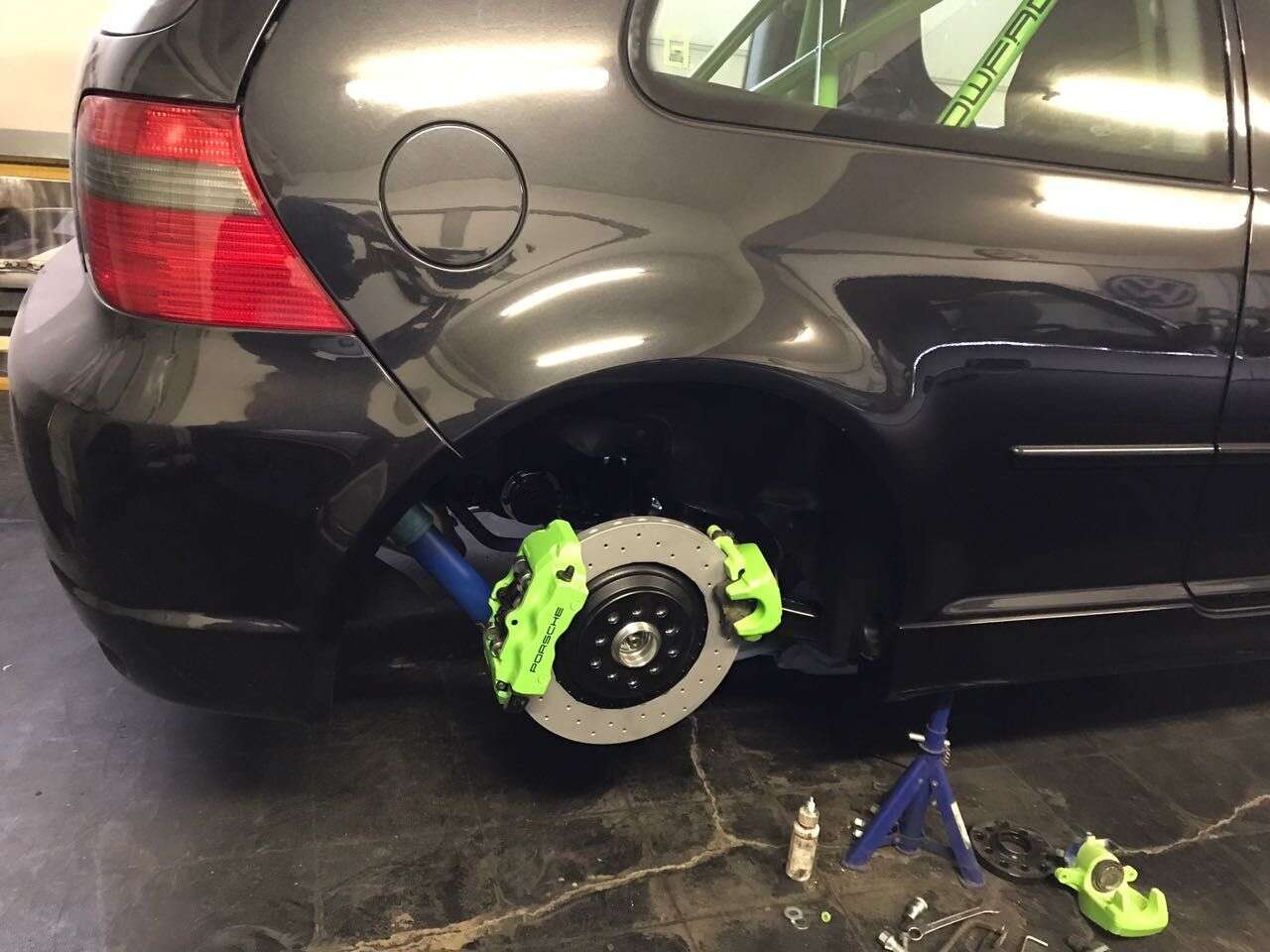

Brake caliper adapter, including wheel hubs (5x112), rear axle, on models 4WD Golf Mk4 Bora Vento Audi A3, etc., for conversion to the Porsche Cayenne brake caliper.

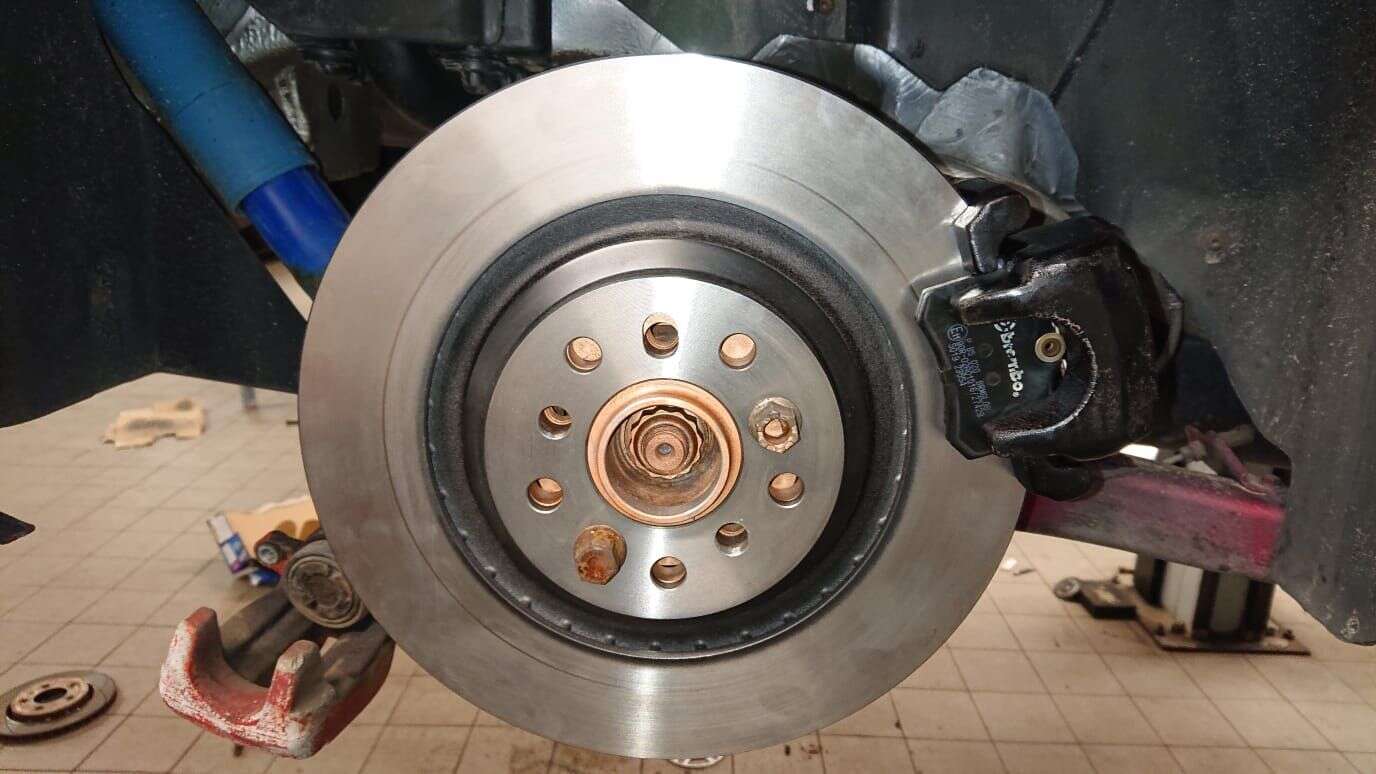

The conversion is combined with the 330x22 mm brake discs from Audi A6, rear.

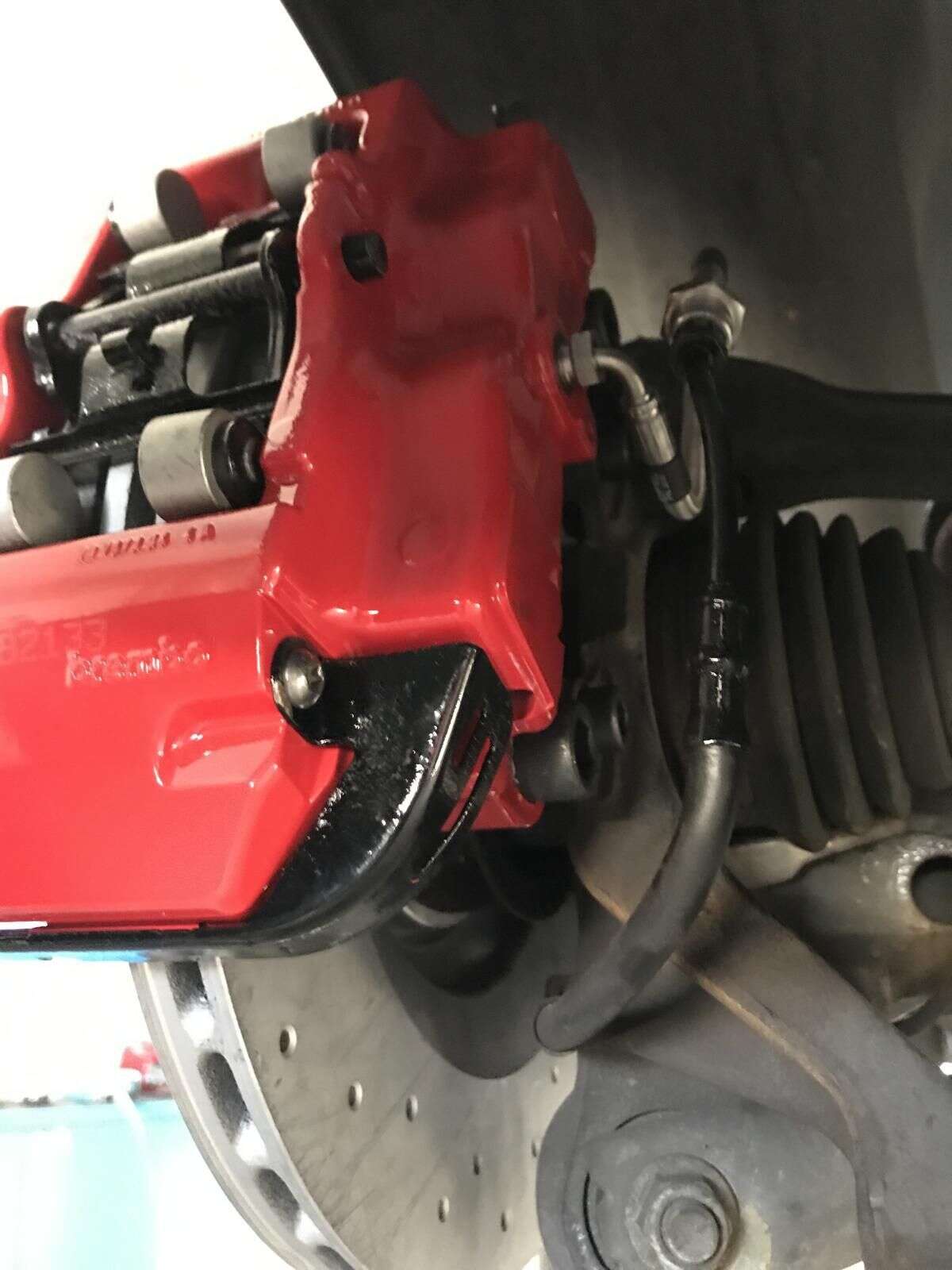

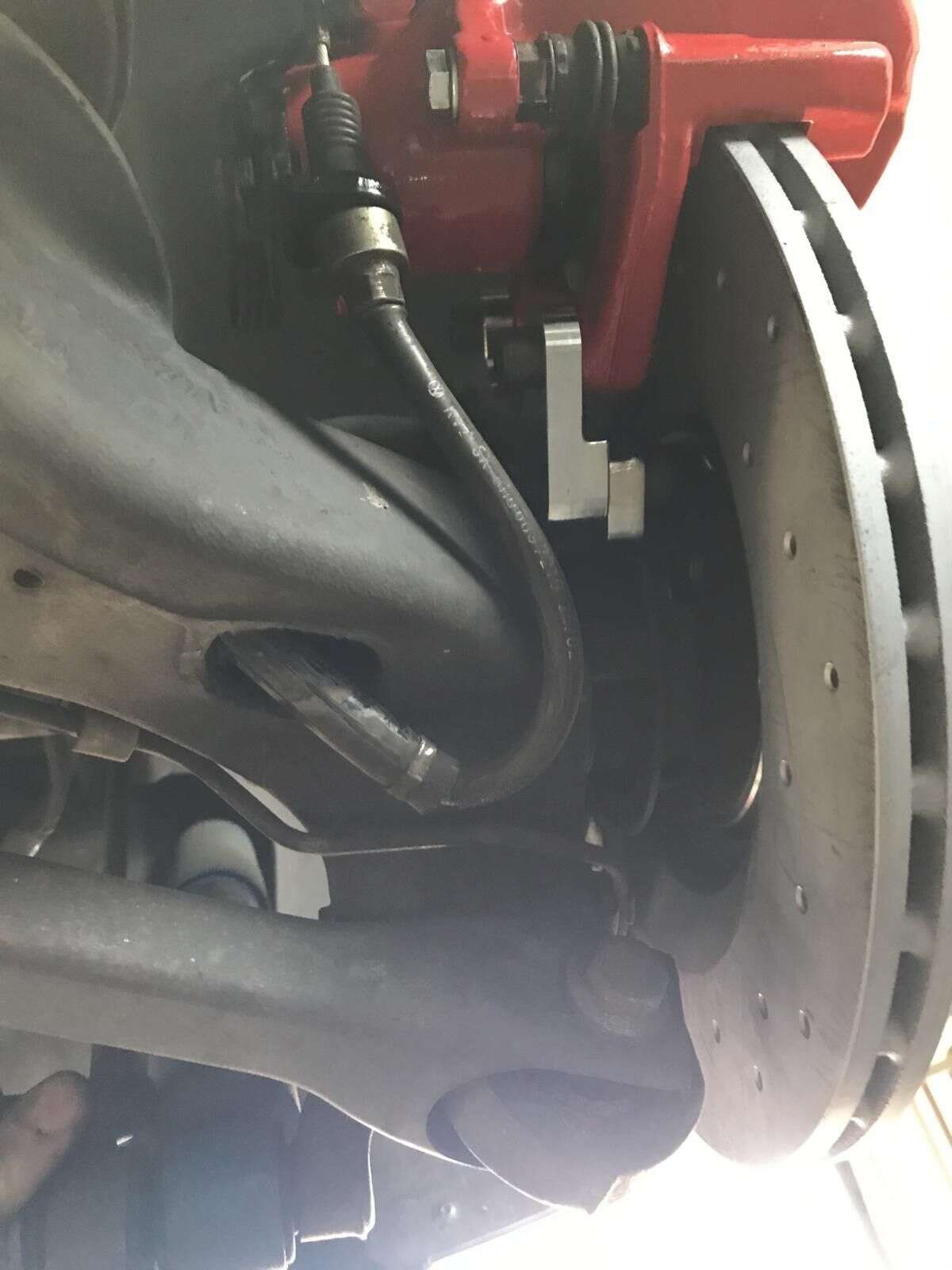

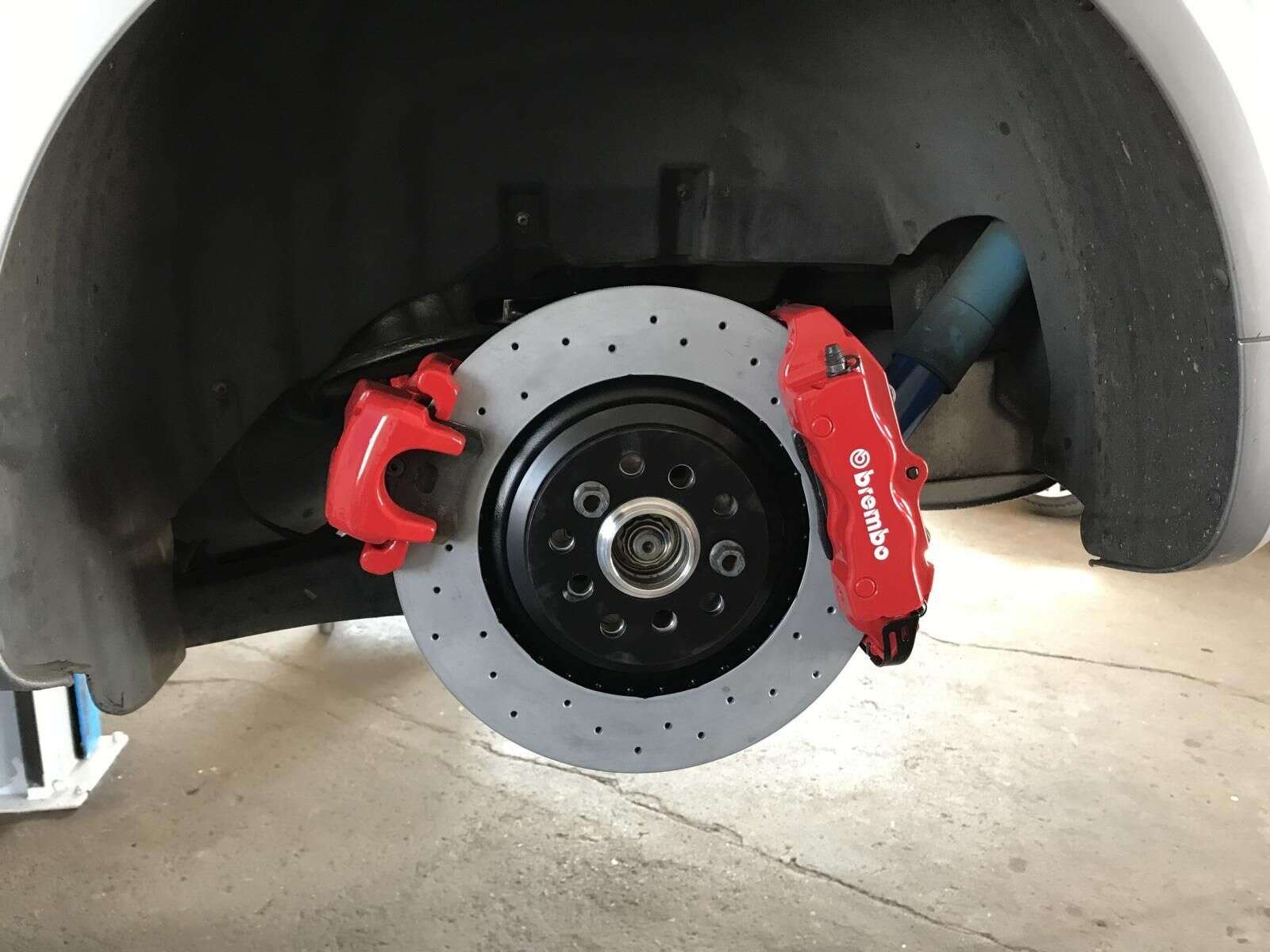

The Porsche calipers are connected to the hydraulics of the vehicle and can thus develop an enormous braking force. However, these do not have handbrake functions. The rear axle of Audi S3 or Golf Mk4 R32 is additionally used for a handbrake brake caliper adapter. The hydraulic connection is thereby closed with a blind plug / closure cap, thus this serves only as a hand brake caliper.

With the plates, the track widens by 15mm per side.

Suitable for the following VW and Seat models (4WD):

Audi A3 8L
Audi TT 8N
Seat Leon
Seat Toledo 1M2
Skoda Octavia 1U
VW Golf MK4
VW Bora / Jetta MK4
Polo 6R WRC

Advantages of this brake system:

top deceleration, without comparison with conventional brake discs
better performance
supplied material certificate
the rear Cayenne calipers are very cheap to get on the market

Required components:

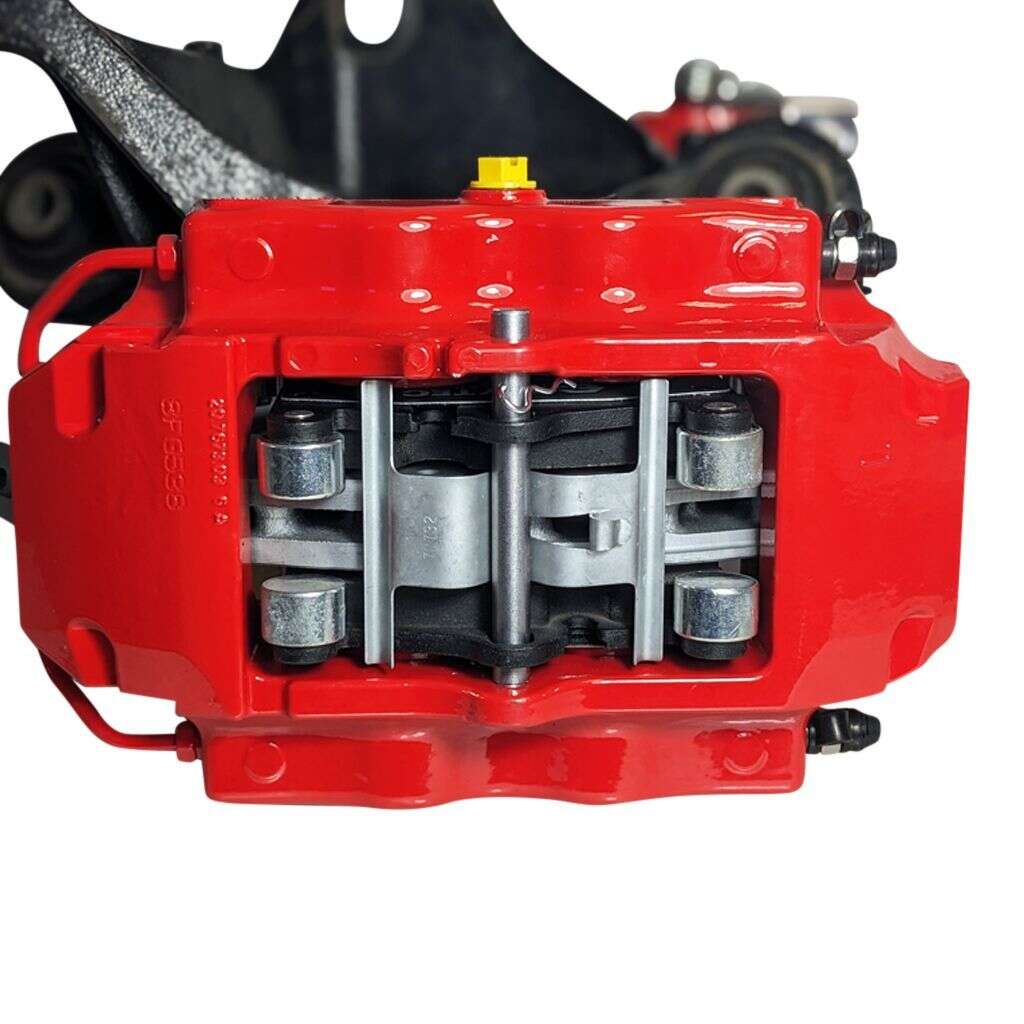

brake caliper: Porsche Cayenne , rear axle, reference 955.352.421 + 955.352.422 / Brembo reference left 20.7673.03 + right 20.7673.04

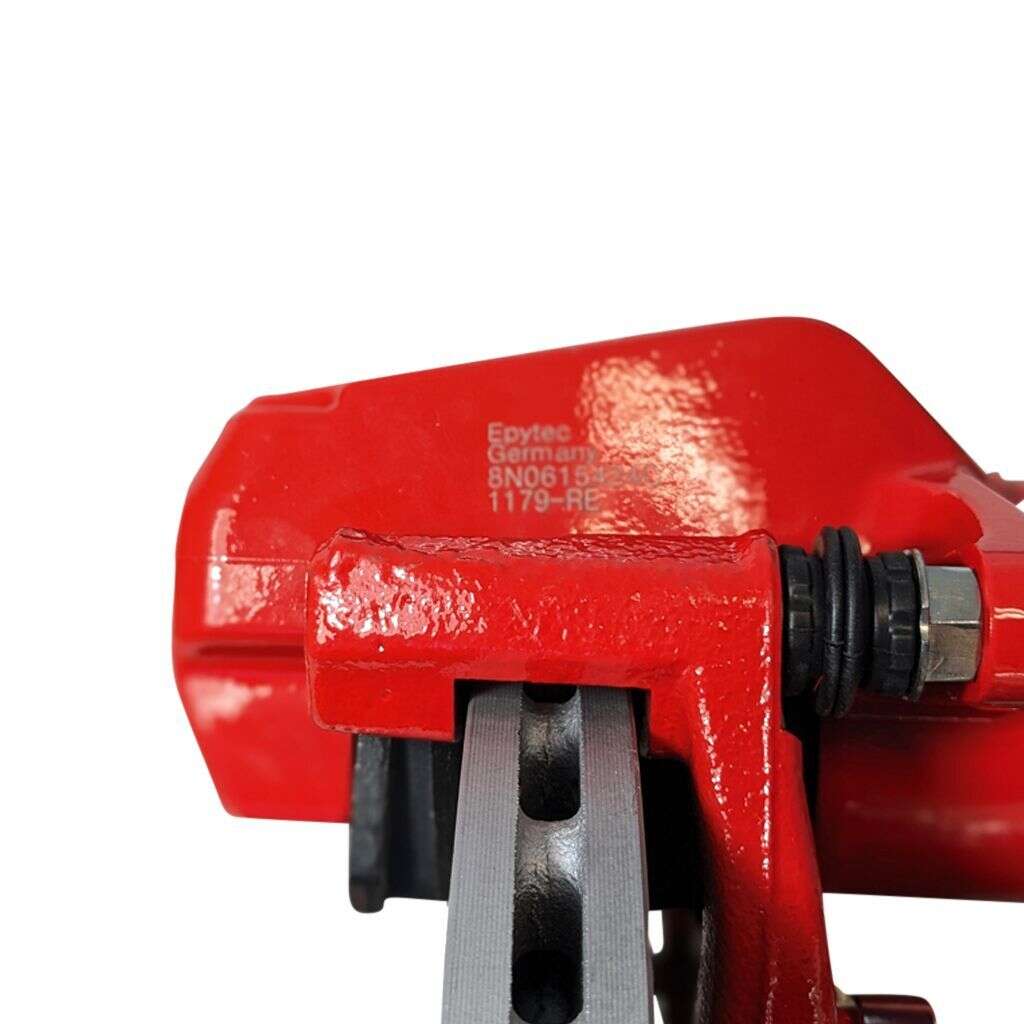

rear axle brake caliper with mounting bracket from Audi S3 8L or VW Golf R32
brake disc: 330x22 rear from Audi A6 , reference 4F0 615 601 B ( PCD must be modified to 5x100. This service could be done at EPYTEC)

Delivery:

2x brake caliper adapters for Porsche caliper
2x brake caliper adapers for R32 / S3 hand brake caliper
2x spacers / spacing plates under brake discs
4x steel braided brake lines
high strength mounting screws
material certificate
Installation instructions (click here)

Tips, information and advice:

To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

Technical data:

Einbauort: hinten

Lochabstand Achsschenkel: 90mm

Lochabstand Bremssattel : 136mm

Einbauort: hinten

Lochabstand Achsschenkel: 90mm

Lochabstand Bremssattel : 136mm

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

email address

password

or Register with...

No reviews found. Share your insights with others.

Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
