Flywheel Kit BMW E30 E34 325i 520i M20 Flywheel Clutch Pressure Plate Organic
- ✓ 2.5, 2.7 M20 engine
- ✓ 228mm clutch
- ✓ 450NM torque
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
Kundenbild
€822.37*
Available
Product number:
641-BAO
Delivery by Saturday, 23.11.2024 if you order within the next 23 Hours.
Product number:
641-BAO
Weight:
13.3 kg
Your benefits
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Clutch kit for all 2.5 and 2.7 M20 engines WITHOUT Motronic / L-Jetronic installed in the:
- BMW 5 series 525e ( E28 )
- BMW 3 series 325i 325iX 325e ( E 30 )
- BMW 3 series Touring 325i 325iX ( E30 )
- BMW 3 series Cabrio 325i ( E30 )
- BMW 5 series 525i ( E34 )
- BMW Z1 Roadster 2.5
Consists of:

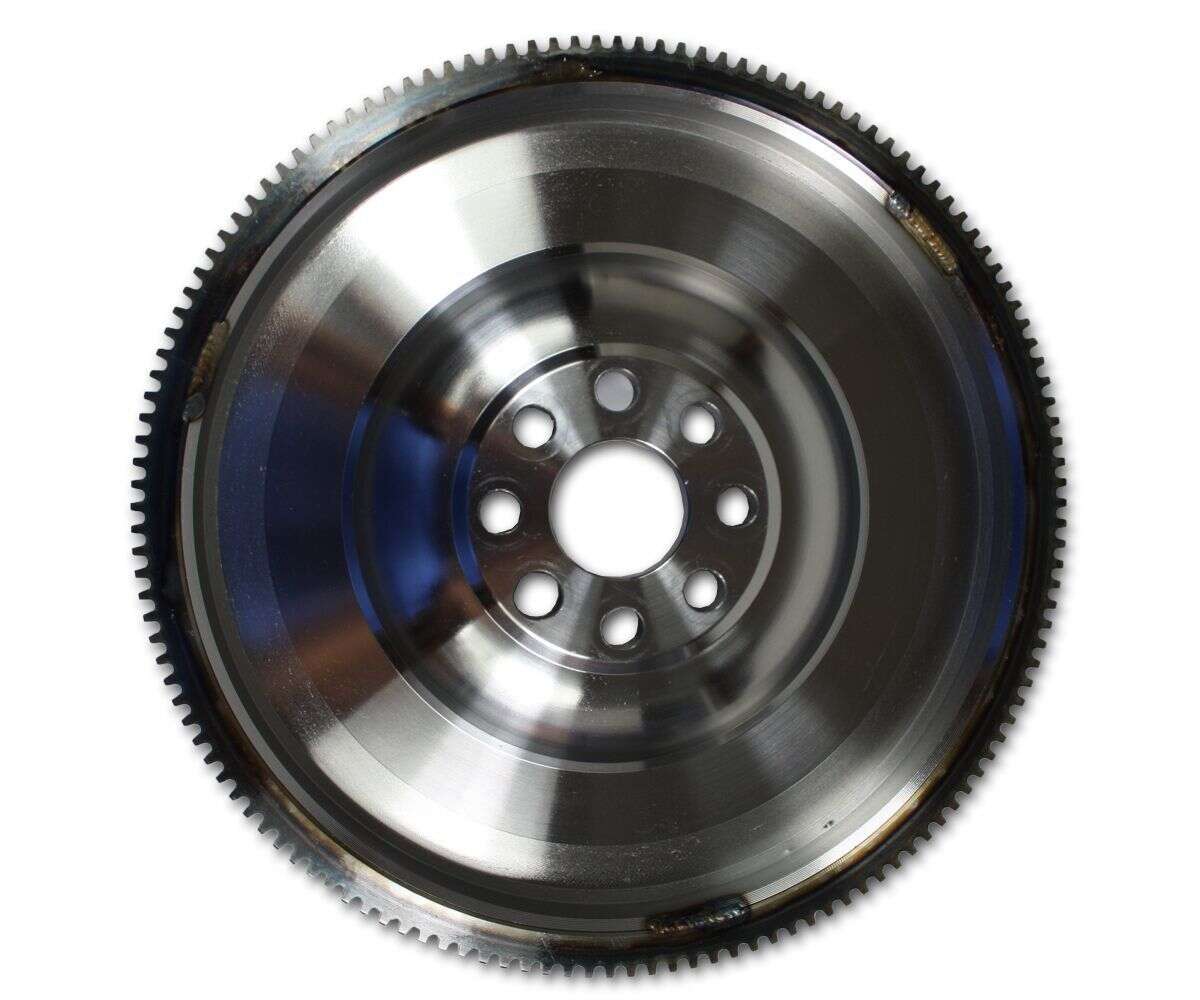

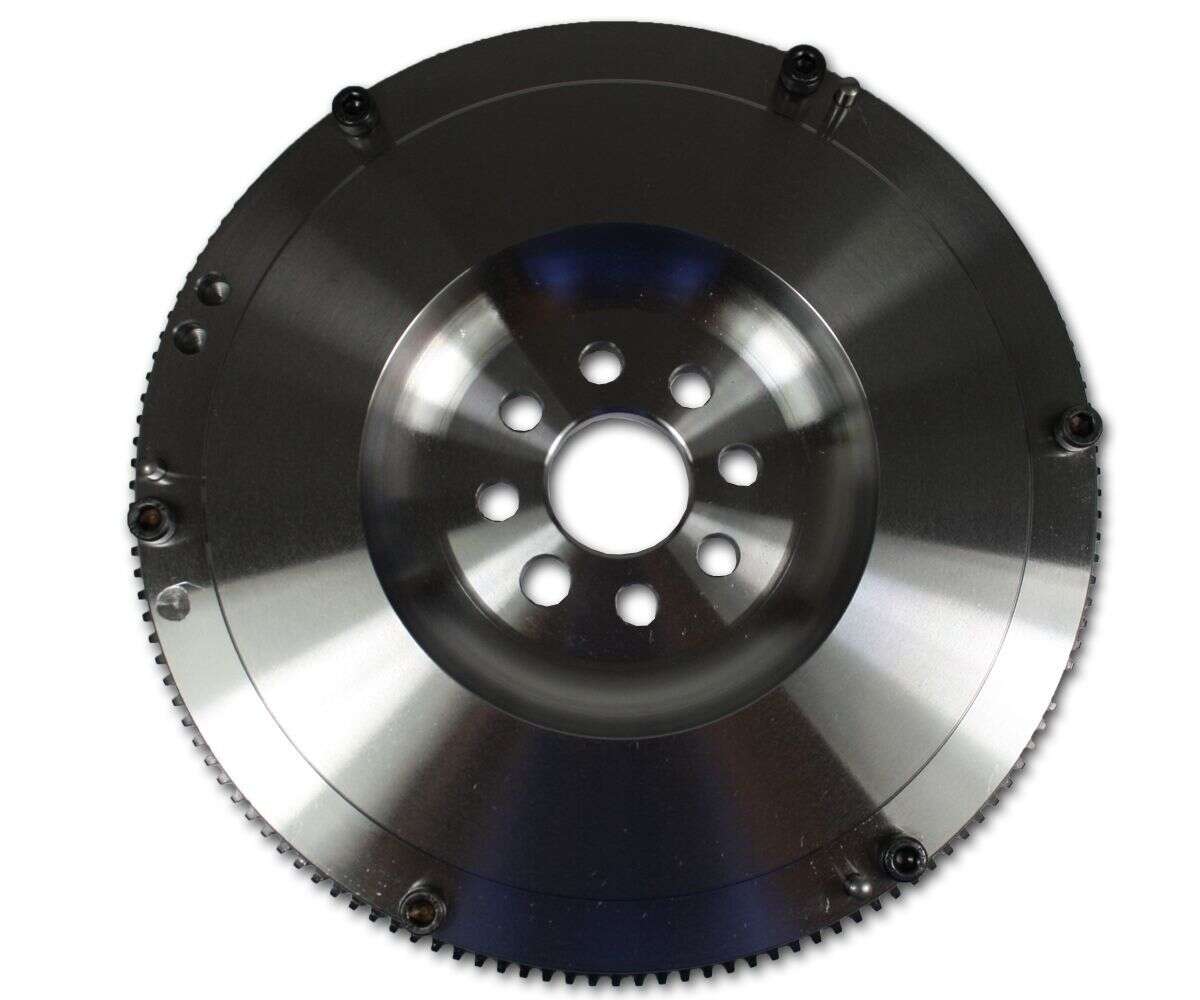

- lightened high strength chrome molybdenum flywheel EPYTEC

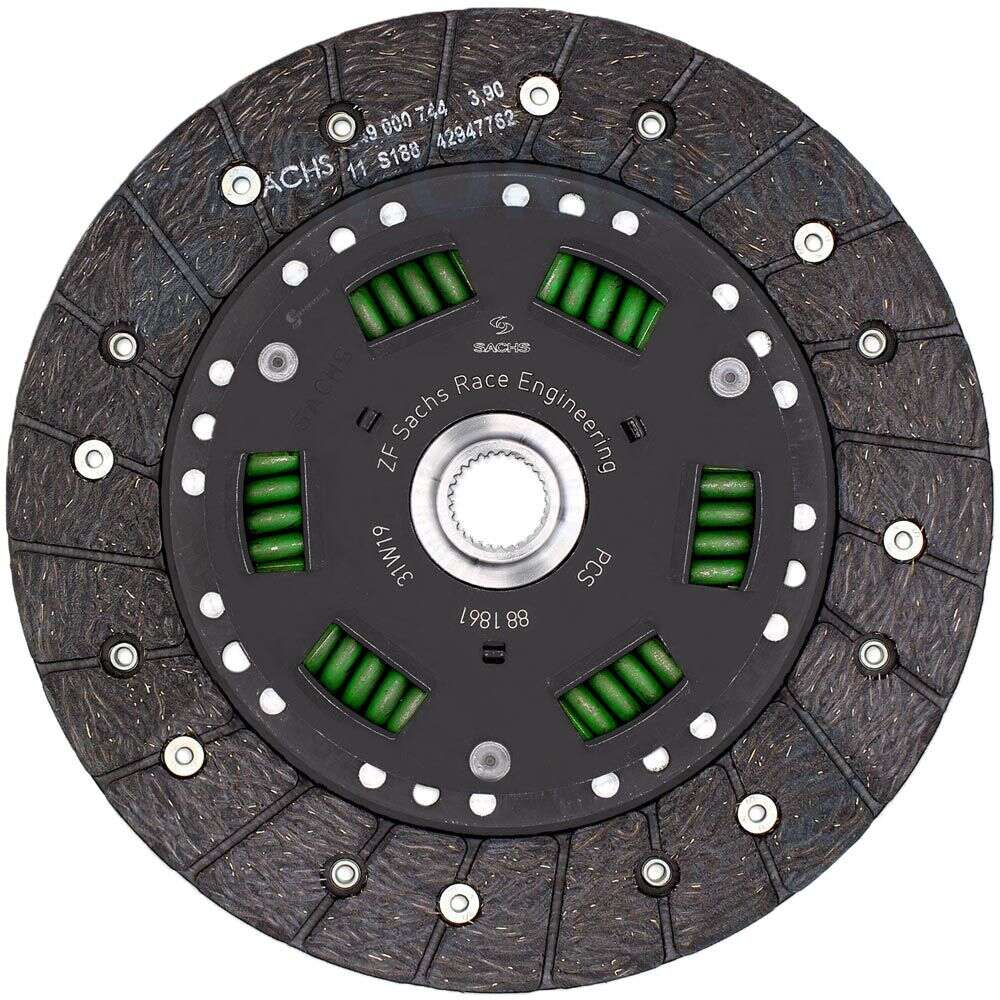

- rigid, sinterpad clutch disc SACHS

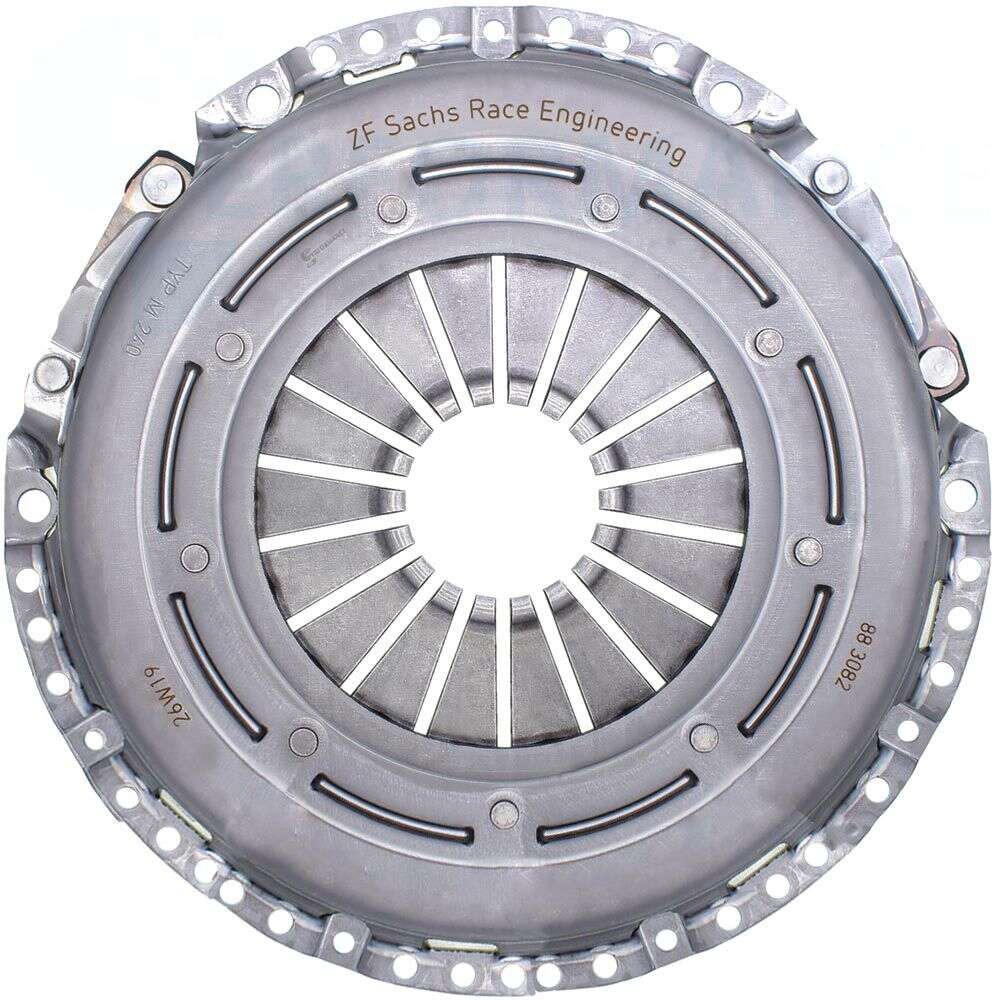

- clutch pressure plate, reinforced design SACHS
Advantages of our clutch kit with lightened flywheel
- our flywheel weighs only 5.1 kg, the standard wheel over 12.0 kg
- exactly identical in construction to the series components, therefore easy replacement possible
- it is not necessary to send us the original engine flywheel
- higher contact pressure and less abrasion of the pressure plate
- all our flywheels are made of chrome moly steel with quality G 1.75, extremely suitable for high-speed motors
- significantly better acceleration due to less inertia
- higher speeds possible
- the engine runs faster, no loss of performance.
- suitable for motorsports, racing or serial vehicles
- lower fuel consumption
- significant reduction of the turbo lag
- precision balancing, bearings are less affected, finely balanced according to DIN ISO 1940
- including ring gear
- suitable for either a standard clutch or a high-performance clutch
- made in Germany

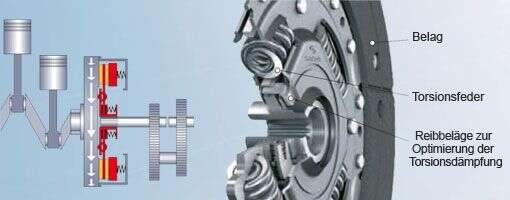

Advantages of the torsion spring clutch disc with sinterpad clutch lining/coating and the reinforced pressure plate
- starting behavior similar to series
- significantly higher transmittable torque
- the torsional damping achieves a higher impact moment
- better thermal resilience compared to organic friction coating/lining
- longer lifetime
- less lift
- higher pressing force
- higher speeds possible
Areas of application:
- series and road vehicles
- chip tuning, turbo and compressor conversions
- vehicles with maximum loads
- vehicles with trailer
- 1/4 mile race
- circuit racing (e.g. endurance racing, motor sport, cross)
- rallies (e.g. category N)
- hill climb, slalom, drift
Technical data:
- transmittable torque[Nm]: 450
- weight of the lightened single-mass flywheel: 5,1 Kg
Delivery:
- 1x lightened high strength chrome molybdenum flywheel EPYTEC
- 1x spring organic clutch disc SACHS
- 1x clutch pressure plate, reinforced design SACHS
