BMW E30 Brake Caliper Adapter 294x22 Brake Disc Mini Countryman BMW E36 Brake Caliper 5-Hole Conversion

  • ✓ 294x22 34119804828 Mini Countryman brake disc
  • ✓ 1-piston 34111160352 / 34111160351 BMW E36/E46 320i-328i brake caliper
  • ✓ front axle

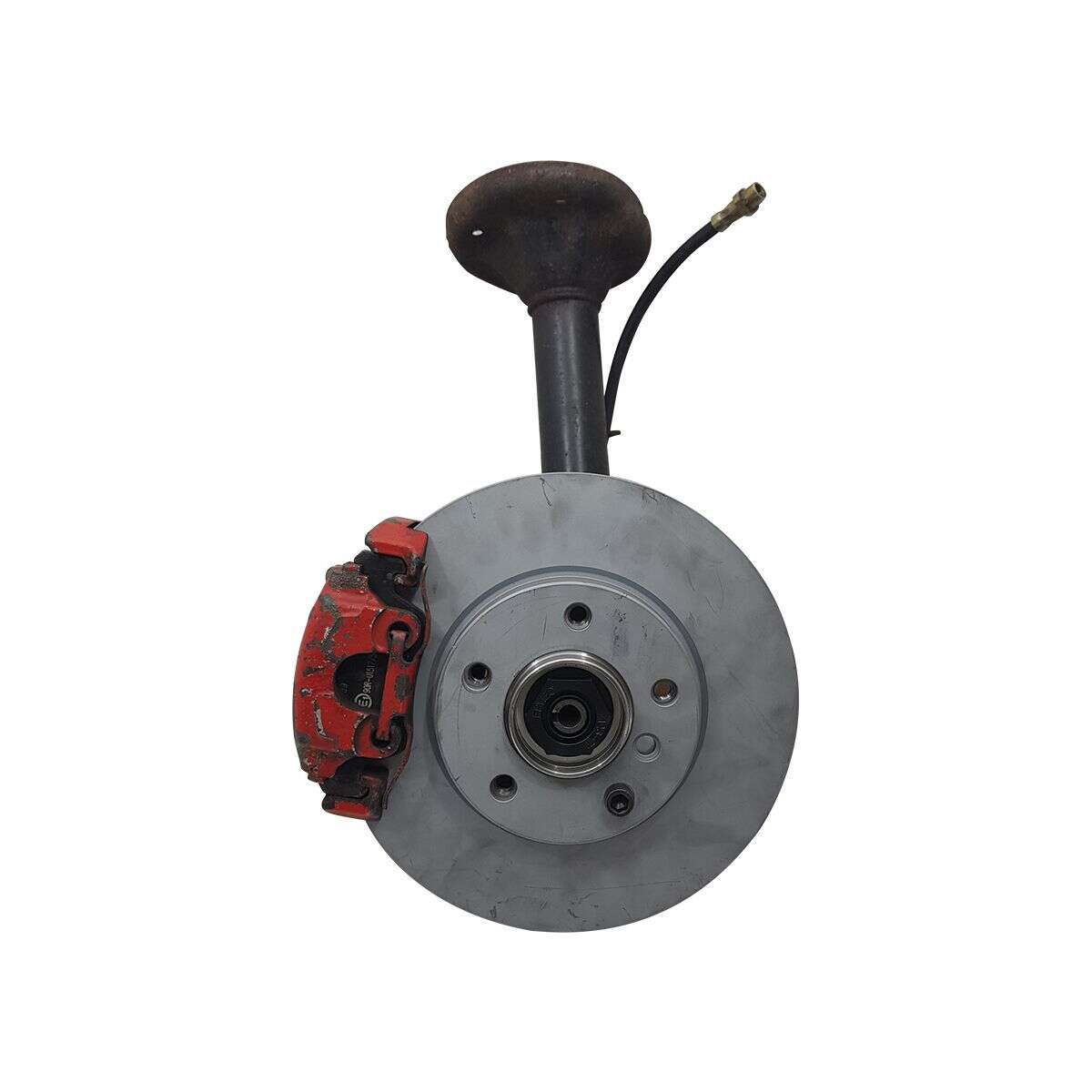

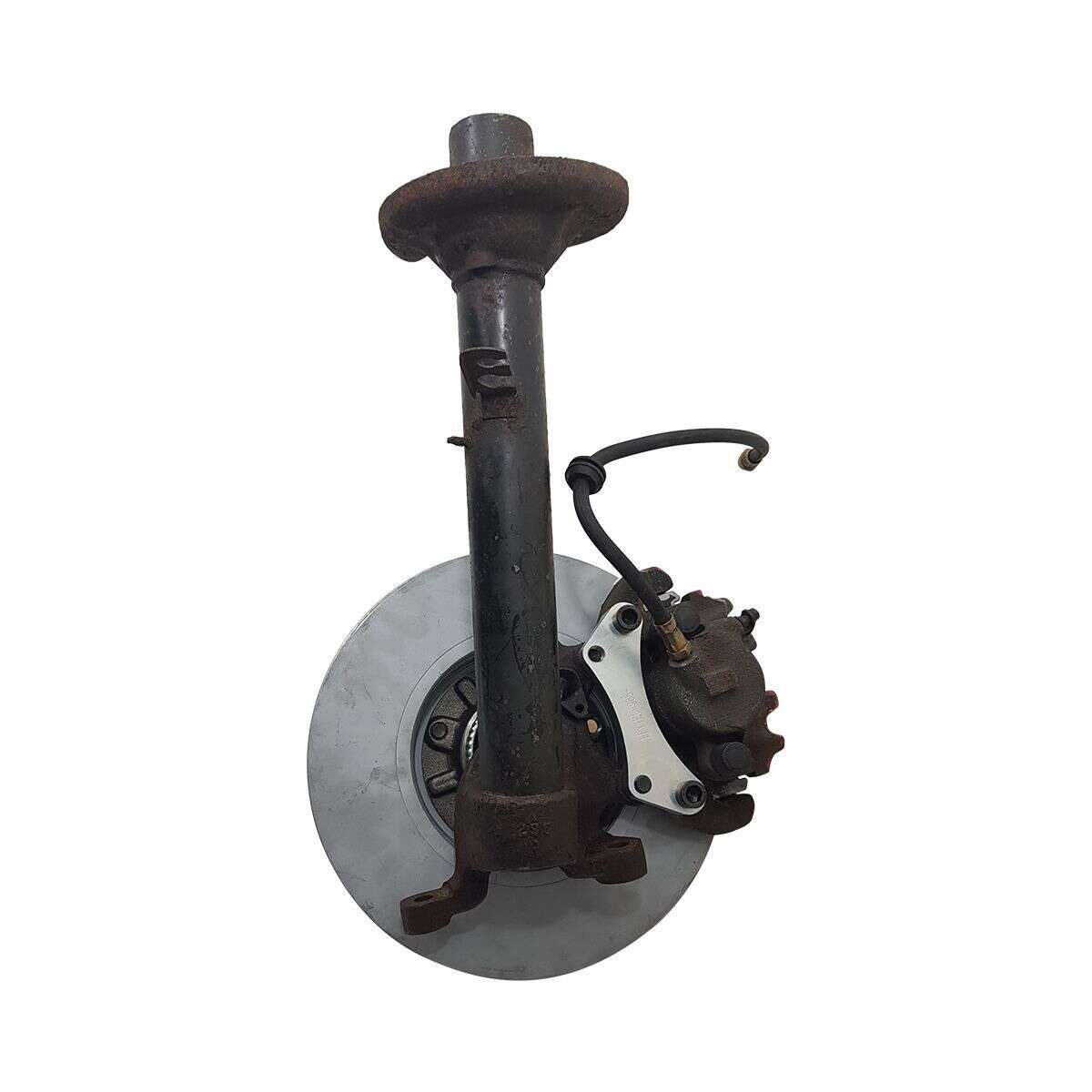

Brake caliper adpater (front axle) on model BMW E30 with the BMW E36 E46 hub, for conversion to 294x22 brake discs from Mini Countryman, combined with the brake caliper from BMW E36/E46 320i-328i.

A very good advantage with this brake system is that the original rims can be used.

Required component:

  • brake caliper: BMW E36/E46 320i-328i, reference 34 11 1 160 352 right / 34 11 1 160 351 left
  • brake caliper mounting bracket: BMW E36/E46 320i-328i, reference: 34 10 6 758 104
  • brake disc: 294x22 from Mini Countryman, reference: 34 11 9 804 828
  • consersion kit to 5-hole hub (item-number 126 in our shop )
  • the brake caliper mounting bracket has to be modified a little so that it does not interfere with the axle support

Advantages of this brake system:

  • high deceleration
  • the original rims can be used
  • thanks to the material certificate supplied with the order, it is possible to approve your purchase even for series vehicles
  • directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
  • our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling.

Delivery:

  • 2x brake caliper adapters for BMW E36
  • complete screw kit
  • Stress analysis / FEM calculation for entry
  • material certificate
the original rims can be used

Tipps, Infos und Hinweise:

  • Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
  • Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
  • Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden. >> Jetzt direkt zu Spurverbreiterungen nach Wunsch <<
  • Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst. Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Brake caliper hole spacing: 122
Hole spacing steering knuckle: 89
Manufacturer: Epytec
Mounting location: front
Brake caliper hole spacing: 122
Hole spacing steering knuckle: 89
Manufacturer: Epytec
Mounting location: front

6 of 6 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


29 December 2024 10:28

Review with rating of 5 out of 5 stars

donkrawallo89

Schnelle Lieferung, super Passgenauigkeit. Alles top!

30 January 2025 08:07

Review with rating of 5 out of 5 stars

patel_9051

Top immer wieder. 👍

29 July 2021 13:31

Review with rating of 5 out of 5 stars

Dimitrios S

Alles super gelaufen top Qualität schneller Versand gerne wieder bei euch!!!

4 December 2019 12:26

Review with rating of 5 out of 5 stars

manuel.111

Good product, very fast shiping, match description, recomended seller!

3 March 2022 21:05

Review with rating of 5 out of 5 stars

zorro832012

ware genau wie beschrieben, schneller versand, gerne wieder

17 April 2021 20:09

Review with rating of 5 out of 5 stars

Andre Julian A

Qualität ist einfach sehr gut.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
