Clutch VW Golf Corrado Passat G60 GTI 16V 228mm Clutch Disc SACHS Performance Torsion-damped Organic
- ✓ GTI 16V engine
- ✓ 520NM torque
- ✓ hub profile: 20.3x22-28N
£339.60*
- Quality Made in Germany
- 15 years of expert knowledge
- fast shipping
- TÜV registration-free.

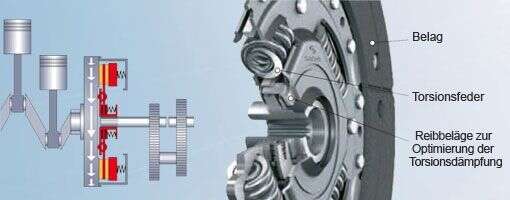

Torsion spring clutch disc with organic clutch coating/lining from SACHS Performance.
SACHS Racing clutch discs with torsion springs dampen engine vibrations and, thanks to their reinforced damper structure, protect your vehicle's transmission.
Discs with an organic SACHS Performance coating/lining offer higher thermal resilience and a higher transmittable torque than conventional organic coatings/linings.This makes it possible for the clutch to seize abruptly. In addition, significantly higher torques can be transmitted.
Sachs Performance clutch plates are the perfect complement to our lightweight flywheels
Combined with the SACHS Performance pressure plate, the result is an ideal solution for high pretension and the sporty ambitious driverAdvantages of the torsion spring clutch disc with organic performance clutch lining
- starting behavior similar to series
- higher transmittable torque
- the torsional damping achieves a higher impact moment
- exactly identical to the series clutch plate, AND easy replacement of the clutch disc
- better thermal resilience compared to organic friction coating/lining
- longer lifetime
- higher speeds possible
Areas of application:
- series and road vehicles
- chip tuning, turbo and compressor conversions
- vehicles with maximum loads
- vehicles with trailer
- 1/4 mile race
- circuit racing (e.g. endurance racing, motor sport, cross)
- rallies (e.g. category N)
- hill climb, slalom, drift
Technical data:
- torsion spring clutch disc with organic performance clutch coating/lining
- transmittable torque [Nm]: 520
- diameter [mm]: 228
- number of teeth: 10
- hub profile: 23x29-10N
Comparison numbers manufacturer:
AUDI
023 141 031 B
023 141 031 C
023 141 031 D
023 141 031 E
023 141 031 F
023 141 031 G
023 141 031 H
023 141 031 K
028 141 035 A
028 141 035 B
028 141 035 C
037 141 032 J
037 141 032 K
037 141 032 L
037 141 032 M
037 141 032 S
037 141 032 T
037 141 033
037 141 033 A
037 141 033 B
037 141 033 C
037 141 033 K
037 141 033 L
037 141 034 A
037 141 034 B
038 141 032
074 141 031 E
074 141 031 F
074 141 031 G
074 141 031 H
074 141 031 L
074 141 031 M
074 141 031 N
074 141 031 PSEAT
028 141 035 C
038 141 032SKODA
028 141 035 C
038 141 032VOLKSWAGEN
021 141 031 B
021 141 031 C
021 141 031 D
021 141 031 E
021 141 031 K
021 141 031 L
023 141 031 B
023 141 031 C
023 141 031 D
023 141 031 E
023 141 031 F
023 141 031 G
023 141 031 H
023 141 031 K
028 141 035 A
028 141 035 B
028 141 035 C
037 141 032 J
037 141 032 K
037 141 032 L
037 141 032 M
037 141 032 S
037 141 032 T
037 141 033
037 141 033 A
037 141 033 B
037 141 033 C
037 141 033 D
037 141 033 E
037 141 033 F
037 141 033 G
037 141 033 K
037 141 033 L
037 141 033 M
037 141 033 N
037 141 034 A
037 141 034 B
038 141 032
044 141 031 M
044 141 031 N
044 141 031 P
044 141 031 Q
044 141 031 R
044 141 031 S
044 141 031 T
044 141 032
044 141 032 E
044 141 032 F
044 141 032 H
044 141 032 J
044 141 032 K
044 141 032 L
044 141 032 M
044 141 032 N
044 141 032 P
074 141 031 E
074 141 031 F
074 141 031 G
074 141 031 H
074 141 031 L
074 141 031 M
074 141 031 N
074 141 031 P
Delivery:
- 1x clutch disc 228mm suitable for VW Golf Corrado Passat G60 GTI 16V engines
Technical data:
Login
| Motor | Motorcode |
|---|---|
| 2.0 | 35I|116PS(85KW) |
| 2.0 16V | 3A5|150PS(110KW) |
| 1.9 D | 3A5|68PS(50KW) |
| 2.9 VR6 Syncro | 3A5|184PS(135KW) |
| 2.0 16V | 3A5|136PS(100KW) |
| 1.9 TDI | 3A5|110PS(81KW) |
| 1.8 G60 Syncro | 3A5|160PS(118KW) |
| 2.0 Syncro | 3A5|115PS(85KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 1.9 TDI | 3A5|90PS(66KW) |
| 2.0 | 35I|115PS(85KW) |
| 2.0 | 3A5|115PS(85KW) |
| 1.9 D | 35I|68PS(50KW) |
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 1.9 TDI | 35I|90PS(66KW) |
| 2.0 | 3A5|116PS(85KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.9 VR6 Syncro | 35I|184PS(135KW) |
| 1.9 TDI | 35I|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 3A2|115PS(85KW) |
| 1.9 TDI | 35I|90PS(66KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.0 | 3A2|107PS(79KW) |
| 1.9 TDI | 3A2|110PS(81KW) |
| 2.0 | 35I|107PS(79KW) |
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 2.0 16V | 3A2|136PS(100KW) |
| 1.8 16V | 35I|136PS(100KW) |
| 2.0 16V | 3A2|150PS(110KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 1.9 TDI | 3A2|90PS(66KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 1.8 G60 Syncro | 3A2|160PS(118KW) |
| 2.0 | 35I|115PS(85KW) |
| 1.9 TDI | 35I|110PS(81KW) |
| 2.0 | 3A2|115PS(85KW) |
| 1.8 16V | 3A2|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 1H5|115PS(85KW) |
| 1.9 TDI | 1H5|90PS(66KW) |
| 1.9 TDI Syncro | 1H5|90PS(66KW) |
| 1.9 TDI | 1H5|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI Syncro | 1H1|90PS(66KW) |
| 2.0 GTI 16V | 1H1|150PS(110KW) |
| 1.9 TDI | 1H1|90PS(66KW) |
| 1.9 TDI | 1H1|110PS(81KW) |
| 2.0 Syncro | 1H1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 GTI G60 | 1G1|160PS(118KW) |
| 1.8 GTI G60 | 19E|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1E7|110PS(81KW) |
| 1.9 TDI | 1E7|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 9K9A|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.8 16V | 53I|136PS(100KW) |
| 1.8 G60 | 53I|160PS(118KW) |
| 2.0i | 53I|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1H2|90PS(66KW) |
| 1.9 TDI | 1H2|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 6V5|110PS(81KW) |
| 1.9 TDI | 6V5|90PS(66KW) |
| 1.9 TDI | 6KV5|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 9K9B|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 6K2|150PS(110KW) |
| 1.9 TDi | 6K2|90PS(66KW) |
| 2.0i 16V | 6K1|150PS(110KW) |
| 1.9 TDi | 6K1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 6K5|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 1L2|150PS(110KW) |
| 1.9 TDi | 1L2|90PS(66KW) |
| 1.9 TDi | 1L|90PS(66KW) |
| 2.0i 16V | 1L|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDi | 6K1|90PS(66KW) |
| 2.0i 16V | 6K1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 8L1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 35I|116PS(85KW) |
| 2.0 16V | 3A5|150PS(110KW) |
| 1.9 D | 3A5|68PS(50KW) |
| 2.9 VR6 Syncro | 3A5|184PS(135KW) |
| 2.0 16V | 3A5|136PS(100KW) |
| 1.9 TDI | 3A5|110PS(81KW) |
| 1.8 G60 Syncro | 3A5|160PS(118KW) |
| 2.0 Syncro | 3A5|115PS(85KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 1.9 TDI | 3A5|90PS(66KW) |
| 2.0 | 35I|115PS(85KW) |
| 2.0 | 3A5|115PS(85KW) |
| 1.9 D | 35I|68PS(50KW) |
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 1.9 TDI | 35I|90PS(66KW) |
| 2.0 | 3A5|116PS(85KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.9 VR6 Syncro | 35I|184PS(135KW) |
| 1.9 TDI | 35I|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 3A2|115PS(85KW) |
| 1.9 TDI | 35I|90PS(66KW) |
| 2.0 16V | 35I|150PS(110KW) |
| 2.0 | 3A2|107PS(79KW) |
| 1.9 TDI | 3A2|110PS(81KW) |
| 2.0 | 35I|107PS(79KW) |
| 1.8 G60 Syncro | 35I|160PS(118KW) |
| 2.0 16V | 3A2|136PS(100KW) |
| 1.8 16V | 35I|136PS(100KW) |
| 2.0 16V | 3A2|150PS(110KW) |
| 2.0 16V | 35I|136PS(100KW) |
| 1.9 TDI | 3A2|90PS(66KW) |
| 2.0 Syncro | 35I|115PS(85KW) |
| 1.8 G60 Syncro | 3A2|160PS(118KW) |
| 2.0 | 35I|115PS(85KW) |
| 1.9 TDI | 35I|110PS(81KW) |
| 2.0 | 3A2|115PS(85KW) |
| 1.8 16V | 3A2|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 1H5|115PS(85KW) |
| 1.9 TDI | 1H5|90PS(66KW) |
| 1.9 TDI Syncro | 1H5|90PS(66KW) |
| 1.9 TDI | 1H5|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI Syncro | 1H1|90PS(66KW) |
| 2.0 GTI 16V | 1H1|150PS(110KW) |
| 1.9 TDI | 1H1|90PS(66KW) |
| 1.9 TDI | 1H1|110PS(81KW) |
| 2.0 Syncro | 1H1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.8 GTI G60 | 1G1|160PS(118KW) |
| 1.8 GTI G60 | 19E|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1E7|110PS(81KW) |
| 1.9 TDI | 1E7|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 9K9A|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.8 16V | 53I|136PS(100KW) |
| 1.8 G60 | 53I|160PS(118KW) |
| 2.0i | 53I|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1H2|90PS(66KW) |
| 1.9 TDI | 1H2|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 6V5|110PS(81KW) |
| 1.9 TDI | 6V5|90PS(66KW) |
| 1.9 TDI | 6KV5|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 9K9B|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 6K2|150PS(110KW) |
| 1.9 TDi | 6K2|90PS(66KW) |
| 2.0i 16V | 6K1|150PS(110KW) |
| 1.9 TDi | 6K1|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 6K5|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0i 16V | 1L2|150PS(110KW) |
| 1.9 TDi | 1L2|90PS(66KW) |
| 1.9 TDi | 1L|90PS(66KW) |
| 2.0i 16V | 1L|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDi | 6K1|90PS(66KW) |
| 2.0i 16V | 6K1|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 8L1|90PS(66KW) |
