VW Golf Mk3 VR6 Pedals Vento Golf Mk4 Conversion Kit to Hydraulic Clutch Transmission Conversion Pedals Golf Mk4 02A 02J 02M Transmission
- ✓ Hydraulic clutch
- ✓ Golf 3, Golf 4, Vento
- ✓ Conversion kit with pedal unit OE number 1H1721115L
€62.63*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

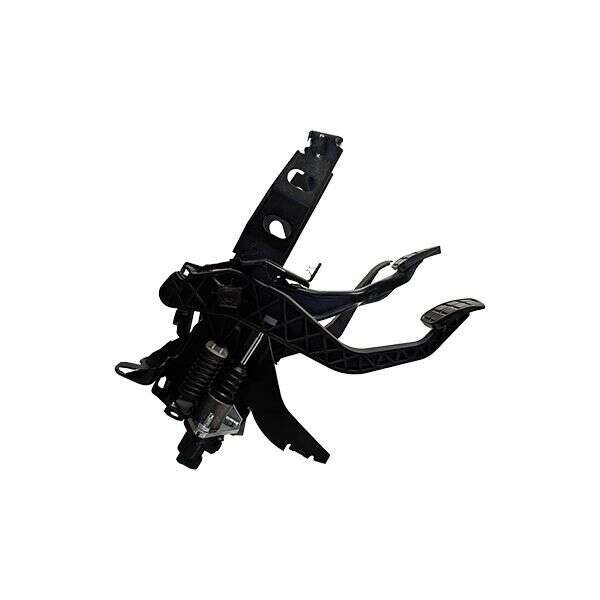

Conversion kit to hydraulic clutch with pedal unit (manufacturer reference) 1H1721115L suitable for:
- Golf MK3 (05/96 - 12/97)
- Golf MK3 (07/94 - 06/95)
- Golf MK3 (07/95 - 04/96)
- Golf MK3 Cabriolet (09/93 - 02/98)
- Golf MK3 Variant (05/96 - 02/99)
- Golf MK3 Variant (07/94 - 06/95)
- Golf MK3 Variant (07/95 - 04/96)
- Golf MK4 Cabriolet (03/98 - 12/01)
- Vento (05/96 - 02/99)
- Vento (07/94 - 06/95)
- Vento (07/95 - 04/96)

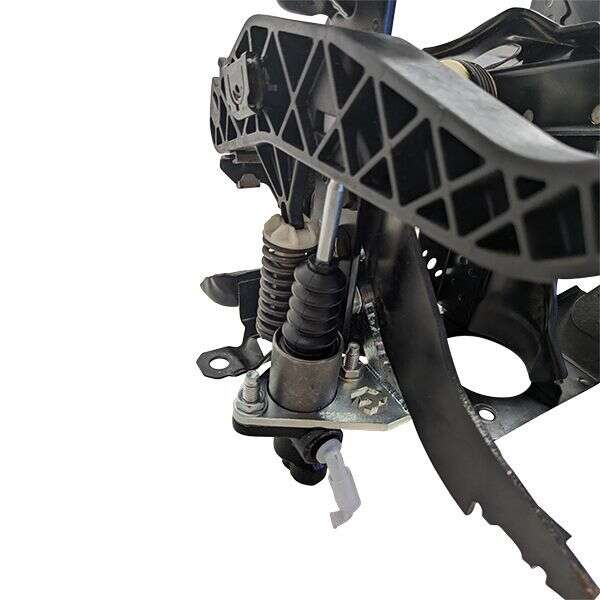

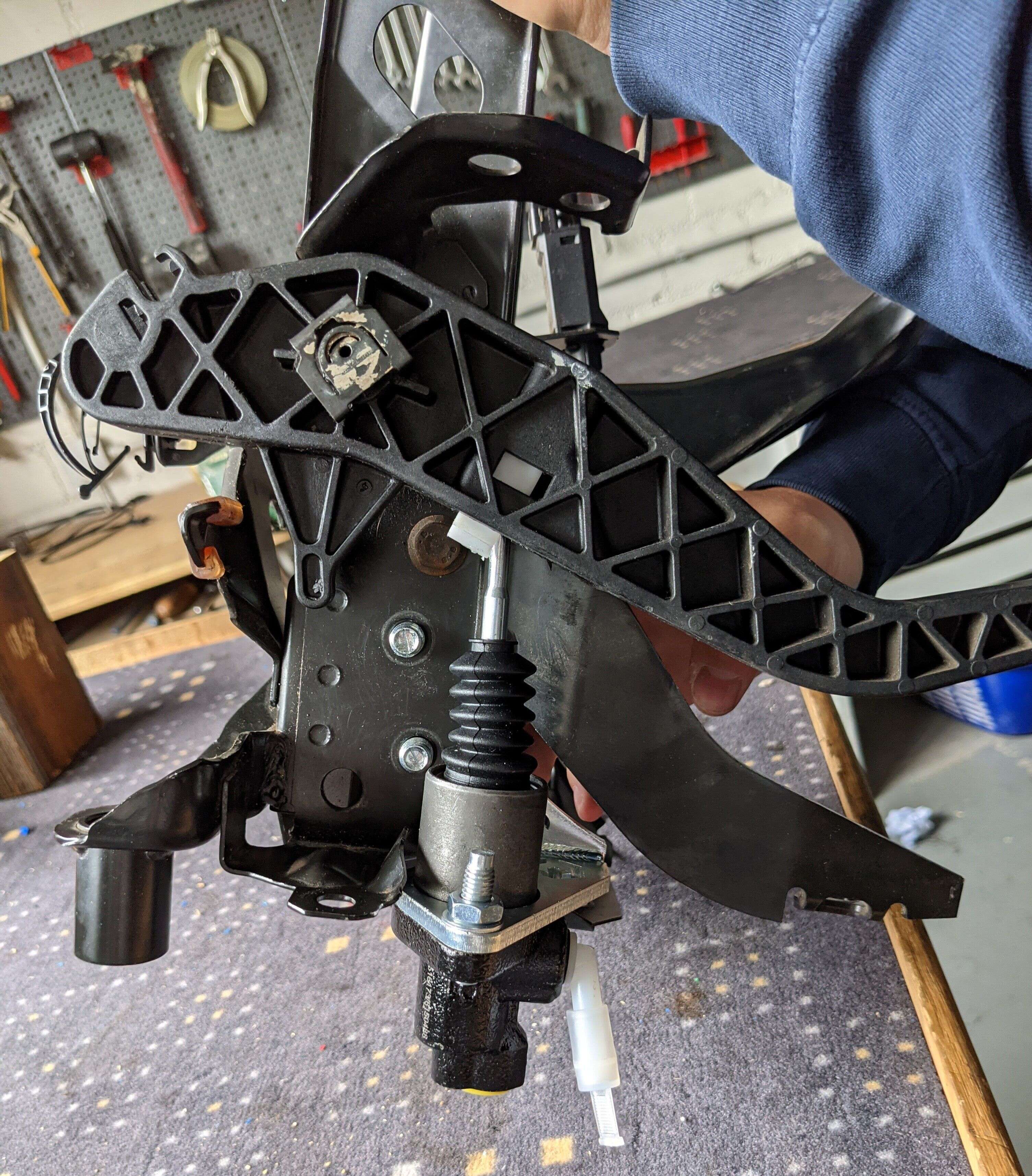

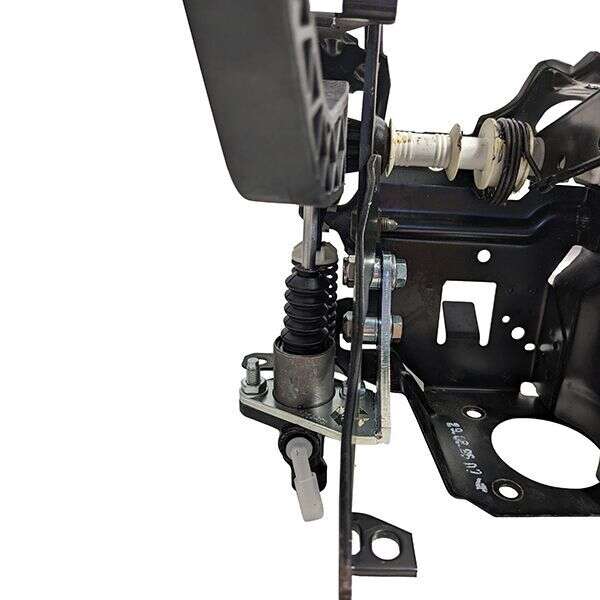

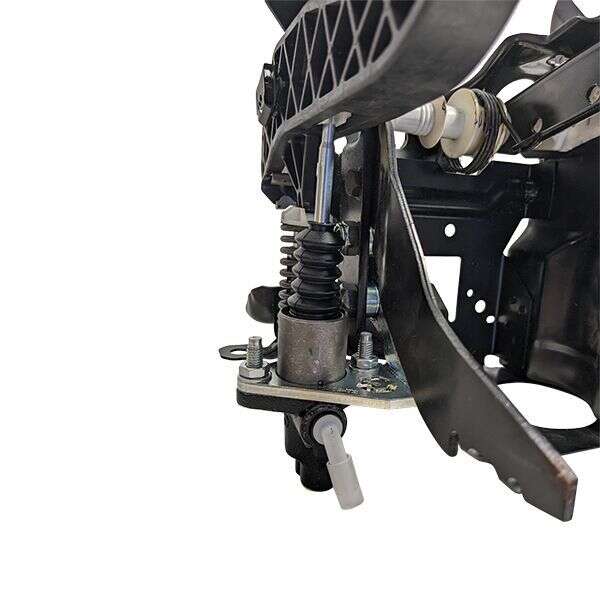

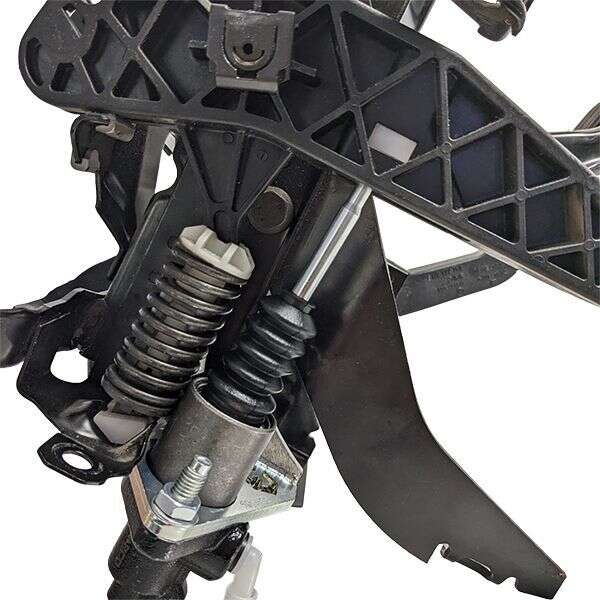

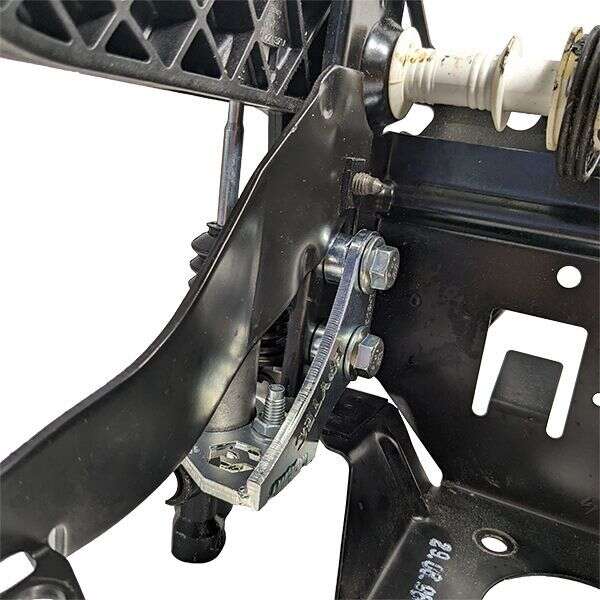

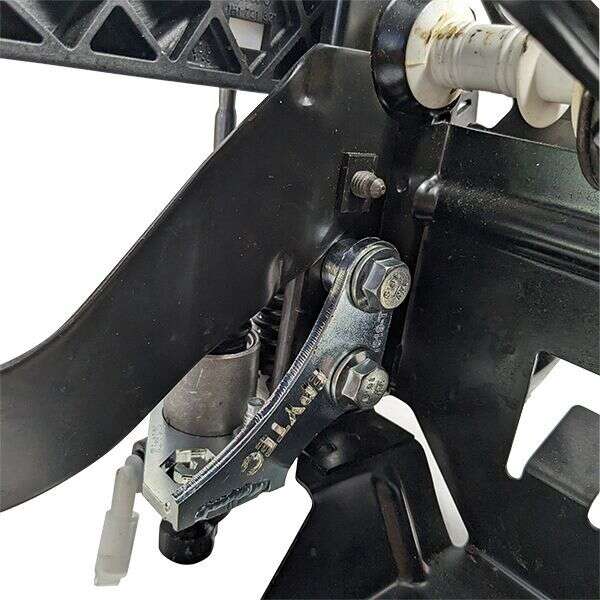

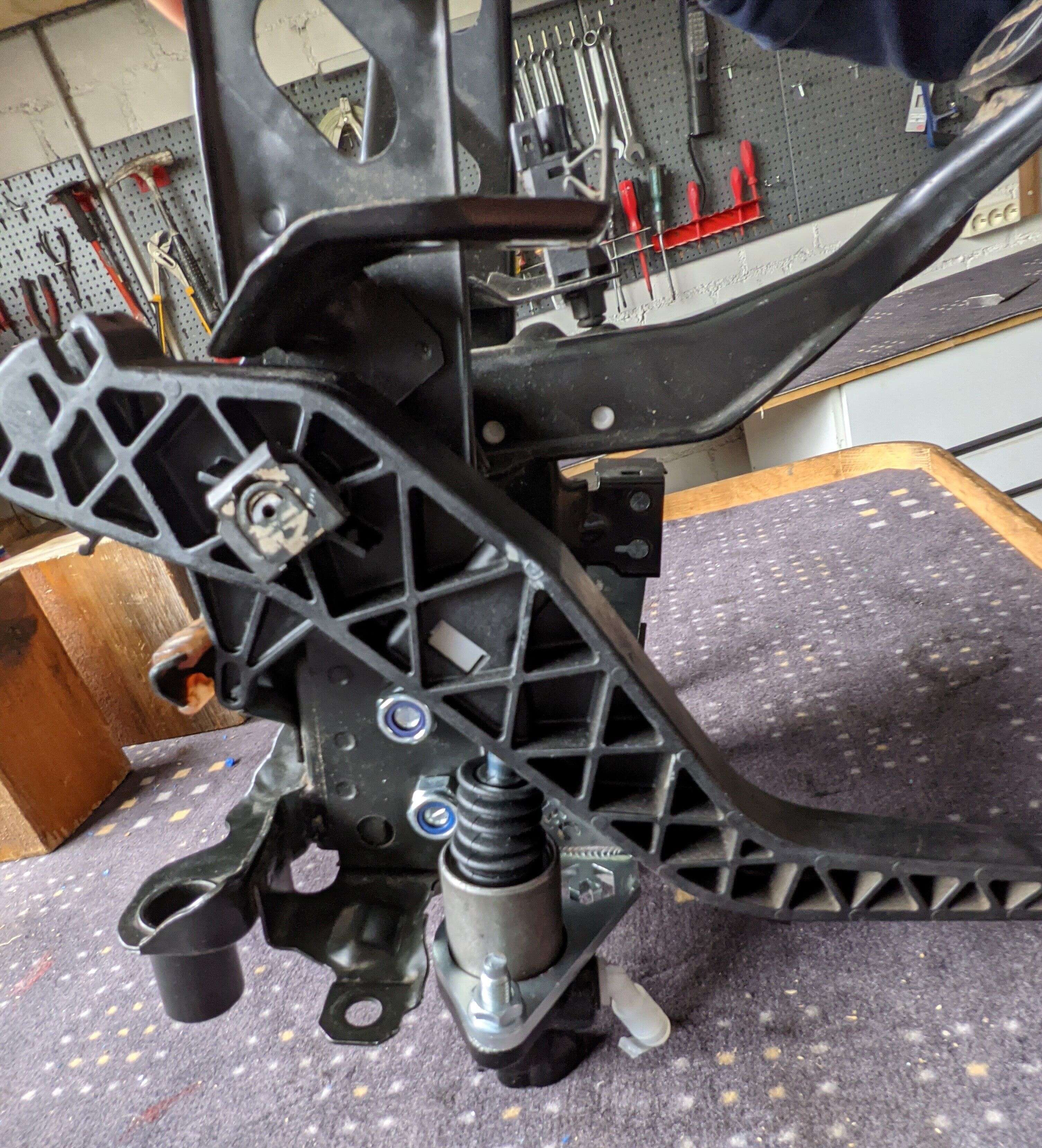

With our conversion kit, you can convert any Golf MK3 Vento standard pedal set into one for a hydraulic clutch. The ones that still exist are rare and very expensive to get. That's why we developed these adapters to convert any pedal set to the hydraulic clutch
This is required for transmission conversions that have a hydraulic clutch from the factory, e.g. Golf MK4 5 6 series for your Golf Jetta Vento.
The pedals do not have to be removed to mount the adapter.
We also recommend to convert directly to hydraulic clutch, so that a perfect engine running can be guaranteed and you can also drive reinforced pressure plates and sports clutches, especially when there is an increase in performance!
The extra advantage is that the original pedals from Golf MK3, Vento, Golf MK4 Cabrio can be maintained and you don't need to rebuilt the pedal system
The master cylinder must be taken over by the Golf MK3, Caddy 2, reference:1H1721401, 1H1721401B, 1H1721401A

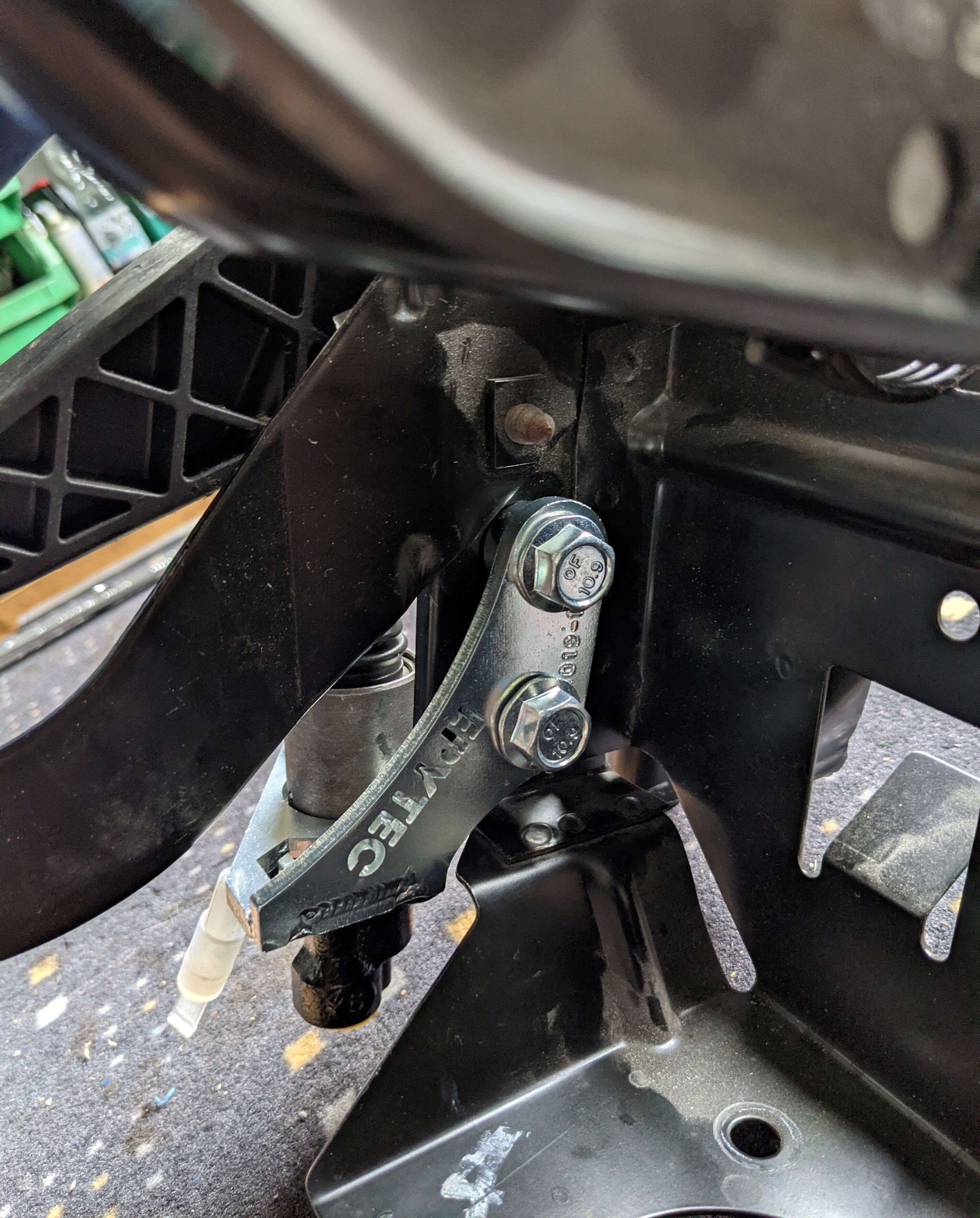

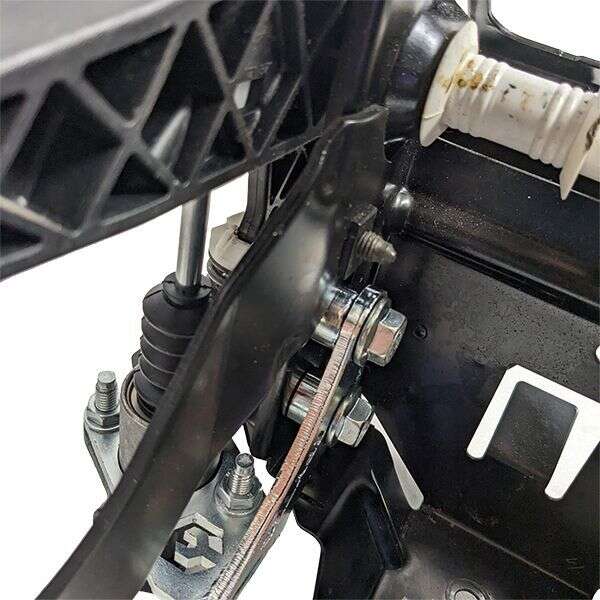

With our adapter, this is very easy and quickly. The adapter is screwed: no drilling , no welding.
!!! Attention!!!
The pedals are available in two different versions. One with straight mounting holes and one with offset mounting holes. Our adapters can only be used with the version with the straight mounting holes.
Delivery:
- 1x conversion adapter to hydraulic clutch for VW Golf MK3 Vento, Golf MK4 Cabrio.
- installation instructions
Technical data:
Login
17 October 2023 13:47
fahrzeugmitstern
Versand hat etwas länger gedauert, Verkäufer spamt leider, ABER Rückgabe verlief problemlos !
20 November 2023 12:32
André W
Schnelle Lieferung, optisch gutes Produkt. Da das Auto noch beim Lackierer steht, bisher kein Einbau. Zur Passgenauigkeit kann ich daher leider nichts sagen.
12 October 2022 18:16
der-scholli81
Super schnelle Lieferung alles Top!!!
25 May 2025 09:00
piete81_123
Man bricht sich beim Einbau zwar alle Finger dafür war das Endergebnis super.
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1H2|110PS(81KW) |
| 1.6 | 1H2|101PS(74KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 1E7|115PS(85KW) |
| 1.8 | 1E7|75PS(55KW) |
| 1.8 | 1E7|90PS(66KW) |
| 1.9 TDI | 1E7|110PS(81KW) |
| 1.6 | 1E7|100PS(74KW) |
| 1.9 TDI | 1E7|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 1H5|115PS(85KW) |
| 1.6 | 1H5|101PS(74KW) |
| 1.9 SDI | 1H5|64PS(47KW) |
| 1.9 TDI Syncro | 1H5|90PS(66KW) |
| 1.9 TDI | 1H5|90PS(66KW) |
| 1.8 Syncro | 1H5|90PS(66KW) |
| 2.9 VR6 Syncro | 1H5|190PS(140KW) |
| 2.0 | 1H5|107PS(79KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 1E7|115PS(85KW) |
| 1.8 | 1E7|75PS(55KW) |
| 1.8 | 1E7|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 SDI | 1H1|64PS(47KW) |
| 1.9 TDI | 1H1|110PS(81KW) |
| 2.0 Syncro | 1H1|115PS(85KW) |
| 1.9 TDI Syncro | 1H1|90PS(66KW) |
| 1.6 | 1H1|101PS(74KW) |
| 2.0 GL | 1H1|107PS(79KW) |
| 2.9 VR6 Syncro | 1H1|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 1.9 TDI | 1H2|110PS(81KW) |
| 1.6 | 1H2|101PS(74KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 1E7|115PS(85KW) |
| 1.8 | 1E7|75PS(55KW) |
| 1.8 | 1E7|90PS(66KW) |
| 1.9 TDI | 1E7|110PS(81KW) |
| 1.6 | 1E7|100PS(74KW) |
| 1.9 TDI | 1E7|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 2.0 Syncro | 1H5|115PS(85KW) |
| 1.6 | 1H5|101PS(74KW) |
| 1.9 SDI | 1H5|64PS(47KW) |
| 1.9 TDI Syncro | 1H5|90PS(66KW) |
| 1.9 TDI | 1H5|90PS(66KW) |
| 1.8 Syncro | 1H5|90PS(66KW) |
| 2.9 VR6 Syncro | 1H5|190PS(140KW) |
| 2.0 | 1H5|107PS(79KW) |
| Motor | Motorcode |
|---|---|
| 2.0 | 1E7|115PS(85KW) |
| 1.8 | 1E7|75PS(55KW) |
| 1.8 | 1E7|90PS(66KW) |
| Motor | Motorcode |
|---|---|
| 1.9 SDI | 1H1|64PS(47KW) |
| 1.9 TDI | 1H1|110PS(81KW) |
| 2.0 Syncro | 1H1|115PS(85KW) |
| 1.9 TDI Syncro | 1H1|90PS(66KW) |
| 1.6 | 1H1|101PS(74KW) |
| 2.0 GL | 1H1|107PS(79KW) |
| 2.9 VR6 Syncro | 1H1|190PS(140KW) |
