VW Golf 5 6 GTI Audi A3 TT S3 8P Brake Caliper Adapter Renault Megane RS 4-piston Brake Caliper Tuning Front Axle Tuning Adapter
- ✓ 345x30 1K0615301AB Golf 5 brake disc
- ✓ 4-piston 20A42503 / 20A42504 Renault Megane 3 RS brake caliper
- ✓ front axle
€229.48*
Average rating of 5 out of 5 stars
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

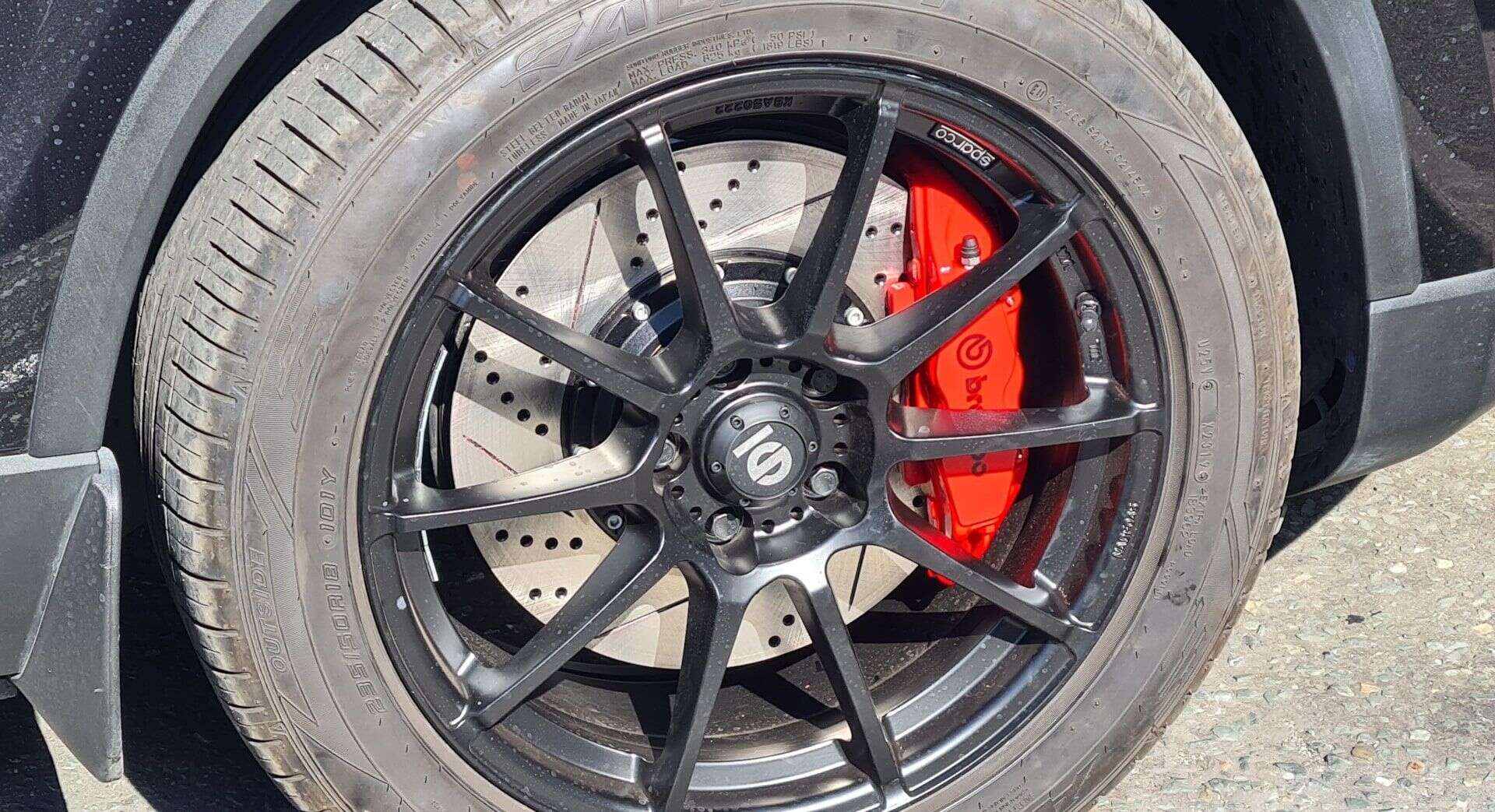

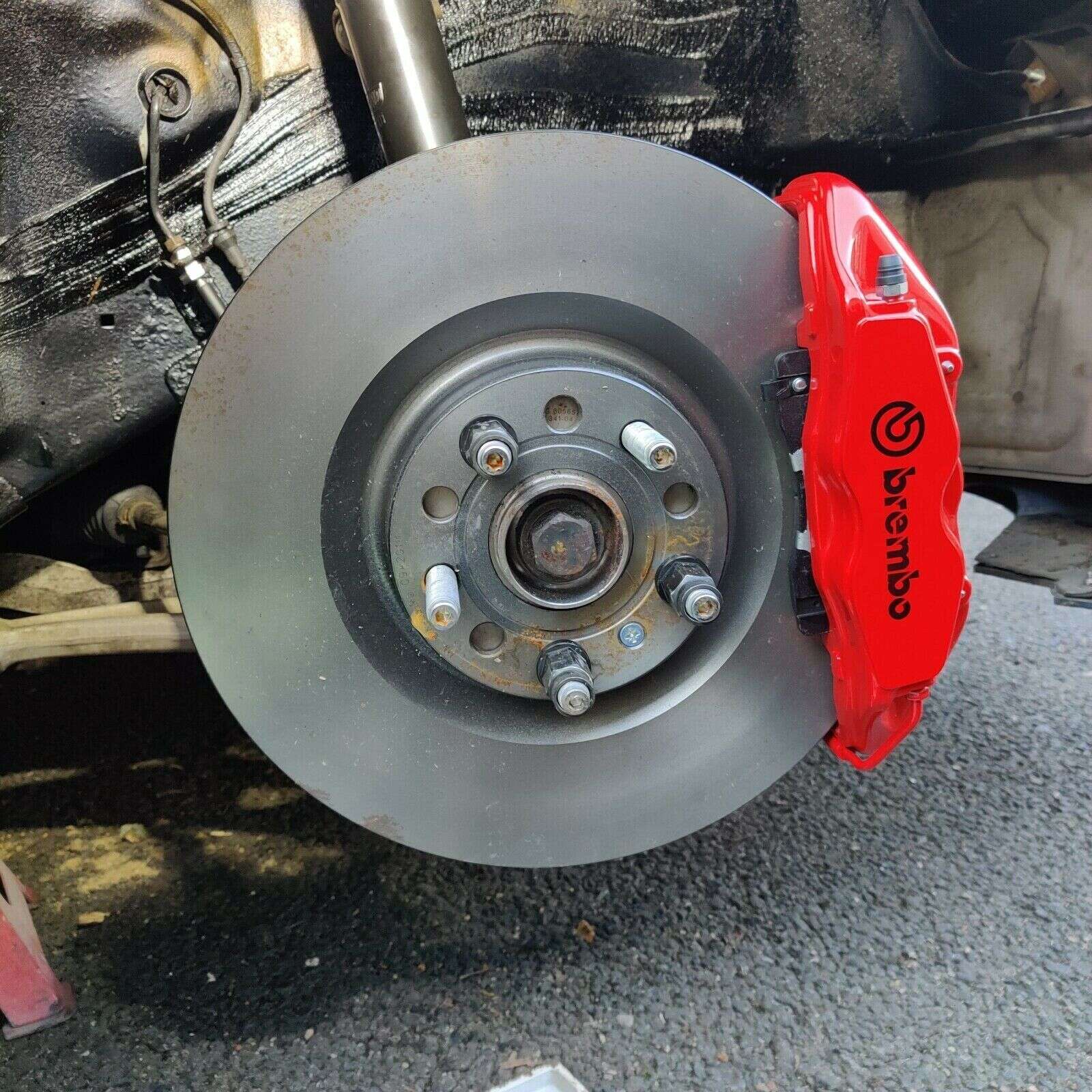

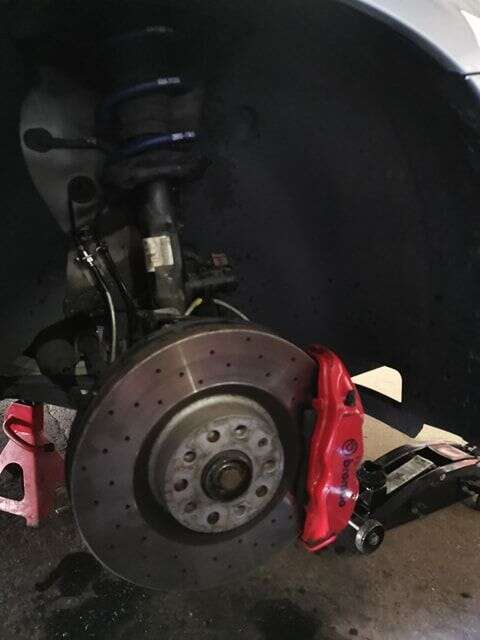

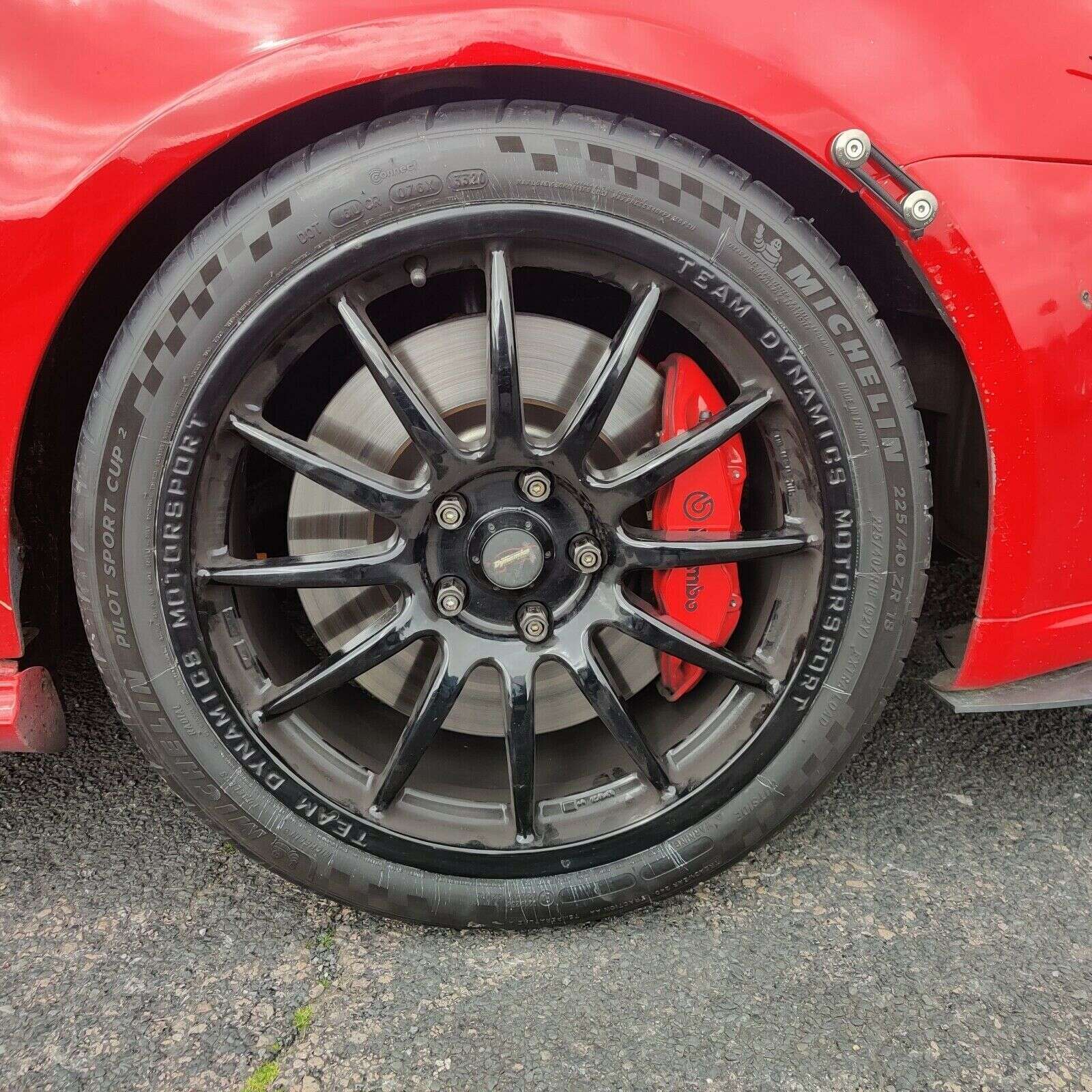

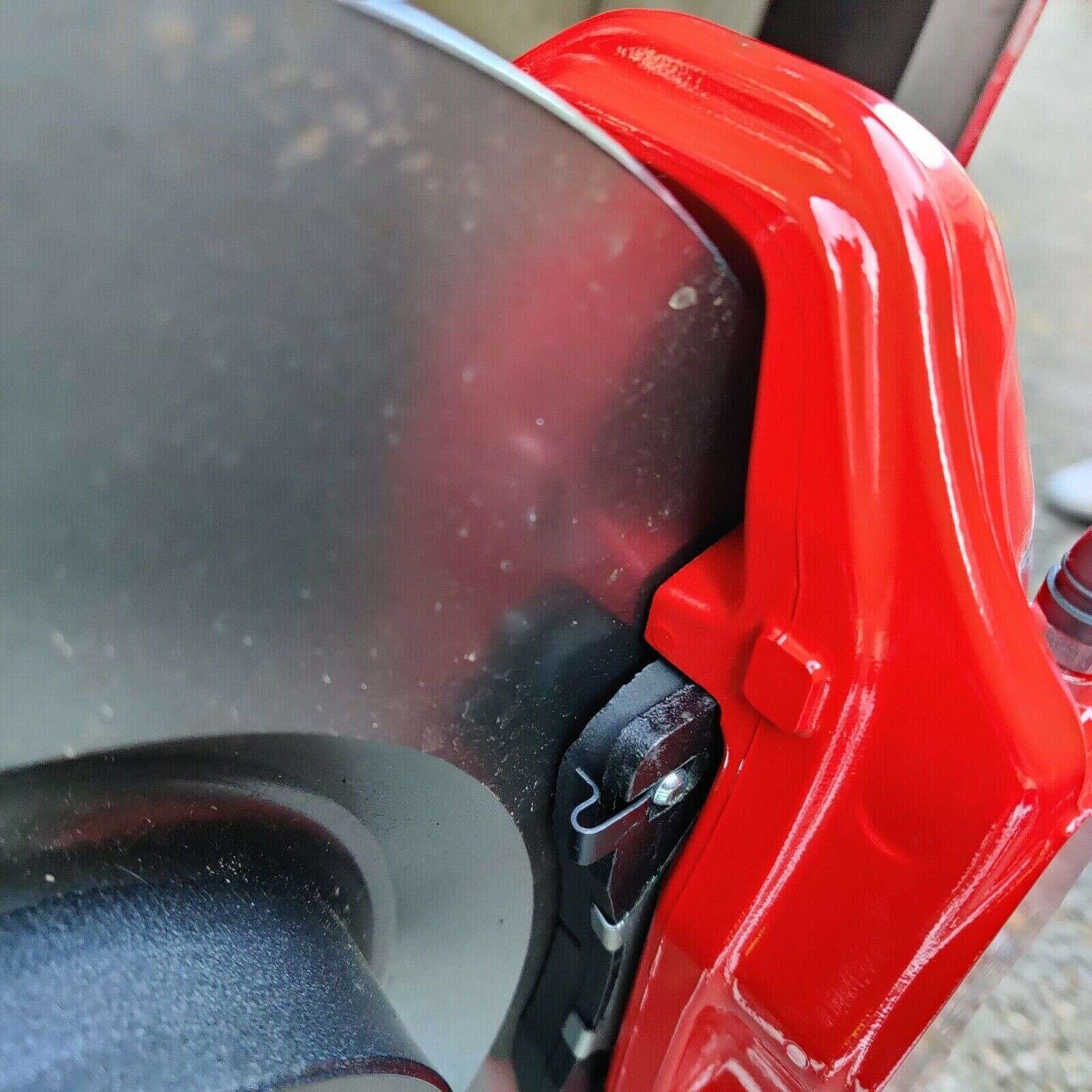

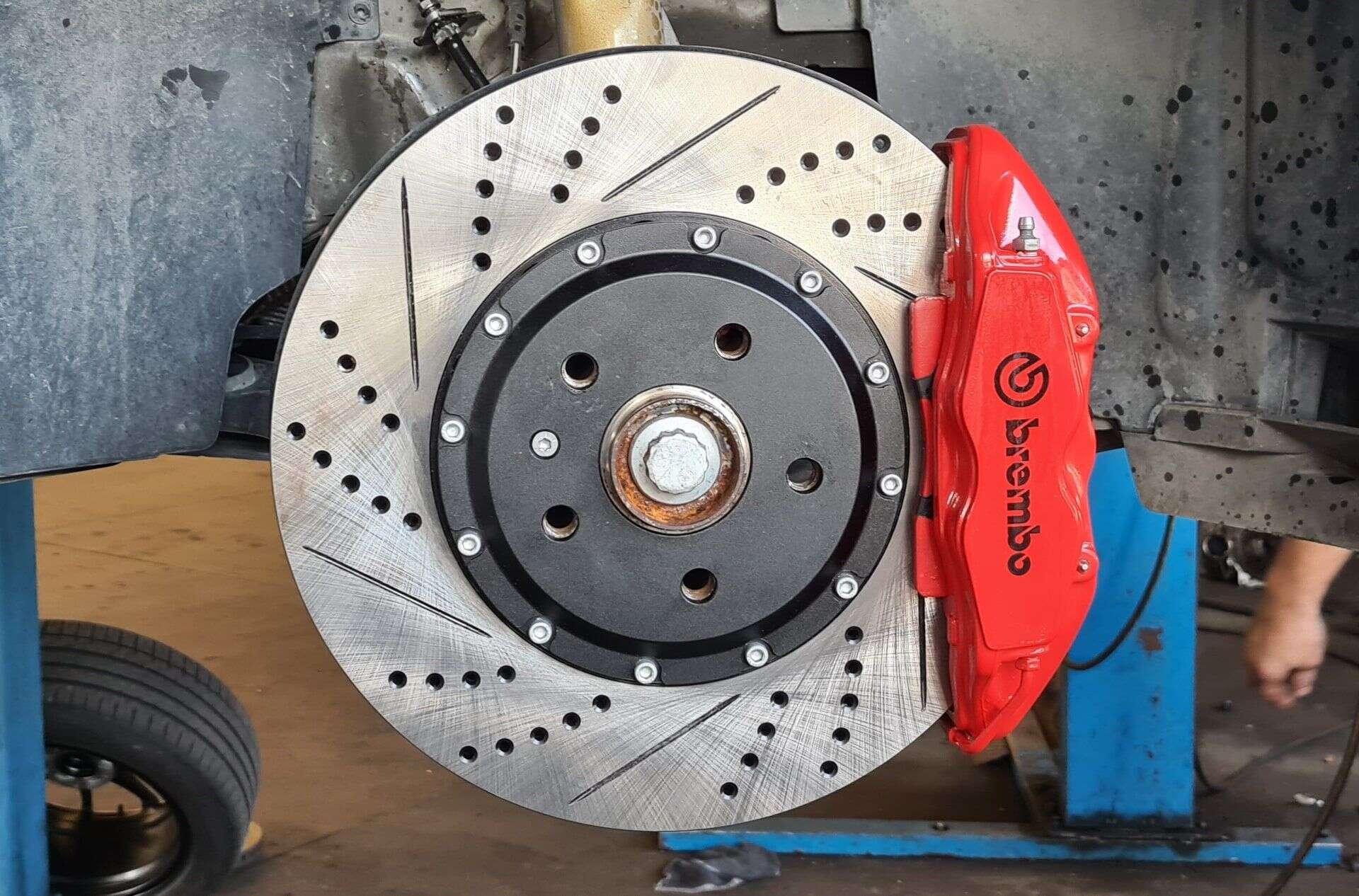

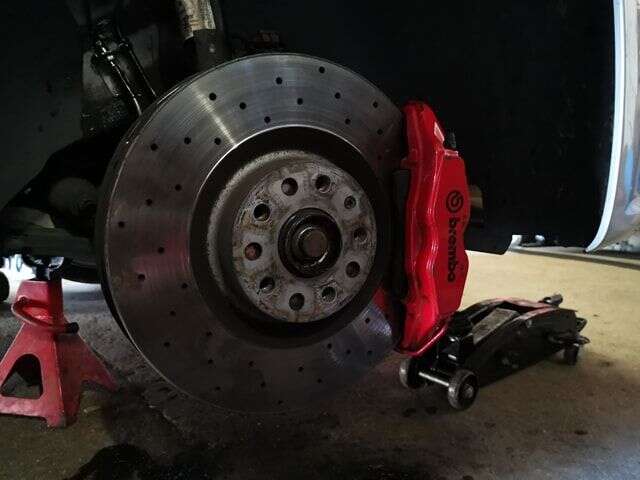

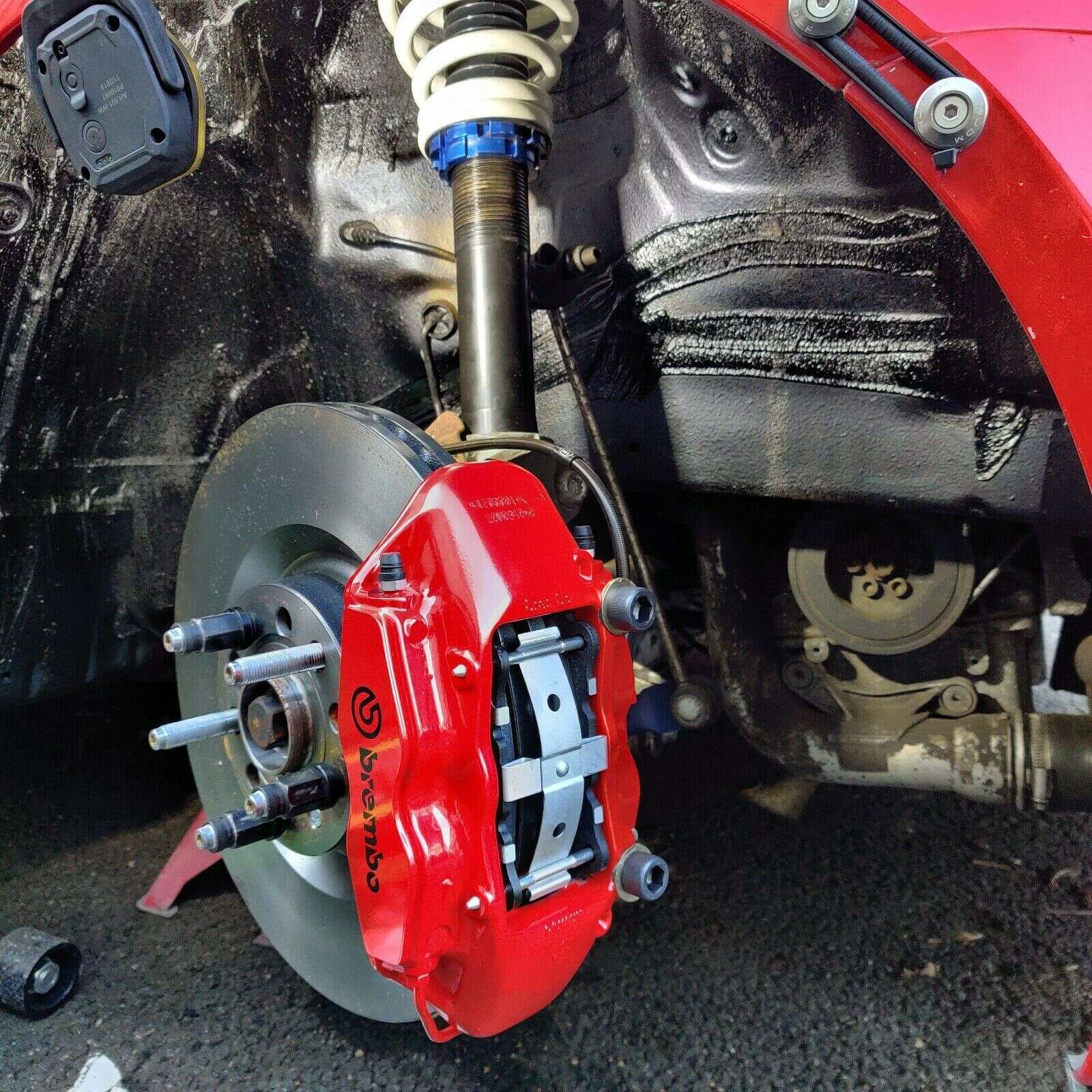

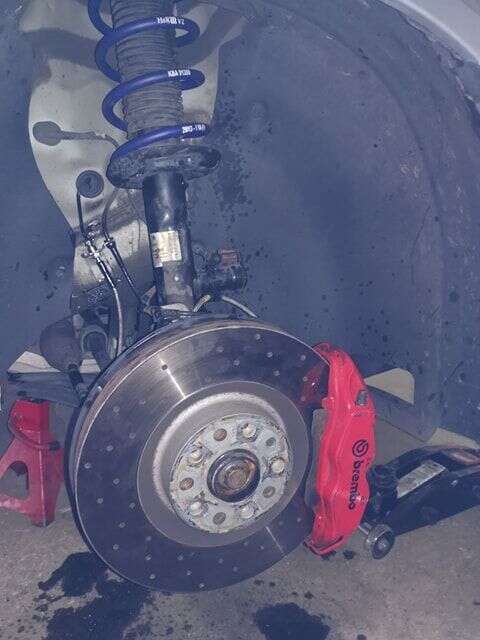

Brake caliper adapter for conversion to Brembo/ Porsche 4-piston brake caliper from Renault Megane III RS, combined with 345 x 30 mm brake dics from Audi A3 / Golf 5.
Suitable for the following vehicles with steel knuckle:
- AUDI A3/ S3/ Sportback/ Quattro (8P) YoC 2004-2011
- AUDI A3 Cabriolet YoC 2008-2011
- AUDI S1
- SEAT Altea (5P) YoC. 2007-2011
- SEAT Leon/ Leon 4 (1P) YoC 2006-2011
- SKODA Octavia/ Combi (1Z) YoC 2004-2011
- SKODA Superb (3T4) YoC 2008-2011
- SKODA Yeti YoC 2010-2011
- VW Caddy III (2K) YoC. 2004-2011
- VW EOS (1F7) BJ. 2006-2011
- VW Golf MK5 (1K)/Variant/ 4Motion /GTI YoC 2004-2008
- VW Golf MK6 (5K)/Variant/ 4Motion /GTI YoC 2008-2011
- Golf MK6 R
- VW Golf Plus (5M) YoC 2005-2011
- VW Jetta/ Syncro III (1K) YoC 2006-2010

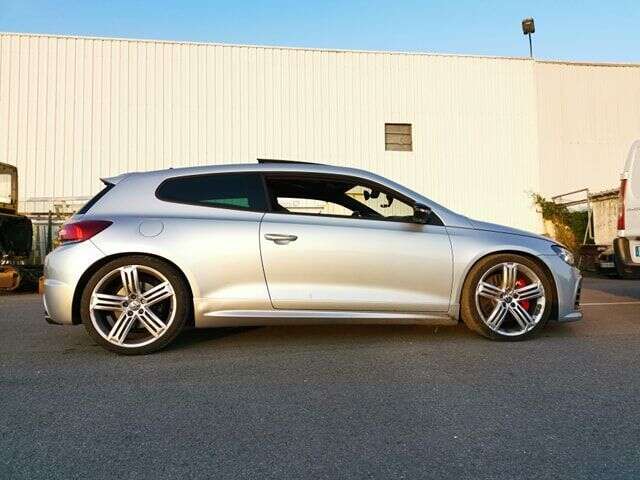

- VW Scirocco (137) YoC 2009-2011
- VW Tiguan (5N) YoC 2008-2011
- VW Touran (1T) YoC 2006-2011
- Skoda Karoq (NU7)
Fits all listed vehicles that have a steel steering knuckle installed (not suitable for vehicles with aluminum steering knuckle )
Required compoents:

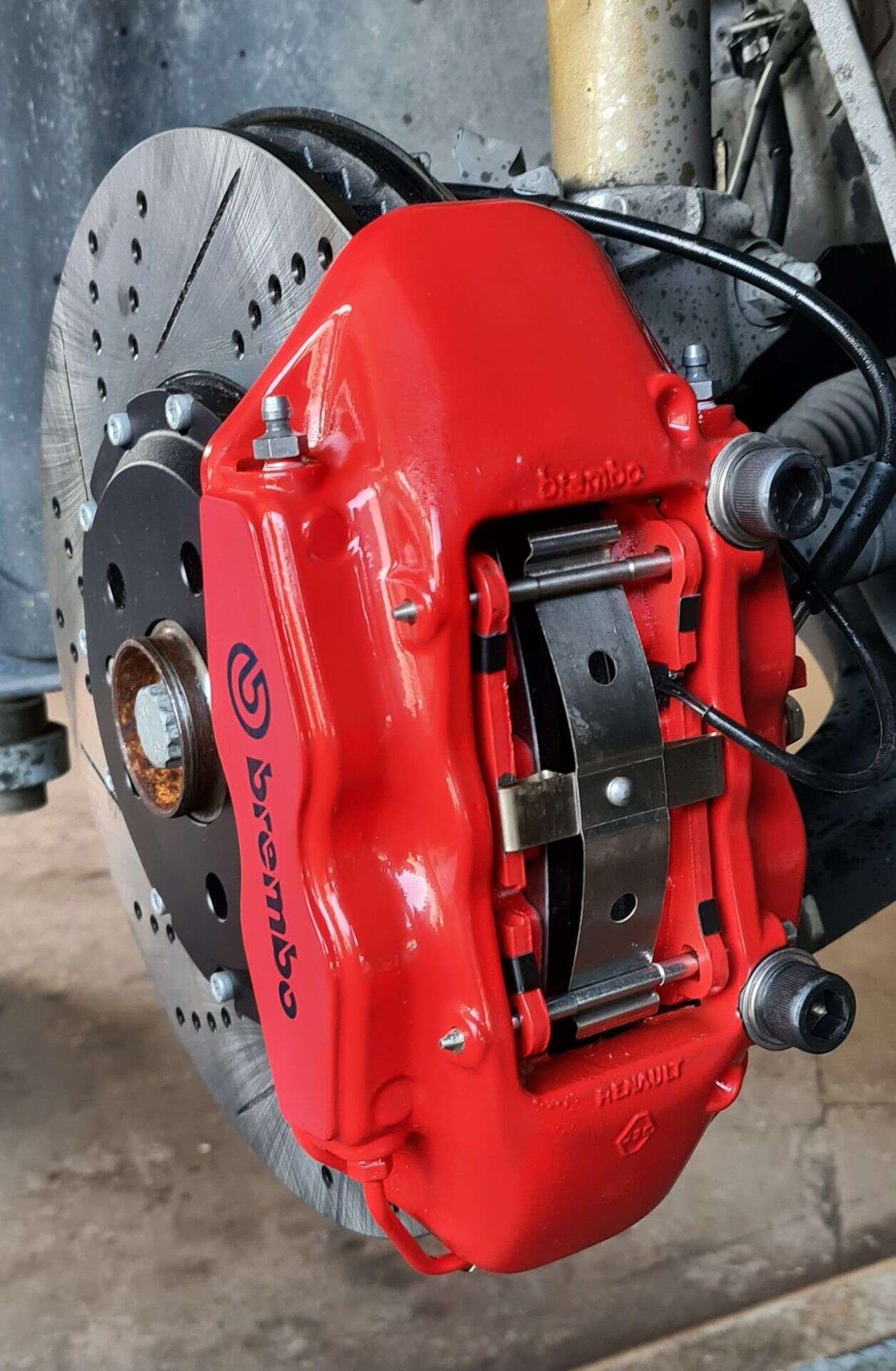

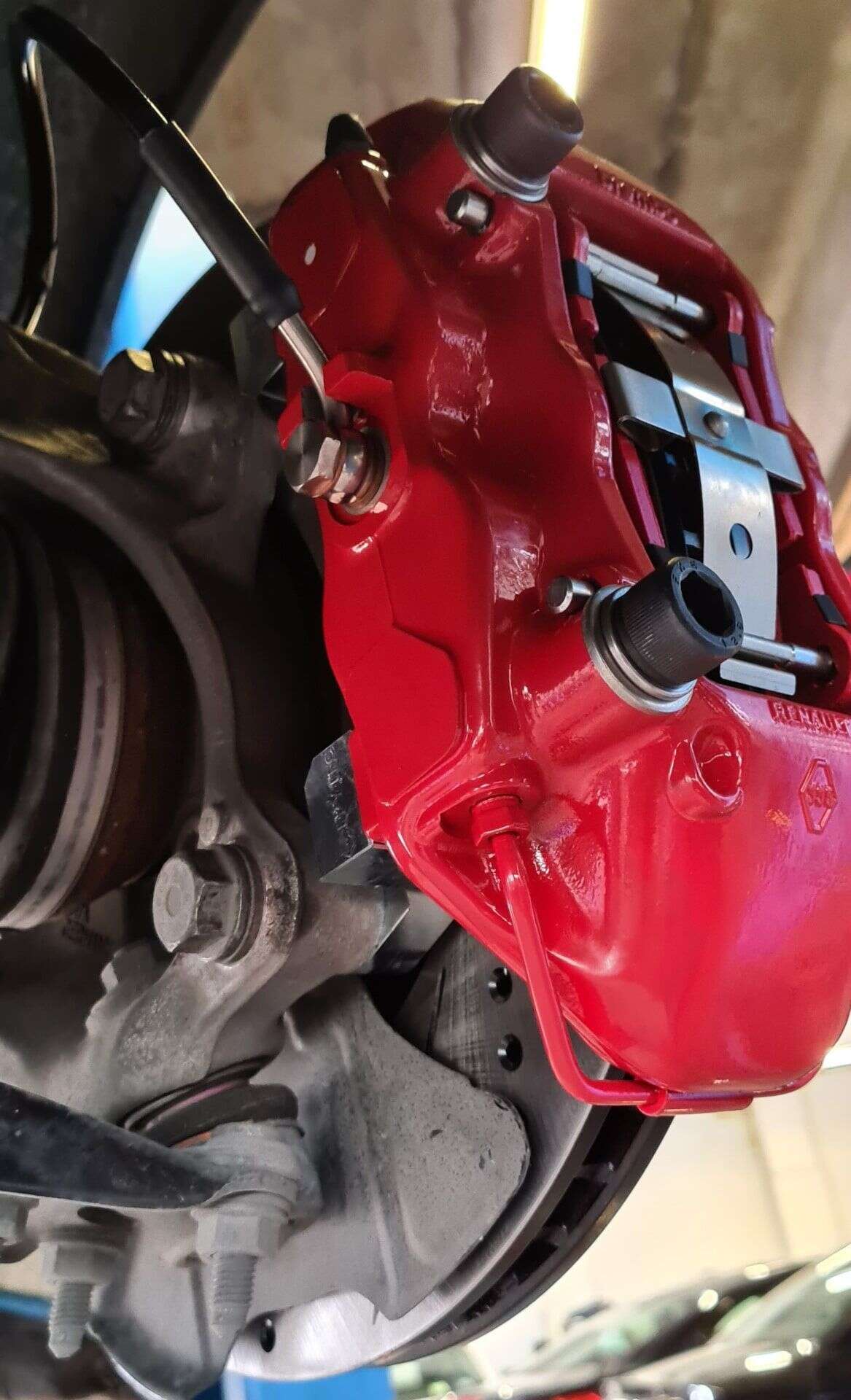

- Brake calipers Renault Megane III RS Part number: 20.A425.03 ; 20.A425.04 ; 410113693R ; 410116043R
- Brake discs Golf 5 6 in 5x112 hole circle 345x30 mm part number VW Audi OE-Nr: 1K0 615 301 AB , 1K0 615 301 M
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs better engine performance
- components come from the series production of VW
- registration is possible if correct assembly.
- including set of mounting screws
Delivery:

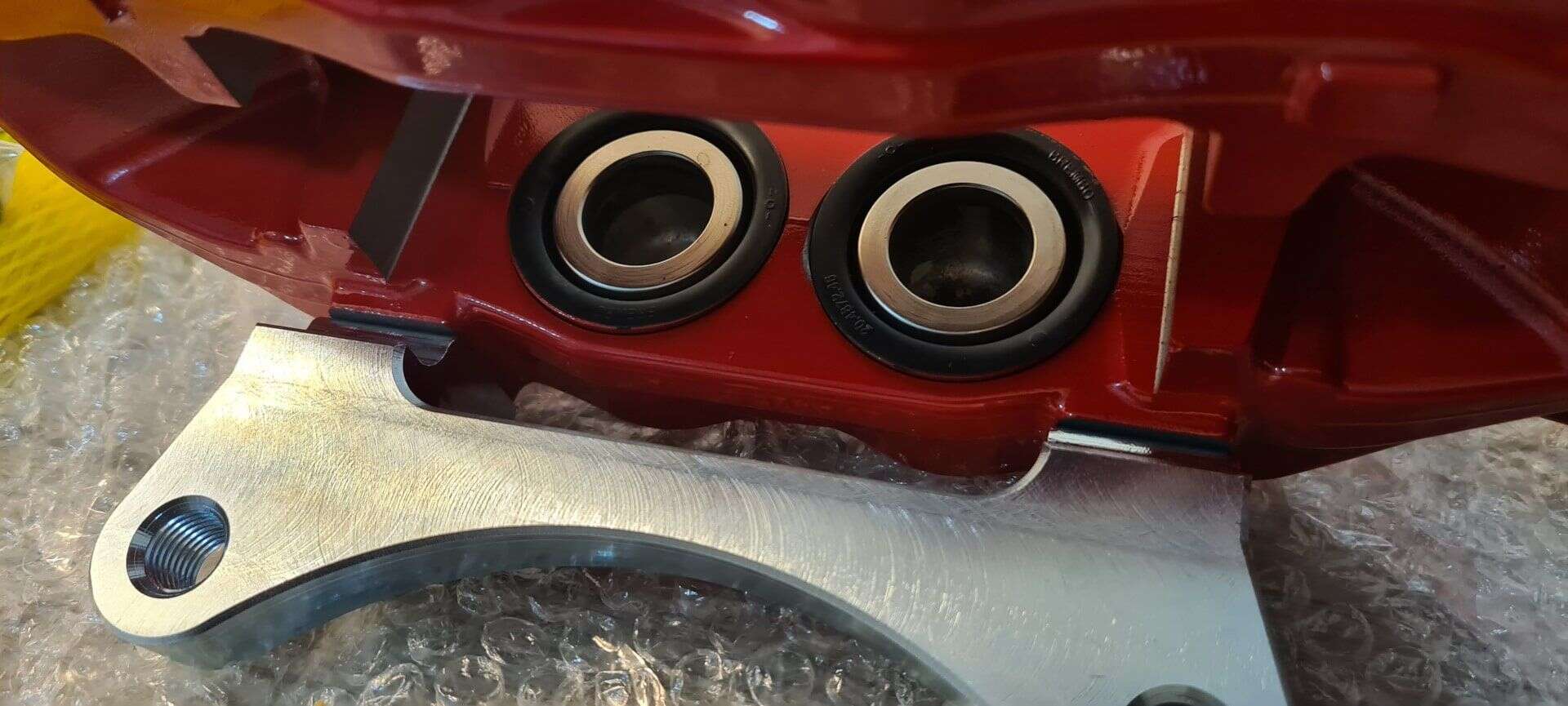

- 2x brake caliper adapters, completely galvanized for Golf MK5 MK6 Audi A3 Seat Leon
- complete mounting screws set
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
8 of 8 reviews
Average rating of 5 out of 5 stars
5 out of 5 stars
Login
15 September 2020 21:46
Review with rating of 5 out of 5 stars
Frederic B
très bon produit très content merci
22 December 2021 07:39
Review with rating of 5 out of 5 stars
Balcu A
High quality product. 5 * packaging. Everything fit perfectly
27 June 2022 00:06
Review with rating of 5 out of 5 stars
Mickael H
Adaptation parfaite très beau produit pour un montage au top
19 June 2023 06:53
Review with rating of 5 out of 5 stars
Leandro M
Parfaits
27 June 2022 00:48
Review with rating of 5 out of 5 stars
Mickael H
Adaptation parfaite très beau produit pour un montage au top
27 June 2022 21:55
Review with rating of 5 out of 5 stars
Mickael H
Adaptation parfaite très beau produit pour un montage au top
29 June 2022 21:23
Review with rating of 5 out of 5 stars
Mickael H
Adaptation parfaite très beau produit pour un montage au top
15 September 2020 01:05
Review with rating of 5 out of 5 stars
Andrejs S

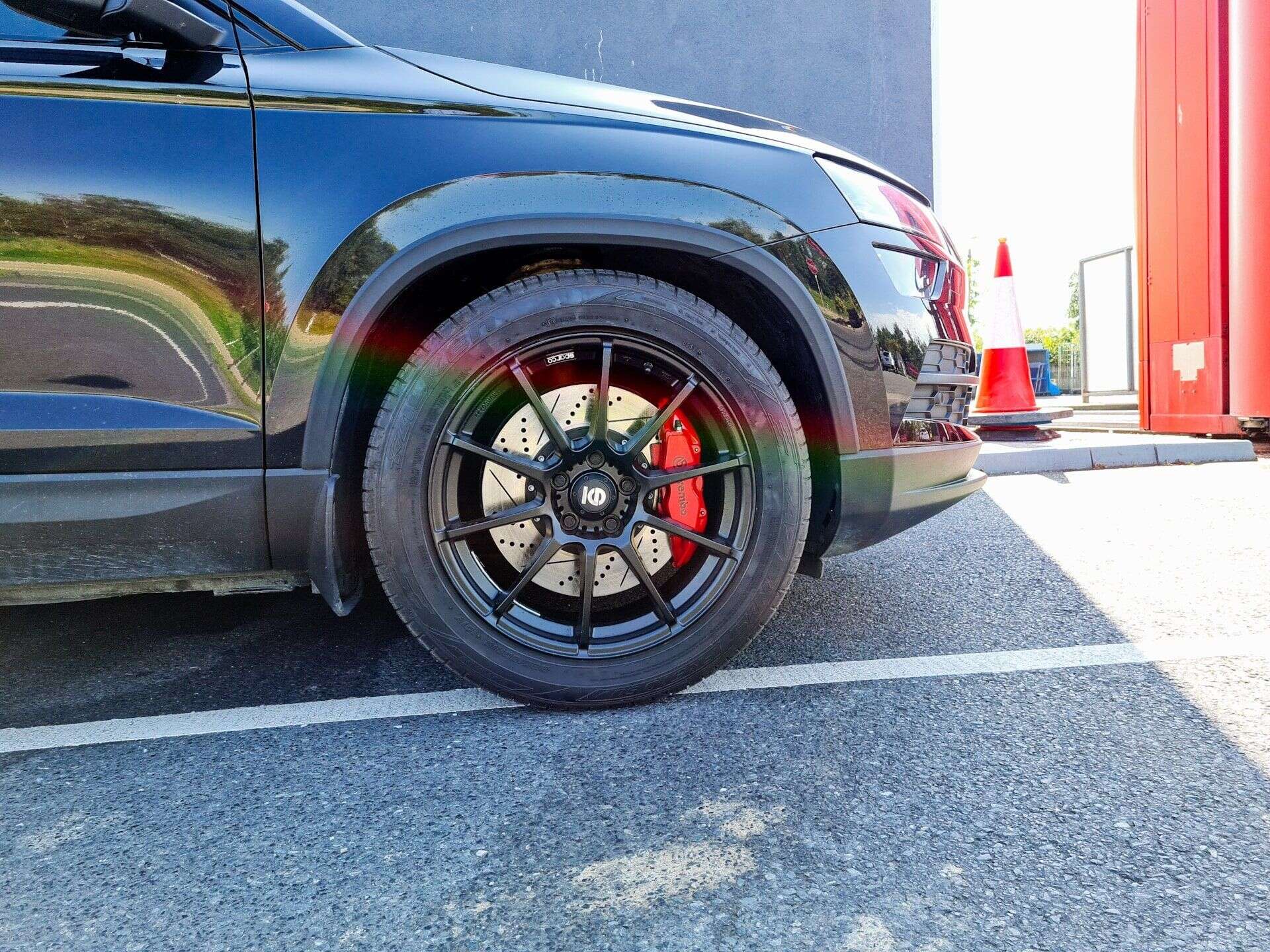

Very precise brackets fits ideally to my car - Skoda Karoq. As its not Golf5 I have to use original bolts to mount brackets to the HUB. But used bolts supplied to mount callipers. Excellent product ! Recommended for everyone , even with MQB cars to mount Magane RS III Brembo calipers.
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
-
Audi|A1 Sportback|S1 quattro|8XA, 8XF
-
Audi|A1|S1 quattro|8X1, 8XK
-
Audi|A3 Cabriolet|1.2 TFSI|8P7
-
Audi|A3 Cabriolet|1.4 TFSI|8P7
-
Audi|A3 Cabriolet|1.6 TDI|8P7
-
Audi|A3 Cabriolet|1.6|8P7
-
Audi|A3 Cabriolet|1.8 TFSI|8P7
-
Audi|A3 Cabriolet|1.9 TDI|8P7
-
Audi|A3 Cabriolet|2.0 TDI|8P7
-
Audi|A3 Cabriolet|2.0 TFSI|8P7
-
Audi|A3 Sportback|1.2 TSI|8PA
-
Audi|A3 Sportback|1.4 TFSI|8PA
-
Audi|A3 Sportback|1.6 E-Power|8PA
-
Audi|A3 Sportback|1.6 FSI|8PA
-
Audi|A3 Sportback|1.6 TDI|8PA
-
Audi|A3 Sportback|1.6|8PA
-
Audi|A3 Sportback|1.8 TFSI quattro|8PA
-
Audi|A3 Sportback|1.8 TFSI|8PA
-
Audi|A3 Sportback|1.9 TDI|8PA
-
Audi|A3 Sportback|2.0 FSI|8PA
-
Audi|A3 Sportback|2.0 TDI 16V quattro|8PA
-
Audi|A3 Sportback|2.0 TDI 16V|8PA
-
Audi|A3 Sportback|2.0 TDI quattro|8PA
-
Audi|A3 Sportback|2.0 TDI|8PA
-
Audi|A3 Sportback|2.0 TFSI quattro|8PA
-
Audi|A3 Sportback|2.0 TFSI|8PA
-
Audi|A3 Sportback|3.2 V6 quattro|8PA
-
Audi|A3 Sportback|RS3 quattro|8PA
-
Audi|A3 Sportback|S3 quattro|8PA
-
Audi|A3|1.2 TSI|8P1
-
Audi|A3|1.4 TFSI|8P1
-
Audi|A3|1.6 E-Power|8P1
-
Audi|A3|1.6 FSI|8P1
-
Audi|A3|1.6 TDI|8P1
-
Audi|A3|1.6|8P1
-
Audi|A3|1.8 T|8P1
-
Audi|A3|1.8 TFSI quattro|8P1
-
Audi|A3|1.8 TFSI|8P1
-
Audi|A3|1.9 TDI|8P1
-
Audi|A3|2.0 FSI|8P1
-
Audi|A3|2.0 TDI 16V quattro|8P1
-
Audi|A3|2.0 TDI 16V|8P1
-
Audi|A3|2.0 TDI quattro|8P1
-
Audi|A3|2.0 TDI|8P1
-
Audi|A3|2.0 TFSI quattro|8P1
-
Audi|A3|2.0 TFSI|8P1
-
Audi|A3|2.0|8P1
-
Audi|A3|3.2 V6 quattro|8P1
-
Audi|A3|S3 quattro|8P1
-
Audi|TT|1.8 TFSI|8J3
-
Audi|TT|2.0 TDI quattro|8J3
-
Audi|TT|2.0 TFSI quattro|8J3
-
Audi|TT|2.0 TFSI|8J3
-
Audi|TT|2.0 TTS quattro|8J3
-
Audi|TT|2.5 RS quattro|8J3
-
Audi|TT|3.2 V6 quattro|8J3
-
Seat|Altea XL|2.0 FSi|5P5, 5P8
-
Seat|Altea XL|2.0 TDi|5P5, 5P8
-
Seat|Altea XL|2.0 TFSi 4x4|5P5, 5P8
-
Seat|Altea XL|2.0 TFSi|5P5, 5P8
-
Seat|Altea|2.0 FSi|5P1
-
Seat|Altea|2.0 TDi|5P1
-
Seat|Altea|2.0 TFSi|5P1
-
Seat|Leon SC|1.0 TSi|5F5
-
Seat|Leon SC|1.2 TSi|5F5
-
Seat|Leon SC|1.4 TSi|5F5
-
Seat|Leon SC|1.6 TDi|5F5
-
Seat|Leon SC|1.8 TSi|5F5
-
Seat|Leon SC|2.0 Cupra|5F5
-
Seat|Leon SC|2.0 TDi|5F5
-
Seat|Leon ST|1.0 TSi|5F8
-
Seat|Leon ST|1.2 TSi|5F8
-
Seat|Leon ST|1.4 TGi|5F8
-
Seat|Leon ST|1.4 TSi|5F8
-
Seat|Leon ST|1.6 TDi 4Drive|5F8
-
Seat|Leon ST|1.6 TDi|5F8
-
Seat|Leon ST|1.8 TSi 4Drive|5F8
-
Seat|Leon ST|1.8 TSi|5F8
-
Seat|Leon ST|2.0 Cupra 4Drive|5F8
-
Seat|Leon ST|2.0 Cupra|5F8
-
Seat|Leon ST|2.0 TDi 4Drive|5F8
-
Seat|Leon ST|2.0 TDi|5F8
-
Seat|Leon|1.0 TSi|5F1
-
Seat|Leon|1.2 TSi|1P1
-
Seat|Leon|1.2 TSi|5F
-
Seat|Leon|1.2 TSi|5F1
-
Seat|Leon|1.4 16V|1P1
-
Seat|Leon|1.4 TGi|5F1
-
Seat|Leon|1.4 TSi|1P1
-
Seat|Leon|1.4 TSi|5F
-
Seat|Leon|1.4 TSi|5F1
-
Seat|Leon|1.6 16V|1M1
-
Seat|Leon|1.6 LPG|1P1
-
Seat|Leon|1.6 MultiFuel|1P1
-
Seat|Leon|1.6 TDi|1P1
-
Seat|Leon|1.6 TDi|5F
-
Seat|Leon|1.6 TDi|5F1
-
Seat|Leon|1.6|1M1
-
Seat|Leon|1.6|1P1
-
Seat|Leon|1.8 T Cupra R|1M1
-
Seat|Leon|1.8 TSi|1P1
-
Seat|Leon|1.8 TSi|5F1
-
Seat|Leon|1.9 TDi|1P1
-
Seat|Leon|1.9 TDI|1P1
-
Seat|Leon|2.0 Cupra R|1P1
-
Seat|Leon|2.0 Cupra|5F1
-
Seat|Leon|2.0 FSi|1P1
-
Seat|Leon|2.0 TDi 16V|1P1
-
Seat|Leon|2.0 TDi|1P1
-
Seat|Leon|2.0 TDi|5F1
-
Seat|Leon|2.0 TFSi|1P1
-
Skoda|Karoq|1.0 TSI|ND7, NU7
-
Skoda|Karoq|1.5 TSI|ND7, NU7
-
Skoda|Karoq|1.6 TDi|ND7, NU7
-
Skoda|Karoq|2.0 TDi 4x4|ND7, NU7
-
VW|Caddy 3 Großraumlimousine|1.2 TSI|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|1.4|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|1.6 Bi-Fuel|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|1.6 TDI|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|1.6|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|1.9 TDI 4motion|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|1.9 TDI|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|2.0 EcoFuel|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|2.0 SDI|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|2.0 TDI 16V 4motion|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|2.0 TDI 16V|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|2.0 TDI 4motion|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Großraumlimousine|2.0 TDI|2CB, 2CJ, 2KB, 2KJ
-
VW|Caddy 3 Kasten/Großraumlimousine|1.2 TSI|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|1.4|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|1.6 Bi-Fuel|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|1.6 TDI|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|1.6|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|1.9 TDI 4motion|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|1.9 TDI|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|2.0 EcoFuel|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|2.0 SDI|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|2.0 TDI 16V 4motion|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|2.0 TDI 16V|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|2.0 TDI 4motion|2CA, 2CH, 2KA, 2KH
-
VW|Caddy 3 Kasten/Großraumlimousine|2.0 TDI|2CA, 2CH, 2KA, 2KH
-
VW|Golf 5 Variant|1.4 TSI|1K5
-
VW|Golf 5 Variant|1.4|1K5
-
VW|Golf 5 Variant|1.6 MultiFuel|1K5
-
VW|Golf 5 Variant|1.6|1K5
-
VW|Golf 5 Variant|1.9 TDI 4motion|1K5
-
VW|Golf 5 Variant|1.9 TDI|1K5
-
VW|Golf 5 Variant|2.0 TDI 16V|1K5
-
VW|Golf 5 Variant|2.0 TDI 4motion|1K5
-
VW|Golf 5 Variant|2.0 TDI|1K5
-
VW|Golf 5 Variant|2.0|1K5
-
VW|Golf 5|1.4 16V|1K1
-
VW|Golf 5|1.4 FSI|1K1
-
VW|Golf 5|1.4 TSI|1K1
-
VW|Golf 5|1.6 FSI|1K1
-
VW|Golf 5|1.6 MultiFuel|1K1
-
VW|Golf 5|1.6|1K1
-
VW|Golf 5|1.8 GTI|1K1
-
VW|Golf 5|1.9 TDI 4motion|1K1
-
VW|Golf 5|1.9 TDI|1K1
-
VW|Golf 5|2.0 FSI 4motion|1K1
-
VW|Golf 5|2.0 FSI|1K1
-
VW|Golf 5|2.0 GTI|1K1
-
VW|Golf 5|2.0 SDI|1K1
-
VW|Golf 5|2.0 TDI 16V 4motion|1K1
-
VW|Golf 5|2.0 TDI 16V|1K1
-
VW|Golf 5|2.0 TDI 4motion|1K1
-
VW|Golf 5|2.0 TDI|1K1
-
VW|Golf 5|2.0|1K1
-
VW|Golf 5|3.2 R32 4motion|1K1
-
VW|Golf 5|3.2|1K1
-
VW|Golf 6 Cabriolet|1.2 TSI 16V|517
-
VW|Golf 6 Cabriolet|1.2 TSI|517
-
VW|Golf 6 Cabriolet|1.4 TSI|517
-
VW|Golf 6 Cabriolet|1.6 TDI|517
-
VW|Golf 6 Cabriolet|2.0 GTI|517
-
VW|Golf 6 Cabriolet|2.0 TDI|517
-
VW|Golf 6 Cabriolet|2.0 TSI|517
-
VW|Golf 6 Variant|1.2 TSI|AJ5
-
VW|Golf 6 Variant|1.4 TSI|AJ5
-
VW|Golf 6 Variant|1.4|AJ5
-
VW|Golf 6 Variant|1.6 MultiFuel|AJ5
-
VW|Golf 6 Variant|1.6 TDI 4motion|AJ5
-
VW|Golf 6 Variant|1.6 TDI|AJ5
-
VW|Golf 6 Variant|1.6|AJ5
-
VW|Golf 6 Variant|2.0 TDI|AJ5
-
VW|Golf 6 Variant|2.0 TSI|AJ5
-
VW|Golf 6|1.2 TSI|5K1
-
VW|Golf 6|1.4 TSI|5K1
-
VW|Golf 6|1.4|5K1
-
VW|Golf 6|1.6 Bi-Fuel|5K1
-
VW|Golf 6|1.6 MultiFuel|5K1
-
VW|Golf 6|1.6 TDI|5K1
-
VW|Golf 6|1.6|5K1
-
VW|Golf 6|1.8 TSI|5K1
-
VW|Golf 6|2.0 GTI|5K1
-
VW|Golf 6|2.0 R 4motion|5K1
-
VW|Golf 6|2.0 TDI 4motion|5K1
-
VW|Golf 6|2.0 TDI|5K1
-
VW|Golf 6|Blue E-Motion|5K1
-
VW|Golf 7 Variant|1.4 TGI CNG|BA5, BV5
-
VW|Golf 7 Variant|1.4 TSI MultiFuel|BA5, BV5
-
VW|Golf 7 Variant|1.4 TSI|BA5, BV5
-
VW|Golf 7 Variant|1.6 TDI 4motion|BA5, BV5
-
VW|Golf 7 Variant|1.6|BA5, BV5
-
VW|Golf 7 Variant|2.0 GTD|BA5, BV5
-
VW|Golf 7 Variant|2.0 TDI 4motion|BA5, BV5
-
VW|Golf 7 Variant|2.0 TDI|BA5, BV5
-
VW|Golf 7|1.4 GTE Hybrid|5G1, BE1, BE2, BQ1
-
VW|Golf 7|1.4 TGI CNG|5G1, BE1, BE2, BQ1
-
VW|Golf 7|1.4 TSI MultiFuel|5G1, BE1, BE2, BQ1
-
VW|Golf 7|1.6 TDI 4motion|5G1, BE1, BE2, BQ1
-
VW|Golf 7|1.6|5G1, BE1, BE2, BQ1
-
VW|Golf 7|2.0 TDI 4motion|5G1, BE1, BE2, BQ1
-
VW|Golf Plus|1.4 TSI|521, 5M1
-
VW|Golf Plus|1.6 FSI|521, 5M1
-
VW|Golf Plus|1.9 TDI|521, 5M1
-
VW|Golf Plus|2.0 FSI|521, 5M1
-
VW|Golf Plus|2.0 TDI|521, 5M1
-
VW|Jetta 4|1.4 TSI|162, 163, AV2, AV3
-
VW|Scirocco|1.4 TSI|137, 138
-
VW|Scirocco|2.0 R|137, 138
-
VW|Scirocco|2.0 TDI|137, 138
-
VW|Scirocco|2.0 TSI|137, 138
-
VW|Touran|1.2 TSI|1T3
-
VW|Touran|1.2 TSI|5T1
-
VW|Touran|1.4 FSI|1T1, 1T2
-
VW|Touran|1.4 TSI EcoFuel|1T1, 1T2
-
VW|Touran|1.4 TSI EcoFuel|1T3
-
VW|Touran|1.4 TSI|1T1, 1T2
-
VW|Touran|1.4 TSI|1T3
-
VW|Touran|1.4 TSI|5T1
-
VW|Touran|1.6 FSI|1T1, 1T2
-
VW|Touran|1.6 TDI|1T1, 1T2
-
VW|Touran|1.6 TDI|1T3
-
VW|Touran|1.6 TDI|5T1
-
VW|Touran|1.6|1T1, 1T2
-
VW|Touran|1.8 TSI|5T1
-
VW|Touran|1.9 TDI|1T1, 1T2
-
VW|Touran|2.0 EcoFuel|1T1, 1T2
-
VW|Touran|2.0 FSI|1T1, 1T2
-
VW|Touran|2.0 TDI 16V|1T1, 1T2
-
VW|Touran|2.0 TDI|1T1, 1T2
-
VW|Touran|2.0 TDI|1T3
-
VW|Touran|2.0 TDI|5T1
Average rating of 4.6 out of 5 stars
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
Average rating of 4.6 out of 5 stars
- ✓ Length: 63cm
- ✓ M10x1 outside 45° curved
- ✓ M10x1 inside straight
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
Average rating of 5 out of 5 stars
- ✓ Racing brake fluid
- ✓ Reduction in brake fading
- ✓ improved pedal feel
Average rating of 4.6 out of 5 stars
- ✓ optimized paste for brake systems
- ✓ correct viscosity
- ✓ no squeaking
Average rating of 5 out of 5 stars
- ✓ 345x30
- ✓ 65mm centering
- ✓ 50mm height
- ✓ Registration-free
- ✓ Yellowstuff sports surface
- ✓ temperature up to 900°C
- ✓ Registration-free
- ✓ Redstuff ceramic covering
- ✓ temperature up to 750°C
- ✓ 345x30
- ✓ 65mm centering
- ✓ 50mm height
Average rating of 5 out of 5 stars
- ✓ Significantly higher boiling point
- ✓ Better pedal feel
- ✓ Suitable for the race track
