Seat Ibiza 6L VW Polo 9N Audi A1 Brake Caliper Adapter Porsche Rear Axle 280x21
- ✓ 280x22 1J0615301E Golf 4 brake disc
- ✓ 1-piston 8N0615423C / 8N0615424C Golf 4 V6 / R32 Audi S3 brake caliper
- ✓ rear axle
€154.00*
- Express shopping
- Save your data and settings
- Order overview and shipping information
- Manage your newsletter subscription
- 19 Jahre Expertenwissen
Product information "Seat Ibiza 6L VW Polo 9N Audi A1 Brake Caliper Adapter Porsche Rear Axle 280x21"
Brake caliper adapter for rear axle conversion to brake caliper of Golf MK4 V6/R32 Audi S3 8L, YoC 99, combined with the front 280 mm brake discs from Golf MK4.
Suitable for the following VW and Seat models
- Ibiza 6L
- Polo 9N
Advantages of this brake system:
- top deceleration, without comparison with conventional brake discs
- better performance
- supplied material certificate
- cheap spare parts
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
Required components:

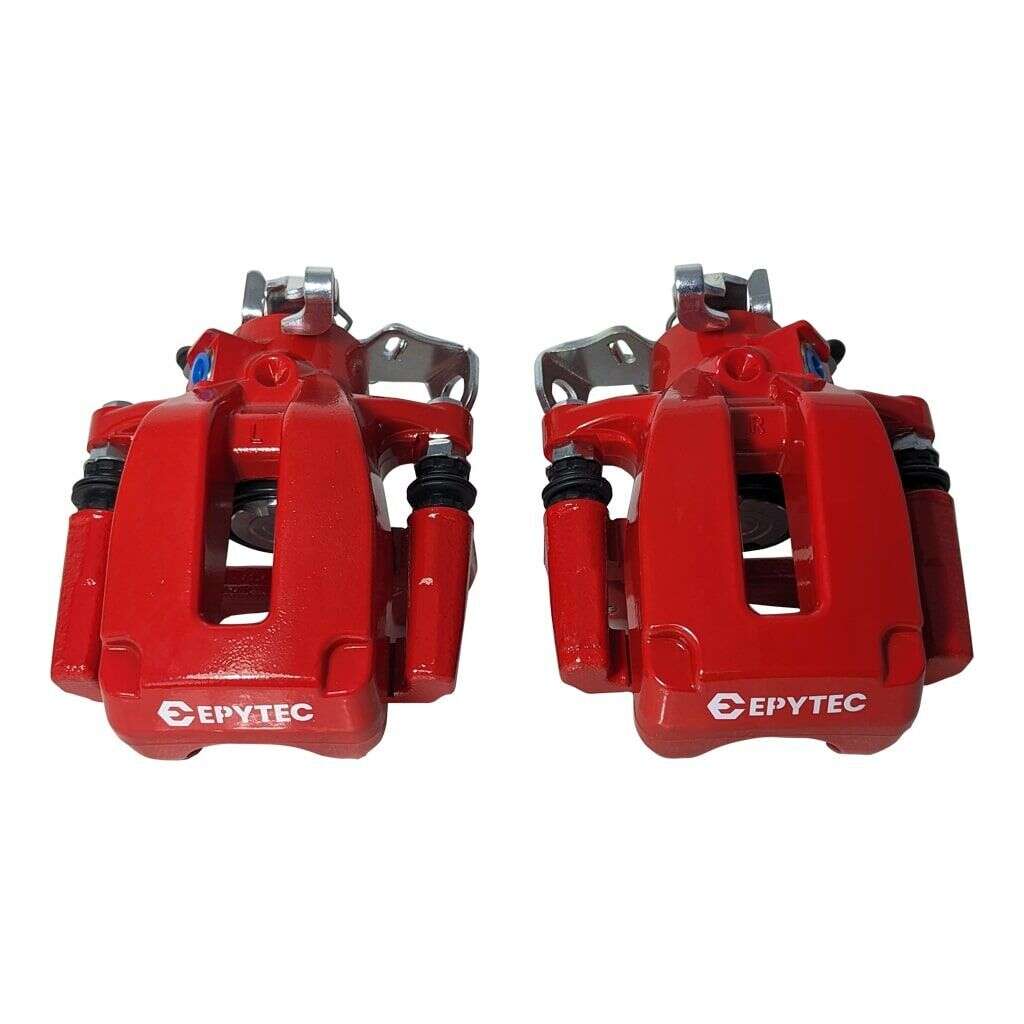

- brake caliper: VW , reference left 8N0615423C + right 8N0615424C
- brake caliper support / bracket , reference 8N0615425B
- brake disc: VW Golf MK4 (front axle) 280x22mm VAG reference 1J0615301E
Delivery:
- 2x brake caliper adapters
- complete mounting screws set
- material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
