Brake Caliper Adapter T2 YoC 77 to Audi A6 Brake System
- ✓ 312x25 3B0615301B Audi A6 brake disc
- ✓ 1-piston 4F0615124 Audi A6 ATE 974 / 973 brake caliper
- ✓ front axle
€346.34*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
⚠️ Important Notice:
This item is produced exclusively upon request. As it is a made-to-order special production based on demand, there is no right of withdrawal pursuant to § 312g (2) No. 1 of the German Civil Code (BGB).
Therefore, returns or exchanges are excluded.

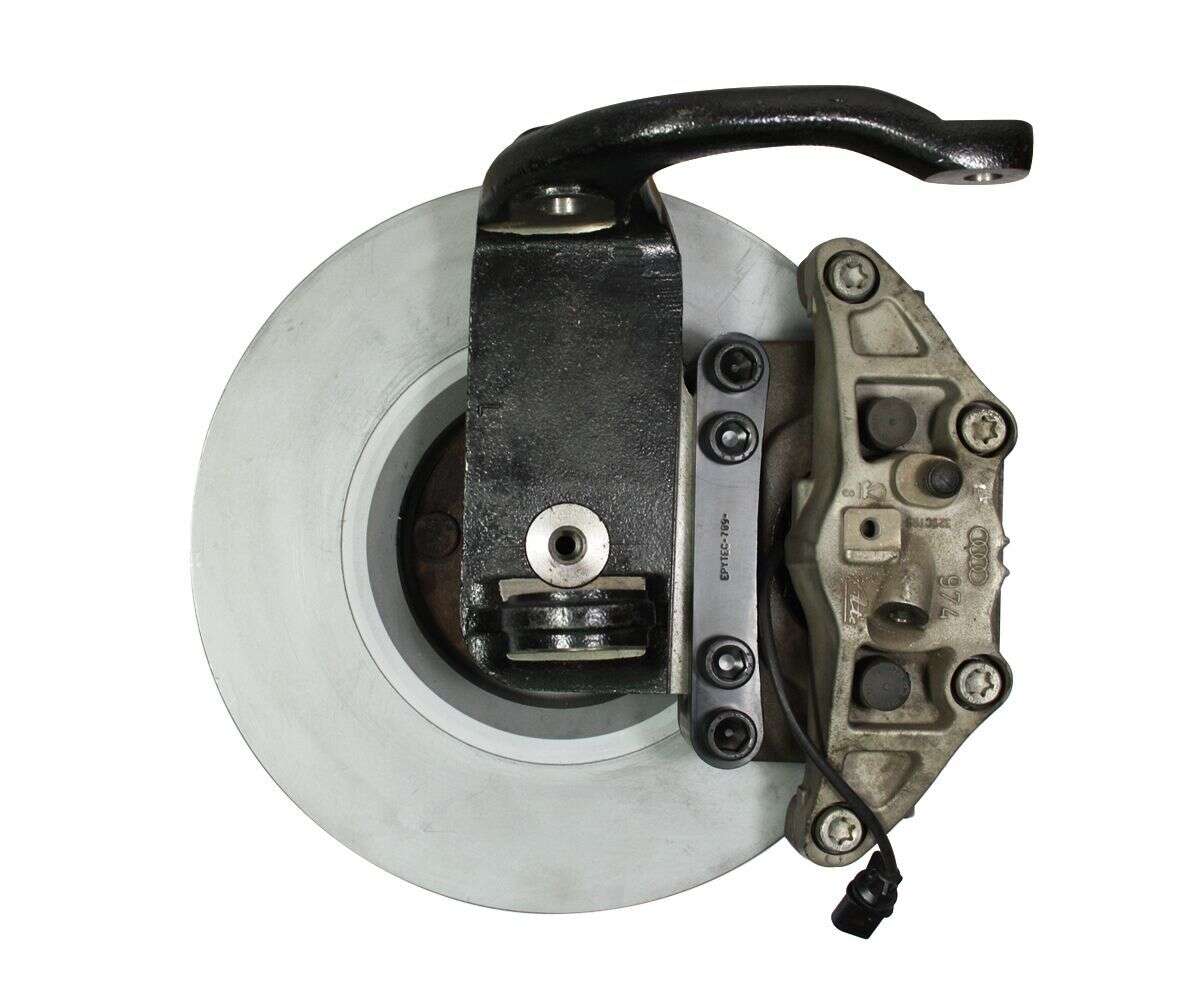

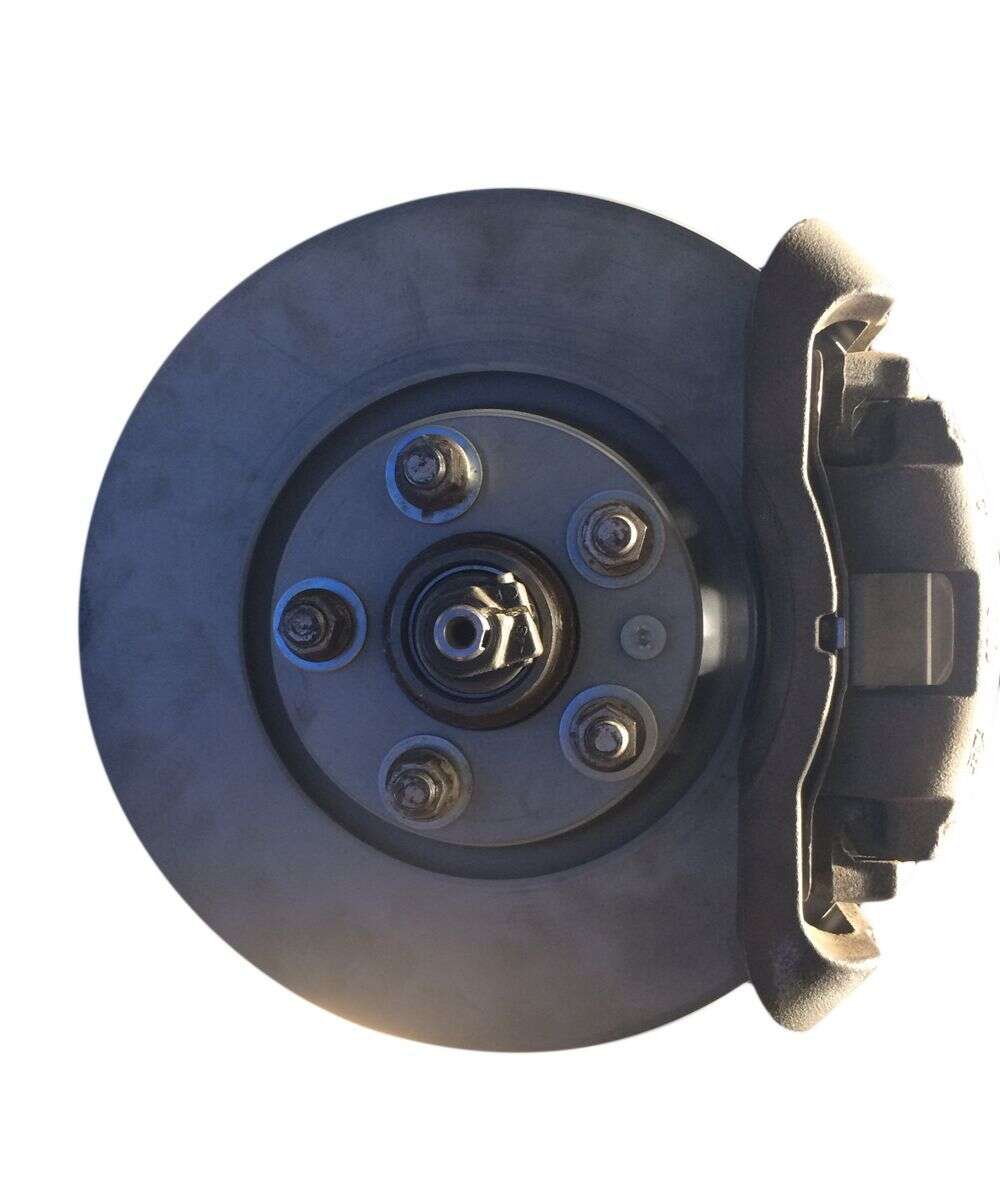

Brake caliper adapter, front axle, on T2 bus model for conversion to internally vented brake discs 312x25mm, combined with Audi A6 brake caliper.
Advantages:
- top deceleration
- the system no longer warms up and no more fading
- quick and easy assembly with the supplied mounting screws
Required components:
- brake caliper: Audi A6 ATE 974 + 973 , reference 4F0615124
- brake disc: Audi A6 312x25 mm , reference 3B0 615 301 B
- T2 Lowering of steering knuckles

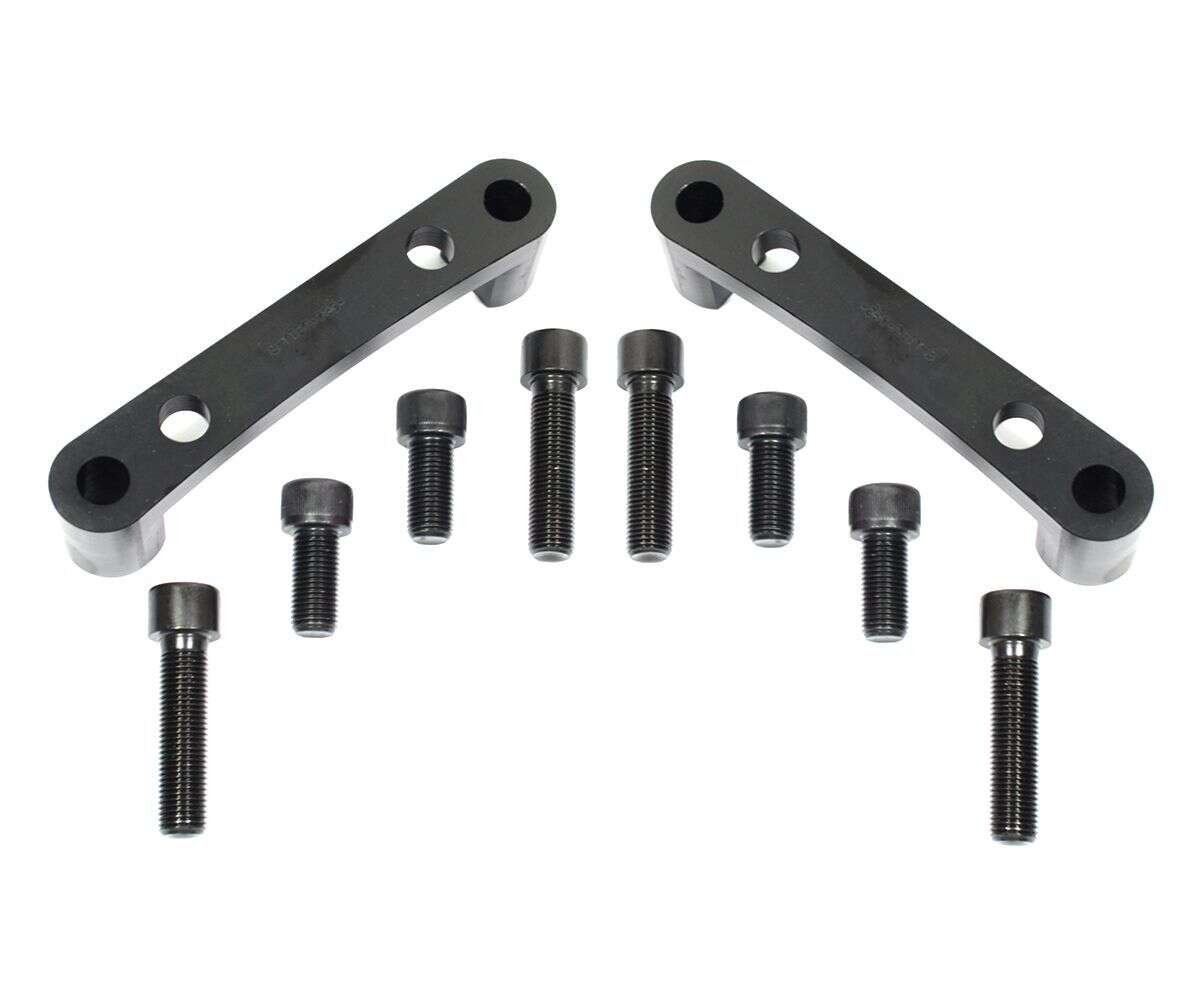

Delivery:
- 2x brake caliper adapters
- high strength montage screws
- material certificate
Rims: at least 16 inch.
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.
>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
31 March 2017 22:14
flatblack123
Super, vielen Dank, gerne wieder ,sehr zu empfehlen.
24 December 2019 09:14
aircooled-special
Perfek, super Neuware, schneller Versand
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 1.6 | 21|50PS(37KW) |
| 2.0 | 21|69PS(51KW) |
| 2.0 | 23|69PS(51KW) |
| 1.6 | 23|50PS(37KW) |
| 1.8 | 21|68PS(50KW) |
| 1.7 | 23|67PS(49KW) |
| 1.7 | 21|67PS(49KW) |
| 1.8 | 23|68PS(50KW) |
| Motor | Motorcode |
|---|---|
| 1.7 | 24|66PS(49KW) |
| 1.7 | 23|66PS(49KW) |
| 2.0 | 23|70PS(51KW) |
| 1.6 | 22|50PS(37KW) |
| 1.8 | 24|68PS(50KW) |
| 2.0 | 22|70PS(51KW) |
| 1.8 | 23|68PS(50KW) |
| 1.6 | 23|50PS(37KW) |
| 2.0 | 24|70PS(51KW) |
| 1.6 | 24|50PS(37KW) |
| 1.8 | 22|68PS(50KW) |
| 1.7 | 22|66PS(49KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 21|50PS(37KW) |
| 1.6 | 26|50PS(37KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 21|50PS(37KW) |
| 2.0 | 21|69PS(51KW) |
| 2.0 | 23|69PS(51KW) |
| 1.6 | 23|50PS(37KW) |
| 1.8 | 21|68PS(50KW) |
| 1.7 | 23|67PS(49KW) |
| 1.7 | 21|67PS(49KW) |
| 1.8 | 23|68PS(50KW) |
| Motor | Motorcode |
|---|---|
| 1.7 | 24|66PS(49KW) |
| 1.7 | 23|66PS(49KW) |
| 2.0 | 23|70PS(51KW) |
| 1.6 | 22|50PS(37KW) |
| 1.8 | 24|68PS(50KW) |
| 2.0 | 22|70PS(51KW) |
| 1.8 | 23|68PS(50KW) |
| 1.6 | 23|50PS(37KW) |
| 2.0 | 24|70PS(51KW) |
| 1.6 | 24|50PS(37KW) |
| 1.8 | 22|68PS(50KW) |
| 1.7 | 22|66PS(49KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 21|50PS(37KW) |
| 1.6 | 26|50PS(37KW) |
- ✓ 280x12 7D0 615 601 VW BUS T4 brake disc
- ✓ 1-piston 701615424 VW BUS T4 brake caliper
- ✓ rear axle
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ VW T2/ T3 Bus
- ✓ AFN1.9 TDI PD 116 HP engine, transverse installation
- ✓ simple engine conversion
- ✓ VW T2/T3 Bus
- ✓ 1.9l TDI (90PS) 1Z engines
- ✓ simple engine conversion

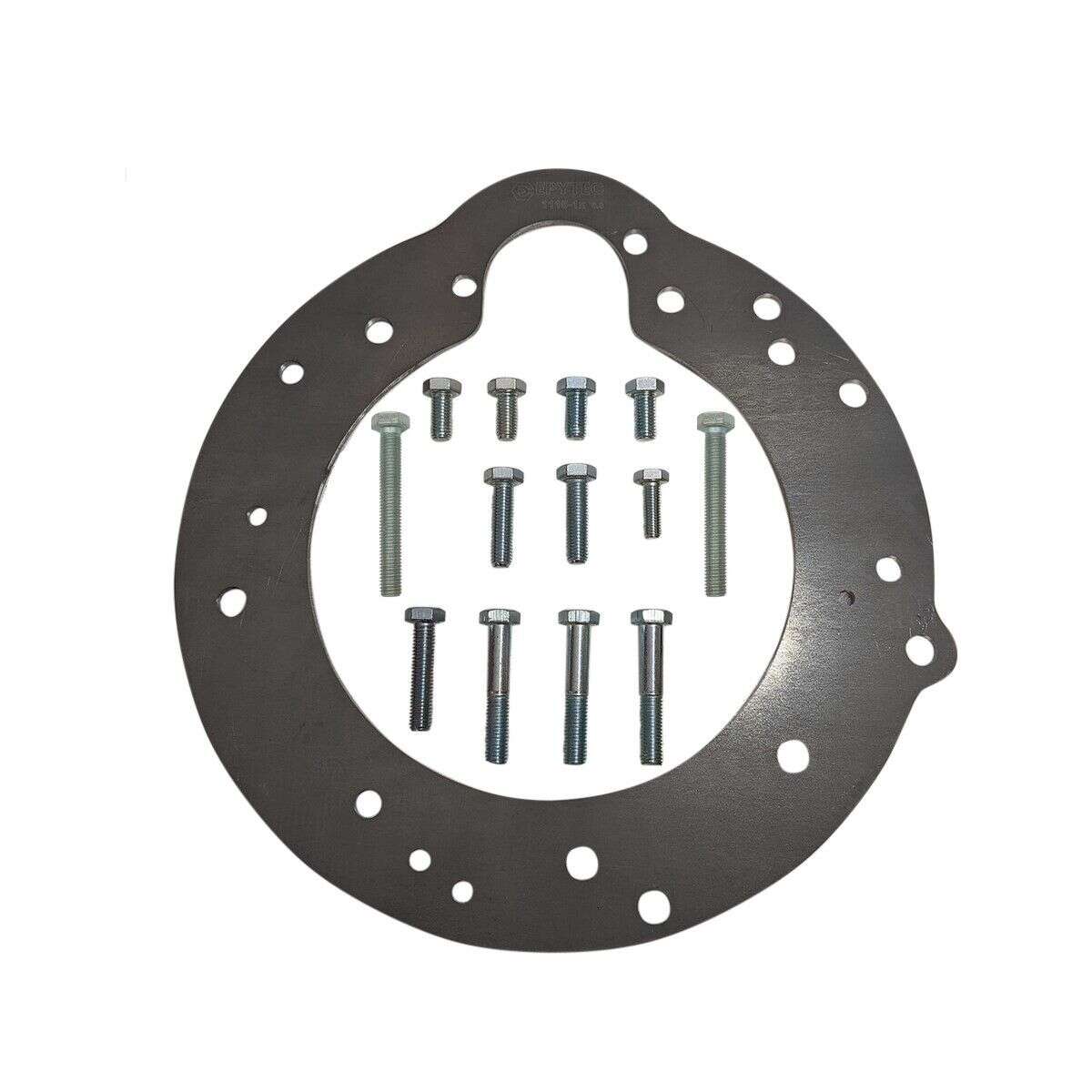

- ✓ gear adapter plate
- ✓ suitable for VW T3 BUS / box
- ✓ 012 Audi / VW 5-speed gearbox
- ✓ 280x12 7D0615601 VW BUS T4 brake disc
- ✓ 1-piston 7D0615424B VW BUS T4 brake caliper
- ✓ rear axle

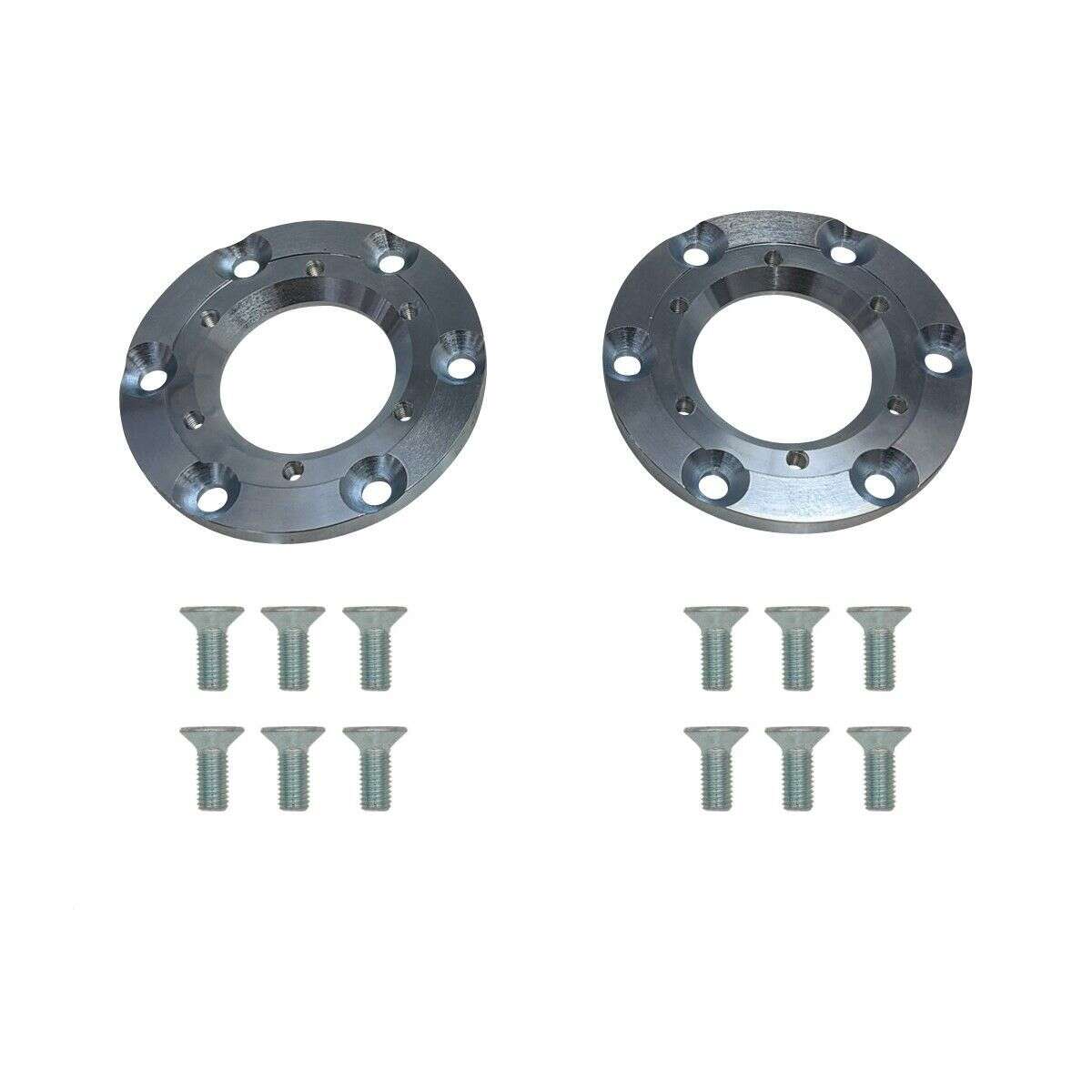

- ✓ drive shaft adapter
