BMW E30 brake caliper adapter 325x28mm BMW E46 M3 brake disc 6-piston Porsche Z17
€286.91*

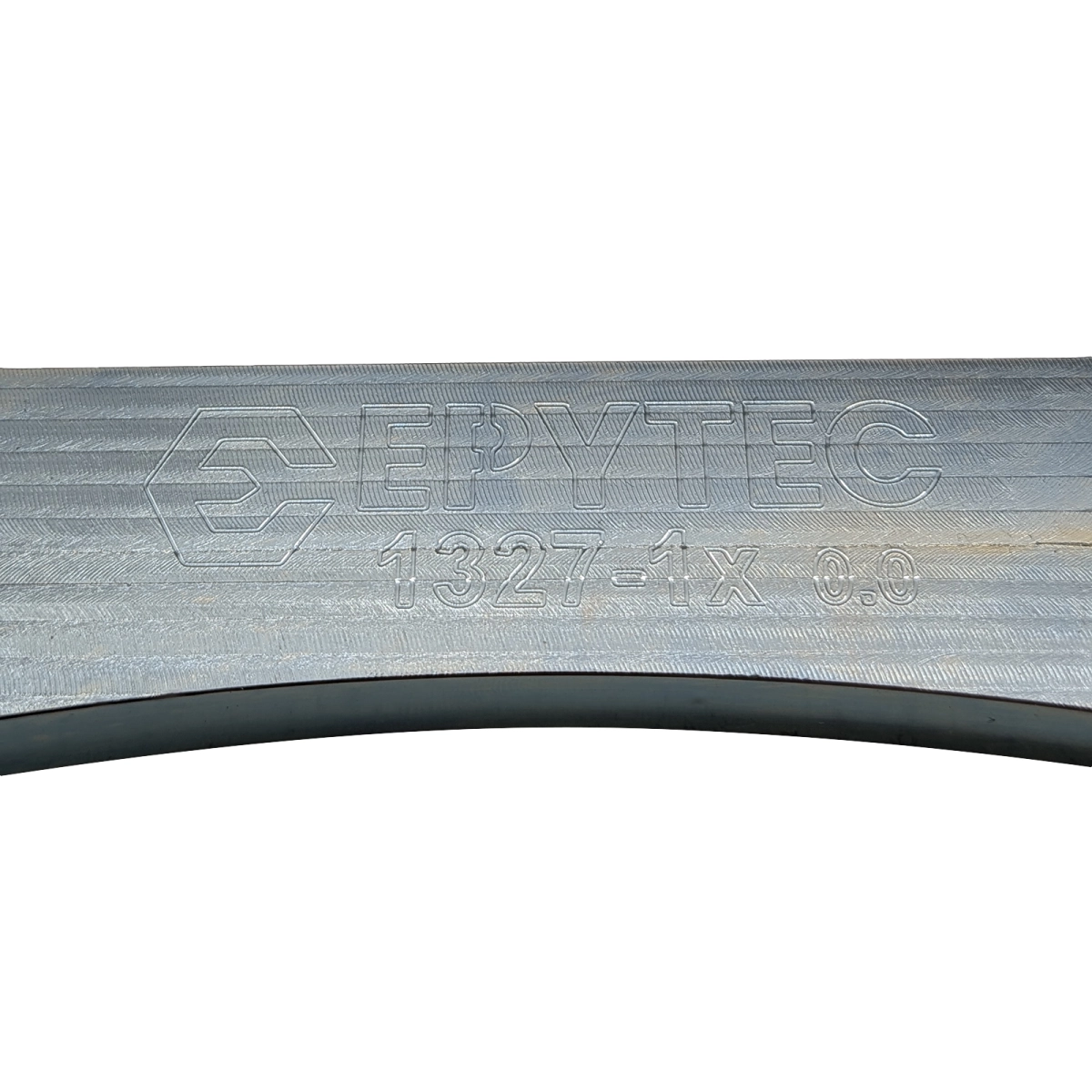

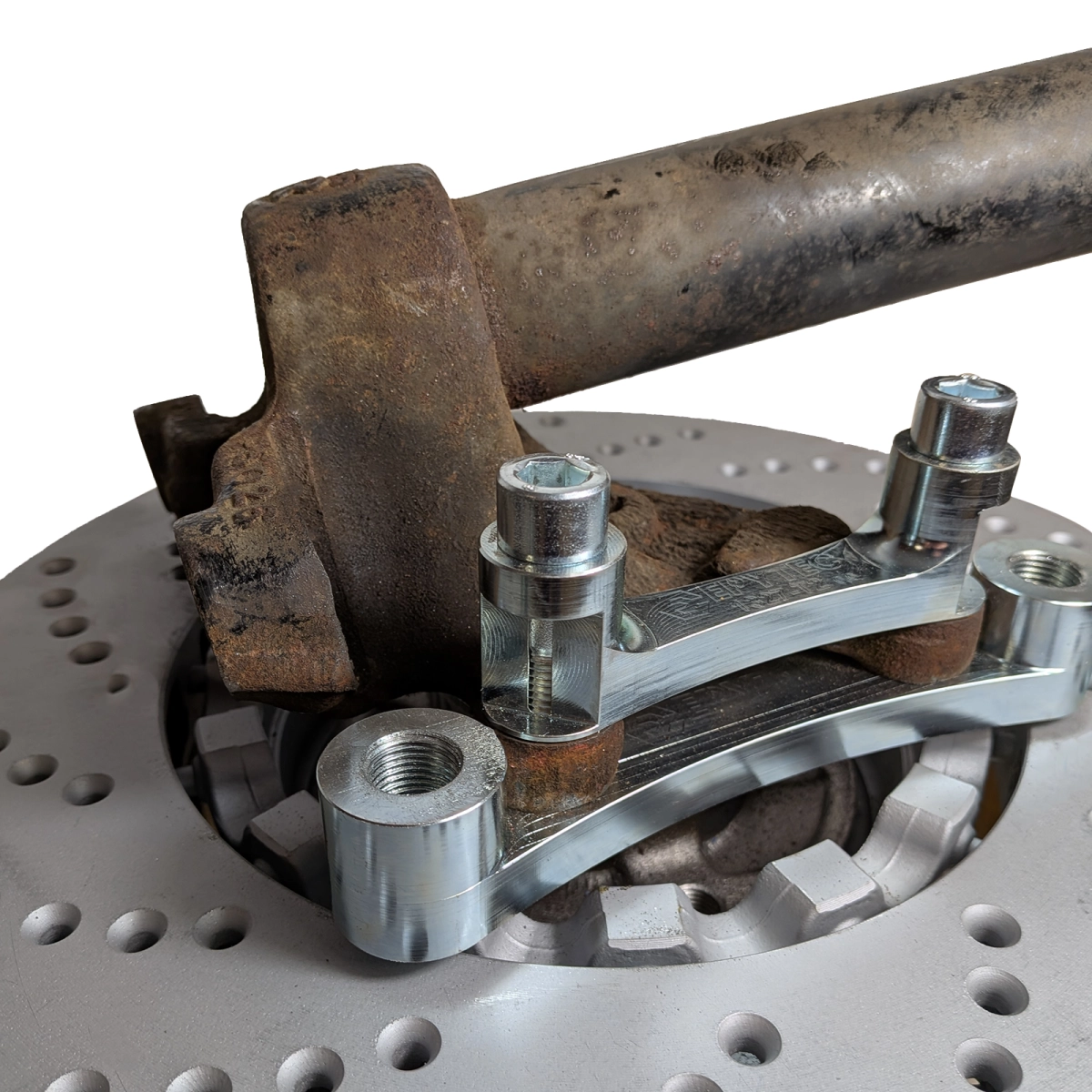

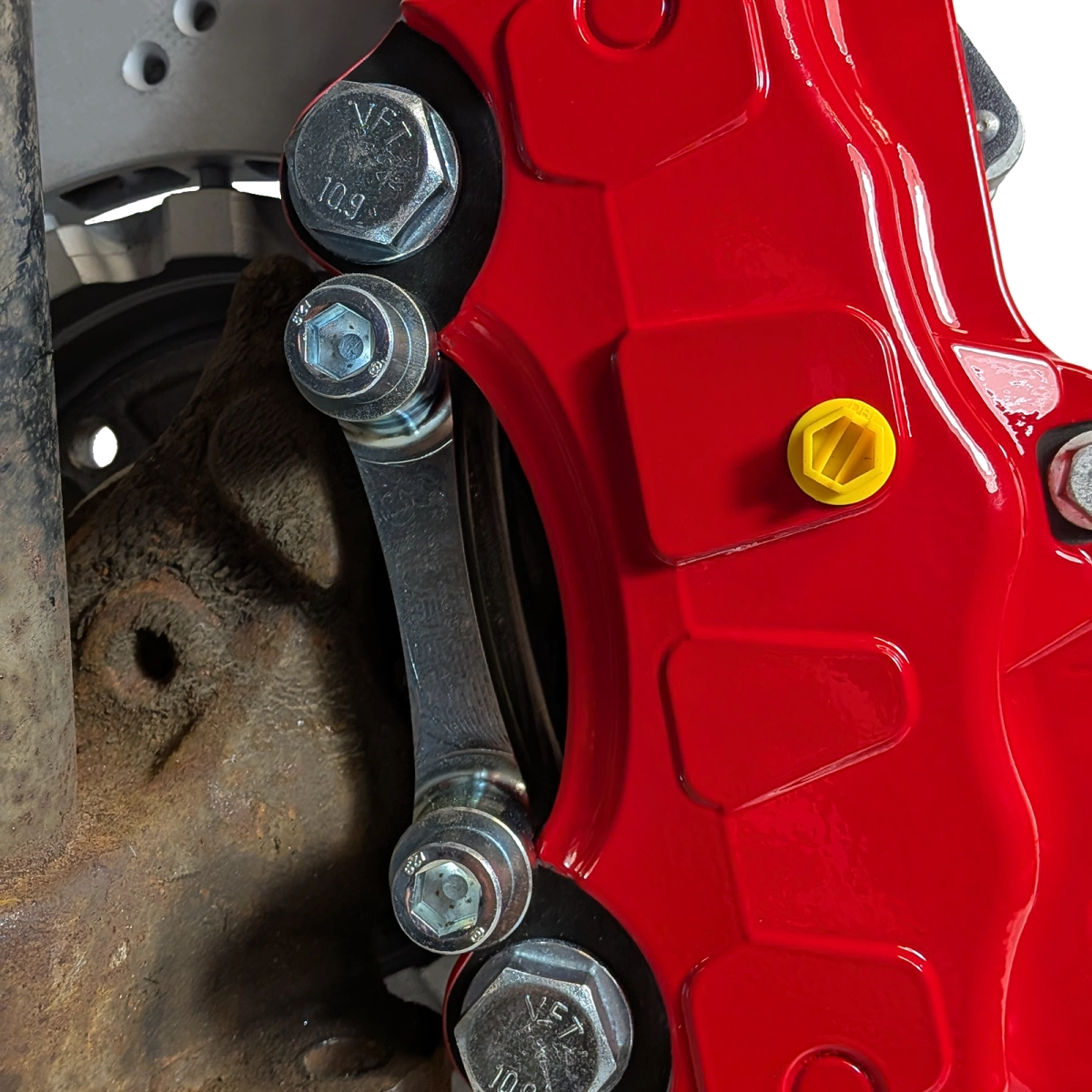

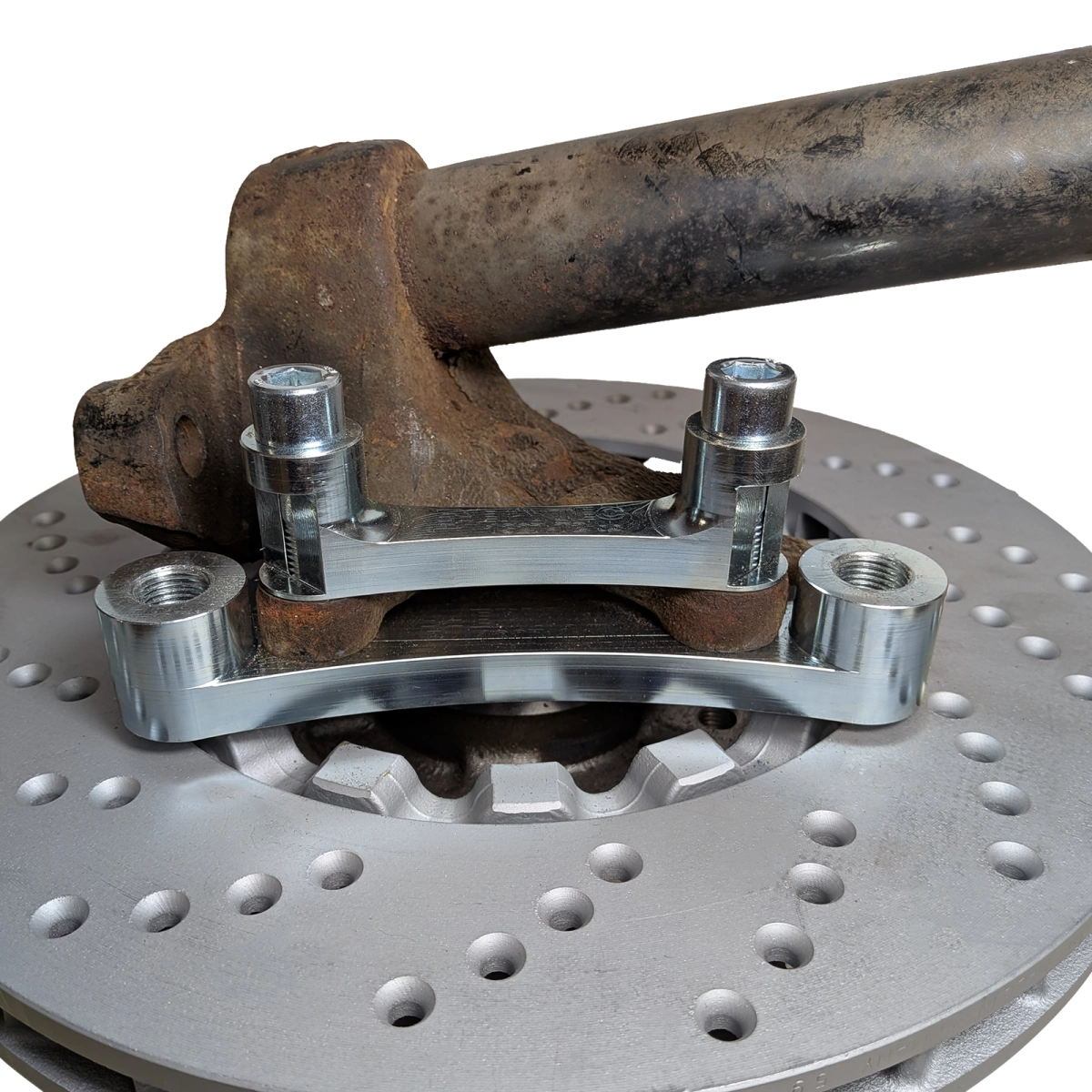

Brake caliper adapter for the front axle of the BMW E30 to Z17 Porsche/Audi/VW brake calipers

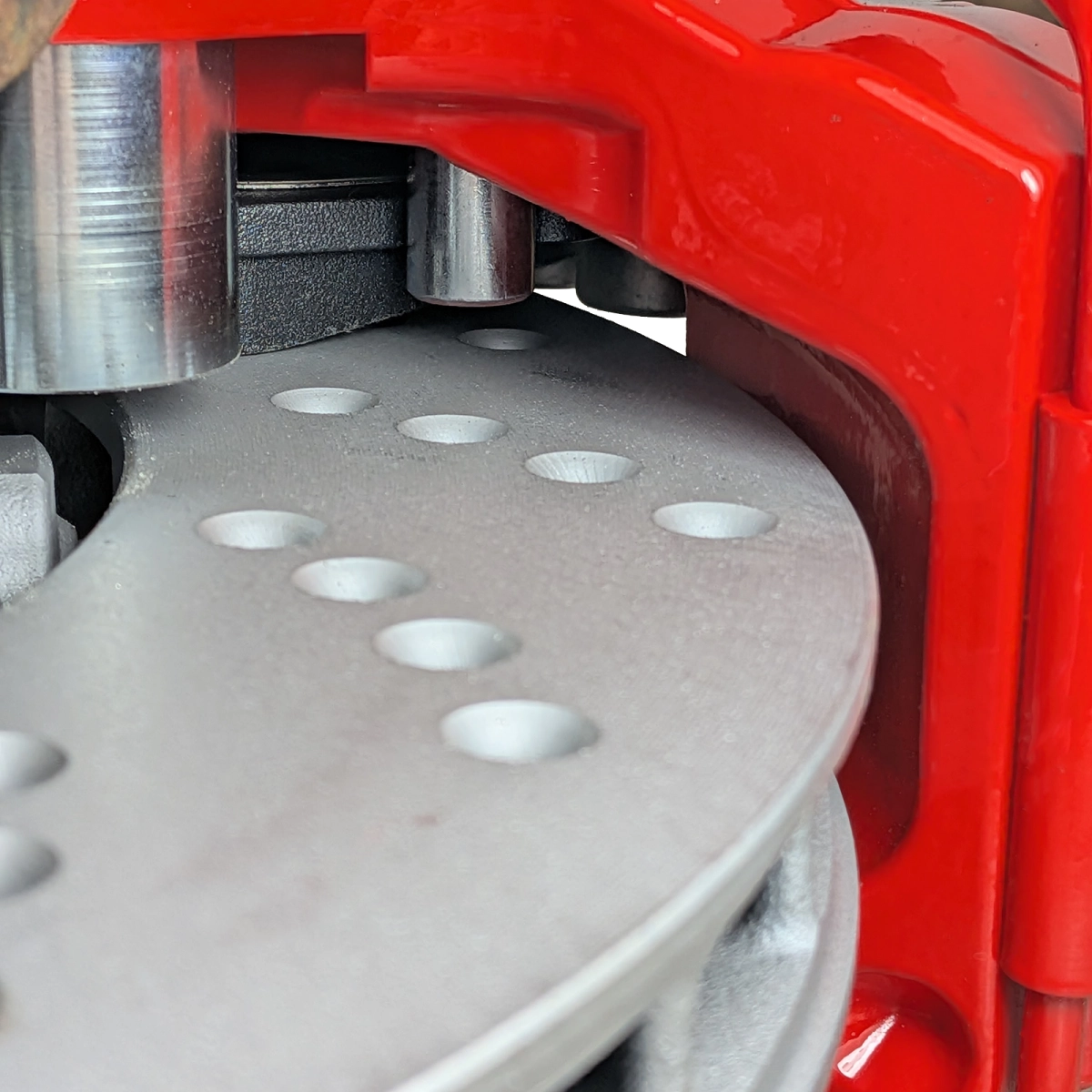

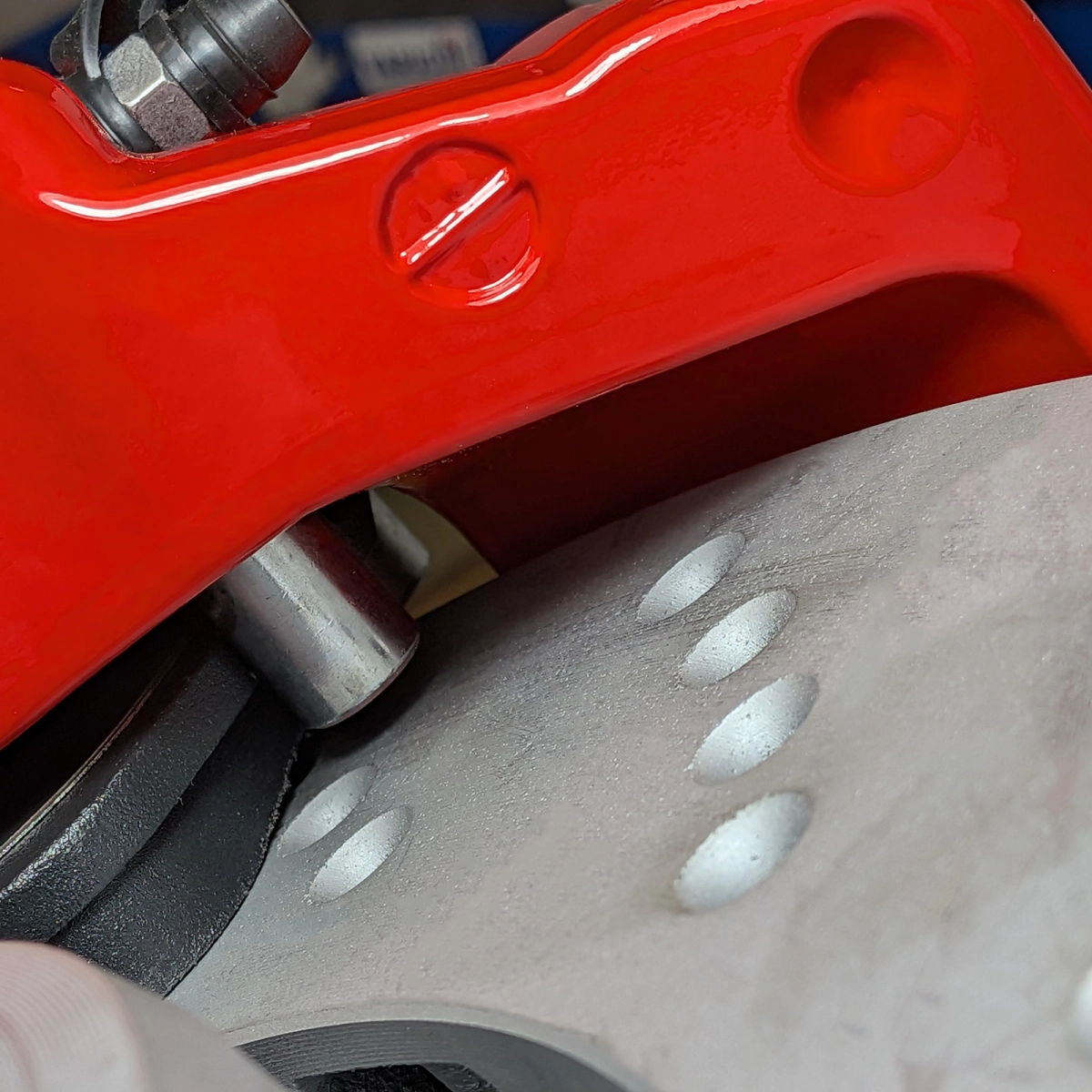

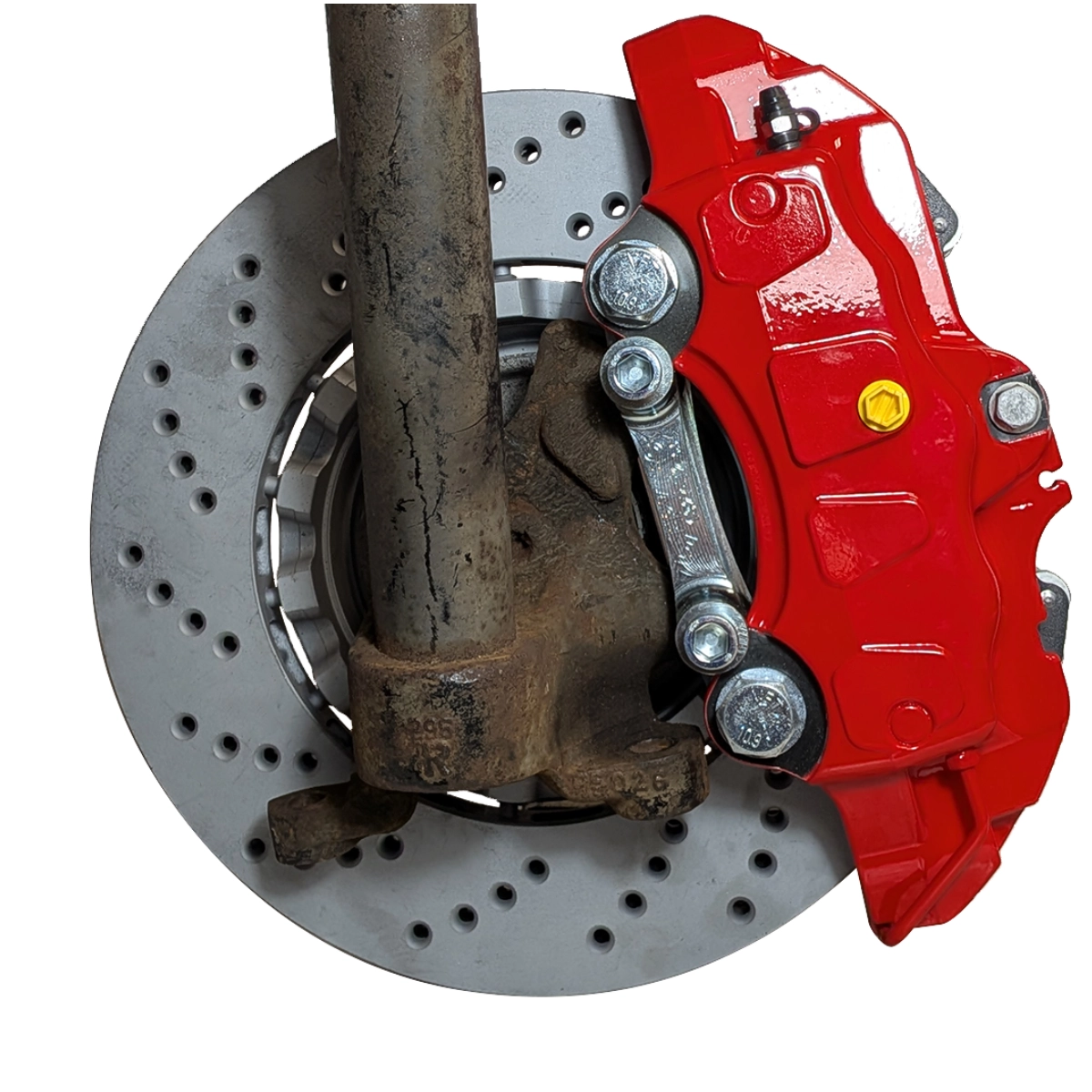

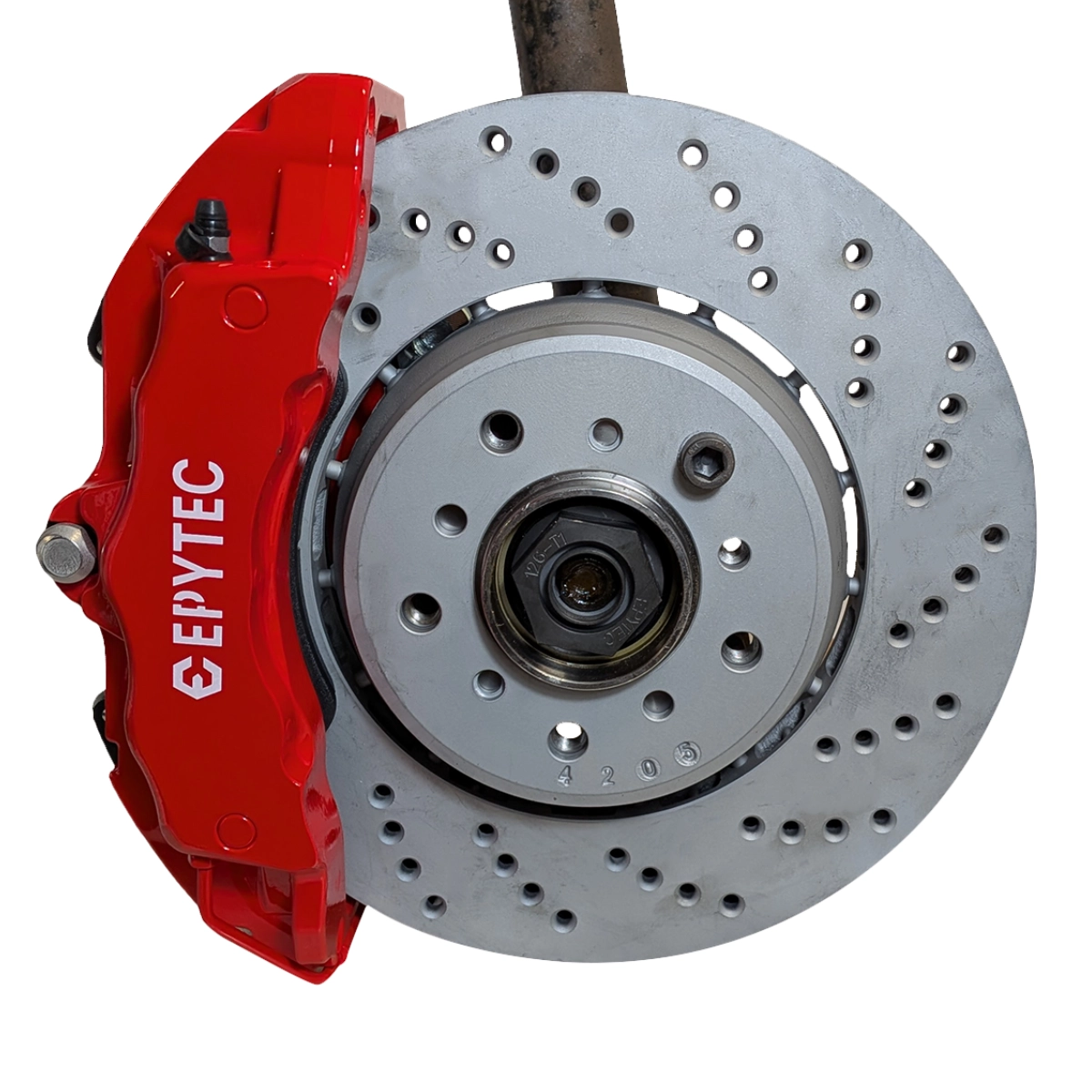

With this high-quality Epytec brake caliper adapter, the front axle of the BMW E30 can be converted to the powerful Z17 6-piston brake calipers from Porsche, Audi or VW in combination with large-format 325x28 mm brake discs from the BMW E46 M3. The result is a significantly better brake with sporty deceleration, ideal for tuning enthusiasts and drivers who rely on large brakes.
The combination of the Porsche/VW Z17 brake calliper and the BMW M3 brake disc offers a significant upgrade compared to the standard brake system and improves both appearance and braking performance in the long term.
Compatible vehicles
BMW 3er E30 models– front axle
- all E30 models With standard wheel bearing housing, without modification
Advantages of this brake system:
Our components, such as brake callipers and brake discs, come from standard vehicles and are OE parts. This makes replacing the brakes simple and straightforward and facilitates registration with the TÜV.
- Significantly shorter braking distance thanks to the Z17 6-piston callipers
- Improved response behaviour when braking
- Optimum heat dissipation and reduced fading thanks to larger brake discs
- Plug & play installation without modifications to the wheel bearing housing
- Can be retrofitted at any time
- Tuning upgrade for more driving safety and performance
- Epytec adapter: no re-welding, no re-milling, no modifications necessary
Required components
- Brake caliper Z17 Porsche / VW / Audi 6-piston:
- Porsche left: 95535142130 / 95535142131 / 95535142132 / 95535142133 / 955.351.421.33
- Porsche right: 95535142230 / 95535142231 / 95535142232 / 95535142233 / 955.351.422.33
- VW / Audi: 7L6615105AQ / 7L6615123H / 7L6615123M / 7L6615123P / 7L6615123T
- Brake discs BMW E46 M3 – 325x28 mm:
- left: 34 11 2 282 801
- right: 34 11 2 282 802
- Brake pads:
- Suitable for the Z17 brake callipers mentioned above
- part number: 7L0698151
Scopeof delivery

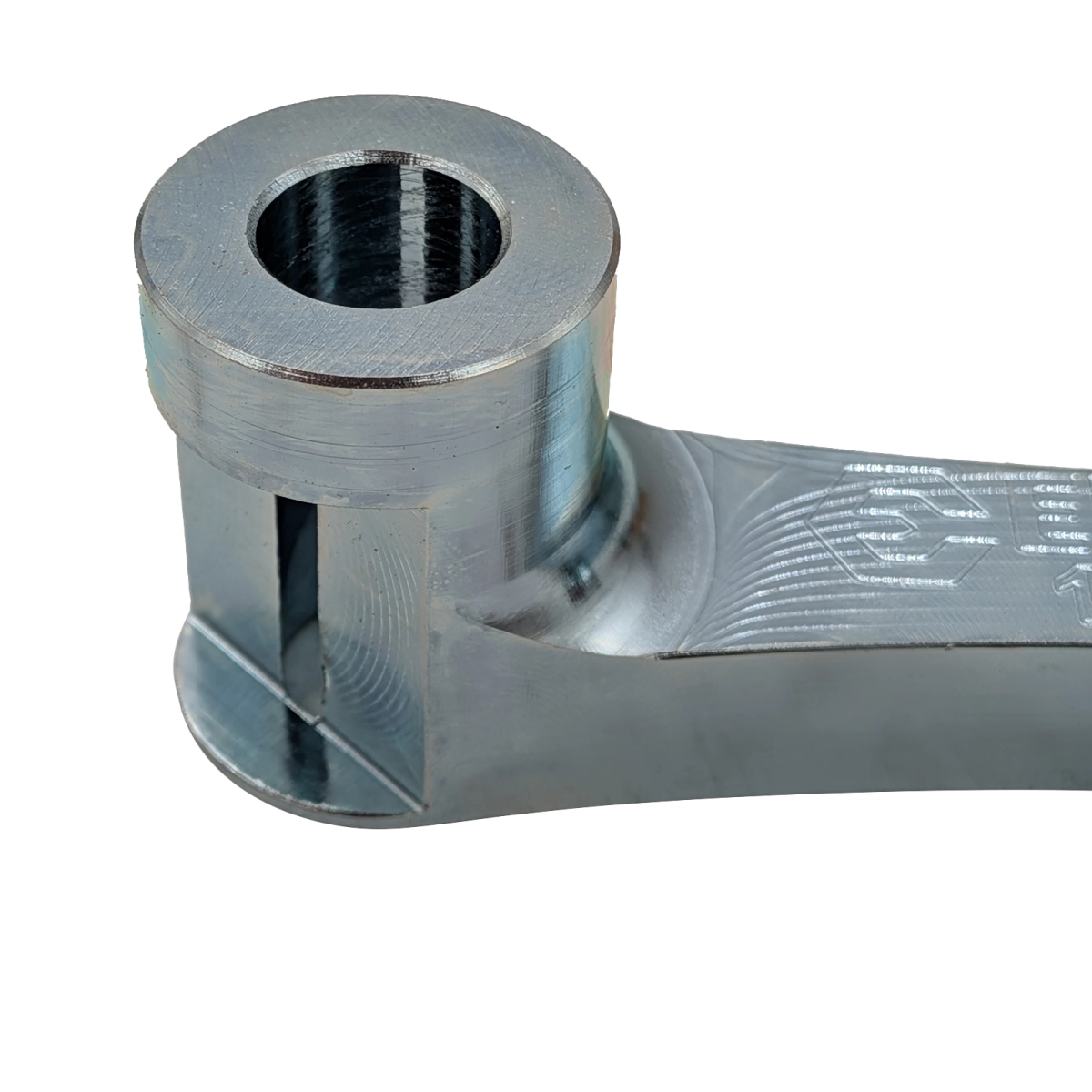

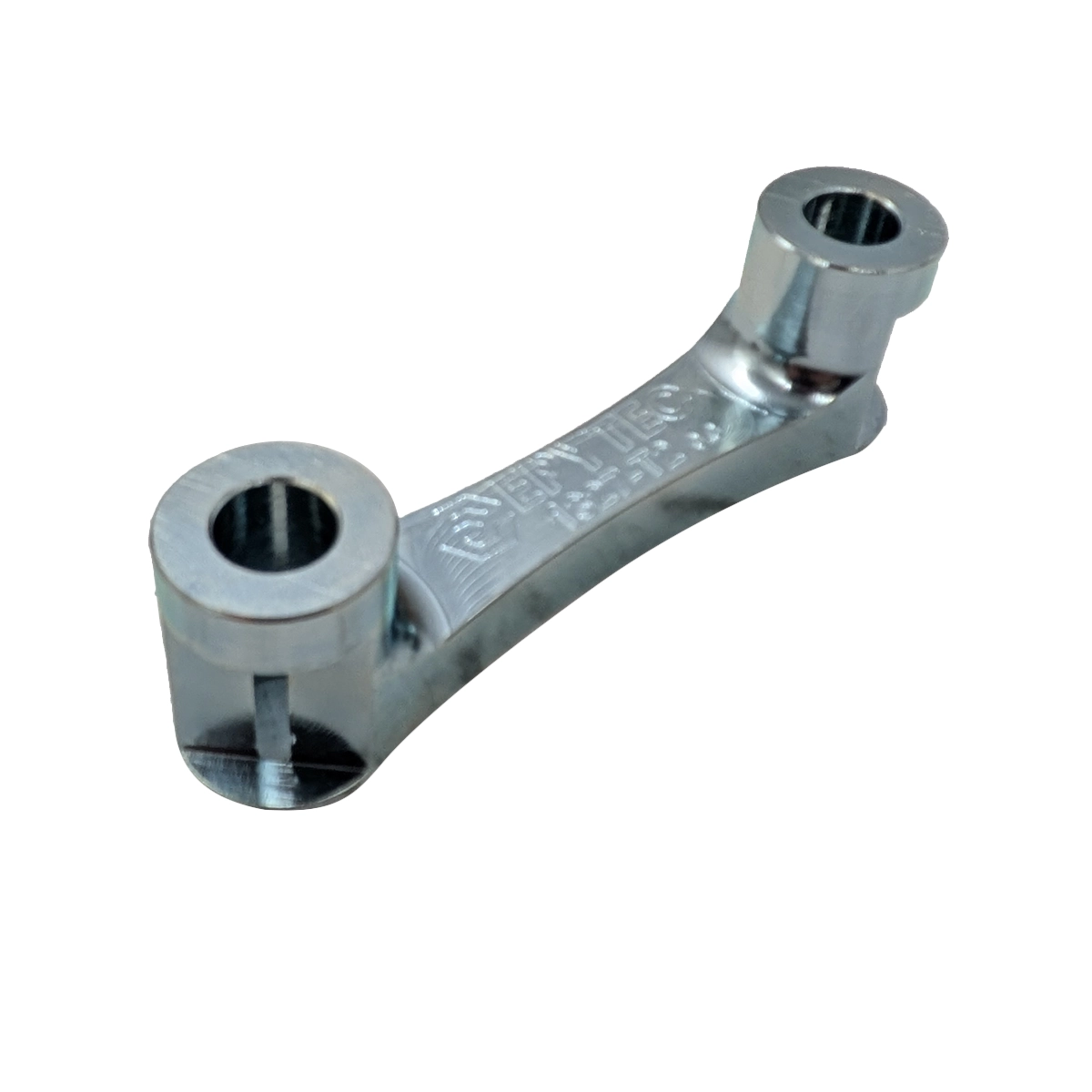

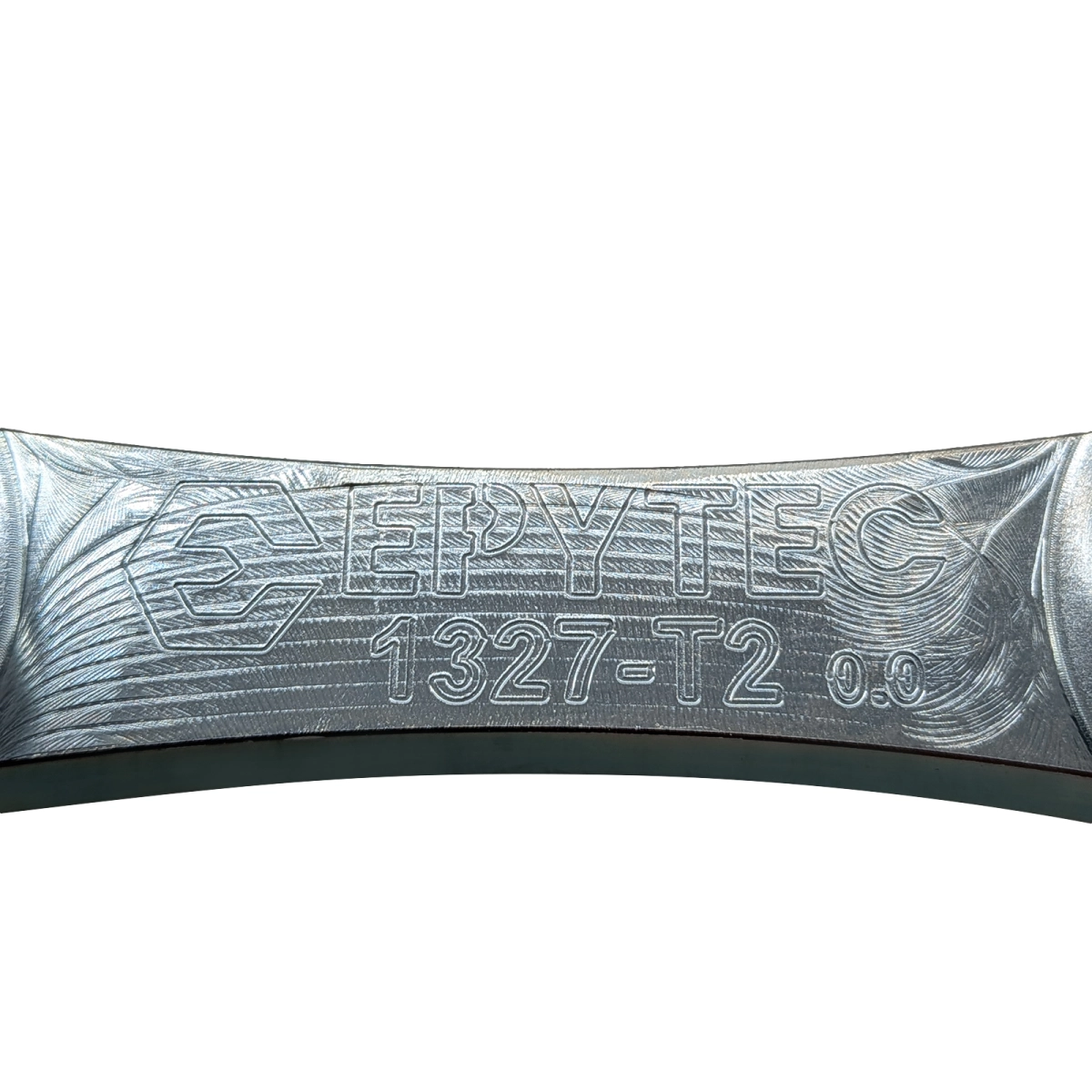

- 2x brake calliper adapter for the front axle of the BMW E30
- High-strength screw material
- Material certificate for individual approval according to §21 StVZO
Maximum braking performance for your project vehicle
This Epytec brake upgrade is the perfect solution for anyone who wants to equip their BMW E30 with large brakes and at the same time rely on OE components. The combination of Z17 6-piston brake callipers and 325 mm BMW E46 M3 brake discs offers a sportier look, improved driving safety and significantly better braking - ideal for tuning, conversions and everyday use. Thanks to simple installation and retrofitting, the vehicle remains flexible in use.
Rely on Epytec - your partner for tuning, conversion and better brakes with a big impact.
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
