BMW E30 Wheel Hub Conversion PCD 5x120 E36 E46 Adapter Spacer Front 5 Hole Hub

  • ✓ Conversion bolt circle 5x120
  • ✓ wheel hub E36 / E46
  • ✓ front axle

Conversion kit für all BMW E30 models to install the wheel hub of BMW E46 and E36 with 5x120 PCD.
The adapter bushs / bushings and the nuts are made of high-strength steel and black galvanized.

Assembly:

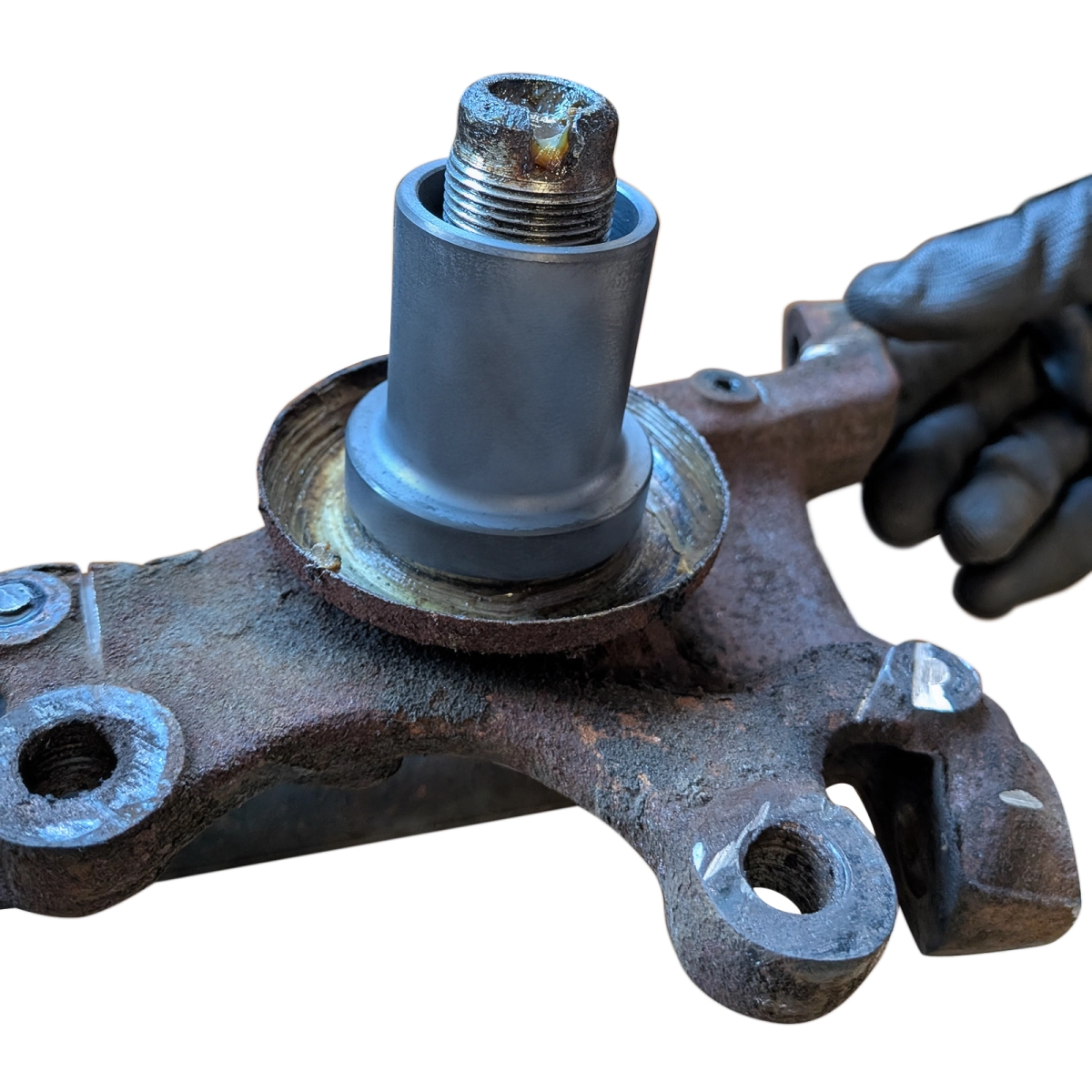

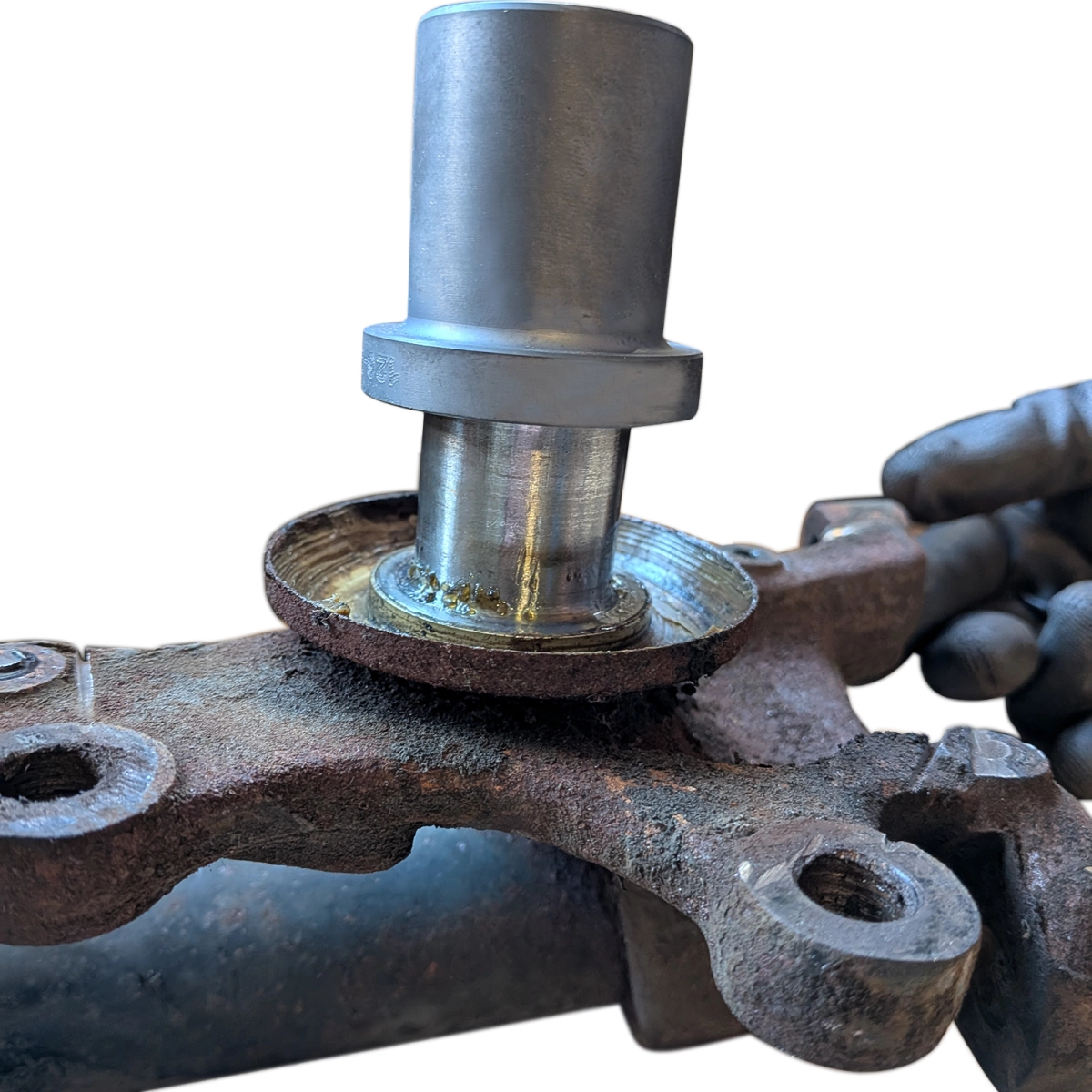

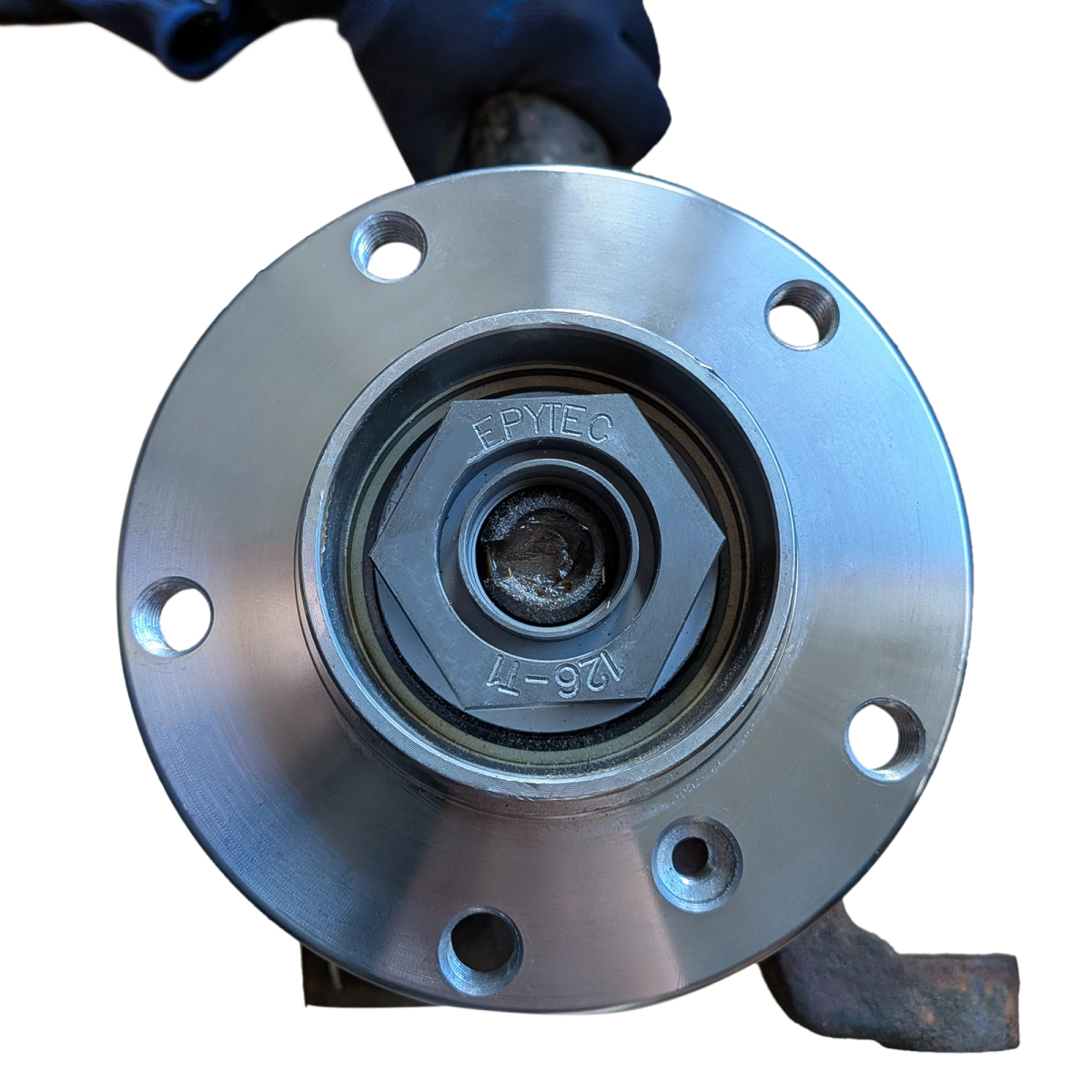

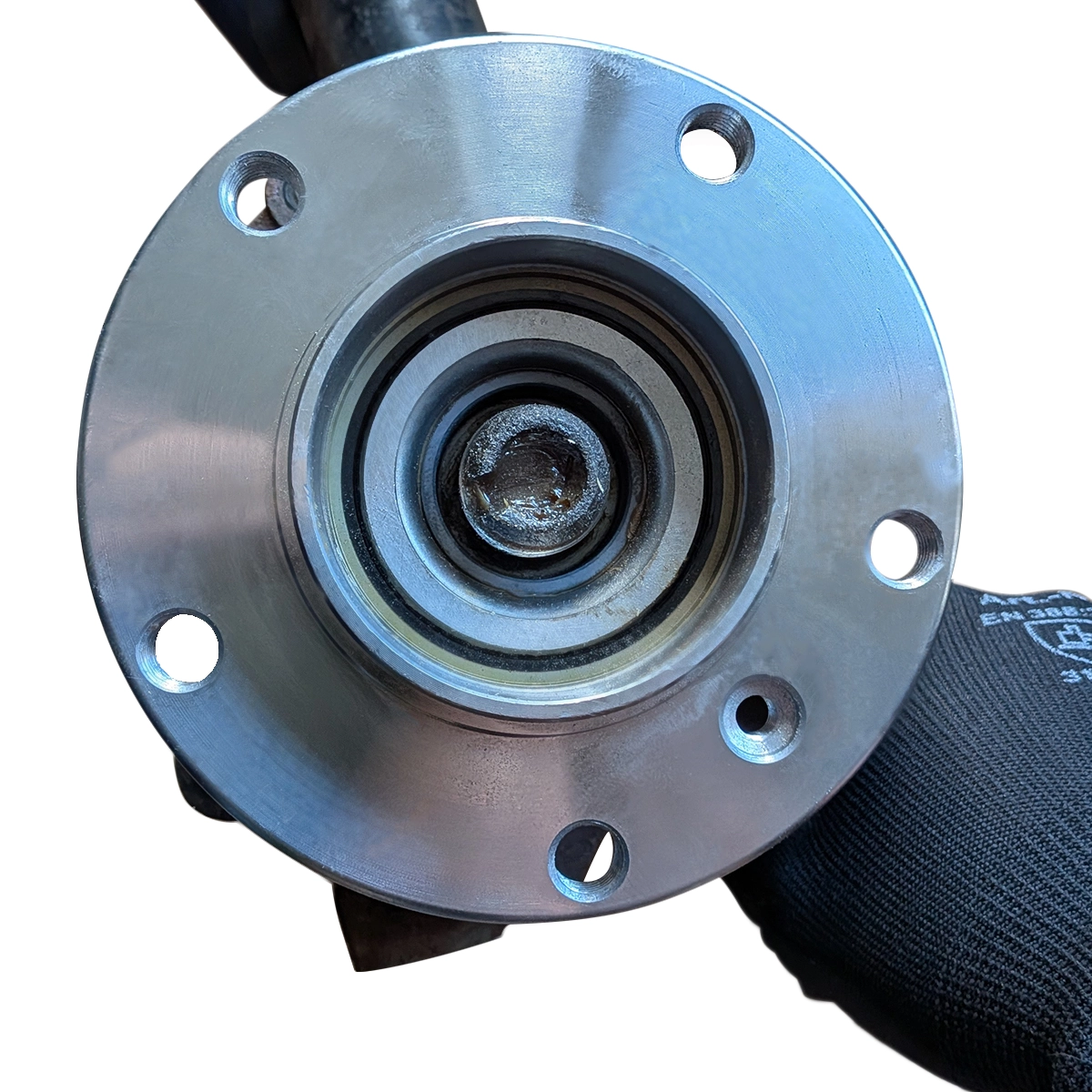

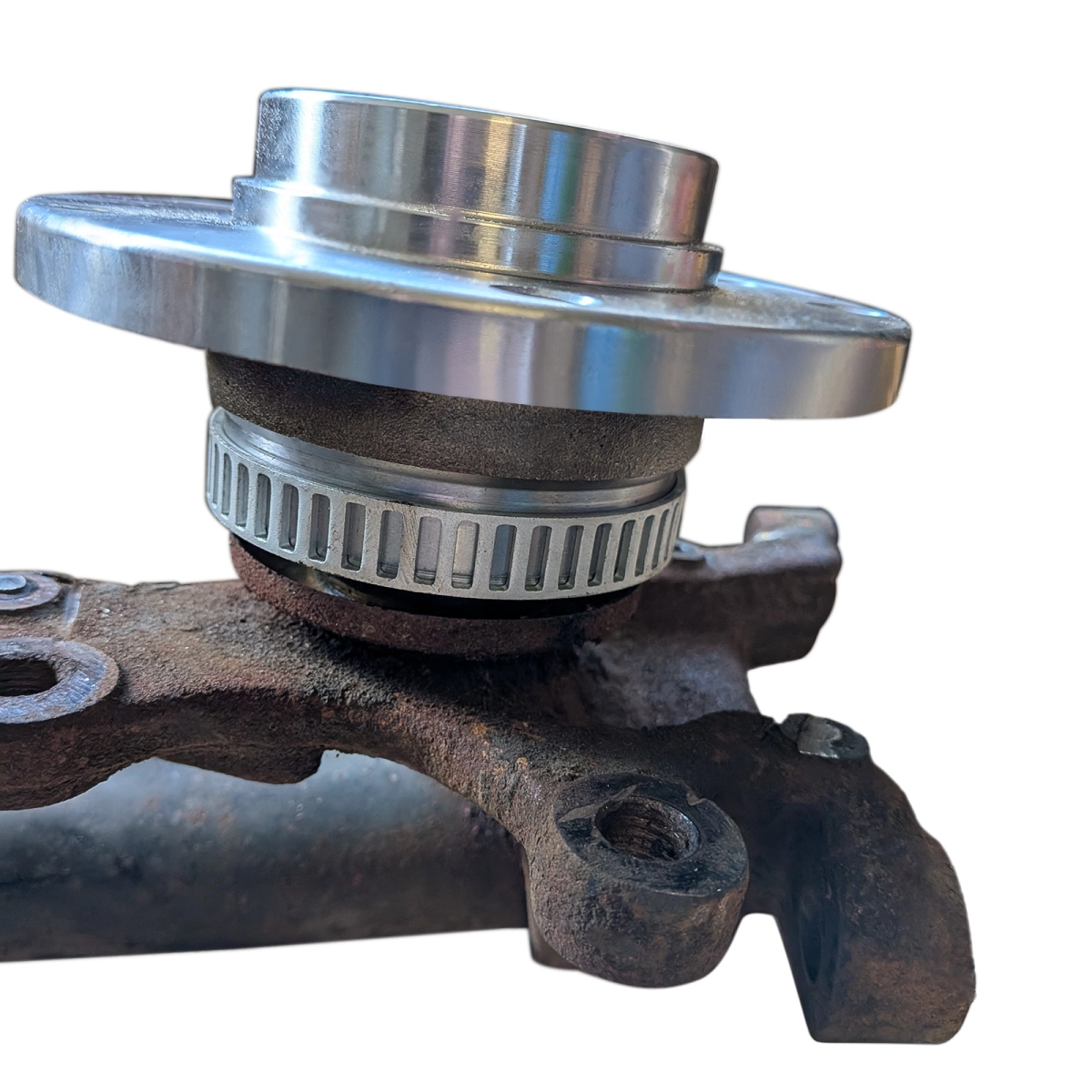

The adapter buchs are simply placed on the original E30 axle stub. Then the E36/E46 hub with the original E36/E46 bearings and the dust cover can then be placed over it and then screwed with the nuts (with lock function).
You can reset the original state at any time.
Brake caliper adapters for larger brake systems are available in our shop,e.g under article number 149.

The axle track is then 7mm wider on each side.

If you want to keep the original brake system or a large brake system where the brake discs have a different bolt pattern such as 5x120, we can simply re-drill the brake discs for you -> you can find the article -> by clicking here

Required components:

  • hub E36/E46, including wheel bearing and dust cover
  • Socket wrench insert with wrench size 46 for mounting the wheel hub

Delivery:

  • 2x adapter bushs for conversin BMW E30 to E36/E46 hub
  • 2x nuts (with lock function)
  • material certificate

Tipps, Infos und Hinweise:

  • Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
  • Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
  • Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden. >> Jetzt direkt zu Spurverbreiterungen nach Wunsch <<
  • Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst. Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Einbauort: vorne
Einbauort: vorne

10 of 52 reviews

Average rating of 4.8 out of 5 stars


90%

8%

2%

0%

0%


Leave a review!

Share your experiences with other customers.


13 April 2021 07:26

Review with rating of 5 out of 5 stars

Justin H

Ich habe dieses Produkt gewählt, da ich einen 5-Loch Umbau an meinem E30 vorhabe und dieses Eingetragen werden kann. Ich habe es zwar noch nicht verbaut, aber die Qualität sieht sehr hochwertig aus. Die Tüv Papiere waren sehr schnell und sehr einfach heruntergeladen.

26 August 2023 14:14

Review with rating of 5 out of 5 stars

Daniel P

Top teile top firma.

25 February 2021 14:58

Review with rating of 5 out of 5 stars

Patrik M

Fitment and overall quality top notch!

12 August 2020 16:42

Review with rating of 5 out of 5 stars

Ivan I

Ok

14 April 2021 21:35

Review with rating of 5 out of 5 stars

Gerald M

allea top und schnelle lieferung.

13 September 2023 07:14

Review with rating of 5 out of 5 stars

Paul K

Passt alles, wie es soll..... Top

16 June 2019 15:35

Review with rating of 5 out of 5 stars

Jochen W

👌👌👌👌👌

30 June 2023 08:46

Review with rating of 5 out of 5 stars

Kimmo L

Fit´s fine!

25 April 2018 06:07

Review with rating of 5 out of 5 stars

Wolfgang R

Perfekt

11 April 2019 05:00

Review with rating of 5 out of 5 stars

Prantl D

Absolut passgenaue top ware!

  • What size nut do you need for the Epytec wheel hub nut?
  • The nut width of the wheel hub nut is 46

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
