Why do you use the Porsche Cayenne brake calipers 955.352.421 / 955.352.422 for this adapter and not the Porsche Panamera brake calipers 970.352.425 / 970.352.426?

For this brake caliper adapter, we deliberately use the Porsche Cayenne brake calipers with the part numbers 955.352.421 / 955.352.422, as our type approval was created precisely for these brake calipers. An additional appraisal for the Panamera brake calipers would be very costly, although the braking performance of the calipers is very similar and the differences are mainly in the appearance.Another point is the construction of the adapter: The Cayenne brake caliper can be adapted much more sensibly and cost-effectively for this application. A significantly stronger base material would be required for the Panamera brake caliper, resulting in more milling effort and making the adapter correspondingly more expensive.Additionally, there is a problem with the Panamera brake calipers concerning the assignment: Under the part numbers 970.352.425 / 970.352.426, different versions are in circulation – once for 330 mm and once for 350 mm brake discs on the rear axle. Even though the part numbers can be the same, the calipers differ in height or in the machined contact surface. This quickly leads to confusion and compatibility issues.For these reasons, we offer this kit exclusively for the specified Porsche Cayenne brake calipers. This keeps the combination technically unambiguous, type-approved, and as uncomplicated as possible for you.

Why does the brake pad not cover the entire friction surface of the brake disc during a brake conversion, and what influence does this have on the braking performance?

In a brake conversion with components from different vehicle models, the radial height of the brake pad and the width of the friction ring do not necessarily match. The pad geometry is determined by the caliper being used. Therefore, part of the friction surface of the brake disc may remain unused, even though the components are mounted according to the intended conversion combination.The percentage coverage of the brake disc alone is not a measure of braking performance. For the generated braking torque, in particular, the contact pressure of the brake pads, the coefficient of friction, and the effective friction radius are crucial. The effective friction radius describes the distance between the wheel axis and the point of application of the resulting frictional force.A larger effective friction radius generates higher braking torque with the same contact pressure and coefficient of friction. If the caliper is positioned further out by the adapter, this lever arm increases. For example, if the effective friction radius increases by 15%, the braking torque increases by 15% under otherwise identical conditions—even if the pad does not utilize the entire width of the friction ring. What matters is the actual position of the pad, not just the outer diameter of the brake disc.In contrast, the pad area influences, among other things, the surface pressure, thermal load, and wear. Depending on its design, a larger brake disc can also allow for higher heat capacity and better heat dissipation.An unused ring on the brake disc is therefore not a sign that something is wrong or of inferior braking performance. What matters is the designed combination, the correct position of the brake pad on the friction ring, as well as the hydraulic and thermal coordination of the entire brake system.

Why do we offer custom paint finishes exclusively in RAL colors?

RAL color tones are clearly defined and easily understandable for all parties involved. This allows misunderstandings in color selection to be avoided and the desired color tone to be reliably assigned.Individual manufacturer colors, special color tones or freely chosen color names cannot be fully covered due to the very large variety of colors. Therefore, custom paint jobs for all offered brake calipers and brake system kits are only possible with a clear RAL color number.

My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

Which RAL colors can we not offer for the coating of our brake calipers?

We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.We do not offer these RAL fluorescent colors (examples)RAL 1026 Fluorescent YellowRAL 2005 Fluorescent OrangeRAL 2007 Fluorescent Light OrangeRAL 3024 Fluorescent RedRAL 3026 Fluorescent Light RedRAL 6038 Fluorescent GreenTip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.

Why does the drilling of the brake disc fixing not match the wheel hub when converting the brakes?

In brake system modifications, OE components from different vehicle models are often combined. Although all functionally relevant dimensions are coordinated, the position of the hole for the standard brake disc fixing screw may differ from the threaded hole in the wheel hub. This is design-related and not an indication of a wrong brake disc or a faulty fit—provided that the components specified in the product description are used.The fixing screw is solely used to temporarily hold the brake disc on the wheel hub with the wheel disassembled. It does not perform the centering or the force-fit fastening of the brake disc.The centering is done depending on the modification over the centering collar of the wheel hub or an included centering ring. When mounting the wheel, the brake disc is flat and force-fit clamped against the wheel hub flange together with the rim using the wheel bolts or wheel nuts.The standard fixing screw is not used in this case. Drilling or machining the brake disc or the wheel hub is neither required nor intended.

What torque should be used to tighten the sealing nipples on the brake caliper?

We recommend tightening the sealing nipples on the brake caliper with 20 Nm.Why is this important?The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.Should a torque wrench be used?Yes, for precise and safe installation, we recommend using a torque wrench.Should anything be checked after installation?Yes, the sealing nipple should be checked for tight fit and sealing afterward.

Big brake system KIT rear axle VW T5 T6 Bus Porsche Cayenne 4-piston caliper VW T5 Bus handbrake caliper 330x22 brake discs with parts certificate - Brake caliper color: painted in desired color

Name: Big brake system KIT rear axle VW T5 T6 Bus Porsche Cayenne 4-piston caliper VW T5 Bus handbrake caliper 330x22 brake discs with parts certificate - Brake caliper color: painted in desired color
Brand: EPYTEC
SKU: 821-KIT-Wunschfarbe
Price: 1915.37 EUR
Availability: OutOfStock

€1,915.37*

Prices incl. VAT plus shipping costs

2-4 weeks Product will be made for you,

Product number: 821-KIT-Wunschfarbe

Delivery by Monday, 30.11.2026 if you order within the next 1 Hour.

Brake caliper color

Blank without color

Red with Epytec logo

Painted in the color of your choice

bogx.config.hint_before

Desired color

maximum characters = 18, rest = 18

Price calculation

Pricebox
Name	Title	Surcharge
Desired color:

Your Price:

% €1,915.37 * €1,915.37 * ( 0% saved )

rounded up to minimum price

Prices incl. VAT plus shipping costs

* Configuration is incomplete - please check it!

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

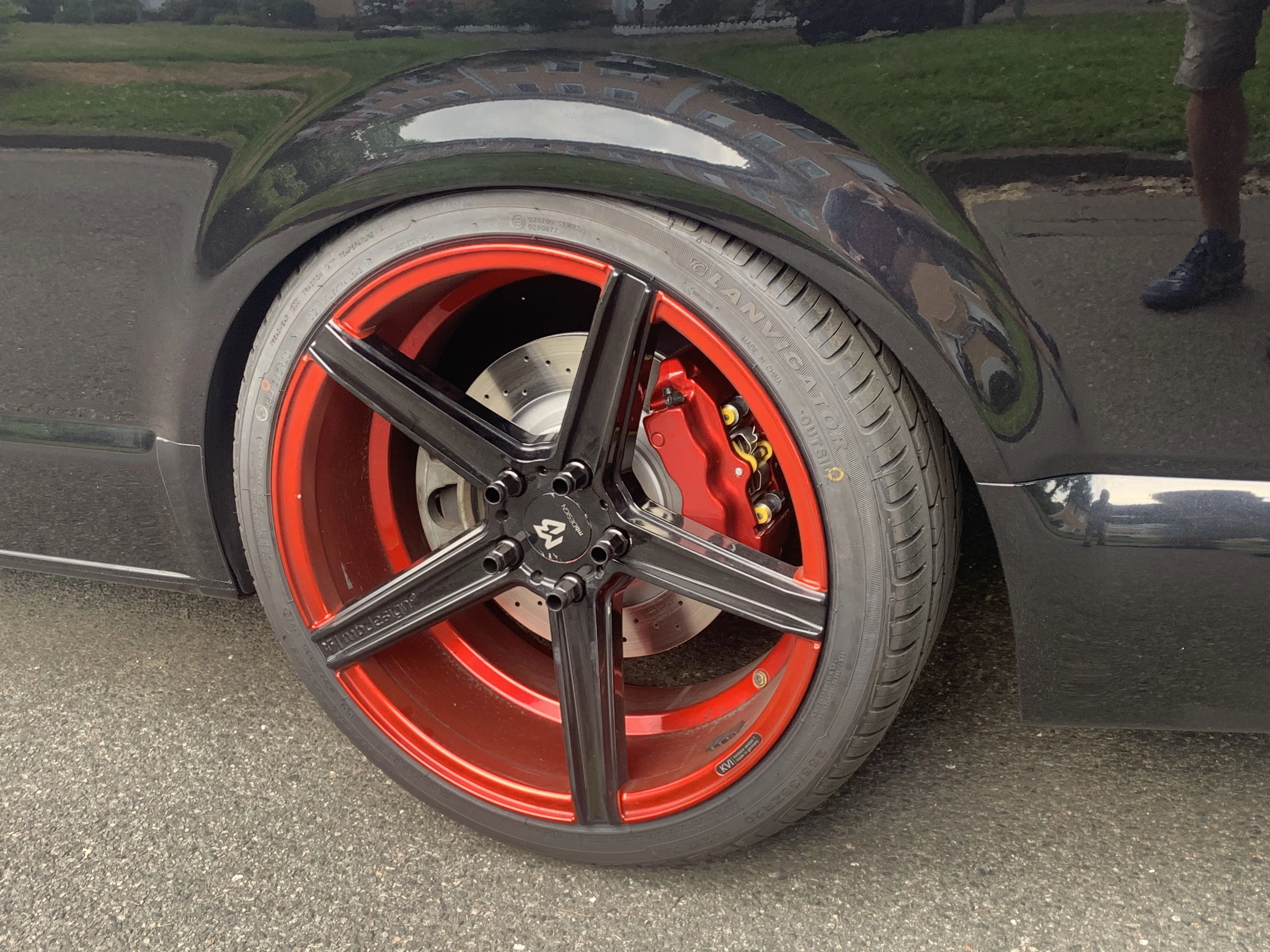

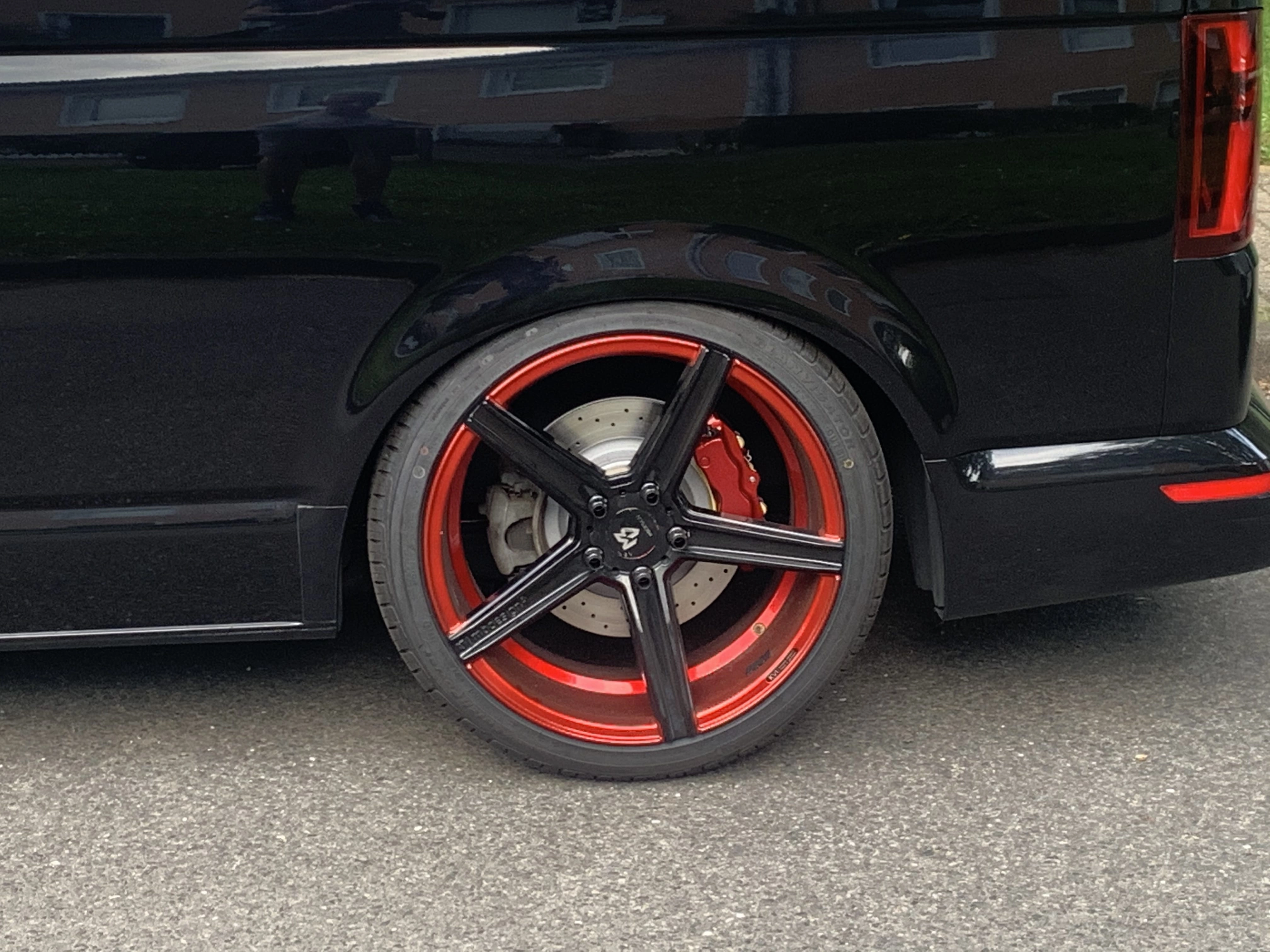

With our large high-performance brake kit for the VW T5 T6 Bus, you can upgrade your rear axle to a 4-piston braking system in combination with the original VW T5 Bus parking brake caliper and achieve ideal performance.

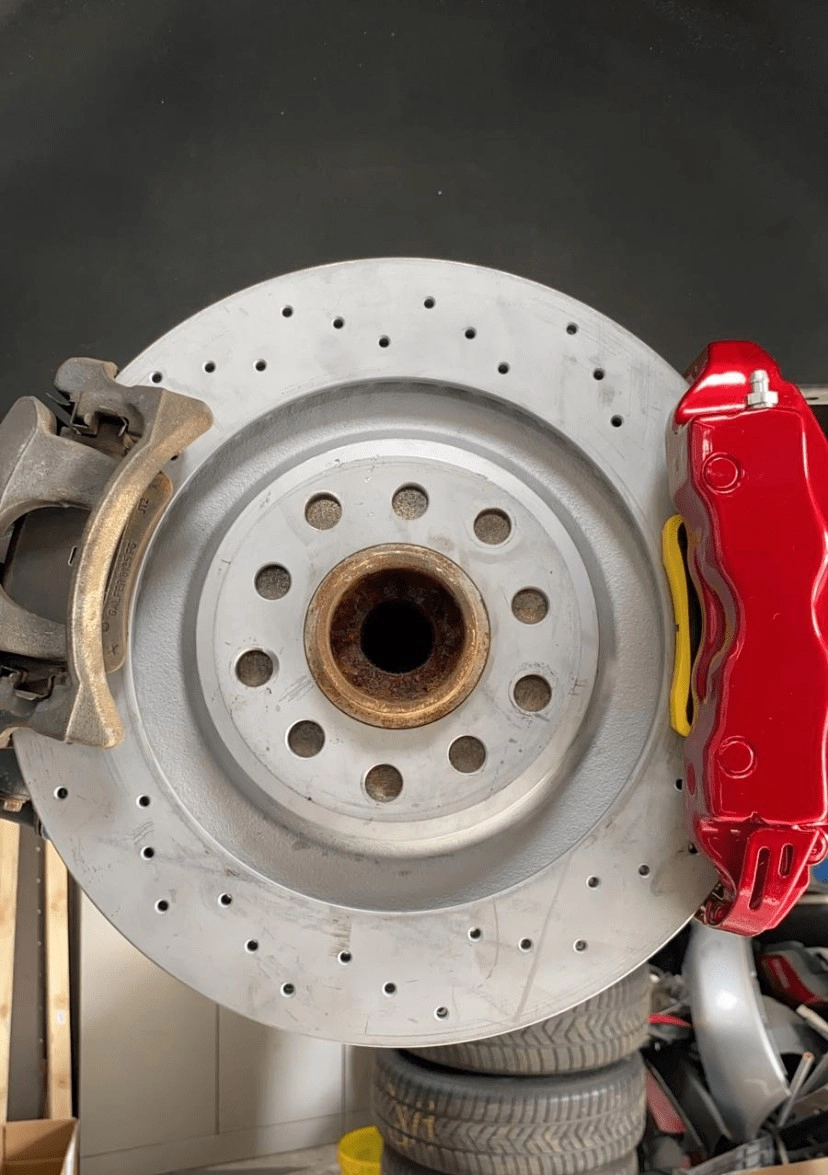

- Brake calipers: Porsche Cayenne 4-piston brake calipers
- Parking brake calipers: VW T5 Bus parking brake caliper
- Brake discs: 330x22 mm Audi A4 A5

With this high-performance brake kit / Big Brake Kit, you can use the Porsche Cayenne 4-piston brake calipers and the VW T5 Bus parking brake caliper in combination with the 330x22 mm brake discs from the Audi A4 A5 on your VW T5 T6 Bus.

The large brake kit is not only sporty but also suitable for everyday use. Thanks to the drilled sports brake discs in combination with our ceramic brake pads, it delivers ideal performance while simultaneously reducing brake dust, temperature and wear.

Another advantage of our brake kit is that it uses the same original brake calipers and brake discs that are also installed in production vehicles. These OE parts not only make brake replacement simple and straightforward but also facilitate TÜV approval.

This kit includes a parts approval certificate for easy registration in accordance with §19.3 StVZO, allowing straightforward approval by TÜV, DEKRA, KÜS or GTÜ.

With this high-performance brake kit, you can get started straight away and have everything you need to upgrade your rear axle to a 4-piston braking system.

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles:

VW T5 Bus
VW T6 Bus

Advantages of this braking system:

Easy TÜV registration with parts approval certificate
Our components, such as brake calipers and brake discs, come from production vehicles and are OE parts. This makes brake replacement simple and straightforward and facilitates TÜV registration.
The material certificate included in the scope of delivery can also enable registration through individual approval for production vehicles

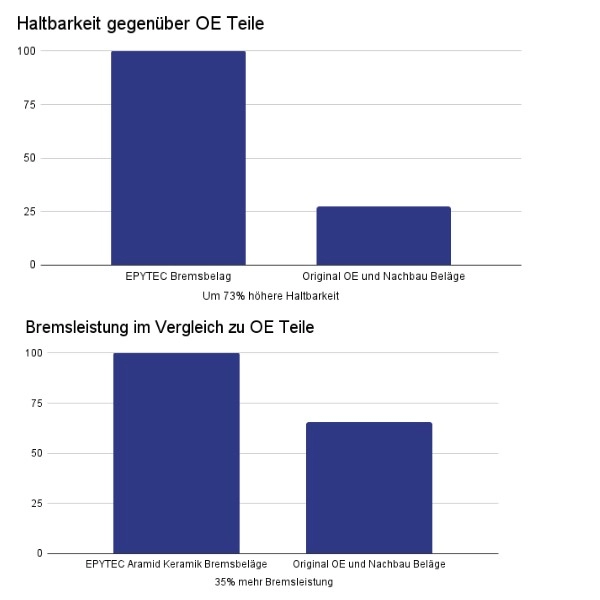

High-performance brake pads with a longer service life than original pads
Extremely high deceleration values, also in combination with our rear axle braking system
Direct fit for the models listed above, allowing easy conversion back to the original condition at any time
Our EPYTEC brake caliper adapters do not require you to send in your original parts or carry out any welding, milling or drilling modifications.

Save money on registration:

A standard individual TÜV approval for braking systems often costs more than 600 €. Thanks to our TÜV-tested parts approval certificates, you generally pay only approx. 90 € for the registration of the braking system*!

Note:

Please note that these brake calipers are supplied in your desired colour so that you can paint them yourself.

Get our high-performance brake kit now and experience ideal performance and durability.

The VW T5 Bus parking brake caliper is not included in the scope of delivery. If it is not already installed as an original part, it must be purchased separately:

Original brake calipers with carriers for the parking brake from the VW T5 Bus, part numbers:
- Brake caliper part number: 7H0 615 423 / 7H0 615 424
- Brake caliper carrier part number: 7H0 615 425

Scope of delivery:

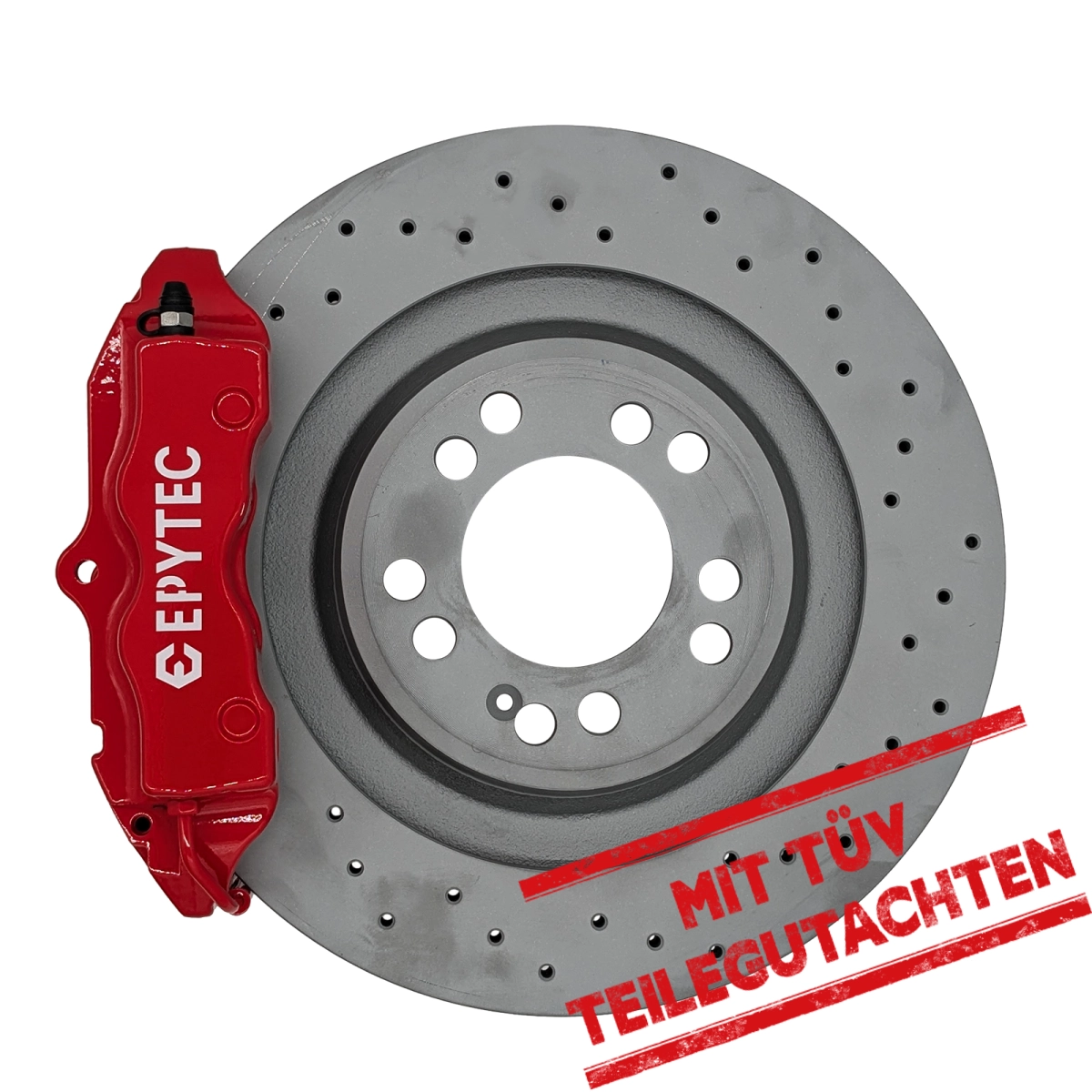

2x Porsche Cayenne brake calipers, part numbers: 955.352.421/ 955.352.422 (left /right), including a complete new retaining clip kit for the brake calipers in your desired colour
Matching set of Zimmermann sports brake discs for Audi A4 A5, part no.: 4H0 615 601 H (suitably re-drilled)
Ceramic brake pads for less brake dust and a longer service life
2x brake caliper adapters for VW T5 T6 Bus
2x matching braided stainless steel brake lines
Installation aid for brake disc installation
High-strength bolts
Material certificate
Including parts approval certificate for registration with TÜV, DEKRA, KÜS or GTÜ
Stress analysis / FEM calculation for registration
Installation instructions (click here)

*The stated price of 90 € applies exclusively to the registration of the braking system. Additional registrations, such as wheel and tyre combinations, may incur further costs

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

FAQ: Häufige Fragen

Sollte ich die Anker- bzw. Staubbleche entfernen?

Wir empfehlen das Entfernen der Bleche, da sie die Belüftung einschränken. Ohne diese Barriere wird die Bremse effizienter gekühlt und bleibt auch bei starker Beanspruchung leistungsfähig.

Wie erleichtere ich mir die Felgenmontage?

Mit Radmontagehilfen gelingt das Ausrichten und Aufsetzen der Felge einfacher und präziser. Das schützt Gewinde und Felge und spart Zeit.

Radmontagehilfe ansehen

Benötige ich Spurverbreiterungen nach dem Umbau?

Welche Felgengröße passt, lässt sich pauschal nicht sagen. Streift die Felge minimal am Bremssattel, schaffen Spurverbreiterungen den nötigen Abstand.

Spurverbreiterungen ansehen

Brauche ich neue Bremsleitungen?

Für optimale Passform und stabile Bremswirkung empfehlen wir Stahlflex. Diese sind konfigurierbar und liefern konstantere Ergebnisse als Gummileitungen.

Stahlflex konfigurieren

Warum unsere Adapter die beste Wahl sind

Wusstest du, dass sich dein EPYTEC-Adapter oft schon nach dem ersten Verschleißteilwechsel komplett bezahlt macht?

Das liegt daran, dass du mit unseren Adaptern auf OE-Bremsscheiben und -Sättel setzt, die wir bewusst bei der Entwicklung der Adapter ausgewählt haben. Diese Komponenten sind nicht nur in höchster Qualität gefertigt und in Serienfahrzeugen im Einsatz, sondern durch ihre Großserienproduktion auch günstig und jederzeit verfügbar.

Für dich bedeutet das: erstklassige Bremsleistung ohne Abhängigkeit von teuren Speziallösungen anderer Hersteller.

Und selbst beim TÜV hast du es leichter, denn unsere OE-Komponenten sind bereits offiziell abgenommen – der Prüfer kann sich direkt darauf beziehen, sodass deine Eintragung unkompliziert und sicher abläuft.

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper type: Z18 hinten

Farbe Bremssattel: In Wunschfarbe lackiert

Manufacturer: Epytec

Mounting location: rear!

Weight: 27.68 kg
