Brake Caliper Adapter VW T5 T6 Bus Adapter 365x34 Brake Disc Audi RS4 B7 Brake Caliper 8-piston
- ✓ 365x34 8E0615301AB Audi RS4 B7 brake disc
- ✓ 8-piston 8E0615107 / 8E0615108 RS4 B7 brake caliper
- ✓ front axle
€218.99*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

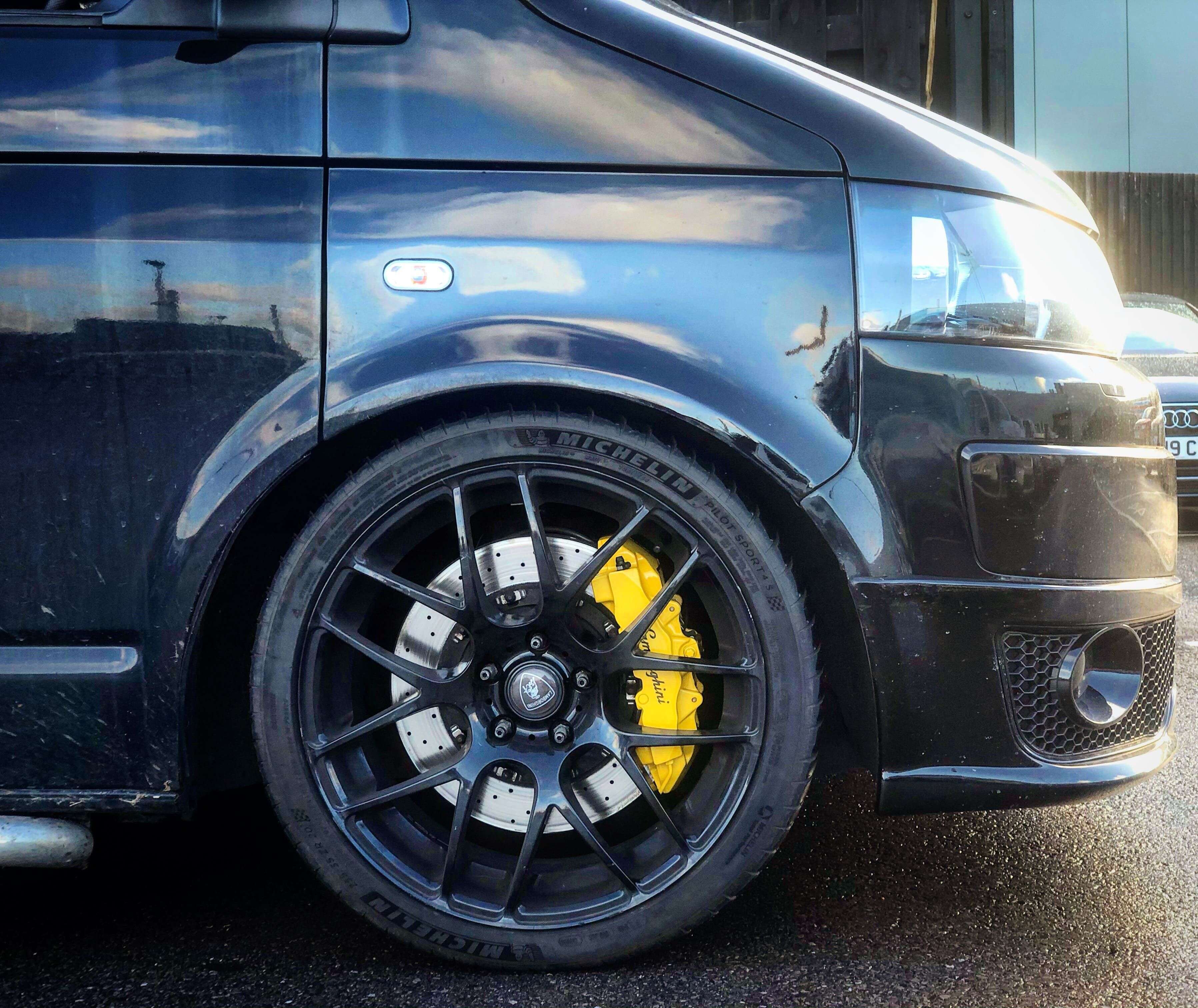

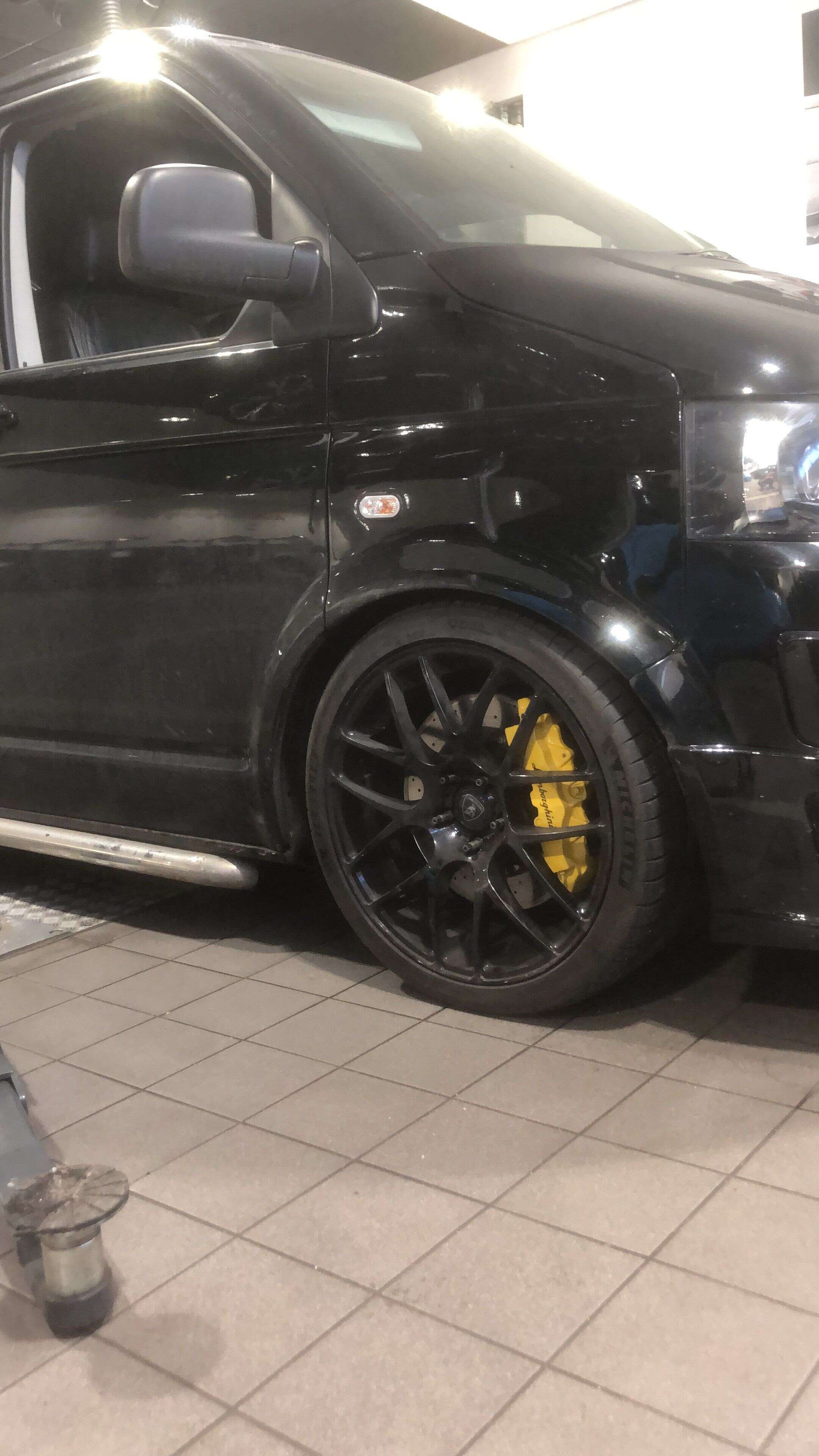

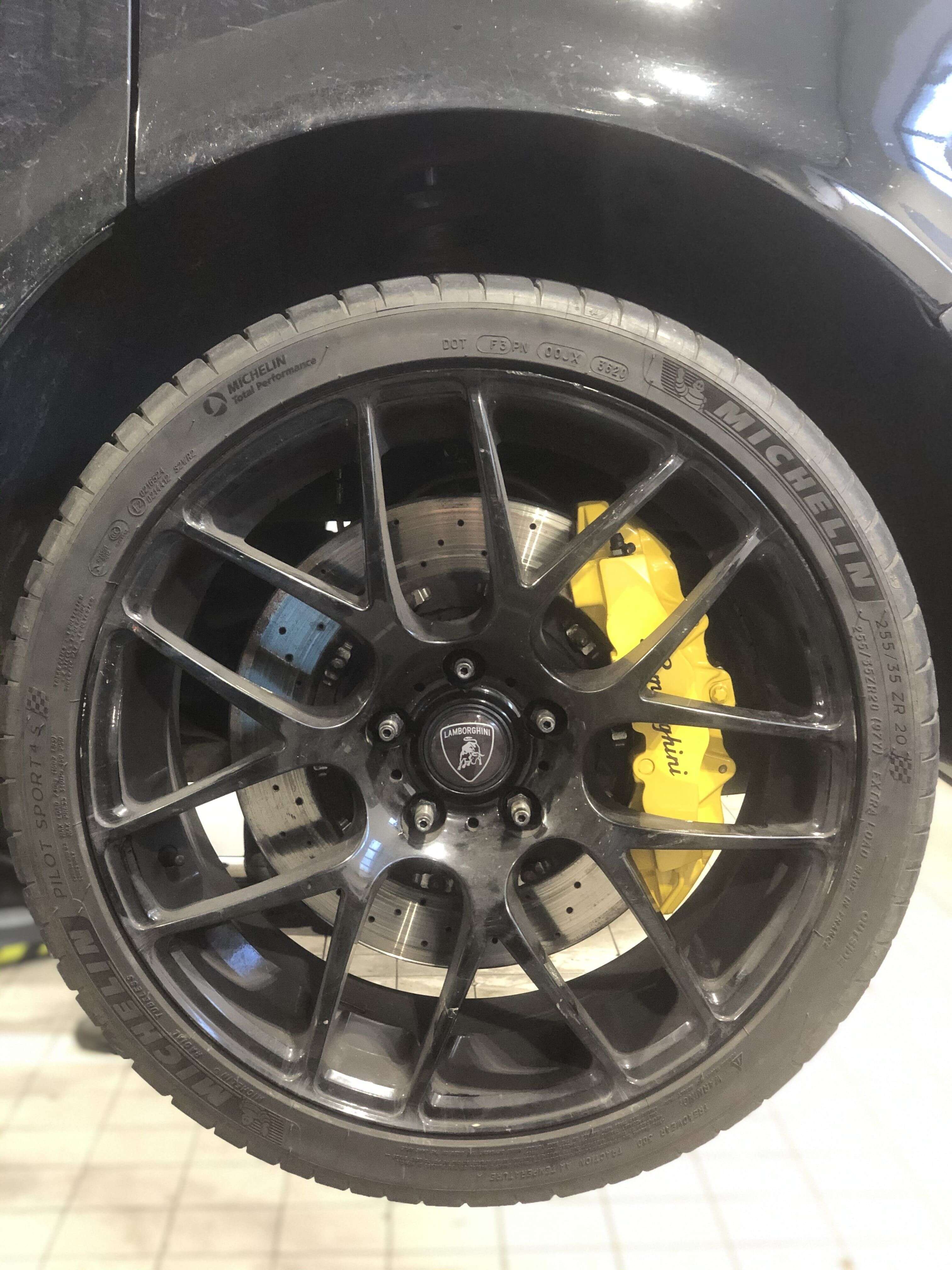

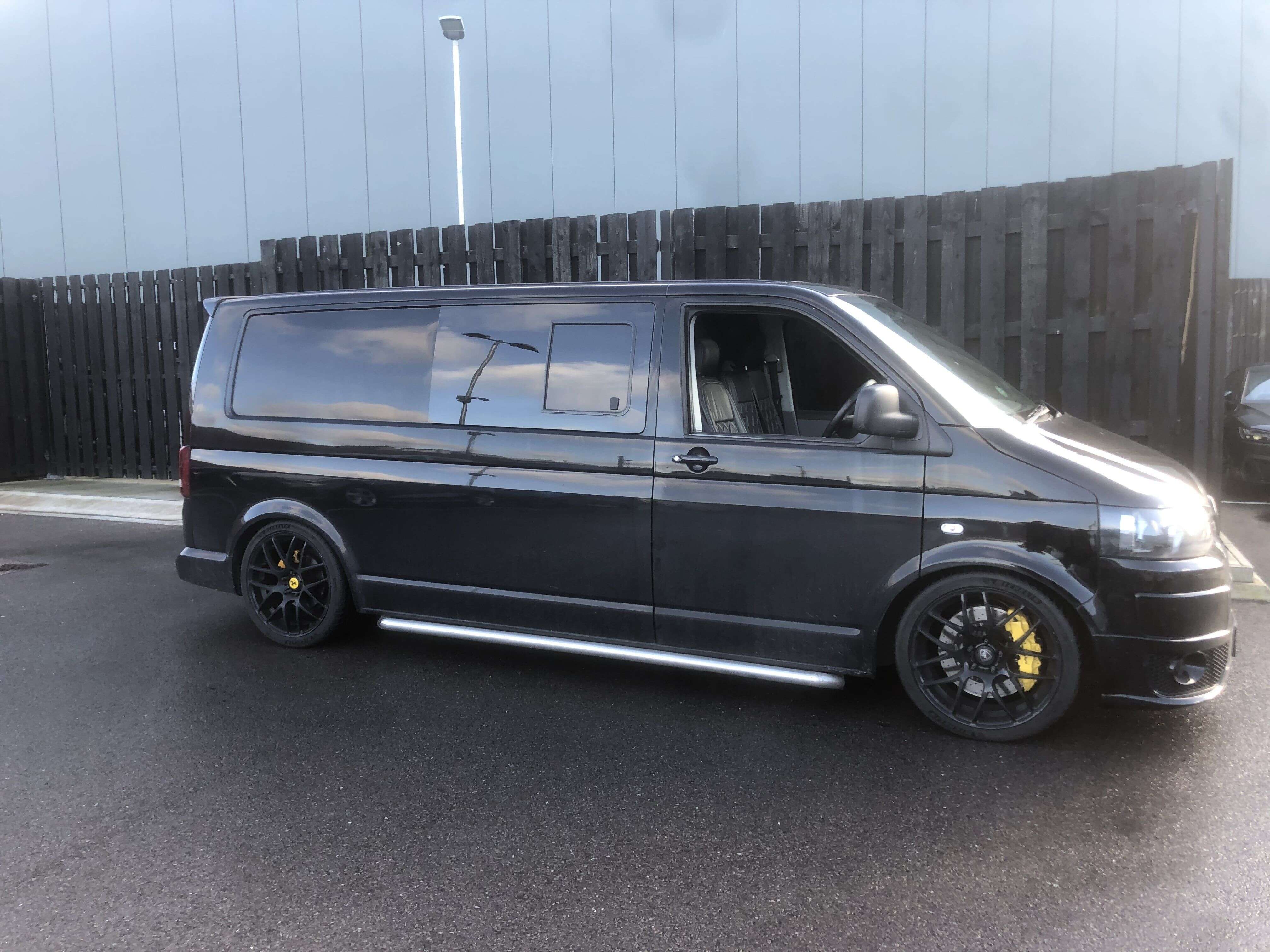

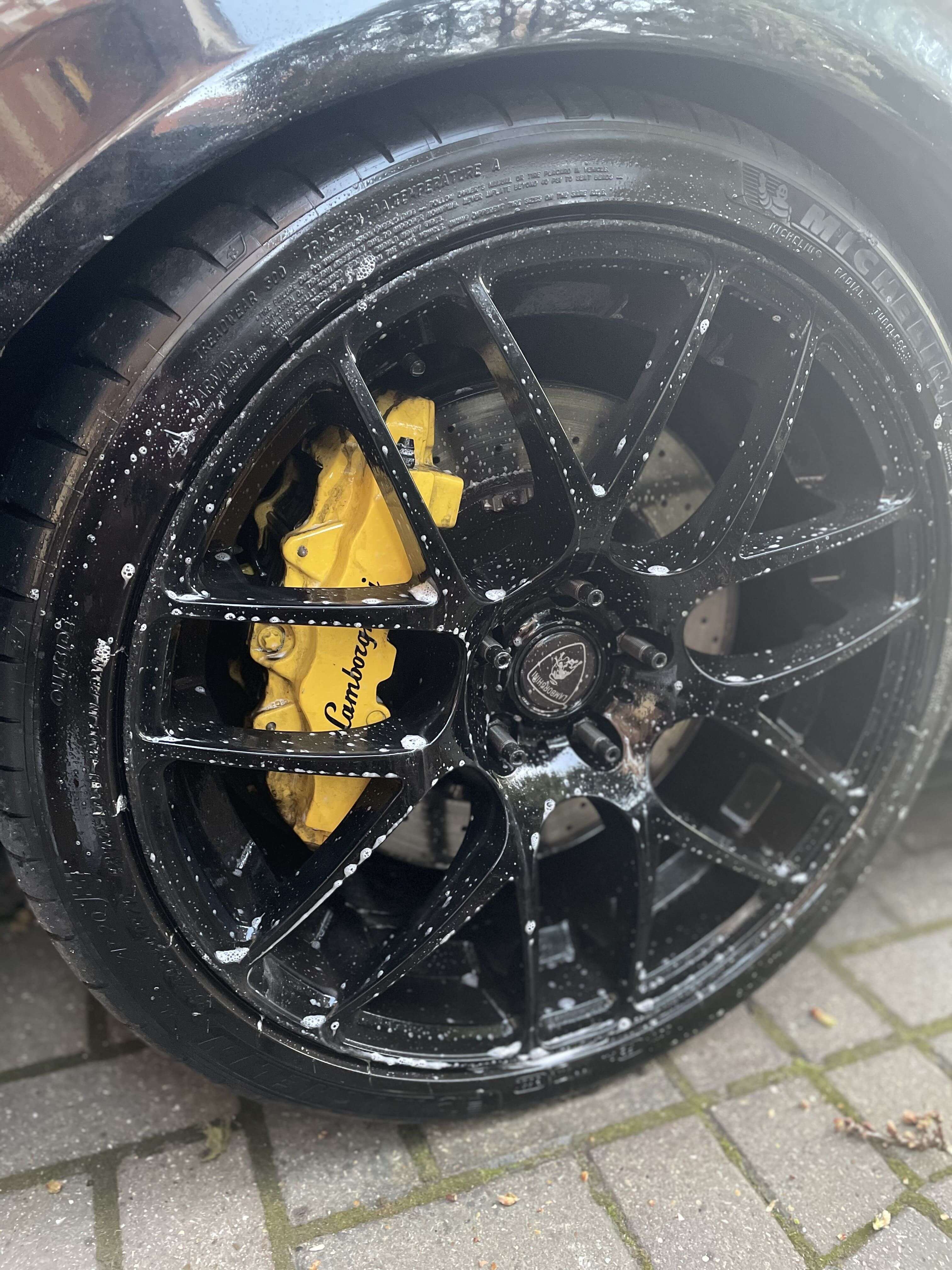

Brake caliper adapter on VW T5 bus model for conversion to RS4 B7 8-piston Brembo brake calipers, combined with the 365x34 brake dics from Audi RS4 B7.
Suitable for following vehicles:
- VW T5 bus, front axle
- VW T6 bus, front axle
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- Our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- Brake discs from the Audi RS4 B7 365x34 mm part number: 8E0615301AB high 46,5mm
- brake caliper: Audi RS4 B7 8-piston Brembo (20767502) , reference left 8E0615107 / 3D0615107A , reference right 8E0615108 / 3D0615108A
- PCD and hub bore hole have to be modified
Lieferumfang:
- 2x brake caliper adapters
- high-strength mounting screws
- material certificate
Tips, information and hints:
- For a better ventilation of the brake system, we recommend removing the dust cover plates and brake anchor plates.
- We can generally not answer, which rim size you can mount after your brake conversion. There are simply too many different rims.
- In rare cases it is possible that the rims touch minimal the brake caliper, then you can simply use spacers.

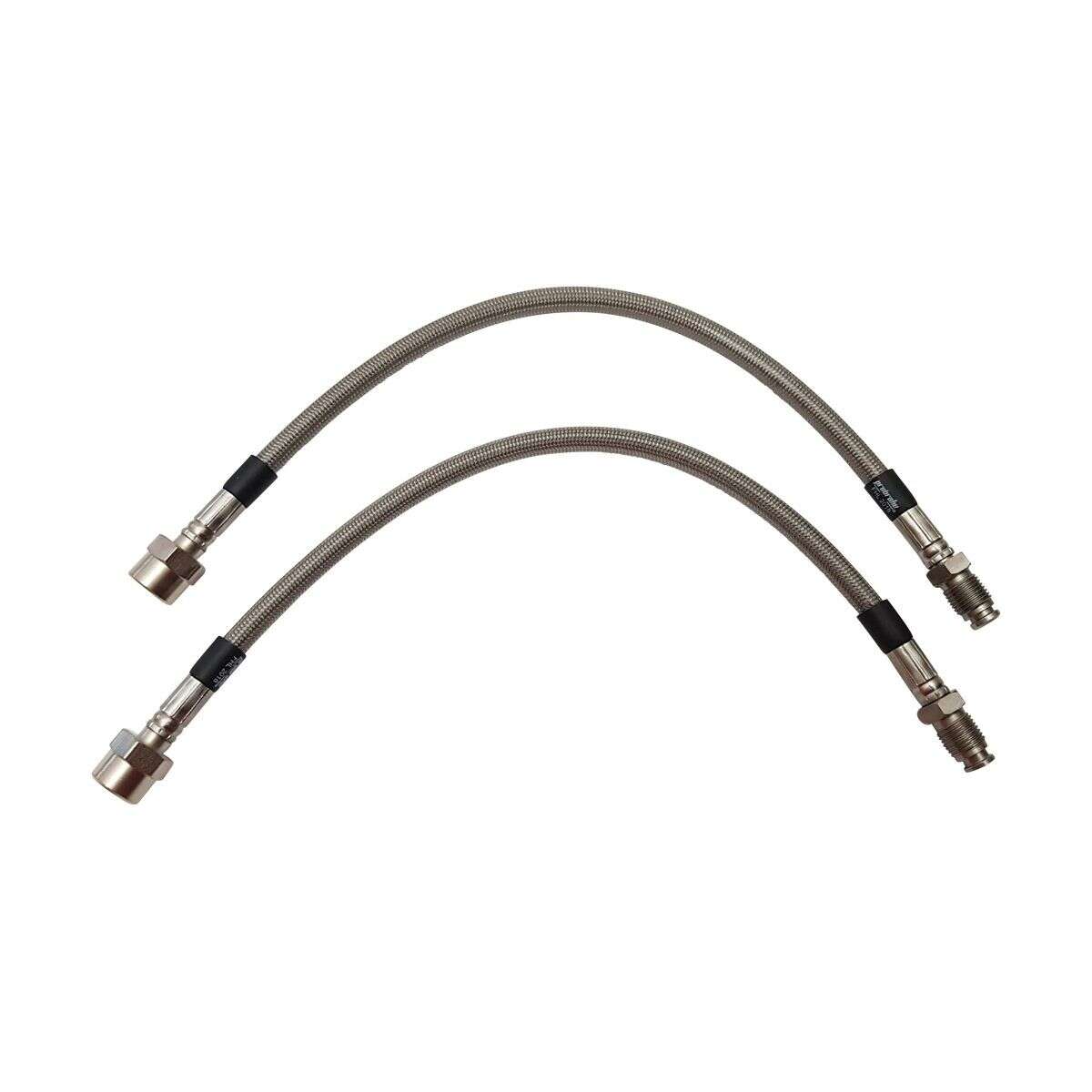

>> Now directly to spacers << - Install the adapter with the necessary components and then check if new brake lines are required. Because, depending on the vehicle, the lines may be too short or the line tips may not suitable. We advise you to change to steel braided brake line because of the quality and technical advantage. Specifically for this, we have developed an online brake line configurator, where you can assemble the type of steel braided brake lines you want. Click here to go to the configurator
>> Configure steel braided brake lines <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
1 June 2019 09:35
Christian P
Alles super
12 September 2018 17:23
uk2015_ards
Thanks All GOOOOOOD. RECOMMENDED!!!!
22 June 2024 13:23
alicmarti_1
Fast delivery fit perfect really impressed a**
11 June 2020 08:20
Alexander S
Gute Verarbeitung, alles dabei. Eintragung ohne Probleme.
8 May 2018 13:51
hondaschreck_901
Alles bestens
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
