Pressure Plate Clutch Reinforced BMW E30 E36 M40 M42 Engine 215mm SACHS

SACHS Performance clutch pressure plates differ from a normal series disc in, among other things, a higher torque and greater resistance to strong thrust.
Due to a shorter clutch release, faster and sportier shifting is possible.
The pressure plate is particularly suitable for road tuning, for long-distance racing, mountain racing (eg group N) and for vehicles that carry a heavy load.

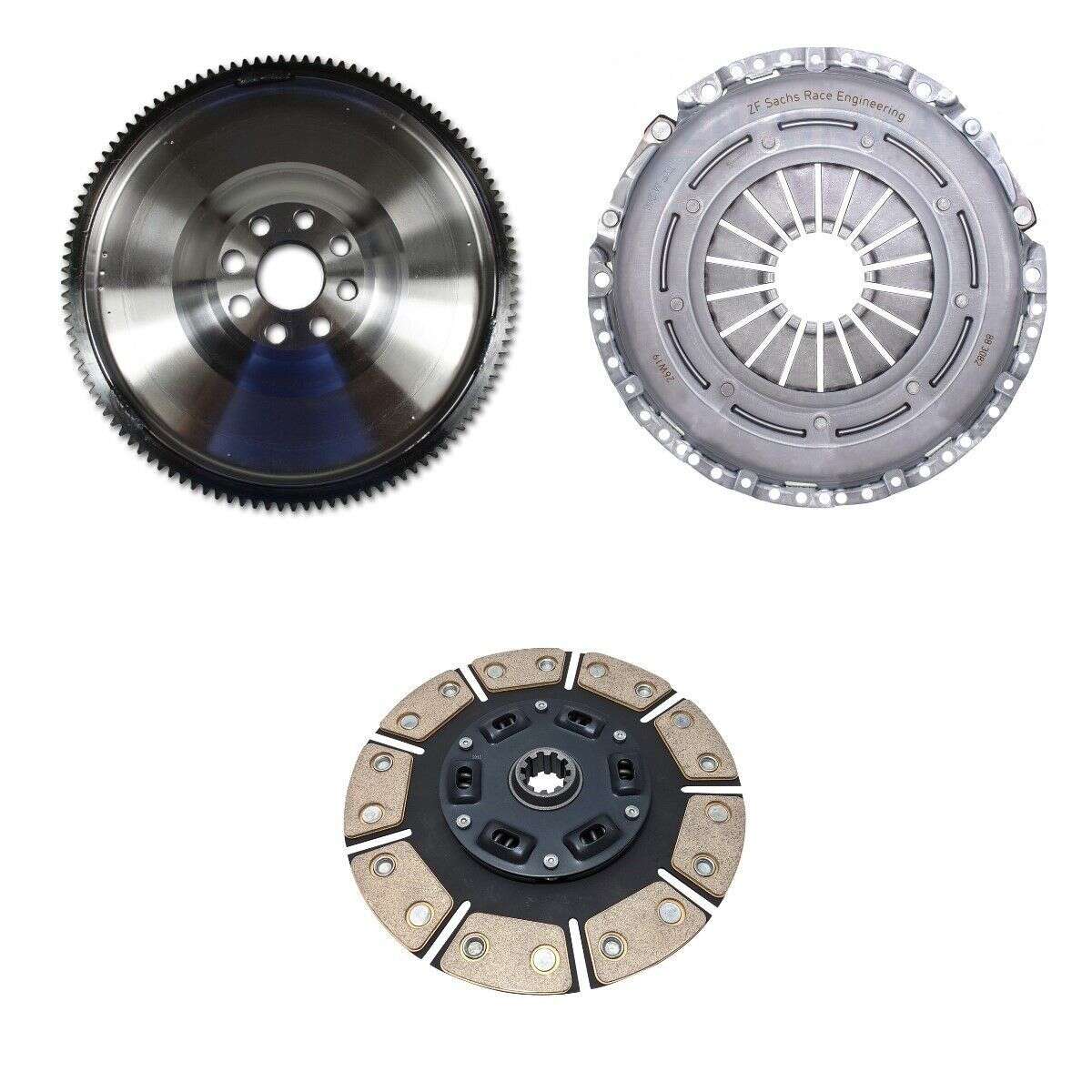

Sachs Performance clutch plates are the perfect complement to our lightweight flywheels

• click here for direct access to the appropriate lightweight flywheel BMW 3 series 5 series E36 E30 M40 M42 M43 Tuning 318i 518 E34 316i 316i (click here)

Depending on the requirements, they are used with different clutch discs.

• Clutch disc - Epytec sintered coating(click here)

Advantages of the Sachs performance pressure plate compared to the series pressure plate:

• higher transmittable torque
• higher pressing force
• less lift
• exactly identical to the series clutch plate, AND easy replacement of the clutch disc

Ideal for the following areas of application

• chip-tuning
• turbo and compressor conversions
• trailer operation
• vehicles for different drivers (e.g. company vehicles)
• 1/4 mile race
• circuit racing (e.g. endurance racing, motor sport, cross)
• hill climb (e.g. category N)
• rallies (e.g. category N)
• slalom
• drift

Optimal quality

• original spare part quality
• produced according to the requirements and specifications of the automobile manufacturer
• The quality of these spare parts is equal to or higher than that of the products that the car manufacturer sells under its own brand

Manufacturer part numbers

• BMW
  • 1 223 001
  • 1 223 002
  • 1 223 022
  • 1 223 212
  • 1 223 213
  • 1 223 215
  • 1 225 955
  • 21 21 1 223 001
  • 21 21 1 223 002
  • 21 21 1 223 022
  • 21 21 1 223 212
  • 21 21 1 223 213
  • 21 21 1 223 215
  • 21 21 1 225 955

Technical data

• diameter[mm]: 215
• parameter: M215
• Maximum transmittable motor torque of the pressure plate:
  • with organic clutch: 370 NM
  • with sinter clutch: 540 NM

Delivery

• 1x SACHS clutch pressure plate reinforced BMW E30 E36 M40 M42 engine 215mm
