Brake Caliper Adapter Rear Axle VW T5 T6 Bus Van Audi Brake Disc Audi A4 A5 330x22
- ✓ 330x22 4H0615601H Audi A4 A5 brake disc
- ✓ 1-piston 7H0615423 / 7H0615424 VW T5 brake caliper
- ✓ rear axle
£225.13*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
Brake caliper adapter, rear axle, on models VW T5, T6 bus / transporter / van, for conversion to 330x22 brake discs from Audi A4 A5, combined with the original brake calipers.
Suitable for following vehicles:
- VW T5 transporter / van
- VW T6 transporter / van
Advantages of this brake system:
- high deceleration, also in conjunction with our rear axle braking system
- thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles
- directly fit to the above-mentioned models and therefore can always be restored to the original state without any problems
- our EPYTEC brake caliper adapters do not require any sending of your serial parts, no welding, milling or drilling
Required components:
- brake disc: Audi A4 A5 330x22mm, reference 4H0 615 601 H
- Depending on the brake disc manufacturer of the brake discs, the wheel hub may have to be turned off slightly so that the brake disc fits over the wheel hub
- original brake caliper from the VW T5 bus part number: 7H0 615 423 / 7H0 615 424
- original VW T5 brake caliper carrier part number: 7H0 615 425

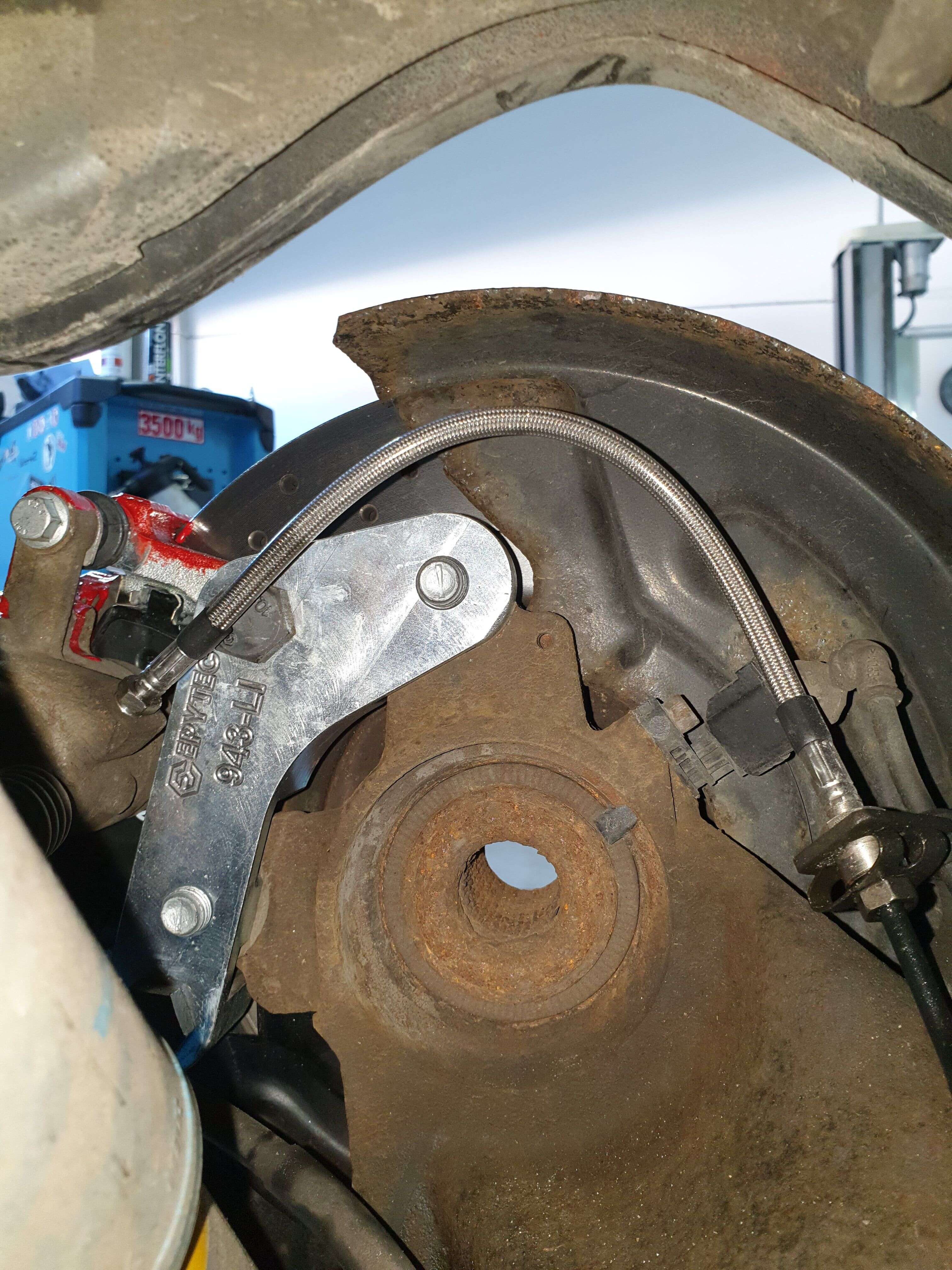

- the screw on the caliper adapter must be slight adjusted (see pictures)
- pitch circle diameter and hub bore must be modified (a service at EPYTEC for 149 € for the pair of brake discs)
- we recommend to use the calipers from TRW, with the original ones it may be necessary to adjust them.
Delivery:

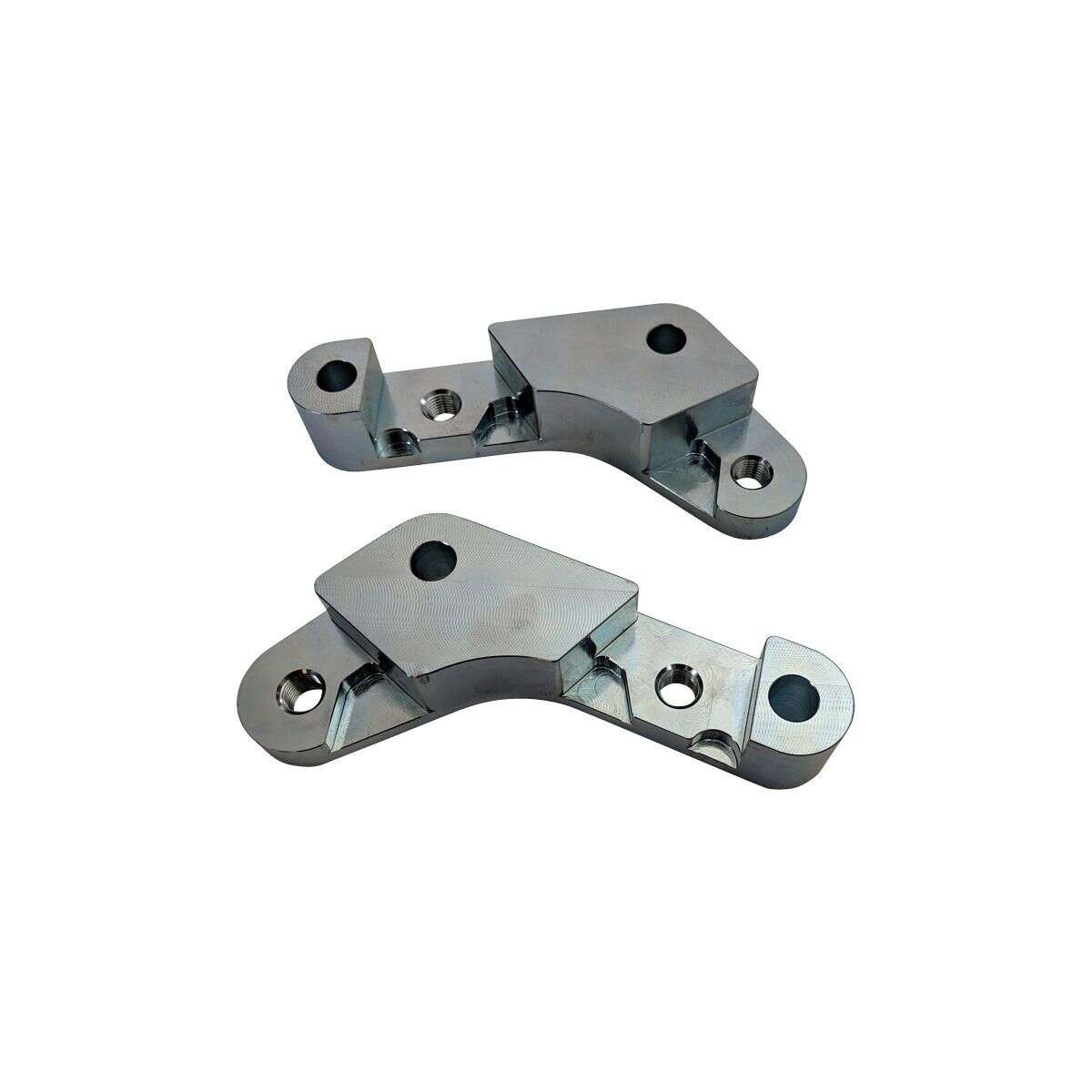

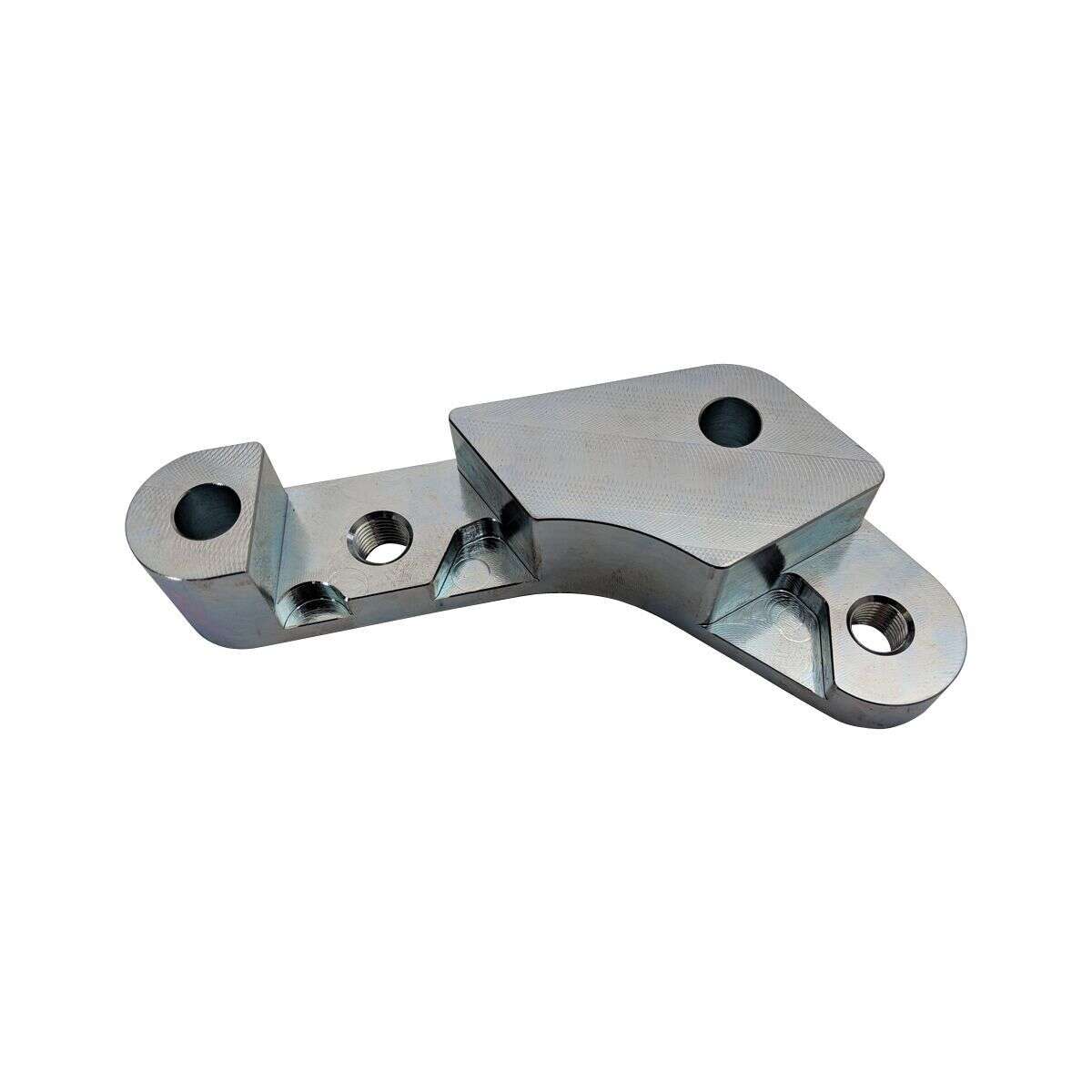

- 2x brake caliper adapters for VW T5 and T6 bus
- 2x spacer 5mm between brake disc and rim
- 1x complete set of high-strength screws
- 1x material certificate
Tips, information and advice:
- To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
- For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
- We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
- Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
- The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
3 June 2022 14:28
Christoph S
1.Bin absolut zufrieden mit den Bremsen Adapter 2.Verarbeitung Top 3.allen die eine Bremse adaptieren wollen 4.ggf farbliche Gestaltung wählbar 5.weil ihr die einzigen seid mit TÜV 6.etwas Skepsis steckt überall... 7.der Smiley reicht von einem Ohr zum anderen
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 2.0 BiTDI | 7HB|180PS(132KW) |
| 1.9 TDI | 7HB|105PS(77KW) |
| 2.0 TDI | 7EB|102PS(75KW) |
| 2.0 TDI | 7EJ|140PS(103KW) |
| 2.0 | 7HJ|115PS(85KW) |
| 2.5 TDI | 7EJ|174PS(128KW) |
| 2.0 TDI | 7EB|140PS(103KW) |
| 2.0 TDI | 7HB|102PS(75KW) |
| 2.0 TDI | 7EJ|84PS(62KW) |
| 1.9 TDI | 7HJ|85PS(63KW) |
| 2.0 TDI | 7HB|140PS(103KW) |
| 2.0 TDI | 7HB|136PS(100KW) |
| VR6 3.2 | 7EJ|235PS(173KW) |
| 2.0 TDI | 7EB|114PS(84KW) |
| 2.0 TDI | 7EB|136PS(100KW) |
| 2.0 TDI | 7HJ|84PS(62KW) |
| 1.9 TDI | 7HB|84PS(62KW) |
| 2.0 TDI | 7EB|84PS(62KW) |
| 1.9 TDI | 7EJ|105PS(77KW) |
| 2.0 TSI | 7HB|150PS(110KW) |
| 2.0 BiTDI | 7EB|180PS(132KW) |
| 2.5 TDI | 7HB|130PS(96KW) |
| 2.0 TDI | 7HJ|102PS(75KW) |
| 2.0 TSI | 7EJ|150PS(110KW) |
| VR6 3.2 | 7HB|235PS(173KW) |
| 2.0 BiTDI | 7HJ|180PS(132KW) |
| 2.5 TDI | 7EB|174PS(128KW) |
| 2.0 TDI | 7EJ|136PS(100KW) |
| 2.0 TSI | 7EB|204PS(150KW) |
| 1.9 TDI | 7HB|102PS(75KW) |
| 1.9 TDI | 7HJ|102PS(75KW) |
| 2.5 TDI | 7HB|174PS(128KW) |
| 2.0 BiTDI | 7EJ|180PS(132KW) |
| 2.5 TDI | 7HB|163PS(120KW) |
| 1.9 TDI | 7EJ|102PS(75KW) |
| 1.9 TDI | 7HJ|84PS(62KW) |
| 2.0 TDI | 7HJ|114PS(84KW) |
| 1.9 TDI | 7EJ|84PS(62KW) |
| 2.5 TDI | 7HJ|163PS(120KW) |
| 2.0 TSI | 7EJ|204PS(150KW) |
| 2.5 TDI | 7EJ|163PS(120KW) |
| 2.0 | 7EJ|115PS(85KW) |
| 1.9 TDI | 7EJ|85PS(63KW) |
| 2.5 TDI | 7EB|163PS(120KW) |
| 1.9 TDI | 7EB|102PS(75KW) |
| 1.9 TDI | 7EB|85PS(63KW) |
| 2.5 TDI | 7HJ|174PS(128KW) |
| 2.5 TDI | 7EJ|130PS(96KW) |
| 2.0 TSI | 7HJ|204PS(150KW) |
| 2.0 TDI | 7EJ|102PS(75KW) |
| 2.0 TDI | 7HB|84PS(62KW) |
| 2.0 TSI | 7HJ|150PS(110KW) |
| 2.5 TDI | 7HJ|130PS(96KW) |
| 2.0 | 7EB|115PS(85KW) |
| 2.0 TDI | 7HJ|140PS(103KW) |
| 2.0 TSI | 7HB|204PS(150KW) |
| 2.0 | 7HB|115PS(85KW) |
| 2.0 TDI | 7EJ|114PS(84KW) |
| 2.0 TDI | 7HB|114PS(84KW) |
| VR6 3.2 | 7EB|235PS(173KW) |
| VR6 3.2 | 7HJ|235PS(173KW) |
| 2.5 TDI | 7EB|130PS(96KW) |
| 2.0 TDI | 7HJ|136PS(100KW) |
| 1.9 TDI | 7EB|84PS(62KW) |
| 1.9 TDI | 7EB|105PS(77KW) |
| 1.9 TDI | 7HB|85PS(63KW) |
| 2.0 TSI | 7EB|150PS(110KW) |
| 1.9 TDI | 7HJ|105PS(77KW) |
