Why do you use the Porsche Cayenne brake calipers 955.352.421 / 955.352.422 for this adapter and not the Porsche Panamera brake calipers 970.352.425 / 970.352.426?

For this brake caliper adapter, we deliberately use the Porsche Cayenne brake calipers with the part numbers 955.352.421 / 955.352.422, as our type approval was created precisely for these brake calipers. An additional appraisal for the Panamera brake calipers would be very costly, although the braking performance of the calipers is very similar and the differences are mainly in the appearance.Another point is the construction of the adapter: The Cayenne brake caliper can be adapted much more sensibly and cost-effectively for this application. A significantly stronger base material would be required for the Panamera brake caliper, resulting in more milling effort and making the adapter correspondingly more expensive.Additionally, there is a problem with the Panamera brake calipers concerning the assignment: Under the part numbers 970.352.425 / 970.352.426, different versions are in circulation – once for 330 mm and once for 350 mm brake discs on the rear axle. Even though the part numbers can be the same, the calipers differ in height or in the machined contact surface. This quickly leads to confusion and compatibility issues.For these reasons, we offer this kit exclusively for the specified Porsche Cayenne brake calipers. This keeps the combination technically unambiguous, type-approved, and as uncomplicated as possible for you.

Why does the brake pad not cover the entire friction surface of the brake disc during a brake conversion, and what influence does this have on the braking performance?

In a brake conversion with components from different vehicle models, the radial height of the brake pad and the width of the friction ring do not necessarily match. The pad geometry is determined by the caliper being used. Therefore, part of the friction surface of the brake disc may remain unused, even though the components are mounted according to the intended conversion combination.The percentage coverage of the brake disc alone is not a measure of braking performance. For the generated braking torque, in particular, the contact pressure of the brake pads, the coefficient of friction, and the effective friction radius are crucial. The effective friction radius describes the distance between the wheel axis and the point of application of the resulting frictional force.A larger effective friction radius generates higher braking torque with the same contact pressure and coefficient of friction. If the caliper is positioned further out by the adapter, this lever arm increases. For example, if the effective friction radius increases by 15%, the braking torque increases by 15% under otherwise identical conditions—even if the pad does not utilize the entire width of the friction ring. What matters is the actual position of the pad, not just the outer diameter of the brake disc.In contrast, the pad area influences, among other things, the surface pressure, thermal load, and wear. Depending on its design, a larger brake disc can also allow for higher heat capacity and better heat dissipation.An unused ring on the brake disc is therefore not a sign that something is wrong or of inferior braking performance. What matters is the designed combination, the correct position of the brake pad on the friction ring, as well as the hydraulic and thermal coordination of the entire brake system.

Why do we offer custom paint finishes exclusively in RAL colors?

RAL color tones are clearly defined and easily understandable for all parties involved. This allows misunderstandings in color selection to be avoided and the desired color tone to be reliably assigned.Individual manufacturer colors, special color tones or freely chosen color names cannot be fully covered due to the very large variety of colors. Therefore, custom paint jobs for all offered brake calipers and brake system kits are only possible with a clear RAL color number.

Why does the drilling of the brake disc fixing not match the wheel hub when converting the brakes?

In brake system modifications, OE components from different vehicle models are often combined. Although all functionally relevant dimensions are coordinated, the position of the hole for the standard brake disc fixing screw may differ from the threaded hole in the wheel hub. This is design-related and not an indication of a wrong brake disc or a faulty fit—provided that the components specified in the product description are used.The fixing screw is solely used to temporarily hold the brake disc on the wheel hub with the wheel disassembled. It does not perform the centering or the force-fit fastening of the brake disc.The centering is done depending on the modification over the centering collar of the wheel hub or an included centering ring. When mounting the wheel, the brake disc is flat and force-fit clamped against the wheel hub flange together with the rim using the wheel bolts or wheel nuts.The standard fixing screw is not used in this case. Drilling or machining the brake disc or the wheel hub is neither required nor intended.

Which RAL colors can we not offer for the coating of our brake calipers?

We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.We do not offer these RAL fluorescent colors (examples)RAL 1026 Fluorescent YellowRAL 2005 Fluorescent OrangeRAL 2007 Fluorescent Light OrangeRAL 3024 Fluorescent RedRAL 3026 Fluorescent Light RedRAL 6038 Fluorescent GreenTip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.

What torque should be used to tighten the sealing nipples on the brake caliper?

We recommend tightening the sealing nipples on the brake caliper with 20 Nm.Why is this important?The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.Should a torque wrench be used?Yes, for precise and safe installation, we recommend using a torque wrench.Should anything be checked after installation?Yes, the sealing nipple should be checked for tight fit and sealing afterward.

My brake caliper is not exactly centered over the brake disc - what should I do?

If your brake caliper is not exactly centered over the brake disc, in most cases it is not a problem. Depending on the vehicle, model year, and mileage, axle tolerances can occur – and this even in newer vehicles.The most important thing is:👉 The brake caliper must have sufficient clearance on the left and right to the brake disc so that nothing rubs or permanently touches it.Many brake calipers also have locking bolts. It may happen that:there is very little clearance on one side or the bolt lightly toucheswhile on the other side there is more playThis is generally not critical.🔧 This is how you proceed:Install brake pads:First check if the brake pads can be inserted cleanly and without resistance on both sides.If everything fits:If installation is possible without problems, you can simply gently push back the locking bolts – this usually resolves the issue.If it jams:If the brake pads cannot be installed, or only with difficulty, on one side, action is required.In this case, you can:slightly shim the adapter with suitable bushings to adjust the brake caliperor – depending on the situation – slightly mill the adapter so that the brake caliper is correctly centered again👉 The goal is always that the brake caliper is evenly aligned with the brake disc and the brake pads are seated freely and cleanly.

Big brake system KIT rear axle VW Golf 7 Audi A3 Porsche Cayenne 4-piston caliper VW Golf 7R handbrake caliper 356x22 brake disc with parts certificate - Colour brake caliper: blank without colour

✓ 356x22 4H0615601F Audi A6 A7 brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ rear axle

£1,325.86*

Available

Product number: 1091-KIT-Blank

Delivery by Wednesday, 04.11.2026 if you order within the next 6 Hours.

Brake caliper color

Blank without color

Red with Epytec logo

Painted in the color of your choice

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

With our high-performance brake kit, you can upgrade your VW Golf 7, Golf 7 R, Audi A1 8X, Audi A3 8V, Seat Leon ST 5F, Skoda Octavia III 5E and many other vehicles to a significantly larger and more powerful braking system on the rear axle. With this kit, you can upgrade to the following components:

– Brake calipers: Porsche Cayenne 4-piston calipers
– Parking brake calipers: VW Golf 7 R parking brake calipers
– Brake discs: 356 × 22 mm brake discs from the Audi A6 / A7

This combination allows you to safely install and use the massive 356 mm brake discs in combination with the durable 4-piston calipers and the reliable Golf 7 R parking brake calipers on your VW Golf 7, Golf 7 R, Audi A1 8X, Audi A3 8V, Seat Leon ST 5F, Skoda Octavia III 5E and many other compatible vehicles, achieving noticeably improved braking performance and stability.

The large brake kit is not only sporty but also suitable for everyday use. Thanks to the drilled sports brake discs combined with our ceramic brake pads, it delivers ideal performance while simultaneously reducing brake dust, temperature and wear

Another advantage of our brake kit is that it uses the same original brake calipers and brake discs that are also installed in production vehicles. These OE parts not only make replacing the brakes simple and straightforward but also facilitate registration with TÜV.

This kit includes a parts approval certificate for easy registration in accordance with Section 19.3 of the German Road Traffic Licensing Regulations (StVZO), allowing straightforward approval by TÜV, DEKRA, KÜS or GTÜ.

With this high-performance brake kit, you can get started straight away and have everything you need to upgrade your rear axle to a 4-piston braking system.

Golf 7 R parking brake calipers available directly from us

The original VW Golf 7 R parking brake calipers, including the matching brake caliper carriers, are additionally required for the conversion.

The parking brake calipers are not included in the scope of delivery of this brake kit. If they are not already fitted to your vehicle as standard, you can also purchase them directly from us and order them together with the brake kit (click here).

We have linked the matching parking brake caliper directly below in the accessories section (tested by EPYTEC & confirmed compatible).

This way, you receive all the required components perfectly matched to one another from a single supplier and do not need to source the parking brake calipers elsewhere.

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles with aluminium steering knuckles (OE: 5Q0505435J / 5Q0505436J /5Q0505435G / 5Q0505436G, 5Q0505435H / 5Q0505436H)

VW Golf 7
VW Golf 7R
Audi A1 8X
Audi A3 8V
Seat Leon ST 5F
Skoda Octavia III 5E

Advantages of this braking system:

Easy TÜV registration with parts approval certificate
Our components, such as brake calipers and brake discs, come from production vehicles and are OE parts. This makes replacing the brakes simple and straightforward and facilitates registration with TÜV.
The material certificate included in the scope of delivery can also enable registration through individual approval for production vehicles
High-performance brake pads with a longer service life than original brake pads
Extremely high braking performance, also in combination with our rear axle braking system
Direct fit for the models listed above, allowing easy conversion back to the original configuration at any time
Our EPYTEC brake caliper adapters do not require you to send in your original parts, nor do they require any welding modifications, milling or drilling.

Save real money on registration:

A standard individual TÜV approval for braking systems often costs more than 600 €. Thanks to our TÜV-tested parts approval certificates, you generally pay only approx. 90 € for registration of the braking system*!

Note:

Please note that these brake calipers are supplied unpainted with a bare metal finish so that you can paint them yourself.
Get our high-performance brake kit now and experience ideal performance and durability.

Suitable for all listed vehicles equipped with aluminium steering knuckles (not suitable for vehicles with steel steering knuckles)

VW Golf 7 R parking brake calipers are not included in the scope of delivery. If they are not already fitted as original equipment, they must be obtained separately. However, you can also order them directly from us here (click here). You can also find them below in the compatible accessories section (tested by EPYTEC & confirmed compatible)

Original Golf 7R brake calipers with carriers for the parking brake, part numbers:
- Brake caliper part number: 5Q0615424 / 5Q0615424
- Brake caliper carrier part number: 5Q0615425 / 8V0615425B

Scope of delivery:

2x Porsche Cayenne brake calipers Part numbers: 955.352.421/ 955.352.422 (left / right) including a complete new retaining clip kit for the brake calipers unpainted with a bare metal finish
Matching set of Rotinger sports brake discs Audi A6 A7 Part no.: 4H0 615 601 F
Ceramic brake pads for less brake dust and longer service life
2x Brake caliper adapters for VW Golf 7 VW Golf 7R Audi A1 8X Audi A3 8V Seat Leon ST 5F Skoda Octavia III 5E and many more
2x Matching braided stainless steel brake hoses
Installation aid for brake disc installation
High-strength fastening bolts
Material certificate
Including parts approval certificate for registration with TÜV, DEKRA, KÜS or GTÜ
Stress analysis / FEM calculation for registration
Installation instructions (click here)

*The stated price of 90 € refers exclusively to the registration of the braking system. Additional registrations, such as wheel and tyre combinations, may incur further costs

We provide a TÜV certificate with this adapter. This means that the TÜV inspector can easily register the adapter.

Tips, information and advice:

To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<
We cannot give you a general answer as to which rim size you can ride after your brake conversion. There are simply too many different rims. In rare cases, it can happen that the rims have minimal contact with the brake caliper, in which case you can simply use wheel spacers. >> Go directly to customised wheel spacers <<
The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Brake caliper type: Z18 hinten

Farbe Bremssattel: Blank ohne Farbe

Manufacturer: Epytec

Mounting location: rear!

Weight: 30.23 kg

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

email address

password

or Register with...

No reviews found. Share your insights with others.

Motor	Motorcode
1.8 TFSI quattro	8VE\|180PS(132KW)
2.0 TDI quattro	8VE\|184PS(135KW)
2.0 TDI quattro	8V7\|184PS(135KW)
1.8 TFSI quattro	8V7\|180PS(132KW)
S3 quattro	8V7\|300PS(221KW)
2.0 TDI quattro	8VE\|150PS(110KW)
S3 quattro	8VE\|300PS(221KW)
2.0 TDI quattro	8V7\|150PS(110KW)
S3 quattro	8VE\|286PS(210KW)
S3 quattro	8V7\|286PS(210KW)

Motor	Motorcode
1.8 TFSI	8VA\|180PS(132KW)
1.6 TDI quattro	8VA\|110PS(81KW)
2.0 TDI quattro	8VA\|150PS(110KW)
2.0 TDI quattro	8VF\|184PS(135KW)
2.0 TDI quattro	8VA\|184PS(135KW)
S3 quattro	8VF\|300PS(221KW)
1.6 TDI quattro	8VF\|110PS(81KW)
S3 quattro	8VF\|286PS(210KW)
1.8 TFSI	8VF\|180PS(132KW)
2.0 TDI quattro	8VF\|150PS(110KW)
S3 quattro	8VA\|280PS(206KW)
S3 quattro	8VA\|300PS(221KW)
S3 quattro	8VF\|280PS(206KW)
S3 quattro	8VA\|286PS(210KW)

Motor	Motorcode
S3 quattro	8VK\|300PS(221KW)
S3 quattro	8V1\|286PS(210KW)
1.8 TFSI quattro	8V1\|180PS(132KW)
S3 quattro	8VK\|286PS(210KW)
2.0 TDI	8VK\|136PS(100KW)
2.0 TDI	8V1\|136PS(100KW)
2.0 TDI	8VK\|184PS(135KW)
S3 quattro	8V1\|280PS(206KW)
S3 quattro	8V1\|300PS(221KW)
2.0 TDI	8V1\|184PS(135KW)
1.8 TFSI quattro	8VK\|180PS(132KW)
S3 quattro	8VK\|280PS(206KW)

Motor	Motorcode
S1 quattro	8X1\|231PS(170KW)
S1 quattro	8XK\|231PS(170KW)

Motor	Motorcode
2.0 TDI quattro	8VS\|184PS(135KW)
2.0 TDI quattro	8VM\|184PS(135KW)
1.8 TFSI quattro	8VM\|180PS(132KW)
2.0 TDI quattro	8VM\|150PS(110KW)
S3 quattro	8VS\|286PS(210KW)
S3 quattro	8VM\|300PS(221KW)
S3 quattro	8VS\|300PS(221KW)
2.0 TDI quattro	8VS\|150PS(110KW)
S3 quattro	8VM\|286PS(210KW)
S3 quattro	8VS\|280PS(206KW)
1.6 TDI quattro	8VS\|110PS(81KW)
1.6 TDI quattro	8VM\|110PS(81KW)
1.8 TFSI quattro	8VS\|180PS(132KW)
S3 quattro	8VM\|280PS(206KW)

Motor	Motorcode
S1 quattro	8XA\|231PS(170KW)
S1 quattro	8XF\|231PS(170KW)

Motor	Motorcode
2.0 TDI 4x4	NR3\|150PS(110KW)
1.8 TSI 4x4	5E3\|180PS(132KW)
1.6 TDI 4x4	NR3\|105PS(77KW)
1.8 TSI 4x4	NL3\|180PS(132KW)
1.6 TDI 4x4	NR3\|110PS(81KW)
2.0 TDI 4x4	NL3\|150PS(110KW)
2.0 TDI/TDI RS 4x4	NR3\|184PS(135KW)
1.6 TDI 4x4	5E3\|105PS(77KW)
1.6 TDI 4x4	NL3\|105PS(77KW)
1.6 TDI 4x4	5E3\|110PS(81KW)
1.8 TSI 4x4	NR3\|180PS(132KW)
1.6 TDI 4x4	NL3\|110PS(81KW)
2.0 TDI/TDI RS 4x4	NL3\|184PS(135KW)
2.0 TDI/TDI RS 4x4	5E3\|184PS(135KW)
2.0 TDI 4x4	5E3\|150PS(110KW)

Motor	Motorcode
1.6 TDI 4x4	5E5\|110PS(81KW)
1.8 TSI 4x4	5E6\|180PS(132KW)
1.6 TDI 4x4	5E5\|105PS(77KW)
2.0 TDI/TDI RS 4x4	5E5\|184PS(135KW)
1.6 TDI 4x4	5E6\|110PS(81KW)
2.0 TDI 4x4	5E5\|150PS(110KW)
1.8 TSI 4x4	5E5\|180PS(132KW)
1.6 TDI 4x4	5E6\|105PS(77KW)
2.0 TDI 4x4	5E6\|150PS(110KW)
2.0 TDI/TDI RS 4x4	5E6\|184PS(135KW)

Motor	Motorcode
1.4 TSI 4x4	3V3\|150PS(110KW)
2.0 TSI 4x4	3V3\|280PS(206KW)
2.0 TDI 4x4	3V3\|190PS(140KW)
2.0 TDI 4x4	3V3\|200PS(147KW)
2.0 TSI 4x4	3V3\|272PS(200KW)
2.0 TDI 4x4	3V3\|150PS(110KW)

Motor	Motorcode
2.0 TDI 4x4	3V5\|190PS(140KW)
2.0 TSI 4x4	3V5\|272PS(200KW)
1.4 TSI 4x4	3V5\|150PS(110KW)
2.0 TSI 4x4	3V5\|280PS(206KW)
2.0 TDI 4x4	3V5\|150PS(110KW)

Motor	Motorcode
2.0 Cupra 4Drive	5F8\|300PS(221KW)
2.0 TDi 4Drive	5F8\|184PS(135KW)
1.6 TDi 4Drive	5F8\|105PS(77KW)
1.8 TSi 4Drive	5F8\|180PS(132KW)
2.0 TDi 4Drive	5F8\|150PS(110KW)
1.6 TDi 4Drive	5F8\|110PS(81KW)

Motor	Motorcode
2.0 R 4motion	BE1\|280PS(206KW)
2.0 R 4motion	BQ1\|280PS(206KW)
1.6 TDI 4motion	5G1\|105PS(77KW)
2.0 TDI 4motion	BQ1\|150PS(110KW)
2.0 R 4motion	5G1\|300PS(221KW)
2.0 R 4motion	BE2\|290PS(213KW)
2.0 R 4motion	5G1\|280PS(206KW)
1.6 TDI 4motion	5G1\|110PS(81KW)
2.0 R 4motion	BQ1\|290PS(213KW)
2.0 R 4motion	BE1\|290PS(213KW)
2.0 R 4motion	BE2\|280PS(206KW)
2.0 R 4motion	BQ1\|300PS(221KW)
2.0 R 4motion	5G1\|290PS(213KW)
2.0 TDI 4motion	5G1\|150PS(110KW)
2.0 TDI 4motion	BE2\|150PS(110KW)
1.6 TDI 4motion	BE1\|105PS(77KW)
2.0 R 4motion	BE2\|300PS(221KW)
1.6 TDI 4motion	BE2\|110PS(81KW)
1.6 TDI 4motion	BE1\|110PS(81KW)
2.0 R 4motion	BE1\|300PS(221KW)
2.0 TDI 4motion	BE1\|150PS(110KW)
1.6 TDI 4motion	BQ1\|110PS(81KW)
1.6 TDI 4motion	BE2\|105PS(77KW)
1.6 TDI 4motion	BQ1\|105PS(77KW)

Motor	Motorcode
2.0 TDI 4motion	3H9\|200PS(147KW)
2.0 TSI 4motion	3H9\|272PS(200KW)
2.0 TDI 4motion	3H9\|190PS(140KW)
2.0 TSI R	3H9\|320PS(235KW)
2.0 TSI 4motion	3H9\|280PS(206KW)

Motor	Motorcode
2.0 TSI 4motion	3H7\|280PS(206KW)
2.0 TDI 4motion	3H7\|200PS(147KW)
2.0 TDI 4motion	3H8\|200PS(147KW)
2.0 TSI 4motion	3H8\|272PS(200KW)
2.0 TSI 4motion	3H8\|280PS(206KW)
2.0 TSI 4motion	3H7\|272PS(200KW)
2.0 TDI 4motion	3H7\|190PS(140KW)
2.0 TDI 4motion	3H8\|190PS(140KW)
2.0 TDI 4motion	3H7\|240PS(176KW)
2.0 TSI R	3H7\|320PS(235KW)
2.0 TDI 4motion	3H8\|240PS(176KW)
2.0 TSI R	3H8\|320PS(235KW)

Motor	Motorcode
2.0 TDI 4motion	BV5\|150PS(110KW)
2.0 R 4motion	BA5\|300PS(221KW)
1.6 TDI 4motion	BA5\|110PS(81KW)
1.6 TDI 4motion	BA5\|105PS(77KW)
2.0 TDI 4motion	BA5\|150PS(110KW)
1.6 TDI 4motion	BV5\|105PS(77KW)
1.8 TSI 4motion	BA5\|179PS(132KW)
2.0 R 4motion	BV5\|280PS(206KW)
2.0 R 4motion	BV5\|300PS(221KW)
1.8 TSI 4motion	BV5\|179PS(132KW)
2.0 R 4motion	BA5\|280PS(206KW)
1.6 TDI 4motion	BV5\|110PS(81KW)

Motor	Motorcode
1.8 TFSI quattro	8VE\|180PS(132KW)
2.0 TDI quattro	8VE\|184PS(135KW)
2.0 TDI quattro	8V7\|184PS(135KW)
1.8 TFSI quattro	8V7\|180PS(132KW)
S3 quattro	8V7\|300PS(221KW)
2.0 TDI quattro	8VE\|150PS(110KW)
S3 quattro	8VE\|300PS(221KW)
2.0 TDI quattro	8V7\|150PS(110KW)
S3 quattro	8VE\|286PS(210KW)
S3 quattro	8V7\|286PS(210KW)

Motor	Motorcode
1.8 TFSI	8VA\|180PS(132KW)
1.6 TDI quattro	8VA\|110PS(81KW)
2.0 TDI quattro	8VA\|150PS(110KW)
2.0 TDI quattro	8VF\|184PS(135KW)
2.0 TDI quattro	8VA\|184PS(135KW)
S3 quattro	8VF\|300PS(221KW)
1.6 TDI quattro	8VF\|110PS(81KW)
S3 quattro	8VF\|286PS(210KW)
1.8 TFSI	8VF\|180PS(132KW)
2.0 TDI quattro	8VF\|150PS(110KW)
S3 quattro	8VA\|280PS(206KW)
S3 quattro	8VA\|300PS(221KW)
S3 quattro	8VF\|280PS(206KW)
S3 quattro	8VA\|286PS(210KW)

Motor	Motorcode
S3 quattro	8VK\|300PS(221KW)
S3 quattro	8V1\|286PS(210KW)
1.8 TFSI quattro	8V1\|180PS(132KW)
S3 quattro	8VK\|286PS(210KW)
2.0 TDI	8VK\|136PS(100KW)
2.0 TDI	8V1\|136PS(100KW)
2.0 TDI	8VK\|184PS(135KW)
S3 quattro	8V1\|280PS(206KW)
S3 quattro	8V1\|300PS(221KW)
2.0 TDI	8V1\|184PS(135KW)
1.8 TFSI quattro	8VK\|180PS(132KW)
S3 quattro	8VK\|280PS(206KW)

Motor	Motorcode
S1 quattro	8X1\|231PS(170KW)
S1 quattro	8XK\|231PS(170KW)

Motor	Motorcode
2.0 TDI quattro	8VS\|184PS(135KW)
2.0 TDI quattro	8VM\|184PS(135KW)
1.8 TFSI quattro	8VM\|180PS(132KW)
2.0 TDI quattro	8VM\|150PS(110KW)
S3 quattro	8VS\|286PS(210KW)
S3 quattro	8VM\|300PS(221KW)
S3 quattro	8VS\|300PS(221KW)
2.0 TDI quattro	8VS\|150PS(110KW)
S3 quattro	8VM\|286PS(210KW)
S3 quattro	8VS\|280PS(206KW)
1.6 TDI quattro	8VS\|110PS(81KW)
1.6 TDI quattro	8VM\|110PS(81KW)
1.8 TFSI quattro	8VS\|180PS(132KW)
S3 quattro	8VM\|280PS(206KW)

Motor	Motorcode
S1 quattro	8XA\|231PS(170KW)
S1 quattro	8XF\|231PS(170KW)

Motor	Motorcode
2.0 TDI 4x4	NR3\|150PS(110KW)
1.8 TSI 4x4	5E3\|180PS(132KW)
1.6 TDI 4x4	NR3\|105PS(77KW)
1.8 TSI 4x4	NL3\|180PS(132KW)
1.6 TDI 4x4	NR3\|110PS(81KW)
2.0 TDI 4x4	NL3\|150PS(110KW)
2.0 TDI/TDI RS 4x4	NR3\|184PS(135KW)
1.6 TDI 4x4	5E3\|105PS(77KW)
1.6 TDI 4x4	NL3\|105PS(77KW)
1.6 TDI 4x4	5E3\|110PS(81KW)
1.8 TSI 4x4	NR3\|180PS(132KW)
1.6 TDI 4x4	NL3\|110PS(81KW)
2.0 TDI/TDI RS 4x4	NL3\|184PS(135KW)
2.0 TDI/TDI RS 4x4	5E3\|184PS(135KW)
2.0 TDI 4x4	5E3\|150PS(110KW)

Motor	Motorcode
1.6 TDI 4x4	5E5\|110PS(81KW)
1.8 TSI 4x4	5E6\|180PS(132KW)
1.6 TDI 4x4	5E5\|105PS(77KW)
2.0 TDI/TDI RS 4x4	5E5\|184PS(135KW)
1.6 TDI 4x4	5E6\|110PS(81KW)
2.0 TDI 4x4	5E5\|150PS(110KW)
1.8 TSI 4x4	5E5\|180PS(132KW)
1.6 TDI 4x4	5E6\|105PS(77KW)
2.0 TDI 4x4	5E6\|150PS(110KW)
2.0 TDI/TDI RS 4x4	5E6\|184PS(135KW)

Motor	Motorcode
1.4 TSI 4x4	3V3\|150PS(110KW)
2.0 TSI 4x4	3V3\|280PS(206KW)
2.0 TDI 4x4	3V3\|190PS(140KW)
2.0 TDI 4x4	3V3\|200PS(147KW)
2.0 TSI 4x4	3V3\|272PS(200KW)
2.0 TDI 4x4	3V3\|150PS(110KW)

Motor	Motorcode
2.0 TDI 4x4	3V5\|190PS(140KW)
2.0 TSI 4x4	3V5\|272PS(200KW)
1.4 TSI 4x4	3V5\|150PS(110KW)
2.0 TSI 4x4	3V5\|280PS(206KW)
2.0 TDI 4x4	3V5\|150PS(110KW)

Motor	Motorcode
2.0 Cupra 4Drive	5F8\|300PS(221KW)
2.0 TDi 4Drive	5F8\|184PS(135KW)
1.6 TDi 4Drive	5F8\|105PS(77KW)
1.8 TSi 4Drive	5F8\|180PS(132KW)
2.0 TDi 4Drive	5F8\|150PS(110KW)
1.6 TDi 4Drive	5F8\|110PS(81KW)

Motor	Motorcode
2.0 R 4motion	BE1\|280PS(206KW)
2.0 R 4motion	BQ1\|280PS(206KW)
1.6 TDI 4motion	5G1\|105PS(77KW)
2.0 TDI 4motion	BQ1\|150PS(110KW)
2.0 R 4motion	5G1\|300PS(221KW)
2.0 R 4motion	BE2\|290PS(213KW)
2.0 R 4motion	5G1\|280PS(206KW)
1.6 TDI 4motion	5G1\|110PS(81KW)
2.0 R 4motion	BQ1\|290PS(213KW)
2.0 R 4motion	BE1\|290PS(213KW)
2.0 R 4motion	BE2\|280PS(206KW)
2.0 R 4motion	BQ1\|300PS(221KW)
2.0 R 4motion	5G1\|290PS(213KW)
2.0 TDI 4motion	5G1\|150PS(110KW)
2.0 TDI 4motion	BE2\|150PS(110KW)
1.6 TDI 4motion	BE1\|105PS(77KW)
2.0 R 4motion	BE2\|300PS(221KW)
1.6 TDI 4motion	BE2\|110PS(81KW)
1.6 TDI 4motion	BE1\|110PS(81KW)
2.0 R 4motion	BE1\|300PS(221KW)
2.0 TDI 4motion	BE1\|150PS(110KW)
1.6 TDI 4motion	BQ1\|110PS(81KW)
1.6 TDI 4motion	BE2\|105PS(77KW)
1.6 TDI 4motion	BQ1\|105PS(77KW)

Motor	Motorcode
2.0 TDI 4motion	3H9\|200PS(147KW)
2.0 TSI 4motion	3H9\|272PS(200KW)
2.0 TDI 4motion	3H9\|190PS(140KW)
2.0 TSI R	3H9\|320PS(235KW)
2.0 TSI 4motion	3H9\|280PS(206KW)

Motor	Motorcode
2.0 TSI 4motion	3H7\|280PS(206KW)
2.0 TDI 4motion	3H7\|200PS(147KW)
2.0 TDI 4motion	3H8\|200PS(147KW)
2.0 TSI 4motion	3H8\|272PS(200KW)
2.0 TSI 4motion	3H8\|280PS(206KW)
2.0 TSI 4motion	3H7\|272PS(200KW)
2.0 TDI 4motion	3H7\|190PS(140KW)
2.0 TDI 4motion	3H8\|190PS(140KW)
2.0 TDI 4motion	3H7\|240PS(176KW)
2.0 TSI R	3H7\|320PS(235KW)
2.0 TDI 4motion	3H8\|240PS(176KW)
2.0 TSI R	3H8\|320PS(235KW)

Motor	Motorcode
2.0 TDI 4motion	BV5\|150PS(110KW)
2.0 R 4motion	BA5\|300PS(221KW)
1.6 TDI 4motion	BA5\|110PS(81KW)
1.6 TDI 4motion	BA5\|105PS(77KW)
2.0 TDI 4motion	BA5\|150PS(110KW)
1.6 TDI 4motion	BV5\|105PS(77KW)
1.8 TSI 4motion	BA5\|179PS(132KW)
2.0 R 4motion	BV5\|280PS(206KW)
2.0 R 4motion	BV5\|300PS(221KW)
1.8 TSI 4motion	BV5\|179PS(132KW)
2.0 R 4motion	BA5\|280PS(206KW)
1.6 TDI 4motion	BV5\|110PS(81KW)

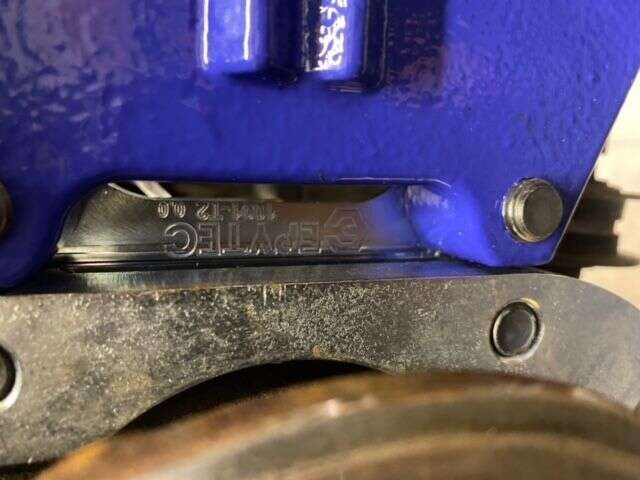

Brake caliper adapter Golf 7R Audi A3 8V Brake disc 356x22 Audi A6 Porsche Cayenne 4-piston brake caliper with TÜV parts certificate

✓ 356x22 4H0615601F Audi A6 A7 brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ rear axle

£448.13*

Product number: 1091

Go to product

Z18 Brake Caliper Epytec 4-Piston ZR18 ZL18 Porsche Cayenne VW Touareg Tuning Brake System Rear Axle

✓ Choice of color
✓ ZR18 / Z18 4-piston brake calipers
✓ 955.352.421 / 955352421 955.352.422 / 955352422 7L6615423H / 7L6615423L / 7L6615423D / 7L6615423G

£321.11* £401.38* (20% saved)

Product number: 1178

Go to product

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R23 Audi A3 S3 V6 Brembo TTRS Brak Conversion Rear Axle

✓ Length: 50cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£92.63*

Product number: SF115

Go to product

Mounting aid for brake disc assembly Mounting aid M14x1.5 BMW VW Audi Mercedes Conversion brake system

✓ Thread M14x1.5
✓ ensures comfortable installation of your upgrade brake
✓ makes work easier

£7.24*

Product number: 1204

Go to product

Brake pad Epytec for ZR18 brake caliper rear axle 4 pistons 4L0 698 451 D

✓ 35% better braking performance
✓ 75% more service life
✓ low dust generation

£81.26*

Product number: 1173

Go to product

2x Audi A6 C7 Avant A6 C7 Sportback A7 A8 D4 356x22mm perforated brake disc Rotinger OE 4H0615601F

✓ 356x22
✓ 68mm centering
✓ 36mm height

£271.23*

Product number: 1194

Go to product

Steel Braided Brake Line Steel Flexible Brake Hose front Axle VW Golf MK4 R32 Audi A3 S3 A1 Ibiza Pol

✓ Length: 57cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£98.16*

£91.29

Product number: SF100

VW Golf MK4 Audi A3 TT Seat Rim Centric Ring Extension Bush Spacer Brake Conversion

✓ rim centric ring / extension bush, high-strength steel, for VW Golf MK4 Polo 9N Bora Audi A3 TT

£10.86*

£10.10

Product number: 884

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R32 Audi A3 S3 V6 Brembo TTRS Brake Conversion

✓ Length: 63cm
✓ M10x1 outside 45° curved
✓ M10x1 inside straight

£98.16*

£91.29

Product number: SF109

Brake Caliper Adapter Porsche for Audi TT A3 S3 VW Golf Polo

£134.00*

£124.62

Product number: 143

Audi TT A3 S3 VW Golf Polo 6r WRC Brake Caliper Adapter Cayenne ZR17 Touareg BM5 Brake System 334x32

£123.79*

£115.12

Product number: 403

VW Golf 5 6 Audi A3 TT S3 8P Seat Leon Cayenne ZR18 Front Brake Caliper Adapter R32

✓ 350x32 A1644210512 Mercedes W164 brake disc
✓ 6-piston 955351421 / 955351422 Z18 brake caliper
✓ front axle

£120.83*

£112.37

Product number: 715

VW Audi Golf MK1 MK2 MK3 Corrado Special Track Rod End Head Universal Low Profile Lowering M14 x 1,5 Thread

✓ Tie rod end M14x1.5
✓ VW, Audi, Golf 1, Golf 2, Golf 3, Corrado,...
✓ 100% perfect fit

£88.45*

£82.26

Product number: TAT102

Brake Caliper Adapter Audi S1 A3 S3 RS3 8V Golf Mk7 Seat Leon Skoda Octavia Brake Disc 356x22 Audi A6 original Brake Caliper

✓ 356x22 4H0615601F Audi A6 brake disc
✓ 1-piston 8V0615425B Golf 7 / Audi S3 RS3 brake caliper
✓ rear axle

£119.52*

£111.15

Product number: 1101

Steel Braided Brake Line VW T5 T6 Bus Transporter Porsche Brembo TTRS Audi Porsche Panamera Cayenne Brake Conversion

✓ Length: 60cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£106.91*

£99.43

Product number: SF112

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R23 Audi A3 S3 V6 Brembo TTRS Brak Conversion Rear Axle

✓ Length: 50cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£92.63*

£86.15

Product number: SF115

Audi A3 S3 TT VW Polo 6R VW Golf MK4 Bora Porsche Brake Caliper Adapter

✓ 323x28 1ML615301 Seat Leon Cupra R brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ front axle

£129.47*

£120.41

Product number: 596

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Brake Caliper Adapter 375x36 Brake Disc Mercedes Porsche Panamera Caliper with parts certificate

✓ 375x36 1664210912 Mercedes ML / GL brake disc
✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
✓ front axle

£301.31*

£280.22

Product number: 511

Steel Braided Brake Line VW T5 T6 Bus Transporter Van Front Axle Brake Conversion

✓ Length: 30cm
✓ M10x1 straight outside
✓ M10x1 straight inside

£88.71*

£82.50

Product number: SF113

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Porsche Panamera brake system brake calliper adapter 375x36 Tuning adapter with TÜV parts certificate

✓ 375x36 1664210912 Mercedes GL brake disc
✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
✓ front axle

£308.15*

£286.58

Product number: 1186

ARAMID ceramic brake pad Epytec Golf 4 R32 Audi S3 brake calliper rear axle handbrake JZW698451

✓ 35% better braking performance
✓ 75% more service life
✓ low dust generation

£26.74*

£24.87

Product number: 1174

Braided steel brake line VW Golf 5 6 7 GTI R32 Audi A3 S3 V6 Brembo 6-piston brakes Front axle conversion Panamera

✓ Length: 63.5cm
✓ M10x1 straight outside
✓ M10x1 straight inside

£97.00*

£90.21

Product number: SF123

Brake caliper adapter Golf 7R Audi A3 8V Brake disc 356x22 Audi A6 Porsche Cayenne 4-piston brake caliper with TÜV parts certificate

✓ 356x22 4H0615601F Audi A6 A7 brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ rear axle

£448.13*

£416.76

Product number: 1091

Caliper adapter VW Audi A3 S3 TT VW Golf 4 Bora Porsche 996 brake

✓ 312x25 8N0615301A Audi S3 / Golf 4 GTI brake disc
✓ 4-piston 996352422 / 996352421 Porsche 996 brake caliper
✓ front axle

£182.56*

£169.78

Product number: 376

VW Golf 4 Polo 9N VW Polo 6r WRC Bora Audi A3 TT TTRS RS3 Audi TT Brake Caliper Adapter 370x32 Disc

£180.95*

£168.28

Product number: 742

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda brake disc 370x34mm Audi RS3 8-piston brake caliper tuning adapter

✓ 370x34 8V0615301R Audi RS3 brake disc
✓ 8-piston 8T0615107D / 8T0615108D Audi RS brake caliper
✓ front axle

£237.75*

£221.11

Product number: 1147

Brake caliper adapter Golf 7R Audi A3 8V Brake disc 356x22 Audi A6 Porsche Cayenne 4-piston brake caliper with TÜV parts certificate

✓ 356x22 4H0615601F Audi A6 A7 brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ rear axle

£448.13*

Product number: 1091

Go to product

Z18 Brake Caliper Epytec 4-Piston ZR18 ZL18 Porsche Cayenne VW Touareg Tuning Brake System Rear Axle

✓ Choice of color
✓ ZR18 / Z18 4-piston brake calipers
✓ 955.352.421 / 955352421 955.352.422 / 955352422 7L6615423H / 7L6615423L / 7L6615423D / 7L6615423G

£321.11* £401.38* (20% saved)

Product number: 1178

Go to product

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R23 Audi A3 S3 V6 Brembo TTRS Brak Conversion Rear Axle

✓ Length: 50cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£92.63*

Product number: SF115

Go to product

Mounting aid for brake disc assembly Mounting aid M14x1.5 BMW VW Audi Mercedes Conversion brake system

✓ Thread M14x1.5
✓ ensures comfortable installation of your upgrade brake
✓ makes work easier

£7.24*

Product number: 1204

Go to product

Brake pad Epytec for ZR18 brake caliper rear axle 4 pistons 4L0 698 451 D

✓ 35% better braking performance
✓ 75% more service life
✓ low dust generation

£81.26*

Product number: 1173

Go to product

2x Audi A6 C7 Avant A6 C7 Sportback A7 A8 D4 356x22mm perforated brake disc Rotinger OE 4H0615601F

✓ 356x22
✓ 68mm centering
✓ 36mm height

£271.23*

Product number: 1194

Go to product

Steel Braided Brake Line Steel Flexible Brake Hose front Axle VW Golf MK4 R32 Audi A3 S3 A1 Ibiza Pol

✓ Length: 57cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£98.16*

£91.29

Product number: SF100

VW Golf MK4 Audi A3 TT Seat Rim Centric Ring Extension Bush Spacer Brake Conversion

✓ rim centric ring / extension bush, high-strength steel, for VW Golf MK4 Polo 9N Bora Audi A3 TT

£10.86*

£10.10

Product number: 884

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R32 Audi A3 S3 V6 Brembo TTRS Brake Conversion

✓ Length: 63cm
✓ M10x1 outside 45° curved
✓ M10x1 inside straight

£98.16*

£91.29

Product number: SF109

Brake Caliper Adapter Porsche for Audi TT A3 S3 VW Golf Polo

£134.00*

£124.62

Product number: 143

Audi TT A3 S3 VW Golf Polo 6r WRC Brake Caliper Adapter Cayenne ZR17 Touareg BM5 Brake System 334x32

£123.79*

£115.12

Product number: 403

VW Golf 5 6 Audi A3 TT S3 8P Seat Leon Cayenne ZR18 Front Brake Caliper Adapter R32

✓ 350x32 A1644210512 Mercedes W164 brake disc
✓ 6-piston 955351421 / 955351422 Z18 brake caliper
✓ front axle

£120.83*

£112.37

Product number: 715

VW Audi Golf MK1 MK2 MK3 Corrado Special Track Rod End Head Universal Low Profile Lowering M14 x 1,5 Thread

✓ Tie rod end M14x1.5
✓ VW, Audi, Golf 1, Golf 2, Golf 3, Corrado,...
✓ 100% perfect fit

£88.45*

£82.26

Product number: TAT102

Brake Caliper Adapter Audi S1 A3 S3 RS3 8V Golf Mk7 Seat Leon Skoda Octavia Brake Disc 356x22 Audi A6 original Brake Caliper

✓ 356x22 4H0615601F Audi A6 brake disc
✓ 1-piston 8V0615425B Golf 7 / Audi S3 RS3 brake caliper
✓ rear axle

£119.52*

£111.15

Product number: 1101

Steel Braided Brake Line VW T5 T6 Bus Transporter Porsche Brembo TTRS Audi Porsche Panamera Cayenne Brake Conversion

✓ Length: 60cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£106.91*

£99.43

Product number: SF112

Steel Braided Brake Line VW Golf MK5 MK6 MK7 GTI R23 Audi A3 S3 V6 Brembo TTRS Brak Conversion Rear Axle

✓ Length: 50cm
✓ M10x1 curved on the outside
✓ M10x1 straight on the inside

£92.63*

£86.15

Product number: SF115

Audi A3 S3 TT VW Polo 6R VW Golf MK4 Bora Porsche Brake Caliper Adapter

✓ 323x28 1ML615301 Seat Leon Cupra R brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ front axle

£129.47*

£120.41

Product number: 596

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Brake Caliper Adapter 375x36 Brake Disc Mercedes Porsche Panamera Caliper with parts certificate

✓ 375x36 1664210912 Mercedes ML / GL brake disc
✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
✓ front axle

£301.31*

£280.22

Product number: 511

Steel Braided Brake Line VW T5 T6 Bus Transporter Van Front Axle Brake Conversion

✓ Length: 30cm
✓ M10x1 straight outside
✓ M10x1 straight inside

£88.71*

£82.50

Product number: SF113

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda Porsche Panamera brake system brake calliper adapter 375x36 Tuning adapter with TÜV parts certificate

✓ 375x36 1664210912 Mercedes GL brake disc
✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
✓ front axle

£308.15*

£286.58

Product number: 1186

ARAMID ceramic brake pad Epytec Golf 4 R32 Audi S3 brake calliper rear axle handbrake JZW698451

✓ 35% better braking performance
✓ 75% more service life
✓ low dust generation

£26.74*

£24.87

Product number: 1174

Braided steel brake line VW Golf 5 6 7 GTI R32 Audi A3 S3 V6 Brembo 6-piston brakes Front axle conversion Panamera

✓ Length: 63.5cm
✓ M10x1 straight outside
✓ M10x1 straight inside

£97.00*

£90.21

Product number: SF123

Brake caliper adapter Golf 7R Audi A3 8V Brake disc 356x22 Audi A6 Porsche Cayenne 4-piston brake caliper with TÜV parts certificate

✓ 356x22 4H0615601F Audi A6 A7 brake disc
✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
✓ rear axle

£448.13*

£416.76

Product number: 1091

Caliper adapter VW Audi A3 S3 TT VW Golf 4 Bora Porsche 996 brake

✓ 312x25 8N0615301A Audi S3 / Golf 4 GTI brake disc
✓ 4-piston 996352422 / 996352421 Porsche 996 brake caliper
✓ front axle

£182.56*

£169.78

Product number: 376

VW Golf 4 Polo 9N VW Polo 6r WRC Bora Audi A3 TT TTRS RS3 Audi TT Brake Caliper Adapter 370x32 Disc

£180.95*

£168.28

Product number: 742

VW Golf 7 8 Seat Leon Audi A3 Cupra Leon Skoda brake disc 370x34mm Audi RS3 8-piston brake caliper tuning adapter

✓ 370x34 8V0615301R Audi RS3 brake disc
✓ 8-piston 8T0615107D / 8T0615108D Audi RS brake caliper
✓ front axle

£237.75*

£221.11

Product number: 1147

Big brake system KIT rear axle VW Golf 7 Audi A3 Porsche Cayenne 4-piston caliper VW Golf 7R handbrake caliper 356x22 brake disc with parts certificate - Colour brake caliper: blank without colour

Golf 7 R parking brake calipers available directly from us

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles with aluminium steering knuckles (OE: 5Q0505435J / 5Q0505436J /5Q0505435G / 5Q0505436G, 5Q0505435H / 5Q0505436H)

Advantages of this braking system:

Save real money on registration:

Note:

Scope of delivery:

Tips, information and advice:

Individual articles in KIT

Passendes Zubehör zusammen kaufen und sparen

Big brake system KIT rear axle VW Golf 7 Audi A3 Porsche Cayenne 4-piston caliper VW Golf 7R handbrake caliper 356x22 brake disc with parts certificate - Colour brake caliper: blank without colour

Golf 7 R parking brake calipers available directly from us

The large high-performance brake kit / Big Brake Kit is suitable for the following vehicles with aluminium steering knuckles (OE: 5Q0505435J / 5Q0505436J /5Q0505435G / 5Q0505436G, 5Q0505435H / 5Q0505436H)

Advantages of this braking system:

Save real money on registration:

Note:

Scope of delivery:

Tips, information and advice:

Login

Audi

A3 Cabriolet

A3 Sportback

A3

A1

A3 Limousine

A1 Sportback

Skoda

Octavia 3

Octavia 3 Combi

Superb 3

Superb 3 Kombi

Seat

Leon ST

VW

Golf 7

Arteon Shooting Brake

Arteon

Golf 7 Variant

Individual articles in KIT

Passendes Zubehör zusammen kaufen und sparen
