Wheel Hub Hub Adapter Beetles Aluminum Porsche PCD 5x130
- ✓ 5x130 bolt circle
- ✓ Plug & Play
- ✓ VW Beetle
€392.72*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

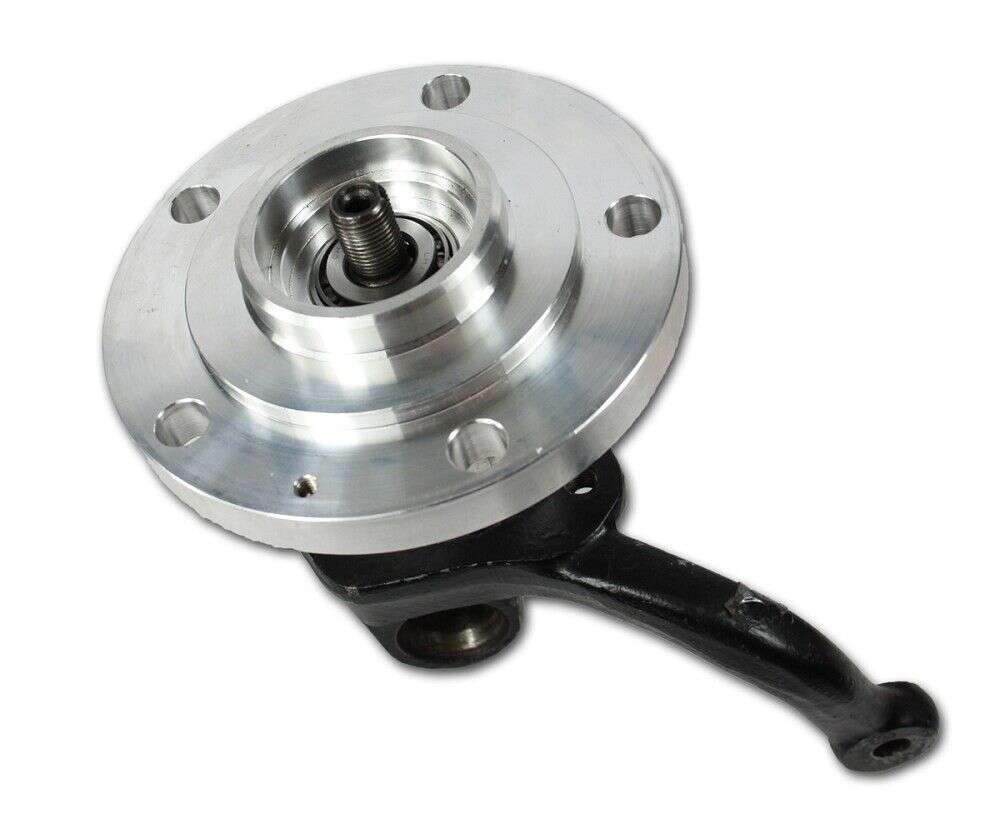

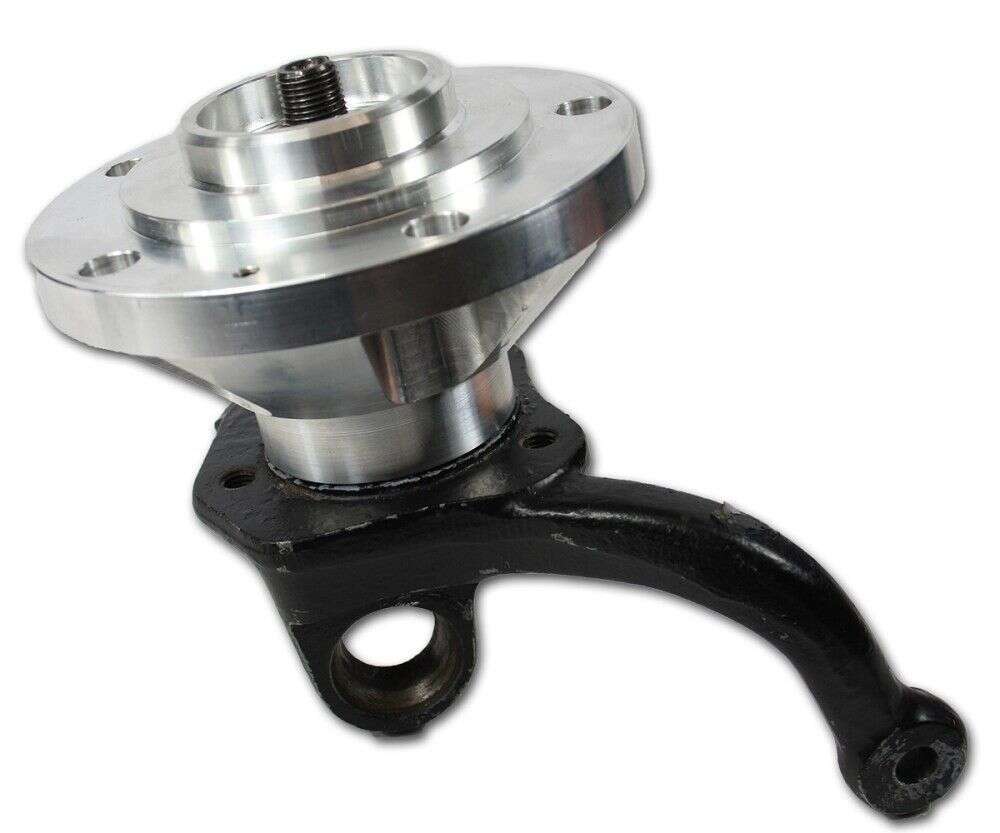

Porsche conversion PCD 5x130 for beetle with our wheel hub / hub adapter made of aircraft aluminum suitable for front axle.
We took measurements of the exterior contours of the original Porsche 944 hub and the inner contours of the original Beetle hub. Then, thanks to the CAD software we designed this wheel hub. This hub can be installed exactly on the Beetle with the original wheel bearing ( OE: 311 405 625, 311 405 645 ).
Therefore, without a PCD adapter plate, it is possible to have on your Beetle a 5x130 PCD of Porsche type.
For the wheel hubs the grease caps of the Porsche 944 can be used.
Shaft sealing ring / Simmerring are taken over from the original Beetle.

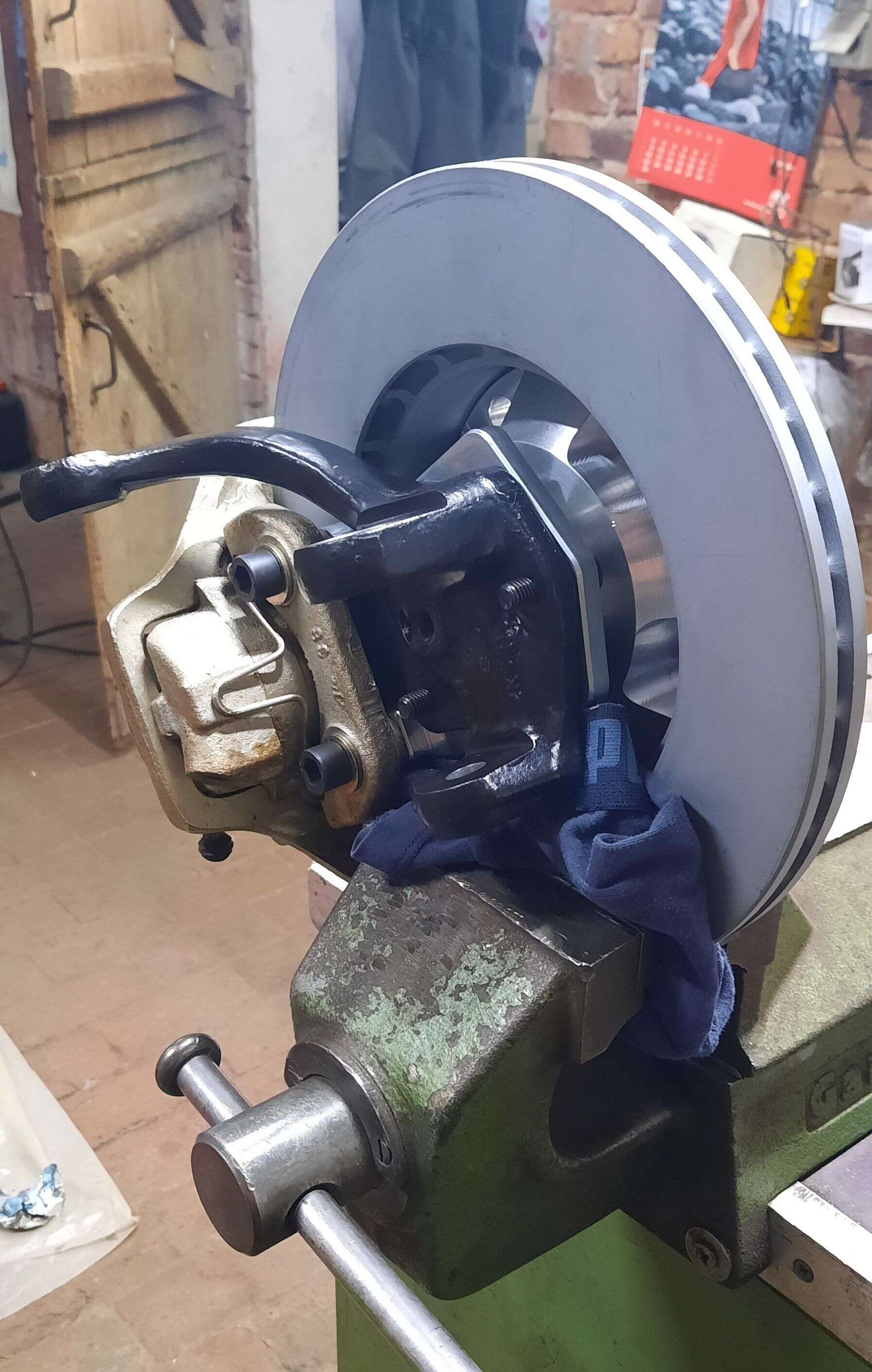

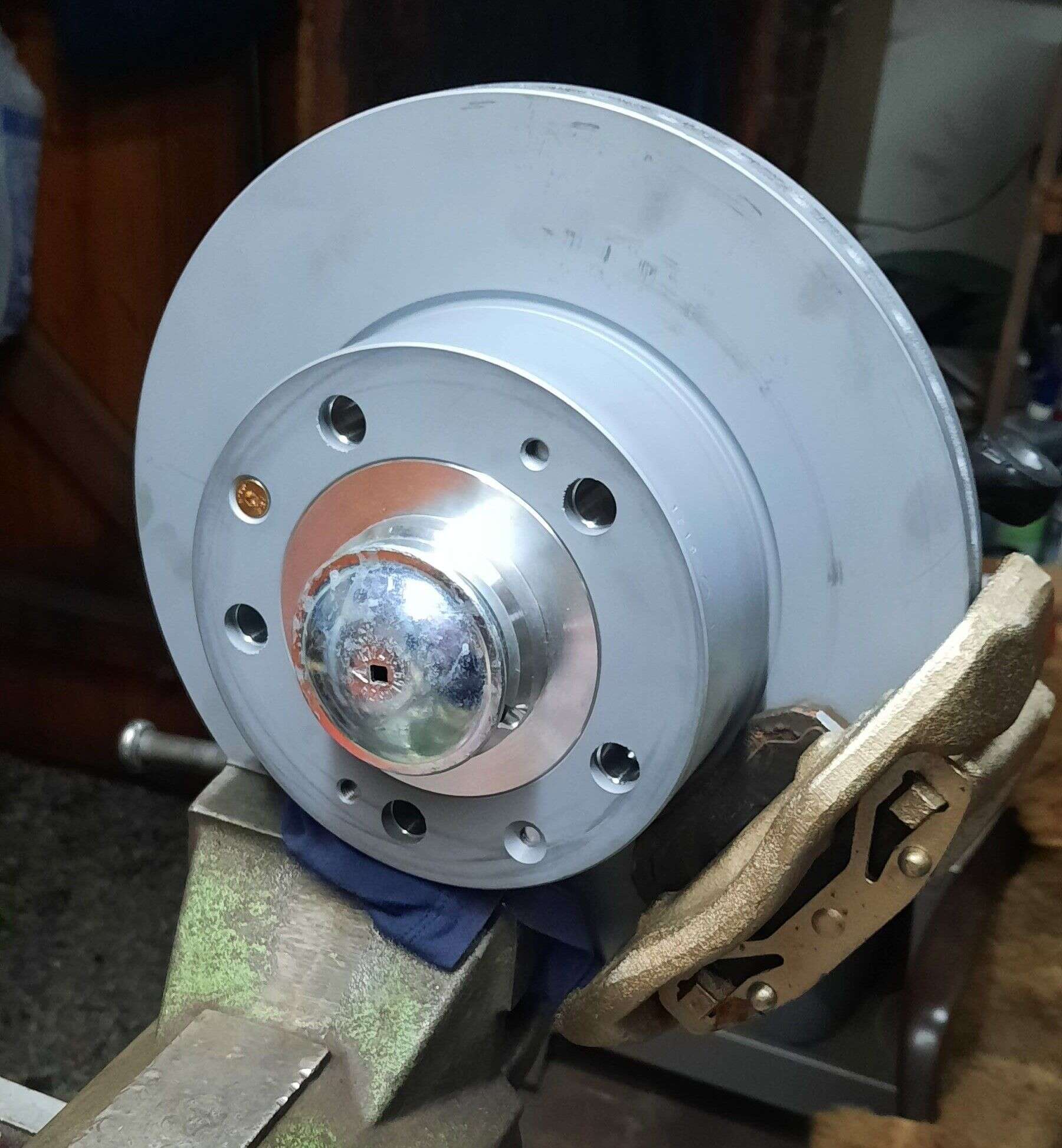

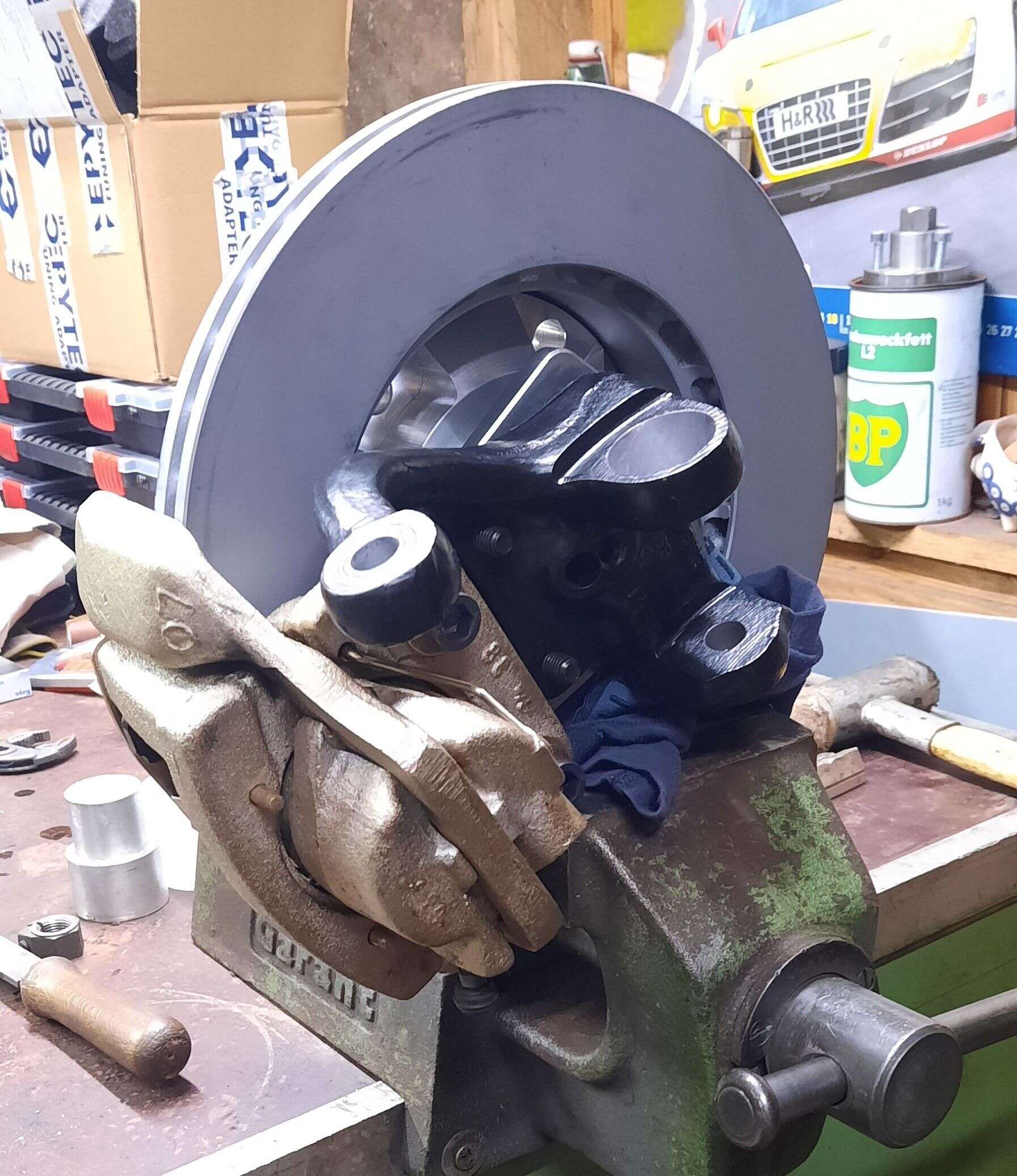

This article is also ideal if it is combined with our brake caliper brackets / supports to install the Porsche 944 calipers with the discs of your Beetle. These items can also be found in our shop!
Other Advantages:
- easy assembly (only to be replaced with original parts)
- 100% fit
- weight saving on the front axle and therefore better driving in cornering
- top deceleration thanks to a lower mass of inertia
- No corrosion of the rims at the hub. And also: easy tire change is possible
- brake disc centric: 102,8mm
- rim centric: 71,5mm
Delivery:

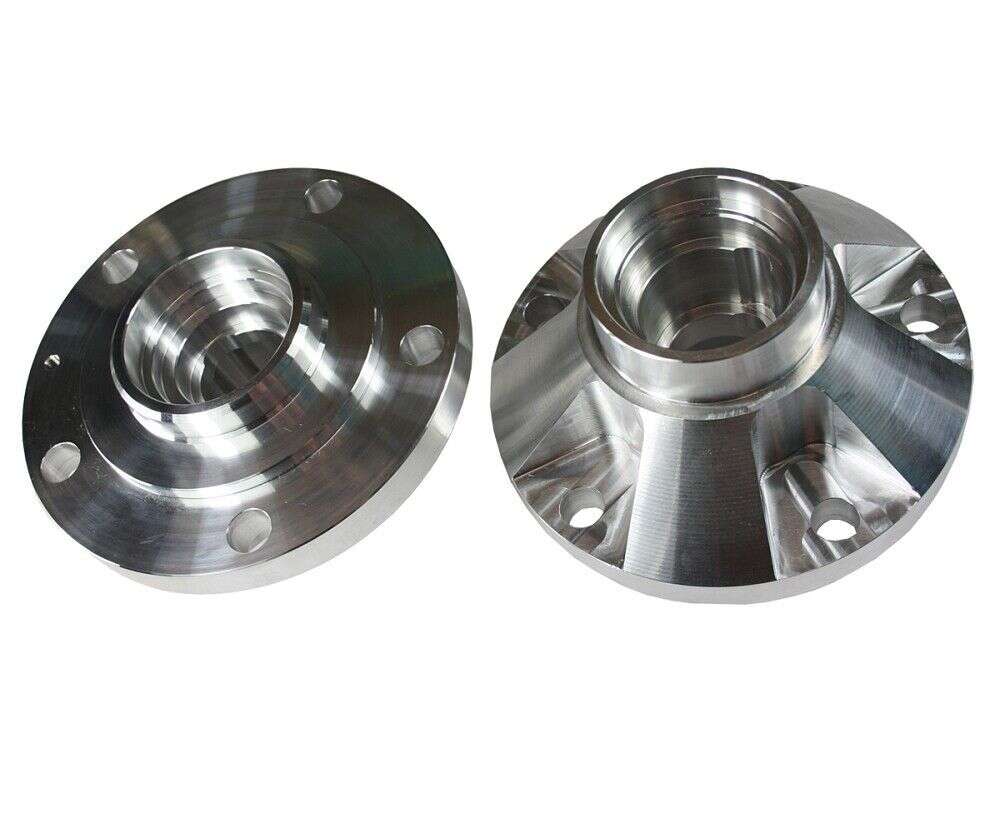

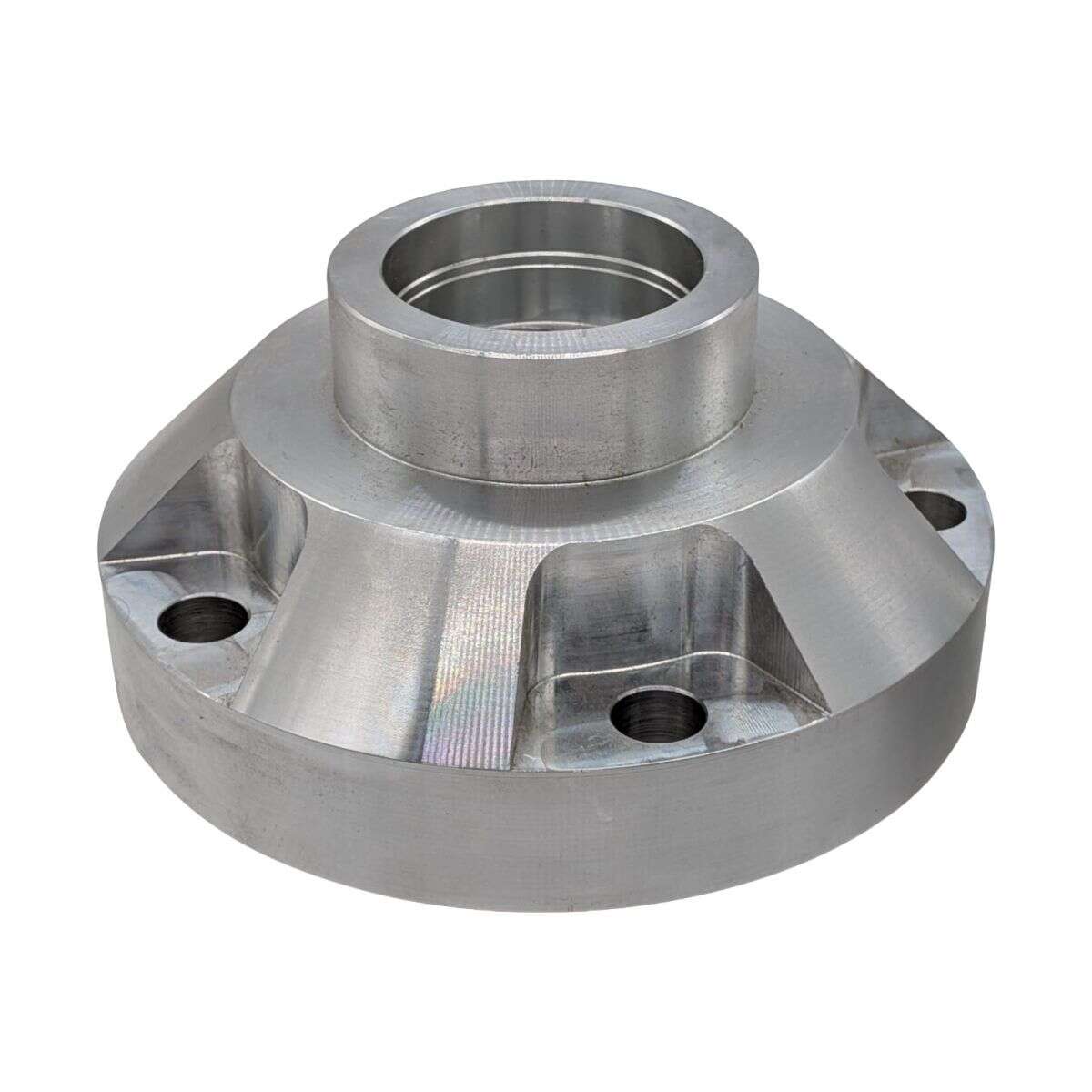

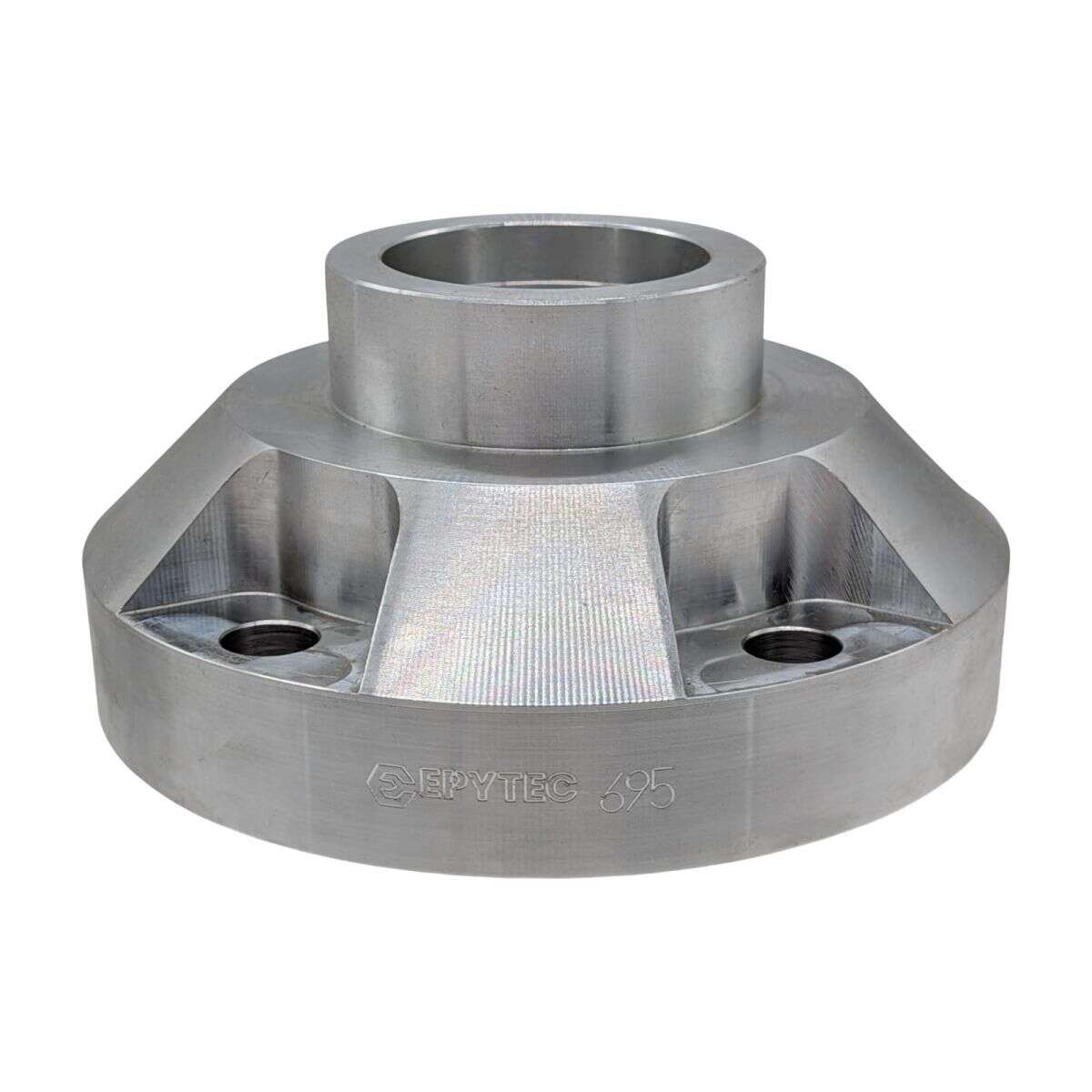

- 2x wheel hubs / hub adapters made of aircraft aluminum for conversion to Porsche 5x130 PCD
- material certificate
- Static stress analysis for TÜV registration
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
5 April 2019 19:45
Bart B
Top.
26 September 2018 22:12
Dominik S
Super passgenauigkeit, top verarbeitung. Jedem zu empfehlen der seinen Käfer mit einer großen Bremsanlage mit dem Porsche Lochkreis ausstatten möchte.
1 May 2021 18:02
Remy M
Awesome Hubs very good quality !!!
13 November 2018 21:22
STEPHEN H
Excellent product. Beautifully made with precision, and Great quality
10 September 2021 18:56
Sebastien K
sehr gute Qualität der Umsetzung, Kein Montageproblem und schon gar nicht etwas ändern
5 April 2019 06:43
Bart B
Top.
11 January 2021 22:01
Torsten W
Die Radnaben für Käfer sind sehr schöne Teile. Sie sind passgenau und leicht. Das Preis-Leistungsverhältnis stimmt. Besonders gefällt mir an Epytec, dass Hinweise und Verbesserungsvorschläge gerne gehört und umgesetzt werden. Ich empfehle Epytec jedem weiter !!
1 May 2021 18:00
Remy M
Awesome Hubs very good quality !!!
27 August 2021 19:57
Sebastien K
super produit, de très bonne qualité. et surtout enfin un adaptateur qui se monte sans aucun modification
22 December 2021 18:57
Stuart H
This rating is because the product is very high quality, excellent design, and very well finished. There is not anything to dislike about this product, I did a previous Porsche brake conversion using original early type 944 hubs and specially made bearing adaptors to fit Beetle stub axles, although it worked I always thought there may be an element of compromised safety. I do think that this Epytec product may be heavier than a Porsche unit, but the design paperwork and testing is very impressive. I particularly liked the way that the design used the early 944 wheel studs. The original shorter 944 front studs can be used on the rear (if the spacer is deleted like on my car) and then the longer 65mm rear studs reused on the Epytec front hubs, because the front hub flange has been left deliberately quite thick to enable this. A clever design feature requiring no more expense. I found them completely by accident when searching the web for 944 brake conversion information. They are for my 1984 Mexi beetle. 944 IRS 1985 rear brakes with late 964 calipers, and 928 GTS big black front calipers using 305 discs on these hubs, mounted on dropped spindles. They are yet to be installed but bench assembly looks good and problem free. Its only a minor point, they have a wonderful machined tool finish, (and for reduced corrosion I may have them anodised before fitting), however on each one the tooled finish had one or two marks or bruises on the edges where they had been carelessly handled or put down heavily on a bench after machining. Not a big issue, it will be seen when installed as it is around the grease cap.
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
