Steel braided brake line VW Golf 5 6 7 8 GTI R32 Audi A3 S3 V6 Brembo TTRS brake conversion
€100.57*
Longer steel braided brake line with parts approval for conversion to larger brake systems, e.g., Brembo 4-6 piston brake calipers installed in Porsche or TTRS.
Suitable for many models, e.g.:
- Golf 5/6/7/8
- Seat
- Audi A3 / S3
Advantages over original brake lines:
- No pressure loss when braking, resulting in a noticeably precise pressure point
- Easy installation, the original line is simply replaced with the steel braided line
- No swelling like with rubber lines
- Cost savings, as steel braided lines have a virtually unlimited service life and do not need to be replaced every 3-5 years
- Shorter braking distance
- Marten resistance
- Including parts certificate for easy registration
- Great appearance
Technical specifications:
- Length: 55 cm

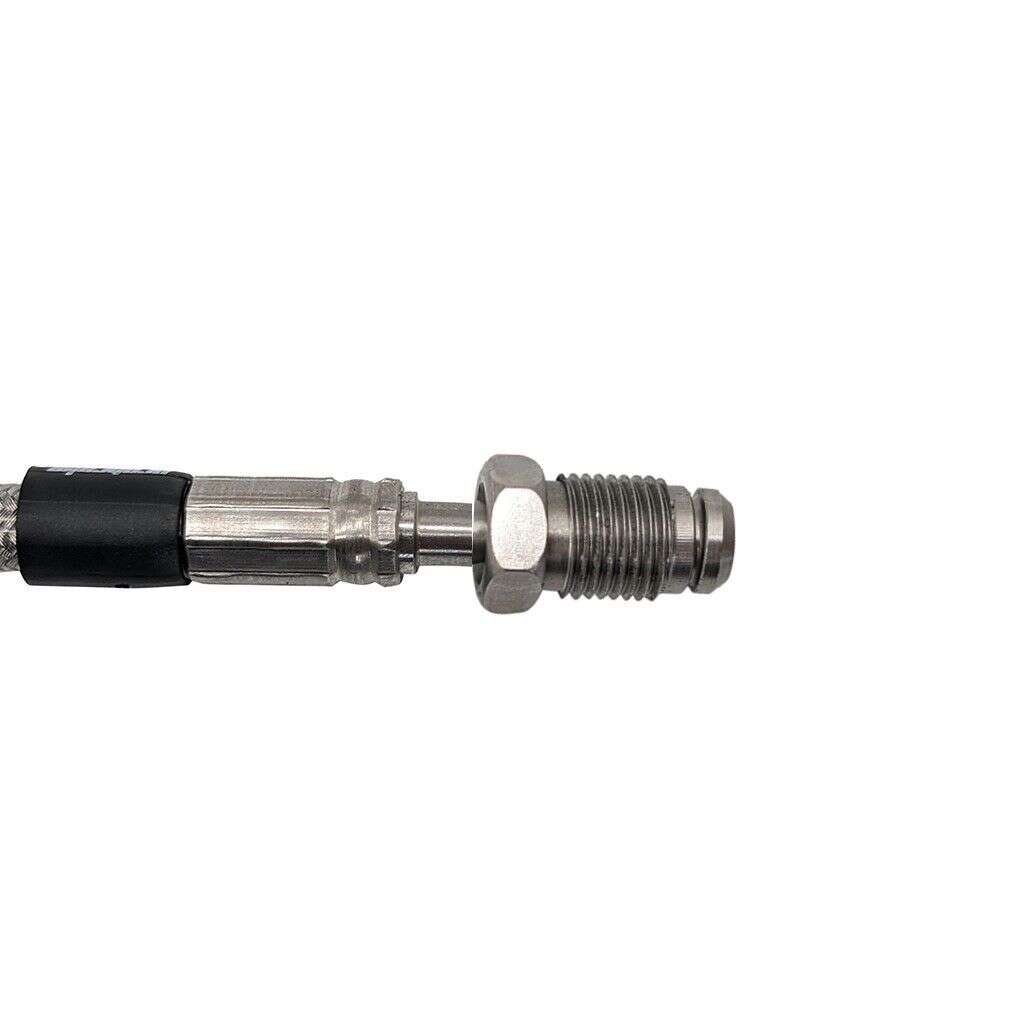

- Connection 1: M10x1 straight external thread

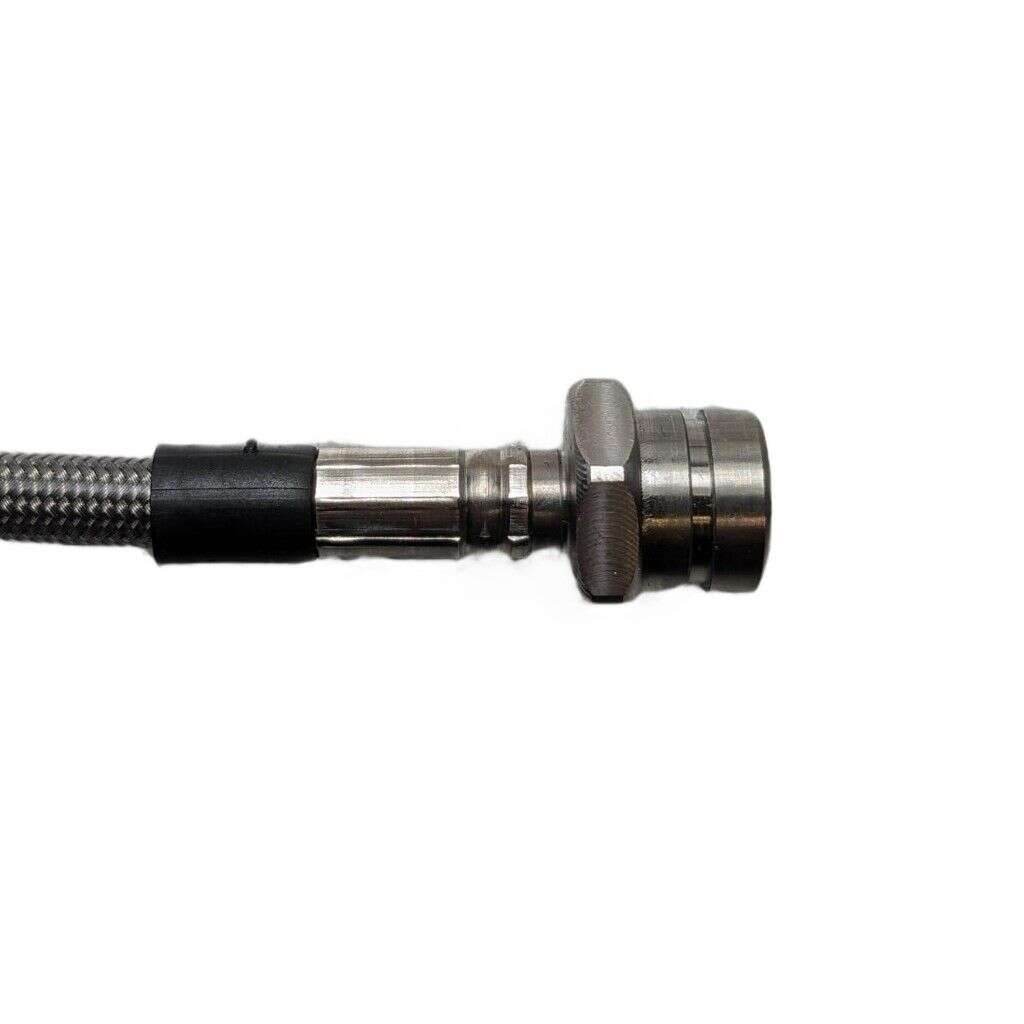

- Connection 2: M10x1 straight internal thread
- 90° flare. Our fittings are so-called hybrids, meaning every connection fits, whether concave or convex.
Scope of delivery:
- 2x steel braided brake lines for VW Golf 5/6/7/8, Audi A3, etc.
- Including parts certificate for easy registration Registration
We also manufacture to your specifications. With our steel braided brake line configurator (click here), you can configure your steel braided brake line to your specifications (length, color, and connectors).
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Login
- Does the steel braided line also fit other vehicles?
Yes – basically the braided steel line can also fit many other vehicles if the connection data matches. In practice, many manufacturers use very similar thread sizes for brake line fittings, so using them across different models is often possible.
What really matters
To ensure the line fits securely and tightly, you need to match three main points:
Thread size / connection
The key factor is what thread your vehicle has at the connection points (e.g., at the fixed line connection or brake caliper).
This thread size must match the fittings of the line.
Sealing surface (concave or convex)
Often, the problem is not the thread, but the sealing shape on the counterpart:
concave (valley) or
convex (hill)
Our fittings are so-called “hybrid” connections. This means: Each connection is designed to reliably seal with both concave and convex sealing surfaces. This makes the line significantly more versatile.
Length and routing
You need to determine the required length suitable for your vehicle (ideally as described above: fully extend, simulate routing, check steering).
Only if the line is long enough and can be routed cleanly is it truly suitable.
How to quickly check if it fits
Determine the thread size on the vehicle (and compare it with the data of the line)
Measure the line length
Check the technical data in the product description – there you will find all the details about the line and the connections.
- Two lens gaskets were supplied with the Steelflex lines. Where exactly are these installed?
The 2 lens seals are not automatically always installed, but only when they are needed to compensate for the sealing cone on the respective counterpart. Background: Depending on the vehicle/connection, there are different flaring or sealing shapes – and that's exactly why the lenses are always provided as a precaution.
What are the lens seals for?
They serve as a compensating piece when the cone on the connection (counterpart) does not perfectly match the steel braided hose. This ensures that the connection seals cleanly.
Where are they used?
If needed, the lens seals are placed directly into the connection with internal thread – that is, into the “female” fitting on the vehicle/distributor/brake caliper, before you screw in the hose.
The hose presses the lens into its seat when tightened, thus creating the seal.When do you need them – and when not?
F flare (DIN/ISO cone, usually fits):
→ Lens seals are not needed.
The hose usually seals directly over the matching cone here.E flare:
→ Lens seals must be used.
Simply place it into the internal thread, then screw in the hose and tighten as usual.
Installation note
The installation direction does not matter – you can install the lens either way, it makes no difference.
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 521|170PS(125KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.6 FSI | 521|115PS(85KW) |
| 1.9 TDI | 5M1|105PS(77KW) |
| 2.0 TDI | 521|131PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|122PS(90KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| 1.4 | 1K5|80PS(59KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| 1.9 TDI 4motion | 1K5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 5G1|105PS(77KW) |
| 1.6 TDI | BE2|110PS(81KW) |
| 1.4 TSI | 5G1|125PS(92KW) |
| 2.0 TDI | BE1|150PS(110KW) |
| 1.6 TDI 4motion | BQ1|110PS(81KW) |
| 1.4 TSI | BQ1|122PS(90KW) |
| 1.6 TDI | 5G1|90PS(66KW) |
| 1.4 TSI | BE1|125PS(92KW) |
| 2.0 GTI | BE2|230PS(169KW) |
| 1.6 TDI | BE1|105PS(77KW) |
| 1.4 GTE Hybrid | BQ1|204PS(150KW) |
| 1.6 TDI | 5G1|110PS(81KW) |
| 2.0 R 4motion | BE2|280PS(206KW) |
| 1.6 TDI | BQ1|90PS(66KW) |
| 1.6 TDI | BQ1|105PS(77KW) |
| 1.4 TGI CNG | 5G1|110PS(81KW) |
| 2.0 TDI 4motion | 5G1|150PS(110KW) |
| 1.4 TSI | BE2|122PS(90KW) |
| 1.2 TSI | BE1|105PS(77KW) |
| 1.6 TDI 4motion | 5G1|105PS(77KW) |
| 1.4 GTE Hybrid | BE1|204PS(150KW) |
| 1.2 TSI | BQ1|86PS(63KW) |
| 2.0 R 4motion | BE1|300PS(221KW) |
| 1.4 TSI MultiFuel | BE2|125PS(92KW) |
| 2.0 GTI | BQ1|230PS(169KW) |
| 1.4 TSI | BE1|140PS(103KW) |
| 2.0 GTI | BE1|230PS(169KW) |
| 1.0 TSI | BE1|115PS(85KW) |
| 1.6 TDI | BE2|105PS(77KW) |
| 1.4 TSI MultiFuel | BE2|122PS(90KW) |
| 1.2 TSI | BQ1|105PS(77KW) |
| 1.4 TSI MultiFuel | BE1|125PS(92KW) |
| 1.4 TSI | BE1|122PS(90KW) |
| 2.0 R 4motion | BQ1|300PS(221KW) |
| 1.4 TSI | 5G1|140PS(103KW) |
| 1.2 TSI | BE1|86PS(63KW) |
| 1.6 TDI 4motion | BE1|105PS(77KW) |
| 1.6 TDI 4motion | BQ1|105PS(77KW) |
| 2.0 GTI | 5G1|220PS(162KW) |
| 1.6 TDI 4motion | BE2|105PS(77KW) |
| 1.4 GTE Hybrid | 5G1|204PS(150KW) |
| 1.6 TDI | BE1|90PS(66KW) |
| 2.0 TDI 4motion | BQ1|150PS(110KW) |
| 2.0 R 4motion | BE1|280PS(206KW) |
| 1.2 TSI | BE2|105PS(77KW) |
| 1.4 TGI CNG | BE2|110PS(81KW) |
| 2.0 R 4motion | BE2|300PS(221KW) |
| 1.6 TDI | BQ1|110PS(81KW) |
| 2.0 GTI | BE2|220PS(162KW) |
| 2.0 GTI | BQ1|220PS(162KW) |
| 2.0 R 4motion | BQ1|280PS(206KW) |
| 1.0 TSI | BQ1|115PS(85KW) |
| 1.0 TSI | BE2|115PS(85KW) |
| 2.0 TDI | 5G1|150PS(110KW) |
| 2.0 GTI | BE1|220PS(162KW) |
| 2.0 TDI | BQ1|150PS(110KW) |
| 1.4 TGI CNG | BE1|110PS(81KW) |
| 1.4 GTE Hybrid | BE2|204PS(150KW) |
| 1.0 TSI | 5G1|115PS(85KW) |
| 1.4 TSI MultiFuel | BQ1|125PS(92KW) |
| 1.2 TSI | 5G1|86PS(63KW) |
| 2.0 TDI 4motion | BE1|150PS(110KW) |
| 1.4 TSI | BE2|140PS(103KW) |
| 1.4 TSI MultiFuel | 5G1|122PS(90KW) |
| 2.0 R 4motion | 5G1|300PS(221KW) |
| 1.4 TSI MultiFuel | 5G1|125PS(92KW) |
| 1.4 TSI | BQ1|125PS(92KW) |
| 1.6 TDI 4motion | BE2|110PS(81KW) |
| 2.0 R 4motion | 5G1|280PS(206KW) |
| 2.0 GTI | 5G1|230PS(169KW) |
| 1.6 TDI 4motion | 5G1|110PS(81KW) |
| 1.4 TSI | BQ1|140PS(103KW) |
| 1.4 TSI MultiFuel | BQ1|122PS(90KW) |
| 1.4 TSI | BE2|125PS(92KW) |
| 1.6 TDI | 5G1|105PS(77KW) |
| 1.4 TSI MultiFuel | BE1|122PS(90KW) |
| 2.0 TDI | BE2|150PS(110KW) |
| 1.2 TSI | BE2|86PS(63KW) |
| 1.4 TSI | 5G1|122PS(90KW) |
| 1.6 TDI | BE2|90PS(66KW) |
| 1.6 TDI | BE1|110PS(81KW) |
| 2.0 TDI 4motion | BE2|150PS(110KW) |
| 1.4 TGI CNG | BQ1|110PS(81KW) |
| 1.6 TDI 4motion | BE1|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 517|125PS(92KW) |
| 2.0 TDI | 517|150PS(110KW) |
| 1.6 TDI | 517|105PS(77KW) |
| 1.4 TSI | 517|122PS(90KW) |
| 1.2 TSI 16V | 517|105PS(77KW) |
| 2.0 GTI | 517|211PS(155KW) |
| 2.0 TDI | 517|110PS(81KW) |
| 2.0 TDI | 517|140PS(103KW) |
| 1.4 TSI | 517|150PS(110KW) |
| 2.0 TSI | 517|220PS(162KW) |
| 1.4 TSI | 517|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 1.5 eTSI | CD1|131PS(96KW) |
| 1.5 GTE Plug-in-Hybrid | DA1|272PS(200KW) |
| 1.0 TSI | DA1|90PS(66KW) |
| 2.0 TDI | CD1|150PS(110KW) |
| 2.0 GTI | DA1|265PS(195KW) |
| 1.0 TSI | DA1|110PS(81KW) |
| 1.5 eTSI | DA1|150PS(110KW) |
| 2.0 TDI 4motion | DA1|150PS(110KW) |
| 2.0 TSI R 4motion | DA1|320PS(235KW) |
| 1.5 eTSI | DA1|116PS(85KW) |
| 2.0 TDI GTD | DA1|200PS(147KW) |
| 2.0 GTI | CD1|245PS(180KW) |
| 1.5 TGI | CD1|131PS(96KW) |
| 1.0 TSI | CD1|110PS(81KW) |
| 1.5 TSI | CD1|150PS(110KW) |
| 1.5 eHybrid | DA1|204PS(150KW) |
| 2.0 TDI 4motion | CD1|200PS(147KW) |
| 2.0 TSI R 4motion | CD1|333PS(245KW) |
| 1.5 GTE Plug-in-Hybrid | CD1|272PS(200KW) |
| 1.5 eTSI | CD1|150PS(110KW) |
| 1.4 TSI eHybrid | DA1|204PS(150KW) |
| 1.4 TSI eHybrid | CD1|204PS(150KW) |
| 2.0 GTI | DA1|245PS(180KW) |
| 2.0 GTI | CD1|265PS(195KW) |
| 2.0 TSI R 4motion | DA1|333PS(245KW) |
| 1.0 TSI | CD1|90PS(66KW) |
| 1.5 eTSI | CD1|116PS(85KW) |
| 1.0 eTSI | DA1|110PS(81KW) |
| 2.0 TDI GTD | CD1|200PS(147KW) |
| 2.0 GTI Clubsport | DA1|300PS(221KW) |
| 1.5 TGI | DA1|131PS(96KW) |
| 2.0 TSI 4motion | CD1|190PS(140KW) |
| 1.4 GTE Plug-in-Hybrid | CD1|245PS(180KW) |
| 2.0 TSI R 4motion | CD1|320PS(235KW) |
| 1.5 eHybrid | CD1|204PS(150KW) |
| 1.0 eTSI | CD1|110PS(81KW) |
| 1.5 TSI | CD1|116PS(85KW) |
| 1.5 TSI | DA1|150PS(110KW) |
| 1.5 TSI | DA1|131PS(96KW) |
| 1.5 eTSI | DA1|131PS(96KW) |
| 2.0 TDI | DA1|116PS(85KW) |
| 1.4 GTE Plug-in-Hybrid | DA1|245PS(180KW) |
| 2.0 TDI 4motion | CD1|150PS(110KW) |
| 2.0 GTI Clubsport | CD1|300PS(221KW) |
| 1.5 TSI | CD1|131PS(96KW) |
| 1.5 TSI | DA1|116PS(85KW) |
| 2.0 TDI | CD1|116PS(85KW) |
| 2.0 TSI | CD1|190PS(140KW) |
| 2.0 TSI 4motion | DA1|190PS(140KW) |
| 2.0 TDI | DA1|150PS(110KW) |
| 2.0 TSI | DA1|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 5K1|86PS(63KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 2.0 TDI 4motion | 5K1|140PS(103KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 2.0 R 4motion | 5K1|256PS(188KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| 2.0 R 4motion | 5K1|270PS(199KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 1.4 | 5K1|80PS(59KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 1.6 | 5K1|102PS(75KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| Motor | Motorcode |
|---|---|
| 1.5 TSI | DB5|116PS(85KW) |
| 2.0 TDI | DB5|150PS(110KW) |
| 2.0 TDI | CG5|116PS(85KW) |
| 1.5 eTSI | CG5|131PS(96KW) |
| 2.0 TDI | CG5|150PS(110KW) |
| 2.0 TSI R 4motion | DB5|333PS(245KW) |
| 2.0 TSI R 4motion | CG5|333PS(245KW) |
| 1.0 TSI | CG5|110PS(81KW) |
| 1.5 TGI | DB5|131PS(96KW) |
| 1.5 eTSI | CG5|150PS(110KW) |
| 2.0 TSI | CG5|190PS(140KW) |
| 2.0 TDI | DB5|116PS(85KW) |
| 1.5 TSI | DB5|150PS(110KW) |
| 1.0 TSI | DB5|90PS(66KW) |
| 1.5 TSI | CG5|131PS(96KW) |
| 1.0 eTSI | DB5|110PS(81KW) |
| 2.0 TSI 4motion | DB5|190PS(140KW) |
| 1.5 TSI | CG5|150PS(110KW) |
| 2.0 TDI 4motion | DB5|150PS(110KW) |
| 1.5 eTSI | DB5|116PS(85KW) |
| 2.0 TSI 4motion | CG5|190PS(140KW) |
| 1.0 TSI | DB5|110PS(81KW) |
| 2.0 TDI 4motion | CG5|150PS(110KW) |
| 2.0 TSI | DB5|190PS(140KW) |
| 1.5 TSI | DB5|131PS(96KW) |
| 1.5 TSI | CG5|116PS(85KW) |
| 2.0 TSI R 4motion | DB5|320PS(235KW) |
| 1.5 eTSI | DB5|150PS(110KW) |
| 1.5 eTSI | CG5|116PS(85KW) |
| 2.0 TSI R 4motion | CG5|320PS(235KW) |
| 1.5 TGI | CG5|131PS(96KW) |
| 1.0 TSI | CG5|90PS(66KW) |
| 1.5 eTSI | DB5|131PS(96KW) |
| 1.0 eTSI | CG5|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | BV5|150PS(110KW) |
| 1.2 TSI | BV5|86PS(63KW) |
| 1.6 TDI 4motion | BA5|110PS(81KW) |
| 1.4 TSI | BA5|125PS(92KW) |
| 1.4 TGI CNG | BV5|110PS(81KW) |
| 2.0 TDI 4motion | BA5|150PS(110KW) |
| 1.6 TDI | BV5|105PS(77KW) |
| 1.4 TSI MultiFuel | BV5|125PS(92KW) |
| 1.6 TDI | BV5|90PS(66KW) |
| 1.4 TSI MultiFuel | BA5|122PS(90KW) |
| 1.0 TSI | BV5|115PS(85KW) |
| 2.0 GTD | BV5|184PS(135KW) |
| 1.4 TSI | BV5|122PS(90KW) |
| 1.2 TSI | BA5|86PS(63KW) |
| 1.2 TSI | BV5|105PS(77KW) |
| 1.4 TSI | BA5|122PS(90KW) |
| 1.6 TDI | BA5|105PS(77KW) |
| 2.0 TDI | BA5|150PS(110KW) |
| 1.0 TSI | BA5|115PS(85KW) |
| 1.6 TDI 4motion | BV5|110PS(81KW) |
| 1.6 TDI | BA5|110PS(81KW) |
| 1.4 TSI MultiFuel | BA5|125PS(92KW) |
| 1.6 TDI | BV5|110PS(81KW) |
| 2.0 GTD | BA5|184PS(135KW) |
| 1.6 TDI | BA5|90PS(66KW) |
| 1.4 TSI | BV5|150PS(110KW) |
| 2.0 TDI 4motion | BV5|150PS(110KW) |
| 1.4 TGI CNG | BA5|110PS(81KW) |
| 1.4 TSI | BA5|150PS(110KW) |
| 1.2 TSI | BA5|105PS(77KW) |
| 1.4 TSI | BV5|125PS(92KW) |
| 1.4 TSI MultiFuel | BV5|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | AJ5|122PS(90KW) |
| 1.2 TSI | AJ5|86PS(63KW) |
| 1.6 MultiFuel | AJ5|102PS(75KW) |
| 1.6 TDI | AJ5|105PS(77KW) |
| 1.6 TDI | AJ5|90PS(66KW) |
| 2.0 TDI | AJ5|140PS(103KW) |
| 1.6 TDI 4motion | AJ5|105PS(77KW) |
| 2.0 TDI | AJ5|136PS(100KW) |
| 1.4 | AJ5|80PS(59KW) |
| 1.4 TSI | AJ5|160PS(118KW) |
| 1.6 | AJ5|102PS(75KW) |
| 1.2 TSI | AJ5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 1K1|140PS(103KW) |
| 2.0 FSI | 1K1|150PS(110KW) |
| 2.0 TDI 16V 4motion | 1K1|140PS(103KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 1.9 TDI | 1K1|90PS(66KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 2.0 TDI 4motion | 1K1|140PS(103KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 1.6 | 1K1|102PS(75KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| 1.9 TDI 4motion | 1K1|105PS(77KW) |
| 2.0 FSI 4motion | 1K1|150PS(110KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| 1.4 TSI | 162|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.6 TDI | 8P7|105PS(77KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| 1.8 TFSI | 8P7|160PS(118KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 1.6 | 8P7|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| S3 quattro | 8PA|265PS(195KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| RS3 quattro | 8PA|340PS(250KW) |
| 2.0 TDI | 8PA|140PS(103KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 1.8 TFSI quattro | 8PA|160PS(118KW) |
| 2.0 TDI quattro | 8PA|140PS(103KW) |
| 3.2 V6 quattro | 8PA|250PS(184KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 2.0 TDI quattro | 8PA|170PS(125KW) |
| 1.9 TDI | 8PA|105PS(77KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| 2.0 TFSI quattro | 8PA|200PS(147KW) |
| 2.0 TDI 16V quattro | 8PA|140PS(103KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 1.6 | 8PA|102PS(75KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 2.0 TDI | 8PA|136PS(100KW) |
| S3 quattro | 8PA|256PS(188KW) |
| Motor | Motorcode |
|---|---|
| 1.6 TDI | 8P1|90PS(66KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| S3 quattro | 8P1|256PS(188KW) |
| 2.0 TDI quattro | 8P1|136PS(100KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| 2.0 TDI | 8P1|140PS(103KW) |
| 1.8 TFSI quattro | 8P1|160PS(118KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| 2.0 TDI | 8P1|163PS(120KW) |
| 2.0 TDI 16V quattro | 8P1|140PS(103KW) |
| 2.0 TFSI quattro | 8P1|200PS(147KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| 2.0 TDI quattro | 8P1|140PS(103KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| S3 quattro | 8P1|265PS(195KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 3.2 V6 quattro | 8P1|250PS(184KW) |
| 2.0 TDI quattro | 8P1|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSI | 8J3|211PS(155KW) |
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.0 TFSI | 8J3|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| 2.0 FSi | 5P8|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P1|150PS(110KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| 2.0 TDi | 5P1|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi | 1P1|200PS(147KW) |
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| 2.0 TFSi | 1P1|185PS(136KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 521|170PS(125KW) |
| 1.9 TDI | 521|105PS(77KW) |
| 1.4 TSI | 521|140PS(103KW) |
| 1.6 FSI | 5M1|115PS(85KW) |
| 2.0 TDI | 5M1|131PS(96KW) |
| 2.0 FSI | 521|150PS(110KW) |
| 1.4 TSI | 5M1|170PS(125KW) |
| 1.9 TDI | 521|90PS(66KW) |
| 2.0 FSI | 5M1|150PS(110KW) |
| 1.9 TDI | 5M1|90PS(66KW) |
| 1.4 TSI | 5M1|140PS(103KW) |
| 1.6 FSI | 521|115PS(85KW) |
| 1.9 TDI | 5M1|105PS(77KW) |
| 2.0 TDI | 521|131PS(96KW) |
| Motor | Motorcode |
|---|---|
| 1.6 | 1K5|102PS(75KW) |
| 1.4 TSI | 1K5|122PS(90KW) |
| 2.0 TDI | 1K5|136PS(100KW) |
| 1.4 TSI | 1K5|160PS(118KW) |
| 1.4 | 1K5|80PS(59KW) |
| 1.4 TSI | 1K5|140PS(103KW) |
| 2.0 TDI | 1K5|140PS(103KW) |
| 2.0 TFSI | 1K5|200PS(147KW) |
| 1.4 TSI | 1K5|170PS(125KW) |
| 1.6 MultiFuel | 1K5|102PS(75KW) |
| 1.9 TDI | 1K5|105PS(77KW) |
| 1.9 TDI 4motion | 1K5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 5G1|105PS(77KW) |
| 1.6 TDI | BE2|110PS(81KW) |
| 1.4 TSI | 5G1|125PS(92KW) |
| 2.0 TDI | BE1|150PS(110KW) |
| 1.6 TDI 4motion | BQ1|110PS(81KW) |
| 1.4 TSI | BQ1|122PS(90KW) |
| 1.6 TDI | 5G1|90PS(66KW) |
| 1.4 TSI | BE1|125PS(92KW) |
| 2.0 GTI | BE2|230PS(169KW) |
| 1.6 TDI | BE1|105PS(77KW) |
| 1.4 GTE Hybrid | BQ1|204PS(150KW) |
| 1.6 TDI | 5G1|110PS(81KW) |
| 2.0 R 4motion | BE2|280PS(206KW) |
| 1.6 TDI | BQ1|90PS(66KW) |
| 1.6 TDI | BQ1|105PS(77KW) |
| 1.4 TGI CNG | 5G1|110PS(81KW) |
| 2.0 TDI 4motion | 5G1|150PS(110KW) |
| 1.4 TSI | BE2|122PS(90KW) |
| 1.2 TSI | BE1|105PS(77KW) |
| 1.6 TDI 4motion | 5G1|105PS(77KW) |
| 1.4 GTE Hybrid | BE1|204PS(150KW) |
| 1.2 TSI | BQ1|86PS(63KW) |
| 2.0 R 4motion | BE1|300PS(221KW) |
| 1.4 TSI MultiFuel | BE2|125PS(92KW) |
| 2.0 GTI | BQ1|230PS(169KW) |
| 1.4 TSI | BE1|140PS(103KW) |
| 2.0 GTI | BE1|230PS(169KW) |
| 1.0 TSI | BE1|115PS(85KW) |
| 1.6 TDI | BE2|105PS(77KW) |
| 1.4 TSI MultiFuel | BE2|122PS(90KW) |
| 1.2 TSI | BQ1|105PS(77KW) |
| 1.4 TSI MultiFuel | BE1|125PS(92KW) |
| 1.4 TSI | BE1|122PS(90KW) |
| 2.0 R 4motion | BQ1|300PS(221KW) |
| 1.4 TSI | 5G1|140PS(103KW) |
| 1.2 TSI | BE1|86PS(63KW) |
| 1.6 TDI 4motion | BE1|105PS(77KW) |
| 1.6 TDI 4motion | BQ1|105PS(77KW) |
| 2.0 GTI | 5G1|220PS(162KW) |
| 1.6 TDI 4motion | BE2|105PS(77KW) |
| 1.4 GTE Hybrid | 5G1|204PS(150KW) |
| 1.6 TDI | BE1|90PS(66KW) |
| 2.0 TDI 4motion | BQ1|150PS(110KW) |
| 2.0 R 4motion | BE1|280PS(206KW) |
| 1.2 TSI | BE2|105PS(77KW) |
| 1.4 TGI CNG | BE2|110PS(81KW) |
| 2.0 R 4motion | BE2|300PS(221KW) |
| 1.6 TDI | BQ1|110PS(81KW) |
| 2.0 GTI | BE2|220PS(162KW) |
| 2.0 GTI | BQ1|220PS(162KW) |
| 2.0 R 4motion | BQ1|280PS(206KW) |
| 1.0 TSI | BQ1|115PS(85KW) |
| 1.0 TSI | BE2|115PS(85KW) |
| 2.0 TDI | 5G1|150PS(110KW) |
| 2.0 GTI | BE1|220PS(162KW) |
| 2.0 TDI | BQ1|150PS(110KW) |
| 1.4 TGI CNG | BE1|110PS(81KW) |
| 1.4 GTE Hybrid | BE2|204PS(150KW) |
| 1.0 TSI | 5G1|115PS(85KW) |
| 1.4 TSI MultiFuel | BQ1|125PS(92KW) |
| 1.2 TSI | 5G1|86PS(63KW) |
| 2.0 TDI 4motion | BE1|150PS(110KW) |
| 1.4 TSI | BE2|140PS(103KW) |
| 1.4 TSI MultiFuel | 5G1|122PS(90KW) |
| 2.0 R 4motion | 5G1|300PS(221KW) |
| 1.4 TSI MultiFuel | 5G1|125PS(92KW) |
| 1.4 TSI | BQ1|125PS(92KW) |
| 1.6 TDI 4motion | BE2|110PS(81KW) |
| 2.0 R 4motion | 5G1|280PS(206KW) |
| 2.0 GTI | 5G1|230PS(169KW) |
| 1.6 TDI 4motion | 5G1|110PS(81KW) |
| 1.4 TSI | BQ1|140PS(103KW) |
| 1.4 TSI MultiFuel | BQ1|122PS(90KW) |
| 1.4 TSI | BE2|125PS(92KW) |
| 1.6 TDI | 5G1|105PS(77KW) |
| 1.4 TSI MultiFuel | BE1|122PS(90KW) |
| 2.0 TDI | BE2|150PS(110KW) |
| 1.2 TSI | BE2|86PS(63KW) |
| 1.4 TSI | 5G1|122PS(90KW) |
| 1.6 TDI | BE2|90PS(66KW) |
| 1.6 TDI | BE1|110PS(81KW) |
| 2.0 TDI 4motion | BE2|150PS(110KW) |
| 1.4 TGI CNG | BQ1|110PS(81KW) |
| 1.6 TDI 4motion | BE1|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 517|125PS(92KW) |
| 2.0 TDI | 517|150PS(110KW) |
| 1.6 TDI | 517|105PS(77KW) |
| 1.4 TSI | 517|122PS(90KW) |
| 1.2 TSI 16V | 517|105PS(77KW) |
| 2.0 GTI | 517|211PS(155KW) |
| 2.0 TDI | 517|110PS(81KW) |
| 2.0 TDI | 517|140PS(103KW) |
| 1.4 TSI | 517|150PS(110KW) |
| 2.0 TSI | 517|220PS(162KW) |
| 1.4 TSI | 517|160PS(118KW) |
| Motor | Motorcode |
|---|---|
| 1.5 eTSI | CD1|131PS(96KW) |
| 1.5 GTE Plug-in-Hybrid | DA1|272PS(200KW) |
| 1.0 TSI | DA1|90PS(66KW) |
| 2.0 TDI | CD1|150PS(110KW) |
| 2.0 GTI | DA1|265PS(195KW) |
| 1.0 TSI | DA1|110PS(81KW) |
| 1.5 eTSI | DA1|150PS(110KW) |
| 2.0 TDI 4motion | DA1|150PS(110KW) |
| 2.0 TSI R 4motion | DA1|320PS(235KW) |
| 1.5 eTSI | DA1|116PS(85KW) |
| 2.0 TDI GTD | DA1|200PS(147KW) |
| 2.0 GTI | CD1|245PS(180KW) |
| 1.5 TGI | CD1|131PS(96KW) |
| 1.0 TSI | CD1|110PS(81KW) |
| 1.5 TSI | CD1|150PS(110KW) |
| 1.5 eHybrid | DA1|204PS(150KW) |
| 2.0 TDI 4motion | CD1|200PS(147KW) |
| 2.0 TSI R 4motion | CD1|333PS(245KW) |
| 1.5 GTE Plug-in-Hybrid | CD1|272PS(200KW) |
| 1.5 eTSI | CD1|150PS(110KW) |
| 1.4 TSI eHybrid | DA1|204PS(150KW) |
| 1.4 TSI eHybrid | CD1|204PS(150KW) |
| 2.0 GTI | DA1|245PS(180KW) |
| 2.0 GTI | CD1|265PS(195KW) |
| 2.0 TSI R 4motion | DA1|333PS(245KW) |
| 1.0 TSI | CD1|90PS(66KW) |
| 1.5 eTSI | CD1|116PS(85KW) |
| 1.0 eTSI | DA1|110PS(81KW) |
| 2.0 TDI GTD | CD1|200PS(147KW) |
| 2.0 GTI Clubsport | DA1|300PS(221KW) |
| 1.5 TGI | DA1|131PS(96KW) |
| 2.0 TSI 4motion | CD1|190PS(140KW) |
| 1.4 GTE Plug-in-Hybrid | CD1|245PS(180KW) |
| 2.0 TSI R 4motion | CD1|320PS(235KW) |
| 1.5 eHybrid | CD1|204PS(150KW) |
| 1.0 eTSI | CD1|110PS(81KW) |
| 1.5 TSI | CD1|116PS(85KW) |
| 1.5 TSI | DA1|150PS(110KW) |
| 1.5 TSI | DA1|131PS(96KW) |
| 1.5 eTSI | DA1|131PS(96KW) |
| 2.0 TDI | DA1|116PS(85KW) |
| 1.4 GTE Plug-in-Hybrid | DA1|245PS(180KW) |
| 2.0 TDI 4motion | CD1|150PS(110KW) |
| 2.0 GTI Clubsport | CD1|300PS(221KW) |
| 1.5 TSI | CD1|131PS(96KW) |
| 1.5 TSI | DA1|116PS(85KW) |
| 2.0 TDI | CD1|116PS(85KW) |
| 2.0 TSI | CD1|190PS(140KW) |
| 2.0 TSI 4motion | DA1|190PS(140KW) |
| 2.0 TDI | DA1|150PS(110KW) |
| 2.0 TSI | DA1|190PS(140KW) |
| Motor | Motorcode |
|---|---|
| 1.2 TSI | 5K1|86PS(63KW) |
| 1.6 Bi-Fuel | 5K1|102PS(75KW) |
| 1.4 TSI | 5K1|122PS(90KW) |
| Blue E-Motion | 5K1|88PS(65KW) |
| 2.0 TDI 4motion | 5K1|140PS(103KW) |
| 1.6 TDI | 5K1|90PS(66KW) |
| 1.6 TDI | 5K1|105PS(77KW) |
| 1.6 MultiFuel | 5K1|102PS(75KW) |
| 2.0 R 4motion | 5K1|256PS(188KW) |
| 2.0 GTI | 5K1|235PS(173KW) |
| 2.0 R 4motion | 5K1|270PS(199KW) |
| 1.8 TSI | 5K1|160PS(118KW) |
| 1.4 TSI | 5K1|160PS(118KW) |
| 1.4 | 5K1|80PS(59KW) |
| 2.0 TDI | 5K1|140PS(103KW) |
| 2.0 TDI | 5K1|110PS(81KW) |
| 2.0 TDI | 5K1|136PS(100KW) |
| 2.0 TDI | 5K1|170PS(125KW) |
| 1.6 | 5K1|102PS(75KW) |
| 2.0 GTI | 5K1|210PS(155KW) |
| Motor | Motorcode |
|---|---|
| 1.5 TSI | DB5|116PS(85KW) |
| 2.0 TDI | DB5|150PS(110KW) |
| 2.0 TDI | CG5|116PS(85KW) |
| 1.5 eTSI | CG5|131PS(96KW) |
| 2.0 TDI | CG5|150PS(110KW) |
| 2.0 TSI R 4motion | DB5|333PS(245KW) |
| 2.0 TSI R 4motion | CG5|333PS(245KW) |
| 1.0 TSI | CG5|110PS(81KW) |
| 1.5 TGI | DB5|131PS(96KW) |
| 1.5 eTSI | CG5|150PS(110KW) |
| 2.0 TSI | CG5|190PS(140KW) |
| 2.0 TDI | DB5|116PS(85KW) |
| 1.5 TSI | DB5|150PS(110KW) |
| 1.0 TSI | DB5|90PS(66KW) |
| 1.5 TSI | CG5|131PS(96KW) |
| 1.0 eTSI | DB5|110PS(81KW) |
| 2.0 TSI 4motion | DB5|190PS(140KW) |
| 1.5 TSI | CG5|150PS(110KW) |
| 2.0 TDI 4motion | DB5|150PS(110KW) |
| 1.5 eTSI | DB5|116PS(85KW) |
| 2.0 TSI 4motion | CG5|190PS(140KW) |
| 1.0 TSI | DB5|110PS(81KW) |
| 2.0 TDI 4motion | CG5|150PS(110KW) |
| 2.0 TSI | DB5|190PS(140KW) |
| 1.5 TSI | DB5|131PS(96KW) |
| 1.5 TSI | CG5|116PS(85KW) |
| 2.0 TSI R 4motion | DB5|320PS(235KW) |
| 1.5 eTSI | DB5|150PS(110KW) |
| 1.5 eTSI | CG5|116PS(85KW) |
| 2.0 TSI R 4motion | CG5|320PS(235KW) |
| 1.5 TGI | CG5|131PS(96KW) |
| 1.0 TSI | CG5|90PS(66KW) |
| 1.5 eTSI | DB5|131PS(96KW) |
| 1.0 eTSI | CG5|110PS(81KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | BV5|150PS(110KW) |
| 1.2 TSI | BV5|86PS(63KW) |
| 1.6 TDI 4motion | BA5|110PS(81KW) |
| 1.4 TSI | BA5|125PS(92KW) |
| 1.4 TGI CNG | BV5|110PS(81KW) |
| 2.0 TDI 4motion | BA5|150PS(110KW) |
| 1.6 TDI | BV5|105PS(77KW) |
| 1.4 TSI MultiFuel | BV5|125PS(92KW) |
| 1.6 TDI | BV5|90PS(66KW) |
| 1.4 TSI MultiFuel | BA5|122PS(90KW) |
| 1.0 TSI | BV5|115PS(85KW) |
| 2.0 GTD | BV5|184PS(135KW) |
| 1.4 TSI | BV5|122PS(90KW) |
| 1.2 TSI | BA5|86PS(63KW) |
| 1.2 TSI | BV5|105PS(77KW) |
| 1.4 TSI | BA5|122PS(90KW) |
| 1.6 TDI | BA5|105PS(77KW) |
| 2.0 TDI | BA5|150PS(110KW) |
| 1.0 TSI | BA5|115PS(85KW) |
| 1.6 TDI 4motion | BV5|110PS(81KW) |
| 1.6 TDI | BA5|110PS(81KW) |
| 1.4 TSI MultiFuel | BA5|125PS(92KW) |
| 1.6 TDI | BV5|110PS(81KW) |
| 2.0 GTD | BA5|184PS(135KW) |
| 1.6 TDI | BA5|90PS(66KW) |
| 1.4 TSI | BV5|150PS(110KW) |
| 2.0 TDI 4motion | BV5|150PS(110KW) |
| 1.4 TGI CNG | BA5|110PS(81KW) |
| 1.4 TSI | BA5|150PS(110KW) |
| 1.2 TSI | BA5|105PS(77KW) |
| 1.4 TSI | BV5|125PS(92KW) |
| 1.4 TSI MultiFuel | BV5|122PS(90KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | AJ5|122PS(90KW) |
| 1.2 TSI | AJ5|86PS(63KW) |
| 1.6 MultiFuel | AJ5|102PS(75KW) |
| 1.6 TDI | AJ5|105PS(77KW) |
| 1.6 TDI | AJ5|90PS(66KW) |
| 2.0 TDI | AJ5|140PS(103KW) |
| 1.6 TDI 4motion | AJ5|105PS(77KW) |
| 2.0 TDI | AJ5|136PS(100KW) |
| 1.4 | AJ5|80PS(59KW) |
| 1.4 TSI | AJ5|160PS(118KW) |
| 1.6 | AJ5|102PS(75KW) |
| 1.2 TSI | AJ5|105PS(77KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TDI | 1K1|140PS(103KW) |
| 2.0 FSI | 1K1|150PS(110KW) |
| 2.0 TDI 16V 4motion | 1K1|140PS(103KW) |
| 1.9 TDI | 1K1|105PS(77KW) |
| 3.2 R32 4motion | 1K1|250PS(184KW) |
| 1.4 TSI | 1K1|140PS(103KW) |
| 1.9 TDI | 1K1|90PS(66KW) |
| 2.0 GTI | 1K1|230PS(169KW) |
| 1.4 TSI | 1K1|170PS(125KW) |
| 1.4 TSI | 1K1|122PS(90KW) |
| 2.0 TDI 4motion | 1K1|140PS(103KW) |
| 1.4 FSI | 1K1|90PS(66KW) |
| 1.6 | 1K1|102PS(75KW) |
| 2.0 TDI | 1K1|170PS(125KW) |
| 2.0 SDI | 1K1|75PS(55KW) |
| 2.0 GTI | 1K1|200PS(147KW) |
| 2.0 TDI | 1K1|136PS(100KW) |
| 1.4 16V | 1K1|80PS(59KW) |
| 1.9 TDI 4motion | 1K1|105PS(77KW) |
| 2.0 FSI 4motion | 1K1|150PS(110KW) |
| 1.4 16V | 1K1|75PS(55KW) |
| 1.6 FSI | 1K1|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 1.4 TSI | 163|150PS(110KW) |
| 1.4 TSI | AV2|150PS(110KW) |
| 1.4 TSI | AV3|150PS(110KW) |
| 1.4 TSI | 162|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 1.6 TDI | 8P7|105PS(77KW) |
| 1.9 TDI | 8P7|105PS(77KW) |
| 2.0 TDI | 8P7|136PS(100KW) |
| 1.2 TFSI | 8P7|105PS(77KW) |
| 2.0 TFSI | 8P7|200PS(147KW) |
| 2.0 TDI | 8P7|140PS(103KW) |
| 1.8 TFSI | 8P7|160PS(118KW) |
| 1.4 TFSI | 8P7|125PS(92KW) |
| 1.6 | 8P7|102PS(75KW) |
| Motor | Motorcode |
|---|---|
| S3 quattro | 8PA|265PS(195KW) |
| 1.6 E-Power | 8PA|102PS(75KW) |
| 2.0 FSI | 8PA|150PS(110KW) |
| RS3 quattro | 8PA|340PS(250KW) |
| 2.0 TDI | 8PA|140PS(103KW) |
| 1.6 TDI | 8PA|105PS(77KW) |
| 1.6 FSI | 8PA|115PS(85KW) |
| 1.8 TFSI quattro | 8PA|160PS(118KW) |
| 2.0 TDI quattro | 8PA|140PS(103KW) |
| 3.2 V6 quattro | 8PA|250PS(184KW) |
| 2.0 TDI | 8PA|163PS(120KW) |
| 1.6 TDI | 8PA|90PS(66KW) |
| 2.0 TDI quattro | 8PA|170PS(125KW) |
| 1.9 TDI | 8PA|105PS(77KW) |
| 1.2 TSI | 8PA|105PS(77KW) |
| 1.4 TFSI | 8PA|125PS(92KW) |
| 2.0 TFSI quattro | 8PA|200PS(147KW) |
| 2.0 TDI 16V quattro | 8PA|140PS(103KW) |
| 2.0 TDI | 8PA|170PS(125KW) |
| 1.6 | 8PA|102PS(75KW) |
| 2.0 TFSI | 8PA|200PS(147KW) |
| 1.8 TFSI | 8PA|160PS(118KW) |
| 2.0 TDI | 8PA|136PS(100KW) |
| S3 quattro | 8PA|256PS(188KW) |
| Motor | Motorcode |
|---|---|
| 1.6 TDI | 8P1|90PS(66KW) |
| 1.4 TFSI | 8P1|125PS(92KW) |
| 2.0 TDI | 8P1|170PS(125KW) |
| S3 quattro | 8P1|256PS(188KW) |
| 2.0 TDI quattro | 8P1|136PS(100KW) |
| 1.6 E-Power | 8P1|102PS(75KW) |
| 2.0 FSI | 8P1|150PS(110KW) |
| 1.6 TDI | 8P1|105PS(77KW) |
| 1.6 | 8P1|102PS(75KW) |
| 1.6 FSI | 8P1|115PS(85KW) |
| 2.0 TDI | 8P1|140PS(103KW) |
| 1.8 TFSI quattro | 8P1|160PS(118KW) |
| 1.9 TDI | 8P1|105PS(77KW) |
| 2.0 TDI | 8P1|163PS(120KW) |
| 2.0 TDI 16V quattro | 8P1|140PS(103KW) |
| 2.0 TFSI quattro | 8P1|200PS(147KW) |
| 2.0 TDI | 8P1|136PS(100KW) |
| 1.2 TSI | 8P1|105PS(77KW) |
| 2.0 TDI quattro | 8P1|140PS(103KW) |
| 1.8 TFSI | 8P1|160PS(118KW) |
| S3 quattro | 8P1|265PS(195KW) |
| 2.0 TFSI | 8P1|200PS(147KW) |
| 3.2 V6 quattro | 8P1|250PS(184KW) |
| 2.0 TDI quattro | 8P1|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSI | 8J3|211PS(155KW) |
| 1.8 TFSI | 8J3|160PS(118KW) |
| 2.0 TFSI | 8J3|200PS(147KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi 4x4 | 5P5|200PS(147KW) |
| 2.0 TFSi 4x4 | 5P8|200PS(147KW) |
| 2.0 TDi | 5P5|136PS(100KW) |
| 2.0 TDi | 5P8|136PS(100KW) |
| 2.0 FSi | 5P5|150PS(110KW) |
| 2.0 TFSi | 5P8|200PS(147KW) |
| 2.0 TFSi | 5P5|200PS(147KW) |
| 2.0 FSi | 5P8|150PS(110KW) |
| Motor | Motorcode |
|---|---|
| 2.0 FSi | 5P1|150PS(110KW) |
| 2.0 TFSi | 5P1|200PS(147KW) |
| 2.0 TDi | 5P1|136PS(100KW) |
| Motor | Motorcode |
|---|---|
| 2.0 TFSi | 1P1|200PS(147KW) |
| 2.0 FSi | 1P1|150PS(110KW) |
| 2.0 TDi | 1P1|136PS(100KW) |
| 2.0 TFSi | 1P1|185PS(136KW) |
- ✓ Length: 63cm
- ✓ M10x1 outside 45° curved
- ✓ M10x1 inside straight
- ✓ 390x36 1664210512 Mercedes GL 500 brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 360x36 A0004211712 / A2184210212 Mercedes CLS 500 brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 brake caliper
- ✓ front axle
- ✓ Length: 57cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ rim centric ring / extension bush, high-strength steel, for VW Golf MK4 Polo 9N Bora Audi A3 TT
- ✓ 310x22 1K0615601N Golf 5 R brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
- ✓ 350x32 A1644210512 Mercedes W164 brake disc
- ✓ 6-piston 955351421 / 955351422 Z18 brake caliper
- ✓ front axle
- ✓ Length: 50cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 356x22 4H0615601F Audi A6 brake disc
- ✓ 1-piston 8V0615425B Golf 7 / Audi S3 RS3 brake caliper
- ✓ rear axle
- ✓ 1.8 T 20V engines
- ✓ 240 clutch
- ✓ lightens 5.0 kg
- ✓ Length: 60cm
- ✓ M10x1 curved on the outside
- ✓ M10x1 straight on the inside
- ✓ 375x36 1664210912 Mercedes ML / GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 375x36 1664210912 Mercedes GL brake disc
- ✓ 6-piston 7PP615149J / 7PP615150J Porsche Cayenne 958 GTS brake caliper
- ✓ front axle
- ✓ 356x22 4H0615601F Audi A6 brake disc
- ✓ 1-piston original brake caliper
- ✓ rear axle
- ✓ 2.0 TDI & 2.0 TDI TFSI GT engines
- ✓ 240 clutch
- ✓ lightens 5.0 kg
- ✓ 375x36 Mercedes GL 166 421 0912 disc
- ✓ 6-piston Panamera saddle 7PP615149J / 7PP615150J 7PP615123 / 7PP615124 20.A221.03
- ✓ front axle
- ✓ Aluminum
- ✓ 2.0 TFSI
- ✓ Maximum heat dissipation
- ✓ 334x32
- ✓ 65mm centering
- ✓ 35mm height
- ✓ 356x22 4H0615601F Audi A6 A7 brake disc
- ✓ 4-piston 955352421 / 955352422 Porsche Cayenne brake caliper
- ✓ rear axle
