Does the clutch become harder to press when a Sachs pressure plate is installed?

yes, the pedal is often harder to press when a SACHS Performance reinforced clutch pressure plate is installed.How much harder is difficult to say and varies. However, with the reinforced standard clutches, the hardness of the pedal remains quite the same.

Does a new clutch need to be broken in and if so, how long?

Yes – a new clutch should be broken in. We recommend a break-in period of several hundred kilometers after installation, typically around 500 km (for some setups, even up to 1,000 km). During this time, the clutch lining optimally adapts to the flywheel and pressure plate, manufacturing and handling residues are "removed," and a clean contact pattern is formed. This ensures optimal functionality and durability later on.Important: If the clutch is overloaded or "abused" during the first kilometers, the lining can overheat and get damaged (e.g., glazing/warping). Such damages are generally not covered by warranty because they result from improper use.How to properly break in your new clutchStart gently and moderate loads: During the first kilometers, avoid full-throttle starts or hard launches.Shift up early / shift down late: Keep RPMs and loads low, especially in lower gear ranges.Do not let it slip: Especially on hills, do not "hold" with the clutch, but start with the handbrake instead.No additional load: During the first 500 km, avoid towing trailers/caravans and strong continuous loads as much as possible.Is "clutch judder" normal at the beginning?Yes, after a clutch replacement, occasional judder or a slightly different pedal/start feel may occur in the first kilometers. This usually settles during the break-in period.However, if the judder remains noticeable even after about 1,000 km, you should have it checked in a workshop – it could be due to an installation or adjustment issue (release system, flywheel, alignment, etc.).

Does the Epytec flywheel have a TDC marking or additional ignition markings?

Our Epytec flywheels do not have a stamped TDC marking and generally no additional ignition markings either. This is intentionally designed because, depending on the engine/gearbox combination, housing/pointer, sensors, and peripherals used, different markings or references are required. Instead of a universal marking, we use – as with the original – the mechanical reference via the pin on the back (corresponding to the principle of the series flywheel).How do I correctly transfer the TDC marking?If you need a visible TDC marking for your settings (e.g., for timing), proceed as follows:Turn the original flywheel to TDC before disassembly (set the engine exactly to TDC).In this position, check the TDC position on the original at the pointer/marking window.Transfer TDC marking to the new flywheel:Mount/align the new flywheel in the same position (via the pin as in the original) and mark the TDC position accordingly on the new flywheel.This way, you have a TDC marking that fits exactly to your engine/setup.

What is the coefficient of friction of the flywheel?

Basically, you can assume that our Epytec flywheels have a friction coefficient at least at the level of an original cast flywheel. In practice, it is often even slightly better due to the higher alloyed steel used, as the material offers a very stable friction surface.However, it's important to note that the "actually usable" friction coefficient in the vehicle is not determined solely by the flywheel but always by the overall system – primarily, this includes:the material of the clutch disc/friction linings (organic, sintered, performance blends)the condition and surface of the friction surfaces (clean, grease-free, correctly installed)the proper break-in of the clutch to ensure an even contact patternThe lining material, in particular, has the greatest influence here. If you use a sport or sinter clutch, the friction behavior can differ significantly from a standard clutch. Therefore, you should inquire about the exact friction coefficient or the specifications of the friction disc from the manufacturer of the clutch/friction disc.

Is the flywheel pre-balanced or is it balanced to zero?

Our flywheels are delivered with the specified unbalance (i.e., not "neutral" to zero).This is how we set the unbalance precisely: We first balance the flywheel to 0. Then, we attach a test mass at the designated location, which exactly corresponds to the desired unbalance, and balance the flywheel with this test mass again to 0. Once the test mass is removed, the exact specified unbalance remains in the flywheel.

Flywheel Kit Sinter Golf 1 2 3 Scirocco 16V 020 Audi 80 Gearbox PL KR 210mm Flywheel Clutch Pressure Plate

✓ PL KR motor
✓ 210mm clutch
✓ 250NM torque

€1,052.26*

Available

Product number: 320-BAS

Delivery by Friday, 17.07.2026 if you order within the next 22 Hours.

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

Product information "Flywheel Kit Sinter Golf 1 2 3 Scirocco 16V 020 Audi 80 Gearbox PL KR 210mm Flywheel Clutch Pressure Plate"

Clutch kit Golf Mk1 Mk2 Mk3 Scirocco 16V 020 Audi 80 gearbox PL KR 210mm for all models with 020 gearbox
consists of :

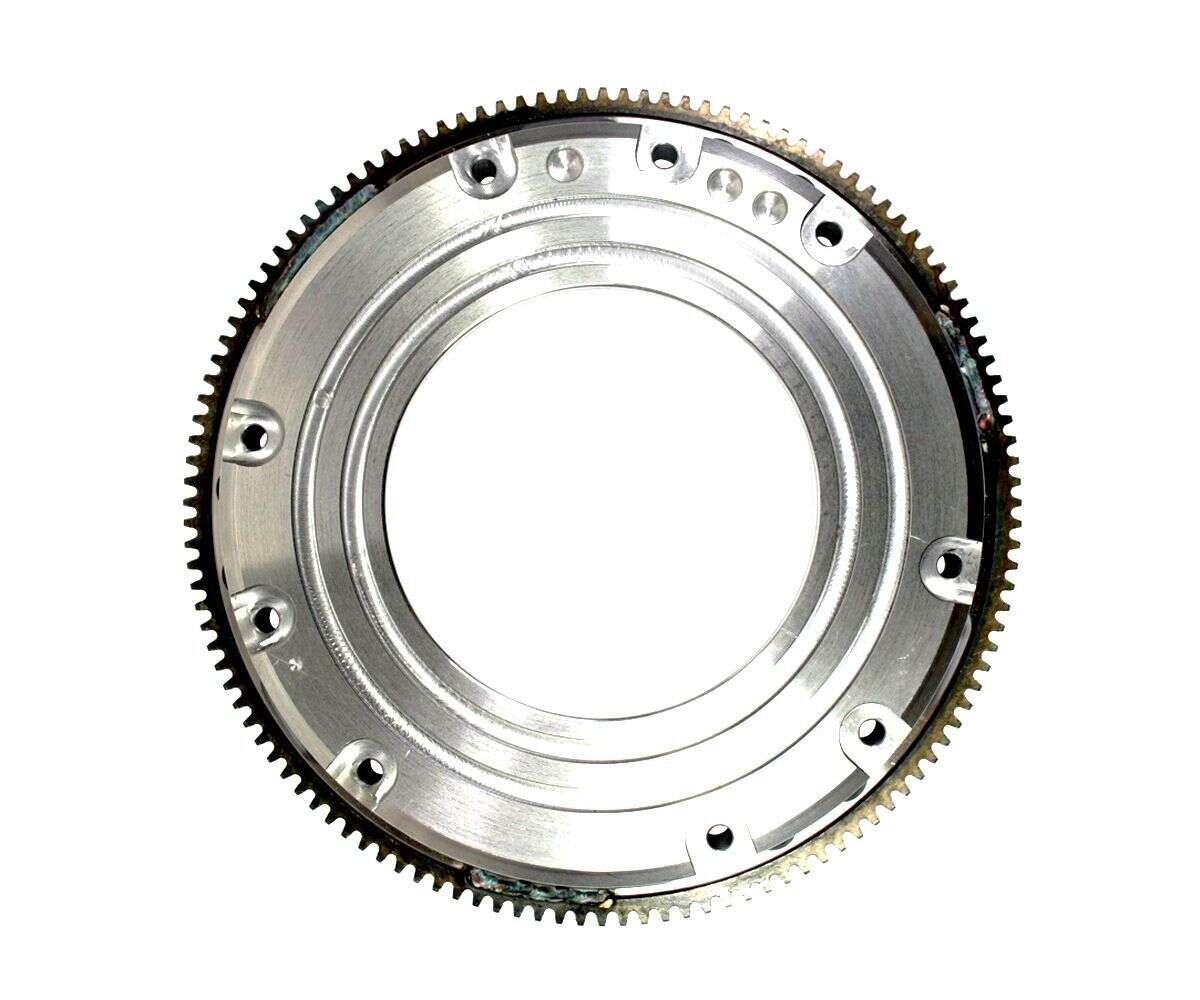

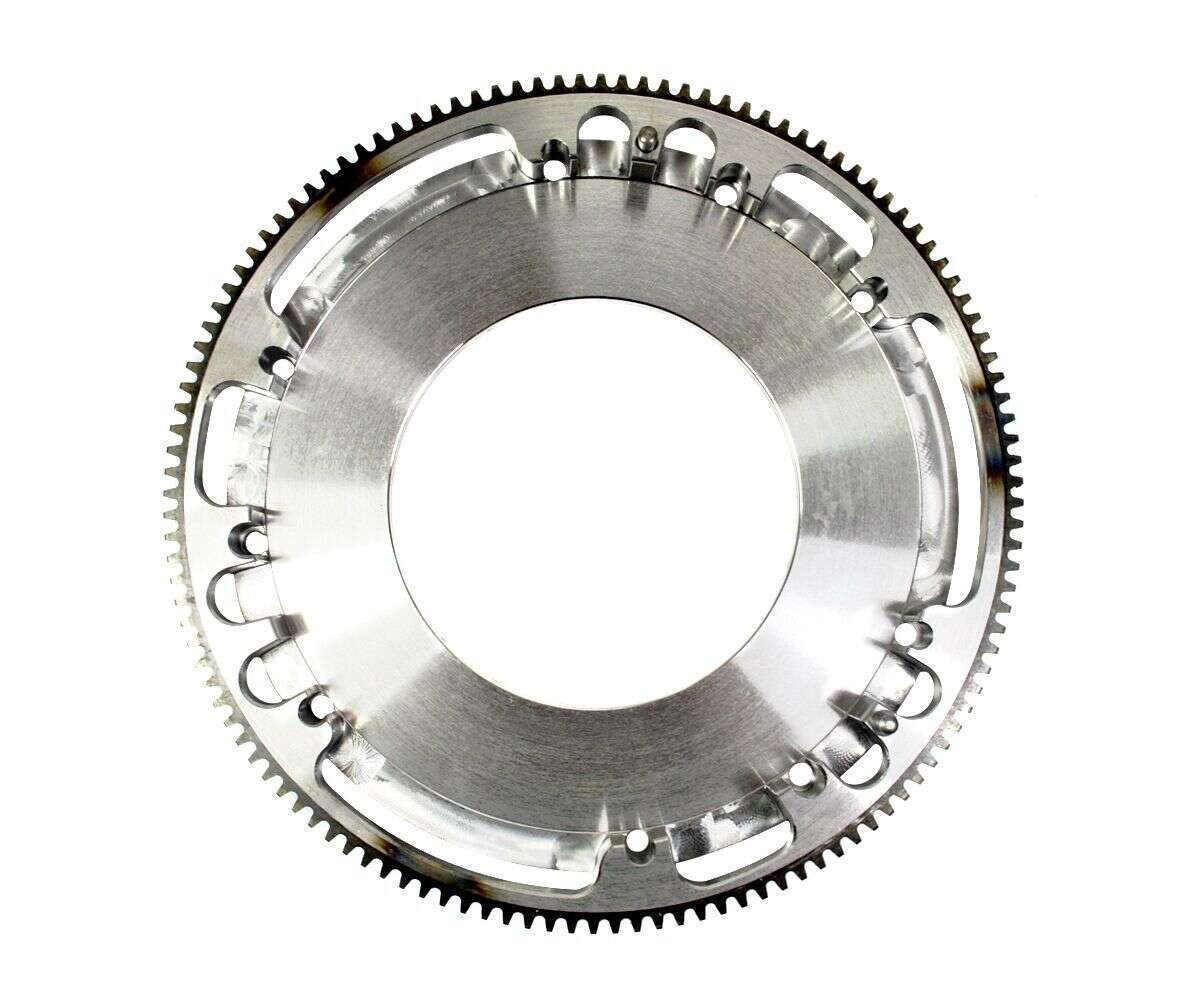

lightened high-strength chrome molybdenum flywheel EPYTEC

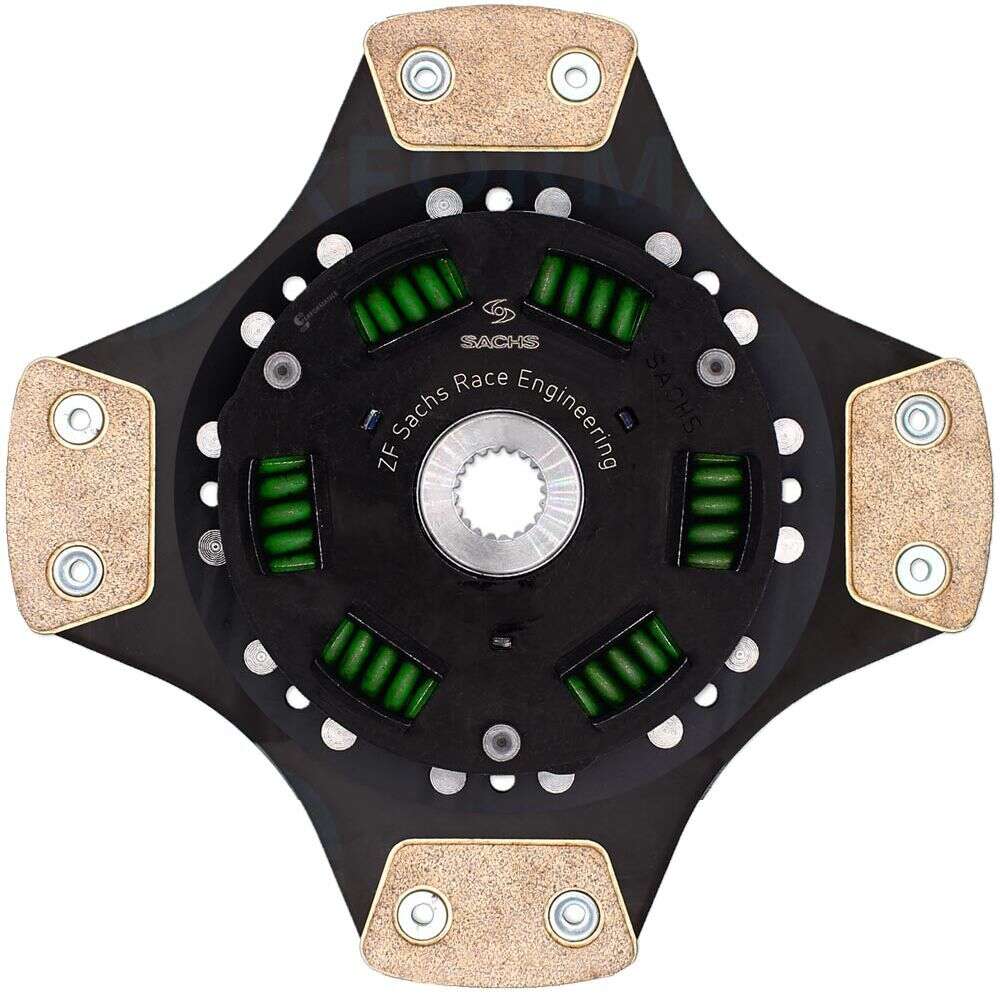

spring-loaded sinterpad clutch disc SACHS

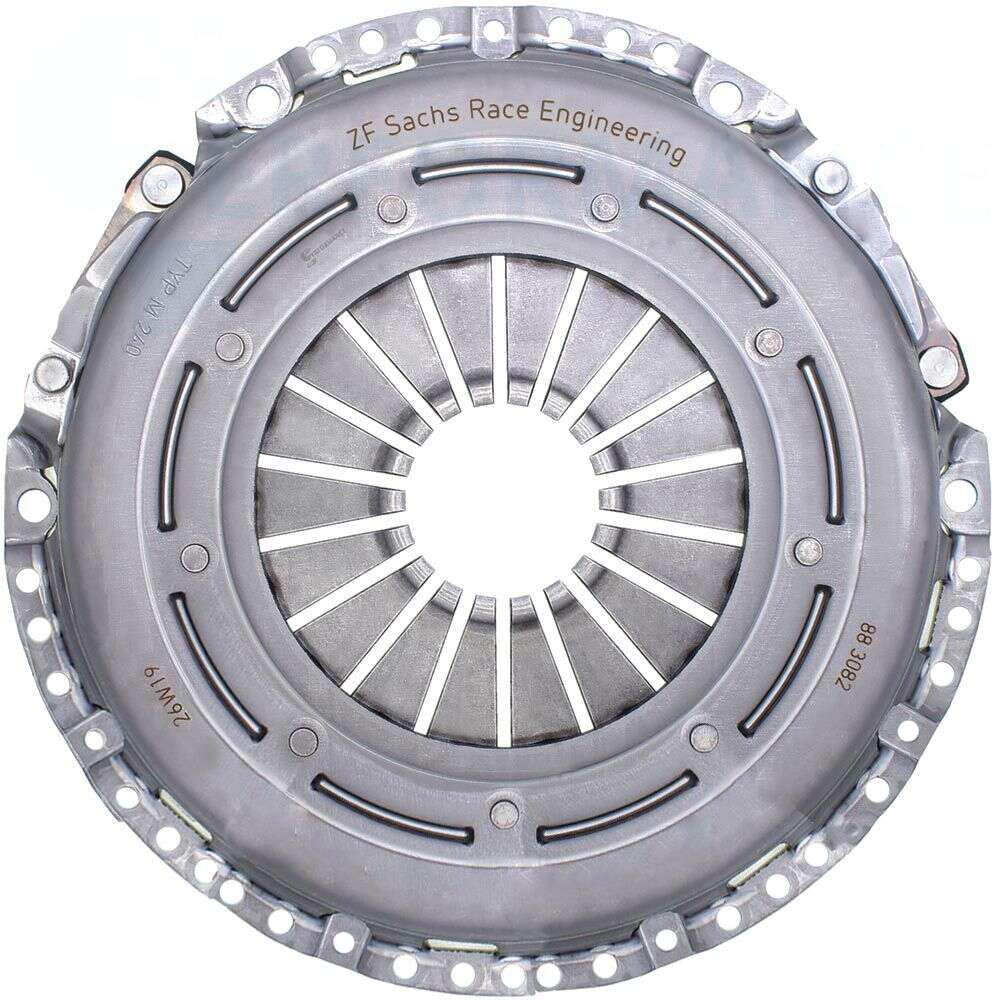

clutch pressure plate, reinforced design ;SACHS

For the following engines:

PL KR motors
all models with 020 gearbox

Advantages of our clutch kit with lightened flywheel

our flywheel weighs only 2.9 kg, the standard wheel over 5.5 kg
exactly identical in construction to the series components, therefore easy replacement possible
it is not necessary to send us the original engine flywheel
higher contact pressure and less abrasion of the pressure plate
all our flywheels are made of chrome moly steel with quality G 1.75, extremely suitable for high-speed motors
significantly better acceleration due to less inertia
higher speeds possible
the engine runs faster
More direct response behaviour
suitable for motorsports, racing or serial vehicles
lower fuel consumption
significant reduction of the turbo lag
precision balancing, bearings are less affected
including ring gear
suitable for either a standard clutch or a high-performance clutch
made in Germany

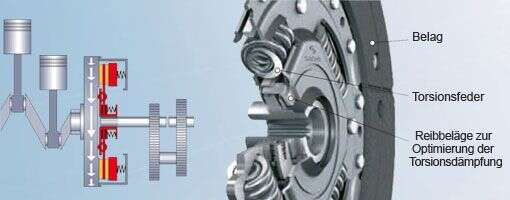

Advantages of the torsion spring clutch disc with sinterpad clutch lining/coating and the reinforced pressure plate

aggressive starting behavior
significantly higher transmittable torque
the torsional damping achieves a higher impact moment
better thermal resilience compared to organic friction coating/lining
longer lifetime
less lift
higher pressing force
higher speeds possible
very resistant to dirt

Areas of application:

due to the aggressive starting behavior ideal for motor sports
chip-tuning
turbo and compressor conversions
1/4 mile race
circuit, e.g. long-distance race/endurance racing
hill race
rally
clubsport
autocross
slalom
drift

Technical data:

transmittable torque[Nm]: 250
weight of the lightened single-mass flywheel: 2,9 Kg

Delivery:

1x lightened high strength chrome molybdenum flywheel EPYTEC
1x spring-loaded, sinterpad clutch disc SACHS
1x clutch pressure plate, reinforced design SACHS

Manufacturer: Epytec

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

email address

password

or Register with...

No reviews found. Share your insights with others.

Motor	Motorcode
1.8 Syncro	1G1\|98PS(72KW)
1.8i Cat Syncro	1G1\|90PS(66KW)
1.8 GTI	19E\|112PS(82KW)
1.8 GTI	1G1\|107PS(79KW)
1.8i Cat Syncro	19E\|90PS(66KW)
1.8 GTI G60	1G1\|160PS(118KW)
1.8i Cat	1G1\|90PS(66KW)
1.8 Syncro	19E\|90PS(66KW)
1.8 Syncro	19E\|98PS(72KW)
1.8 GTI	1G1\|112PS(82KW)
1.8 GTI 16V	1G1\|139PS(102KW)
1.8 GTI G60	19E\|160PS(118KW)
1.8 GTI	19E\|107PS(79KW)
1.8 GTI 16V	19E\|129PS(95KW)
1.8 GTI Cat	19E\|107PS(79KW)
1.8 GTI Cat	1G1\|107PS(79KW)
1.8 GTI 16V	19E\|139PS(102KW)
1.8i Cat	19E\|90PS(66KW)
1.8 Syncro	1G1\|90PS(66KW)
1.8 GTI 16V	1G1\|129PS(95KW)

Motor	Motorcode
1.9 TDI	1E7\|110PS(81KW)
1.9 TDI	1E7\|90PS(66KW)
1.8	1E7\|75PS(55KW)
1.8	1E7\|90PS(66KW)

Motor	Motorcode
2.0 16V	35I\|136PS(100KW)
2.0 16V	35I\|150PS(110KW)
1.8 G60 Syncro	3A2\|160PS(118KW)
1.8 16V	35I\|136PS(100KW)
2.0 16V	3A2\|150PS(110KW)
1.8 16V	3A2\|136PS(100KW)
1.8 G60 Syncro	35I\|160PS(118KW)
2.0 16V	3A2\|136PS(100KW)

Motor	Motorcode
1.8 16V	165\|140PS(102KW)
1.8 Syncro	1G2\|98PS(72KW)
1.8 Cat	1G2\|90PS(66KW)
1.8 16V	1G2\|129PS(95KW)
1.8 Syncro	19E\|98PS(72KW)
1.8 Cat	165\|107PS(79KW)
1.8 16V	19E\|129PS(95KW)
1.8 Syncro	165\|90PS(66KW)
1.8 Syncro	19E\|90PS(66KW)
1.8 Cat	19E\|107PS(79KW)
1.8 16V	1G2\|140PS(102KW)
1.8 Cat	19E\|90PS(66KW)
1.8 16V	19E\|140PS(102KW)
1.8 Cat	165\|90PS(66KW)
1.8 Syncro	1G2\|90PS(66KW)
1.8 16V	165\|129PS(95KW)
1.8 Cat	1G2\|107PS(79KW)
1.8 Syncro	165\|98PS(72KW)

Motor	Motorcode
2.0 GTI 16V	1H1\|150PS(110KW)

Motor	Motorcode
1.8 Syncro	1G1\|98PS(72KW)
1.8i Cat Syncro	1G1\|90PS(66KW)
1.8 GTI	19E\|112PS(82KW)
1.8 GTI	1G1\|107PS(79KW)
1.8i Cat Syncro	19E\|90PS(66KW)
1.8 GTI G60	1G1\|160PS(118KW)
1.8i Cat	1G1\|90PS(66KW)
1.8 Syncro	19E\|90PS(66KW)
1.8 Syncro	19E\|98PS(72KW)
1.8 GTI	1G1\|112PS(82KW)
1.8 GTI 16V	1G1\|139PS(102KW)
1.8 GTI G60	19E\|160PS(118KW)
1.8 GTI	19E\|107PS(79KW)
1.8 GTI 16V	19E\|129PS(95KW)
1.8 GTI Cat	19E\|107PS(79KW)
1.8 GTI Cat	1G1\|107PS(79KW)
1.8 GTI 16V	19E\|139PS(102KW)
1.8i Cat	19E\|90PS(66KW)
1.8 Syncro	1G1\|90PS(66KW)
1.8 GTI 16V	1G1\|129PS(95KW)

Motor	Motorcode
1.9 TDI	1E7\|110PS(81KW)
1.9 TDI	1E7\|90PS(66KW)
1.8	1E7\|75PS(55KW)
1.8	1E7\|90PS(66KW)

Motor	Motorcode
2.0 16V	35I\|136PS(100KW)
2.0 16V	35I\|150PS(110KW)
1.8 G60 Syncro	3A2\|160PS(118KW)
1.8 16V	35I\|136PS(100KW)
2.0 16V	3A2\|150PS(110KW)
1.8 16V	3A2\|136PS(100KW)
1.8 G60 Syncro	35I\|160PS(118KW)
2.0 16V	3A2\|136PS(100KW)

Motor	Motorcode
1.8 16V	165\|140PS(102KW)
1.8 Syncro	1G2\|98PS(72KW)
1.8 Cat	1G2\|90PS(66KW)
1.8 16V	1G2\|129PS(95KW)
1.8 Syncro	19E\|98PS(72KW)
1.8 Cat	165\|107PS(79KW)
1.8 16V	19E\|129PS(95KW)
1.8 Syncro	165\|90PS(66KW)
1.8 Syncro	19E\|90PS(66KW)
1.8 Cat	19E\|107PS(79KW)
1.8 16V	1G2\|140PS(102KW)
1.8 Cat	19E\|90PS(66KW)
1.8 16V	19E\|140PS(102KW)
1.8 Cat	165\|90PS(66KW)
1.8 Syncro	1G2\|90PS(66KW)
1.8 16V	165\|129PS(95KW)
1.8 Cat	1G2\|107PS(79KW)
1.8 Syncro	165\|98PS(72KW)

Motor	Motorcode
2.0 GTI 16V	1H1\|150PS(110KW)
