VW Golf Corrado Polo Passat Scirrocco Camber correction plates Camber regolation Rear axle
Camber correction plates for installation on rear axle.Allow a perfect camber adjustment on your vehicle.
Product description

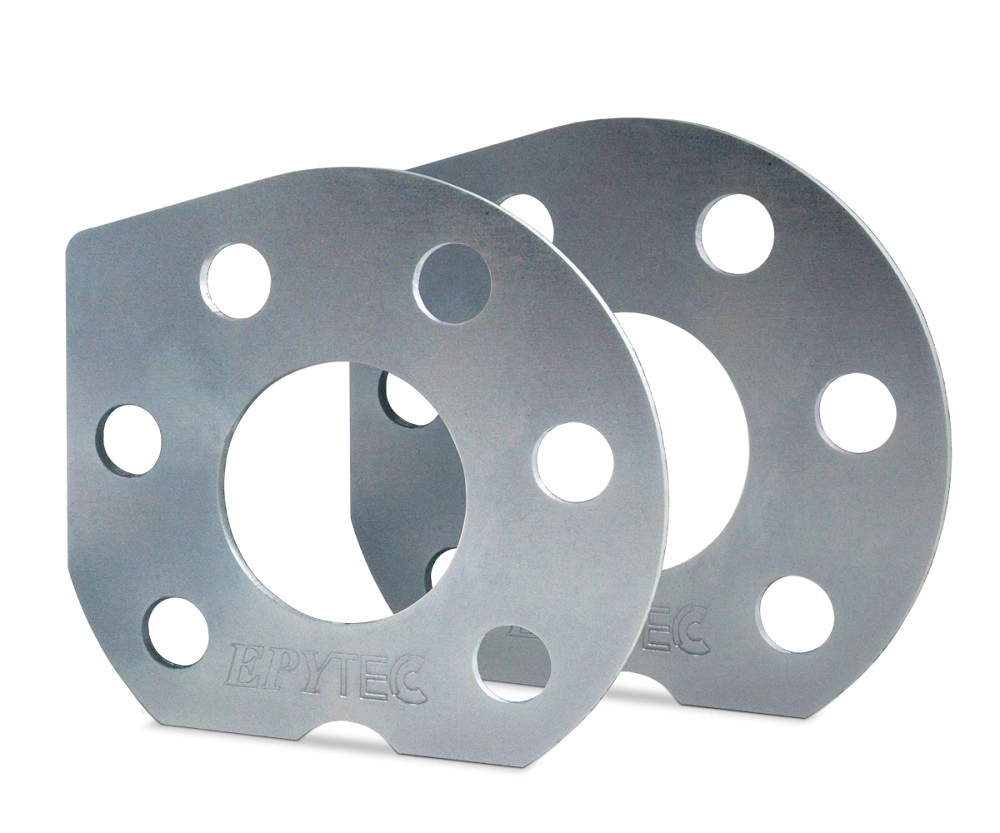

Correction plates for installation on rear axle.
Tailor-made for all VW/Seat vehicles with exception of Syncro/4x4 as:
- VW: Golf 2+3, Corrado, Jetta, Passat 35i, Scirocco, Vento, Polo 86c, 6n, 9n
- Seat: Cordoba, Ibiza, Toledo

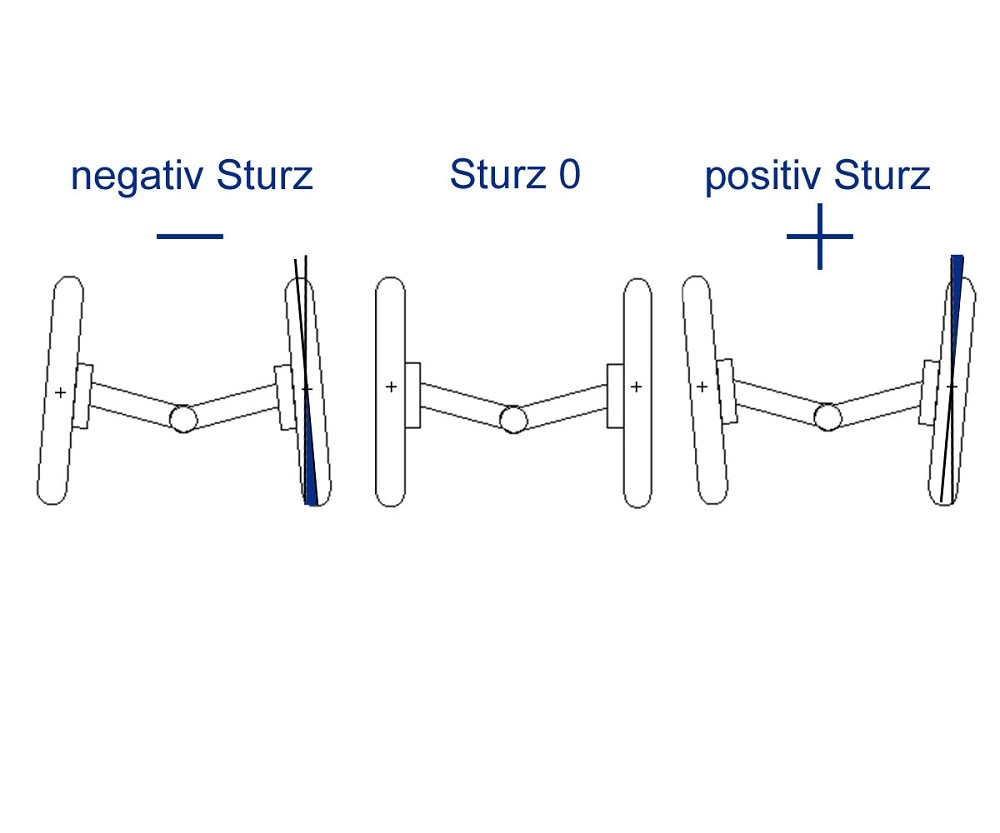

Allows a perfect camber adjustment.This guarantees a even consumption of your tires.
Recommanded for sporty driving on public road and for any kind of partecipation in races.
Technical information:
- The correction plates are installed between axle and axle tap.
- Installation is simple and it’s excution doesn’t require much time.
- The wheel lane widens only 3mm on every side.
- The degree of tilt of every plate is negativ of 1.5.
Any plate typ with different degree of tilt can be delivered upon request.
Scope of delivery:
- 2x Correction plates for camber adjustment, galvanized. With negativ degree of tilt of 1.5
- Certificate of material (Proves the conformity of our product in Germany and simplifies authorization by authorities)
Technical data:
Login
25 September 2016 17:22
komressorroc
alles bestens danke
14 September 2019 12:16
corrado-8v-kompressor
Super Danke!!!
26 April 2018 21:46
cordoni-29
Hat alles super geklappt die Platten waren 2 Tage später da top Kontakt Danke
10 July 2024 01:10
dervolkswagon
Alles bestens
22 December 2016 21:10
skylinervr
TOP super zufrieden
17 January 2017 20:43
rohnen1979
Top!!!!!!!!!
11 October 2019 20:33
Christopher G
Weil Epytec super ist. Produkt ist spitze. Und das Endergebnis ist der Hammer.
3 May 2019 10:06
Enrico Malik B
Einfach Super passform pertekt weiter so
30 June 2018 11:52
kevin.de2014
Vielen Dank Alles Bestens !!!
9 June 2018 16:39
vr6_markus
Alles bestens! Gerne wieder.
- Do I need longer screws or can the old ones remain in place?
With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates with an angle of more than 2°, we recommend lightly sanding a washer and placing it under the screw head to ensure it remains flush with the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be required.
- Does the ABS still work after installing the camber adjustment plate?
From a camber of 1 °, the ABS sensor may no longer be parallel to the ABS ring. Then, the position of the ABS sensor on the vehicle should be slightly changed.
