Brake caliper adapter for Porsche 944 S2 964 911 Brake disc 322x32mm Porsche 964 Turbo brake calipers BIG RED 993
- ✓ 322x32 965351046.00 / 96535104500 Porsche 964 brake disc

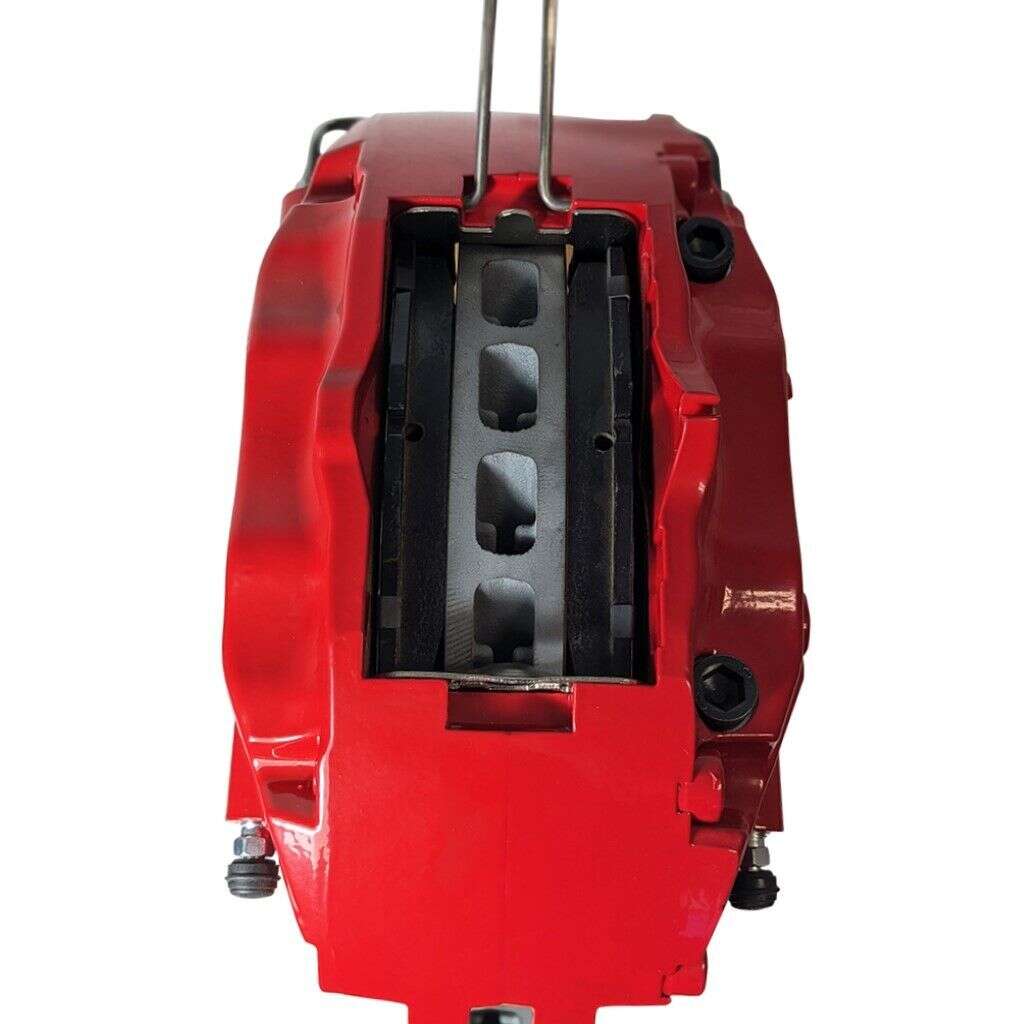

- ✓ 4-piston 993351425 / 993351426 The Big Red brake caliper
- ✓ front axle
£187.32*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty

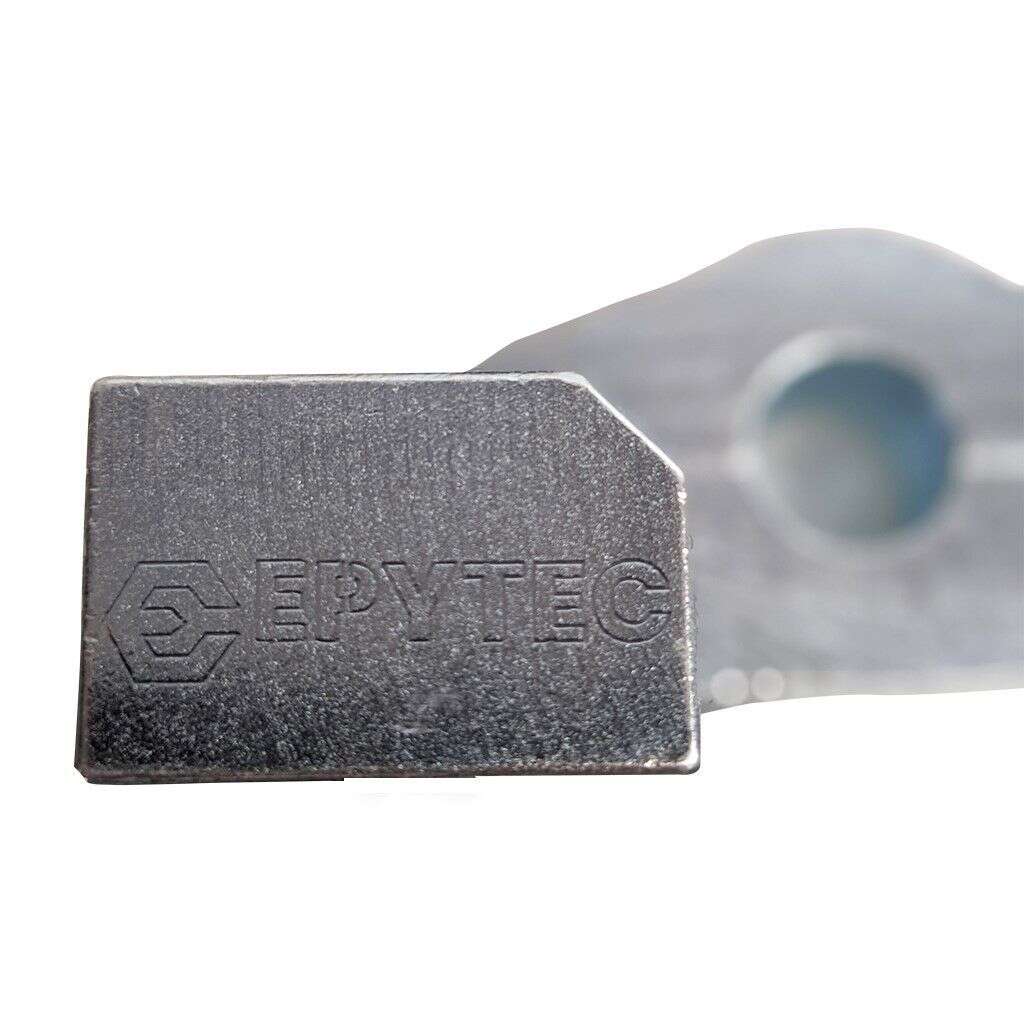

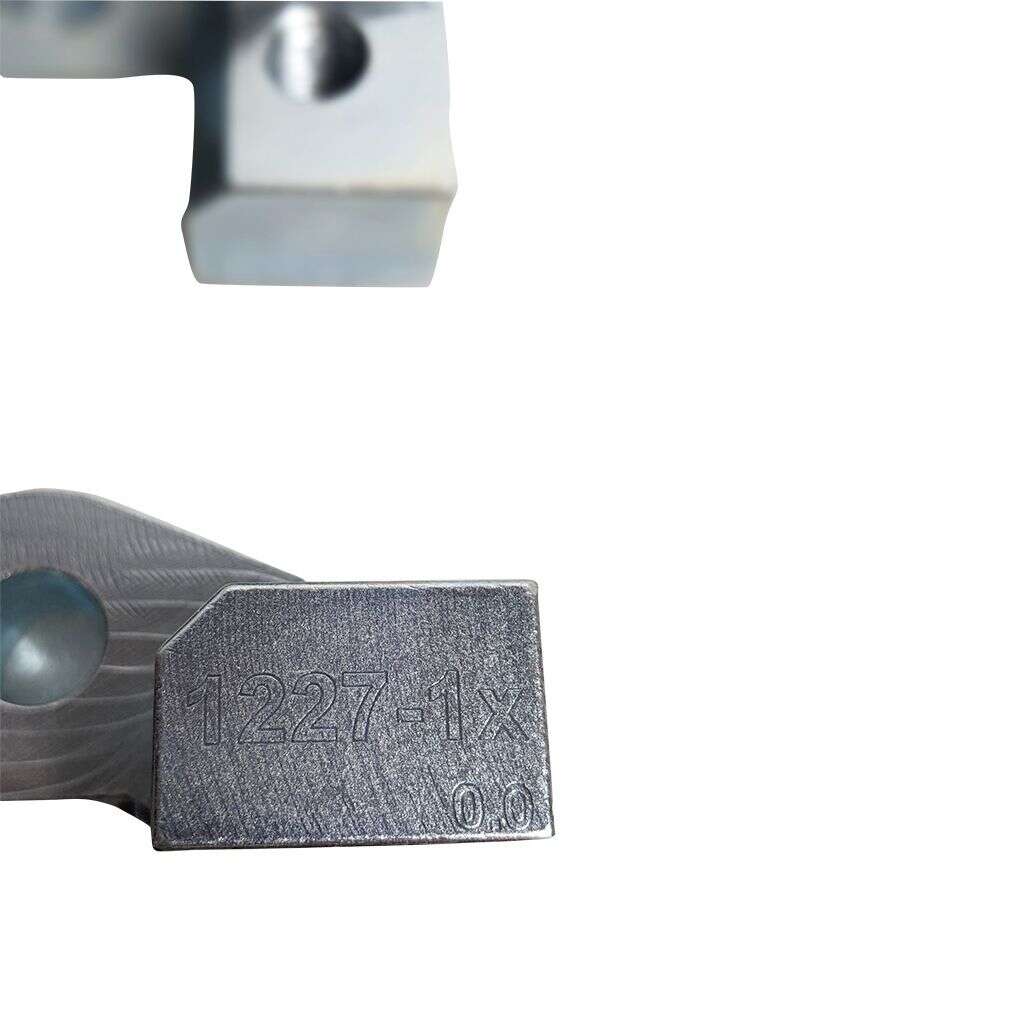

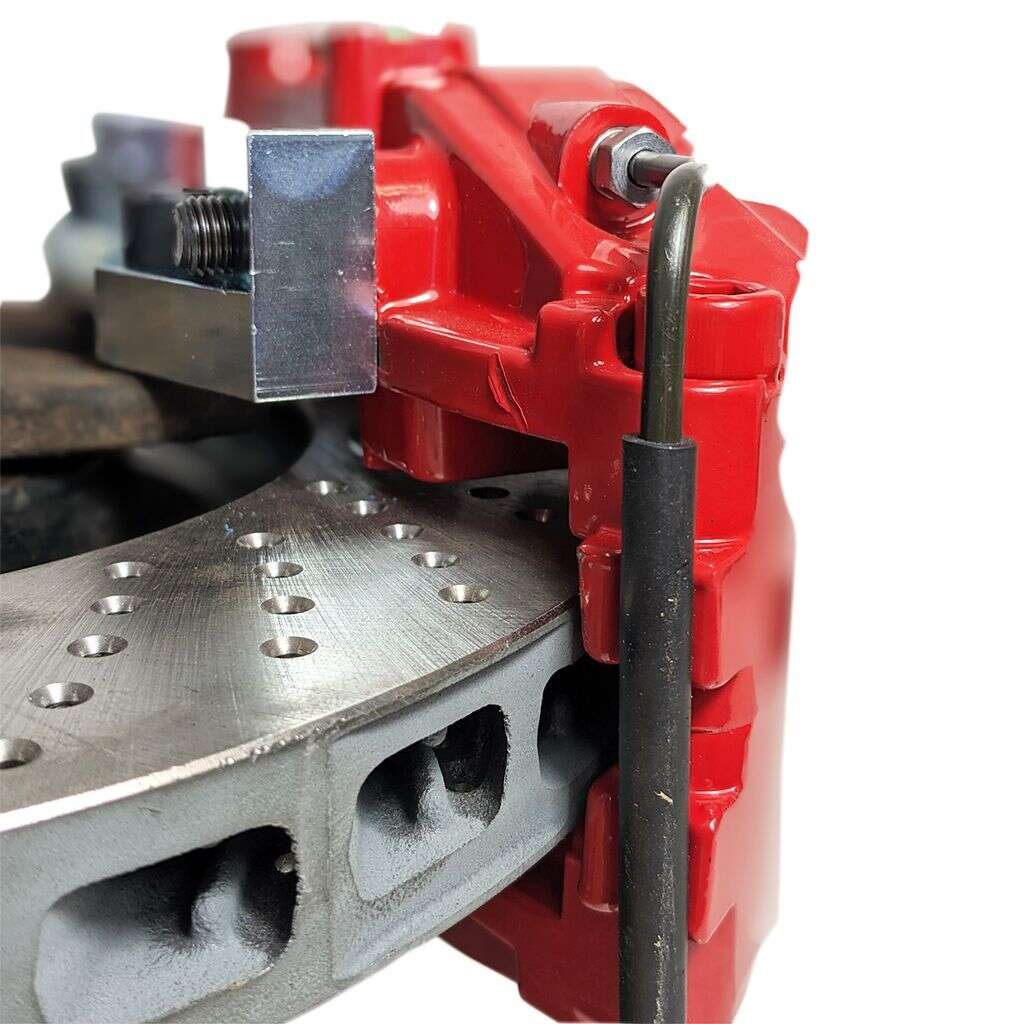

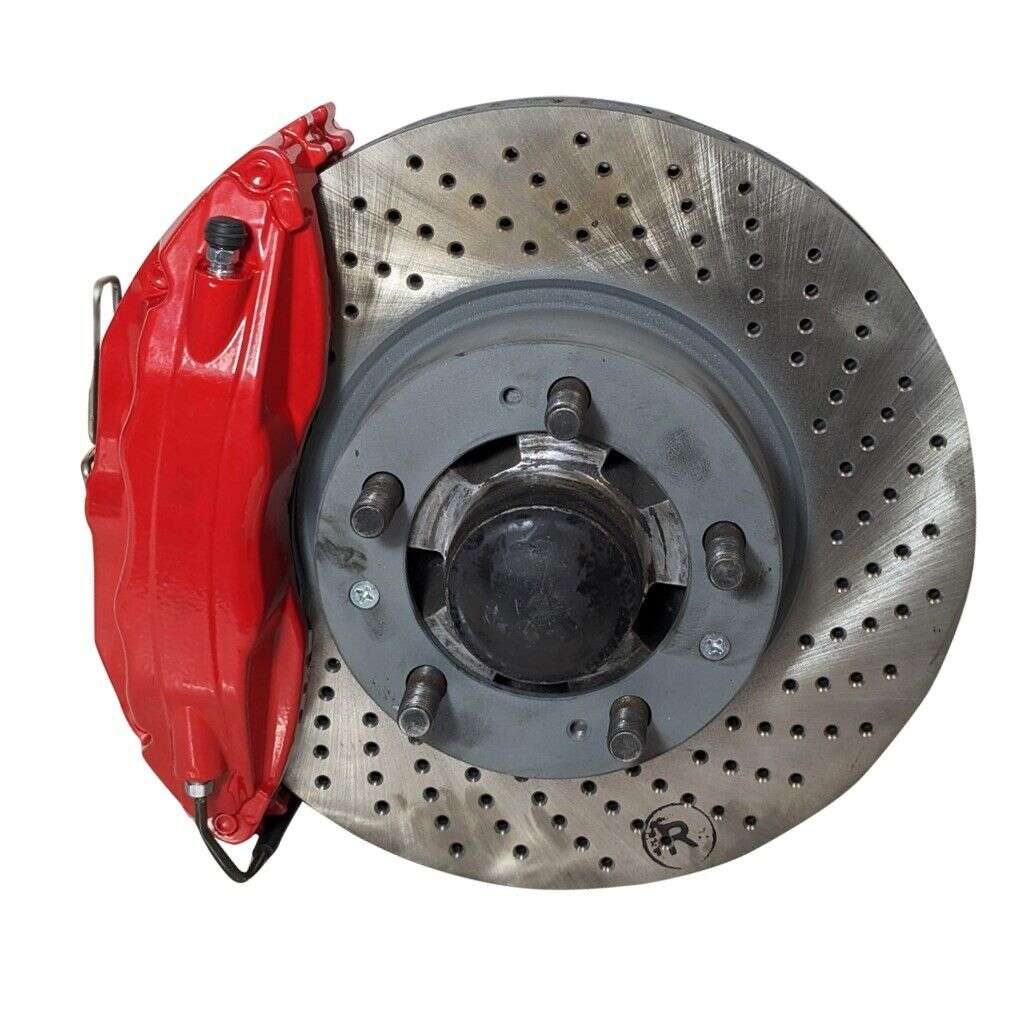

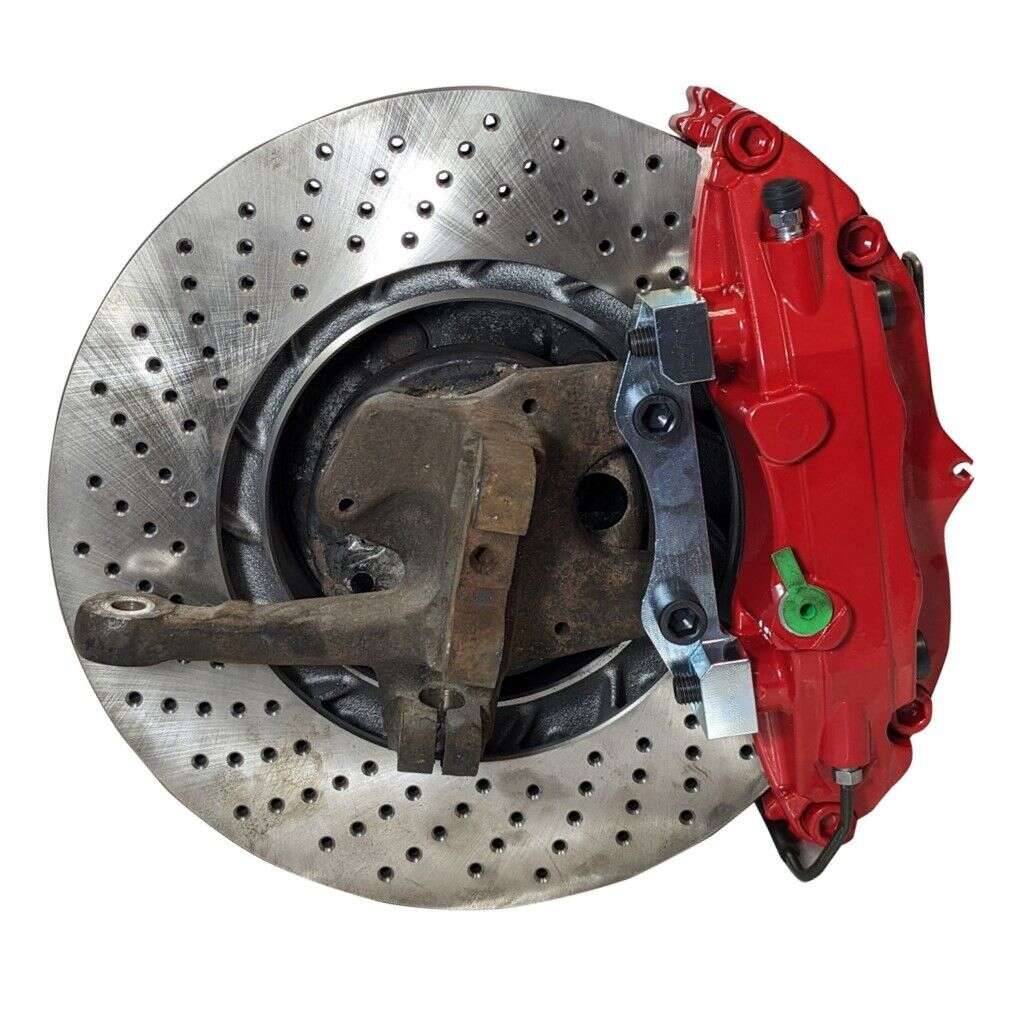

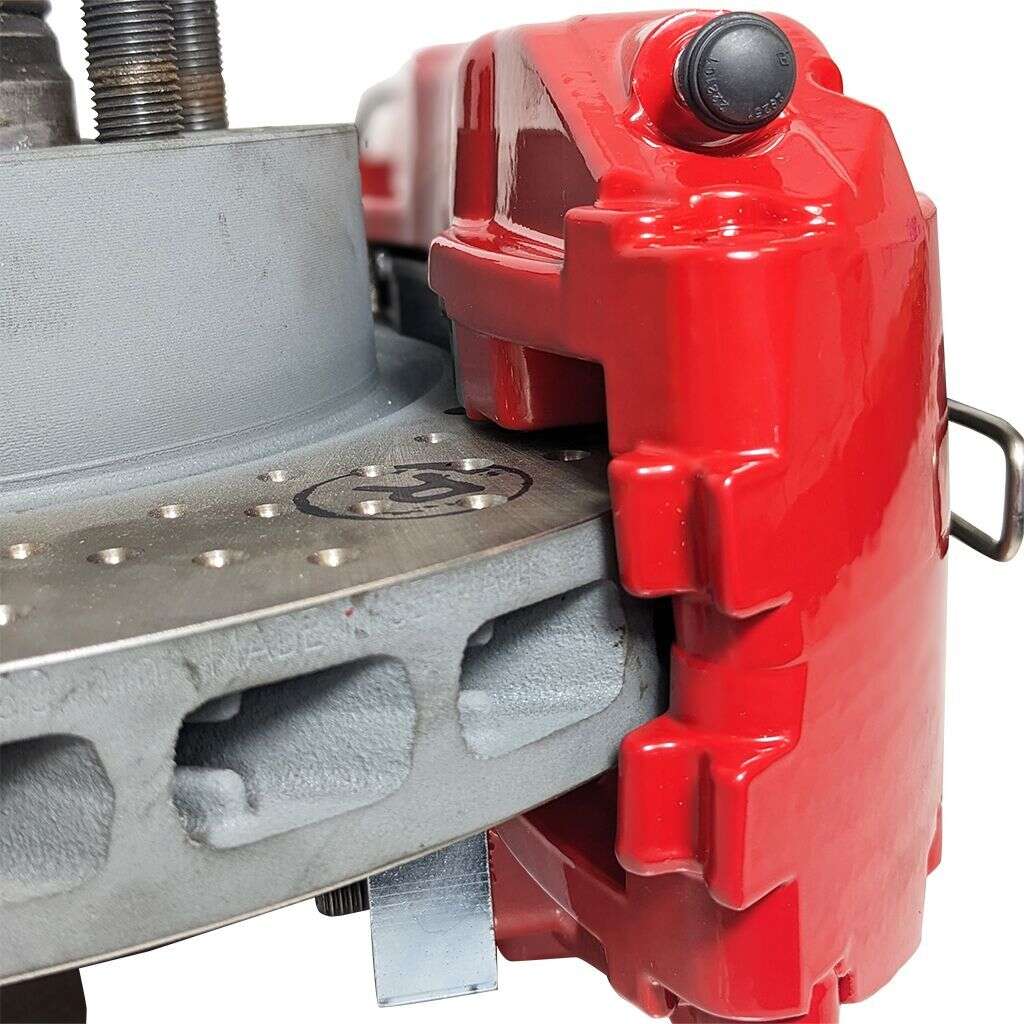

Brake caliper adapter for the Porsche 944 964 series to install the Porsche 933 4-piston Brembo BIG RED brake calipers in conjunction with the 322x32 mm brake discs from the Porsche 964 3.6 Turbo.
The adapters are suitable for the following vehicles:
- Porsche 944 S2
- Porsche 911
- Porsche 968
- Porsche 968 Cabrio
Advantages of this braking system:
- The material certificate included in the scope of delivery enables registration via individual approval, even for standard vehicles
- Fits directly to the above-mentioned models and can therefore be easily retrofitted back to the original condition at any time
- our EPYTEC brake caliper adapters do not require your standard parts to be sent in, no rewelding, re-milling or re-drilling.
Required components:
Porsche 933 4-piston Brembo BIG RED brake callipers, part number: 993.351.425 / 993.351.426 ; EQ641200
Brake pads, part number: 993.351.949.00 / 99335194900
Brake discs from Porsche 964 3.6 Turbo 322x32mm part number: 965.351.046.00 / 965.351.045.00 ; 96535104600 / 96535104500
Scope of delivery:
- 2x brake calliper adapter Porsche 944 S2 911 964
- High-strength screw material
- material certificate
Tipps, Infos und Hinweise:
- Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen.
- Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel<<
- Welche Felgengröße du nach deinem Bremsenumbau fahren kannst, können wir pauschal nicht beantworten. Es gibt einfach zu viele unterschiedliche Felgen. Es kann in seltenen Fällen vorkommen, dass die Felgen am Bremssattel minimal anliegt, dann können einfach Spurverbreiterungen verwendet werden.
>> Jetzt direkt zu Spurverbreiterungen nach Wunsch << - Den Adapter mit den benötigten Komponenten zu verbauen um anschließend zu prüfen, ob ggf. neue Bremsleitungen benötigt werden, da es je nach Modell sein kann, das die alten nicht lang genug sind, oder vom Anschluss her nicht passen. Wir empfehlen durch den deutlich besseren Wirkungsgrad auf Stahlflexleitugen zu wechseln, eigens für diese Funktionsweise haben wir dafür einen Stahlflexkonfigurator entwickelt, indem du diese nach deinen Wünschen zusammenstellen und anschließend verlegen kannst.
Hier geht’s zum Stahlflexkonfigurator >> Stahlflex-Bremsleitung konfigurieren <<
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
- Can I also use other brake discs as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems
- Can I also use other brake calipers as specified in the required components?
No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
| Motor | Motorcode |
|---|---|
| 2.5 S | --|190PS(140KW) |
| 2.5 Turbo | --|220PS(162KW) |
| 2.5 Turbo | --|250PS(184KW) |
| 3.0 S2 | --|211PS(155KW) |
| Motor | Motorcode |
|---|---|
| 3.6 Carrera RS | 964|260PS(191KW) |
| 3.6 Carrera 4 | 964|250PS(184KW) |
| 3.3 Turbo | 964|320PS(235KW) |
| 3.6 Turbo | 964|360PS(265KW) |
| 3.3 Turbo S | 964|355PS(261KW) |
| 3.6 Carrera | 964|250PS(184KW) |
| Motor | Motorcode |
|---|---|
| 3.0 | --|239PS(176KW) |
| Motor | Motorcode |
|---|---|
| 3.0 | --|239PS(176KW) |
| Motor | Motorcode |
|---|---|
| 2.5 S | --|190PS(140KW) |
| 2.5 Turbo | --|220PS(162KW) |
| 2.5 Turbo | --|250PS(184KW) |
| 3.0 S2 | --|211PS(155KW) |
| Motor | Motorcode |
|---|---|
| 3.6 Carrera RS | 964|260PS(191KW) |
| 3.6 Carrera 4 | 964|250PS(184KW) |
| 3.3 Turbo | 964|320PS(235KW) |
| 3.6 Turbo | 964|360PS(265KW) |
| 3.3 Turbo S | 964|355PS(261KW) |
| 3.6 Carrera | 964|250PS(184KW) |
| Motor | Motorcode |
|---|---|
| 3.0 | --|239PS(176KW) |
| Motor | Motorcode |
|---|---|
| 3.0 | --|239PS(176KW) |
