Audi 100 C1 Coupé with the brake system from the VW Golf 6 GTI with the 282x12 mm brake disc

Brake conversion on the rear axle of the Audi 100 C1 Coupé to a 282x12mm brake disc in combination with the brake system from VW Golf 6 GTI (131795)

The customer's request / problem:

Our customer Kevin would like to install the following brake system from the VW Golf 6 GTI with these components on his rear axle of his Audi 100 C1 Coupé:

Brake disc: 282x12mm from Golf 6 OE part no.: 1K0615601AD
Brake caliper: VW Golf 6 GTI part no.: 1K0 615 424 F
Brake caliper carrier: VW Golf 6 GTI part no.: 1K0 615 425 D

Our realisation / solution:

Our customer Kevin sent us the rear axle of his 1974 Audi 100 C1 Coupé together with his desired components to be measured.

Brake disc: 282x12mm from Golf 6 OE part no.: 1K0615601AD
Brake caliper: VW Golf 6 GTI part no.: 1K0 615 424 F
Brake caliper carier: VW Gol 6 GTI part no.: 1K0 615 425 D

After thorough testing, we were able to inform Kevin that it is possible to install the VW Golf 6 GTI brake system in combination with the 282x12 mm brake disc on the Audi 100 C1 Coupé.

You will receive a matching material certificate for every custom-made product.

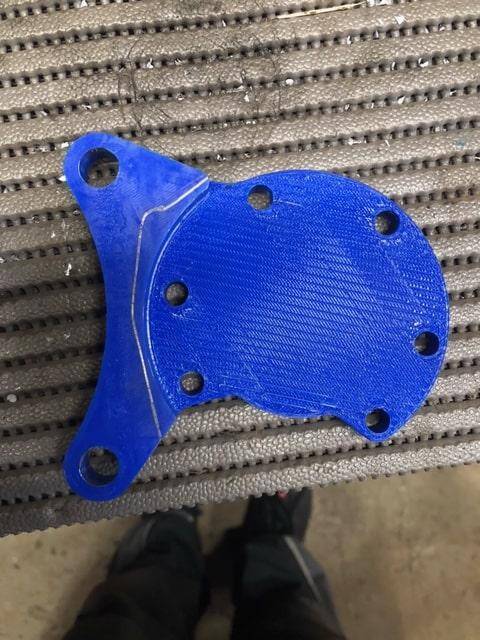

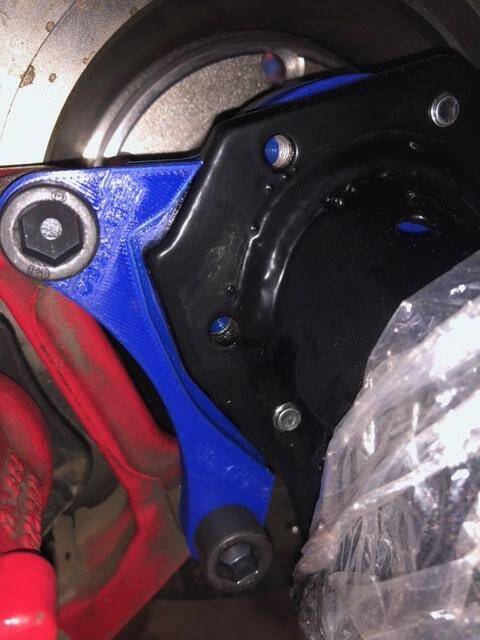

3-D Prototyping

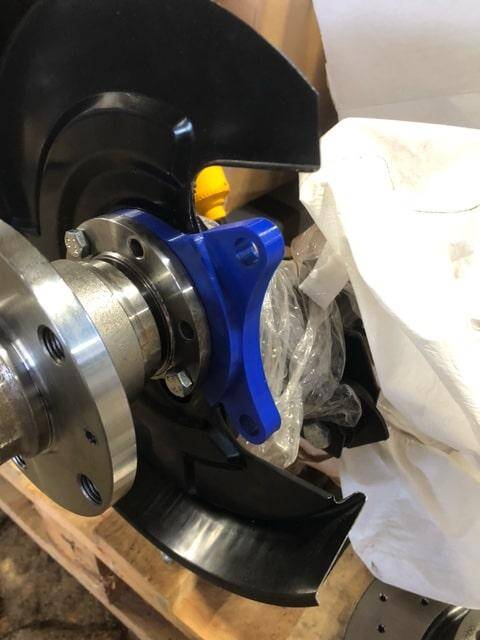

The final prototype is tested in our workshop to make sure that everything fits perfectly and that there are no defects.

In addition, we sent everything to Kevin so that he could also test the components directly on his axle in the car.

We always work with a 3D model in advance, because it always happens that certain dimensions and conditions cannot be taken at the tuning adapter in advance. With the 3D model, we can be sure that everything fits.

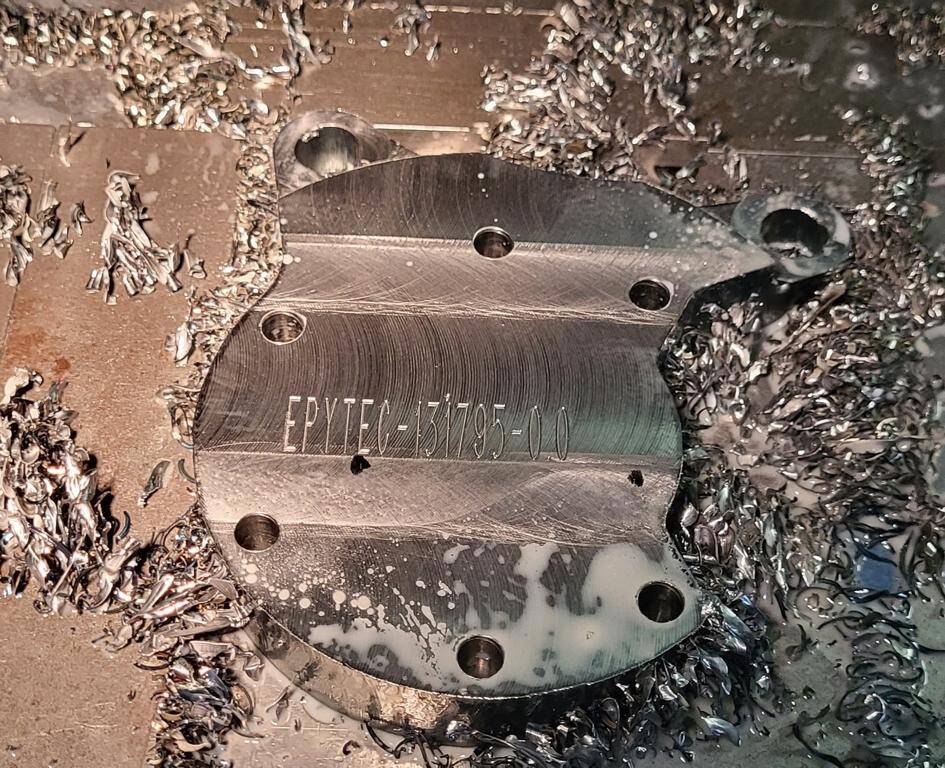

Production

After Kevin's approval, we now mill the brake tuning adapter for the Audi 100 C1 Coupé to a precise fit. It is then taken to the surface refiner.

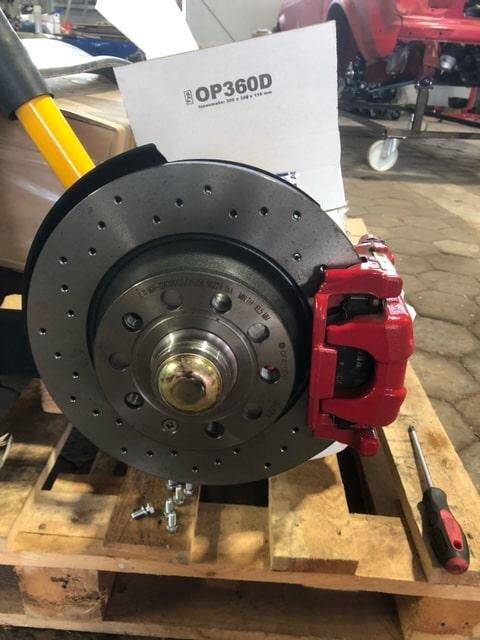

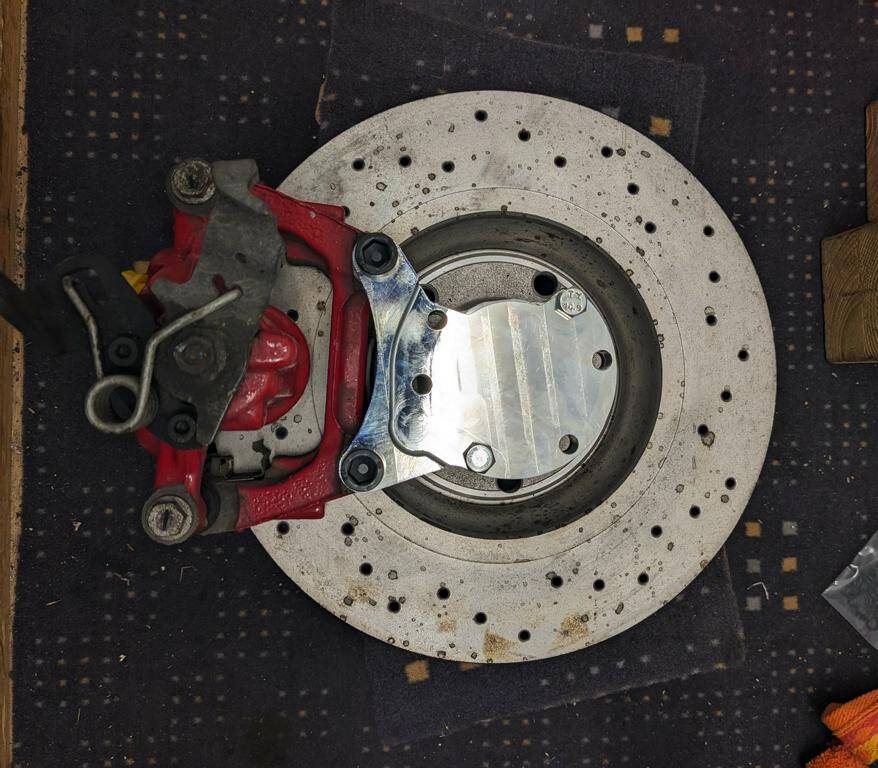

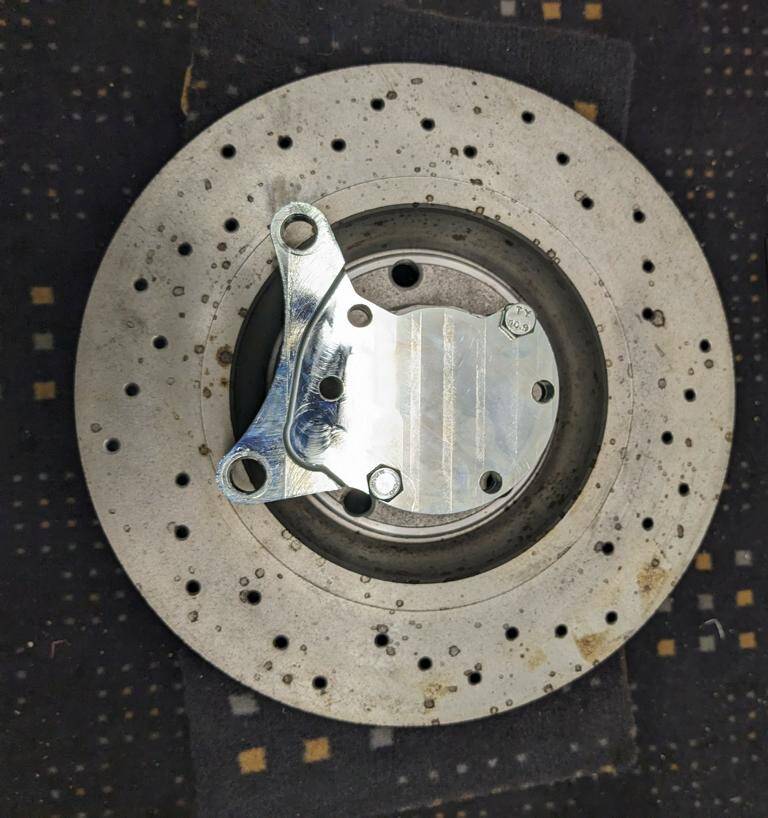

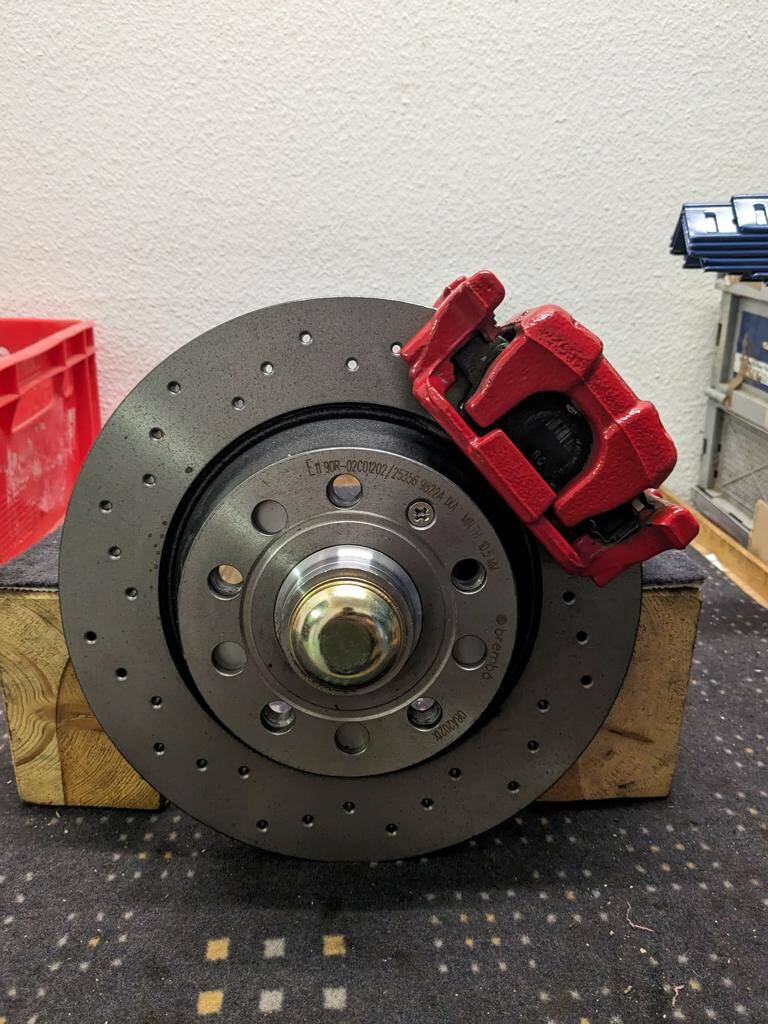

Installation and Test

The brake tuning adapter has now arrived from our surface refiner and we were able to test fit everything and deliver a great brake system to our customer.

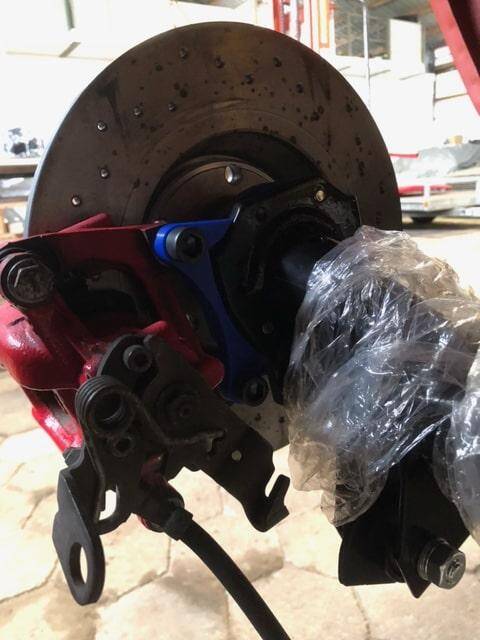

Installation pictures from Kevin

Here you can see more pictures of the Audi 100 C1 Coupé brake tuning conversion. Here are some nice pictures of our customer Kevin.

We also help you with your individual solution

If you want to have your brake system tuned by us according to your wishes, just contact us via our contact form and we will help you to realise your dream. With more than 15 years of experience in the production of tuning parts, we can realise your conversion quickly and cost-effectively. We look forward to your enquiry!

Would you like to have the same brake combination for the identical car (Audi 100 C1 Coupé)? Then please send us a message via our contact form with the reference ( 131795 )and we will send you an offer for your custom-made product.
