2 brake caliper brackets VW Golf 4 Jubi GTI V5 Leon Cupra 1.8T 2.8 rear axle 1J0615424E
- ✓ Complete kit
- ✓ rear axle: OE quality
£206.62*
- 30 days money back guarantee
- shipping within 24h
- 15 years expert knowledge
- 2 years warranty

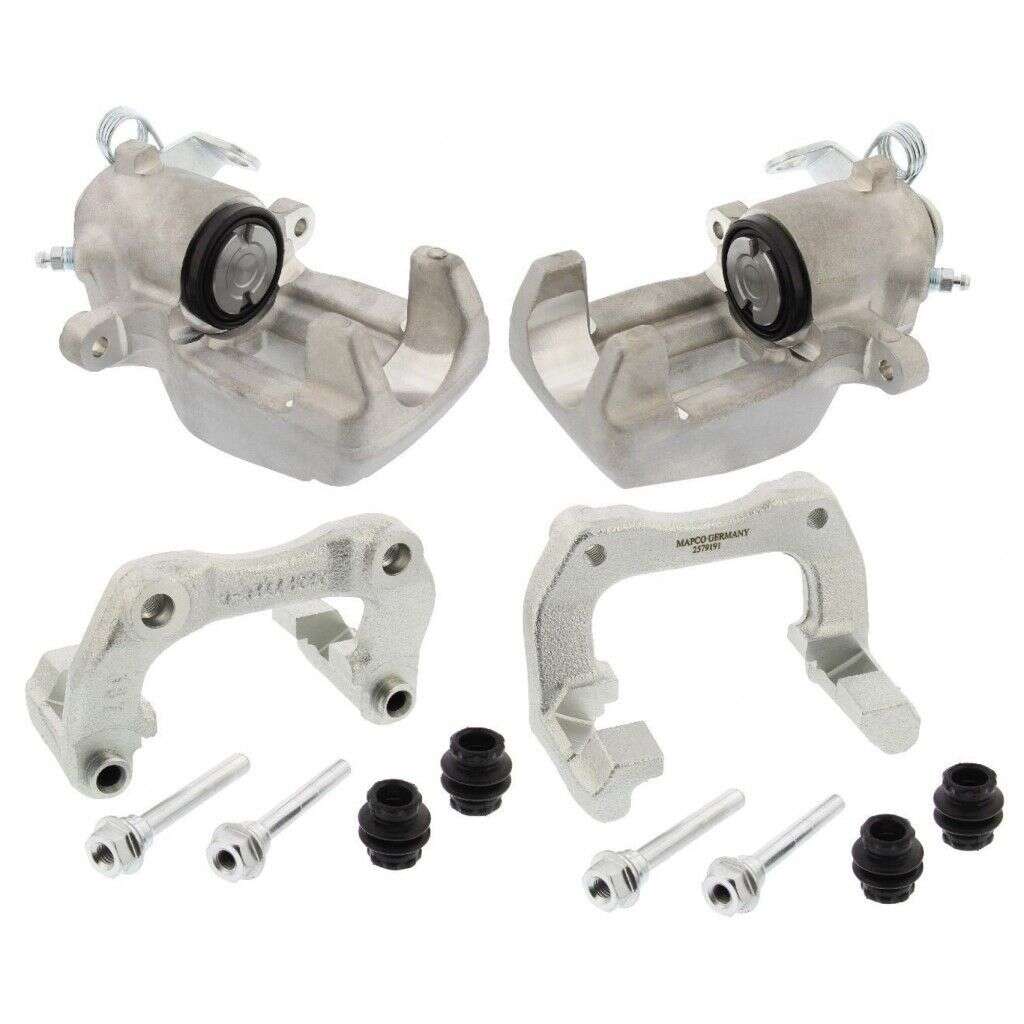

A set of new Jubi brake calipers with caliper brackets for the Golf 4 1.8T Gti, Golf 4 2.3 V5, Golf 4 Variant 2.3 V5, Seat Leon 1.8T Cupra, Seat Leon 2.8 and Seat Leon 2.8 Cupra 4.
The brake calipers are suitable in conjunction with many of our brake caliper adapters.
Suitable for the following vehicles:
- Seat Leon 1.8T Cupra 1M1
- Seat Leon 2.8 1M1
- Seat Leon 2.8 Cupra 4 1M1
- VW Golf 4 1.8T GTI 1J1
- VW Golf 4 2.3 V5 1J1
- VW Golf 4 Variant 2.3 V5 1J5
Part number:
- 2x Brake caliper part number: 1J0 615 423 E, 8N0 615 423 B, 8N0 615 423 C, 1J0 615 423 E,1J0 615 423 F, 8N0 615 423 B, 8N0 615 423 C
- 2x Brake caliper carrier part number: 1J0 615 426 E, 1J0 615 425 E
Technical data:
| Criterion | Detail |
|---|---|
| Installation side | Rear axle |
| Brake system | LUCAS |
| Brake disc thickness | 22 mm |
| Brake caliper version | Brake caliper(1-piston) |
| Piston diameter | 38 mm |
| for Brake disc diameter | 256 |
Scope of delivery:
2x Jubi Brake calipers with brake caliper bracket for the Golf 4 1.8T Gti, Golf 4 2.3 V5, Golf 4 Variant 2.3 V5, Seat Leon 1.8T Cupra, Seat Leon 2.8 und Seat Leon 2.8 Cupra 4.
Login
- Are the Epytec brake calipers in the blank version primed or completely untreated?
Our Epytec brake calipers in the "Bare / Uncoated" version are completely untreated – meaning not primed and deliberately uncoated. You really get them "raw," so you can have them painted or coated exactly to your liking.
Note on Preparation (for a Clean Result)
To ensure the coating lasts in the long term, we recommend the following before painting/coating:
Thoroughly degrease the brake calipers (very important)
Lightly sand the surface (for better adhesion)
Use only heat-resistant brake caliper paint or a suitable coating
Use a primer only if specifically recommended by the paint/coating manufacturer
This way, you'll end up with a visually clean and durable surface – just the way you want it.
Can Epytec also paint brake calipers provided by customers?
No, we do not offer that.
We paint exclusively our own brake calipers and do not undertake painting work on customer-owned parts.
The reason for this is primarily due to our capacities and internal processes.
To ensure consistently high quality, we focus exclusively on our own products in this area.
If you wish to have your own brake calipers painted, we recommend that you contact a specialized paint shop in your area.
- Which RAL colors can we not offer for the coating of our brake calipers?
We can paint your brake calipers in almost all common RAL colors. However, an exception is RAL fluorescent colors (neon/fluorescent colors) – we cannot offer these for brake caliper painting.
The reason: fluorescent colors work technically different from normal RAL colors (they require special pigments/layer structures) and are significantly more sensitive in the "brake" application area. For a consistently clean, robust surface, we therefore rely on paint structures that have proven themselves in the brake area – and fluorescent RAL is excluded here.
We do not offer these RAL fluorescent colors (examples)
RAL 1026 Fluorescent Yellow
RAL 2005 Fluorescent Orange
RAL 2007 Fluorescent Light Orange
RAL 3024 Fluorescent Red
RAL 3026 Fluorescent Light Red
RAL 6038 Fluorescent Green
Tip: If you want a "neon look," we often find a very similar non-fluorescent RAL alternative that is visually close and much more suitable for brake calipers.
- What torque should be used to tighten the sealing nipples on the brake caliper?
We recommend tightening the sealing nipples on the brake caliper with 20 Nm.
Why is this important?
The correct torque ensures a secure seal. A too loose fit can lead to leaks, whereas over-tightening can damage threads or components.
Should a torque wrench be used?
Yes, for precise and safe installation, we recommend using a torque wrench.
Should anything be checked after installation?
Yes, the sealing nipple should be checked for tight fit and sealing afterward.
| Motor | Motorcode |
|---|---|
| 1.8 T GTI | 1J1|180PS(132KW) |
| 2.3 V5 | 1J1|150PS(110KW) |
| 2.3 V5 | 1J1|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 2.3 V5 | 1J5|150PS(110KW) |
| 2.3 V5 | 1J5|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T Cupra R | 1M1|225PS(165KW) |
| 2.8 Cupra 4 | 1M1|204PS(150KW) |
| 1.8 T Cupra R | 1M1|209PS(154KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T GTI | 1J1|180PS(132KW) |
| 2.3 V5 | 1J1|150PS(110KW) |
| 2.3 V5 | 1J1|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 2.3 V5 | 1J5|150PS(110KW) |
| 2.3 V5 | 1J5|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 1.8 T Cupra R | 1M1|225PS(165KW) |
| 2.8 Cupra 4 | 1M1|204PS(150KW) |
| 1.8 T Cupra R | 1M1|209PS(154KW) |
