Why is the reinforced engine mount larger in diameter than the mounting in the engine bracket?

Name: Tube inner diameter 74,5mm Ø Engine bracket Golf Scirocco Caddy 1 Gearboc cradle Tube Motor holder
Brand: EPYTEC
SKU: 463
Price: 23.99 EUR
Availability: InStock

This is not a manufacturing defect, but deliberately designed that way.Our engine mounts are made of rubber or polyurethane (PU) with a defined Shore hardness. To ensure the mount sits absolutely securely in the engine holder, it is manufactured with a so-called press fit. This means the outer diameter of the mount is intentionally larger (up to about 1.4 mm) than the housing in the holder.During installation, the mount is pressed into the engine holder with appropriate tools and high pressure (approximately 5 tons of pressing force).Why do we do this?Maximum secure fit: The mount is play-free and cannot become looseNo twisting: Even under high load, the mount stays exactly in positionHigh durability: No movement in the seat = less wearOptimal power transmission: Forces are cleanly introduced into the holderDue to the elastic properties of rubber or PU, the mount adapts during pressing and builds up a permanent preload. It is precisely this preload that ensures the mount functions reliably even under heavy stress.Important:Installation should always be done with a suitable press. Hammering or similar can damage the mount or result in an improper fit.

Tube inner diameter 74,5mm Ø Engine bracket Golf Scirocco Caddy 1 Gearboc cradle Tube Motor holder

✓ 74.5mm diameter
✓ precision tube
✓ premium quality

€23.99*

Prices incl. VAT plus shipping costs

Available

Product number: 463

Delivery by Tuesday, 14.07.2026 if you order within the next 8 Hours.

Express shopping
Save your data and settings
Order overview and shipping information
Manage your newsletter subscription
19 Jahre Expertenwissen

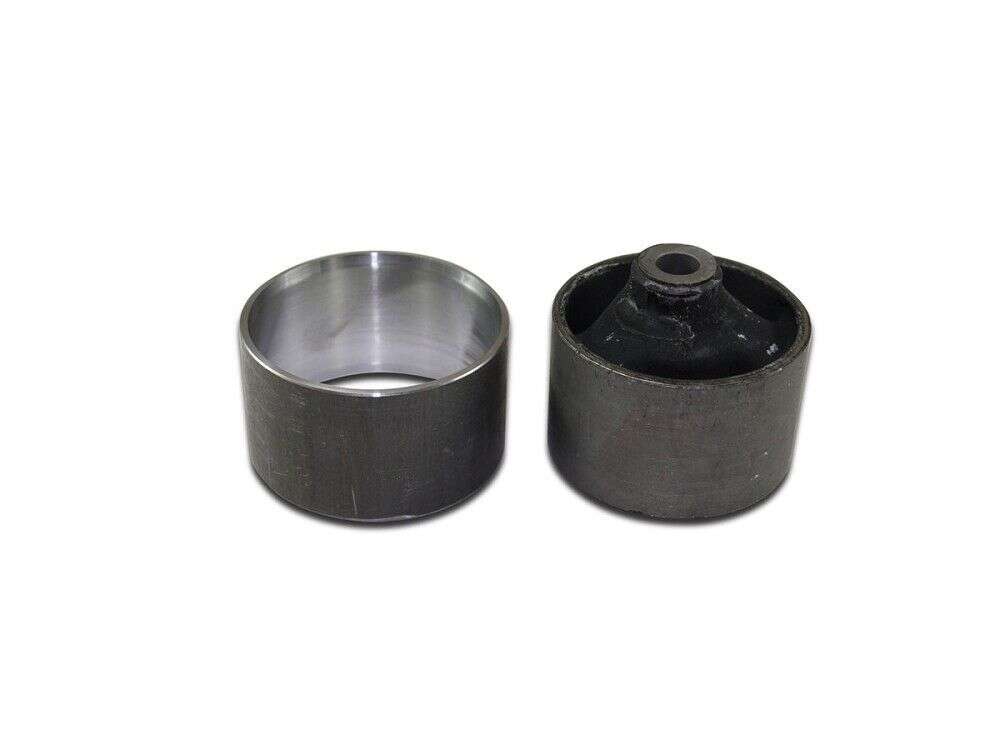

Product information "Tube inner diameter 74,5mm Ø Engine bracket Golf Scirocco Caddy 1 Gearboc cradle Tube Motor holder"

Product description

Any kind of engine conversion is possible on your vehicle with this universal tube.
Tailor-made for engine support typ Golf 1 OENr.: 171 199 214 G
With outer diameter 74,5mm

Fits perfectly for engine and gearbox conversion on Golf 1. Depending on the correct positon and equipment of the engine the tube is fixed by welding on your vehicle.

Scope of delivery:

1x Fixation tube for engine bracket

Manufacturer: Epytec

0 of 0 reviews

Leave a review!

Share your experiences with other customers.

Login

email address

password

or Register with...

No reviews found. Share your insights with others.

Motor	Motorcode
1.6 D	14\|55PS(40KW)
1.8	14\|95PS(70KW)
1.6	14\|75PS(55KW)
1.5	14\|70PS(51KW)

Motor	Motorcode
1.6	155\|75PS(55KW)
1.3	155\|54PS(40KW)
1.8	155\|111PS(82KW)
1.8	155\|95PS(70KW)
1.6	155\|110PS(81KW)
1.6	155\|72PS(53KW)
1.8	155\|112PS(82KW)
1.8	155\|98PS(72KW)
1.5	155\|70PS(51KW)
1.8	155\|90PS(66KW)

Motor	Motorcode
1.8	16\|112PS(82KW)
1.6 D	16\|54PS(40KW)
1.6 GLI	16\|110PS(81KW)
1.6	16\|85PS(63KW)
1.5 D	16\|50PS(37KW)
1.1	16\|50PS(37KW)
1.5	16\|70PS(51KW)
1.6	16\|75PS(55KW)
1.3	16\|60PS(44KW)
1.6 TD	16\|70PS(51KW)

Motor	Motorcode
1.6	53\|110PS(81KW)
1.5	53\|86PS(63KW)
1.6	53\|70PS(51KW)
1.6	53\|85PS(63KW)
1.1	53\|50PS(37KW)
1.6	53\|75PS(55KW)
1.3	53\|60PS(44KW)
1.5	53\|75PS(55KW)
1.5	53\|70PS(51KW)

Motor	Motorcode
1.5	17\|70PS(51KW)
1.8 GTI	17\|112PS(82KW)
1.6 D	17\|54PS(40KW)
1.6 TD	17\|70PS(51KW)
1.6	17\|75PS(55KW)
1.6 GTI	17\|110PS(81KW)
1.3	17\|60PS(44KW)
1.5 D	17\|50PS(37KW)
1.1	17\|50PS(37KW)

Motor	Motorcode
1.6 D	14\|55PS(40KW)
1.8	14\|95PS(70KW)
1.6	14\|75PS(55KW)
1.5	14\|70PS(51KW)

Motor	Motorcode
1.6	155\|75PS(55KW)
1.3	155\|54PS(40KW)
1.8	155\|111PS(82KW)
1.8	155\|95PS(70KW)
1.6	155\|110PS(81KW)
1.6	155\|72PS(53KW)
1.8	155\|112PS(82KW)
1.8	155\|98PS(72KW)
1.5	155\|70PS(51KW)
1.8	155\|90PS(66KW)

Motor	Motorcode
1.8	16\|112PS(82KW)
1.6 D	16\|54PS(40KW)
1.6 GLI	16\|110PS(81KW)
1.6	16\|85PS(63KW)
1.5 D	16\|50PS(37KW)
1.1	16\|50PS(37KW)
1.5	16\|70PS(51KW)
1.6	16\|75PS(55KW)
1.3	16\|60PS(44KW)
1.6 TD	16\|70PS(51KW)

Motor	Motorcode
1.6	53\|110PS(81KW)
1.5	53\|86PS(63KW)
1.6	53\|70PS(51KW)
1.6	53\|85PS(63KW)
1.1	53\|50PS(37KW)
1.6	53\|75PS(55KW)
1.3	53\|60PS(44KW)
1.5	53\|75PS(55KW)
1.5	53\|70PS(51KW)

Motor	Motorcode
1.5	17\|70PS(51KW)
1.8 GTI	17\|112PS(82KW)
1.6 D	17\|54PS(40KW)
1.6 TD	17\|70PS(51KW)
1.6	17\|75PS(55KW)
1.6 GTI	17\|110PS(81KW)
1.3	17\|60PS(44KW)
1.5 D	17\|50PS(37KW)
1.1	17\|50PS(37KW)
