Set VW Camber Adjustement Plate Caddy 14D Camber Adjustement Rear - Camber Direction: Negative - Sharpened: 3.0 Degree
- ✓ camber adjustement plate 3mm
- ✓ VW Caddy14D
€182.79*
- Easy TÜV registration
- Quality Made in Germany
- Fair prices without middlemen you buy directly from the manufacturer and developer of the product
- Worldwide no. 1 in tuning adapters
- 15 years expert knowledge
- 10 years warranty
⚠️ Important Notice:
This item is produced exclusively upon request. As it is a made-to-order special production based on demand, there is no right of withdrawal pursuant to § 312g (2) No. 1 of the German Civil Code (BGB).
Therefore, returns or exchanges are excluded.

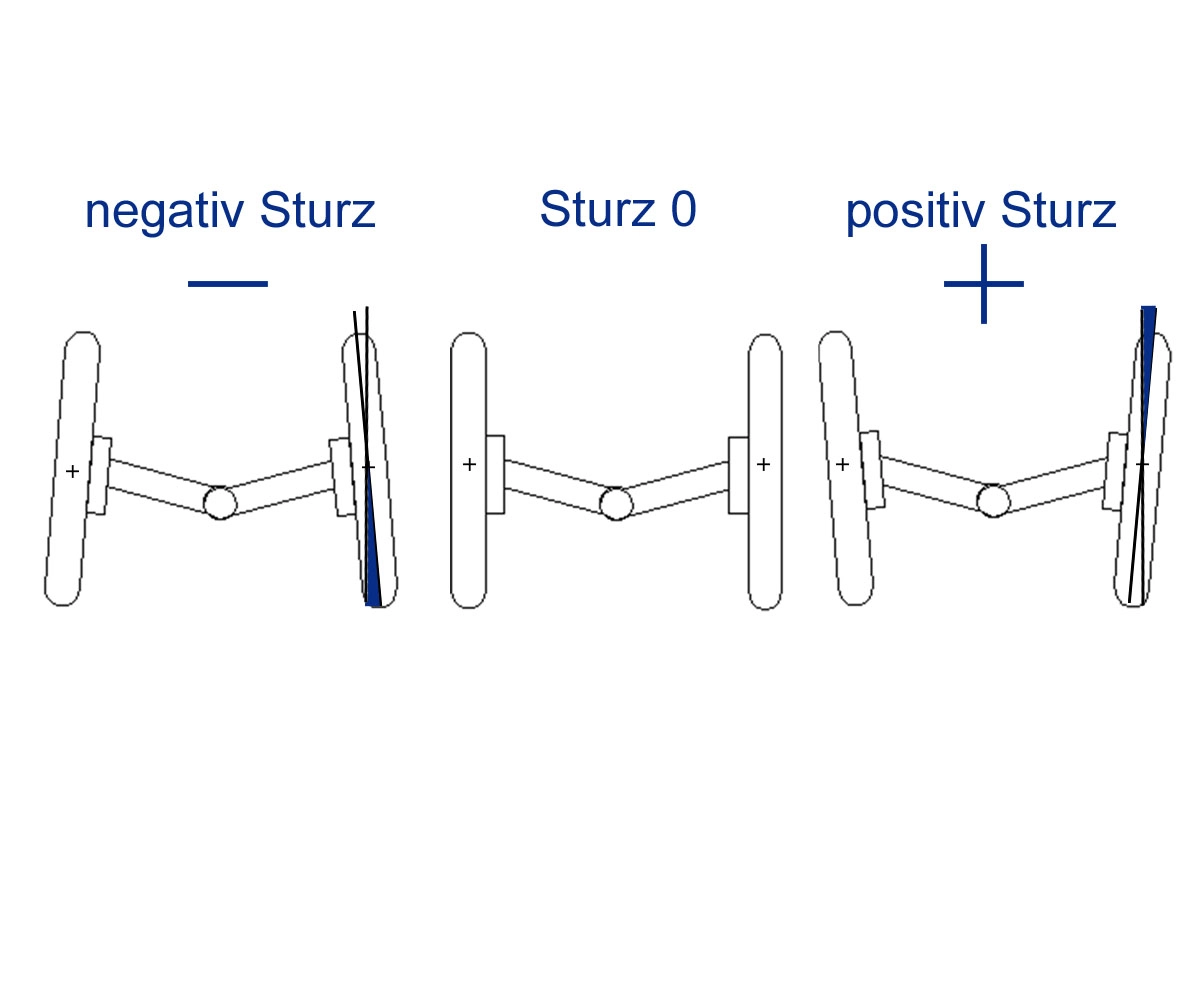

You do not want to spend money on tires that are worn only on one side, but you want more grip and better performance? Or do you just want to get the opposite? High curve speed and cool optics.
Then we have the product for you! With this product, you can adjust the camber according to your needs.
Kit of camber correction / adjustment plates for rear axle. Makes possible a camber correction / ajustement.
Thanks to our plates, you can modify the rear camber. Ideal for lowering the rear axle and correcting the angle defect if the tires are worn only on one side.
We recommend it for racing or slalom circuits. Or simply on the road, to take turns at a higher speed.
Our plates are mounted between the pivot of the axle stub and the axle. Quick and easy assembly. The wheels are then moved 3mm outwards. The plates are manufactured with high precision.
They are made of steel and completely galvanized. Maximum anticorrosive protection and good optics.
Suitable for VW Caddy 14D
Thanks to the material certificate supplied with the order, it is possible to register your purchase even for series vehicles.
Delivery:
- 2x camber adjustment plates, right and left
- material certificate
Technical data:
Login
23 March 2023 15:04
André L
Sturzplatten passen perfekt und sind von der Verarbeitung top. Wie immer Top Qualität von Epytec
25 November 2021 13:25
André L
Super Passgenauigkeit und Verarbeitung. Artikel hat ohne Anpassungsarbeiten gepasst.
12 December 2017 13:49
fabiofabio1983
Ottimo venditore
27 January 2018 01:39
polosista81
Alles super, danke!
12 November 2018 18:04
familie-geist
Alles Bestens 👍🏼
2 May 2020 20:01
Christian H
Optisch sehr gut.
- Do I need longer screws or can the old ones remain in place?
With Epytec camber correction plates, you can continue to use the original screws up to +-2°. For camber correction plates with an angle of more than 2°, we recommend lightly sanding a washer and placing it under the screw head to ensure it remains flush with the camber correction plate. Of course, if the camber correction plate is thicker, new screws may be required.
- Does the ABS still work after installing the camber adjustment plate?
From a camber of 1 °, the ABS sensor may no longer be parallel to the ABS ring. Then, the position of the ABS sensor on the vehicle should be slightly changed.
