Drive shaft set drive shaft VW Golf 2 3 AWD plus axle DQ250 DSG all-wheel drive transmission engine conversion G60 1.8T 16V
- ✓ VR6 plus axle
- ✓ VW Golf 3 VR6, VW Golf 3 GTI, VW Passat VR6, VW Corrado VR6
- ✓ DQ250 / DSG all-wheel drive transmission
€537.26*
- TÜV registration free
- 15 years expert knowledge
- shipping within 24h
- 2 years warranty

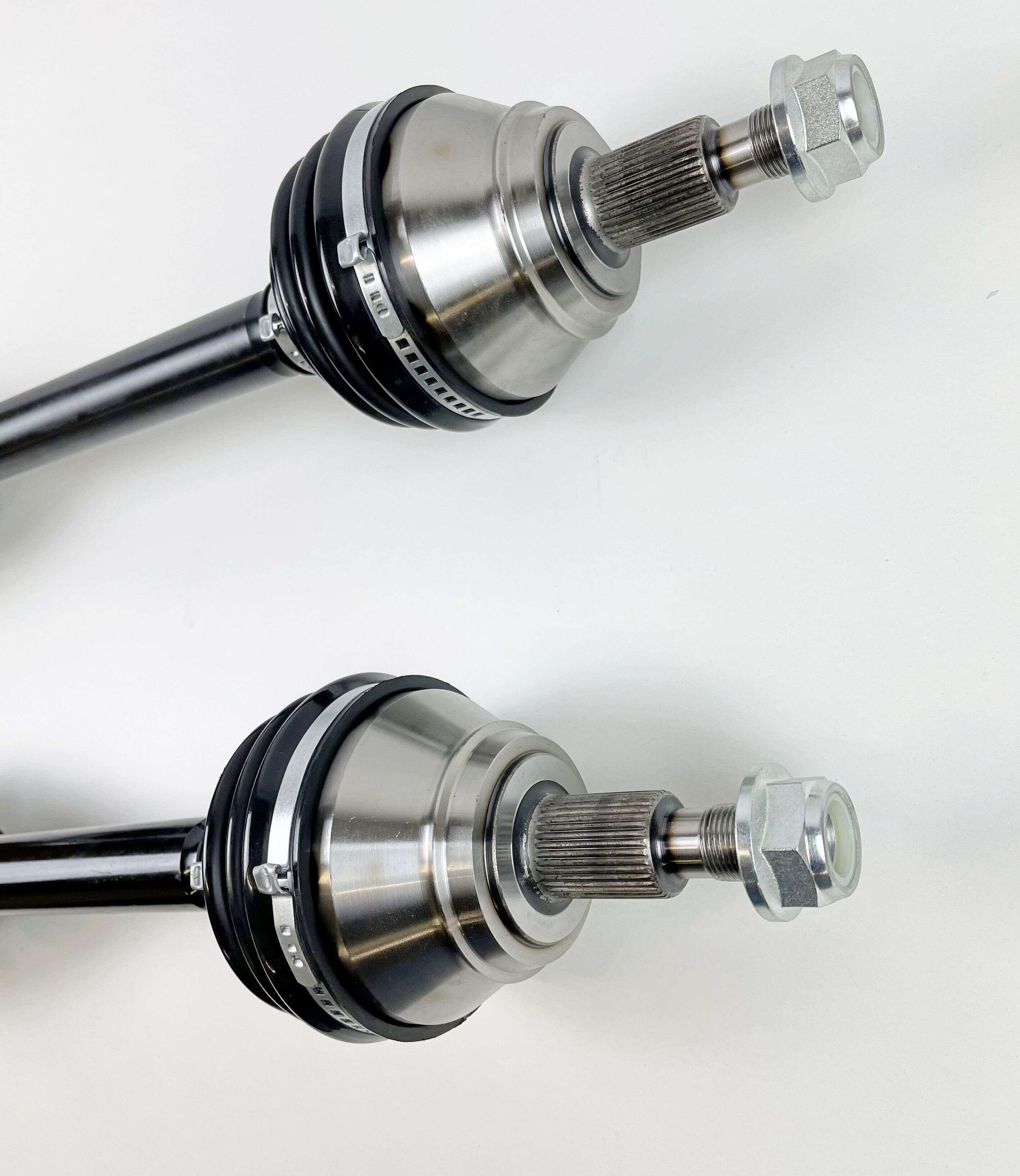

Drive shaft set for all VW Golf 2 and Golf 3 all-wheel 4-Motion conversions with VR6 plus axle. Absolutely necessary if you want to convert your vehicle to G60, 16v or 1,8T engine in combination with the DQ250 / DSG transmission.
The drive shafts only fit in conjunction with the DQ250 / DSG all-wheel drive transmission, which were installed on the 4-cylinder engines, such as in the VW Golf 6R.
The DQ250 transmissions, which are installed in conjunction with the 6-cylinder engines, have a star-shaped flange and a tripod joint and are therefore unfortunately not suitable with our drive shafts.
Suitable for the following vehicles:
- VW Golf 3 VR6
- VW Golf 3 GTI
- VW Passat VR6
- VW Corrado VR6
- and all vehicles that have been converted to the VR6 plus axle.
Suitable for the following transmission:
- DQ250 / DSG all-wheel drive transmission
It is important that there is no overpressure in the sleeve when installing the new drive shaft. In our installation instructions you can see how to prevent this (click here).
By installing the drive shaft set you save the reworking of the body. This saves you time and nerves.
Advantages of the drive shafts:
- Up to 800 hp stable
- fits plug-and-play
- solid shaft made of special high-strength material
- simple assembly
- no registration necessary, drive shafts are registration free
Scope of delivery:
- 1x drive shaft set for VW Golf 2 and Golf 3 all-wheel 4-Motion conversions with the VR6 plus axle.
Our drive shafts are registration-free and therefore do not need to be registered.
Login
26 May 2021 23:38
jeanclaude5499
super ebayeur je recommande++++++++
22 March 2023 21:28
Marc Oliver T
Die Verarbeitung ist sehr gut uns es passt hervorragend in einem Jetta R32.
- What exactly is the benefit of a shorter drive shaft?
Lowering changes the axle geometry and the shaft presses on the wheel bearing, exposing it to high wear and possibly destroying it in the worst case. Therefore, it is absolutely necessary to relieve the pressure from the component. This is done by shortening the shafts.
- Do the reinforced drive shafts also have reinforced joints?
On the wheel side, the joints are also reinforced, but the inner joints are like the standard joints.
- Why are two bags of grease included in the package?
The grease is included so that additional greasing can be done, or if the gearbox flange is open at the back. In this case, greasing must still be done there. If the shaft is delivered completely closed, greasing is not necessary as it has already been done.
- Why are no backing plates (OE: 1K0407357D) included for mounting as they are originally available?
We do not supply the base plates, as we install the latest version of the bellows. With these, the base plates are no longer needed.
