Brake Discs 260x22 BMW E30 Bolt Circle / Pitch Circle Conversion 5x120 Plug & Play Front Axle
- ✓ 260x22
- ✓ 66mm centering
- ✓ 35mm height
€138.90*
- 30 days money back guarantee
- shipping within 24h
- 15 years expert knowledge
- 2 years warranty

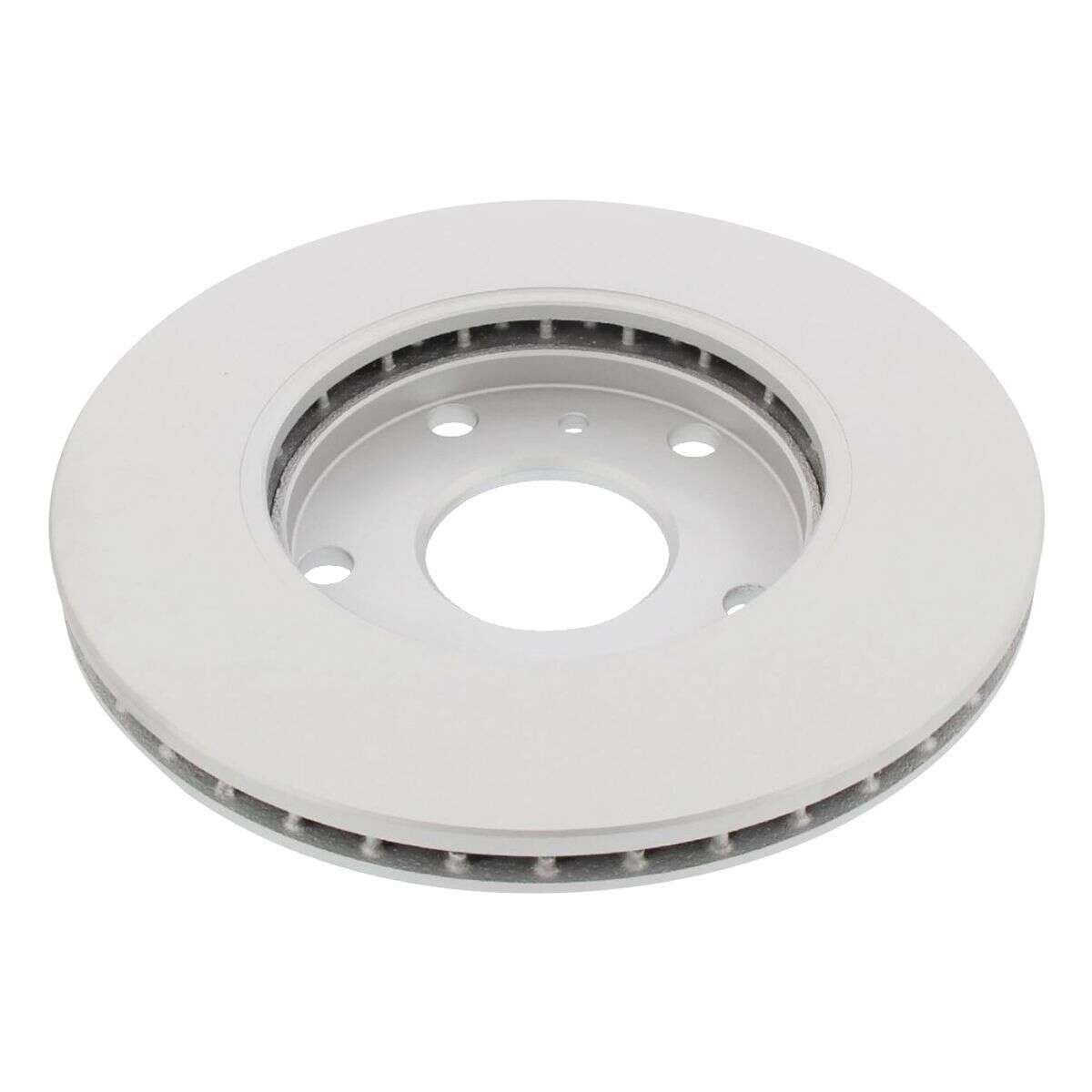

Front original BMW E30 brake disc 260x22mm with 5x120 bolt circle/pitch circle.
The brake discs are identical to the original BMW E30 brake discs, only the hole circle/pitch circle of the brake discs is 5x120. So you don't need to drill around the brake discs if you want to use rims with a 5x120 bolt circle.
The brake discs are also suitable for many brake caliper adapters and wheel hubs with a 5x120 bolt circle (see matching accessories)
Perfect as a replacement part if you have converted to 5x120.
Original part number of the identical disc (4x100):
- 34111154749, 34111154750, 34111160915
Delivery:
- 2x 260x22mm BMW E30 brake discs with 5x120 bolt circle / pitch circle for the front axle
- material certificate
Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.
Technical data:
Login
| Motor | Motorcode |
|---|---|
| 325i | E30|171PS(126KW) |
| 325i | E93|218PS(160KW) |
| 318i | E30|113PS(83KW) |
| 325i | E30|170PS(125KW) |
| 325i | E93|211PS(155KW) |
| 325i | E36|192PS(141KW) |
| 318i | E93|143PS(105KW) |
| 318i | E36|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 316i | E30|102PS(75KW) |
| 316i | E30|100PS(73KW) |
| 325i | E30|171PS(126KW) |
| 320i | E30|125PS(92KW) |
| 318i | E30|115PS(85KW) |
| 318is | E30|136PS(100KW) |
| 324td | E30|115PS(85KW) |
| 320i | E30|129PS(95KW) |
| 325i X | E30|171PS(126KW) |
| 325e 2.7 | E30|122PS(90KW) |
| 325e 2.7 | E30|129PS(95KW) |
| 323i | E30|150PS(110KW) |
| 324d | E30|86PS(63KW) |
| 318i | E30|105PS(77KW) |
| 325i X | E30|170PS(125KW) |
| 316 | E30|90PS(66KW) |
| 318i | E30|113PS(83KW) |
| 323i | E30|139PS(102KW) |
| 318i | E30|102PS(75KW) |
| 325i | E30|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 318i | E30|113PS(83KW) |
| 318i | E30|115PS(85KW) |
| 320i | E30|129PS(95KW) |
| 316i | E30|102PS(75KW) |
| 316i | E30|100PS(73KW) |
| Motor | Motorcode |
|---|---|
| 325i | E30|171PS(126KW) |
| 325i | E93|218PS(160KW) |
| 318i | E30|113PS(83KW) |
| 325i | E30|170PS(125KW) |
| 325i | E93|211PS(155KW) |
| 325i | E36|192PS(141KW) |
| 318i | E93|143PS(105KW) |
| 318i | E36|115PS(85KW) |
| Motor | Motorcode |
|---|---|
| 316i | E30|102PS(75KW) |
| 316i | E30|100PS(73KW) |
| 325i | E30|171PS(126KW) |
| 320i | E30|125PS(92KW) |
| 318i | E30|115PS(85KW) |
| 318is | E30|136PS(100KW) |
| 324td | E30|115PS(85KW) |
| 320i | E30|129PS(95KW) |
| 325i X | E30|171PS(126KW) |
| 325e 2.7 | E30|122PS(90KW) |
| 325e 2.7 | E30|129PS(95KW) |
| 323i | E30|150PS(110KW) |
| 324d | E30|86PS(63KW) |
| 318i | E30|105PS(77KW) |
| 325i X | E30|170PS(125KW) |
| 316 | E30|90PS(66KW) |
| 318i | E30|113PS(83KW) |
| 323i | E30|139PS(102KW) |
| 318i | E30|102PS(75KW) |
| 325i | E30|170PS(125KW) |
| Motor | Motorcode |
|---|---|
| 318i | E30|113PS(83KW) |
| 318i | E30|115PS(85KW) |
| 320i | E30|129PS(95KW) |
| 316i | E30|102PS(75KW) |
| 316i | E30|100PS(73KW) |
