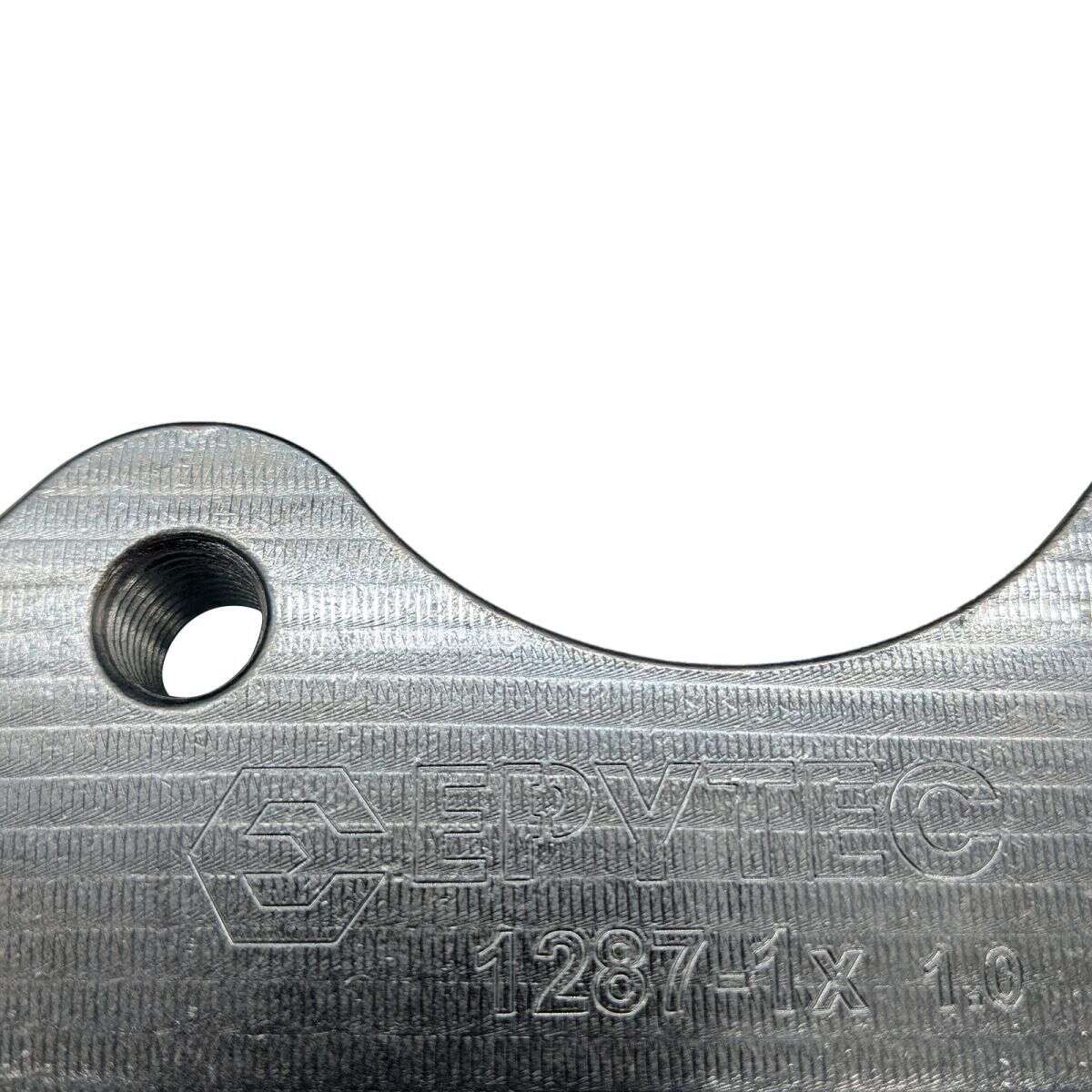

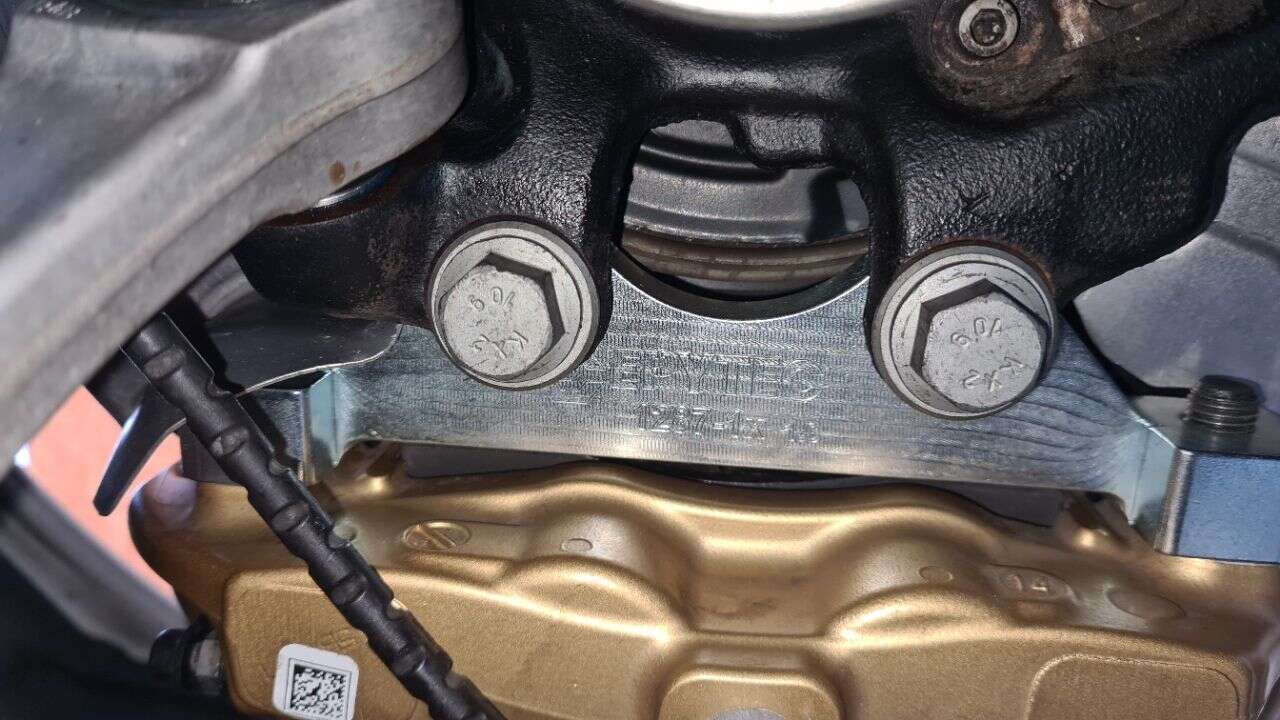

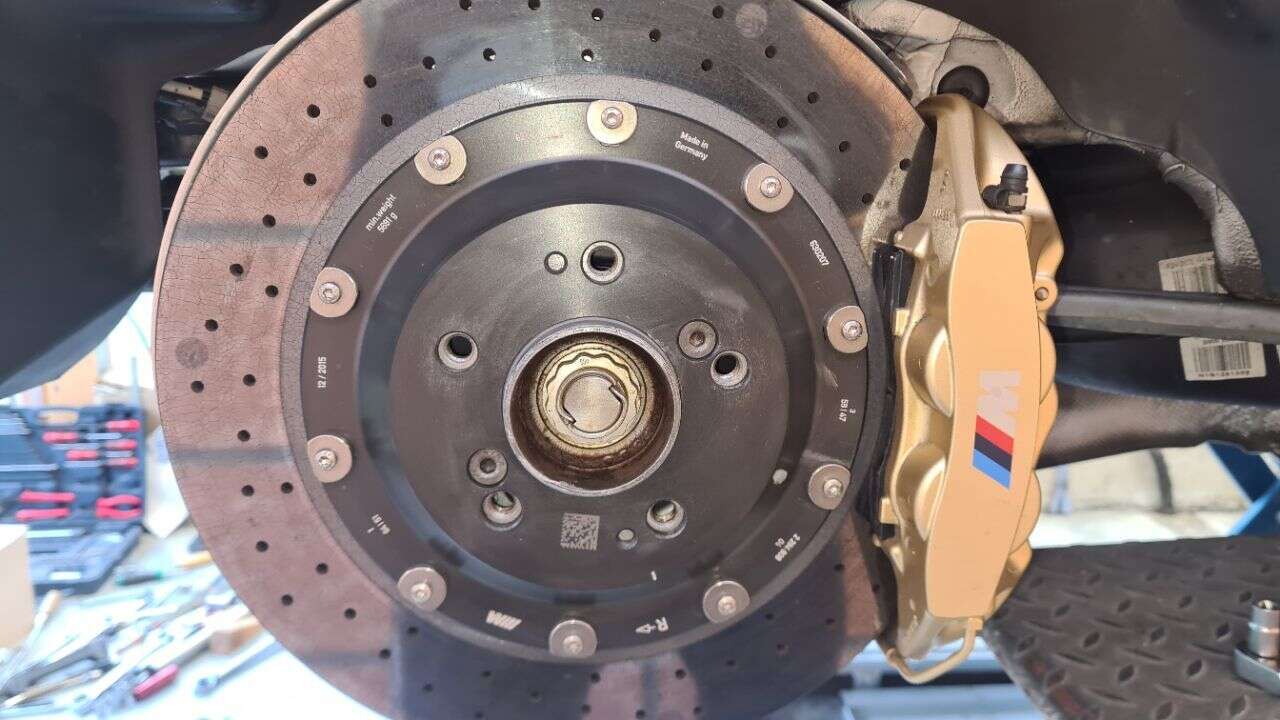

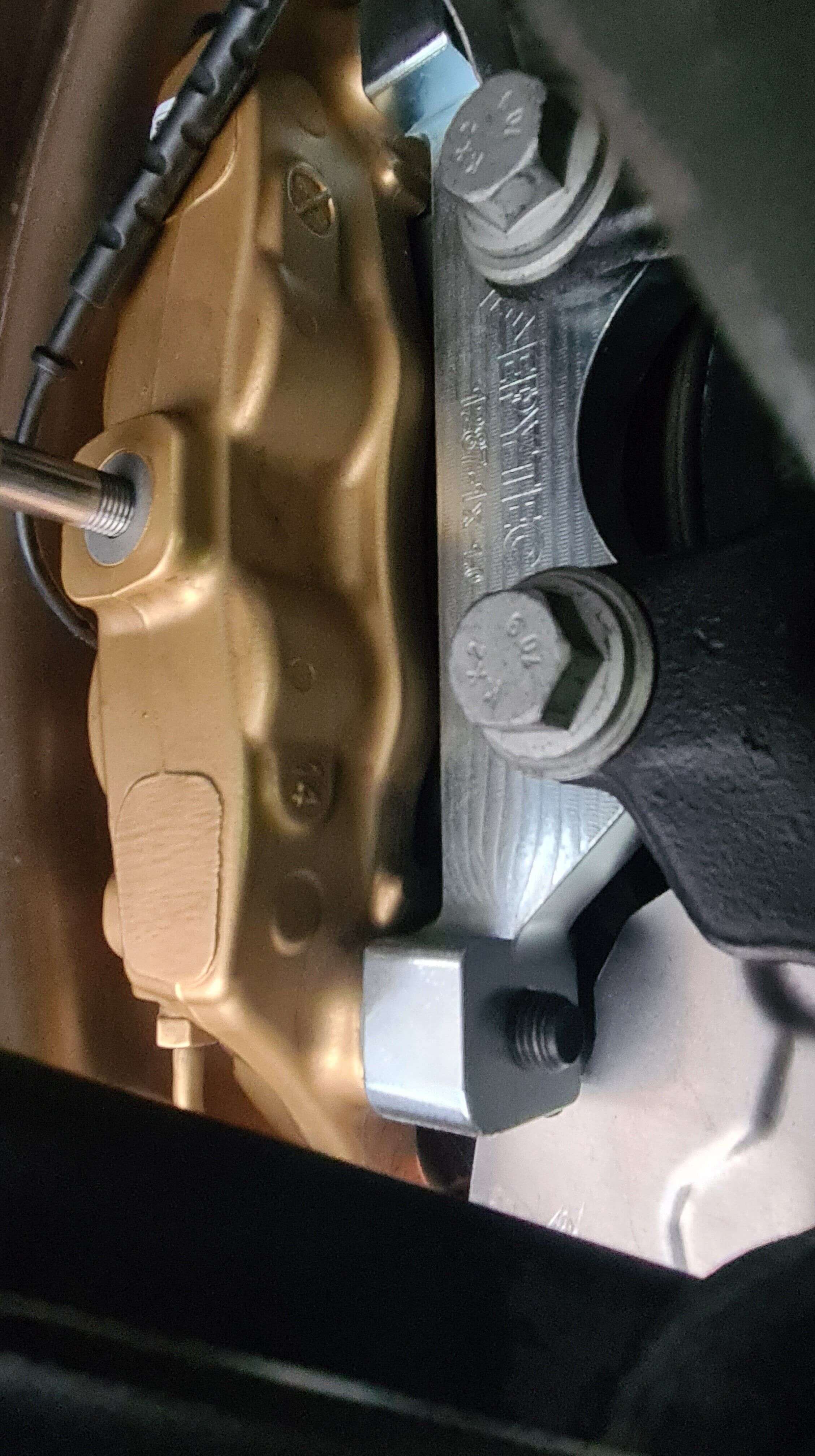

Brake calliper adapter BMW M models E92 E93 E91 E90 4-piston brake calliper 380x28 ceramic steel brake system BMW M2 M3 M4

Brake caliper adapter for the rear axle of the BMW M models E92 E93 E91 E90 and many more to install the BMW steel sports brake from the BMW M2 or the ceramic brake from the BMW M3 / M4.

Suitable for the following vehicles:

  • BMW E90 M3
  • BMW E91 M3
  • BMW E92 M3
  • BMW E93 M3
  • BMW E82 M 1er

Advantages of this brake system:

  • Top deceleration values, no comparison with conventional rear brake discs
  • Significantly improved fading due to internally ventilated discs
  • a must for performance upgrades
  • the material certificate included in the scope of delivery enables registration via individual approval, even for standard vehicles.
  • Easy to restore to original condition

Components required for installing the carbon-ceramic brake system:

  • BMW Performance 4-piston brake callipers from BMW M3 M4, part no. 34217850465 / 34217850466
  • Brake pads from BMW M3 M4, part no. 34212284990
  • Brake disc from BMW BMW M3 M4 from the rear axle in 380x28mm part number: 34212284807 / 34212284808

Components required for the installation of the steel brake system:

  • BMW Performance 4-piston brake callipers from BMW M2, part no. 34218745797 / 34218745798
  • Brake pads from BMW M2, part no. 34218091600
  • Brake disc from BMW BMW M2, from the rear axle in 380x28mm, part number: 34118072019 / 34118072020

Scope of delivery:

  • 2x brake calliper adapter for BMW M models E92 E93 E91 E90 E82 and many more.
  • High-strength fastening screw material
  • Material certificate
Tipps, Infos und Hinweise: Zur besseren Belüftung der Bremsanlage empfehlen wir die Ankerbleche/Bremsstaubbleche zu entfernen. Für eine einfache Montage der Felge, empfehlen wir, zwei unserer Radmontagehilfen gleich mit zukaufen >>hier gehts direkt zum Artikel Jetzt direkt zu Spurverbreiterungen nach Wunsch Stahlflex-Bremsleitung konfigurieren

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Brake caliper hole spacing: 180
Hole spacing steering knuckle: 76
Manufacturer: Epytec
Mounting location: rear!
Brake caliper hole spacing: 180
Hole spacing steering knuckle: 76
Manufacturer: Epytec
Mounting location: rear!

0 of 0 reviews

Average rating of 0 out of 5 stars

Leave a review!

Share your experiences with other customers.


  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
