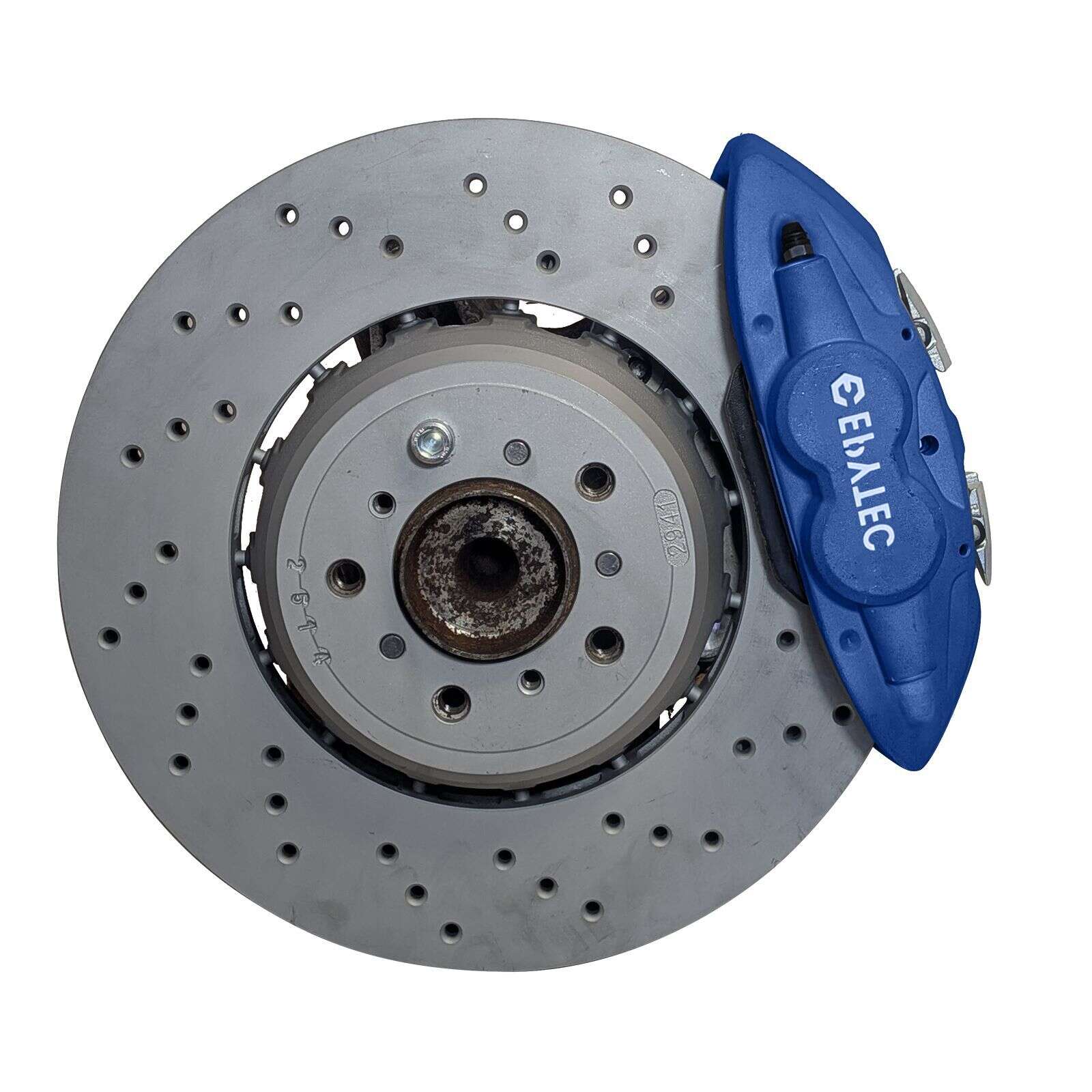

BMW 3er E92 E93 E91 M Brake Caliper Adapter Brake F30 F31 Brake Caliper Conversion M2 M3 Brake Disc 380x30 4-piston

  • ✓ 380x30 34112284809 / 34112284810 BMW M2 / 3 / 4 brake disc
  • ✓ 4-piston 34116799469 / 34116799470 BMW F30 / 31 brake caliper
  • ✓ front axle

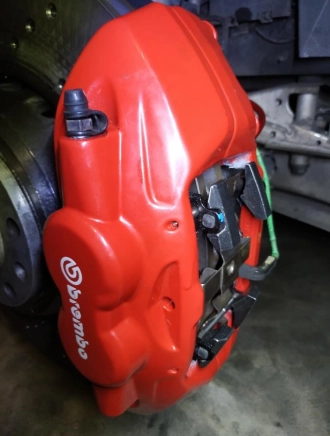

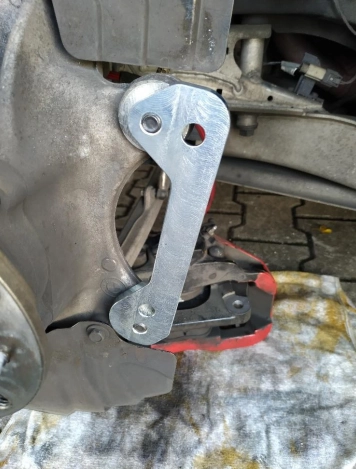

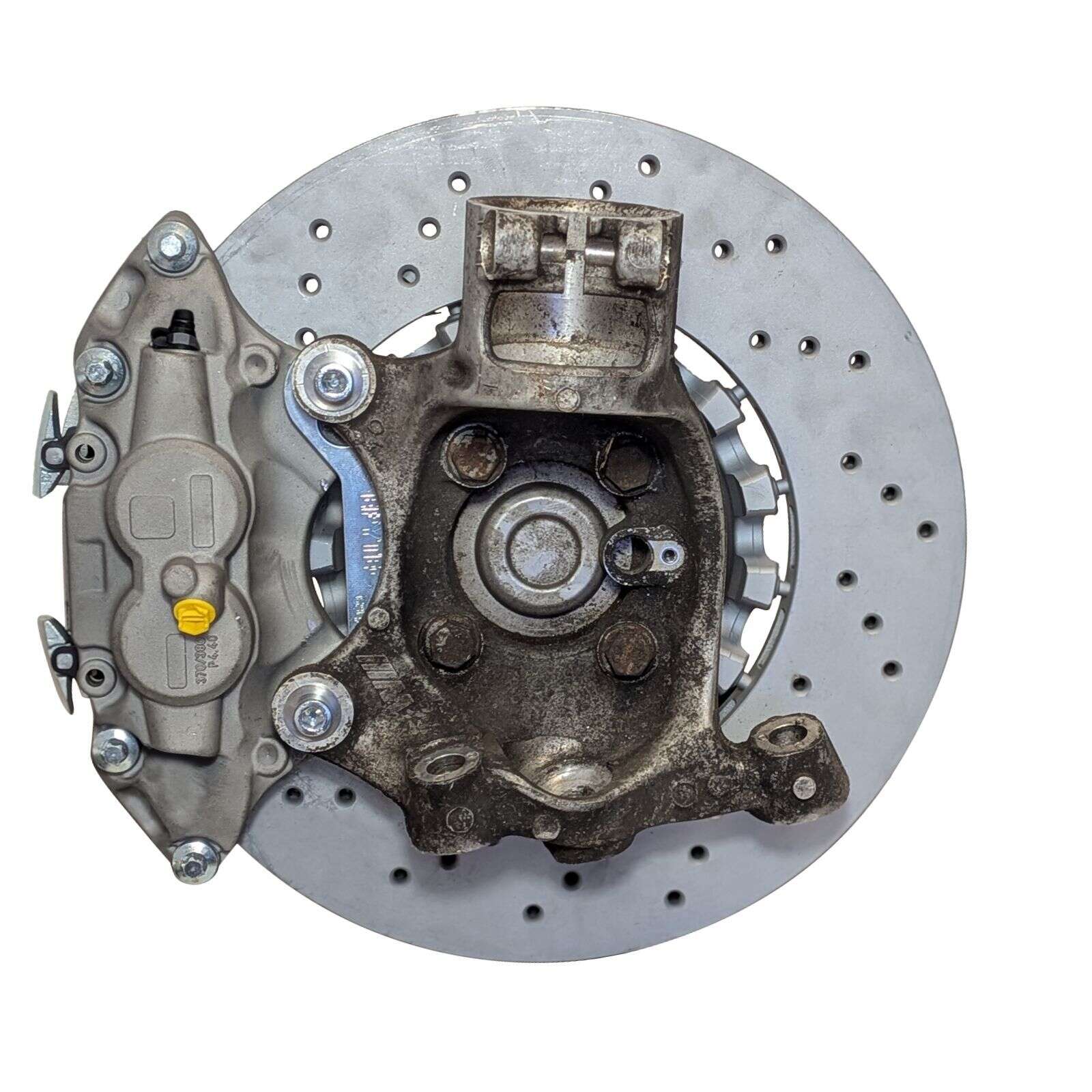

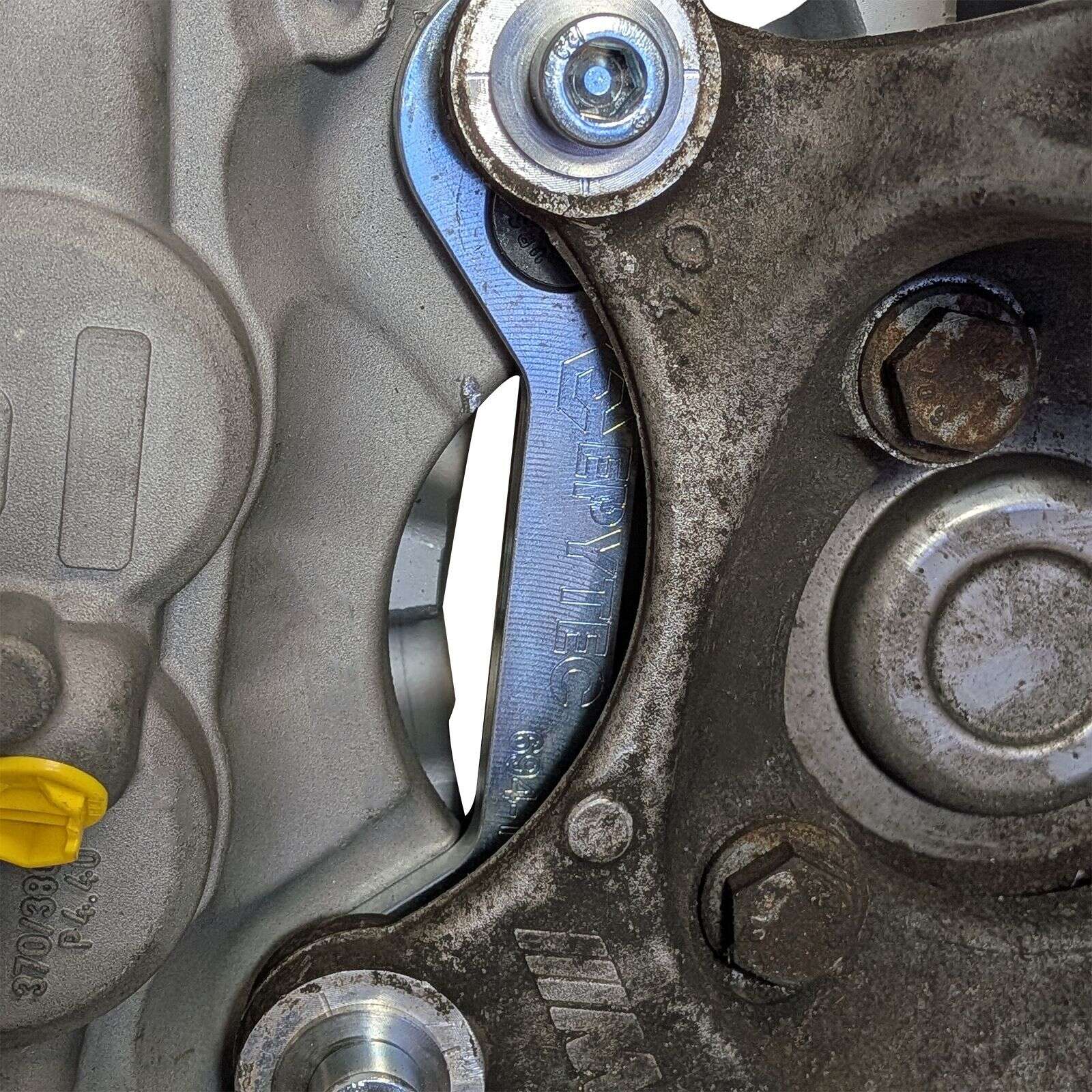

Brake caliper adapter for the front axle of all BMW M models E92 E93 E91 E90 for conversion to the BMW F30/31 4-piston brake caliper, combined with the 380x30mm brake discs of BMW M2/3/4.

Suitable for the following vehicles (M models):

  • BMW E90
  • BMW E91
  • BMW E92
  • BMW E93

Advantages of this brake system

  • top deceleration, without comparison with conventional brake discs
  • better performance
  • supplied material certificate
  • can easily be restored to the original state
  • easy assembly:

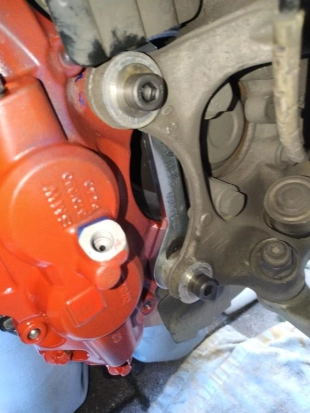

    • The sleeves with knurls are simply glued / pressed into the brake caliper instead of the original sleeves. The sleeves are eccentric and can therefore be pressed perfectly, so that the brake caliper sits perfectly on the disc.

Required components:

  • brake caliper: BMW F30/31 4-piston, reference left: 4116799469 / right: 34116799470

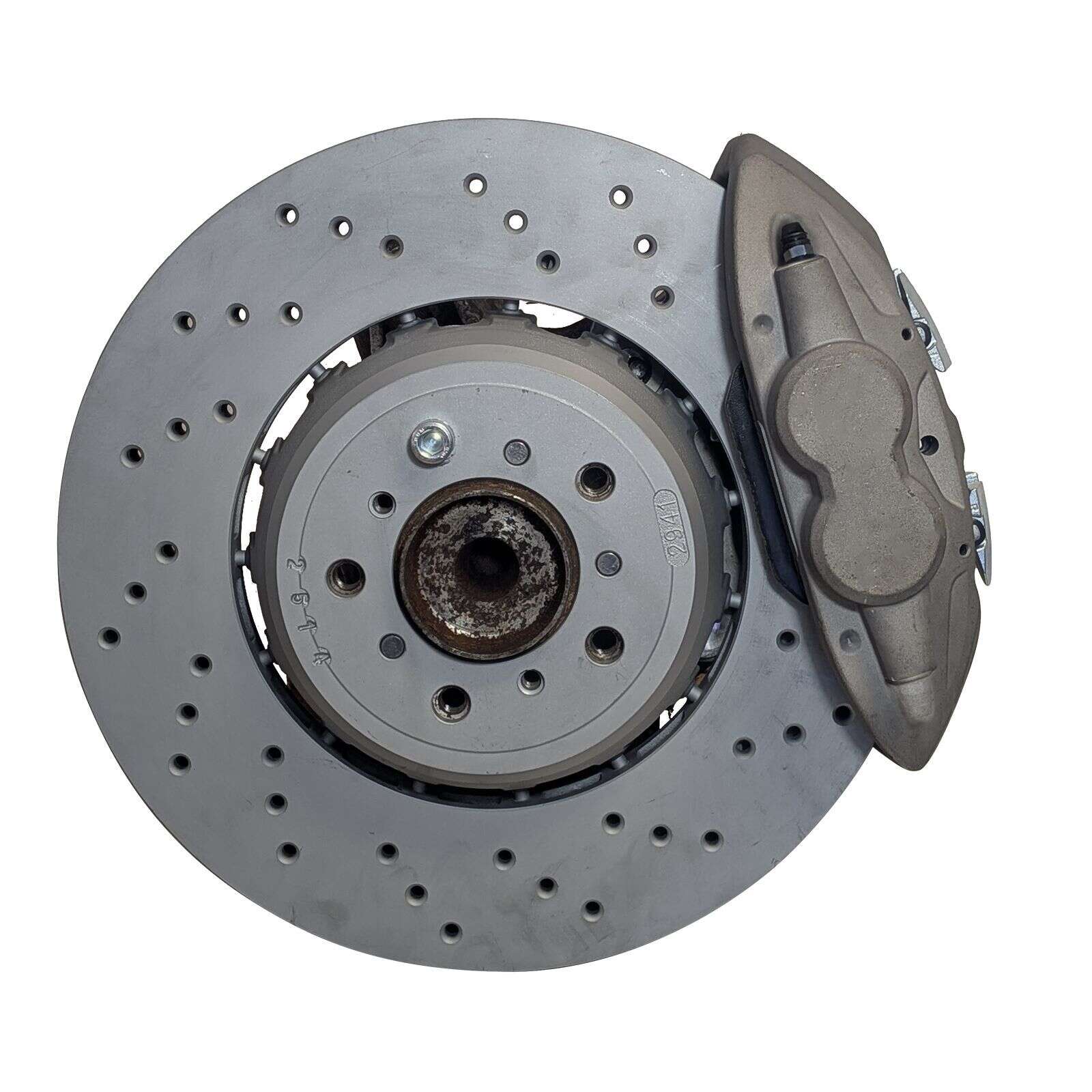

  • brake disc: BMW M2/3/4, front axle, 380x30mm, reference left: 34112284809 / right: 34112284810
Delivery
  • 1x set of brake caliper adapters for BMW M-Modelle E92 E93 E91 E90
  • high-strength mounting screws
  • material certificate
  • installation instructions

Tips, information and advice:

  • To improve ventilation of the brake system, we recommend removing the anchor plates/brake dust plates.
  • For easy mounting of the rim, we recommend purchasing two of our wheel mounting aids at the same time >>go directly to the article here<<

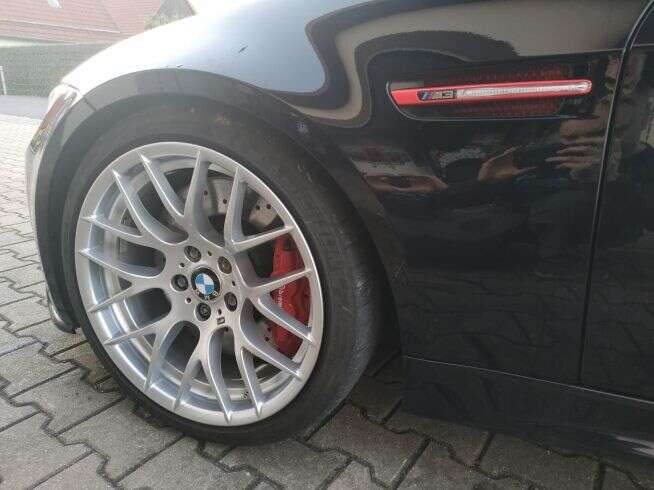

  • We cannot give you a generalised answer as to which rim size you can ride after your brake conversion. There are simply too many different wheel rims. For this reason, we have developed a template with which you can easily check whether the brake system kit fits under your rim. We have included a link to the template in the description. If your rim does not fit, you can simply use wheel spacers. >> Go directly to customised wheel spacers <<

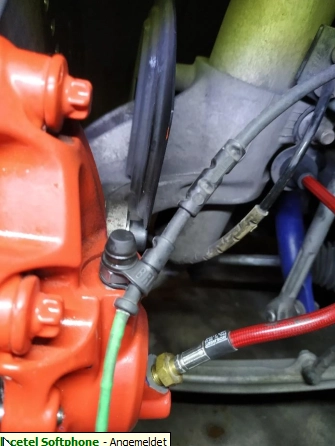

  • Install the adapter with the required components and then check whether new brake lines are required, as the old ones may not be long enough or the connection may not fit, depending on the model. Due to the significantly better efficiency, we recommend switching to steel braided lines. We have developed a steel braided line configurator especially for this function, which you can use to assemble and then install them according to your requirements. Click here for the steel flex configurator >> Configure steel flex brake line <<
  • The handbrake cable must always be used from the installed calliper, which means that the new handbrake cable may have to be adjusted slightly. For conversions in which the original calliper is still used and the original handbrake cable can be used, you may have to route it more directly to compensate for the larger disc diameter and longer travel

Please note that our articles have been designed for racing and motorsport. Use in public road traffic usually requires an individual approval in accordance with § 21 StVZO by an officially recognised expert. Further information can be found under TÜV Süd. For the individual approval, we will provide you with an expert opinion or material certificate, if available.

Technical data:

Brake caliper hole spacing: 119
Hole spacing steering knuckle: 138
Manufacturer: Epytec
Mounting location: front
Brake caliper hole spacing: 119
Hole spacing steering knuckle: 138
Manufacturer: Epytec
Mounting location: front

3 of 3 reviews

Average rating of 5 out of 5 stars


100%

0%

0%

0%

0%


Leave a review!

Share your experiences with other customers.


12 August 2023 21:37

Review with rating of 5 out of 5 stars

bmw_power6

Tip top 👍 Nichts zu bemängeln, top 👍

1 April 2022 11:34

Review with rating of 5 out of 5 stars

Herv&#233; D

pieces de qualité , se monte parfaitement . un schéma de montage pourais éventuelement etre fourni avec, merci cordialement hervé

28 April 2023 10:05

Review with rating of 5 out of 5 stars

Choong Yong L

Delivery was late, but product quality is good. It is yet to be installed, but I expect it to fit well. Thank you for the good quality sale.

  • Can I also use other brake discs as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information: https://epytec.de/uk/custom-made-products/brake-technology/adapters-for-brake-systems

  • Can I also use other brake calipers as specified in the required components?
  • No, unfortunately that is not possible. The reason is simply: all brake calipers have different heights and depths. If another brake disc is installed, the brake caliper would either not fit on the adapter or not run in the middle of the brake disc. But if you want to install a different brake caliper, we also have an option for you. You can have a custom-made product made for you, take a look at the following link for more information:
